2AYVT-E3-ENEye Massager

页码目录更新 蓝牙名称变更 20201020 增加海外认证用警告用语 20210413 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. The appliace must only be supplied at safety extra low voltage corresponding to the marking on the appliance. Do not expose the appliance or battery to excessive temperatures. This appliance contains batteries that are non-replaceable. When the battery is at end of life, the appliance shall be properly disposed of. The appliance has a heated surface. Persons insensitive to heat must be careful when using the appliance. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. Notes: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the f ollowing measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. This product must not be disposed together with the domestic waste. This product has to be disposed at an authorized place for recycling of electrical and electronic appliances. By collecting and recycling waste, you help save natural resources, and make sure the product is disposed in an environmental friendly and healthy way.

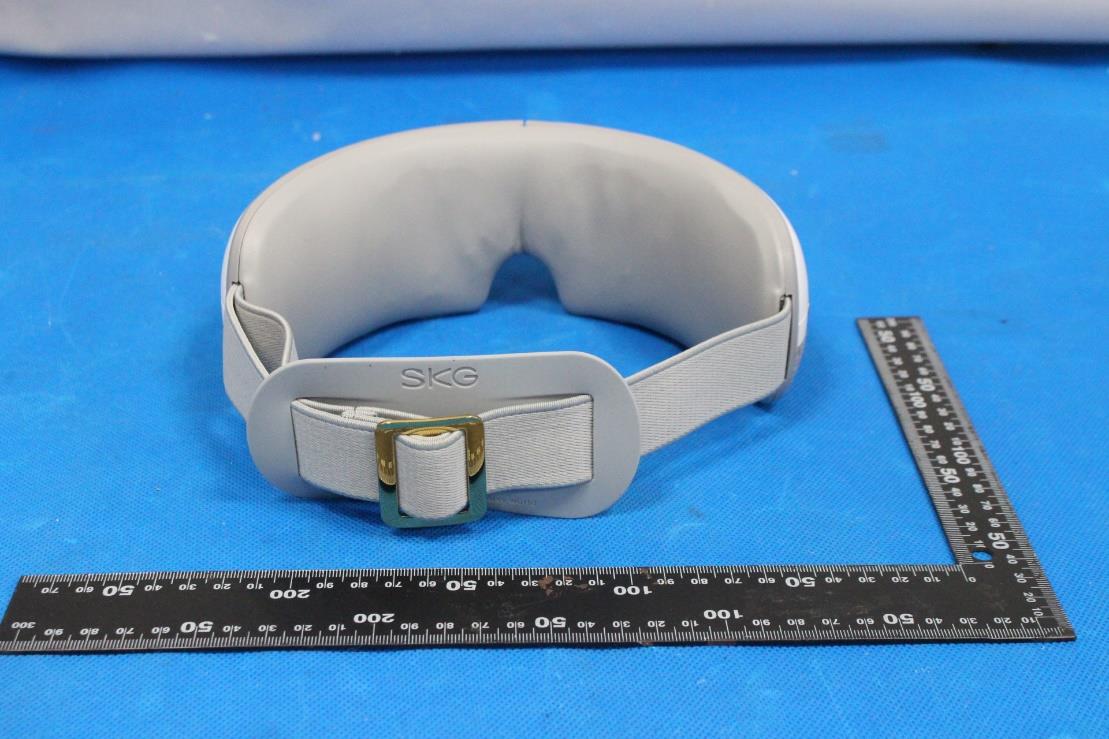

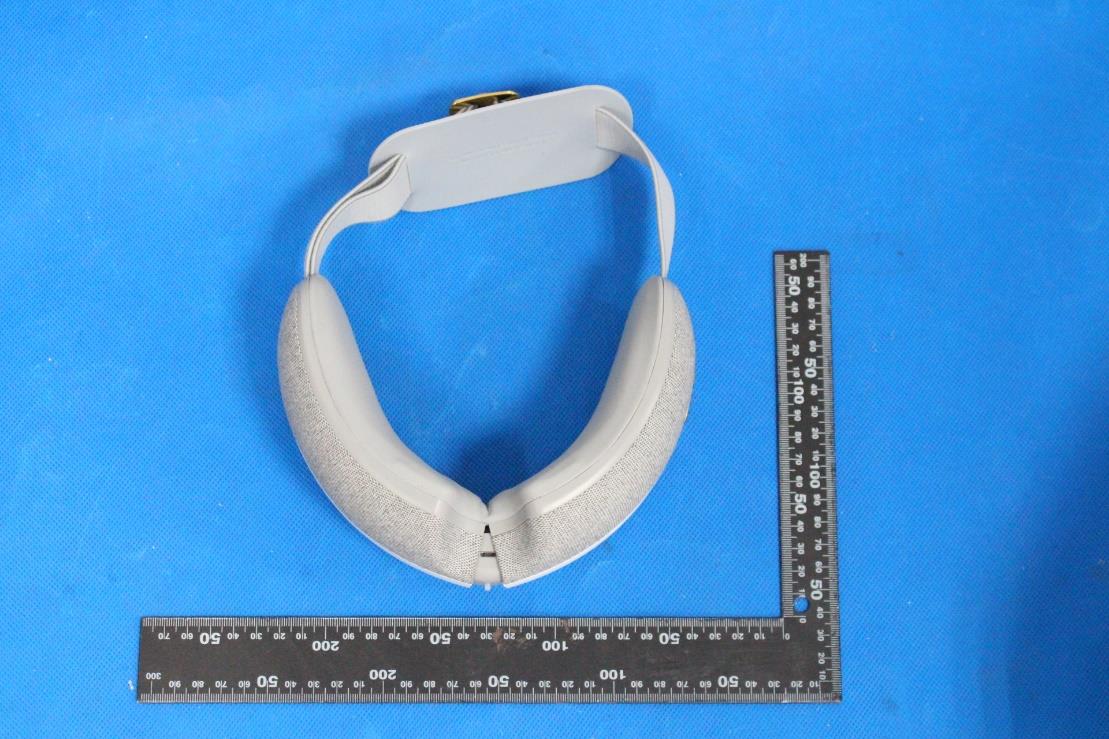

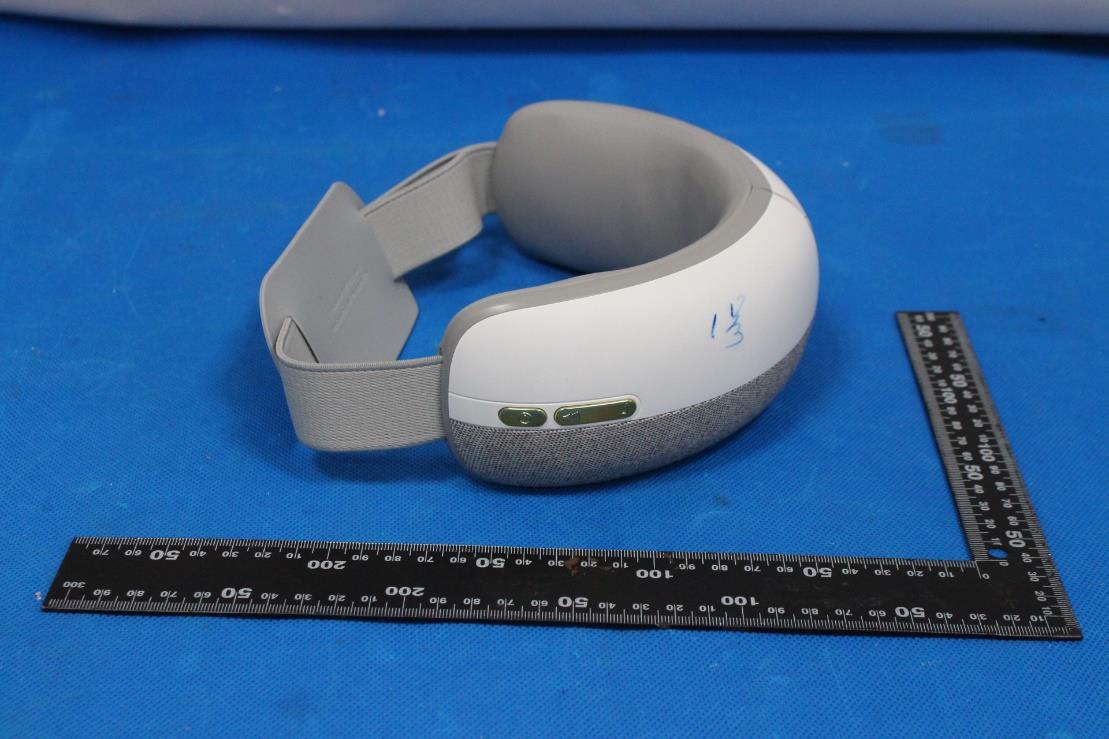

External Photo

Internal Photo antenna

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100051103 Page: 1 of 9 FCC ID: 2AYVT-E3-EN Kobe Jian EMC Laboratory Manager RF Exposure Evaluation Report Application No.: GZEM2101000511CR Applicant: Wear Future Technologies Co., LTD Address of Applicant: 23A Floor, Building 3, Zhongke R&D Park, No.009, Gaoxin South 1st Road, High-tech Zone Community, Yuehai Street, Shenzhen City, Guangdong Province, P.R.China Manufacturer: Wear Future Technologies Co., LTD Address of Manufacturer: 23A Floor, Building 3, Zhongke R&D Park, No.009, Gaoxin South 1st Road, High-tech Zone Community, Yuehai Street, Shenzhen City, Guangdong Province, P.R.China Factory: Wear Future Technologies Co., LTD Address of Factory: 23A Floor, Building 3, Zhongke R&D Park, No.009, Gaoxin South 1st Road, High-tech Zone Community, Yuehai Street, Shenzhen City, Guangdong Province, P.R.China Equipment Under Test (EUT): FCC ID: 2AYVT-E3-EN EUT Name: Eye Massager Model No.: E3-EN Trade mark: SKG Standard(s) : 47 CFR Part 1.1307 KDB447498D01 General RF Exposure Guidance v06 Date of Receipt: 2021-01-22 Date of Test: 2021-01-25 to 2021-03-07 Date of Issue: 2021-03-10 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100051103 Page: 2 of 9 Revision Record Version Chapter Date Modifier Remark 01 2021-03-10 Original Authorized for issue by: Tested By Lily Kuang/Project Engineer Reviewed By Ricky Liu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100051103 Page: 3 of 9 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result RF Exposure 47 CFR Part 1.1307, KDB 447498 KDB 447498 47 CFR Part 1.1307 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100051103 Page: 4 of 9 3 Contents Page 1 Cover Page ......................................................................................................................................... 1 2 Test Summary ..................................................................................................................................... 3 3 Contents ............................................................................................................................................. 4 4 General Information............................................................................................................................ 5 4.1 Details of E.U.T. ........................................................................................................................... 5 4.2 Test Location ............................................................................................................................... 5 4.3 Test Facility .................................................................................................................................. 6 4.4 Deviation from Standards ............................................................................................................. 7 4.5 Abnormalities from Standard Conditions ....................................................................................... 7 5 Radio Spectrum Technical Requirement ........................................................................................... 8 5.1 RF Exposure ............................................................................................................................... 8 5.1.1 Test Requirement: ................................................................................................................... 8 5.1.2 Conclusion ............................................................................................................................... 8 6 EUT Constructional Details (EUT Photos) ......................................................................................... 9 SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100051103 Page: 5 of 9 4 General Information 4.1 Details of E.U.T. Power Supply: Powered by built-in battery as below: Rated: DC 3.7V,1100mAh DC 5V for charging mode Cable: AC mains (unshielded, 0.8m) Antenna Gain: -0.58dBi Antenna Type: Integrated antenna Channel Spacing: 1MHz Modulation Type: GFSK, π/4DQPSK- Number of Channels: 79 Operation Frequency: 2402MHz to 2480MHz Spectrum Spread Technology: Frequency Hopping Spread Spectrum(FHSS) Hardware Version: FJ235-MAIN Firmware Version: V1.00 S/N: SP-2021031001 Test Software Version: BT_Tool V1.2.1 Power setting level -1 dBm can not changed by user 4.2 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou Branch EMC Laboratory, 198 Kezhu Road, Scientech Park, Guangzhou Economic & Technology Development District, Guangzhou, China 510663 Tel: +86 20 82155555 Fax: +86 20 82075059 No tests were sub-contracted. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100051103 Page: 6 of 9 4.3 Test Facility The test facility is recognized, certified, or accredited by the following organizations: ● NVLAP (Lab Code: 200611-0) SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou EMC Laboratory is accredited by the National Voluntary Laboratory Accreditation Program (NVLAP/NIST). NVLAP Code: 200611-0. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. ● ACMA SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory can also perform testing for the Australian/New Zealand Regulatory Compliance Mark (RCM). ● SGS UK(Certificate No.: 32), SGS-TUV SAARLAND and SGS-FIMKO Have approved SGS-CSTC Standards Technical Services Co., Ltd., EMC Laboratory as a supplier of EMC TESTING SERVICES and SAFETY TESTING SERVICES. ● CNAS (Lab Code: L0167) SGS-CSTC Standards Technical Services …

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100051101 Page: 1 of 86 FCC ID: 2AYVT-E3-EN Kobe Jian EMC Laboratory Manager TEST REPORT Application No.: GZEM2101000511CR Applicant: Wear Future Technologies Co., LTD Address of Applicant: 23A Floor, Building 3, Zhongke R&D Park, No.009, Gaoxin South 1st Road, High-tech Zone Community, Yuehai Street, Shenzhen City, Guangdong Province, P.R.China Manufacturer: Wear Future Technologies Co., LTD Address of Manufacturer: 23A Floor, Building 3, Zhongke R&D Park, No.009, Gaoxin South 1st Road, High-tech Zone Community, Yuehai Street, Shenzhen City, Guangdong Province, P.R.China Factory: Wear Future Technologies Co., LTD Address of Factory: 23A Floor, Building 3, Zhongke R&D Park, No.009, Gaoxin South 1st Road, High-tech Zone Community, Yuehai Street, Shenzhen City, Guangdong Province, P.R.China Equipment Under Test (EUT): EUT Name: Eye Massager Model No.: E3-EN Trade mark: SKG Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2021-01-22 Date of Test: 2021-01-25 to 2021-03-07 Date of Issue: 2021-03-10 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100051101 Page: 2 of 86 Revision Record Version Chapter Date Modifier Remark 01 2021-03-10 Original Authorized for issue by: Tested By Lily Kuang/Project Engineer Reviewed By Ricky Liu/Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100051101 Page: 3 of 86 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Other requirements Frequency Hopping Spread Spectrum System Hopping Sequence 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.247(a)(1),(g),(h) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.1 47 CFR Part 15, Subpart C 15.247(b)(3) Pass 20dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.7 47 CFR Part 15, Subpart C 15.247(a)(1) Pass Carrier Frequencies Separation 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.2 47 CFR Part 15, Subpart C 15.247a(1) Pass Hopping Channel Number 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.3 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Dwell Time 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.4 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass SGS-CSTC Standards Technical Services Co., Ltd. Guangzhou Branch Report No.: GZEM210100051101 Page: 4 of 86 3 Contents Page 1 Cover Page ......................................................................................................................................... 1 2 Test Summary ..................................................................................................................................... 3 3 Contents ............................................................................................................................................. 4 4 General Information............................................................................................................................ 6 4.1 Details of E.U.T. ........................................................................................................................... 6 4.2 Description of Support Units ......................................................................................................... 6 4.3 Measurement Uncertainty ............................................................................................................ 6 4.4 Test Location ............................................................................................................................... 7 4.5 Test Facility .................................................................................................................................. 7 4.6 Deviation from Standards ............................................................................................................. 8 4.7 Abnormalities from Standard Conditions ....................................................................................... 8 5 Equipment List ................................................................................................................................... 9 6 Radio Spectrum Technical Requirement ..........................................................................................12 6.1 Antenna Requirement .................................................................................................................12 6.1.1 Test Requirement: ..................................................................................................................12 6.1.2 Conclusion ..............................................................................................................................12 6.2 Other requirements Frequency Hopping Spread Spectrum System Hopping Sequence ...............13 6.2.1 Test Requ…

Text truncated - open the document above for the full version.

Test Setup Photo v Conducted test Conducted Emissions at AC Power Line (150kHz-30MHz) Radiated Emissions which fall in the restricted bands & Radiated Emissions
