2AYVT-SKGBLEXK01Bluetooth Module

Name：SKGBLEXK01SpecificationItem： Type：GVersion：V1.0Owner：R&DSecuritylevel：Internalpublish AllthecontentsinthisfilebelongstoSKGHealthTechnologiesCo.,Ltd.Anditssubsidiarycorporation,Nocopybeen AllowedbeforeauthorizedbySKG. FormNo.:FSCI-SC-S-01-005Rev.01Page1of7 ChangeRecord VersionImplementingDateChangeReasonChangeDescriptionDrafter 1.02022.7.28InitialInitialYulunZhu SKGBLEXK01Specification Name：SKGBLEXK01SpecificationItem： Type：GVersion：V1.0Owner：R&DSecuritylevel：Internalpublish AllthecontentsinthisfilebelongstoSKGHealthTechnologiesCo.,Ltd.Anditssubsidiarycorporation,Nocopybeen AllowedbeforeauthorizedbySKG. FormNo.:FSCI-SC-S-01-005Rev.01Page2of7 Catalogue 1Parameter..........................................................................................................................3 2ApplyTo.............................................................................................................................3 3DefinitionOfChipPins....................................................................................................4 4RelatedRecord.................................................................................................................4 5Externalinfo.&Function.................................................................................................5 6FCC&ICStatement..........................................................................................................6 Name：SKGBLEXK01SpecificationItem： Type：GVersion：V1.0Owner：R&DSecuritylevel：Internalpublish AllthecontentsinthisfilebelongstoSKGHealthTechnologiesCo.,Ltd.Anditssubsidiarycorporation,Nocopybeen AllowedbeforeauthorizedbySKG. FormNo.:FSCI-SC-S-01-005Rev.01Page3of7 1Parameter ChipModel EFR32BG22C112F352GM32-C OperationVoltage 3.3V OperationFrequency 2402MHz～2480MHz TransmittingPower 0dbm ReceiveSensitivity -98.9dBmsensitivity@1Mbit/sGFSK -96.2dBmsensitivity@2Mbit/sGFSK RAM32KB FLASH512KB QuantityofGPIO18 FrequencyofCrystal38.4MHz ModuleSize11.6*16.4*2.2mm PackagingTypeSMT OperatingTemperature -40°C～+85°C StorageTemperature -40°C～+125°C AntennaGain（peak） 2.64dBi 2ApplyTo AlltheBluetoothproductsofSKG Name：SKGBLEXK01SpecificationItem： Type：GVersion：V1.0Owner：R&DSecuritylevel：Internalpublish AllthecontentsinthisfilebelongstoSKGHealthTechnologiesCo.,Ltd.Anditssubsidiarycorporation,Nocopybeen AllowedbeforeauthorizedbySKG. FormNo.:FSCI-SC-S-01-005Rev.01Page4of7 3DefinitionOfChipPins 4RelatedRecord ItemFormNumberFormNameDepartmentRecordRetentiontime NANANANANA NANANANANA Name：SKGBLEXK01SpecificationItem： Type：GVersion：V1.0Owner：R&DSecuritylevel：Internalpublish AllthecontentsinthisfilebelongstoSKGHealthTechnologiesCo.,Ltd.Anditssubsidiarycorporation,Nocopybeen AllowedbeforeauthorizedbySKG. FormNo.:FSCI-SC-S-01-005Rev.01Page5of7 5Externalinfo.&Function 5.1Hardware&FirmwareVersion BluetoothModulemodelnumberSKGBLEXK01 HardwareversionH1.1 FirmwareVersionV1.0 5.2ExternalApperanceAndParameterRequirements MainboardPCBexternalsize：16.4mm(Length)*11.6mm(Width),Tolerance：±0.1mm； PCBThickness:1.2mm,Tolerance：±0.12mm。WholeHeight(includeShieldedenclosure):2.2mm。 Name：SKGBLEXK01SpecificationItem： Type：GVersion：V1.0Owner：R&DSecuritylevel：Internalpublish AllthecontentsinthisfilebelongstoSKGHealthTechnologiesCo.,Ltd.Anditssubsidiarycorporation,Nocopybeen AllowedbeforeauthorizedbySKG. FormNo.:FSCI-SC-S-01-005Rev.01Page6of7 6FCC&ICStatement FCCStatement : Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesired operation. AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoid theuser'sauthoritytooperatetheequipment. Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice, pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainst harmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcanradiateradio frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful interferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurina particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception, whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe interferencebyoneormoreofthefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp. FCCRadiationExposureStatement ThismodularcomplieswithFCCRFradiationexposurelimitssetforthforanuncontrolledenvironment. Thistransmittermustnotbeco-locatedoroperatinginconjunctionwithanyotherantennaortransmitter. ThemoduleislimitedtoOEMinstallationonly TheOEMintegratorisresponsibleforensuringthattheend-userhasnomanualinstructionstoremoveor installmodule IftheFCCidentificationnumberisnotvisiblewhenthemoduleisinstalledinsideanotherdevice,thenthe outsideofthedeviceintowhichthemoduleisinstalledmustalsodisplayalabelreferringtotheenclosed module.Thisexteriorlabelcanusewordingsuchasthefollowing:ContainsTransmitterModule FCCID:2AYVT-SKGBLEXK01OrContainsFCCID:2AYVT-SKGBLEXK01 Whenthemoduleisinstalledinsideanotherdevice,theusermanualofthehostmustcontainbelow warningstatements; 1.ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo conditions: (1)Thisdevicemaynotcauseharmfulinterference. (2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesired operation. 2.Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoid Name：SKGBLEXK01SpecificationItem： Type：GVersion：V1.0Owner：R&DSecuritylevel：Internalpublish AllthecontentsinthisfilebelongstoSKGHealthTechnologiesCo.,Ltd.Anditssubsidiarycorporation,Nocopybeen AllowedbeforeauthorizedbySKG. Fo…

Text truncated - open the document above for the full version.

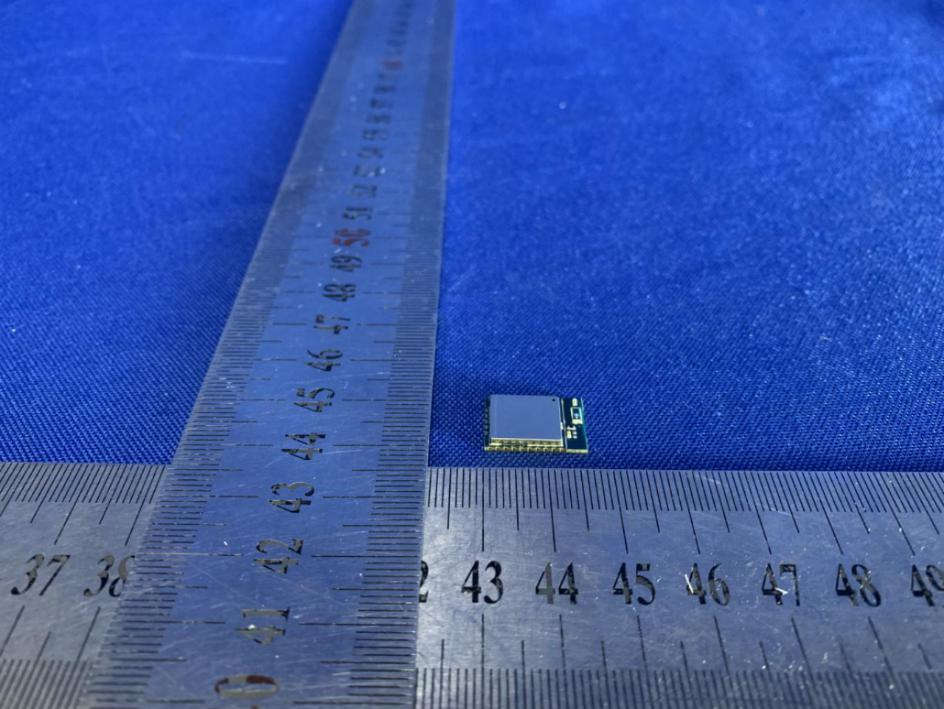

ReportNo.:EED32O81133401Page 35 of 40 10PHOTOGRAPHSOFEUTConstructionalDetails TestModelNo.:SKGBLEXK01 ViewofProduct-1 ViewofProduct-2 ReportNo.:EED32O81133401Page 36 of 40 ViewofProduct-3 ViewofProduct-4 ReportNo.:EED32O81133401Page 37 of 40 ViewofProduct-5 ViewofProduct-6 ReportNo.:EED32O81133401Page 38 of 40 ViewofProduct-7 ViewofProduct-8

100% 10.0 11.6 更改内容 版本 绘制时间 公差范围 结构设计 标 准 化 审 定 签字日期产品名称 部件名称用量: 第 页(共 页)单位: mm比例: 1/1 A1版本号: 蓝牙模块_ SKGBLEXK01 镭雕 未来穿戴健康科技股份有限公司 平面设计 产品经理 项目管理 ZJH 2022-07-01 ZJH 2022-07-01 物料编码 1 pcs/套 技术要求： 型号 /Model：SKGBLEXK01 FCC ID：2AYVT-SKGBLEXK01 IC：28042-SKGBLEXK01 CMIIT ID：XXXXXXXXXX SKG Health Technologies Co.,Ltd. 未来穿戴健康科技股份有限公司

ReportNo.:EED32O81133401Page 39 of 40 ViewofProduct-9 ViewofProduct-10 ReportNo.:EED32O81133401Page 40 of 40 ViewofProduct-11 Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,theresult(s)showninthis reportreferonlytothesample(s)tested.WithoutwrittenapprovalofCTI,thisreportcan’tbereproduced exceptinfull. ***EndofReport***

ReportNo.:EED32O81133402Page1of8 1COVERPAGE RFExposureEvaluationReport Product:BluetoothModule Trademark : SKG Model/Typereference : SKGBLEXK01 SerialNumber : N/A ReportNumber : EED32O81133402 FCCID : 2AYVT-SKGBLEXK01 DateofIssue : Aug.18,2022 TestStandards : 47CFRPart1.1307 47CFRPart2.1093 KDB447498D01GeneralRF ExposureGuidancev06 Testresult:PASS Preparedfor: SKGHealthTechnologiesCo.,Ltd. 23AFloor,Building3,ZhongkeR&DPark,No.009, GaoxinSouth1stRoad,High-techZoneCommunity, Yuehaistreet,NanshanDistrict,ShenzhenCity, GuangdongProvince,P.R.China Preparedby : CentreTestingInternationalGroupCo.,Ltd. HongweiIndustrialZone,Bao’an70District, Shenzhen,Guangdong,China TEL:+86-755-33683668 FAX:+86-755-33683385 Compiledby:Reviewedby: MarkChenTomChen Approvedby:Dateofissue:Aug.18,2022 AaronMa CheckNo.:8026280722 ReportNo.:EED32O81133402Page2of8 2Version VersionNo.DateDescription 00Aug.18,2022Original ReportNo.:EED32O81133402Page3of8 3Contents Page 1COVERPAGE....................................................................................................................................................................1 2VERSION.............................................................................................................................................................................1 3CONTENTS.........................................................................................................................................................................3 4GENERALINFORMATION..............................................................................................................................................4 4.1C LIENT I NFORMATION ...................................................................................................................................................4 4.2G ENERAL D ESCRIPTIONOF EUT................................................................................................................................4 4.3P RODUCT S PECIFICATIONSUBJECTIVETOTHISSTANDARD .......................................................................................4 4.4T EST L OCATION ............................................................................................................................................................5 4.5D EVIATIONFROM S TANDARDS .....................................................................................................................................5 4.6A BNORMALITIESFROM S TANDARD C ONDITIONS .........................................................................................................5 4.7O THER I NFORMATION R EQUESTEDBYTHE C USTOMER .............................................................................................5 5SAREVALUATION...........................................................................................................................................................6 5.1RFE XPOSURE C OMPLIANCE R EQUIREMENT ..............................................................................................................6 5.1.1StandardRequirement......................................................................................................................................6 5.1.2Limits....................................................................................................................................................................6 5.1.3EUTRFExposure..............................................................................................................................................7 ReportNo.:EED32O81133402Page4of8 4GeneralInformation 4.1ClientInformation Applicant:SKGHealthTechnologiesCo.,Ltd. AddressofApplicant: 23AFloor,Building3,ZhongkeR&DPark,No.009,GaoxinSouth1stRoad,High- techZoneCommunity,Yuehaistreet,NanshanDistrict,ShenzhenCity, GuangdongProvince,P.R.China Manufacturer:SKGHealthTechnologiesCo.,Ltd. AddressofManufacturer: 23AFloor,Building3,ZhongkeR&DPark,No.009,GaoxinSouth1stRoad,High- techZoneCommunity,Yuehaistreet,NanshanDistrict,ShenzhenCity, GuangdongProvince,P.R.China Factory:SKGHealthTechnologiesCo.,Ltd. AddressofFactory: 23AFloor,Building3,ZhongkeR&DPark,No.009,GaoxinSouth1stRoad,High- techZoneCommunity,Yuehaistreet,NanshanDistrict,ShenzhenCity, GuangdongProvince,P.R.China 4.2GeneralDescriptionofEUT ProductName:BluetoothModule ModelNo.(EUT): SKGBLEXK01 TradeMark: SKG 4.3 ProductSpecificationsubjectivetothisstandard FrequencyRange:2402MHz~2480MHz ModulationType:GFSK TestPowerGrade:Default TestSoftwareofEUT:bgtool AntennaType: CeramicAntenna AntennaPeakGain: 2.64dBi PowerSupply: DC3.3V MaxConductedPeak OutputPower: 0.01dBm TheMaxConductedPeakOutputPowerdatarefertothereportEED32O81133401 SampleReceivedDate: Jul.28,2022 SampletestedDate: Jul.28,2022toAug.02,2022 CompanyNameandAddressshownonReport,thesample(s)andsampleInformationwas/wereprovided bytheapplicantwhoshouldberesponsiblefortheauthenticitywhichCTIhasn’tverified. ReportNo.:EED32O81133402Page5of8 4.4TestLocation Alltestswereperformedat: CentreTestingInternationalGroupCo.,Ltd BuildingC,HongweiIndustrialParkBlock70,Bao'anDistrict,Shenzhen,China Telephone:+86(0)75533683668Fax:+86(0)75533683385 Notestsweresub-contracted. FCCDesignationNo.:CN1164 4.5DeviationfromStandards None. 4.6AbnormalitiesfromStandardConditions None. 4.7OtherInformationRequestedbytheCustomer None. ReportNo.:EED32O81133402Page6of8 5SAREvaluation 5.1RFExposureComplianceRequirement 5.1.1StandardRequirement AccordingtoKDB447498D01GeneralRFExposureGuidancev06 StandaloneSARtestexclusionconsiderations UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone1-gheador bodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions,bymeasurementor numericalsimulation,isnotrequiredwhenthecorrespondingSARExclusionThresholdcondition,listed below,issatisfied. 5.1.2Limits The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparationdistances ≤50mmaredeterminedby: [(max.powerofchannel,includingtune-…

Text truncated - open the document above for the full version.

ReportNo.:EED32O81133401Page 1 of 34 Appendix:BLE ReportNo.:EED32O81133401Page 2 of 34 Contents Contents.....................................................................................................................................................................................................2 DutyCycle..................................................................................................................................................................................................3 MaximumPeakConductedOutputPower..................................................................................................................................................7 -6dBBandwidth........................................................................................................................................................................................11 OccupiedChannelBandwidth..................................................................................................................................................................15 MaximumPowerSpectralDensityLevel..................................................................................................................................................19 BandEdge................................................................................................................................................................................................23 ConductedRFSpuriousEmission............................................................................................................................................................28 ReportNo.:EED32O81133401Page 3 of 34 DutyCycle ConditionModeFrequency(MHz)AntennaDutyCycle(%)CorrectionFactor(dB)1/T(kHz) NVNTBLE1M2402Ant162.912.012.54 NVNTBLE1M2440Ant163.012.012.54 NVNTBLE1M2480Ant162.992.012.54 NVNTBLE2M2402Ant133.444.764.78 NVNTBLE2M2440Ant133.444.764.78 NVNTBLE2M2480Ant133.444.764.78 ReportNo.:EED32O81133401Page 4 of 34 TestGraphs DutyCycleNVNTBLE1M2402MHzAnt1 DutyCycleNVNTBLE1M2440MHzAnt1 ReportNo.:EED32O81133401Page 5 of 34 DutyCycleNVNTBLE1M2480MHzAnt1 DutyCycleNVNTBLE2M2402MHzAnt1 ReportNo.:EED32O81133401Page 6 of 34 DutyCycleNVNTBLE2M2440MHzAnt1 DutyCycleNVNTBLE2M2480MHzAnt1 ReportNo.:EED32O81133401Page 7 of 34 MaximumPeakConductedOutputPower ConditionMode Frequency (MHz) Antenna ConductedPower (dBm) DutyFactor(dB) TotalPower (dBm) Limit (dBm) Verdict NVNT BLE 1M 2402Ant1-0.610-0.6130Pass NVNT BLE 1M 2440Ant10.0100.0130Pass NVNT BLE 1M 2480Ant1-0.010-0.0130Pass NVNT BLE 2M 2402Ant1-0.150-0.1530Pass NVNT BLE 2M 2440Ant100030Pass NVNT BLE 2M 2480Ant1-0.020-0.0230Pass ReportNo.:EED32O81133401Page 8 of 34 TestGraphs PeakPowerNVNTBLE1M2402MHzAnt1 PeakPowerNVNTBLE1M2440MHzAnt1 ReportNo.:EED32O81133401Page 9 of 34 PeakPowerNVNTBLE1M2480MHzAnt1 PeakPowerNVNTBLE2M2402MHzAnt1 ReportNo.:EED32O81133401Page 10 of 34 PeakPowerNVNTBLE2M2440MHzAnt1 PeakPowerNVNTBLE2M2480MHzAnt1 ReportNo.:EED32O81133401Page 11 of 34 -6dBBandwidth ConditionModeFrequency(MHz)Antenna-6dBBandwidth(MHz)Limit-6dBBandwidth(MHz)Verdict NVNTBLE1M2402Ant10.6520.5Pass NVNTBLE1M2440Ant10.6510.5Pass NVNTBLE1M2480Ant10.650.5Pass NVNTBLE2M2402Ant11.160.5Pass NVNTBLE2M2440Ant11.160.5Pass NVNTBLE2M2480Ant11.1590.5Pass ReportNo.:EED32O81133401Page 12 of 34 TestGraphs -6dBBandwidthNVNTBLE1M2402MHzAnt1 -6dBBandwidthNVNTBLE1M2440MHzAnt1 ReportNo.:EED32O81133401Page 13 of 34 -6dBBandwidthNVNTBLE1M2480MHzAnt1 -6dBBandwidthNVNTBLE2M2402MHzAnt1 ReportNo.:EED32O81133401Page 14 of 34 -6dBBandwidthNVNTBLE2M2440MHzAnt1 -6dBBandwidthNVNTBLE2M2480MHzAnt1 ReportNo.:EED32O81133401Page 15 of 34 OccupiedChannelBandwidth ConditionModeFrequency(MHz)Antenna99%OBW(MHz) NVNTBLE1M2402Ant11.017 NVNTBLE1M2440Ant11.018 NVNTBLE1M2480Ant11.018 NVNTBLE2M2402Ant12.014 NVNTBLE2M2440Ant12.015 NVNTBLE2M2480Ant12.014 ReportNo.:EED32O81133401Page 16 of 34 TestGraphs OBWNVNTBLE1M2402MHzAnt1 OBWNVNTBLE1M2440MHzAnt1 ReportNo.:EED32O81133401Page 17 of 34 OBWNVNTBLE1M2480MHzAnt1 OBWNVNTBLE2M2402MHzAnt1 ReportNo.:EED32O81133401Page 18 of 34 OBWNVNTBLE2M2440MHzAnt1 OBWNVNTBLE2M2480MHzAnt1 ReportNo.:EED32O81133401Page 19 of 34 MaximumPowerSpectralDensityLevel ConditionMode Frequency (MHz) Antenna ConductedPSD (dBm/3kHz) DutyFactor (dB) TotalPSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT BLE 1M 2402Ant1-15.510-15.518Pass NVNT BLE 1M 2440Ant1-14.880-14.888Pass NVNT BLE 1M 2480Ant1-14.920-14.928Pass NVNT BLE 2M 2402Ant1-18.260-18.268Pass NVNT BLE 2M 2440Ant1-18.130-18.138Pass NVNT BLE 2M 2480Ant1-18.130-18.138Pass ReportNo.:EED32O81133401Page 20 of 34 TestGraphs PSDNVNTBLE1M2402MHzAnt1 PSDNVNTBLE1M2440MHzAnt1 ReportNo.:EED32O81133401Page 21 of 34 PSDNVNTBLE1M2480MHzAnt1 PSDNVNTBLE2M2402MHzAnt1 ReportNo.:EED32O81133401Page 22 of 34 PSDNVNTBLE2M2440MHzAnt1 PSDNVNTBLE2M2480MHzAnt1 ReportNo.:EED32O81133401Page 23 of 34 BandEdge ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant1-44.55-20Pass NVNTBLE1M2480Ant1-44.27-20Pass NVNTBLE2M2402Ant1-34.97-20Pass NVNTBLE2M2480Ant1-44.03-20Pass ReportNo.:EED32O81133401Page 24 of 34 TestGraphs BandEdgeNVNTBLE1M2402MHzAnt1Ref BandEdgeNVNTBLE1M2402MHzAnt1Emission ReportNo.:EED32O81133401Page 25 of 34 BandEdgeNVNTBLE1M2480MHzAnt1Ref BandEdgeNVNTBLE1M2480MHzAnt1Emission ReportNo.:EED32O81133401Page 26 of 34 BandEdgeNVNTBLE2M2402MHzAnt1Ref BandEdgeNVNTBLE2M2402MHzAnt1Emission ReportNo.:EED32O81133401Page 27 of 34 BandEdgeNVNTBLE2M2480MHzAnt1Ref BandEdgeNVNTBLE2M2480MHzAnt1Emission ReportNo.:EED32O81133401Page 28 of 34 ConductedRFSpuriousEmission ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant1-47.67-20Pass NVNTBLE1M2440Ant1-48.29-20Pass NVNTBLE1M2480Ant1-48.08-20Pass NVNTBLE2M2402Ant1-46.63-20Pass NVNTBLE2M2440Ant1-47.95-20Pass NVNTBLE2M2480Ant1-47.53-20Pass ReportNo.:EED32O81133401Page 29 of 34 TestGraphs Tx.SpuriousNVNTBLE1M2402MHzAnt1Ref Tx.SpuriousNVNTBLE1M2402MHzAnt1Emission ReportNo.:EED32O81133401Page 30 of 34 Tx.SpuriousNVNTBLE1M2440MHzAnt1Ref …

Text truncated - open the document above for the full version.

ReportNo.:EED32O81133401Page1of40 1 COVERPAGE TESTREPORT Product:BluetoothModule Trademark:SKG Model/Typereference:SKGBLEXK01 SerialNumber:N/A ReportNumber:EED32O81133401 FCCID:2AYVT-SKGBLEXK01 DateofIssue:Aug.18,2022 TestStandards: 47CFRPart15SubpartC Testresult:PASS Preparedfor: SKGHealthTechnologiesCo.,Ltd. 23AFloor,Building3,ZhongkeR&DPark,No.009, GaoxinSouth1stRoad,High-techZoneCommunity, Yuehaistreet,NanshanDistrict,ShenzhenCity, GuangdongProvince,P.R.China Preparedby : CentreTestingInternationalGroupCo.,Ltd. HongweiIndustrialZone,Bao’an70District, Shenzhen,Guangdong,China TEL:+86-755-33683668 FAX:+86-755-33683385 Compiledby:Reviewedby: MarkChenTomChen Approvedby:Dateofissue:Aug.18,2022 AaronMa CheckNo.:8026280722 ReportNo.:EED32O81133401Page 2 of 40 2Content 1COVERPAGE.....................................................................................................................................................................1 2CONTENT............................................................................................................................................................................2 3VERSION.............................................................................................................................................................................3 4TESTSUMMARY...............................................................................................................................................................4 5GENERALINFORMATION...............................................................................................................................................5 5.1C LIENT I NFORMATION ....................................................................................................................................................5 5.2G ENERAL D ESCRIPTIONOF EUT.................................................................................................................................5 5.3T EST C ONFIGURATION ..................................................................................................................................................7 5.4T EST E NVIRONMENT .....................................................................................................................................................7 5.5D ESCRIPTIONOF S UPPORT U NITS ...............................................................................................................................8 5.6T EST L OCATION .............................................................................................................................................................8 5.7M EASUREMENT U NCERTAINTY (95% CONFIDENCELEVELS , K =2).............................................................................8 6EQUIPMENTLIST..............................................................................................................................................................9 7TESTRESULTSANDMEASUREMENTDATA.........................................................................................................11 7.1A NTENNA R EQUIREMENT ............................................................................................................................................11 7.2M AXIMUM C ONDUCTED O UTPUT P OWER ..................................................................................................................12 7.3DTSB ANDWIDTH ........................................................................................................................................................13 7.4M AXIMUM P OWER S PECTRAL D ENSITY .....................................................................................................................14 7.5B AND E DGEMEASUREMENTSAND C ONDUCTED S PURIOUS E MISSION ...................................................................15 7.6R ADIATED S PURIOUS E MISSION &R ESTRICTEDBANDS ...........................................................................................16 8APPENDIXA.....................................................................................................................................................................32 9PHOTOGRAPHSOFTESTSETUP..............................................................................................................................33 10PHOTOGRAPHSOFEUTCONSTRUCTIONALDETAILS...................................................................................35 ReportNo.:EED32O81133401Page 3 of 40 3Version VersionNo.DateDescription 00Aug.18,2022Original ReportNo.:EED32O81133401Page 4 of 40 4TestSummary TestItemTestRequirementResult AntennaRequirement 47CFRPart15SubpartCSection 15.203/15.247(c) PASS ACPowerLineConducted Emission 47CFRPart15SubpartCSection 15.207 N/A DTSBandwidth 47CFRPart15SubpartCSection 15.247(a)(2) PASS MaximumConductedOutput Power 47CFRPart15SubpartCSection 15.247(b)(3) PASS MaximumPowerSpectral Density 47CFRPart15SubpartCSection15.247(e)PASS BandEdgeMeasurements 47CFRPart15SubpartCSection 15.247(d) PASS ConductedSpurious Emissions 47CFRPart15SubpartCSection 15.247(d) PASS RadiatedSpuriousEmission& Restrictedbands 47CFRPart15SubpartCSection 15.205/15.209 PASS Remark: CompanyNameandAddressshownonReport,thesample(s)andsampleInformationwereprovidedbythe applicantwhoshouldberesponsiblefortheauthenticitywhichCTIhasn’tverified. ReportNo.:EED32O81133401Page 5 of 40 5GeneralInformation 5.1ClientInformation Applicant:SKGHealthTechnologiesCo.,Ltd. AddressofApplicant: 23AFloor,Building3,ZhongkeR&DPark,No.009,GaoxinSouth1st Road,High-techZoneCommunity,Yuehaistreet,NanshanDistrict, ShenzhenCity,GuangdongProvince,P.R.China Manufacturer:SKGHealthTechnologiesCo.,Ltd. AddressofManufacturer: 23AFloor,Building3,ZhongkeR&DPark,No.009,GaoxinSouth1st Road,High-techZoneCommunity,Yuehaistreet,NanshanDistrict, ShenzhenCity,GuangdongProvince,P.R.China Factory:SKGHealthTechnologiesCo.,Ltd. AddressofFactory: 23AFloor,Building3,Zhon…

Text truncated - open the document above for the full version.

Approval sheet Page 1 of 9 ASC_RFECA3216060A1T_V07 May. 2013 RFECA Series – RoHS Compliance CERAMIC ANTENNA Halogens Free Product 2.4 GHz ISM Band Working Frequency P/N: RFECA3216060A1T *Contents in this sheet are subject to change without prior notice. Approval sheet Page 2 of 9 ASC_RFECA3216060A1T_V07 May. 2013 FEATURES 1. Surface Mounted Devices with a small dimension of 3.2 X 1.6 X 0.6 mm 3 meet future miniaturization trend. 2. LTCC process. 3. High stability in Temperature / Humidity Change. 4. Superb performance to place on the middle of PCB edge and excellent peak/ average gain observed by field test application. APPLICATIONS 1. ISM Band 2.4GHz applications. 2. Bluetooth.. CONSTRUCTION DIMENSIONS Figure Symbol Dimension (mm) L 3.10 ± 0.20 W 1.60 ± 0.20 T 0.60 ± 0.10 A 0.25 ± 0.20 PIN Connection 1 Feeding 2 Soldering terminal Approval sheet Page 3 of 9 ASC_RFECA3216060A1T_V07 May. 2013 SOLDER LAND PATTERN DESIGN Figure (Empty Space 8.0 mm x 3.0 mm) The limited size for ECA3216 is L>30mm and D>6mm Land Pattern TYPE 1 ELECTRONIC CHARACTERISTICS *Note 1. Central Frequency should be defined after customers’ application approval. Item Specification Working Frequency Range 2.4GHz~2.4835GHz (Note-1) Gain 2 dBi (Typical) VSWR 2.1 max. Polarization Linear Azimuth Beamwidth Omni-directional Impedance 50Ω Approval sheet Page 4 of 9 ASC_RFECA3216060A1T_V07 May. 2013 Antenna on Test Board ( Thickness 0.8mm) Antenna S11 on Test Board Antenna VSWR on Test Board -10.62 dB @ 2.40 GHz -19.34 dB @ 2.45 GHz -9.648 dB @ 2.50 GHz 1.756 @ 2.40 GHz 1.391 @ 2.45 GHz 1.986 @ 2.50 GHz Approval sheet Page 5 of 9 ASC_RFECA3216060A1T_V07 May. 2013 RADIATION PATTERN Radiation Pattern and Gain were dependent on measurement board design. The specification of RFECA3216060A1T antenna was measured based on the PCB size and installation position as shown in the below figure Test Board. Vertical Horizontal Y - Z Plane Average Gain= -1.511 dBi X Cut -40 -30 -20 -10 0 0 30 60 90 120 150 180 210 240 270 300 330 Peak Gain = -2.15 dBi Average Gain = -3.84 dBi X Cut -40 -30 -20 -10 0 0 30 60 90 120 150 180 210 240 270 300 330 Peak Gain= -1.82 dBi Average Gain=-5.33 dBi X - Z Plane Average Gain= -0.571 dBi X Cut -40 -30 -20 -10 0 0 30 60 90 120 150 180 210 240 270 300 330 Peak Gain= 1.02 dBi Average Gain= -2.68 dBi X Cut -40 -30 -20 -10 0 0 30 60 90 120 150 180 210 240 270 300 330 Peak Gain= 0.36 dBi Average Gain= -4.72 dBi X - Y Plane Average Gain= -1.166 dBi X Cut -40 -30 -20 -10 0 0 30 60 90 120 150 180 210 240 270 300 330 Peak Gain= -8.74 dBi Average Gain= -13.63dBi X Cut -40 -30 -20 -10 0 0 30 60 90 120 150 180 210 240 270 300 330 Peak Gain= 2.64dBi Average Gain=-1.42 dBi x Y Z x Y x Y Z X Z X Z Y Z Y Approval sheet Page 6 of 9 ASC_RFECA3216060A1T_V07 May. 2013 RELIABILITY TEST Test item Test condition / Test method Specification Solderability JIS C 0050-4.6 JESD22-B102D *Solder bath temperature：235 ± 5°C *Immersion time：2 ± 0.5 sec Solder：Sn3Ag0.5Cu for lead-free At least 95% of a surface of each terminal electrode must be covered by fresh solder. Leaching (Resistance to dissolution of metallization) IEC 60068-2-58 *Solder bath temperature：260 ± 5°C *Leaching immersion time：30 ± 0.5 sec Solder : SN63A Loss of metallization on the edges of each electrode shall not exceed 25%. Resistance to soldering heat JIS C 0050-5.4 *Preheating temperature：120~150°C, 1 minute. *Solder temperature：270±5°C *Immersion time：10±1 sec Solder：Sn3Ag0.5Cu for lead-free Measurement to be made after keeping at room temperature for 24±2 hrs No mechanical damage. Electrical specification shall satisfy the descriptions in electrical characteristics under the operational temperature range within -40 ~ 85°C. Loss of metallization on the edges of each electrode shall not exceed 25%. Drop Test JIS C 0044 Customer’s specification. *Height：75 cm *Test Surface：Rigid surface of concrete or steel. *Times：6 surfaces for each units；2 times for each side. No mechanical damage. Electrical specification shall satisfy the descriptions in electrical characteristics under the operational temperature range within -40 ~ 85°C. Vibration JIS C 0040 *Frequency：10Hz~55Hz~10Hz(1min) *Total amplitude：1.5mm *Test times：6hrs.(Two hrs each in three mutually perpendicular directions) No mechanical damage. Electrical specification shall satisfy the descriptions in electrical characteristics under the operational temperature range within -40 ~ 85°C. Adhesive Strength of Termination JIS C 0051- 7.4.3 *Pressurizing force： 5N(≦0603)；10N(>0603) *Test time：10±1 sec No remarkable damage or removal of the termination. Approval sheet Page 7 of 9 ASC_RFECA3216060A1T_V07 May. 2013 Bending test JIS C 0051- 7.4.1 The middle part of substrate shall be pressurized by means of the pressurizing rod at a rate of about 1 mm/s per second until the deflection becomes 1mm/s and then pressure shall be maintained for 5±1 sec. Measurement to be made after keeping at room temperature for 24±2 hours No mechanical dama…

Text truncated - open the document above for the full version.
