2AYYK-2640M2IO-Link Wireless Master Module

Data Sheet IO-Link Wireless Master Module KE2640MODA2 DO0401R01 • 4/22/2021 KUNBUS GmbHTable of Contents IO-Link Wireless Master Moduleii Table of Contents 1Disclaimer....................................................................................................................................................3 2Overview.......................................................................................................................................................4 2.1Features................................................................................................................................................4 2.2Application............................................................................................................................................4 3Certification..................................................................................................................................................5 3.1North America Statements (FCC and IC).............................................................................................5 3.2FCC and IC Modular Transmitter Instructions......................................................................................5 4Key Specification.........................................................................................................................................8 5Block Diagram.............................................................................................................................................9 6Typical Application Circuit.........................................................................................................................10 7Pin Assignment...........................................................................................................................................11 8Firmware.......................................................................................................................................................12 9Host Interface...............................................................................................................................................13 10Antenna Gain Setting..................................................................................................................................15 11Layout Guidelines.......................................................................................................................................16 11.1PCB Specification.................................................................................................................................16 11.2Layout...................................................................................................................................................17 12Footprint Indications...................................................................................................................................20 12.1Top View...............................................................................................................................................20 12.2Dimensions...........................................................................................................................................21 13Contact Details............................................................................................................................................22 IO-Link Wireless Master Module3 1Disclaimer © 2021 KUNBUS GmbH, Denkendorf (Germany) The contents of this document have been prepared by KUNBUS GmbH with the utmost care. Due to technical developments, KUNBUS GmbH reserves the right to change or replace the contents of this document without prior notice. You can always obtain the latest version of the user manual at our homepage: www.kunbus.de KUNBUS GmbH shall be liable exclusively to the extent specified in the General Terms and Conditions (www.kunbus.de/agb.html). The contents published in this document are protected by copyright. Any reproduction or use for the user’s in-house requirements is permitted. Reproduction or use for other purposes is not permitted without the express, written consent of KUNBUS GmbH. Contraventions shall result in compensation for damages. Trademark Protection KUNBUS is a registered trademark of KUNBUS GmbH. Disclaimer IO-Link Wireless Master Module4 2Overview KE2640MODA2 is an IO-Link Wireless transceiver module that supports physical layer and data link layer services of the IO-Link Wireless Master as specified in the IO-Link Wireless System Extensions v1.1. The module is capable to serve up to 8 IO-Link Wireless-Devices as one track with a cycle time of 1.664ms. –Integrates two TI Low Energy Wireless MCU CC2640R2F to support all physical layer services of IO-Link Wireless Master –With power amplifier (PA)/low noise amplifier (LNA) to support TX Power range and RX sensi- tivity required for IO-Link Wireless system –SPI interface for the communication with a superior CPU system, in which the higher layers of the IO-Link Wireless specification are implemented –Single-ended RF interface for external antenna –Small form factor (20 mm x 24 mm ) 2.1Features –Supply voltage: 2.5 - 3.3 V –Frequency band: 2401 – 2480 MHz –Maximum transmission power: 10 dBm –Pre-certified for compliance with the following radio frequency regulations –FCC (USA) –IC (Canada) –ETSI EN (Europe) 2.2Application –Single or multi track IO-Link Wireless Master Overview IO-Link Wireless Master Module5 3Certification The KE2640MODA2 module is certified to the standards listed in the following table (with IDs where applicable). Certification BodySpecificationID FCC (USA)Title 47 CFR Part 15 + MPE2AYYK-2640M2 IC (Canada)RSS - 247 Issue 2 + RSS-102 Issue 5 (MPE)26994-2640M2 EN (Europe)ETSI EN 300 328 V2.2.2n/a 3.1North America Statements (FCC and IC) Compliance with Federal Communications Commission (FCC) Rules NOTICE: This device complies with Part 15 of the FCC Rules and with Industry…

Text truncated - open the document above for the full version.

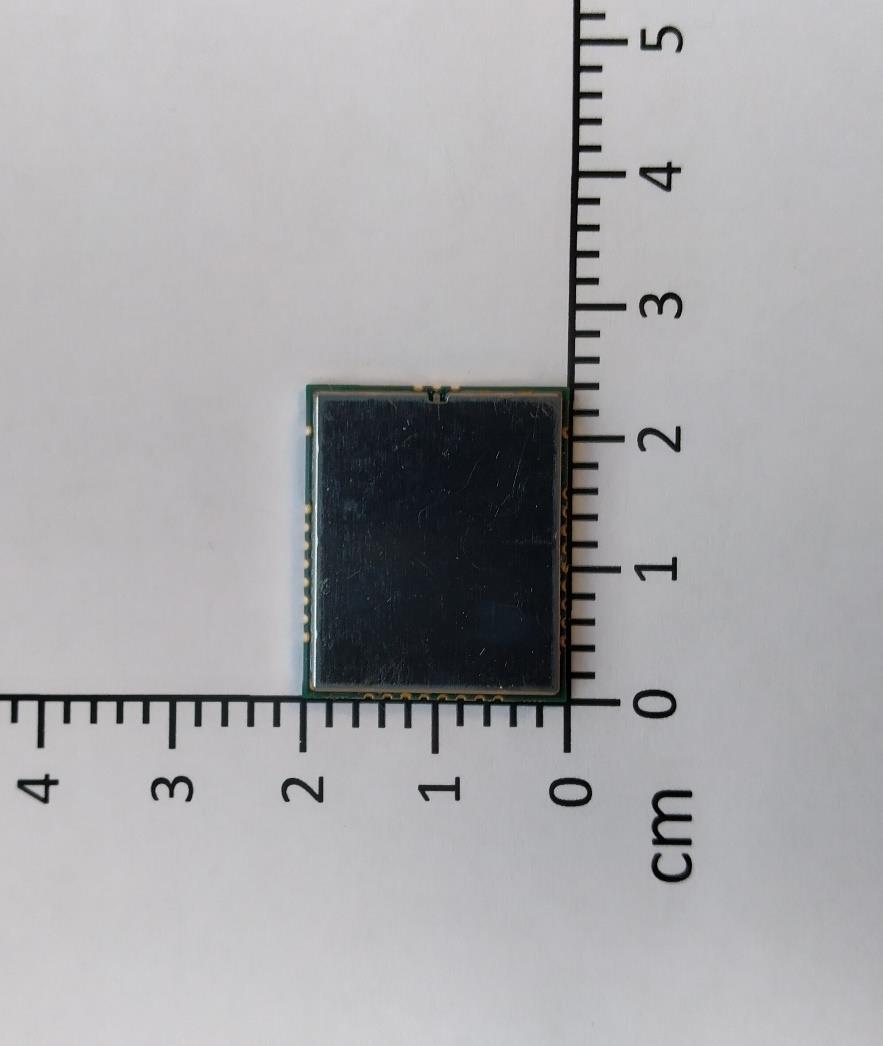

KE2640MODA2 – External Fotos Property of KUNBUS GmbH Heerweg 15c, 73770 Denkendorf, Germany [email protected]

KE2640MODA2 – Label Information Property of KUNBUS GmbH Heerweg 15c, 73770 Denkendorf, Germany [email protected]

KE2640MODA1 – Internal Fotos Property of KUNBUS GmbH Heerweg 15c, 73770 Denkendorf, Germany [email protected]

© CTC advanced GmbH Page 1 of 3 BNetzA - CAB - 02/21 - 102 Maximum Permissible Exposure (MPE) & Exposure evaluation Report identification number: 1-0437/20-01-08-A MPE (FCC_ISED) Certification numbers and labeling requirements FCC ID 2AYYK-2640M2 ISED number 26994-2640M2 HVIN (Hardware Version Identification Number) KE2640MODA2 PMN (Product Marketing Name) IO-Link Wireless Master Module FVIN (Firmware Version Identification Number) -/- HMN (Host Marketing Name) -/- This report is electronically signed and valid without handwriting signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorised: Alexander Hnatovskiy Marco Scigliano Lab Manager Testing Manager Radio Communications & EMC Radio Communications & EMC Report no.: 1-0437/20-01-08-A © CTC advanced GmbH Page 2 of 3 EUT technologies: Technologies: Max. power [dBm] Antenna gain max.: [dBi] * # conducted EIRP DTS 2450 MHz decl.10.0 meas. 8.6 decl. 14.9 meas. 13.5 4.9 A Details and origins of the measurements shown in the table above: # Results from: Additional information A 1-0437/20-01-04 CTC Advanced GmbH Antenna gain page 19, Max conducted page 26 )* worst case of all antenna types, channels and modulations (overrated) Prediction of MPE limit at given distance - FCC Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG / 4π R 2 where: S = Power density P = Power input to the antenna G = Antenna gain R = Distance to the center of radiation of the antenna PG = Output Power including antenna gain The table below is excerpted from Table 1B of 47 CFR 1.1310 titled “Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure” Frequency Range (MHz) Power Density (mW/cm 2 ) Averaging Time (minutes) 300 -1500 f/1500 30 1500 - 100000 1.0 30 where f = Frequency (MHz) Prediction: worst case Technology DTS Frequency 2450 MHz P Declared max power input to the antenna 10 dBm R Distance 20 cm G Antenna gain 4.9 dBi S MPE limit for uncontrolled exposure 1.0000 mW/cm 2 Calculated Power density: 0.0062 mW/cm² Calculated percentage of limit: 0.62% This prediction demonstrates the following: The power density levels for FCC at a distance of 20 cm are below the maximum levels allowed by regulations. Report no.: 1-0437/20-01-08-A © CTC advanced GmbH Page 3 of 3 Prediction of MPE limit at given distance - ISED RSS-102, Issue 5, 2.5.2 RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: • below 20 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1 W (adjusted for tune-up tolerance); • at or above 20 MHz and below 48 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 4.49/ƒ 0.5 W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 48 MHz and below 300 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 0.6 W (adjusted for tune-up tolerance); • at or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10 -2 ƒ 0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 5 W (adjusted for tune-up tolerance). Prediction: worst case DTS Frequency 2450 MHz R Distance 20 cm P Max power input to the antenna 10 dBm G Antenna gain 4.9 dBi P G Maximum EIRP 14.9 dBm P G Maximum EIRP 30.9 mW Exclusion Limit from above: 2.71 W Calculated percentage of Limit: 1.14% Conclusion: RF exposure evaluation is not required.

TEST REPORT Test report no.: 1-0437/20-01-04 Testing laboratory Applicant CTC advanced GmbH Untertuerkheimer Strasse 6 – 10 66117 Saarbruecken / Germany Phone: + 49 681 5 98 - 0 Fax: + 49 681 5 98 - 9075 Internet: https://www.ctcadvanced.com e-mail: [email protected] Accredited Testing Laboratory: The testing laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025 (2018-03) by the Deutsche Akkreditierungsstelle GmbH (DAkkS) The accreditation is valid for the scope of testing procedures as stated in the accreditation certificate starting with the registration number: D-PL-12076-01. KUNBUS GmbH Heerweg 15C 73770 Denkendorf / GERMANY Phone: -/- Contact: Ralf Kaptur e-mail: [email protected] Phone: +49 (711) 40091 620 Manufacturer KUNBUS GmbH Heerweg 15C 73770 Denkendorf / GERMANY Test standard/s FCC - Title 47 CFR Part 15 FCC - Title 47 of the Code of Federal Regulations; Chapter I; Part 15 - Radio frequency devices RSS - 247 Issue 2 Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence - Exempt Local Area Network (LE-LAN) Devices For further applied test standards please refer to section 3 of this test report. Test Item Kind of test item: IO-Link Wireless Master Module Communication Module Model name: KE2640MODA2 FCC ID: 2AYYK-2640M2 IC: 26994-2640M2 Frequency: DTS band 2400 MHz to 2483.5 MHz Technology tested: IO-Link Wireless System Extensions Antenna: Onboard and external antennas Power supply: 3.0 V DC by external power supply Temperature range: -30°C to +85°C This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Test report authorized: Test performed: Michael Dorongovski David Lang Lab Manager Lab Manager Radio Communications Radio Communications Test report no.: 1-0437/20-01-04 © CTC advanced GmbH Page 2 of 60 1 Table of contents 1 Table of contents ............................................................................................................................................. 2 2 General information ......................................................................................................................................... 3 2.1 Notes and disclaimer ............................................................................................................................ 3 2.2 Application details ................................................................................................................................ 3 2.3 Test laboratories sub-contracted ......................................................................................................... 3 3 Test standard/s, references and accreditations .............................................................................................. 4 4 Reporting statements of conformity – decision rule ...................................................................................... 5 5 Test environment ............................................................................................................................................. 5 6 Test item .......................................................................................................................................................... 6 6.1 General description ............................................................................................................................... 6 6.2 Additional information .......................................................................................................................... 6 7 Description of the test setup............................................................................................................................ 7 7.1 Shielded semi anechoic chamber ......................................................................................................... 8 7.2 Shielded fully anechoic chamber .......................................................................................................... 9 7.3 Radiated measurements > 18 GHz ...................................................................................................... 10 7.4 AC conducted ...................................................................................................................................... 11 7.5 Conducted measurements .................................................................................................................. 12 8 Sequence of testing ....................................................................................................................................... 13 8.1 Sequence of testing radiated spurious 9 kHz to 30 MHz ................................................................... 13 8.2 Sequence of testing radiated spurious 30 MHz to 1 GHz .................................................................. 14 8.3 Sequence of testing radiated spurious 1 GHz to 18 GHz ................................................................... 15 8.4 Sequence of testing radiated spurious above 18 GHz ....................................................................... 16 9 Measurement uncertainty .............................................................................................................................. 17 10 Summary of measurement results ............................................................................................................. 18 11 Additional comments ................................................................................................................................. 19 12 Measurement results.................................................................................................................................. 21 12.1 System gain ..................................................................................................................................... 21 12.2 Powe…
