2AZ8M-XTRA2355Digital Cordless Telephone

USER MANUAL Xtra 2355 2 QUICK SETUP Set Language After first time power up (base station is also connected to main power, for details, refer to Section 6.1.2.). Welcome will appear on the screen. Language 123 1. Press on the handset. 2. Press or to select the desired language. 3. Press . Your hear confirmation tones and OK will appear on the screen. (For Duo or Trio version, you just set 1 of handsets, the other handset(s) will be changed accordingly) OR 1. Press on the handset in idle mode. 2. Press or to select HS Setting, then press . 3. Press or to select Date / Time, then press . 4. Press or to select Set Time, then press , Input the day, month, year, then press , input hour (24HR format), and minutes, then press . You hear confirmation tones. Note: if digit is input wrong during input Date or Time, you can press or to select the right position and input correct digit. 3 Package Contents of Xtra 2355 The package contains the following items: 1) Cordless handset 2) Cordless base unit 3) Mains power adaptor 4) Telephone line cord 5) Telephone plug convertor (optional) 6) 3pcs of AAA 500mAh NiMH rechargeable batteries 7) User Guides 8) 4 pcs of spare transparent photo covers The additional duo and trio package contains the following items: • Cordless Handset(s) • Cordless handset charger(s) • Mains power adapter(s) • AAA 500mAh NiMH rechargeable batteries x4 1. 2. 3. 4. 5. 6. 8. 7. 4 Table of Content 1. IMPORTANT SAFETY INSTRUCTIONS ...................................................... 7 2. LOCATION ............................................................................................... 8 3. INSTALLING YOUR PHONE ..................................................................... 8 3.1. Installing and Charging the Batteries .................................................... 8 3.2. Connecting the Base Station .................................................................. 9 4. GETTING TO KNOW YOUR PHONE ........................................................ 10 4.1. Handset Overview ................................................................................... 10 4.2. Base station Overview ............................................................................ 13 4.3. Display Icons and Symbols of LCD .......................................................... 15 5. MENU TREE ............................................................................................. 16 6. USING YOUR PHONE ............................................................................... 18 6.1. Set Date & Time and Language ............................................................. 18 6.1.1. Set Date & Time ...................................................................................... 18 6.1.2. Change language .................................................................................... 18 6.2. Make, Answer, End a Call ....................................................................... 19 6.2.1. Make a Call .............................................................................................. 19 6.2.1.1. Preparatory Dialing ................................................................................ 19 6.2.1.2. Direct Dialing .......................................................................................... 19 6.2.1.3. Call direct memories (A, B, C , D) on base or on handset ..................... 19 6.2.1.4. Call the indirect memories (Key 1 to Key 9) .......................................... 19 6.2.2. Answer a Call .......................................................................................... 19 6.2.3. End a Call ................................................................................................. 19 6.3. Set Photo A, B, C, D key memories ........................................................ 20 6.3.1. Input number and name ........................................................................ 20 6.3.2. Record your own voice tag .................................................................... 20 6.3.3. Play Voice tag .......................................................................................... 20 6.3.4. Delete Voice tag ..................................................................................... 21 6.3.5. View record of Photo memory ............................................................... 21 6.3.6. Edit record of Photo memory ................................................................ 21 6.4. Adjust Earpiece and Handsfree Volume ................................................ 21 6.6. Equalizer .................................................................................................. 22 6.7. Redial ....................................................................................................... 22 7. PHONE SETTINGS .................................................................................... 23 7.1. Set Ringer Melody and Volume ............................................................. 23 7.2. Set Alert Tone ......................................................................................... 23 7.3. Set Date and Time Format ..................................................................... 23 7.4. Talking Digit ............................................................................................ 24 7.5. Change the Flash Time ........................................................................... 24 7.6. Reset Your Phone ................................................................................... 24 7.7. Registration ............................................................................................. 24 7.8. Find the Handset ..................................................................................... 25 7.9. Conference call ....................................................................................... 25 7.10. Transfer a call ..........................................................................…

Text truncated - open the document above for the full version.

Page 1 of 2 Model: Xtra 2355, Xtra 2355 Duo, Xtra 2355 Trio Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Privacy of communications may not be ensured when using this phone. For Handset The device has been tested and comply with FCC SAR limits. For base This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. 1. This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company. 2. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. 3. If this equipment [US: CHLW401AXtra2355] causes harm to the telephone network, the telephone company Page 2 of 2 will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. 4. The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service. 5. If trouble is experienced with this equipment [US: CHLW401AXtra2355], for repair or warranty information, Service can be facilitated through our office at: U.S. Agent Company name: Chillaxcare, LLC Address: P.O. Box 4212 Carmel, IN 46082 United States Tel: +1 (248) 672-9139 Fax: N/A If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved. 6. Please follow instructions for repairing if any (e.g. battery replacement section); otherwise do not alternate or repair any parts of device except specified. For repair procedures, follow the instructions outlined under the limited warranty. 7. Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information. 8. If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this [US: CHLW401AXtra2355] does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. 9. If the telephone company requests information on what equipment is connected to their lines, inform them of: a) The ringer equivalence number [0.1A] b) The USOC jack required [RJ11C] c) Facility Interface Codes (“FIC”) [N/A] d) Service Order Codes (“SOC”) [N/A] e) The FCC Registration Number [US: CHLW401AXtra2355] 10. The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. The REN for this product is part of the product identifier that has the format US: AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point. For this product the FCC Registration number is [US: CHLW401AXtra2355] indicates the REN would be 0.1A. 11.We suggest the customers use a surge arrestor to protect the device. This equipment is hearing aid compatible.

Applicant: Chillax Care Limited Address:Room 118, Flat A, 8/F, William Industrial Building 23-25 Ng Fong Street, San Po Kong,Kowloon Hong Kong Tel: +(852) 96911998 Fax:+(852) 96911998 Email:[email protected] Attestation letter Date: 2026-04-03 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, Chillax Care Limited, have a product Digital Cordless Telephone, model name: Xtra 2355, Xtra 2355 Duo, Xtra 2355 Trio, FCC ID: 2AZ8M-XTRA2355, for the purpose of marketing, this product only supports DECT(1921.536-1928.448 MHz, Modulation: GFSK). The other functions, bands and modes has been shielded by the manufacturer using the software, the end user has no capability to activate it. Sincerely Yours, Signature: Printed Name: Doris Lum Title: Administration Officer

Applicant:ChillaxCareLimited Address:Room118,FlatA,8/F,WilliamIndustrialBuilding23-25NgFongStreet, SanPoKong,KowloonHongKong Tel:+(852)96911998 Fax:+(852)96911998 Email:[email protected] CFR47§2.911(d)(5)(i)AttestationLetter AttestationLetter Date:04/16/2026 FEDERALCOMMUNICATIONSCOMMISSIONS AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Ref:AttestationStatementsCFR47§2.911(d)(5)(i)Filing FCCID:2AZ8M-XTRA2355 ChillaxCareLimitedcertifiesthattheequipmentforwhichauthorizationissought,isnot “covered”equipmentprohibitedfromreceivinganequipmentauthorizationpursuanttosection 2.903oftheFCCrules. SincerelyYours, Signature: PrintedName:DorisLum Title:AdministrationOfficer

Applicant:ChillaxCareLimited Address:Room118,FlatA,8/F,WilliamIndustrialBuilding23-25NgFongStreet, SanPoKong,KowloonHongKong Tel:+(852)96911998 Fax:+(852)96911998 Email:[email protected] CFR47§2.911(d)(5)(ii)AttestationLetter AttestationLetter Date:04/16/2026 FEDERALCOMMUNICATIONSCOMMISSIONS AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Ref:AttestationStatementsCFR47§2.911(d)(5)(ii)Filing FCCID:2AZ8M-XTRA2355 ChillaxCareLimitedcertifiesthatasofthedateofthefilingoftheapplication,theapplicantis notidentifiedontheCoveredListasanentityproducing“covered”equipment.Andourproduct doesnotuseKasperskysoftwareinformation. SincerelyYours, Signature: PrintedName:DorisLum Title:AdministrationOfficer

U.S.AGENTLETTEROFATTESTATION Date:2026-04-16 FEDERALCOMMUNICATIONSCOMMISSION AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Ref:AttestationStatementsCFR47§2.911(d)(7)Filing FCCID:2AZ8M-XTRA2355 ChillaxCareLimitedcertifiesthat,asofthedateofthefilingoftheapplication, IconsighisourdesignatedU.S.agentforserviceofprocessfortheabovereferencedFCC ID.ChillaxCareLimitedacceptstomaintainanagentfornolessthanoneyearafterthe granteehasterminatedallmarketingandimportationortheconclusionofanyCommission- relatedproceedinginvolvingtheequipment. Iconsighaccepts,asofthedateofthefilingoftheapplication,theobligationofthe designatedU.S.agentforserviceofprocessfortheabovereferencedFCCID. DesignatedU.S.AgentInformation: CompanyName:Iconsigh Address:2310HomesteadRoad,SuiteC1,LosAltos,CA,94024,UnitedStates FRN:0033398652 Tel.:+1(408)320-9867 Email:[email protected] Signedby(printedname):BenjaminKaur Signature: Applicant:ChillaxCareLimited Address:Room118,FlatA,8/F,WilliamIndustrialBuilding23-25NgFongStreet, SanPoKong,KowloonHongKong FRN:0031003916 Tel:+(852)96911998 Email:[email protected] Signedby(printedname):DorisLum Signature:

Applicant:ChillaxCareLimited Address:Room118,FlatA,8/F,WilliamIndustrialBuilding23-25NgFongStreet, SanPoKong,KowloonHongKong Tel:+(852)96911998 Fax:+(852)96911998 Email:[email protected] QA-FR-170-B7/29/2014 FCCAuthorization Date:2026-04-16 FEDERALCOMMUNICATIONSCOMMISSIONS AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Subject:AgentAuthorization Towhomitmayconcern: We,ChillaxCareLimited,theundersigned,herebyauthorizesBayAreaCompliance LaboratoriesCorp.(Shenzhen)toactonitsbehalfinallmattersrelatingtoapplicationfor Equipmentauthorization,includingthesigningofalldocumentsrelatingtothesematters. AllactscarriedoutbyBayAreaComplianceLaboratoriesCorp.(Shenzhen)onour behalfshallhavethesameeffectasourownaction. We,theundersigned,herebycertifythatwearenotsubjecttoadenialoffederalbenefits, thatincludesFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseActof1988, 21U.S.C.862. Thisauthorizationisvaliduntilfurtherwrittennoticefromtheapplicant. SincerelyYours, Signature: PrintedName:DorisLum Title:AdministrationOfficer

Applicant:ChillaxCareLimited Address:Room118,FlatA,8/F,WilliamIndustrialBuilding23-25NgFongStreet, SanPoKong,KowloonHongKong Tel:+(852)96911998 Fax:+(852)96911998 Email:[email protected] FCCConfidentialAuthorization Date:2026-04-16 FEDERALCOMMUNICATIONSCOMMISSIONS AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Subject:ConfidentialityRequestregardingapplicationforcertificationof FCCID:2AZ8M-XTRA2355 InaccordancewithSections0.457and0.459oftheCommission’sRules, ChillaxCareLimitedherebyrequestslong-termconfidentialtreatmentofinformation accompanyingthisapplicationasoutlinedbelow: BlockDiagram Schematics OperationDescription Theabovematerialscontainproprietaryandconfidentialinformationnotcustomarily releasedtothepublic.Thepublicdisclosureofthesematerialsprovidesunjustified benefitstoitscompetitorsinthemarket. SincerelyYours, Signature: PrintedName:DorisLum Title:AdministrationOfficer

Applicant:ChillaxCareLimited Address:Room118,FlatA,8/F,WilliamIndustrialBuilding23-25NgFongStreet, SanPoKong,KowloonHongKong Tel:+(852)96911998 Fax:+(852)96911998 Email:[email protected] Date:2026-04-03 DeclarationofAlteration FEDERALCOMMUNICATIONSCOMMISSIONS AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Towhomitmayconcern: We,ChillaxCareLimitedherebydeclarethattherearesomedifferencesbetweenourmultiplemodelsand testedmodel.Detailsasbelow: ProductsName: DigitalCordlessTelephone(FCCID:2AZ8M-XTRA2355) DifferencesDescription ModelsDifferences Xtra23551Handset+1Charger+1Baseunit Xtra2355Duo2Handset+1Charger+1Baseunit Xtra2355Trio3Handset+2Charger+1Baseunit Notes:Allthemodelsareidenticalinelectrically. Xtra2355weretestedbyBayAreaComplianceLaboratoriesCorp.(Shenzhen). Weguaranteealltheinformationprovidedaboveistrue,andnoticethatwe’llbearalltheconsequencescaused byanyfalseinformationorconcealing. BestRegards, Sincerely, Signature: PrintedName:DorisLum Title:AdministrationOfficer

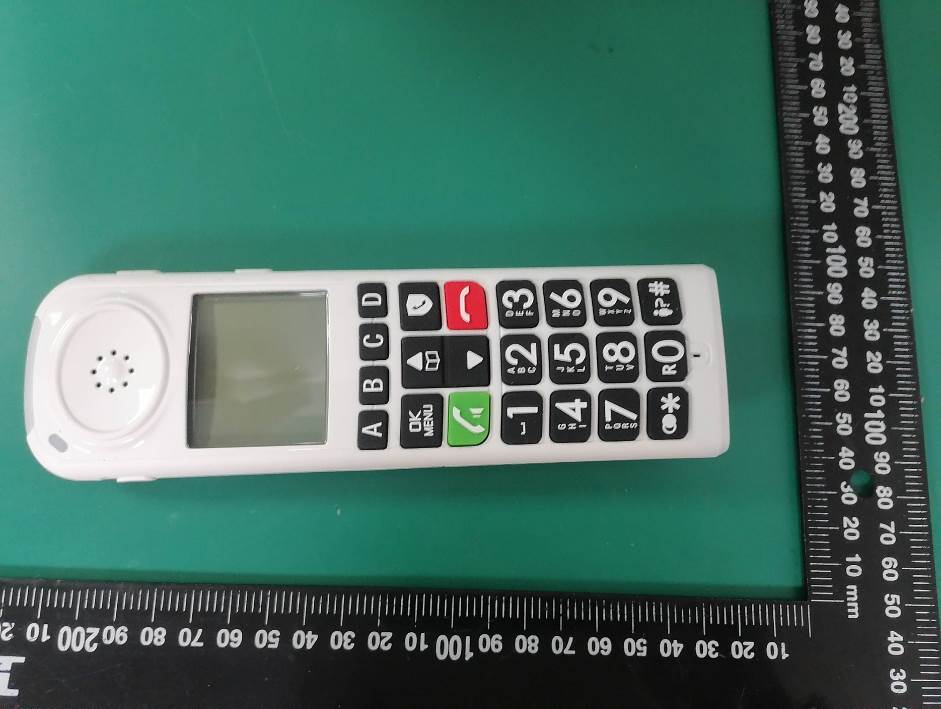

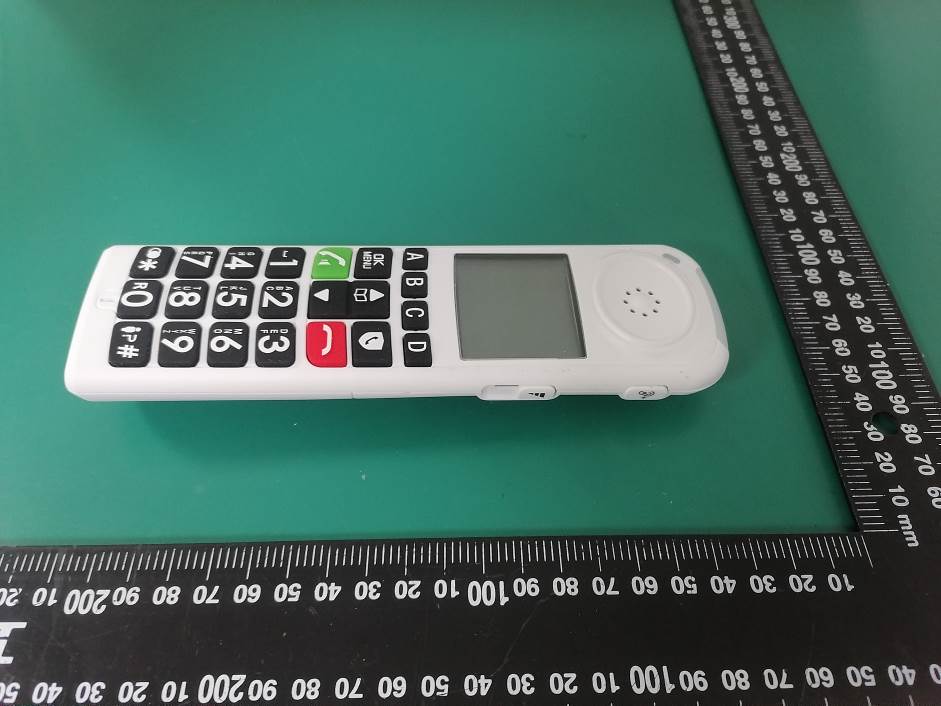

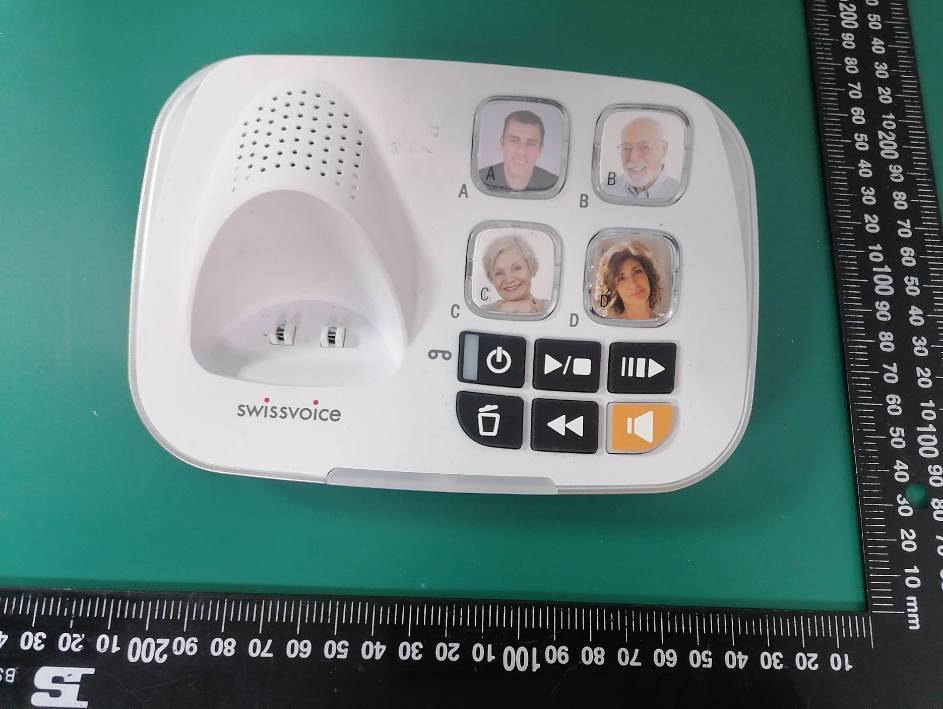

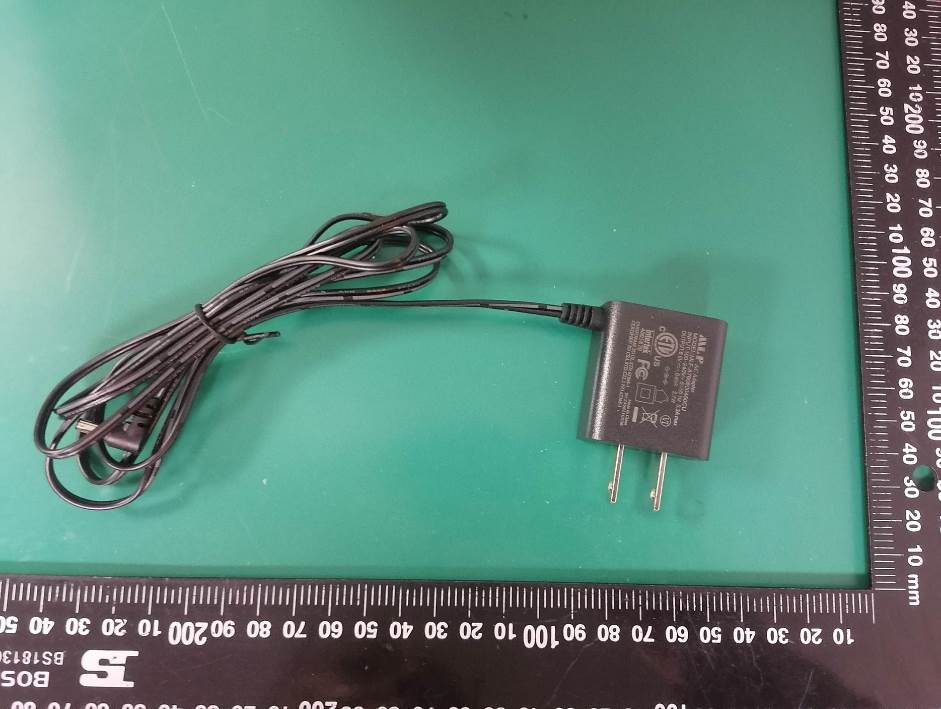

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-EXP Page 1 of 11 EUT EXTERNAL PHOTOGRAPHS FP Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-EXP Page 2 of 11 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-EXP Page 3 of 11 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-EXP Page 4 of 11 PP Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-EXP Page 5 of 11 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-EXP Page 6 of 11 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-EXP Page 7 of 11 Charger Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-EXP Page 8 of 11 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-EXP Page 9 of 11 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-EXP Page 10 of 11 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-EXP Page 11 of 11

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2601Q00137E-RF FCC ID LABEL AND LOCATION FP FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2601Q00137E-RF PP FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-INP Page 1 of 13 EUT INTERNAL PHOTOGRAPHS FP Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-INP Page 2 of 13 ANT Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-INP Page 3 of 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-INP Page 4 of 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-INP Page 5 of 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-INP Page 6 of 13 PP Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-INP Page 7 of 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-INP Page 8 of 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-INP Page 9 of 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-INP Page 10 of 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-INP Page 11 of 13 ANT Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-INP Page 12 of 13 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-INP Page 13 of 13 Charger

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-00A TR-EM-RF020 Page 13 of 69 Version 3.0 FCC §1.1307(b) & §2.1091 - RF EXPOSURE EVALUATION Applicable Standard According to KDB 447498 D04 Interim General RF Exposure Guidance v01, clause 2.1.4 –MPE-Based Exemption: An alternative to the SAR-based exemption is provided in § 1.1307(b)(3)(i)(C), for a much wider frequency range, from 300 kHz to 100 GHz, applicable for separation distances greater or equal to λ/2π, where λ is the free-space operating wavelength in meters. The MPE-based test exemption condition is in terms of ERP, defined as the product of the maximum antenna gain and the delivered maximum time-averaged power. For this case, a RF source is an RF exempt device if its ERP (watts) is no more than a frequency-dependent value, as detailed tabular form in Appendix B. These limits have been derived based on the basic specifications on Maximum Permissible Exposure (MPE) considered for the FCC rules in § 1.1310(e)(1). Table to § 1.1307(b)(3)(i)(C) - Single RF Sources Subject to Routine Environmental Evaluation f = frequency in MHz; R = minimum separation distance from the body of a nearby person (appropriate units, e.g., m); For multiple RF sources: Multiple RF sources are exempt if: in the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation: Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-00A TR-EM-RF020 Page 14 of 69 Version 3.0 Result Tune up conducted power # Antenna Gain # ERP Mode Frequency (MHz) (dBm)(dBi)(dBd)(dBm)(mW) Evaluation Distance (m) MPE-Based Exemption Threshold (mW) DECT 1921.536- 1928.448 20.50-2.1518.3568.390.2768 Note 1: The tune-up power and antenna gain was declared by the applicant. Note 2: 0dBd=2.15dBi. Result: Compliant

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF020 Page 1 of 69 Version 3.0 TEST REPORT Applicant Name:Chillax Care Limited Address:Room 118, Flat A, 8/F, William Industrial Building 23-25 Ng Fong Street, San Po Kong, Kowloon Hong Kong Report Number:2601Q00137E-RF-00A FCC ID:2AZ8M-XTRA2355 Test Standard (s) FCC PART 15D Sample Description Product Type:Digital Cordless Telephone Model No.:Xtra 2355 Multiple Model(s) No.:Xtra 2355 Duo, Xtra 2355 Trio Trade Mark:Alcatel, Swissvoice Date Received:2026/02/25 Issue Date:2026/06/03 Test Result:Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By:Approved By: Bruce LinNancy Wang RF EngineerRF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601Q00137E-RF-00A TR-EM-RF020 Page 2 of 69 Version 3.0 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ..........................................................................................................................4 GENERAL INFORMATION ........................................................................................................................................5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)......................................................................................5 OBJECTIVE ....................................................................................................................................................................5 TEST METHODOLOGY....................................................................................................................................................5 MEASUREMENT UNCERTAINTY .....................................................................................................................................6 TEST FACILITY ..............................................................................................................................................................6 SYSTEM TEST CONFIGURATION ...........................................................................................................................7 DESCRIPTION OF TEST CONFIGURATION .......................................................................................................................7 EQUIPMENT MODIFICATIONS ........................................................................................................................................7 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS .........................................................................................................7 EXTERNAL I/O CABLE...................................................................................................................................................7 BLOCK DIAGRAM OF TEST SETUP .................................................................................................................................8 SUMMARY OF TEST RESULTS ..............................................................................................................................10 TEST EQUIPMENT LIST ..........................................................................................................................................11 FCC §1.1307(B) & §2.1091 - RF EXPOSURE EVALUATION ...............................................................................13 APPLICABLE STANDARD .............................................................................................................................................13 RESULT .......................................................................................................................................................................14 FCC §15.317, § 15.203 ANTENNA REQUIREMENT ..............................................................................................15 APPLICABLE STANDARD .............................................................................................................................................15 ANTENNA CONNECTOR CONSTRUCTION .....................................................................................................................15 FCC§15.315 & §15.207 - AC LINE CONDUCTED EMISSIONS ...........................................................................16 APPLICABLE STANDARD .............................................................................................................................................16 EUT SETUP .................................................................................................................................................................16 EMI TEST RECEIVER SETUP ........................................................................................................................................16 TEST PROCEDURE.....................................................................................................................................................…

Text truncated - open the document above for the full version.

Antenna report Part Number: R207030112 Frequency Range: 1920-1930 MHz Antenna Gain: 0dBi Company Name: Huizhou Kangyulai Hardware & Electronics Co., Ltd. Company Address: Huabianling Industrial Zone, Xinwei Town, Huizhou City, Guangdong Province Antenna picture Antenna gain pattern 1925MHz
