C5266091_X8_Ed.1 1/1 CLMBR, INC. Company: CLMBR, INC. Address: 3033 E 1st Ave, Suite 501, Denver, CO. USA Product Name: Tablet PC Model Number: CLMBR Connected FCC Identifier: 2AZ9G-CONNECTED We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Crystal Crystal Date: June 30, 2021 Title: Manager Signature of applicant:

C5266091_X10_Ed.2 1/1 CLMBR, INC. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: June 30, 2020 Subject: Request for Confidentiality FCC ID: 2AZ9G-CONNECTED To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NO TE 1 ☐ Internal Photos ☐ NO TE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name: Crystal Crystal Title: Manager

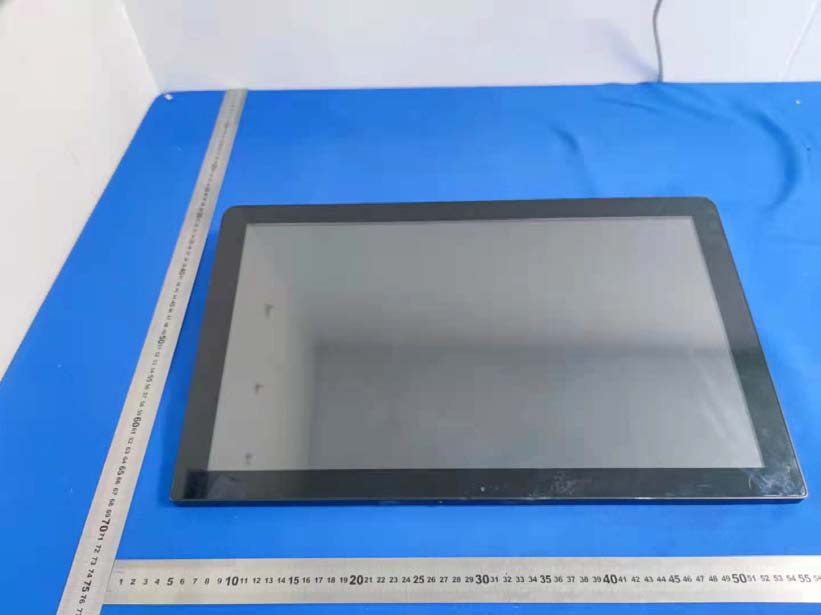

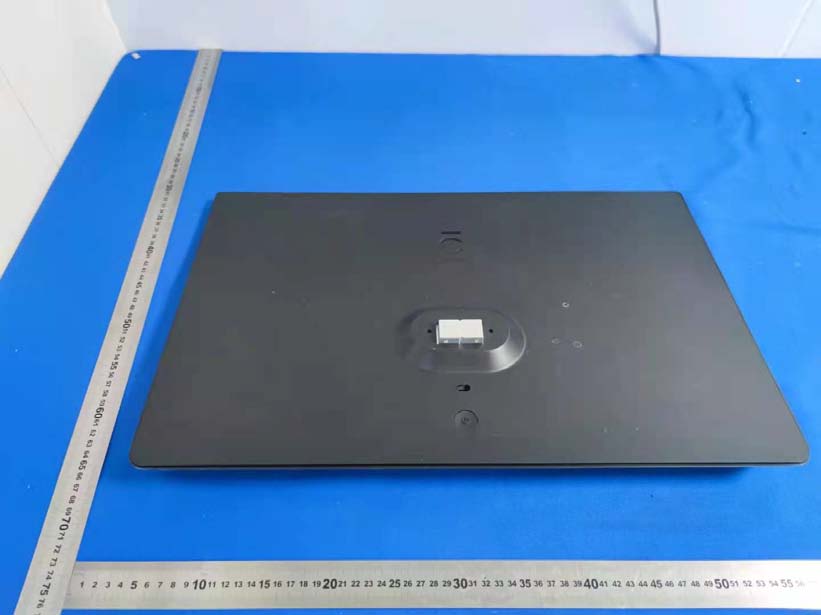

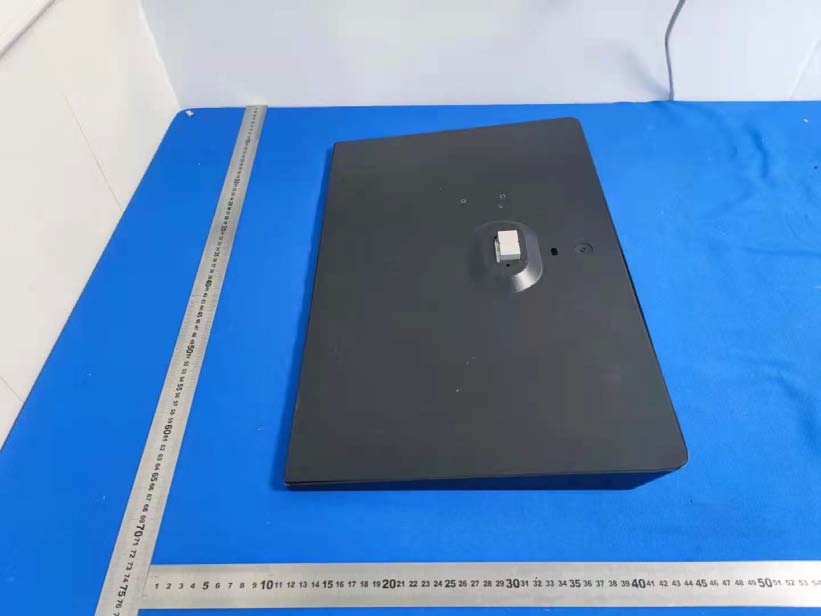

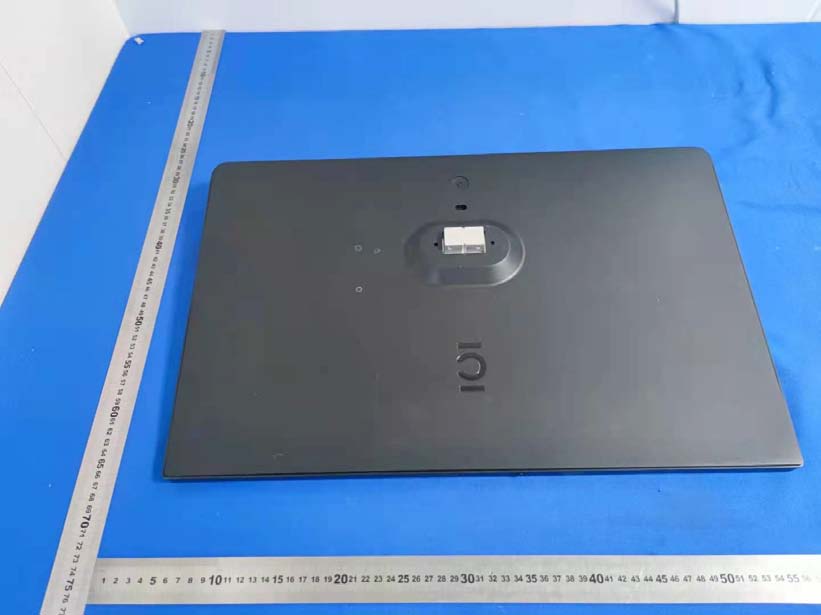

Page 1 of 3 Report No.:FCS202106007 External photos Photo 1 Photo 2 Page 2 of 3 Report No.:FCS202106007 Photo 3 Photo 4 Page 3 of 3 Report No.:FCS202106007 Photo 5 Photo 6

Label and Label Location L*W: 75mm*35mm Black label and white font

Page 1 of 9 Report No.:FCS202106006 Internal photos Photo 1 Photo 2 Page 2 of 9 Report No.:FCS202106006 P hoto 3 BT/2.4G WiFi Antenna 5G wifi antenna Photo 4 Page 3 of 9 Report No.:FCS202106006 Photo 5 Photo 6 Page 4 of 9 Report No.:FCS202106006 Photo 7 Photo 8 Page 5 of 9 Report No.:FCS202106006 Photo 9 Photo 10 MT6771 MT6631 Page 6 of 9 Report No.:FCS202106006 Photo 10 BT A ntenna Photo 11 Page 7 of 9 Report No.:FCS202106006 Photo 11 Photo 12 Page 8 of 9 Report No.:FCS202106006 Photo 13 Photo 14 Page 9 of 9 Report No.:FCS202106006 Photo 15 Photo 16

Page 1 of 2 Report No.: FCS202106007 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com FCC RF Exposure EUT Description: Ta b l e t P C Model No.: CLMBR Connected FCC ID: 2AZ9G-CONNECTED 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) F = frequency in MHz Formula: Pd = (P out*G)/(4*π*r 2 ) Where : Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, π= 3.14; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Page 2 of 2 Report No.: FCS202106007 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com 2.Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 3.T est Result of RF Exposure Evaluation 2.4G WIFI O utput power （dBm/ mW） Antenna Gain(dBi) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 802.11b 12.0 5/ 16.03 1.0 0.00501 1.0 Pass 802.11g 7. 50/5.62 1.0 0.00401 1.0 Pass 802.11n(20MHz) 5.63/3.65 1.0 0.00091 1.0 Pass 802.11n(40MHz) 3.66/2.32 1.0 0.00058 1.0 Pass 5G WIFI Tu r n-up power Mode Peak power range(dBm) 2.4G WIFI 10.00-15.00 5G WIFI 10.00-15.00 WIFI Output power （dBm/ mW） Antenna Gain(dBi) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result 2.4G WIFI 15.00/31.622 1.0 0.00791 1.0 Pass 5GWIFI 15.00/31.622 1.0 0.00791 1.0 Pass 2.4G and 5G can not transmit Simultaneously Conclusion: No SAR is required O utput power （dBm/ mW） Antenna Gain(dBi) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 ) Result U-NII-1 a13.91/24.60 1.0 0.00615 1.0 Pass U-NII-1 n( HT20)13.81/24.04 1.0 0.00601 1.0 Pass U-NII-1 n(HT40)14.25/26.60 1.0 0.00666 1.0 Pass U-NII-1 ac(HT20)13.65/23.17 1.0 0.00580 1.0 Pass U-NII-1 ac(HT40)14.57/28.64 1.0 0.00717 1.0 Pass U-NII-1 ac(HT80)14.37/27.35 1.0 0.00684 1.0 Pass

FCC Test Report Report No: FCS202106007W03 Issued for CLMBR, INC. 3033 E 1st Ave, Suite 501, Denver, CO. USA Product Name: Tablet PC Brand Name: CLMBR Model Name: CLMBR Connected Series Model: NA FCC ID: 2AZ9G-CONNECTED Issued By: Flux Compliance Service Laboratory Add: Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com Page 2 of 49 Report No.: FCS202106007W03 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com TEST RESULT CERTIFICATION Applicant’s Name ................... : CLMBR, INC. Address .................................. : 3033 E 1st Ave, Suite 501, Denver, CO. USA Manufacture's Name .............. : Shenzhen ELINK technology Co., LTD. Address .................................. : F4, Block A, Qiaohonsheng CCI Garden, Yintian Instrial Park, Xixiang, Bao'an, Shenzhen, Guangdong, China. Product Description Product Name ........................ : Tablet PC Model Name........................... : CLMBR Connected Series Model .......................... : NA Test Standards ....................... : CFR 47 FCC Part15E section 15.407 Te st Procedure ....................... : ANSI C63.10-2013 KDB 789033 D02 General UNII Test procedures New Rules 02 KDB558074 D01 Meas Guidance v05 This device described above has been tested by Flux Compliance Service Laboratory, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of Flux Compliance Service Laboratory, this document may be altered or revised by Flux Compliance Service Laboratory, personal only, and shall be noted in the revision of the document.. Date of Test ............................. : Date (s) of performance of tests : June. 01, 2021 ~ June. 09, 2021 Date of Issue ............................ : June. 09, 2021 Test Result ............................... : Pass Tested by : (Scott Shen) Reviewed by : (Duke Qian) Approved by : (Kait Chen) Page 3 of 49 Report No.: FCS202106007W03 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com Table of Contents Page 1. SUMMARY OF TEST RESULT S 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.3 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 11 2.4 EQUIPMENTS LIST 12 3. 26DB BANDWIDTH, 6DB BANDWIDTH AND 99% BANDWIDTH 13 3.1 LIMIT 13 3.2 TEST PROCEDURE 13 3.3 TEST SETUP 13 3.4 TEST RESULTS 14 4 CONDUCTED OUTPUT POWER 18 4.1 LIMIT 18 4.2 TEST PROCEDURE 18 4.3 TEST SETUP 18 4.4 TEST RESULTS 19 5. POWER SPECTRAL DENSITY 20 5.1 LIMIT 20 5.2 TEST PROCEDURE 20 5.3 TEST SETUP 21 5.4 TEST RESULTS 21 6. FREQUENCY STABILITY MEASUREMENT 25 6.1 LIMIT 25 6.2 TEST PROCEDURE 25 6.3 TEST SETUP 25 6.4 TEST RESULTS 26 7. BAND EDGE 27 7.1 LIMIT 27 Page 4 of 49 Report No.: FCS202106007W03 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com Table of Contents Page 7.3 TEST SETUP 28 7.5 TEST RESULTS 29 8. DUTY CYCLE 31 8.1 TEST REQUIREMENT 31 8.2 TEST PROCEDURE 31 7.3 TEST SETUP 31 8.4 TEST RESULTS 32 9 RADIATED EMISSION MEASUREMENT 33 10 CONDUCTED EMISSION TEST 45 11. ANTENNA REQUIREMENT 49 11.1 STANDARD REQUIREMENT 49 11.2 RESULT 49 Page 5 of 49 Report No.: FCS202106007W03 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com Revision History Rev. Issue Date Report NO. Effect Page Contents 00 June. 09, 2021 FCS202106007W03 ALL Initial Issue Page 6 of 49 Report No.: FCS202106007W03 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: Standard Section Test Item Judgment Remark FCC 15.407 (e) 6/26db Bandwidth and 99% Bandwidth PASS -- FCC 15.407 (a) Maximum Conducted Output Power PASS -- FCC 15.407 (a) Power Spectral Density PASS -- FCC 15.407 (g) Frequency Stability Measurement PASS FCC 15.407 (a) FCC 15.209 FCC 15.205 Emissions in restricted frequency bands PASS FCC 15.407 (a) FCC 15.209 FCC 15.205 Band Edge Compliance PASS FCC 15.207 Power Line Conducted Emission PASS FCC 15.203 Antenna requirement PASS -- Page 7 of 49 Report No.: FCS202106007W03 Flux Compliance Service Laboratory Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Tel: 769-27280901 Fax:769-27280901 http://www.FCS-lab.com 1.1 TEST FACTORY Company Name: Flux Compliance Service Laboratory Address: Room 105 Floor Bao hao Technology Building 1 NO.15 Gong ye West Road Hi-Tech Industrial, Song shan lake Dongguan Telephone: +86-769-27280901 Fax: +86-769-27280901 FCC Test Firm Registration Number: 514908 Designation number: CN0127 A2LA accreditation number：5545.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.71dB 2 Unwanted Emissions, conducted ±2.988 dB 3 Conducted Emission (9KHz-150KHz)…

Text truncated - open the document above for the full version.

Page 1 of 2 Report No.:FCS202106007 Blow 1GHz for radiated emission test setup Above 1GHz for radiated emission test setup Page 2 of 2 Report No.:FCS202106007 Conduction emission testing device
