WR01-15CH Remote Programming Guide SMARTWINGS MOTORIZATION SMARTWINGS Table of Contents 1. Remote Overview 2. Sleep Mode 3. Adjusting Limits 4. FavoritePositions 5. Remote & Motor Pairing 6. Mirroring Remotes 7. Group Control 8. Hiding/UnhidingRemote Channels 9. Adjusting Motor Speed 10.ResettoFactorySettings 11.InitialSetupProgramming 12.ReverseMotorDirection 13.TiltMode Each battery motor from Smartwings will come preprogramed from the factory. The preprograming ensures the remote is paired with the motor, the upper and lower operation limitsareset,theremoteis unlocked . 1. 1. Motor P B F Rechargethebattery Troubleshooting Remote Overview FEATURES •Push Button controls LED Display Hide unused channels function wall mount holder • • • • PACKAGE CONTENTS Remote wallmountholder&fixingscrews 1.5V - AAA Battery TECHNICALSPECIFICATIONS Voltage:3V Frequency:433.92 MHz TransmittingPower: 30 milliwatt Ambient Operating Temperature: -- TransmissionDistance: Approx. 65 feet in open space Battery: AAA FRONTBACK Each battery motor will come preprogramed from Smartwings Upon leaving the factory the motor is placed into “Sleep Mode” to avoid accidental operation during shipping. It is necessary to “Wake” the motor before operation and setup. Sleep Mode To “Wake” the motor and exit Sleep Mode, assure the motor is installed and secured in the mounting hardware. Once installed safelyand securely,press and hold the programming button on the motor head until themotor jogs once. Itis now no longer in “Sleep Mode” and ready for further setup. Warning: •Shade -if you press and release the programming button quickly, the motor will operate to its limit. • If required, to place the motor back into “Sleep Mode” press and hold the programming button for a period of 10 seconds. Release the button when the motor has jogged three times. The “ Sleep Mode” has been activated. Exit Sleep Mode Enter Sleep Mode Adjusting Limits Eachbattery motorwillcomepreprogramedfromSmartwings . Thepreprogramingensurestheremoteispairedwiththemotor,theupperandloweroperationlimits areset,theremoteis unlocked . Followthebelowstepstoadjusttheupperandlowerlimitsifrequired. Press UP& STOP (5sec)Press UP+ STOP (2sec) (SET Top Limit) ADJUSTING LOWER LIMIT ADJUSTING UPPER LIMIT Move the shade to the new desired position to be set as limit. Press DOWN& STOP (5sec) Press DOWN+ STOP (2sec) (SET Lower Limit) If limits need adjusting, follow the instructions below to unlock the remote for limit setting: !!WARNING!! - Move shade in short increments by pressing the UP/DOWN button in 1 second intervals (pressing the UP/DOWN button for more than 3 seconds may send the shade past desired upper/lower limit and may result in damage to the product). Once you have reached the desired upper/lower limit, you can adjust the limit with either the UP and DOWN buttons. (remember to adjust in short increments!) Important!!Stop the shade prior to traveling past the desired upper limit Important!!Stop the shade prior to traveling past the desired lower limit Note: the motor jogs once Note: themotor jogs once Note: themotor jogs twice Note: the motor jogs twice Move the shade to the new desired position to be set as limit. ++ ++ Favorite Positions EachbatterymotorwillcomepreprogramedfromSmartwings . Thepreprogramingensurestheremoteispairedwiththemotor,theupperandloweroperationlimits areset,theremoteis unlocked. Followthebelowstepstosetafavoriteposition. Thefavoritepositionisusedtosetacustomstopping pointbetweentheupperandlowerlimits.(1favoritepositionpershademotor) To set afavorite position for a shade motor, drive to the desired position and press the STOP button to pause the drive operation. Press P (1sec) 1(To Save Position) PressUPorDOWN to move shade to desired favorite position position SETTING FAVORITE POSITION 3 2 •Press STOP (2sec) to move shade to the Favorite Position from any location Repeat Steps 1-4 for all additional motors• PressSTOP (1sec) DELETING FAVORITE POSITION the shade is 1 (To Delete Position) Note:themotor jogs twice Note: themotor jogs once Note: themotor jogs once 4 PressSTOP (1sec) Press P (1sec) 3 2 Press STOP (1sec) Note: themotor jogs once Note: themotor jogs once Note: themotor jogs once Press STOP (1sec) 4 Remote + Motor Pairing EachbatterymotorwillcomepreprogramedfromSmartwings . Thepreprogramingensurestheremoteispairedwiththemotor,theupperandloweroperationlimits areset,theremoteis unlocked. Followthebelowstepstoselecttheremotechannelyouwanttopairwiththemotor(s)ifrequiredata laterdate. Press any button to wake remote Within10secPress " " or" " to select desired channel. 1a 1b 1. SELECT CHANNEL Within10secof activating pairing mode, Press & Hold STOP If you do not pair the remote in time the motor pairing sequence will time out, repeat the above steps assuring to press and hold the STOP button within 10 seconds of the motor jog 2. PAIRING REMOTE TO MOTOR Press & HOLD Programming Button on motor head(2sec) 2aACTIVATE PAIRING MODE ON MOTOR 2bADDING OR REMOVING THE REMOTE Note:themotor jogs once Note:t hemotor jogs twice . Press STOP (2sec) MirroringRemotes Eachbattery motorwillcomepreprogramedfromSmartwings . Thepreprogramingensurestheremoteispairedwiththemotor,theupperandloweroperationlimits areset,theremoteis unlocked. Followthebelowstepstocopysettingsfromanexistingremotetoanewremote. 2. ADD OR REMOVE REMOTE USING AN EXISTING REMOTE 1 Press P (1sec) EXISTING 2 Press P (1sec) EXISTING 3 Press P (1sec) NEW (To be Added or Removed) Note: Select channel on existing remote to be copied Select channel on new remote where existing channel will be copied Note: themotor jogs once Note:themotor jogs twice Note: themotor jogs once Press any button to wake remote Within10secPress select desired channel. 1a 1b 1. SELECT CHANNEL " " or" " to Group Control Each battery motor will come preprogramed from Smartwings. If multiple motors are paired to the same 15 channel remote, the 0 channel is the default channel to control all motors at once. Follow …

Text truncated - open the document above for the full version.

Ningbo Deyi Smart Home Co., Ltd Family models difference declaration Product Name: WR01-15CH Trade Name: SMARTWINGS Model Name: WR01-15CH, WR01-05H, WR01-01H Difference declaration: All the model are the same circuit and RF module, except the model name. Regards, Signature Name: Jack sunDate: 2021-06-11

Ningbo Deyi Smart Home Co., Ltd Date: June 11, 2021 FCC ID: 2AZ9W-WR01-15CH Model Number: WR01-15CH To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Ningbo Deyi Smart Home Co., Ltd , declare that this EUT (FCC ID: 2AZ9W- WR01-15CH) will conduct FCC compliance testing, the SDOC part recognized test lab(Shenzhen NTEK Testing Technology Co., Ltd.( ShenZhen Lab.). 1/F, Building E, Fenda Science Park, Sanwei Community,Xixiang Street Bao’an District, Shenzhen 518126 P.R. China) Please contact me if you have any question. Sincerely, (Signed) Name / Title: Jack sun/ manager Company: Ningbo Deyi Smart Home Co., Ltd Address: Room 701, Hengyi Office Building, 1116 Beihuan West Road, Jiangbei District, Ningbo City, Zhejiang Province, China Email: [email protected] Tel: 0755-61156566

C5266091_X8_Ed.1 1/1 Letter of Authorization < Ningbo Deyi Smart Home Co., Ltd > Company: Ningbo Deyi Smart Home Co., Ltd Address: Room 701, Hengyi Office Building, 1116 Beihuan West Road, Jiangbei District, Ningbo City, Zhejiang Province, China Product Name: WR01-15CH Model Number: WR01-15CH FCC Identifier: 2AZ9W-WR01-15CH We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Jack sun Date: 06/11/2021 Title: manager Signature of applicant:

C5266091_X10_Ed.2 1/1 < Ningbo Deyi Smart Home Co., Ltd > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021-06-11 Subject: Request for Confidentiality FCC ID: 2AZ9W-WR01-15CH To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No Block Diagram ☐ Schematics ☐ Test Report No No Test Setup Photos No User’s Manual ☐ NOTE 1 Internal Photos ☐ NOTE 1 Parts List / Tune Up / BOM List ☐ RF Exposure Info No No Operational Description ☐ Cover Letter(s) No No SOFTWARE SECURITY REQUIREMENTS FOR U- NII DEVICES No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of _180_ days from the date of the Grant of Equipment Authorization and prior to marketing. C5266091_X10_Ed.2 1/1 It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jack sun Title: manager

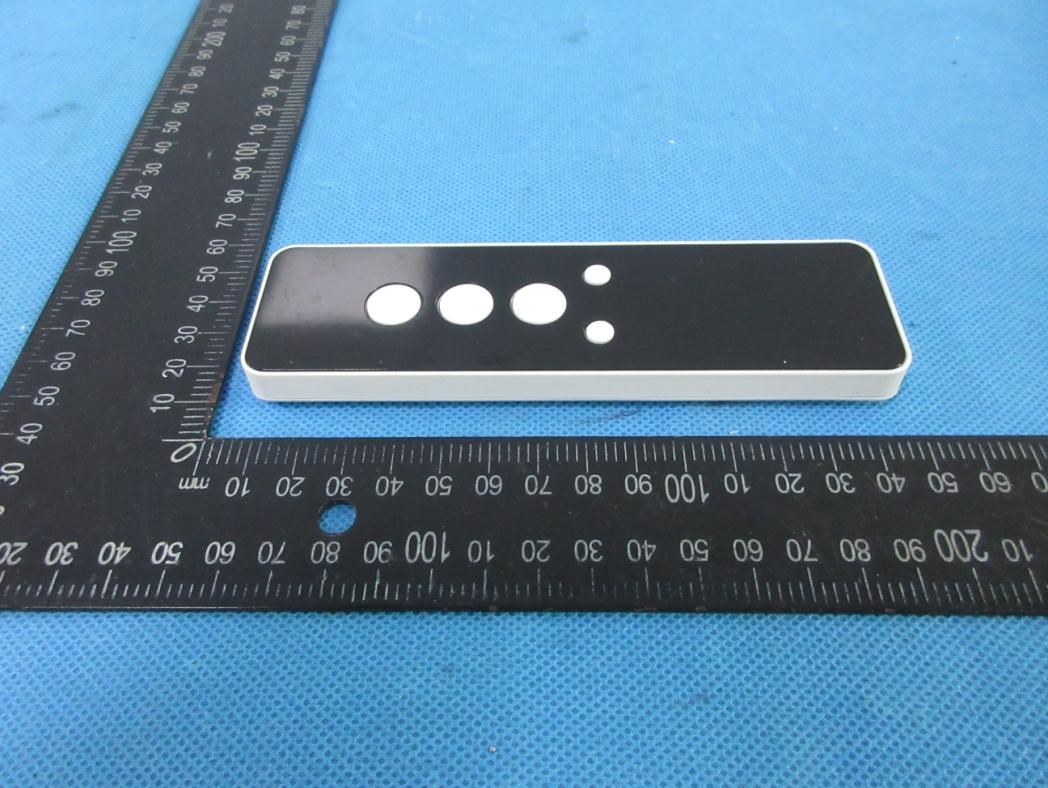

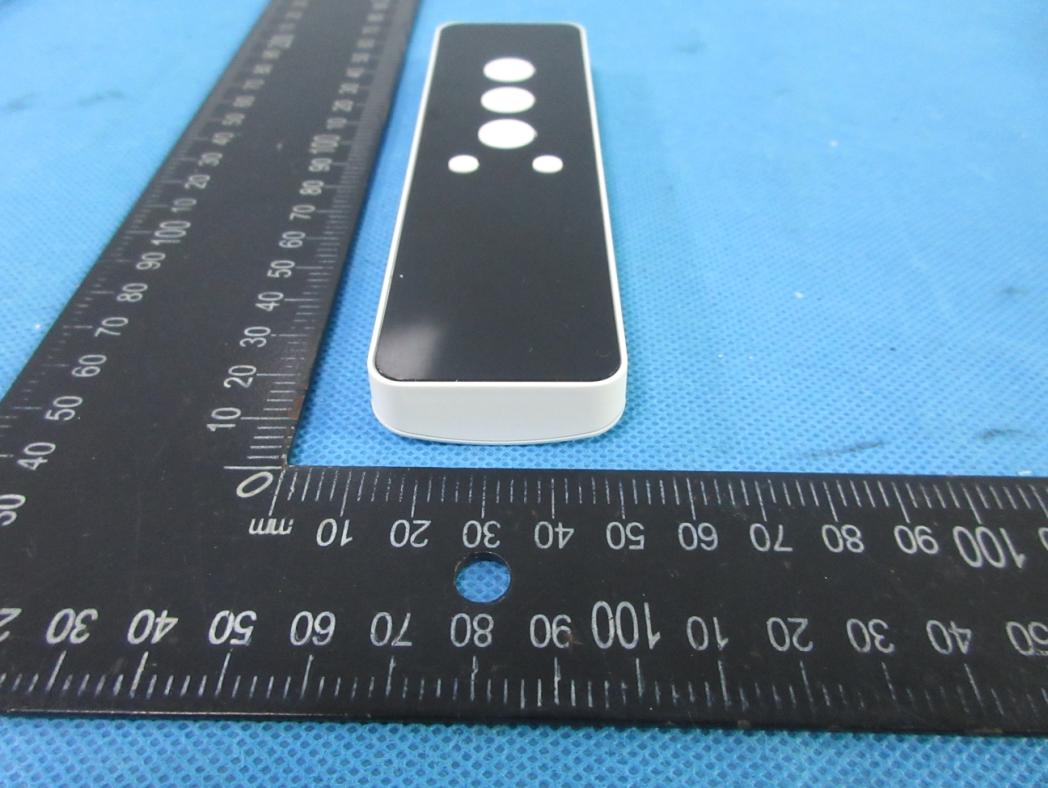

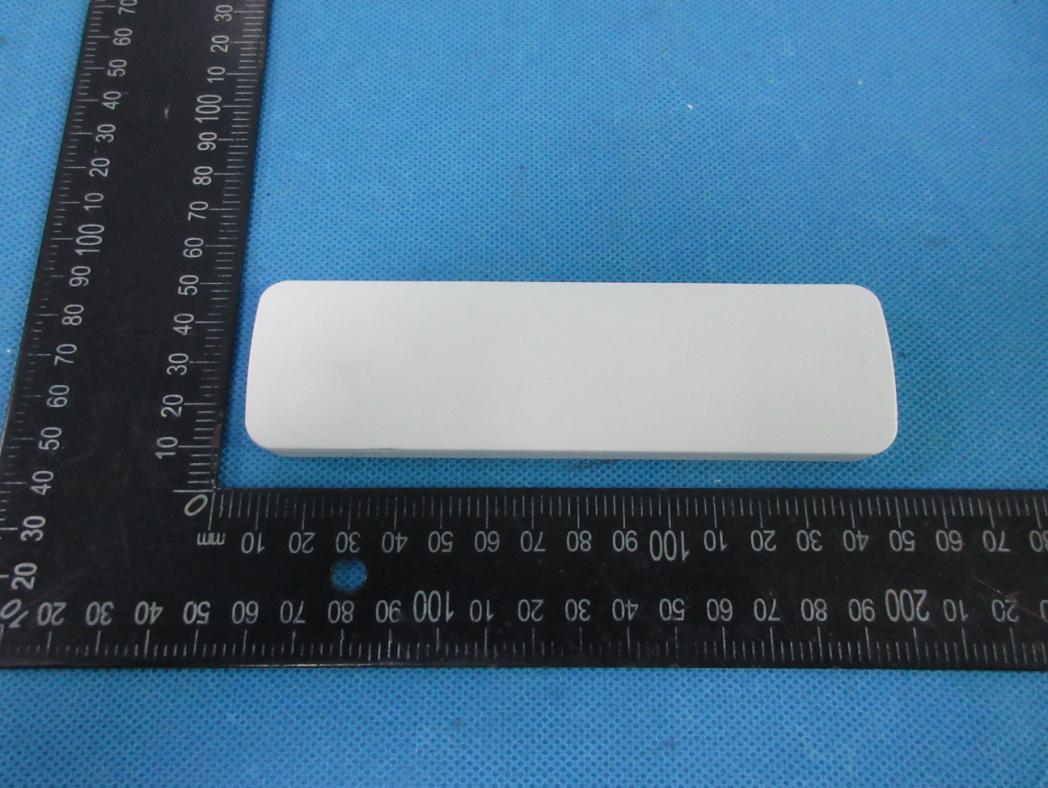

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6
