2AZBU-SM510RXBaby Monitor

[email protected] [email protected] [email protected] 1. SAFETY INSTRUCTIONS 1-2 2. PRODUCT OVERVIEW 3 2.1 Package list 3 2.2 Parent unit(monitor) 4-5 2.3 Baby unit(camera) 6 2.4 Icons overview 6 3. USING THE BABY MONITOR 7-9 4. FUNCTION OVERVIEW 10 4.1 Lullaby setting 10 4.2 VOX setting 11 4.3 Digital zoom 12 4.4 Split screen setting 13 4.5 Pairing the camera and monitor 14 4.6 Delet the camera 15 4.7 Setting 16-21 5. TECHNICAL DATA 22 5.1 System general 22 6. TROUBLE SHOOTING 23-24 FCC STATEMENTS 25 CONTENT [email protected] [email protected] [email protected] [email protected] Power key: Long press to turn on/o the monitor; short press to screen on/o. Pan/Tilt Press the key to enter into the pan/Tilt mode. Volume + / Up key: Press Volume+ to increase the volume/ To up the camera in the Pan/Tilt mode. Brightness + / Right key: Press the Brightness+ to increase the brightness/ To right the camera in the Pan/Tilt mode. OK: Press the OK key to view/scan camera or to conrm. Volume - / Down key: Press Volume- to decrease the volume/ To down the camera in the Pan/Tilt mode. Brightness - / Left key: Press the Brightness- to decrease the brightness/ To left the camera in the Pan/Tilt mode. Talk to baby: *To talk, press and hold the talk key on the front of the monitor; release to turn it o. 1 3 2 5 4 6 7 8 1 3 5 2 4 6 7 8 9 [email protected] *Bear in mind that you can't listen to your baby while you're talking to them; to listen to it, you will have to stop pressing this button. Menu/Exit: Press short Menu/Exit key the menu will pop up, and press again to EXit. MIC: When talking to the baby, collect the voices of the parents. Power&Charging Indicator LED: *The LED shows red when charging under the display is turn o state. *The LED displays shows orange when charging under the turn on state. *The LED displays shows green after the battery is fully charged. Volume LED: When the baby unit detects the voice, the indicator light will be on, The louder the detected sound, the more lights will light up. LCD screen: Display the baby's picture and the adjustment of each button function. Speaker: Hear the sound from the baby. Stand: Monitor placement stand. Reset key (under the stand): Long press the reset button with a pin to reset the display. DC-jack: Charge the monitor by connecting the Power Adapter to the monitor and a socket. Note: If you want to adjust the Volume/Brightness, you have to exit the Pan/Tilt mode before you operate it. 9 [email protected] Light sensor Speaker infrared LEDs Pair key CMOS sensor DC-Jack Power LED Temperature sensor MIC Antenna 1 8 3 9 2 5 4 6 7 1 3 2 5 4 8 8 9 6 7 8 0 Alert volume Setting Time format [email protected] Alert 3.1 CHARGING AND POWERING THE MONITOR UNIT Step1: Charge the monitor by connecting the A/C adapter included in this package to the monitor and a socket. (It takes about 4 hours for the monitor to be fully charged). Step2: Use the provided AC adapter included in this package to connect the wall outlet with the baby unit. Charging: Red/orange Fully charged: Green [email protected] Note: *Place the camera at least 3ft / 1m away from your baby. Gently press and hold the Power Button for 3s to turn on the monitor, then you can see the live view. *Follow your needs to adjust the sound, brightness, and reasonable placement of the camera. Tips: To use the baby monitor, you must be able to establish a radio link between the monitor and camera, and the range will be aected by environmental conditions: *Any large metal object, like a refrigerator, a mirror, a ling cabinet, metallic doors or reinforced concrete between the baby and parent unit may block the radio signal. *The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TV, computers, cordless or mobile phones, uorescent lights or dimmer switches. *When using the other 2.4GHz product, such as wireless networks (Wi-Fi routers), Bluetooth systems, or microwave ovens, may cause interference with this product, so keep the baby monitor away at least 5ft(1.5m) from these types of products. [email protected] 10cm 3.5 SCAN AND SWITCH THE CAMERAS Short press the OK key to switch camera view when two or more cameras are connected. Long press OK key to enter scan mode, a icon will be displayed at the bottom left corner of the screen for 8 seconds, The camera switch icon will displayed on the top of the screen. Each camera’s video will be stay on the LCD around 18 seconds. Short press the OK key to quit the scan mode. Note: This function is only avilable when two or more cameras are paired. Scan mode on [email protected] 4.FUNCTION OVERVIEW 4.1 LULLABY SETTING You can soothe the baby to sleep by playing a gentle lullaby from the baby unit. Step1: Press Menu / Exit key and the menu will pop up. Step2: Select the lullaby you want to play through the NAVIGATION key and OK key . Step3: Set playback duration and volume through the NAVIGATION key and OK key . Step4: Press the Menu / Exit key to Exit. [email protected] 4.2 VOX SETTING This mode allows you to control the sound activation of your baby monitor. The VOX default setting is OFF. If there is no sound around the camera within 30 Seconds, it will stop transmitting. The monitor screen turns o when the camera is not transmitting. When the camera detects the sound is louder than set sensitivity level, it will start transmitting the signal to the monitor again change the VOX level, please follow the next instructions: Step1: Press the Menu / Exit key and the menu will pop up. Press UP key or DOWN key to select VOX setting . Step2: Set the VOX level through the NAVIGATION key and OK key . Step3: Press the Menu / Exit key to Exit. NOTE: To resume the video and audio signal manually on your parent unit when VOX function is on, briey press any key on your parent unit. [email protected] 4.3 DIGITAL ZOOM Step1: Press the Me…

Text truncated - open the document above for the full version.

Date:12/07/2018VCB_F-09:CertificationAgreementFormVersion:v03Page1of10 VistaLaboratories,Inc. 1261PuertaDelSol SanClemente,CA92673 Phone:(949)393-1123 Web:www.vista-compliance.com Email:[email protected] CertificationAgreementForm for VistaCertificationBody RevisionHistory Version Number Date (mm,dd,yyyy)Comments v0104/17/2018Firstrelease(obsolete) v0209/20/2018Updatingsection9 v0312/07/2018Updatingsection4 CertificationAgreement VistaLaboratoriesInc.isanindependentlaboratoryprovidingtestingandcertificationservicesinorderto determinewhetherrepresentativesamplesofaproductcomplywithdesignatednationalandinternational standards.TheapplicantunderstandsandagreesthatVistaLabshasonlytestedorevaluatedthe submittedsamplesanddoesnotguaranteethequalityorcomplianceofallunitsoftheproduct manufacturedorproducedbytheapplicant.Furthermore,theapplicantacknowledgesthatasan independentlaboratory,VistaLaboratoriesInc.assumesnoresponsibilityforthedesignoftheproduct. Theclientunderstandsthattheymustalwaysfulfilthecertificationrequirements,andimplements appropriatechangeswhencommunicatedto,byVistaLaboratories.Theclientagreestoenterintoa contractualrelationshipwithVistaLabstoperformtestingorcertificationservicesontheproduct.Vista LaboratoriesdoesnotguaranteethatthirdpartieswillacceptorrecognizetheresultsobtainedbyVista LabsortheVistaLabcertificationoftheproduct.VIstaLaboratoriesagreestoperformserviceswithdue care. Date:12/07/2018VCB_F-09:CertificationAgreementFormVersion:v03Page2of10 VistaLaboratories,Inc. 1261PuertaDelSol SanClemente,CA92673 Phone:(949)393-1123 Web:www.vista-compliance.com Email:[email protected] 1.CertificationRequirements TheapplicantwillprovideVistaLaboratories,Inc.withallproductinformationfortheevaluationofthe producttobecertifiedandwarrantthattheinformationprovidedisaccurateandcompletesothatVista Labsmayperformtheservicesrequested.Iftheproductwastestedatanexternallaboratory,the applicantmustprovidethecompletetestreporttoVistaLabs.IftheexternaltestingfacilityisnotISO 17025accredited,ordoesnothavetheproperscope,VistaLabsmustdetermineifthetestreportcanbe usedforcertificationactivities.Theapplicant’sinformationisusedtoperformaproductreviewand evaluationtodeterminetheproduct’scompliancetothespecificcertificationrequested.Throughoutthe process,theclientagreestomakeclaimsregardingcertificationconsistentwiththescopeofcertification. Theapplicantagreestosupplytherequirednumberofproductsamples,tobedeterminedbyVistaLabs, tothelaboratoryfortesting,measurement,andevaluationpurposes.Theclientunderstandsthatcertain testsmaydamageordestroythesampleandacknowledgethatVistaLabsisnotresponsibleforsuch damages.Sampleswillbereturnedonlyuponrequestbytheapplicantandattheapplicant’sexpense, afterthecompletionofcertification.Sampleswillbedisposedofaftersixmonthsifnotrequestedfor returnbyapplicant. Theproductisineligibleforcertificationifithasbeenmodifiedbytheclientaftertestingorcertification. ChangestotheproductmustbeapprovedbyVistaLaboratories.VistaLabsreservestherighttore- evaluatetheproductasaresultofinformationthatraisesquestionsconcerningtheconformanceofthe product.Certifiedproductsmaintainfulfilmentofproductrequirementsifthecertificationappliesto ongoingproduction.Iftheclientprovidescopiesofthe certificationdocumentstootherparties,thedocumentsarereproducedintheirentirety,orasspecifiedin thecertificationscheme.Inmakingreferencetoitsproductcertificationinmedia,suchasbrochuresor advertisement,theclientcomplieswiththerequirementsoftheVistaLabsorasspecifiedbythe certificationscheme.Theclientcomplieswithanyrequirementsthatmaybeprescribedinthecertification schemerelatingtotheuseofmarksofconformity,andonallproductcorrespondencesandproduct relatedinformation. VistaLabsreservestherighttoreviseorwithdrawtherequirementsasrequiredinordertomaintain conformancewithFCCrulesandregulationsgoverningtheproduct.Theproductmaycontinuewith certificationandreceivecertificationupondemonstrationofcompliancewiththerevisedrequirements,to thesatisfactionofVistaLaboratories. 2.IndemnificationandLiability VistaLaboratoriesdoesnotassumeorundertakeanyresponsibilitytoanyotherpartyorpartiesin performanceofitsdutiesunderthisagreement.TheclientagreestoholdVistaLabsharmlessandto defendandindemnifyVistaLabsagainstanyliability,loss,ordamagefromclaims,demands,costs (includinglegalfees),orjudgmentsarisingoutofanygrosslynegligentorintentionalactsoftheclient,or clientauthorizedthirdpartiesrelatingtotheproduct.VistaLabswillnot,underanycircumstance,beliable totheclientforanydamagesorthirdpartyclaimswhichmayariseasaresultoftheservicesprovidedin thisagreement. TheclientunderstandsthattheopinionsandfindingsofVistaLabsrepresentsitsjudgmentgivenwith dueconsiderationofthetypeofcertification,thenecessarylimitationsofpracticaloperations,andin Date:12/07/2018VCB_F-09:CertificationAgreementFormVersion:v03Page3of10 VistaLaboratories,Inc. 1261PuertaDelSol SanClemente,CA92673 Phone:(949)393-1123 Web:www.vista-compliance.com Email:[email protected] accordancewithitsobjectivesandpurpose.VistaLabsguaranteesthatitwillperformthecertificationand testingservicesinaccordancewiththeapplicablecertificationrequirementsandrecognizedindustry standards.TheapplicantagreesthatVistaLabsdoesnotwarrantthatitsopinionsorfindingswillbe acceptedorrecognizedbyathirdparty. TheclientdoesnotuseitsproductcertificationinanywaythatbringsVistaLabsintodisreputeanddoes notmakeanystatementregardingitsproductcertificationVistaLabsmayconsidermisleadingor unauthorized.TheapplicantagreesthedistributionorpromotionofaspecificproductutilizingaVista Laboratoriesissuedmarkingordescriptionwouldmisleadthepubliciftheproductisnoteligibletouse themarkingordescription,ordoesnotcomplywithVistaLaboratories’requirements.IfaVista Laboratoriesissuedcertificationormarkingisusedinanymannerotherthanashereinprovided,it constitutesabreachofthisagreement.Aviolationofanytermsandconditionsofthisagreementmay causeatemporaryinjunctiontobeissuedtopreventuseoftheVistaLaboratoriesissuedcertification,or anyrefer…

Text truncated - open the document above for the full version.

Date:04/17/2018VCB_F-01:OperatingProceduresForm–FCCConfidentialityv02Page1of1 ShenzhenMingchuangzhilianTechnologyCo.,Ltd Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AZBU- SM510RX Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: ExhibitType 1.BlockDiagram, 2.Schematics, 3.OperationalDescription File Name 1. 2AZBU-SM510RX-Block diagram 2. 2AZBU-SM510RX-SCH 3. 2AZBU-SM510RX-Operational description Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarily releasedtothepublic.Thepublicdisclosureofthesematerialsmaybeharmfultothe applicantandprovideunjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateofthe Grantforthisapplication. PursuanttoDA04-1705June15,2004oftheCommission’spublicnotice,wealso requesttemporaryconfidentialtreatmentofinformationaccompanyingthisapplication asoutlinedbelowforaninitialperiodofxxxx(ie-“45”,“90”or“180”)days: ExhibitTypeFileName N/AN/A Signature: Contactname:SambShuai Companyname:ShenzhenMingchuangzhilianTechnologyCo.,Ltd Address: 4/F,BBlock,No.3,EastRegion,ShangxueSciencePark,BantianSt,LonggangDist, Shenzhen,China

Date:04/17/2018VCB_F-01:OperatingProceduresForm–FCCAuthorizationv02Page1of1 Shenzhen Mingchuangzhilian Technology Co., Ltd Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2022-4-28 SUBJECT: FCC Application for (FCC ID:2AZBU-SM510RX) To Whom It May Concern: We, the undersigned, hereby authorizeYoyo Zhouin Shenzhen Huaxia Testing TechnologyCo.,Ltdat1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad, DalangStreet,LonghuaDistrict,Shenzhen,Chinaonourbehalf,toapplytotheFederal CommunicationsCommissiononourequipment.Anyandallactscarriedoutby ShenzhenHuaxiaTestingTechnologyCo.,Ltd onourbehalfshallhavethesame effectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We, theapplicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection 5301oftheAnti-DrugActof1988,21USC853a,andnopartytotheapplicationis subjecttoadenialoffederalbenefitspursuanttothatsection. Sincerely, (MustbesignedbythepersonthatislistedontheFCCWebsite) Signature: Contactname:SambShuai Companyname:ShenzhenMingchuangzhilianTechnologyCo.,Ltd Address:4/F,BBlock,No.3,EastRegion,ShangxueSciencePark,BantianSt,LonggangDist,Shenzhen,China

ShenzhenMingchuangzhilianTechnologyCo.,Ltd ModelConfirmationLetter We, (Shenzhen Mingchuangzhilian Technology Co., Ltd) certify the product: Baby Monitor Model No.: SM510, SM510RX, SM50, SM50RX, BBM01, BBM01RX Theirelectricalcircuitdesign,layout,componentsusedandinternalwiringare identical,Onlythemodelisdifferent. Signiture: GranteeContact:SambShuai CompanyName:ShenzhenMingchuangzhilianTechnologyCo.,Ltd Date:2022-4-28

2AZBU-SM510RX _Tune Up Procedure Measurement Procedure: 1. Set the device to operational voltage and on a predefined channel in a special test mode. 2. The actual output power is measured at several power levels. 3. The gain factors of each individual device are adjusted until the target value is met. The appropriate gain control settings for each output power level are stored in each device individually (for each power level). The user has no possibility to change these settings later on. 4. The maximum gains of each individual device are adjusted and measured until the target value is met. The production target power with tolerance compiles with the maximum power in test report. Rated RF power output: Mode 2.4G Channel Low Midle High GFSK 15.5±1dBm 14±1dBm 12±1dBm Then these appropriate rated RF output power settings are stored in each device individually. The user has no possibility to change these settings later on, and during manufacturing each device will be individual calibrated. The measurement is done in fully calibrated setup, which is based on the base station simulator. Furthermore, the highest power level is verified afterwards in a call measurement on three channels(low, middle and high).

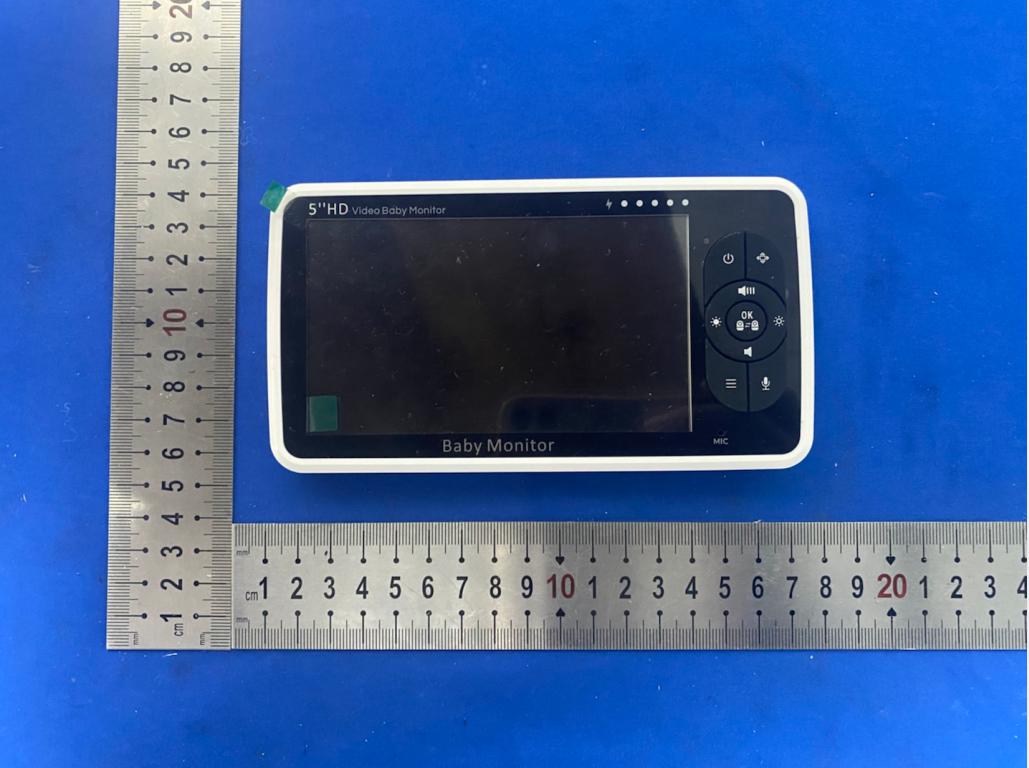

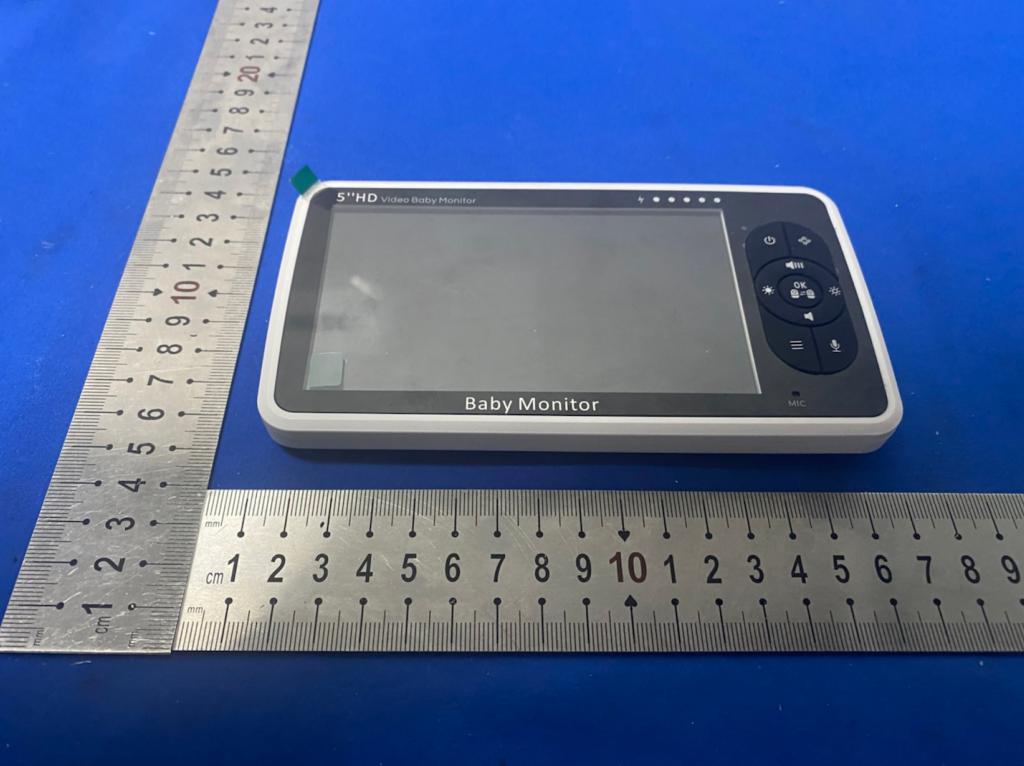

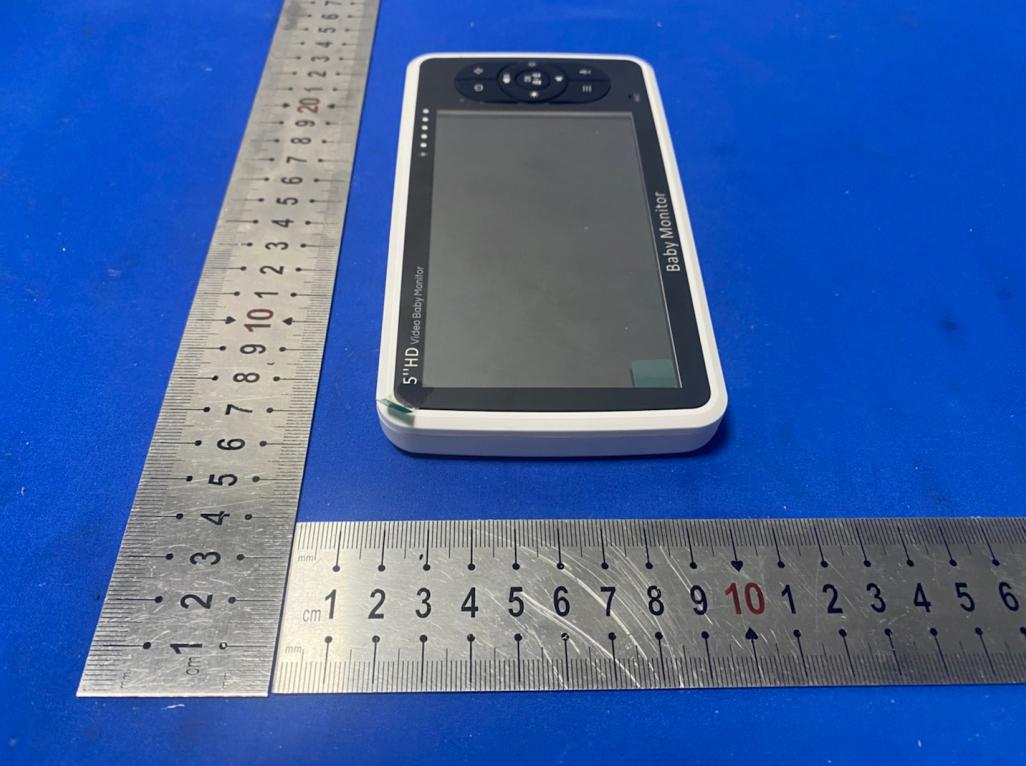

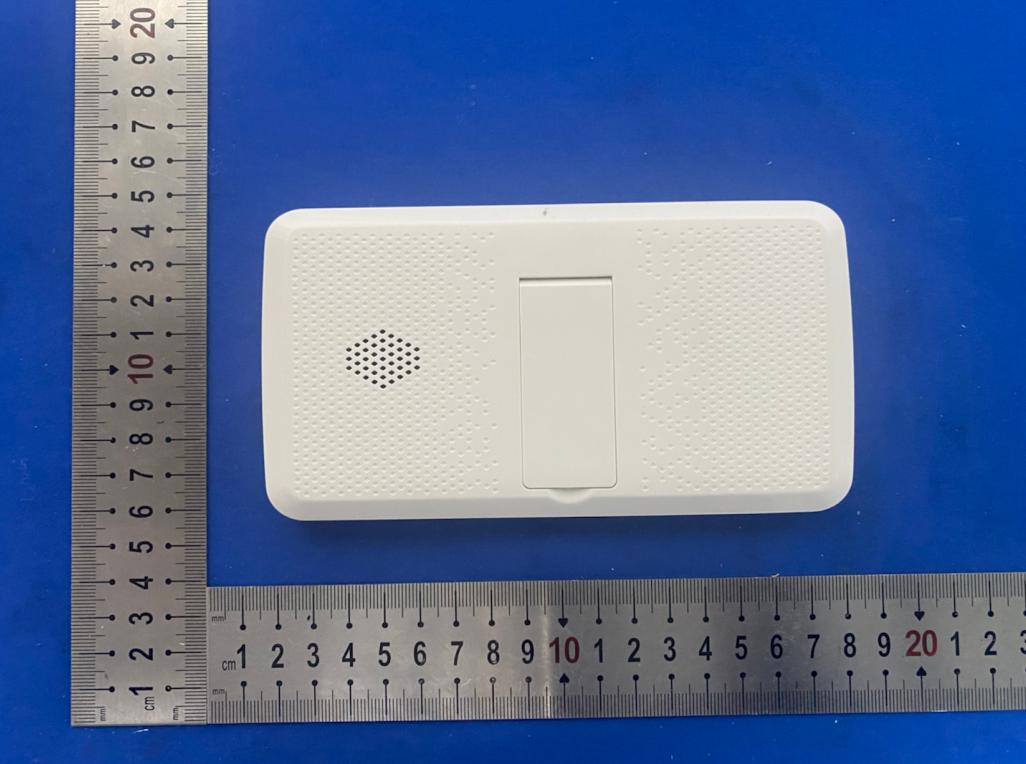

Externalphotos

Internalphotos

Ref : ACR.262.10.20.MVGB.A SHENZHEN STS TEST SERVICES CO., LTD. 1/F., BUILDING B, ZHUOKE SCIENCE PARK,No.190, CHONGQING ROAD,FUYONG STREET, BAO’ AN DISTRICT, SHENZHEN,GUANGDONG,CHINA MVG COMOSAR REFERENCE DIPOLE FREQUENCY: 2450 MHZ SERIAL NO.: SN 30/14 DIP2G450-335 SAR Reference Dipole Calibration Report 07/14/2020 Summary: This document presents the method and results from an accredited SAR reference dipole calibration performed in MVG. using the CALIPROBE test bench. for use with a MVG COMOSAR system only. The test results covered by accreditation are traceable to the International System of Units(SI). Calibrated at MVG Z.I. de la pointe du diable Technopôle Brest Iroise - 295 avenue Alexis de Rochon 29280 PLOUZANE - FRANCE Calibration date: 07/14/2020 Page: 1/11 SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262..20.MVGB.A Name Function Date Signature Prepared by : Jérôme LUC Technical Manager 7/28/2020 Checked by : Jérôme LUC Technical Manager 7/28/2020 Approved by : Yann Toutain Laboratory Director 7/28/2020 Customer Name Distribution : Shenzhen STS Test Services Co., Ltd. Issue Date Modifications A 7/28/2020Initial release Name Jérôme LUC Page: 2/11 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Dipole vH This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. 0 1 SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262. TABLE OF CONTENTS 1 Introduction ................................................................................................................ 4 2 Device Under Test ..................................................................................................... 4 3 Product Description ................................................................................................... 4 3.1 General Information _______________________________________________________ 4 4 Measurement Method ................................................................................................ 5 4.1 Return Loss Requirements __________________________________________________ 5 4.2 Mechanical Requirements ___________________________________________________ 5 5 Measurement Uncertainty .......................................................................................... 5 5.1 Return Loss ______________________________________________________________ 5 5.2 Dimension Measurement ___________________________________________________ 5 5.3 Validation Measurement ____________________________________________________ 5 6 Calibration Measurement Results .............................................................................. 6 6.1 Return Loss and Impedance In Head Liquid ____________________________________ 6 6.2 Return Loss and Impedance In Body Liquid ____________________________________ 6 6.3 Mechanical Dimensions ____________________________________________________ 6 7 Validation measurement ............................................................................................ 7 7.1 Head Liquid Measurement __________________________________________________ 7 7.2 SAR Measurement Result With Head Liquid ____________________________________ 8 7.3 Body Liquid Measurement __________________________________________________ 9 7.4 SAR Measurement Result With Body Liquid __________________________________ 10 8 List of Equipment .................................................................................................... 11 Page: 3/11 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. .20.MVGB.A 0 1 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Dipole vH SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262. 1 INTRODUCTION This document contains a summary of the requirements set forth by the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards for reference dipoles used for SAR measurement system validations and the measurements that were performed to verify that the product complies with the fore mentioned standards. 2 DEVICE UNDER TEST Device Under Test Device Type COMOSAR 2450 MHz REFERENCE DIPOLE Manufacturer MVG Model SID2450 Serial Number SN 30/14 DIP2G450-335 Product Condition (new / used) Used A yearly calibration interval is recommended. 3 PRODUCT DESCRIPTION 3.1 GENERAL INFORMATION MVG’s COMOSAR Validation Dipoles are built in accordance to the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards. The product is designed for use with the COMOSAR test bench only. Figure 1 – MVG COMOSAR Validation Dipole Page: 4/11 This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. .20.MVGB.A 0 1 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Dipole vH SAR REFERENCE DIPOLE CALIBRATION REPORT Ref: ACR.262. 4 MEASUREMENT METHOD The IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards provide requirements for reference dipoles used for system validation measurements. The following measurements were performed to verify that the product complies with the fore mentioned standards. 4.1 RETURN LOSS REQUIREMENTS The dipole used for SAR system validation measurements and checks must have a return loss of -20 dB or better. The return loss measurement shall be performed against a liquid filled flat phantom, with the phantom constucted as outlined in the fore mentioned standards. 4.2 MECHANICAL REQUIREMENTS The IEEE Std. 1528 and CEI/IEC 62209 standards specify the mechanical components and dimensions of the validation dipoles, with the dimensions…

Text truncated - open the document above for the full version.

ShenzhenHuaxiaTestingTechnologyCo.,Ltd. 1F.,BlockAofTongshengTechnologyBuilding,HuahuiRoad,DalangStreet,LonghuaDistrict, Shenzhen,China Telephone:+86-755-26648640 Fax:+86-755-26648637 Website:www.cqa-cert.com ReportTemplateVersion:V05 ReportTemplateRevisionDate:2021-11-03 TestReport Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,Theresult(s)showninthisreportreferonlyto thesample(s)tested.WithoutwrittenapprovalofCQA,thisreportcan’tbereproducedexceptinfull. ReportNo.:CQASZ20220300456E Applicant: ShenzhenMingchuangzhilianTechnologyCo.,Ltd AddressofApplicant: 4/F,BBlock,No.3,EastRegion,ShangxueSciencePark,BantianSt, LonggangDist,Shenzhen,China EquipmentUnderTest(EUT): Product: BabyMonitor ModelNo.: SM510,SM510RX,SM50,SM50RX,BBM01,BBM01RX TestModelNo.: SM510 BrandName: N/A FCCID: 2AZBU-SM510RX Standards:47CFRPart15,SubpartC DateofReceipt:2022-03-29 DateofTest: 2022-03-29to2022-04-24 DateofIssue:2022-06-02 TestResult:PASS* *Intheconfigurationtested,theEUTcompliedwiththestandardsspecifiedabove. TestedBy: (LewisZhou) ReviewedBy: (KLiao) ApprovedBy: (JackAi) ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220300456E Page:2of58 1Version RevisionHistoryOfReport ReportNo.Version Description IssueDate CQASZ20220300456ERev.01 Initialreport 2022-06-02 ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220300456E Page:3of58 2TestSummary TestItemTestRequirementTestmethodResult AntennaRequirement 47CFRPart15,SubpartCSection 15.203/15.247(c) ANSIC63.10(2013)PASS ACPowerLineConducted Emission 47CFRPart15,SubpartCSection 15.207 ANSIC63.10(2013)PASS ConductedPeakOutput Power 47CFRPart15,SubpartCSection 15.247(b)(1) ANSIC63.10(2013)PASS 20dBOccupiedBandwidth 47CFRPart15,SubpartCSection 15.247(a)(1) ANSIC63.10(2013)PASS CarrierFrequencies Separation 47CFRPart15,SubpartCSection 15.247(a)(1) ANSIC63.10(2013)PASS HoppingChannelNumber 47CFRPart15,SubpartCSection 15.247(a)(1) ANSIC63.10(2013)PASS DwellTime 47CFRPart15,SubpartCSection 15.247(a)(1) ANSIC63.10(2013)PASS PseudorandomFrequency HoppingSequence 47CFRPart15,SubpartCSection 15.247(b)(4) ANSIC63.10(2013)PASS Band-edgeforRF ConductedEmissions 47CFRPart15,SubpartCSection 15.247(d) ANSIC63.10(2013)PASS RFConductedSpurious Emissions 47CFRPart15,SubpartCSection 15.247(d) ANSIC63.10(2013)PASS RadiatedSpurious emissions 47CFRPart15,SubpartCSection 15.205/15.209 ANSIC63.10(2013)PASS Restrictedbandsaround fundamentalfrequency (RadiatedEmission) 47CFRPart15,SubpartCSection 15.205/15.209 ANSIC63.10(2013)PASS ShenzhenHuaxiaTestingTechnologyCo.,Ltd. ReportNo.:CQASZ20220300456E Page:4of58 3Contents Page 1VERSION..........................................................................................................................................................................2 2TESTSUMMARY............................................................................................................................................................3 3CONTENTS......................................................................................................................................................................4 4GENERALINFORMATION...........................................................................................................................................5 4.1CLIENTINFORMATION.................................................................................................................................................5 4.2GENERALDESCRIPTIONOFEUT.................................................................................................................................5 4.3ADDITIONALINSTRUCTIONS........................................................................................................................................7 4.4TESTENVIRONMENT...................................................................................................................................................8 4.5DESCRIPTIONOFSUPPORTUNITS...............................................................................................................................8 4.6STATEMENTOFTHEMEASUREMENTUNCERTAINTY....................................................................................................9 4.7TESTLOCATION........................................................................................................................................................10 4.8TESTFACILITY..........................................................................................................................................................10 4.9ABNORMALITIESFROMSTANDARDCONDITIONS......................................................................................................10 4.10OTHERINFORMATIONREQUESTEDBYTHECUSTOMER..........................................................................................10 4.11EQUIPMENTLIST.....................................................................................................................................................11 5TESTRESULTSANDMEASUREMENTDATA.....................................................................................................12 5.1ANTENNAREQUIREMENT..........................................................................................................................................12 5.2CONDUCTEDEMISSIONS............................................................................................................................................13 5.3CONDUCTEDPEAKOUTPUTPOWER.........................................................................................................................17 5.420DBOCCUPYBANDWIDTH......................................................................................................................................21 5.5CARRIERFREQUENCIESSEPARATION........................................................................................................................24 5.6HOPPINGCHANNELNUMBER............................…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. ShenZhen STS Test Services Co.,Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC SAR TEST REPORT Report No.: STS2204142H01 Issued for Shenzhen Mingchuangzhilian Technology Co., Ltd 4/F, B Block, No.3, East Region, Shangxue Science Park, Bantian St , Longgang Dist, Shenzhen, China Product Name: Baby Monitor Brand Name: N/A Model Name: SM510 Series Model: SM510TX, SM510RX, SM50, SM50TX, SM50RX, BBM01, BBM01TX, BBM01RX FCC ID: 2AZBU-SM510RX Test Standard: ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 Max. Report SAR (1g): Body: 1.295 W/kg S T L A B S Page 2 of 33 Report No.: STS2204142H01 Test Report Certification Applicant’s name ................. : Shenzhen Mingchuangzhilian Technology Co., Ltd Address ................................. : 4/F, B Block, No.3, East Region, Shangxue Science Park, Bantian St , Longgang Dist, Shenzhen, China Manufacturer's Name .......... : Shenzhen Mingchuangzhilian Technology Co., Ltd Address ................................. : 4/F, B Block, No.3, East Region, Shangxue Science Park, Bantian St ,Longgang Dist, Shenzhen, China Product description Product name ........................ : Baby Monitor Brand name ......................... : N/A Model name ......................... : SM510 Series Model .......................... : SM510TX, SM510RX, S…

Text truncated - open the document above for the full version.
