2AZCV-MCH4025Wireless charger

IMPORTANT: Please read this manual before using the unit to ensure safe and proper use.  The unit will generate the magne�c/electric field; never place any medical equipment; watches; credit card; magne�c record card or any magne�c sensi�ve products close to the unit.  Only phones with built-in QI wireless system can recharged by this unit. For details, please refer the user’s manual of your phone.  The design of the unit is indoor use. Never spill or spray any type of liquid on the product.  Do not use this product near water and moisture, for example: near a bathtub, washbowl, kitchen sink or laundry tub; in a wet basement; or near a swimming pool.  Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.  Clean only with dry cloth. Unplug this product from external USB Charging Devices before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dry closth for cleaning.  Do NOT place any heavy object on the Charging Surface. It may damage the unit.  When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteris�cs as the original parts. Unauthorized subs�tu�ons may result in fire or electric shock or other hazards. 1 FCC NOTICE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec�on against harmful interference in a residen�al installa�on. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc�ons, may cause harmful interference to radio communica�ons. However, there is no guarantee that interference will not occur in a par�cular installa�on. If this equipment does cause harmful interference to radio or television recep�on, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separa�on between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifica�ons to this equipment may cause harmful interference unless the modifica�ons are expressly approved in the instruc�on manual. Modifica�ons not authorized by the manufacturer may void user’s authority to operate this device. 2 LOCATION OF CONTROLS: 1.Wireless Charging Surface 2.Micro USB Port 3.Blue & Green LED Indicator 3 3 2 1 OPERATION: 1.Connect the Micro USB Plug from the supplied USB connec�on cable to the Micro USB Port on the unit as illustrated below: 2.Connect the full size USB Plug to the USB Port on your USB Charger (not included) as illustrated below: 3.The Blue & Green Indicators on the unit will illuminate & blink a few seconds, then turn off. 4 4.Place your cell phone onto the center of the charging surface as illustrated below un�l the Blue and Green LED Indicator illuminate and blink slowly (or, the charging icon appears on the cell phone’s display) to start charging. (Note: If the loca�on of the cell phone is incorrect, charging will NOT proceed.) 5.Wait un�l your cell phone finished charging as usual and full charging indicators appear on your cell phone’s display Notes: 1.To charge a cell phone with this Charger, the cell phone must be compa�ble with the Qi standard for wireless charging. 2.During charging, if the cell phone has a cover or case, it may disturb or prevent the wireless charging func�on of the cell phone. 3.The charging transmission distance of the unit is less than 4mm, the thickness of cell phone cover or case can NOT extend 4 mm. 4.To maximize the charging speed, using a USB Charger (not included) equipped with Quick Charger 3.0 USB port. 5.Back of phone must be void of a�achments or accessories to charge wirelessly. 6.To save energy, disconnect the Charger from the USB Charger if not using it for an extended period of �me. 5 GENERAL SPECIFICATION: Input: DC5V/2A or 9V/ 2A Output: 5W or 10W Transmission Distance: Up to 4 mm ACCESSORIES: 1X Owner’s Manual 1X USB Connec�on Cable (for charging only) SPECIFICATIONS AND ACCESSORIES ARE SUBJECT TO CHANGE WITHOUT NOTICE 6

HANKELECTRONICSVIETNAMLTD AgentAuthorization Company:HANKELECTRONICSVIETNAMLTD Address:No.7,11StreetVSIPTuSon,16353BacNinhProvince,Vietnam ProductName:Wirelesscharger TradeMark:MAGNAVOX ModelNumber(s):HKWP1131S-10,MCH4025 FCCID:2AZCV-MCH4025 WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2021-05-13 Name:WenCheng Title:CertificationEngineer Company:HANKELECTRONICSVIETNAMLTD

HANKELECTRONICSVIETNAMLTD Address:No.7,11StreetVSIPTuSon,16353BacNinhProvince,Vietnam OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA DearSir/Madam, We,HANKELECTRONICSVIETNAMLTDHerebydeclaresthefollowingstatementfor MiCOMLabsInc,PCBboard,structureandinternalofthesemodel(s)arethesame,Only modelsnameisdifferentforthesemodels: ProductName:Wirelesscharger TradeMark:MAGNAVOX ModelNumber(s):HKWP1131S-10,MCH4025 FCCID:2AZCV-MCH4025 Signature:Date:2021-05-13 Name:WenCheng Title:CertificationEngineer Company:HANKELECTRONICSVIETNAMLTD

HANKELECTRONICSVIETNAMLTD OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2021-05-13 Subject;RequestforConfidentiality FCCID:2AZCV-MCH4025 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:WenCheng Title:CertificationEngineer

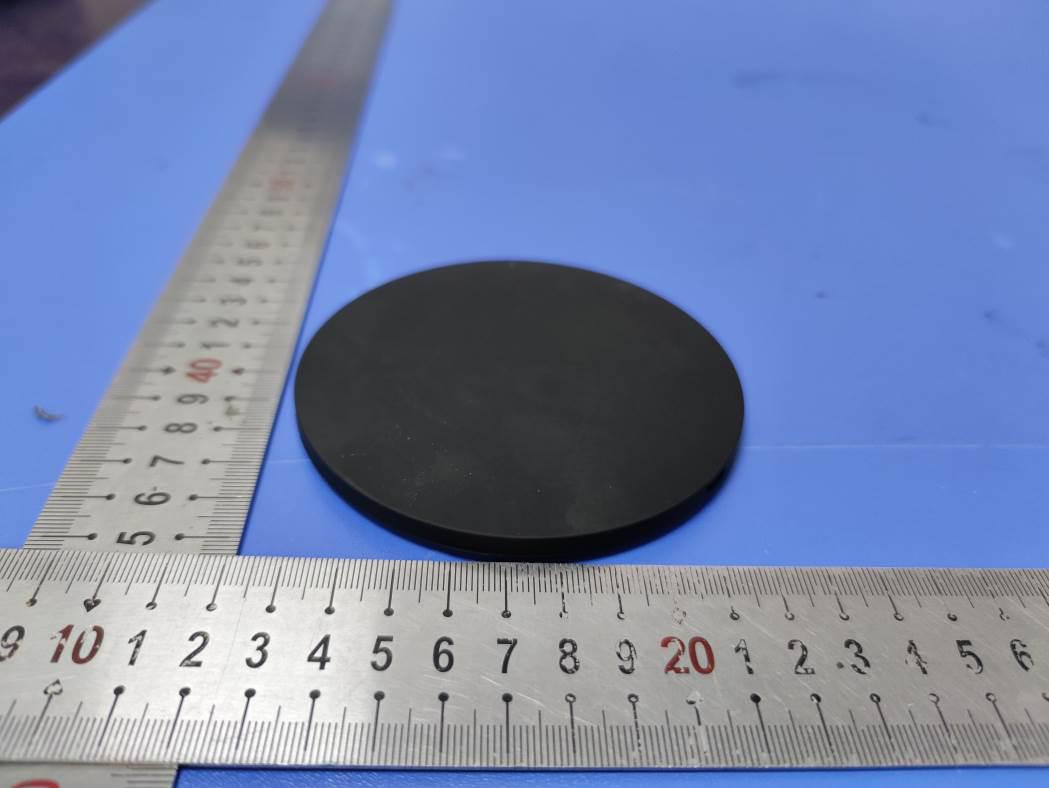

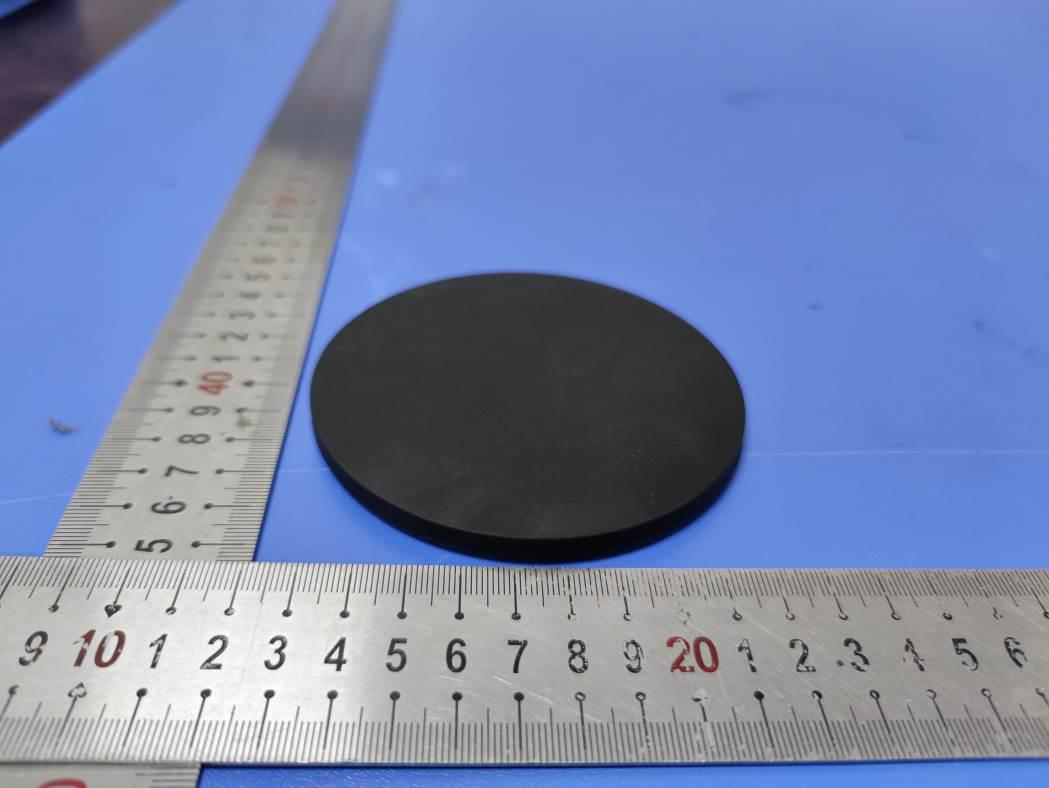

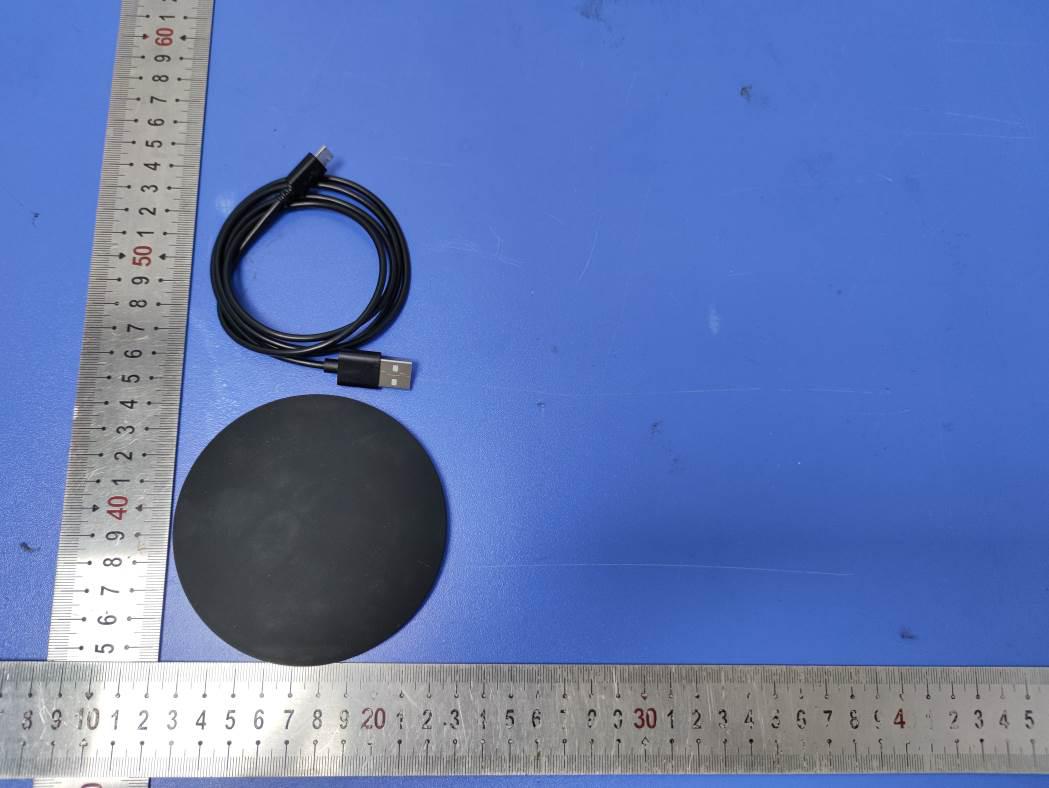

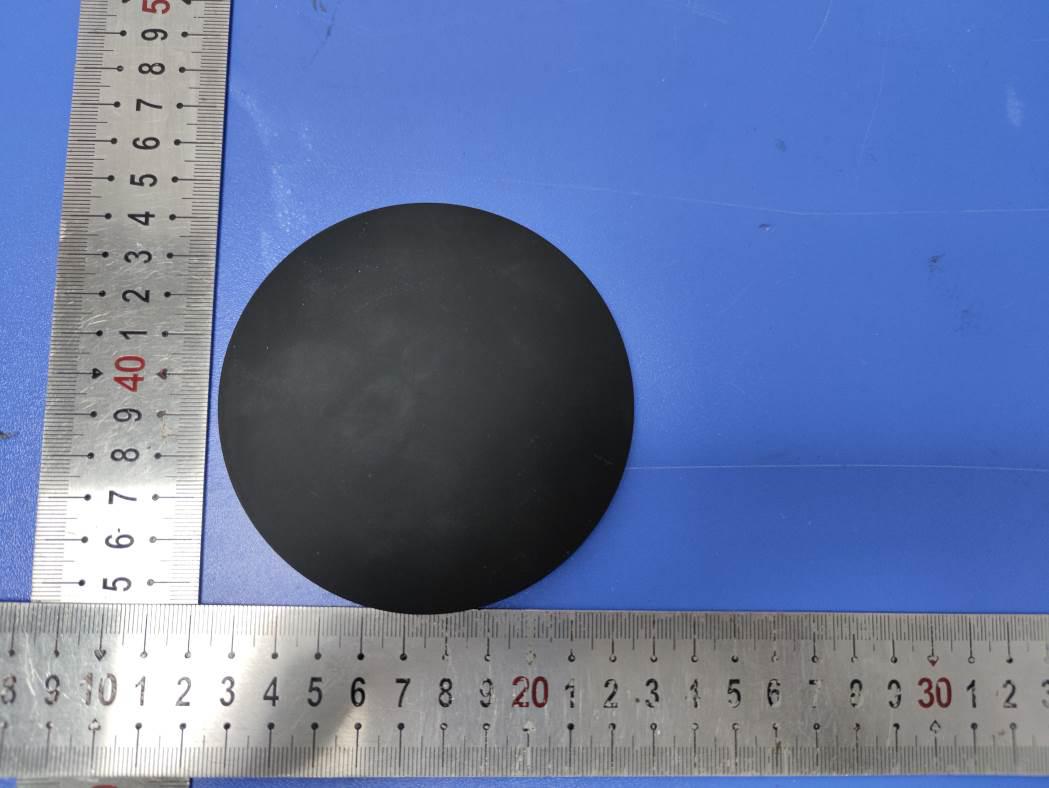

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AZCV-MCH4025 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of 4 ExternalPhotosoftheEUT Fig.1 Fig.2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AZCV-MCH4025 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 2 of 4 Fig.3 Fig.4 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AZCV-MCH4025 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 3 of 4 Fig.5 Fig.6 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AZCV-MCH4025 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 4 of 4 Fig.7

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AZCV-MCH4025 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of1 LabelandLocation Size:L:2.5cm*W:1.5cm LabelLocation Wirelesscharger ModelNo.:HKWP1131S-10 FCCID:2AZCV-MCH4025

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AZCV-MCH4025 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page1of3 InternalPhotosoftheEUT Fig.1 Fig.2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AZCV-MCH4025 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page2of3 Fig.3 Fig.4 CoilAntenna SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AZCV-MCH4025 Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page3of3 Fig.5

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AZCV-MCH4025 ___________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of 10 RFExposureEvaluationReport 1.ProductInformation FCCID:2AZCV-MCH4025 ProductNameWirelesscharger ModelNumberHKWP1131S-10 AdditionalModelNo.MCH4025 ModelDeclaration PCBboard,structureandinternalofthesemodel(s)arethesame,So noadditionalmodelsweretested PowerSupply UsbInput:DC5V/2A,9V/2A WirelessOutput:5W,10W ModulationTypeCW(ContinuousWave) FrequencyRange110KHz-205KHz OperationFrequency125.0KHz AntennaTypeCoilAntenna Hardwareversion V1.0 Softwareversion V1.1 AccessoriesMobilephone ExposurecategoryGeneralpopulation/uncontrolledenvironment EUTTypeProductionUnit DeviceTypeMobileDevice 2.EvaluationMethod PerKDB680106D01Section3.RFExposureRequirements; 1）ConsumerwirelesspowertransferdevicesapprovedunderPart18insomecaseshavetodemonstrate compliancewithRFexposurerequirements.Thepotentialforexposuremustbeassessedaccordingtothe operatingconfigurationsofthewirelesssystemandtheexposureconditionsofusersandbystanders.RF exposuremustbeevaluatedwiththeclientdevice(s)beingchargedbytheprimaryatmaximumoutput power.TheRFexposurerequirementsmustbedeterminedinconjunctionwiththedeviceoperating characteristics,accordingtothemobileandportableexposurerequirementsinSection2.1091andSection 2.1093oftherules.SARandMPElimitsdonotcoverthefrequencyrangeforwirelesspowertransfer applicationswhichoperatebelow100kHzand300kHzrespectively;therefore,RFexposurecompliance needstobedeterminedwithrespectto1.1307(c)and(d)oftheFCCrules. 2）Basedonthedesignandimplementationofthepowertransferapplication,itmustbeclearlyidentifiedif mobileorportableRFexposureconditionsapply.Devicesthatareinstalledtoprovideseparationofatleast 20cmfromusersandbystandersmayqualifyformobileexposureconditions.Forsomeconditionswhere usersandbystandersmaybeexposedatcloserthan20cm,section2.1091(d)(4)oftherulesmayapply. 3）Fordevicesdesignedfortypicaldesktopapplications,suchawirelesschargingpads,RFexposure evaluationshouldbeconductedassumingauserseparationdistanceof15cm.EandHfieldstrength measurementsornumericalmodelingmaybeusedtodemonstratecompliance.Measurementsshouldbe madefromallsidesandthetopoftheprimary/clientpair,withthe15cmmeasuredfromthecenterofthe probe(s)totheedgeofthedevice.Emissionsbetween100kHzto300kHzshouldbeassessedversusthe limitsat300kHzinTable1ofSection1.1310:614V/mand1.63A/m.AKDBinquiryisrequiredto determinetheapplicableexposurelimitsbelow100kHz. SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AZCV-MCH4025 ___________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 2 of 10 4）Portableexposureconditionsfrom100kHzto6GHzaredeterminedwithrespecttoSARrequirements. ExistingSARsystemsandtestproceduresaregenerallyintendedformeasurementsabove100MHz.While numericalmodelingcanbeanalternative,theconstraintsofsubstantialcomputationalresourcesatlow frequenciescouldintroducefurtherlimitations.Underthesecircumstances,includingoperationsbelow100 kHz,theCommissionmayconsideracombinationofanalyticalanalysis,fieldstrength,radiatedand conductedpowermeasurements,inconjunctionwithsomelimitednumericalmodelingtoassesscompliance. 5）Dependingontheoperatingfrequency,existingSARandMPEmeasurementproceduresmaybeadapted toevaluatewirelesspowertransferdevicesforcompliancewithrespecttomobileorportableexposure conditions.IfthegranteeoritstestlabhaveanyquestionsregardingRFexposureevaluationtheyshould contacttheFCCLaboratorywithsufficientsystemoperatingconfigurationdetailstodetermineifRF exposureevaluationisnecessaryand,ifrequired,howtoapplyspecifictestprocedures.Below100MHz, whenSARtestingisrequiredandthedeviceisoperatingatcloseproximitytopersons,informationon devicedesign,implementation,operatingconfigurations,exposureconditionsofusersandbystandersare neededtodeterminetheevaluationandtestingrequirements.Inaddition,theinfluenceofnearbyobjectsmay alsoneedconsiderationaccordingtothewirelesspowertransfersystemimplementation;forexample,the effectsofplacingthedevice,itscoilsorradiatingelementsonornearmetallicsurfaces 3.EvaluationLimit 3.1Referevaluationmethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadio FrequencyElectromagneticFields,3kHzto300GHz. FCCKDBpublication680106D01RFExposureWirelessChargingAppsv03:RFExposure ConsiderationsforLowPowerConsumerWirelessPowerTransferApplications FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices FCCCFR47part18.107:Indusial,Scientific,andMedicalEquipment 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3-3.06141.63*1006 3.0-301842/f4.89/f*900/f 2 6 30-30061.40.1631.06 300-1,500//f/3006 1,500-100,000//56 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AZCV-MCH4025 ___________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 3 of 10 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforGeneralPopulation/UncontrolledExposure 0.3-1.346141.63*10030 1.34-30824/f2.19/f*180/f 2 30 30-30027.50.0730.230 300-1,500//f/150030 1,500-100,000//1.030 F=frequencyinMHz *=Plane-waveequivalentpowerdensity AccordingtoFCCKDB680106D01Section3.RFExposureRequirementsclause3the Emission-Limitsinthefrequencyrangefrom100KHzto300KHzshouldbeassessedversusthe limitsat300KHzinTable1ofCFR47–Section1.310asfollowing(measureddistancesh…

Text truncated - open the document above for the full version.

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AZCV-MCH4025ReportNo.:LCS210422079AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page1of21 FCCTESTREPORT For HANKELECTRONICSVIETNAMLTD Wirelesscharger TestModel:HKWP1131S-10 AdditionalModelNo.:MCH4025 Preparedfor:HANKELECTRONICSVIETNAMLTD Address: No.7,11StreetVSIPTuSon,16353BacNinhProvince,Vietnam Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address: 101,201BldgA&301BldgC,JujiIndustrialParkShajingStreet, BaoanDistrict,Shenzhen,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:April25,2021 Numberoftestedsamples:1 Serialnumber:Prototype DateofTest:April25,2021~April30,2021 DateofReport:May06,2021 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AZCV-MCH4025ReportNo.:LCS210422079AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page2of21 FCCTESTREPORT FCCCFR47PART15C ReportReferenceNo..........................:LCS210422079AEA DateOfIssue........................................:May06,2021 TestingLaboratoryName..................:ShenzhenLCSComplianceTestingLaboratoryLtd. Address.................................................: 101,201BldgA&301BldgC,JujiIndustrialParkShajingStreet, BaoanDistrict,Shenzhen,China TestingLocation/Procedure................. : FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName................................:HANKELECTRONICSVIETNAMLTD Address.................................................:No.7,11StreetVSIPTuSon,16353BacNinhProvince,Vietnam TestSpecification Standard................................................:FCCCFR47PART15C TestReportFormNo............................:LCSEMC-1.0 TRFOriginator.....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF...........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongastheShenzhenLCS ComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthematerial.Shenzhen LCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnotassumeliabilityfordamages resultingfromthereader'sinterpretationofthereproducedmaterialduetoitsplacementandcontext. TestItemDescription.........................:Wirelesscharger TradeMark...........................................:MAGNAVOX TestModel............................................:HKWP1131S-10 PowerSupply........................................: UsbInput:DC5V/2A,9V/2A WirelessOutput:5W,10W Result....................................................: Positive Compiledby:Supervisedby:Approvedby: JackLiu/FileadministratorsJinWang/TechniqueprincipalGavinLiang/Manager SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AZCV-MCH4025ReportNo.:LCS210422079AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page3of21 FCCTESTREPORT TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCS210422079AEA May06,2021 Dateofissue TestModel..............................:HKWP1131S-10 EUT.........................................:Wirelesscharger Applicant...............................:HANKELECTRONICSVIETNAMLTD Address..................................:No.7,11StreetVSIPTuSon,16353BacNinhProvince,Vietnam Telephone...............................:/ Fax..........................................:/ Manufacturer........................:HANKELECTRONICSVIETNAMLTD Address...................................:No.7,11StreetVSIPTuSon,16353BacNinhProvince,Vietnam Telephone...............................:/ Fax..........................................:/ Factory...................................:HANKELECTRONICSVIETNAMLTD Address...................................:No.7,11StreetVSIPTuSon,16353BacNinhProvince,Vietnam Telephone...............................:/ Fax..........................................:/ SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AZCV-MCH4025ReportNo.:LCS210422079AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page4of21 RevisionHistory RevisionIssueDateRevisionsRevisedBy 000May06,2021InitialIssueGavinLiang SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AZCV-MCH4025ReportNo.:LCS210422079AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page5of21 TABLEOFCONTENTS 1.GENERALINFORMATION.................................................................................................6 1.1DescriptionofDevice(EUT)...........................................................................................................6 1.2SupportequipmentList....................................................................................................................6 1.3ExternalI/OCable............................................................................................................................6 1.4DescriptionofTestFacility..............................................................................................................6 1.5StatementoftheMeasurementUncertainty.....................................................................................7 1.6MeasurementUncertainty................................................................................................................7 1.7DescriptionofTestModes...............................................................................................................7 2.TESTMETHODOLOGY.......................................................................................................8 2.1EUTConfiguration............…

Text truncated - open the document above for the full version.

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AZCV-MCH4025 _______________________________________________________________________________________________ Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page1of1 AppendixA PhotographsofTestSetup ConductedEmission-ACadapterchargemode RadiatedEmissionbelow30MHz
