2AZDF-R4060Multi Functional Gateway

Multi function Gateway R4060 English 1 AUX OUTMicro USB DC 5V 2A Rear TOP Mute MIC Volume up Volume down Indicator light Note: the volume up/down button is only for adjusting Alexa sound. Action button English 2 Package includes 1. Multifunction Gateway x 1 2. USB cable x 1 3. User manual x 1 4. Power Adatper x 1 5. IR Remote control x 1 6. AAA battery x 2 Introduction The R4060 is a new generation, powerful, multifunction, smart home gateway. It features Alexa-built in, Zigbee gateway, Smart IR, Siren, bluetooth speaker. Requirement to use 1. WOOX Security app 2. WLAN-enabled router: 2.4GHz (Separate band) Set up the multifunction gateway with WOOX Security App 1. Download and install the app "WOOX Security" from Apple App Store or Google Play Store on your smartphone. 2. Open bluetooth on smartphone. 3. Enable bluetooth and location permission for WOOX Security app, so that the app can find gateway via bluetooth. 4. Launch the app "WOOX Security". 5. Create a new account or log in to your existing account. 6. Power on the gateway and ensure the its indicator light is quick flashing in orange. If the indicator light isn't flashing: hold and press the action button for 5 seconds until the indicator light starts to flash. 7. Tap “+” to add the device. 8. The gateway will appear on the app. If gateway does not appear, please check if the bluetooth and location permission of WOOX Security app are enabled in smartphone settings. English 3 9. Select the gateway and continue. 10. Confirm the Wi-Fi network and password. Note: only 2.4GHz WiFi is supported. 11. The app will now search for the device and register is to your account. 12. Enter the device name. Note: The device name will also be used by Amazon Alexa and Google Home. Function description • Alexa built-in Function: Alexa built-in devices let you instantly connect to Alexa to play music, control your smart home, get information, news, weather, and more using just your voice. e.g.: you can say"Alexa, arm the gateway in home mode". How to control smart home device: To voice control smart home device that connected to gateway, you will need to link WOOX Security app account to Alexa. After login Alexa in app, it will check if your account is linked, if not, it will ask you to complete link process. Change Alexa language: you can change the Alexa language in the left menu as below: English 4 • Zigbee gateway Function: Zigbee gateway is used to connect Zigbee products to WOOX Security app, you can connect up to 100 Zigbee products from a single gateway. Security status: Gateway has 3 security status: home mode, away mode, and disarm mode. You can change the gateway status with WOOX Security app or voice control. In home/away mode, you can select specific product in the app to secure your home. Manage Zigbee products: You can access zigbee gateway in the left menu as below. In zigbee gateway you can add Zigbee products and check message occurred by Zigbee products. • Smart IR Function: R4060 supports most of home entertainment devices with IR frequency at 38K Hz with multi-angle directions in 6 meters range. It works with over 8,000 devices from 2,000+ brands, including TV, VCR, DVD, Blu-ray, AV receiver, Audio/Amplifier, CD, TV Box, Media box, SAT/Cable, Projector, Soundbar, etc. IR learnnig is also supported if there is not available code. More important, you can control these devices via voice, e.g.: “Alexa, turn on the TV”. English 5 Add IR device in app: You can access Smart IR in the left menu as below. IR remote control: R4060 comes with a IR remote control accessory without IR codes inside. To use it, user need to download IR codes from cloud through gateway. • Download IR codes from cloud to IR remote control: open smart IR menu in the app, click "Edit" in the right top corner, then click "Send to Smart IR Unit". English 6 • Press and hold "Set" SET and "1" buttons simultaneously until power button light on in red. • Select the category that you want to store in IR remote control, press "Poceed" to start downloading from gateway to IR remote control via RF 433.92MHz frequency. It supports to store 5 IR remote codes: TV, STB, DVD, MEDIA and SET&MEDIA. • After downloading success, select the corresponding category to control your device. e.g.: if you downloaded a TV codes to TV category, when control your TV off, you need press the "TV" button first, then press power button to turn off TV. If you downloaded TV codes to SET&MEDIA category, when control your TV off, you need press the "SET" button SET and "MEDIA" button at the same time first, then press power button to turn off TV. Note: you can use the IR remote control without gateway nearby. English 7 SET • Clear IR codes stored in IR remote control and reset to default: press and hold "SET" button SET and "0" button at the same time for 3 seconds until power button light on in red, then press "OK" button to set to default, LED will flash twice once completed. • Note: 1. LED will flash 6 times if downloading failed. 2. The IR remote control will exit downloading mode automatically if there is no action within 30s. • Siren Function: the siren function is built in firmware, once alarm is English 8 triggered by app or Zigbee products, gateway will alert with 85dB sound, the sound will not stop until the alarm is cancelled. • Bluetooth speaker Function: With bluetooth inside, you can use it as a bluetooth speaker, it's bluetooth name is R4060. Note: R4060 can not connect to other bluetooth speaker via bluetooth, only AUX is supported. Technical data Input: DC 5V/2A Voice service: Alexa built-in Wake up: Far- field wake up Speaker: 3W Output: AUX Bluetooth: supported Zigbee: Tuya Zigbee 3.0 Zigbee distance: indoor 20-30 meters Siren: 85dB alarm sound Wireless connection: 2.4GHz Wi-Fi & Zigbee 3.0 RF frequency: 433.92MHz IR frequency: 38KHz IR distance: Max. 6 meters Dimension: 100x100x53.5mm Working temperature: -10 °C -45 °C Working humidity: ≤85%RH Caution: This device complies with P…

Text truncated - open the document above for the full version.

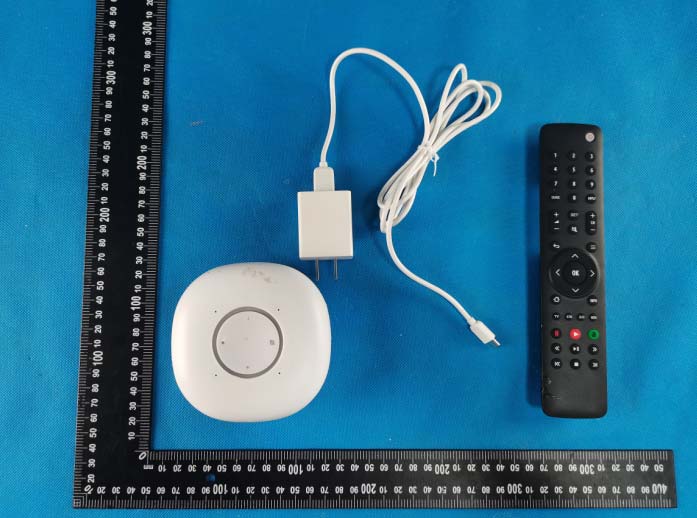

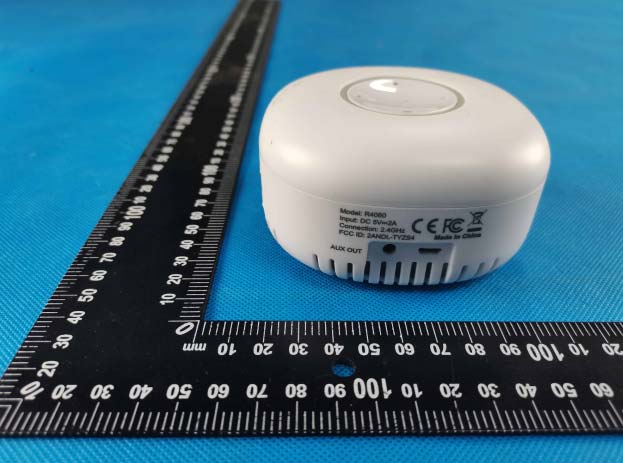

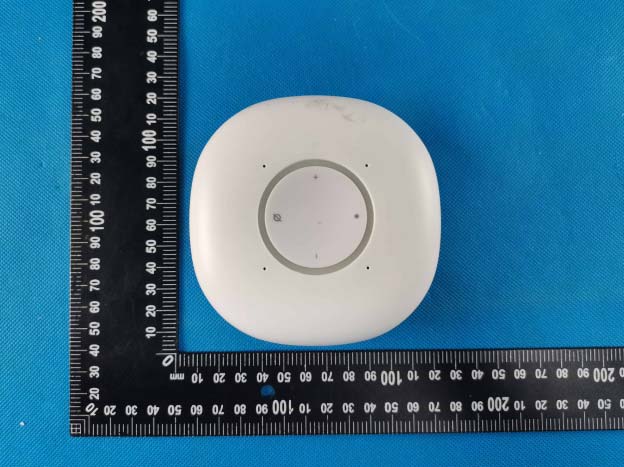

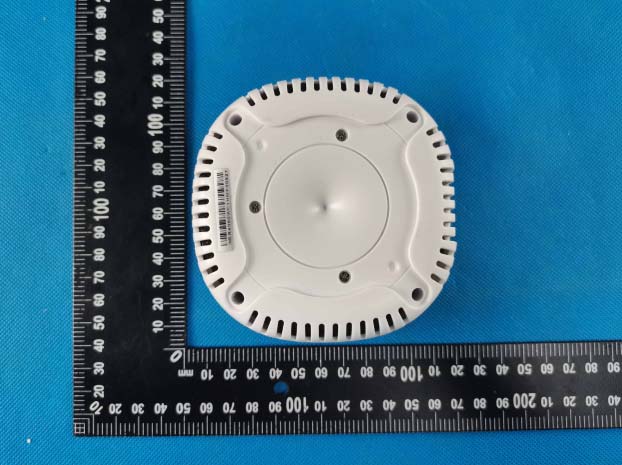

Appendix- R4060-Photos Page 1 of 4 Photographs –Constructional Details EUT – External View Model R4060 FCC ID: 2AZDF-R4060 Appendix- R4060-Photos Page 2 of 4 Appendix- R4060-Photos Page 3 of 4 Appendix- R4060-Photos Page 4 of 4

Appendix- R4060-Photos Page 7 of 12 2.2. EUT – Internal View Model R4060 FCC ID: 2AZDF-R4060 Appendix- R4060-Photos Page 8 of 12 BT/BLE/WIFI ANT

Appendix- R4060-Photos Page 9 of 12 ZIGBEE ANT Appendix- R4060-Photos Page 10 of 12 Appendix- R4060-Photos Page 11 of 12 SRD ANT Appendix- R4060-Photos Page 12 of 12 ======End======

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 7 TEST REPORT Referen ce No. .................... : WTD21D03021969W005 V1 FCC ID ................................ : 2AZDF-R4060 Applicant ............................ : Shenzhen Venz Technology Co., Ltd Address .............................. : 1008, 10/F, Jinqizhigu building, 1 road Tangling, NanShan District, Shenzhen, China Manufacturer .................... : Shenzhen Venz Technology Co., Ltd Address .............................. : 1008, 10/F, Jinqizhigu building, 1 road Tangling, NanShan District, Shenzhen, China Product ............................... : Multi Functional Gateway Model(s) ............................. : R4060 Standards........................... : FCC Part 1.1307 Date of Receipt sample .... : 2021-03-22 Date of Test ....................... : 2021-03-22 to 2021-04-08 Date of Issue ...................... : 2021-04-20 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Levi Xiao / Project Engineer Daniel Liu / Designated Reviewer Reference No.: WTD21D03021969W005 V1 Page 2 of 7 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2. Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2. CONTENTS ............................................................................................................................................................ 2 3. REVISION HISTORY ............................................................................................................................................ 3 4. GENERAL INFORMATION .................................................................................................................................. 4 4.1. GENERAL DESCRIPTION OF E.U.T. ............................................................................................................ 4 4.2. DETAILS OF E.U.T. ..................................................................................................................................... 4 5. TEST SUMMARY .................................................................................................................................................. 5 6. RF EXPOSURE ...................................................................................................................................................... 6 6.1. REQUIREMENTS .......................................................................................................................................... 6 6.2. THE PROCEDURES / LIMIT ........................................................................................................................... 6 6.3. MPE CALCULATION METHOD .................................................................................................................... 7 6.4. RESULT: COMPLIANCE ............................................................................................................................... 7 Reference No.: WTD21D03021969W005 V1 Page 3 of 7 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 3. Revision History Test report No. Date of Receipt sample Date of Test Date of Issue Purpose Comment Approved WTD21D03021969 W005 2021-03-22 2021-03-22 to 2021-04-08 2021-04-09Original - replaced WTD21D03021969 W005 V1 2021-03-22 2021-03-22 to 2021-04-08 2021-04-20Version 1 Update Valid Reference No.: WTD21D03021969W005 V1 Page 4 of 7 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 4. General Information 4.1. General Description of E.U.T. Product: Multi Functional Gateway Model(s): R4060 Wi-Fi Specification: 2.4G-802.11b/g/n HT20/n HT40 Bluetooth Version: Bluetooth v4.2 with BLE Zigbee : Support SRD(433.92Mhz) Support Antenna Gain: Zigbee:2.2dbi WIFI/BT/BLE: 1.2dBi SRD 433.92Mhz:-0.2dbi Hardware Version: VENZ_C03 JIEMABAN_V1.2 Software Version: 1.3.1 4.2. Details of E.U.T. Ratings: DC 5V/2A(Micro USB) Manufacturer: andsmps Model:AS013Z-0502000UU Input:100-240VAC, 50/60Hz 0.45A Reference No.: WTD21D03021969W005 V1 Page 5 of 7 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 5. Test Summary Test Items Test Requirement Result Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307 PASS Reference No.: WTD21D03021969W005 V1 Page 6 of 7 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 6. RF Exposure Test Requirement: FCC Part 1.1307 Evaluation Method: FCC Part 2.1091 & KDB 447498 D01 General RF Exposure Guidance v06 6.1. Requirements Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. 6.2. The procedures / limit (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averagi…

Text truncated - open the document above for the full version.

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 40 TEST REPORT Referen ce No. .................... : WTD21D03021969W001 V1 FCC ID ................................ : 2AZDF-R4060 Applicant ............................ : Shenzhen Venz Technology Co., Ltd Address .............................. : 1008, 10/F, Jinqizhigu building, 1 road Tangling, NanShan District, Shenzhen, China Manufacturer .................... : Shenzhen Venz Technology Co., Ltd Address .............................. : 1008, 10/F, Jinqizhigu building, 1 road Tangling, NanShan District, Shenzhen, China Product ............................... : Multi Functional Gateway Model(s). ............................ : R4060 Standards........................... : FCC CFR47 Part 15.247 Date of Receipt sample .... : 2021-03-22 Date of Test ....................... : 2021-03-22 to 2021-04-08 Date of Issue ...................... : 2021-04-14 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Levi Xiao / Project Engineer Daniel Liu /Designated Reviewer Reference No.: WTD21D03021969W001 V1 Page 2 of 40 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 CONTENTS ............................................................................................................................................................ 2 3 REVISION HISTORY ............................................................................................................................................ 3 4 GENERAL INFORMATION .................................................................................................................................. 4 4.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................................ 4 4.2 DETAILS OF E.U.T. ......................................................................................................................................... 4 4.3 CHANNEL LIST ................................................................................................................................................. 5 4.4 TEST MODE ..................................................................................................................................................... 6 4.5 TEST FACILITY ................................................................................................................................................. 6 5 TEST SUMMARY .................................................................................................................................................. 7 6 EQUIPMENT USED DURING TEST .................................................................................................................. 8 6.1 EQUIPMENTS LIST ........................................................................................................................................... 8 6.2 DESCRIPTION OF SUPPORT UNITS ................................................................................................................. 9 6.3 MEASUREMENT UNCERTAINTY ....................................................................................................................... 9 6.4 TEST EQUIPMENT CALIBRATION ..................................................................................................................... 9 7 CONDUCTED EMISSION .................................................................................................................................. 10 7.1 E.U.T. OPERATION ....................................................................................................................................... 10 7.2 EUT SETUP ................................................................................................................................................... 10 7.3 MEASUREMENT DESCRIPTION ...................................................................................................................... 11 7.4 CONDUCTED EMISSION TEST RESULT ......................................................................................................... 11 8 RADIATED EMISSIONS..................................................................................................................................... 13 8.1 EUT OPERATION ........................................................................................................................................... 13 8.2 TEST SETUP .................................................................................................................................................. 14 8.3 SPECTRUM ANALYZER SETUP ...................................................................................................................... 15 8.4 TEST PROCEDURE ........................................................................................................................................ 16 8.5 CORRECTED AMPLITUDE & MARGIN CALCULATION ..................................................................................... 16 8.6 SUMMARY OF TEST RESULTS ....................................................................................................................... 17 9 CONDUCTED SPURIOUS EMISSIONS ........................................................................................…

Text truncated - open the document above for the full version.

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 80 TEST REPORT Referen ce No. .................... : WTD21D03021969W002 V1 FCC ID ................................ : 2AZDF-R4060 Applicant ............................ : Shenzhen Venz Technology Co., Ltd Address .............................. : 1008, 10/F, Jinqizhigu building, 1 road Tangling, NanShan District, Shenzhen, China Manufacturer .................... : Shenzhen Venz Technology Co., Ltd Address .............................. : 1008, 10/F, Jinqizhigu building, 1 road Tangling, NanShan District, Shenzhen, China Product ............................... : Multi Functional Gateway Model(s). ............................ : R4060 Standards........................... : FCC CFR47 Part 15.247:2019 Date of Receipt sample .... : 2021-03-22 Date of Test ....................... : 2021-03-22 to 2021-04-08 Date of Issue ...................... : 2021-04-14 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Levi Xiao / Project Engineer Daniel Liu / Designated Reviewer Reference No.: WTD21D03021969W002 V1 Page 2 of 80 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 CONTENTS ............................................................................................................................................................ 2 3 REVISION HISTORY ............................................................................................................................................ 3 4 GENERAL INFORMATION .................................................................................................................................. 4 4.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................................ 4 4.2 DETAILS OF E.U.T. ......................................................................................................................................... 4 4.3 CHANNEL LIST ................................................................................................................................................. 5 4.4 TEST MODE ..................................................................................................................................................... 6 4.5 TEST FACILITY ................................................................................................................................................. 7 5 TEST SUMMARY .................................................................................................................................................. 8 6 EQUIPMENT USED DURING TEST .................................................................................................................. 9 6.1 EQUIPMENTS LIST ........................................................................................................................................... 9 6.2 DESCRIPTION OF SUPPORT UNITS ............................................................................................................... 10 6.3 MEASUREMENT UNCERTAINTY ..................................................................................................................... 10 6.4 TEST EQUIPMENT CALIBRATION ................................................................................................................... 10 7 CONDUCTED EMISSION .................................................................................................................................. 11 7.1 E.U.T. OPERATION ....................................................................................................................................... 11 7.2 EUT SETUP ................................................................................................................................................... 11 7.3 MEASUREMENT DESCRIPTION ...................................................................................................................... 12 7.4 CONDUCTED EMISSION TEST RESULT ......................................................................................................... 12 8 RADIATED EMISSIONS..................................................................................................................................... 14 8.1 EUT OPERATION ........................................................................................................................................... 14 8.2 TEST SETUP .................................................................................................................................................. 15 8.3 SPECTRUM ANALYZER SETUP ...................................................................................................................... 16 8.4 TEST PROCEDURE ........................................................................................................................................ 17 8.5 CORRECTED AMPLITUDE & MARGIN CALCULATION ..................................................................................... 17 8.6 SUMMARY OF TEST RESULTS ....................................................................................................................... 18 9 CONDUCTED SPURIOUS EMISSIONS .....................................................................................…

Text truncated - open the document above for the full version.

Appendix- R4060-Photos Page 1 of 2 Test Setup photos Model R4060 FCC ID: 2AZDF-R4060 Photograph –Test Setup Conducted Emission For 9KHz-30MHz Test Site 1# Appendix- R4060-Photos Page 2 of 2 For 30MHz-1000MHz Test Site 1# For Above 1GHz Test Site 2#
