2AZDF-R7046Smart PIR Motion Sensor

Shenzhen Venz Technology Co., Ltd

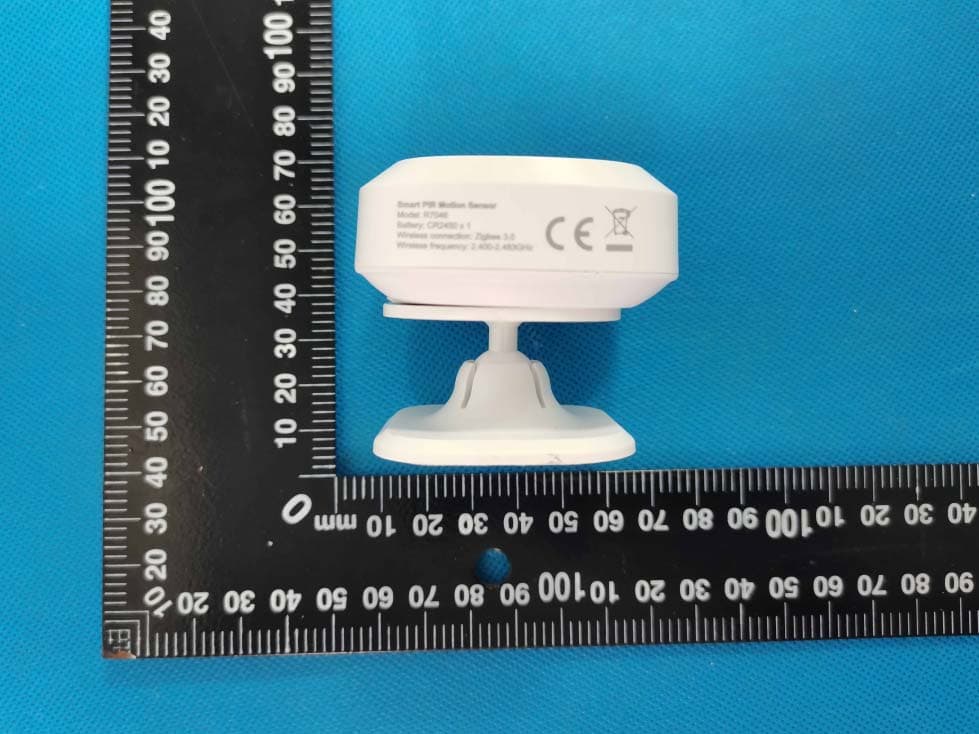

Smart PIR Motion Sensor - FCC ID 2AZDF-R7046 - Shenzhen Venz Technology Co., Ltd
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Apr 11, 2021
Application Purpose
Original Equipment
Date of Application
Apr 11, 2021
Equipment Note
Smart PIR Motion Sensor
Frequency Range
2405.00000000 - 2480.00000000
Company
Shenzhen Venz Technology Co., Ltd
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

R7046 PIR User manual_Size 68x104mm_100g双胶纸_骑马钉_中性.indd 12020/6/29 10:14:16 English 1 Indicator light Screws Screw hole Double-sided mounting tape. Reset Battery compartment A x 2 B x 2 R7046 PIR User manual_Size 68x104mm_100g双胶纸_骑马钉_中性.indd 12020/6/29 10:14:16 English 2 Introduction The smart PIR motion sensor detects movement and send real-alert notification to smartphone. Requirement to use 1. Tuya smart app 2. Tuya zigbee gateway (not included) Installation 1. Pull the insulation sheet from battery compartment of the PIR motion sensor. 2. Set up the PIR motion sensor with Tuya smart app. 3. Make sure the PIR motion sensor is in the range of Zigbee gateway's signal. 4. It is recommended to install the PIR motion sensor at 2.2m height. It's detection angle is 110°, detection distance is up to 6 meters. 5. Attach the PIR motion sensor to wall with provided screws (Machining 4 mm screw hole with screw driver on PIR motion sensor and 6 mm hole in the wall, and insert expansion sleeves into the wall) or double-sided mounting tape. R7046 PIR User manual_Size 68x104mm_100g双胶纸_骑马钉_中性.indd 22020/6/29 10:14:16 English 3 Top view Side view Replace battery Take the PIR motion sensor off from bracket base first, then replace the battery. Take PIR motion sensor off from bracket. R7046 PIR User manual_Size 68x104mm_100g双胶纸_骑马钉_中性.indd 32020/6/29 10:14:17 English 4 Remove battery compartment Set up the PIR motion sensor with Tuya smart app 1. Download and install the app "Tuya smart" from Apple App Store or Google Play Store on your mobile device. 2. Launch the app "Tuya smart". 3. Create a new account or log in to your existing account. 4. Tap “+” to add the device. 5. Select the applicable product type from the list of products. 6. Select a Zigbee Gateway. 7. Ensure the indicator light is quick flashing. If the indicator light isn't flashing: press and hold the reset button for 5 seconds until the indicator light starts to quick flashing. R7046 PIR User manual_Size 68x104mm_100g双胶纸_骑马钉_中性.indd 42020/6/29 10:14:17 English 5 8. Press confirm button in the Tuya smart app. 9. The app will now search for the device and register is to your account. 10. Enter the device name. Specification Battery: CR2450 x 1 (included) Dimension: 57x57x52mm Detection angle: 110° Wireless connection: Zigbee 3.0 Connection distance: indoor 10-30m Frequency: 2.4-2.483GHz Working temperature: -10 °C - 50 °C Working humidity: 0-95%RH, no condensation R7046 PIR User manual_Size 68x104mm_100g双胶纸_骑马钉_中性.indd 52020/6/29 10:14:17 Caution: This device complies with Part 15 of the FCC rules and Industry Canada license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or change to this equipment. Such modifications or change could void the user’s authority to operate the equipment. This radio transmitter (identify the device by certification number or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.

External Photos

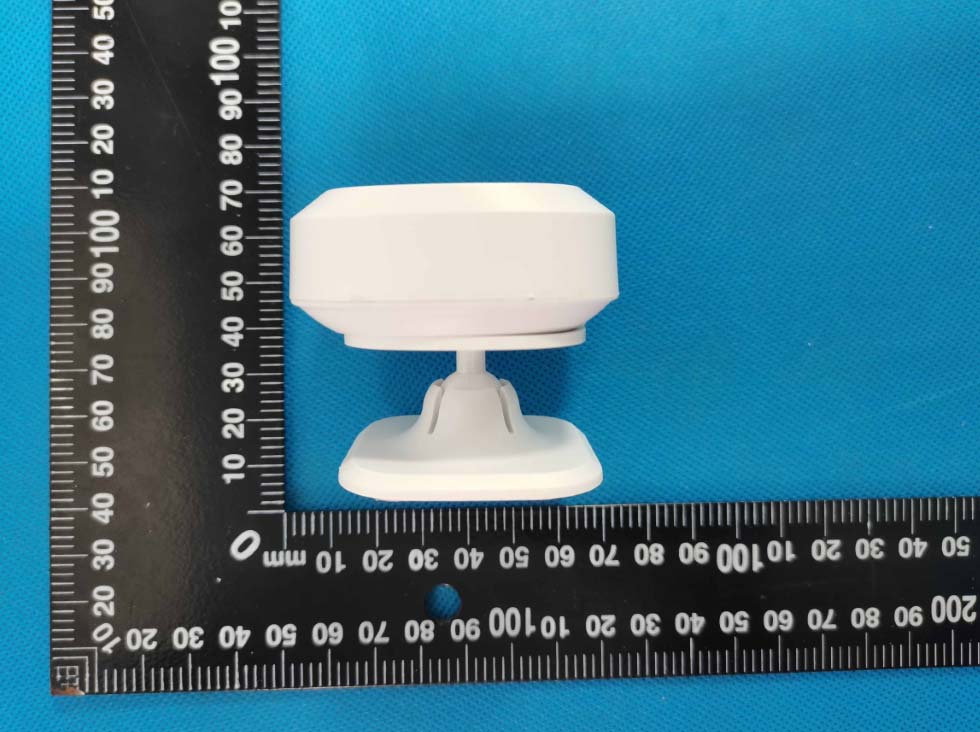

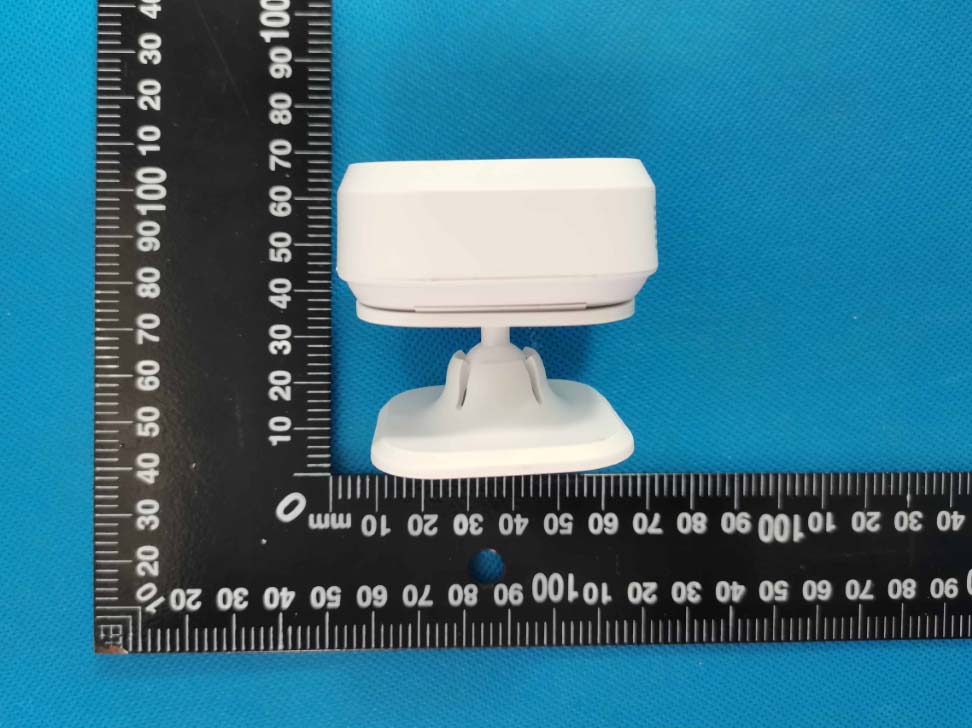

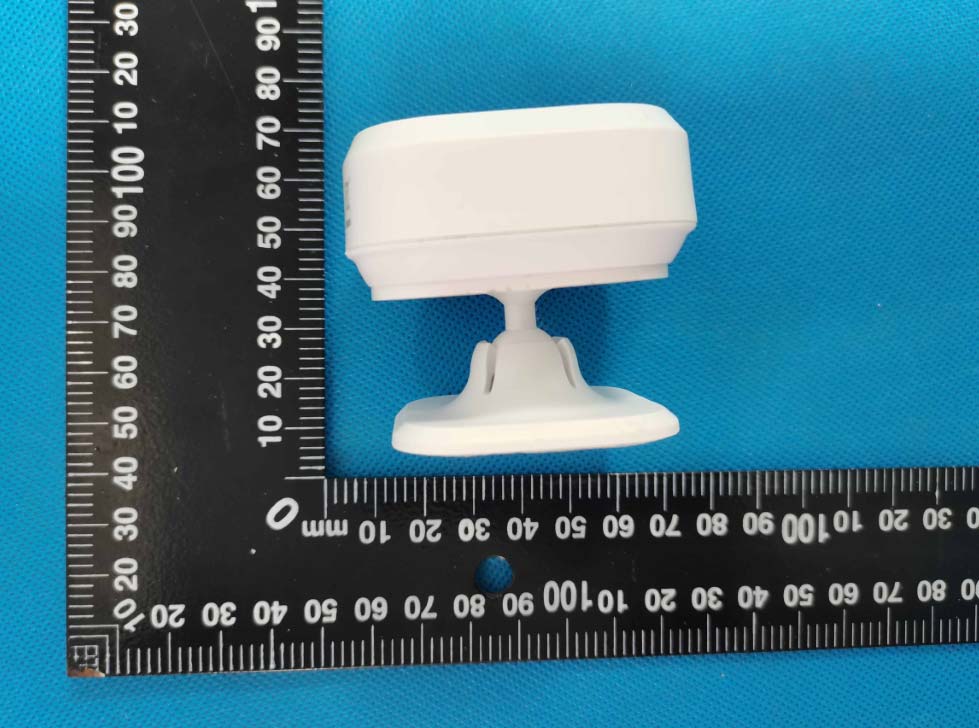

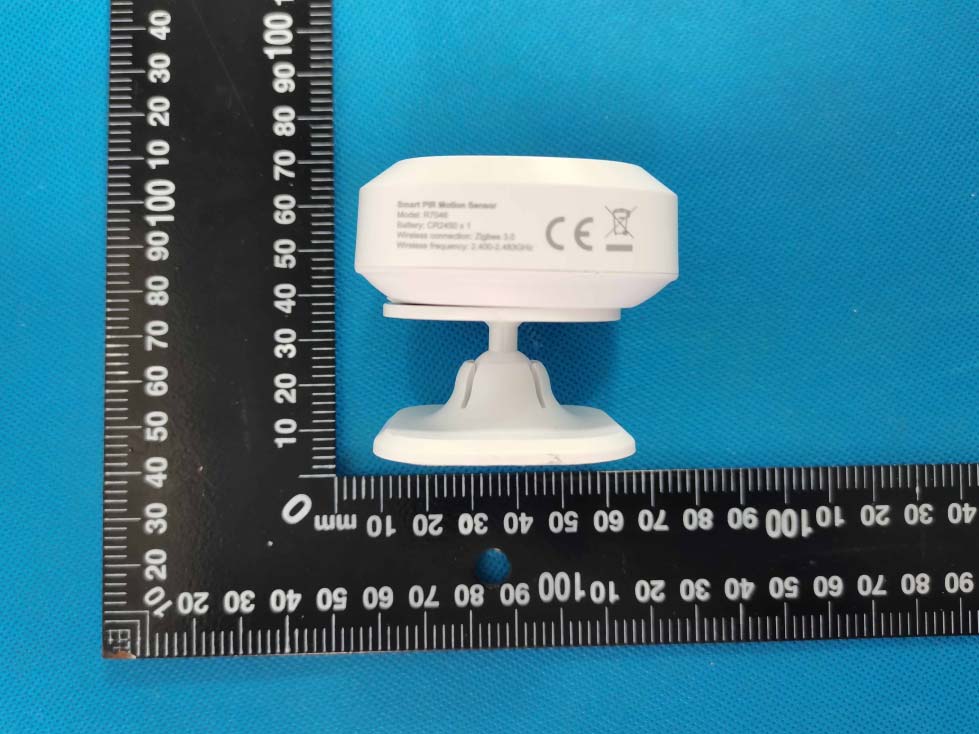

Appendix- R7046-Photos Page 1 of 4 1. Photographs –Constructional Details 1.1. EUT – External View Model R7046 FCC ID: 2AZDF-R7046 Appendix- R7046-Photos Page 2 of 4 Appendix- R7046-Photos Page 3 of 4 Appendix- R7046-Photos Page 4 of 4

Internal Photos

Appendix- R7046-Photos Page 1 of 3 1. Photographs –Constructional Details 1.1. EUT – Internal View Model R7046 FCC ID: 2AZDF-R7046 Appendix- R7046-Photos Page 2 of 3 ANT Appendix- R7046-Photos Page 3 of 3 ======End======

RF Exposure Info

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 7 TEST REPORT Referen ce No. .................... : WTD21D03023540W002 FCC ID ................................ : 2AZDF-R7046 Applicant ............................ : Shenzhen Venz Technology Co., Ltd Address .............................. : 1008, 10/F, Jinqizhigu building, 1 road Tangling, NanShan District, Shenzhen, China Manufacturer .................... : Shenzhen Venz Technology Co., Ltd Address .............................. : 1008, 10/F, Jinqizhigu building, 1 road Tangling, NanShan District, Shenzhen, China Product ............................... : Smart PIR Motion Sensor Model(s) ............................. : R7046 Standards........................... : FCC Part 1.1307 Date of Receipt sample .... : 2021-03-24 Date of Test ....................... : 2021-03-25 to 2021-03-30 Date of Issue ...................... : 2021-03-31 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Levi Xiao / Project Engineer Daniel Liu / Designated Reviewer Reference No.: WTD21D03023540W002 Page 2 of 7 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2. Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2. CONTENTS ............................................................................................................................................................ 2 3. REVISION HISTORY ............................................................................................................................................ 3 4. GENERAL INFORMATION .................................................................................................................................. 4 4.1. GENERAL DESCRIPTION OF E.U.T. ............................................................................................................ 4 4.2. DETAILS OF E.U.T. ..................................................................................................................................... 4 5. TEST SUMMARY .................................................................................................................................................. 5 6. RF EXPOSURE ...................................................................................................................................................... 6 6.1. REQUIREMENTS .......................................................................................................................................... 6 6.2. THE PROCEDURES / LIMIT ........................................................................................................................... 6 6.3. MPE CALCULATION METHOD .................................................................................................................... 7 6.4. RESULT: COMPLIANCE ............................................................................................................................... 7 Reference No.: WTD21D03023540W002 Page 3 of 7 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 3. Revision History Test report No. Date of Receipt sample Date of Test Date of Issue Purpose Comment Approved WTD21D03023540 W002 2021-03-23 2021-03-23 to 2021-03-30 2021-03-31Original - Valid Reference No.: WTD21D03023540W002 Page 4 of 7 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 4. General Information 4.1. General Description of E.U.T. Product: Smart PIR Motion Sensor Model(s): R7046 Operation Frequency: 2405-2480MHz, 16 Channels in total Max. RF output power: 5.19dBm Antenna installation: internal permanent antenna Antenna Gain: 2.5dBi Type of Modulation: OPQSK Hardware Version: 1.0.10 Software Version: 1.0 4.2. Details of E.U.T. Ratings: DC 3V Reference No.: WTD21D03023540W002 Page 5 of 7 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 5. Test Summary Test Items Test Requirement Result Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307 PASS Reference No.: WTD21D03023540W002 Page 6 of 7 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 6. RF Exposure Test Requirement: FCC Part 1.1307 Evaluation Method: FCC Part 2.1091 & KDB 447498 D01 General RF Exposure Guidance v06 6.1. Requirements Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. 6.2. The procedures / limit (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz; *Plane-wave equivalent power density Reference No.: WTD2…

Text truncated - open the document above for the full version.

Test Report

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 37 TEST REPORT Referen ce No. .................... : WTD21D03023540W001 V1 FCC ID ................................ : 2AZDF-R7046 Applicant ............................ : Shenzhen Venz Technology Co., Ltd Address .............................. : 1008, 10/F, Jinqizhigu building, 1 road Tangling, NanShan District, Shenzhen, China Manufacturer .................... : Shenzhen Venz Technology Co., Ltd Address .............................. : 1008, 10/F, Jinqizhigu building, 1 road Tangling, NanShan District, Shenzhen, China Product ............................... : Smart PIR Motion Sensor Model(s). ............................ : R7046 Standards........................... : FCC CFR47 Part 15.247 Date of Receipt sample .... : 2021-03-24 Date of Test ....................... : 2021-03-25 to 2021-03-30 Date of Issue ...................... : 2021-03-31 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Levi Xiao / Project Engineer Daniel Liu /Designated Reviewer Reference No.: WTD21D03023540W001 V1 Page 2 of 37 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 CONTENTS ............................................................................................................................................................ 2 3 REVISION HISTORY ............................................................................................................................................ 3 4 GENERAL INFORMATION .................................................................................................................................. 4 4.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................................ 4 4.2 DETAILS OF E.U.T. ......................................................................................................................................... 4 4.3 CHANNEL LIST ................................................................................................................................................. 5 4.4 TEST MODE ..................................................................................................................................................... 6 4.5 TEST FACILITY ................................................................................................................................................. 6 5 TEST SUMMARY .................................................................................................................................................. 7 6 EQUIPMENT USED DURING TEST .................................................................................................................. 8 6.1 EQUIPMENTS LIST ........................................................................................................................................... 8 6.2 DESCRIPTION OF SUPPORT UNITS ................................................................................................................. 9 6.3 MEASUREMENT UNCERTAINTY ....................................................................................................................... 9 6.4 TEST EQUIPMENT CALIBRATION ..................................................................................................................... 9 7 RADIATED EMISSIONS..................................................................................................................................... 10 7.1 EUT OPERATION ........................................................................................................................................... 10 7.2 TEST SETUP .................................................................................................................................................. 11 7.3 SPECTRUM ANALYZER SETUP ...................................................................................................................... 12 7.4 TEST PROCEDURE ........................................................................................................................................ 13 7.5 CORRECTED AMPLITUDE & MARGIN CALCULATION ..................................................................................... 13 7.6 SUMMARY OF TEST RESULTS ....................................................................................................................... 14 8 CONDUCTED SPURIOUS EMISSIONS .......................................................................................................... 17 8.1 TEST PROCEDURE ........................................................................................................................................ 17 8.2 TEST RESULT ................................................................................................................................................ 18 9 BAND EDGE MEASUREMENT ........................................................................................................................ 22 9.1 TEST PRODUCE ............................................................................................................................................. 22 9.2 TEST RESULT ........................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Appendix- R7046-Photos Page 1 of 2 1. Test Setup photos Model R7046 FCC ID: 2AZDF-R7046 1.1 Photograph – Radiated Emissions Test Setup For 9KHz-30MHz Test Site 1# For 30MHz-1000MHz Test Site 1# Appendix- R7046-Photos Page 2 of 2 For Above 1GHz Test Site 2#

Contact Information

Applicant

Larson Qiu(Manager)
[email protected]+86-755-83511112Fax: +86-755-83511112

Test Firm

WALTEK TESTING GROUP CO., LTD.Joy Zhou
[email protected]0769-22676998

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz3.00 mW
Confidentiality
Long Term
Grant Notes
Output power listed is the maximum conducted output power. Device must be operated to provide a separation distance of at least 20cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
