2AZFE-ONO3PROLED Projector

FCC Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Shenzhen Shadow Crown Technology Co., Ltd. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Shenzhen Shadow Crown Technology Co., Ltd. Address: A9 East 5th floor, Industrial Building, Longwang Miao, Fuyong street, Baoan district, Shenzhen Product Name: LED Projector FCC ID: 2AZFE-ONO3PRO Model(s): ONO3Pro, YG381, YG381M, YG391, YG371, YG561, YG211, L61Pro 2.911(d)(5)(i) Equipment Type We, Shenzhen Shadow Crown Technology Co., Ltd. certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Peng. shen Date: June 5, 2024 Title and Company name:Quality Manager Shenzhen Shadow Crown Technology Co., Ltd. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Shadow Crown Technology Co., Ltd. 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Shadow Crown Technology Co., Ltd. Address: A9 East 5th floor, Industrial Building, Longwang Miao, Fuyong street, Baoan district, Shenzhen Product Name: LED Projector FCC ID: 2AZFE-ONO3PRO Model(s): ONO3Pro, YG381, YG381M, YG391, YG371, YG561, YG211, L61Pro 2.911(d)(5)(ii) Applicant filing We, Shenzhen Shadow Crown Technology Co., Ltd. certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Peng. shen Date: June 5, 2024 Title and Company name:Quality Manager Shenzhen Shadow Crown Technology Co., Ltd. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Shadow Crown Technology Co.,Ltd. A9 East 5th floor, Industrial Building, Longwang Miao, Fuyong street, Baoan district , Shenzhen Date: June 4, 2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AZFE-ONO3PRO FRN: 0030733513 US Agent – Attestation Statement / Part 2.911(d)(7) Shenzhen Shadow Crown Technology Co.,Ltd. certifies, that as of [06/04/2024], we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: 2AZFE- ONO3PRO. Shenzhen Shadow Crown Technology Co.,Ltd., accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of Shenzhen Shadow Crown Technology Co.,Ltd. for FCC ID: 2AZFE-ONO3PRO. Designated Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: Shenzhen Shadow Crown Technology Co.,Ltd. Designated Agent: FCC US Agent, LLC Company Representative: Peng. shen Designated Agent Representative: Tim Payne Signature: Signature:

Shenzhen Shadow Crown Technology Co., Ltd. Letter of Authorization Company: Shenzhen Shadow Crown Technology Co., Ltd. Address: A9 East 5th floor, Industrial Building, Longwang Miao, Fuyong street, Baoan district, Shenzhen Product Name: LED Projector Model Number(s): ONO3Pro, YG381, YG381M, YG391, YG371, YG561, YG211, L61Pro We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2024-06-05 Name: Peng. shen Title: Quality Manager Company: Shenzhen Shadow Crown Technology Co., Ltd.

Differences Description We Shenzhen Shadow Crown Technology Co.,Ltd. state: Product name: LED Projector Model: ONO3Pro, YG381, YG381M, YG391,YG371, YG561, YG211, L61Pro All models of PCB design, software, electric circuit, radio frequency characteristics are consistent, except the appearance color. 2024-6-15 Name Peng. shen Position Quality Manager Company Name Shenzhen Shadow Crown Technology Co.,Ltd. Address A9 East 5th floor, Industrial Building,Longwang Miao, Fuyong street, Baoan district , Shenzhen Tel -86+0755-23319829 Fax / Email [email protected] (Signature)

Shenzhen Shadow Crown Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: June 5, 2024 Subject; Request for Confidentiality FCC ID: 2AZFE-ONO3PRO To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirement In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Peng. shen Title: Quality Manager

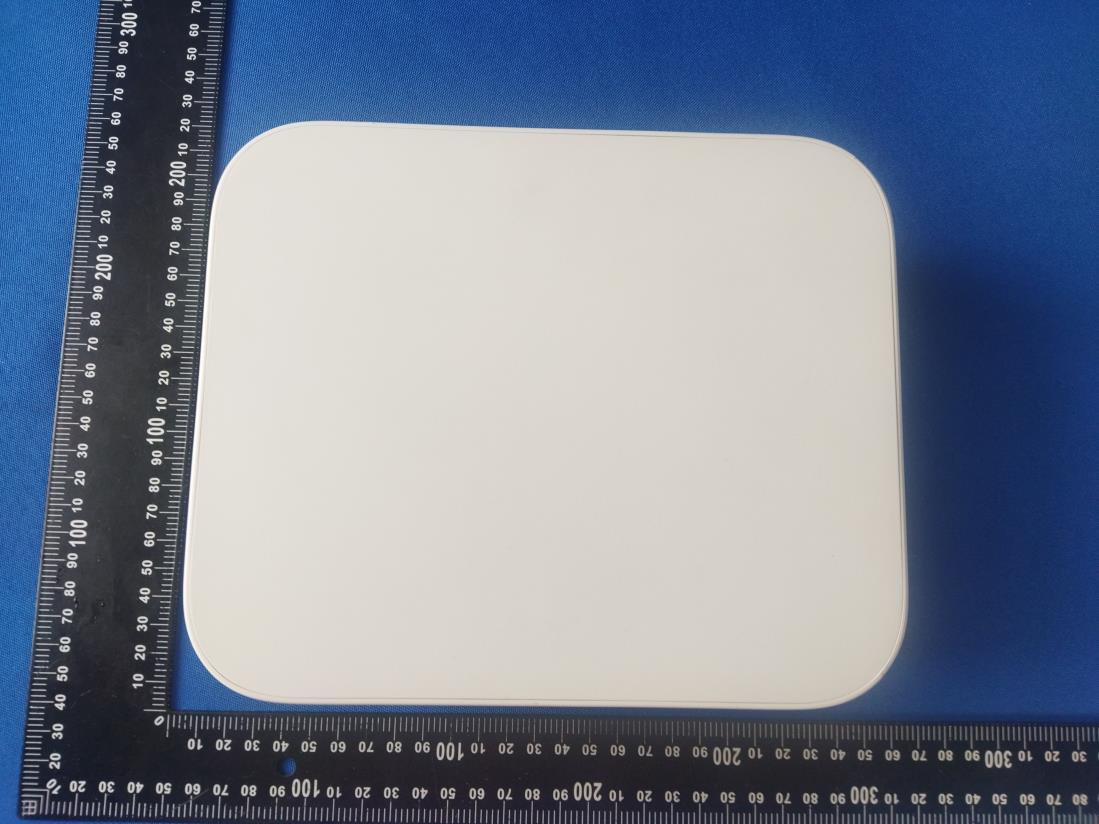

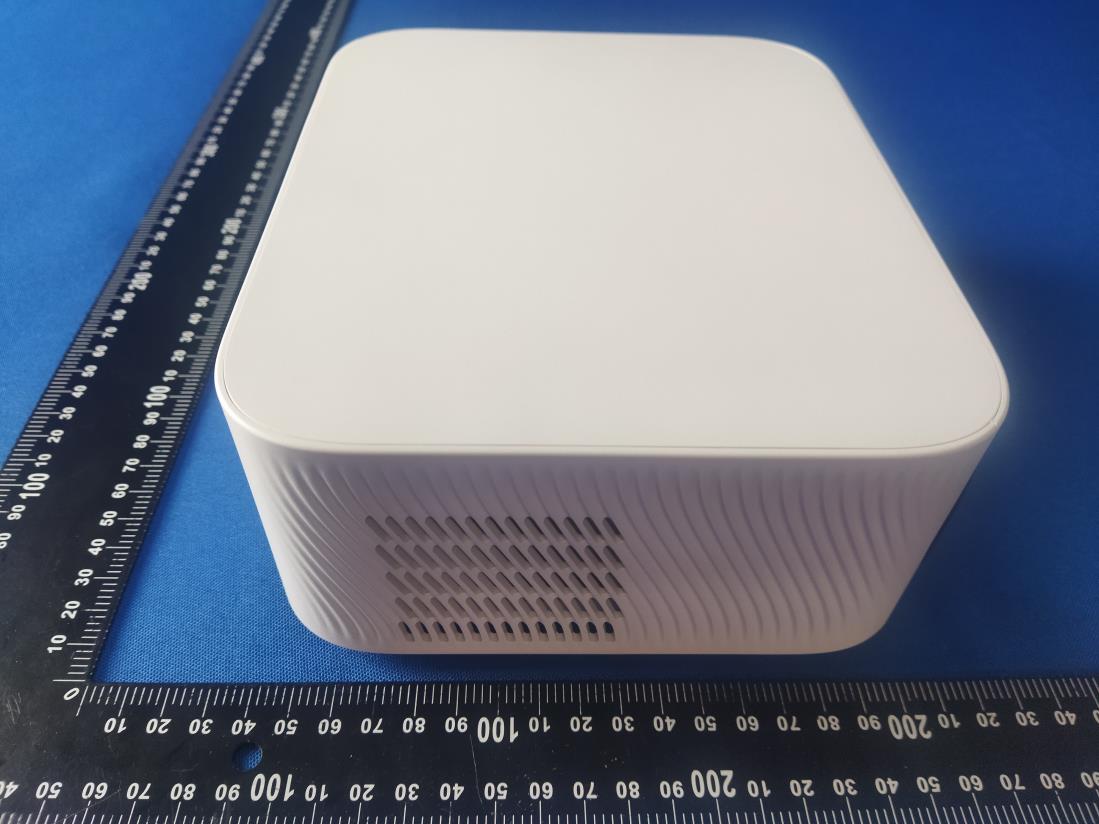

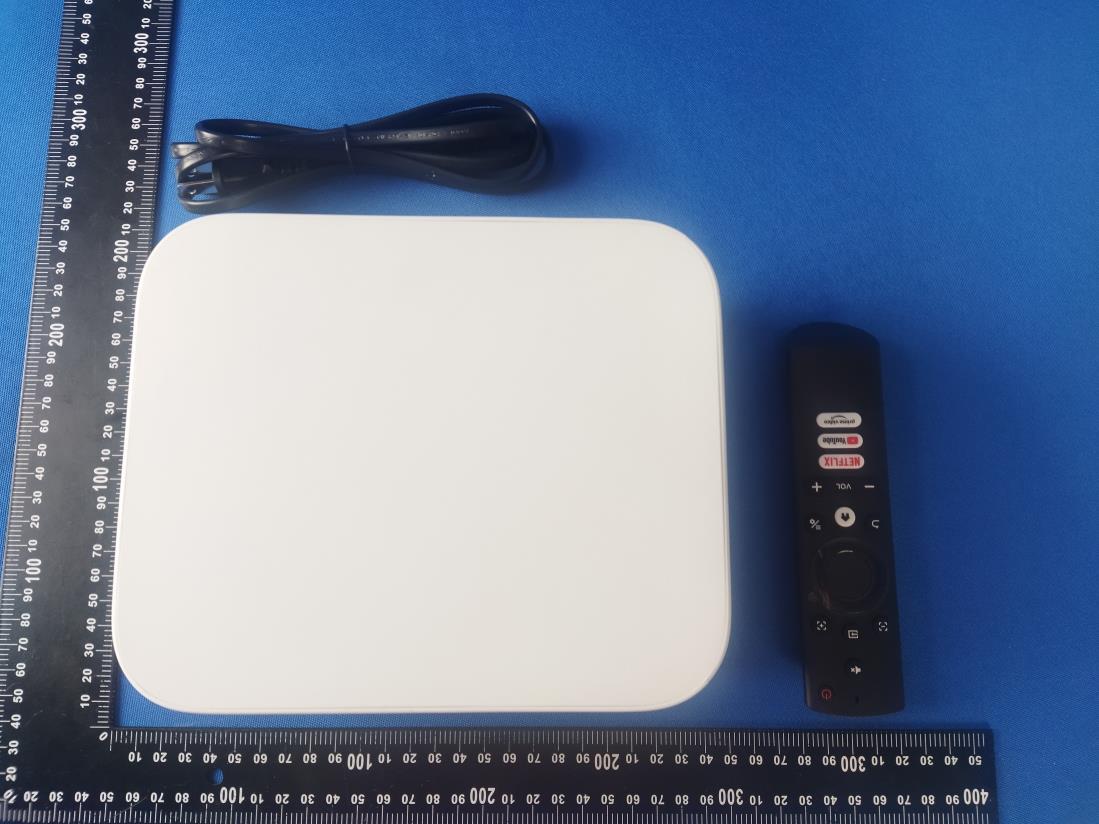

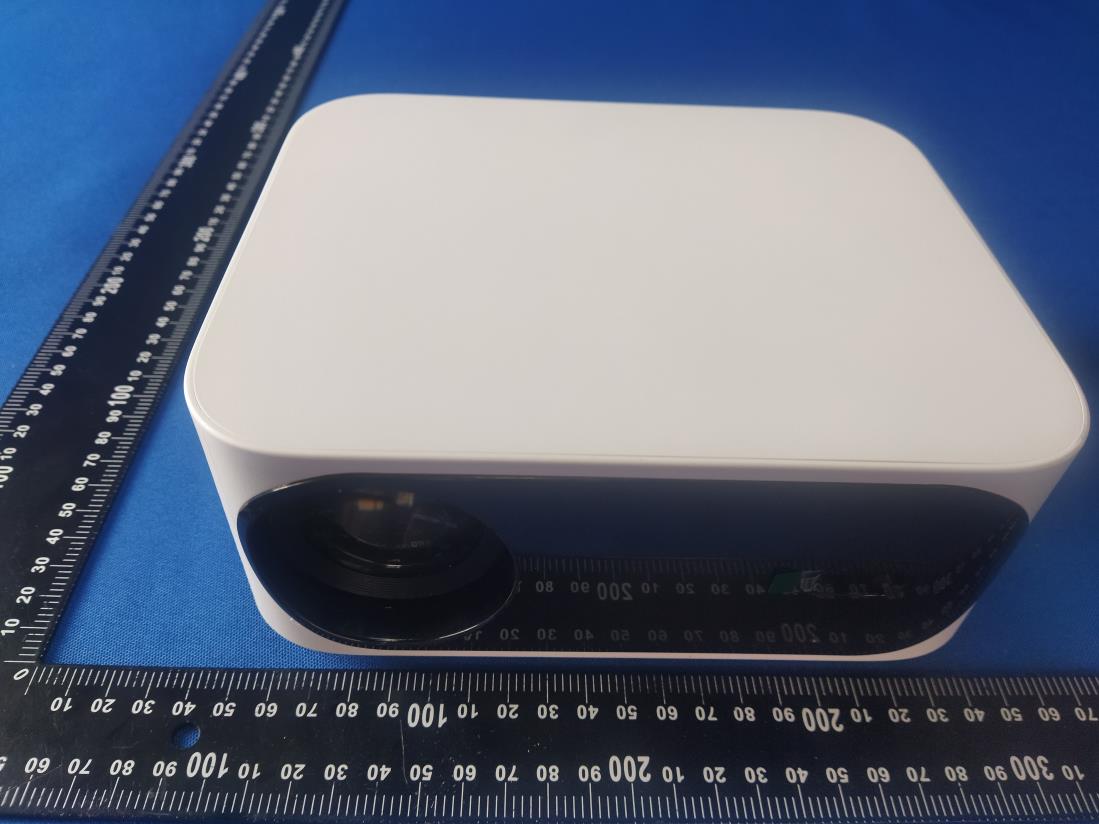

FCC ID: 2AZFE-ONO3PRO FCC ID: 2AZFE-ONO3PRO FCC ID: 2AZFE-ONO3PRO FCC ID: 2AZFE-ONO3PRO FCC ID: 2AZFE-ONO3PRO

4.5cm 2.5cm Label Location FCC ID: 2AZFE-ONO3PRO Shenzhen Shadow Crown Technology Co., Ltd. Product name: LED Projector This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2AZFE-ONO3PRO BT ANT 2.4G WIFI ANT FCC ID: 2AZFE-ONO3PRO FCC ID: 2AZFE-ONO3PRO FCC ID: 2AZFE-ONO3PRO FCC ID: 2AZFE-ONO3PRO FCC ID: 2AZFE-ONO3PRO FCC ID: 2AZFE-ONO3PRO FCC ID: 2AZFE-ONO3PRO FCC ID: 2AZFE-ONO3PRO FCC ID: 2AZFE-ONO3PRO FCC ID: 2AZFE-ONO3PRO FCC ID: 2AZFE-ONO3PRO

FCC ID: 2AZFE-ONO3PRO Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) 2. Test Procedure Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna 3. Result FCC ID: 2AZFE-ONO3PRO Mode Frequency (MHz) Prediction distance (cm) RF output power MAX tune-uppower MPE (mW/cm 2 ) Limit (mW/cm 2 ) SAR Test Exclusion dBm mW 2.4G WiFi 2452 20 13.277 21.267 0.01257 1 Yes EDR 2480 20 4.485 2.809 0.00166 1 Yes BLE 2480 20 -4.341 0.368 0.00022 1 Yes 5G WIFI B1 5210 20 11.615 14.504 0.01105 1 Yes 5G WIFI B4 5755 20 11.990 15.812 0.01204 1 Yes Maximum Simultaneous transmission MPE Ratios for BT+WIFI: Max MPE ratio BT /Limit Max MPE ratio WIFI /Limit ∑MPE ratios Limit Result 0.00166 0.01204 0.0137 1 PASS BT Antenna Gain: 4.73dBi 2.4G WIFI Antenna Gain: 4.73dBi 5G WIFI Antenna Gain: 5.83dBi In summary, SAR evaluation is not required.

Shenzhen Nano-ant communication Spec. YG420-TP 2.4G/5.8GWIFI Techology Co., Ltd . Revision: S-1 Page 1 of 7 NanoAnt Confidential SZ Nano-Ant Co., Ltd. Tel: 0755-82928581 Nano-ant Product Specification I I I n n n t t t e e e r r r n n n a a a l l l a a a n n n t t t e e e n n n n n n a a a YING GUAN YG420-TP 2.4G/5.8GWIFI APPROVED BY SIGNATURE DATE Mechanical Engineer: Zhou Yang 2021-02-23 RF Engineer: Li Guodong 2021-02-23 Engineering Manager: Ri Jae-il 2021-02-23 Approved By Customer (as required): Shenzhen Nano-ant communication Spec. YG420-TP 2.4G/5.8GWIFI Techology Co., Ltd . Revision: S-1 Page 2 of 7 NanoAnt Confidential SZ Nano-Ant Co., Ltd. Tel: 0755-82928581 1.0 DESCRIPTIONS AND PART NUMBER; 1.1 DESCRIPTION; The antenna mounts to the housing of the projiector. And after that, the feed point on the prolongation of metal plate should firmly touch the contact provided on the PCB in the respective area. 1.2 PART NUMBER Part number Frequency Band HH Part Number SZ6023L 2.0 ELECTRICAL SPECIFICATIONS; 2.1 FREQUENCY BAND 2.2 IMPEDANCE - Nominal impedance: 50 2.3 ACTIVE TEST REPORT Test equipment E5071C Network Analyzer SG24 microwave anechoic chamber Shenzhen Nano-ant communication Spec. YG420-TP 2.4G/5.8GWIFI Techology Co., Ltd . Revision: S-1 Page 3 of 7 NanoAnt Confidential SZ Nano-Ant Co., Ltd. Tel: 0755-82928581 1 . Antenna matching circuit , Matching circuit No changes · 3.Passive test data Passive result The following figure shows the efficiency of 2.4G 5G antenna Shenzhen Nano-ant communication Spec. YG420-TP 2.4G/5.8GWIFI Techology Co., Ltd . Revision: S-1 Page 4 of 7 NanoAnt Confidential SZ Nano-Ant Co., Ltd. Tel: 0755-82928581 4.The following figure shows the Pattern of 2.4G 5G antenna Shenzhen Nano-ant communication Spec. YG420-TP 2.4G/5.8GWIFI Techology Co., Ltd . Revision: S-1 Page 5 of 7 NanoAnt Confidential SZ Nano-Ant Co., Ltd. Tel: 0755-82928581 3.0 MECHANICAL SPECIFICATIONS; 3.1 MECHANICAL CONFIGURATION The appearance of the antenna is in accordance with drawing 6023L 3.2 CONNECTOR TYPE The connector type is an embedded type 4.0 ENVIRONMENTAL SPECIFICATIONS 4.1 TEMPERATURE Operating Temperature Range: -40C～ +85C Storage Temperature Range: -40C～ +120C 4.2 SALT SPRAY TEST Antenna be exposed in a 35°C, 5% salt fog chamber for 24 hours then check the appearance and performance against the specifications in normal temperature. 4.3 STATIC HUMIDITY TEST The antenna is subjected to the following test: Temperatures: +70°C and 90%--95%RH Test Duration: 24 Hours The antenna should not undergo any structural or functional change and remain within the electrical/mechanical specification. 5.0 PACKAGING The antennas will be packed in bags, There are 100 or 200 antennas per bag. The bags are packed in corrugated fibreboard over box . Drawing Shenzhen Nano-ant communication Spec. YG420-TP 2.4G/5.8GWIFI Techology Co., Ltd . Revision: S-1 Page 6 of 7 NanoAnt Confidential SZ Nano-Ant Co., Ltd. Tel: 0755-82928581 Drawing ： Shenzhen Nano-ant communication Spec. YG420-TP 2.4G/5.8GWIFI Techology Co., Ltd . Revision: S-1 Page 7 of 7 NanoAnt Confidential SZ Nano-Ant Co., Ltd. Tel: 0755-82928581

FCC ID: 2AZFE-ONO3PRO Photo of Radiated Emission test FCC ID: 2AZFE-ONO3PRO Photo of Conducted Emission test

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. E-mail: [email protected] Tel: 4008300895 Website: http://www.a-lab.cn/certificate FCC TEST REPORT FCC ID: 2AZFE-ONO3PRO On Behalf of Shenzhen Shadow Crown Technology Co.,Ltd. LED Projector Model No.: ONO3Pro, YG381, YG381M, YG391,YG371, YG561, YG211, L61Pro Prepared for : Shenzhen Shadow Crown Technology Co.,Ltd. Address : A9 East 5th floor, Industrial Building,Longwang Miao, Fuyong street, Baoan district , Shenzhen Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Report Number : A2404121-C01-R02 Date of Receipt : April 29, 2024 Date of Test : April 29, 2024 - May 30, 2024 Date of Report : May 30, 2024 Version Number : V0 Test Result : Pass Page 2 of 66 Report No.: A2404121-C01-R01 TABLE OF CONTENTS Description Page 1. Summary of Standards And Results ............................................................................................ 6 1.1. Description of Standards and Results ..................................................................................... 6 2. General Information ........................................................................................................................ 7 2.1. Description of Device (EUT) .................................................................................................... 7 2.2. Accessories of Device (EUT) .................................................................................................. 8 2.3. Tested Supporting System Details .......................................................................................... 8 2.4. Block Diagram of connection between EUT and simulators ................................................... 8 2.5. Test Mode Description ............................................................................................................. 8 2.6. Test Conditions ...................................................................................................................... 10 2.7. Test Facility ............................................................................................................................ 10 2.8. Measurement Uncertainty ..................................................................................................... 10 2.9. Test Equipment List ............................................................................................................... 11 3. Maximum Peak Output power...................................................................................................... 13 3.1. Limit ....................................................................................................................................... 13 3.2. Test Procedure ...................................................................................................................... 13 3.3. Test Setup .............................................................................................................................. 13 3.4. Test Result ............................................................................................................................. 13 4. Bandwidth ...................................................................................................................................... 14 4.1. Limit ....................................................................................................................................... 14 4.2. Test Procedure ...................................................................................................................... 14 4.3. Test Result ............................................................................................................................. 14 5. Carrier Frequency Separation ..................................................................................................... 25 5.1. Limit ....................................................................................................................................... 25 5.2. Test Procedure ...................................................................................................................... 25 5.3. Test Result ............................................................................................................................. 25 6. Number Of Hopping Channel ....................................................................................................... 27 6.1. Limit ....................................................................................................................................... 27 6.2. Test Procedure ...................................................................................................................... 27 6.3. Test Result ............................................................................................................................. 27 7. Dwell Time ..................................................................................................................................... 29 7.1. Test limit ................................................................................................................................. 29 7.2. Test Procedure ...................................................................................................................... 29 7.3. Test Result ............................................................................................................................. 29 8. Radiated emissions ...................................................................................................................... 39 8.1. Limit .........................................................................................................................…

Text truncated - open the document above for the full version.

Page 38 of 66 Report No.: A2404121-C01-R01 Dwell NVNT 3-DH5 2441MHz Ant1 One Burst Dwell NVNT 3-DH5 2441MHz Ant1 Accumulated Page 39 of 66 Report No.: A2404121-C01-R01 8. RADIATED EMISSIONS 8.1. Limit All the emissions appearing within 15.205 restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions shall be at least 20dB below the fundamental emissions, or comply with 15.209 limits. 15.205 Restricted frequency band RSS-GEN Restricted frequency band Table 7 – Restricted frequency bands Note 1 MHz MHz GHz 0.090 - 0.110 149.9 - 150.05 9.0 - 9.2 0.495 - 0.505 156.52475 - 156.52525 9.3 - 9.5 2.1735 - 2.1905 156.7 - 156.9 10.6 - 12.7 3.020 - 3.026 162.0125 - 167.17 13.25 - 13.4 4.125 - 4.128 167.72 - 173.2 14.47 - 14.5 4.17725 - 4.17775 240 – 285 15.35 - 16.2 4.20725 - 4.20775 322 - 335.4 17.7 - 21.4 5.677 - 5.683 399.9 - 410 22.01 - 23.12 6.215 - 6.218 608 - 614 23.6 - 24.0 Page 40 of 66 Report No.: A2404121-C01-R01 6.26775 - 6.26825 960 - 1427 31.2 - 31.8 6.31175 - 6.31225 1435 - 1626.5 36.43 - 36.5 8.291 - 8.294 1645.5 - 1646.5 Above 38.6 8.362 - 8.366 1660 - 1710 8.37625 - 8.38675 1718.8 - 1722.2 8.41425 - 8.41475 2200 - 2300 12.29 - 12.293 2310 - 2390 12.51975 - 12.52025 2483.5 - 2500 12.57675 - 12.57725 2655 - 2900 13.36 - 13.41 3260 – 3267 16.42 - 16.423 3332 - 3339 16.69475 - 16.69525 3345.8 - 3358 16.80425 - 16.80475 3500 - 4400 25.5 - 25.67 4500 - 5150 37.5 - 38.25 5350 - 5460 73 - 74.6 7250 - 7750 74.8 - 75.2 8025 – 8500 108 – 138 Note 1: Certain frequency bands listed in table 7 and in bands above 38.6 GHz are designated for licence-exempt applications. These frequency bands and the requirements that apply to related devices are set out in the 200 and 300 series of RSSs. Page 41 of 66 Report No.: A2404121-C01-R01 15.209 Limit FREQUENCY MHz DISTANCE Meters FIELD STRENGTHS LIMIT V/m dB(V)/m 0.009-0.490 300 2400/F(KHz) / 0.490-1.705 30 24000/F(KHz) / 1.705-30 30 30 29.5 30 ~ 88 3 100 40.0 88 ~ 216 3 150 43.5 216 ~ 960 3 200 46.0 960 ~ 1000 3 500 54.0 Above 1000 3 74.0 dB(V)/m (Peak) 54.0 dB(V)/m (Average) Note: The peak limit is 20 dB higher than the average limit Page 42 of 66 Report No.: A2404121-C01-R01 8.2. Block Diagram of Test setup 8.2.1 In 3m Anechoic Chamber Test Setup Diagram for below 30MHz 8.2.1 In 3m Anechoic Chamber Test Setup Diagram for below 1GHz 8.2.2 In 3m Anechoic Chamber Test Setup Diagram for frequency above 1GHz Note: For harmonic emissions test a appropriate high pass filter was inserted in the input port of AMP. Page 43 of 66 Report No.: A2404121-C01-R01 8.3. Test Procedure (1) EUT was placed on a non-metallic table, 80 cm above the ground plane inside a semi-anechoic chamber. (2) Setup EUT and simulator as shown in section 1.4 and 6.1 (3) Test antenna was located 3m from the EUT on an adjustable mast. Below pre-scan procedure was first performed in order to find prominent radiated emissions. (a) Change work frequency or channel of device if practicable. (b) Change modulation type of device if practicable. (c) Rotated EUT though three orthogonal axes to determine the attitude of EUT arrangement produces highest emissions (4) Spectrum frequency from 9KHz to 25GHz (tenth harmonic of fundamental frequency) was investigated (5) For final emissions measurements at each frequency of interest, the EUT were rotated and the antenna height was varied between 1m and 4m in order to maximize the emission. Measurements in both horizontal and vertical polarities were made and the data was recorded. In order to find the maximum emission, the relative positions of equipments and all of the interface cables were changed according to ANSI C63.10:2013on Radiated Emission test. (6) For emissions above 1GHz, both Peak and Average level were measured with Spectrum Analyzer, and the RBW is set at 1MHz, VBW is set at 3MHz for Peak measure; RBW is set at 1MHz, VBW is set at 10Hz for Average measure. 8.4. Test Result We have scanned the 10th harmonic from 9KHz to the EUT’s highest frequency. Detailed information please see the following page. From 9KHz to 30MHz: Conclusion: PASS Note: The amplitude of spurious emissions which are attenuated by more than 20dB below the permissible value has no need to be reported. Page 44 of 66 Report No.: A2404121-C01-R01 From 30MHz to 1000MHz: Conclusion: PASS Vertical: Page 45 of 66 Report No.: A2404121-C01-R01 Horizontal: Remark: All modes have been tested, and only worst data of GFSK 2402MHz was listed in this report. Page 46 of 66 Report No.: A2404121-C01-R01 From 1G-25GHz Test Mode: GFSK TX Low Freq (MHz) Read Level (dBuV/m) Polar (H/V) Antenna Factor (dB/m) Cable loss(dB) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Remark 4804 45.23 V 33.95 10.18 34.26 55.10 74 -18.90 PK 4804 38.19 V 33.95 10.18 34.26 48.06 54 -5.94 AV 7206 / / / / / / / / / 9608 / / / / / / / / / 4804 47.05 H 33.95 10.18 34.26 56.92 74 -17.08 PK 4804 36.15 H 33.95 10.18 34.26 46.02 54 -7.98 AV 7206 / / / / / / / / / 9608 / / / / / / / / / Test Mode: GFSK TX Mid 4882 43.49 V 33.93 10.2 34.29 53.33 74 -20.67 PK 4882 35.48 V 33.93 10.2 34.29 45.32 54 -8.68 AV 7323 / / / / / / / / / 9764 / / / / / / / / / 4882 43.79 H 33.93 10.2 34.29 53.63 74 -20.37 PK 4882 34.68 H 33.93 10.2 34.29 44.52 54 -9.48 AV 7323 / / / / / / / / / 9764 / / / / / / / / / Test Mode: GFSK TX High 4960 45.78 V 33.93 10.2 34.29 55.62 74 -18.38 PK 4960 33.68 V 33.93 10.2 34.29 43.52 54 -10.48 AV 7440 / / / / / / / / / 9920 / / / / / / / / / 4960 41.59 H 33.93 10.2 34.29 51.43 74 -22.57 PK 4960 31.88 H 33.93 10.2 34.29 41.72 54 -12.28 AV 7440 / / / / / / / / / 9920 / / / / / / / / / Note: 1, Result = Read level + Antenna factor + cable loss-Amp factor 2, All the other emissions not reported were too low to read and deemed to comply with FCC limit. Page 47 of 66 Report No.: A2404121-C01-R01 Test Mode: π/4 DQPSK TX Low Freq (MHz) Read Level (dBuV/m) Polar (H/V) Antenna Factor (dB/m) Cable loss(dB) Amp Factor (dB) Result (dBuV/m) Limit (dBuV/m) Margin (dB) Rem…

Text truncated - open the document above for the full version.

FCC ID: 2AZFE-ONO3PRO Photo of Radiated Emission test FCC ID: 2AZFE-ONO3PRO Photo of Conducted Emission test
