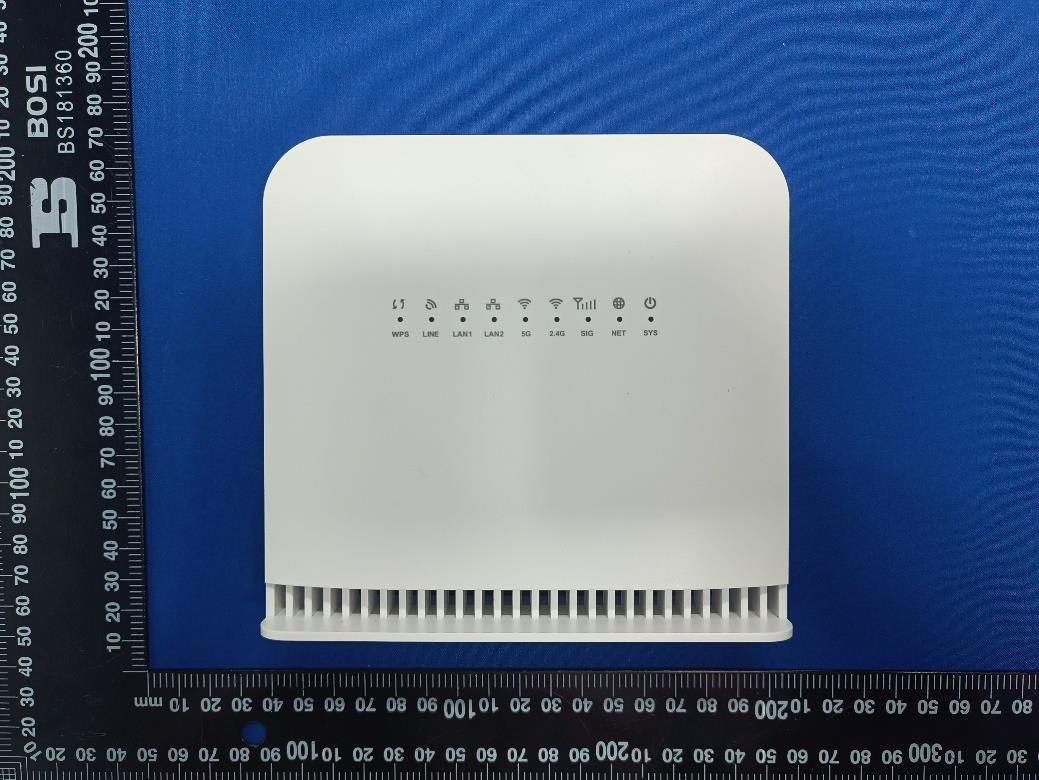

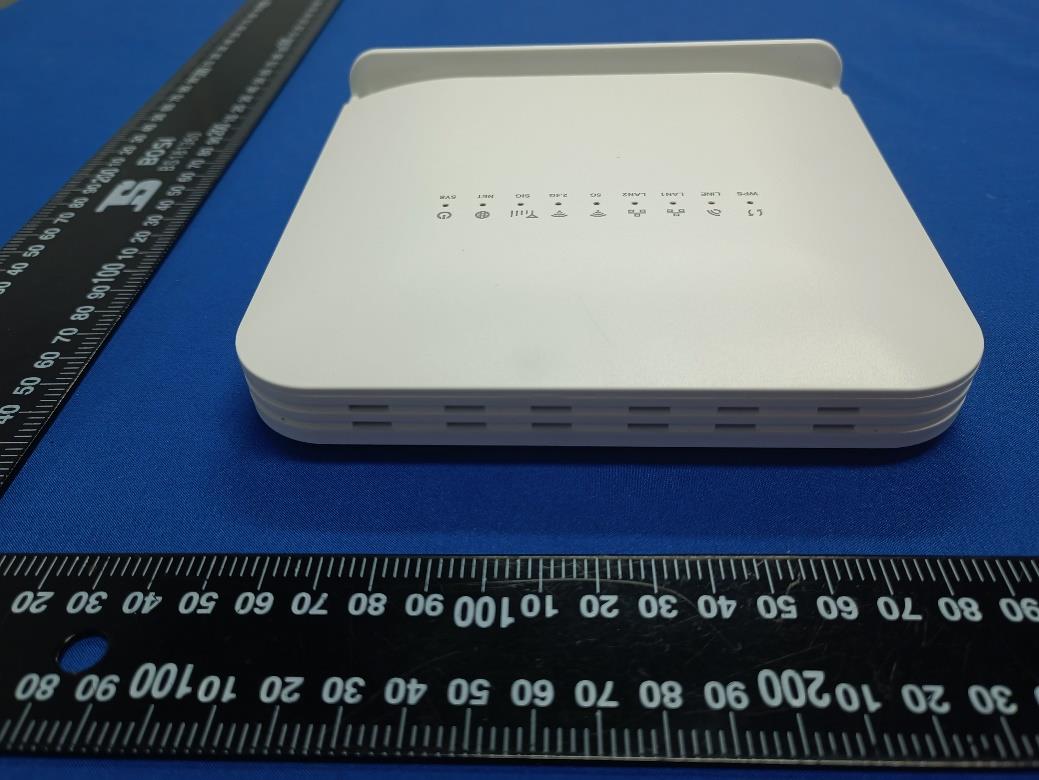

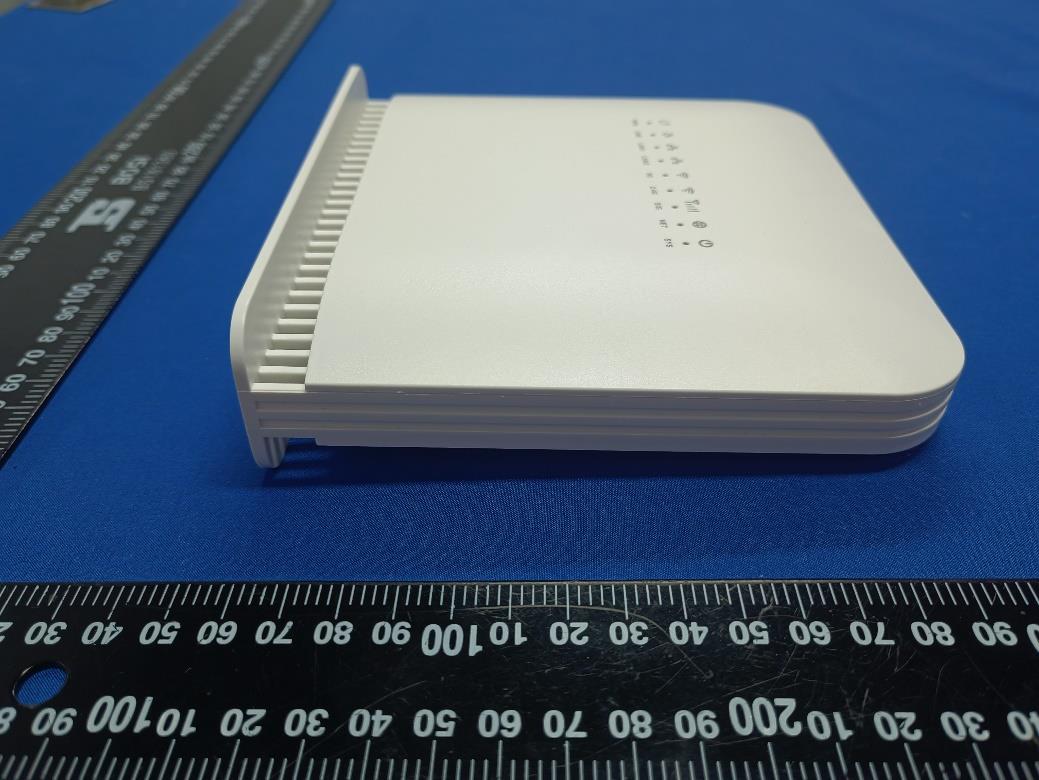

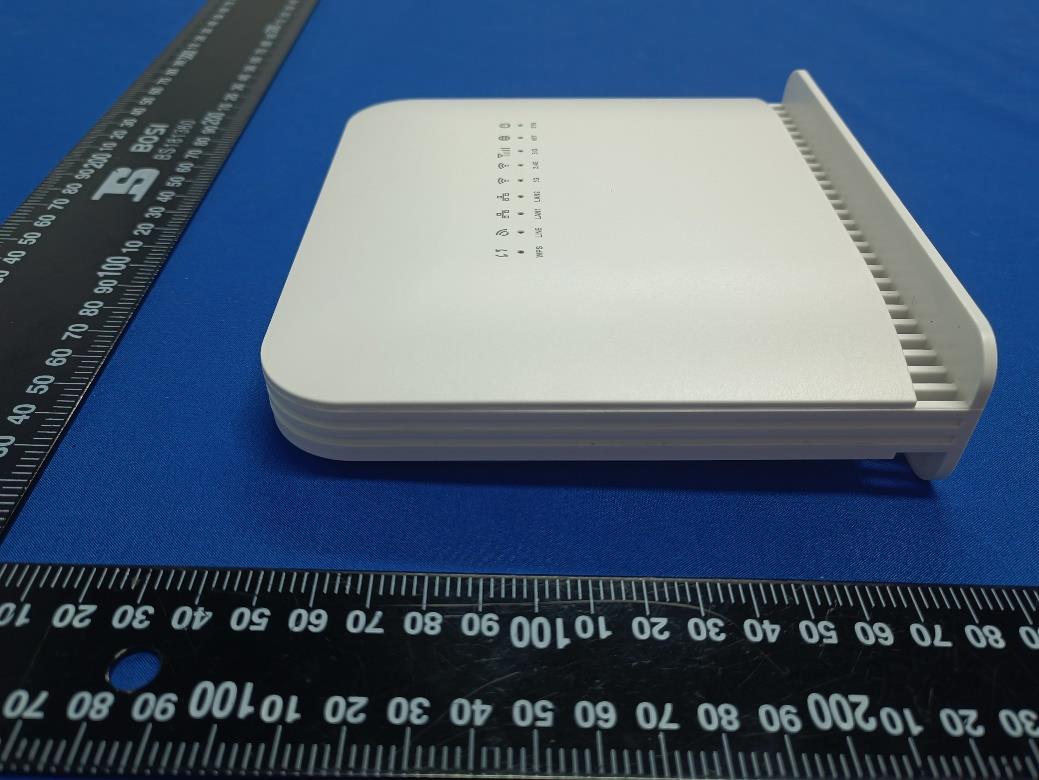

2AZGN-LC600-202301LC600 LTE CPE (WiFi)

1 9 2 . 1 6 8 . 1 0 . 6 5 1 0 - 5 B - A D - 6 5 - A 9 - 3 9 J a s o n . l i u 2 0 2 3 - 0 2 - 0 7 S u n v o t LC600 LTE CPE Quick user guide v1.0 1 9 2 . 1 6 8 . 1 0 . 6 5 1 0 - 5 B - A D - 6 5 - A 9 - 3 9 J a s o n . l i u 2 0 2 3 - 0 2 - 0 7 S u n v o t Page 2 FCC Statement Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help The device must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the product at least 20cm from nearby persons. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device. No configuration controls are provided for this wireless equipment allowing any change in the frequency of operations outside the FCC grant of authorization for US operation according to Part 15.407 of the FCC rules 1 92 . 16 8. 10 . 65 10 -5 B -A D - 65 - A 9 -3 9 J a so n. li u 2 0 23 - 0 2- 0 7 S un vo t Page 3 1. Overview The LC600 CPE is a highly advanced LTE outdoor multi-service product solution specifically designed to meet integrated data, voice and Wi-Fi access needs for residential, business and enterprise users. The product consists of an outdoor data CPE unit (ODU) and an indoor multi service gateway unit (IDU) that supports advanced networking, VoLTE gateway and WLAN AP functionalities. It enables wide service coverage and provides high data throughput and networking features to customers who needs easy broadband access, low-cost VoLTE service and Wi-Fi connectivity. Operator Device Specification Mod el De scription & User Interface IDU  1 RJ45 10/100/1000M WAN Port(PoE), 2 RJ45 10/100/1000M LAN Ports ,1 RJ11/FXS Line  SYS, NET, RF(Tri color)，2.4G Wi-Fi, 5G Wi-Fi, LAN1-2, LINE  48V/0.5A DC  Dimensions: 152 mm (L) × 143 mm (W) × 39.6mm (D)  Weight: < 350g OD U  1 RJ45 10/100/1000M LAN Port  SYS, SIM, ETH, RF (3 LEDs)  48V/0.5A PoE supply, ODU Power <15 Watts  Dimensions: 276.17 mm (L) × 168.95 mm (W) × 80.45 mm (D)  W eight: <1.5 Kg Radio Interface Specification (ODU) Frequency Bands B2/4/5/28/40/42/43/48 Radio Access 3GPP Release 12 Operation Mode TDD/FDD, 4 X 4 DL MIMO Output Power 23  2dBm Thr oughput Category 12 SIM Support SIM card slot (2FF) Wi-Fi Interface (IDU) Radio Access 802.11a/b/g/n/ac (2.4GHz 300 Mbps, 5GHz 867Mbps) Output Power 2.4G 2x2 20dBm, 5G 2x2 22dBm An tenna built-in 4 antennas, 2x2 2.4G 2-3dBi, 2x2 5G 4-5dBi Se curity WPA / WPA2, WPA-PSK/ WPA2-PSK encryption, WPA3 1 9 2 . 1 6 8 . 1 0 . 6 5 1 0 - 5 B - A D - 6 5 - A 9 - 3 9 J a s o n . l i u 2 0 2 3 - 0 2 - 0 7 S u n v o t Page 4 2. Getting Started  Packing list and CPE Unit Upon receiving the product, please unpack the product package carefully. Each product is shipped with the following items: Table. Packing List CPE Products Quantity ODU unit 1 IDU unit 1 Clamp 2 Non-slip mat 2 Waterproof Joint 1 24V DC Power adapter 1 Ethernet Cable 1 If you find any of the items is missing, please contact our local distributor immediately.  Installing and power on For outdoor CPE product, it is suggested that the CPE device be installed in a shaded area to avoid direct sun light exposure and prolong the device life. To power on the device, the CPE must use a 48V DC power supply adapter. The power adapters can operate in 90-250V AC range and therefore can be used in different country. An Ethernet cable is required to connect the WAN port of IDU with the POE(LAN) port of ODU. By the way, the ODU don’t support the hot-plugging. Once the device is powered up, the user should wait for about 2 minutes before the device becomes operational. For CPE with the SYS LED indicator, a solid light indicates the system has completed the startup procedure. To connect PC, LAN switch or other type of IP device to the CPE product, the user should use standard CAT6 Ethernet cable and connect to the appropriate LAN port. Once connected, the CPE(IDU) LAN LED indicator should be on. To use the phone service, operator can simply plug the phone line to the CPE RJ11 port in the back. If the line is not registered or configured, a fast-busy tone will be provided and the corresponding LINE LED light will be off. 1 9 2 . 1 6 8 . 1 0 . 6 5 1 0 - 5 B - A D - 6 5 - A 9 - 3 9 J a s o n . l i u 2 0 2 3 - 0 2 - 0 7 S u n v o t Page 5  Insert SIM Card  Installing Outdoor Unit (ODU) – Pole installation Use the bracket for pole installation an…
