2AZGN-LC600-202302LC600 LTE CPE

1 9 2 . 1 6 8 . 1 0 . 6 5 1 0 - 5 B - A D - 6 5 - A 9 - 3 9 J a s o n . l i u 2 0 2 3 - 0 2 - 0 7 S u n v o t LC600 LTE CPE Quick user guide v1.0 1 9 2 . 1 6 8 . 1 0 . 6 5 1 0 - 5 B - A D - 6 5 - A 9 - 3 9 J a s o n . l i u 2 0 2 3 - 0 2 - 0 7 S u n v o t Page 2 FCC Statement Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help The device must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the product at least 20cm from nearby persons. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device. No configuration controls are provided for this wireless equipment allowing any change in the frequency of operations outside the FCC grant of authorization for US operation according to Part 15.407 of the FCC rules 1 92 . 16 8. 10 . 65 10 -5 B -A D - 65 - A 9 -3 9 J a so n. li u 2 0 23 - 0 2- 0 7 S un vo t Page 3 1. Overview The LC600 CPE is a highly advanced LTE outdoor multi-service product solution specifically designed to meet integrated data, voice and Wi-Fi access needs for residential, business and enterprise users. The product consists of an outdoor data CPE unit (ODU) and an indoor multi service gateway unit (IDU) that supports advanced networking, VoLTE gateway and WLAN AP functionalities. It enables wide service coverage and provides high data throughput and networking features to customers who needs easy broadband access, low-cost VoLTE service and Wi-Fi connectivity. Operator Device Specification Mod el De scription & User Interface IDU  1 RJ45 10/100/1000M WAN Port(PoE), 2 RJ45 10/100/1000M LAN Ports ,1 RJ11/FXS Line  SYS, NET, RF(Tri color)，2.4G Wi-Fi, 5G Wi-Fi, LAN1-2, LINE  48V/0.5A DC  Dimensions: 152 mm (L) × 143 mm (W) × 39.6mm (D)  Weight: < 350g OD U  1 RJ45 10/100/1000M LAN Port  SYS, SIM, ETH, RF (3 LEDs)  48V/0.5A PoE supply, ODU Power <15 Watts  Dimensions: 276.17 mm (L) × 168.95 mm (W) × 80.45 mm (D)  W eight: <1.5 Kg Radio Interface Specification (ODU) Frequency Bands B2/4/5/28/40/42/43/48 Radio Access 3GPP Release 12 Operation Mode TDD/FDD, 4 X 4 DL MIMO Output Power 23  2dBm Thr oughput Category 12 SIM Support SIM card slot (2FF) Wi-Fi Interface (IDU) Radio Access 802.11a/b/g/n/ac (2.4GHz 300 Mbps, 5GHz 867Mbps) Output Power 2.4G 2x2 20dBm, 5G 2x2 22dBm An tenna built-in 4 antennas, 2x2 2.4G 2-3dBi, 2x2 5G 4-5dBi Se curity WPA / WPA2, WPA-PSK/ WPA2-PSK encryption, WPA3 1 9 2 . 1 6 8 . 1 0 . 6 5 1 0 - 5 B - A D - 6 5 - A 9 - 3 9 J a s o n . l i u 2 0 2 3 - 0 2 - 0 7 S u n v o t Page 4 2. Getting Started  Packing list and CPE Unit Upon receiving the product, please unpack the product package carefully. Each product is shipped with the following items: Table. Packing List CPE Products Quantity ODU unit 1 IDU unit 1 Clamp 2 Non-slip mat 2 Waterproof Joint 1 24V DC Power adapter 1 Ethernet Cable 1 If you find any of the items is missing, please contact our local distributor immediately.  Installing and power on For outdoor CPE product, it is suggested that the CPE device be installed in a shaded area to avoid direct sun light exposure and prolong the device life. To power on the device, the CPE must use a 48V DC power supply adapter. The power adapters can operate in 90-250V AC range and therefore can be used in different country. An Ethernet cable is required to connect the WAN port of IDU with the POE(LAN) port of ODU. By the way, the ODU don’t support the hot-plugging. Once the device is powered up, the user should wait for about 2 minutes before the device becomes operational. For CPE with the SYS LED indicator, a solid light indicates the system has completed the startup procedure. To connect PC, LAN switch or other type of IP device to the CPE product, the user should use standard CAT6 Ethernet cable and connect to the appropriate LAN port. Once connected, the CPE(IDU) LAN LED indicator should be on. To use the phone service, operator can simply plug the phone line to the CPE RJ11 port in the back. If the line is not registered or configured, a fast-busy tone will be provided and the corresponding LINE LED light will be off. 1 9 2 . 1 6 8 . 1 0 . 6 5 1 0 - 5 B - A D - 6 5 - A 9 - 3 9 J a s o n . l i u 2 0 2 3 - 0 2 - 0 7 S u n v o t Page 5  Insert SIM Card  Installing Outdoor Unit (ODU) – Pole installation Use the bracket for pole installation an…

Text truncated - open the document above for the full version.

Ningbo Sunvot Technology Co., Ltd Building 3, NO 55 Longtan Shan Road, Beilun Daqi, Ningbo, Zhejiang] China Date: March 15, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AZGN-LC600-202302 US Agent – Attestation Statement / Part 2.911(d)(7) Ningbo Sunvot Technology Co., Ltd certifies, that as of March 15, 2023, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: 2AZGN-LC600- 202302. Ningbo Sunvot Technology Co., Ltd, accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of Ningbo Sunvot Technology Co., Ltd for FCC ID: 2AZGN-LC600-202302. Designated Agent Information: Company Name: FCC US Agent, LLC Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN: 0033402884 Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: Ningbo Sunvot Technology Co., Ltd Designated Agent: FCC US Agent, LLC Company Representative: Jonathan Luo Designated Agent Representative: Tim Payne Signature: Signature:

Ningbo Sunvot Technology Co., Ltd Agent Authorization Company: Ningbo Sunvot Technology Co., Ltd Address: Building 3, NO 55 Longtan Shan Road, Beilun Daqi, Ningbo, Zhejiang Product Name: LC600 LTE CPE Model Number(s): LC600, LC600C, LC600T, LC600L, LC600A, LC600B Product Description: LC600 LTE CPE We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023-03-15 Name: Jonathan Luo Title: Manager Company: Ningbo Sunvot Technology Co., Ltd

Ningbo Sunvol Technology Co., Ltd Date: 2023/3/ IO To: Federal Co111111u11icatio11s Co111n1ission, Authorizatio11 & Evaluatio11 Division, 7435 Oakland Mills Road, Colun1bia, MD 21046 RE: Ningbo Su11vot Technology Co., Ltd FCC ID: 2AZGN-LC600-202302 FCC Certification Confidentiality Request Gentlen1en: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. Ningbo Sunvot Technology Co., Ltd requests that the following documents regarding this submission for FCC ID: 2AZGN-LC600-202302 be kept Long-Term confidential: Exhibit Type Block Diagram Schematics Operational Description Part list Tune up File Name Block Diagram.pdf Schematics.pdf Operational Description.pdf BOM.pdf Tune up.pdf Those documents contain detailed system and equipment description and related information about the product which Ningbo Sunvot Technology Co., Ltd considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form w hich future technological products will evolve, Ningbo Sunvot Technology Co., Ltd considers t his information would be of benefit to its competitors, and that the disclosure o f the information in these docume nts would give competitors an unfair advantage in the m arket. Thank you for your attention to this matter. Y ours Sincerely, Si gnature: Joliαthart Luo Ningbo Sunvot Technology Co., Ltd And below exhibit kept short-term confidential (180 days): Exhibit Type External Photos Internal Photos Test Setup Photos Users Manuals File Name External Photo.pdf Internal Photo.pdf Test Setup Photos.pdf Users Manual.pdf

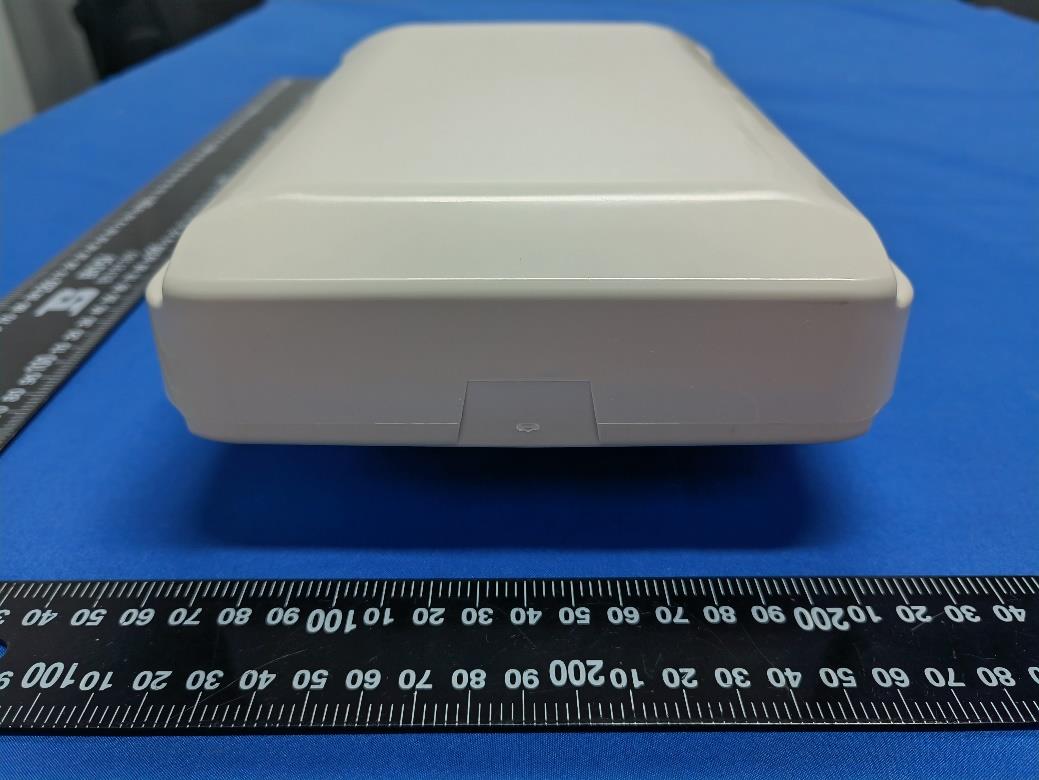

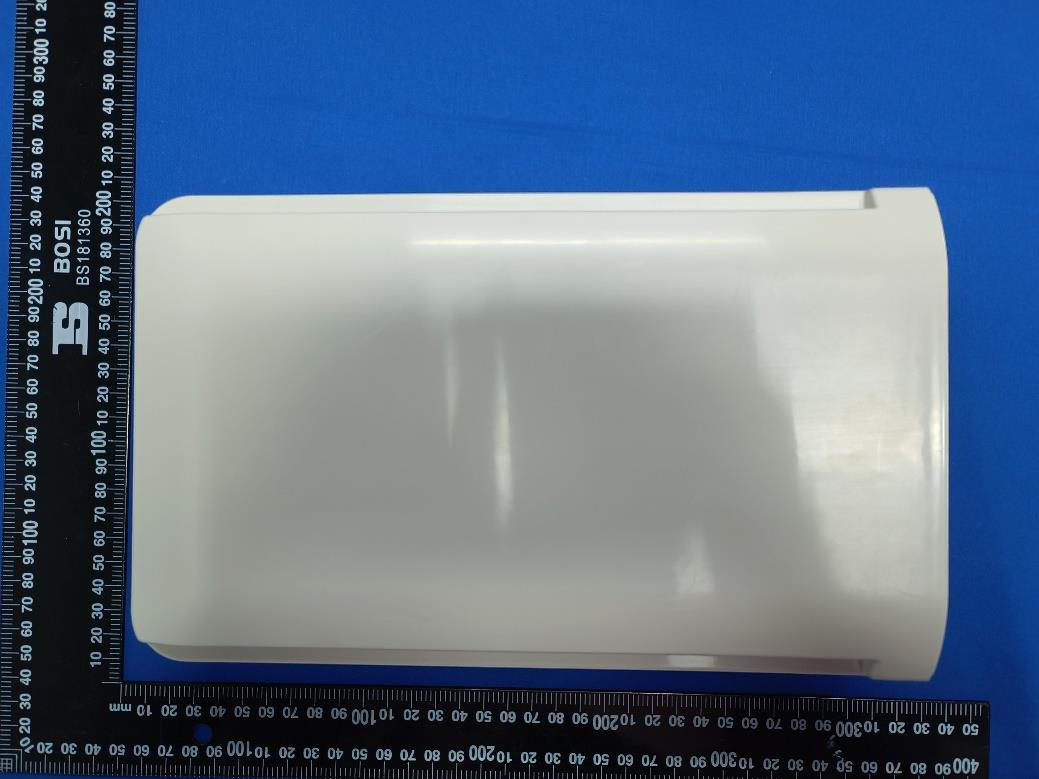

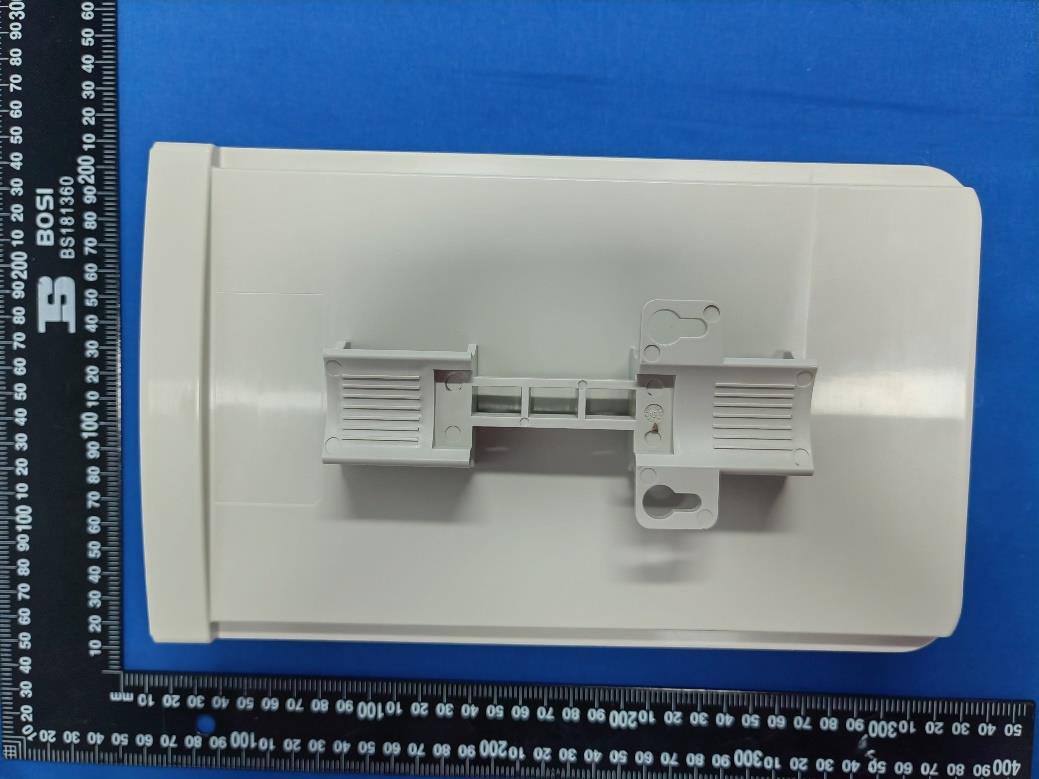

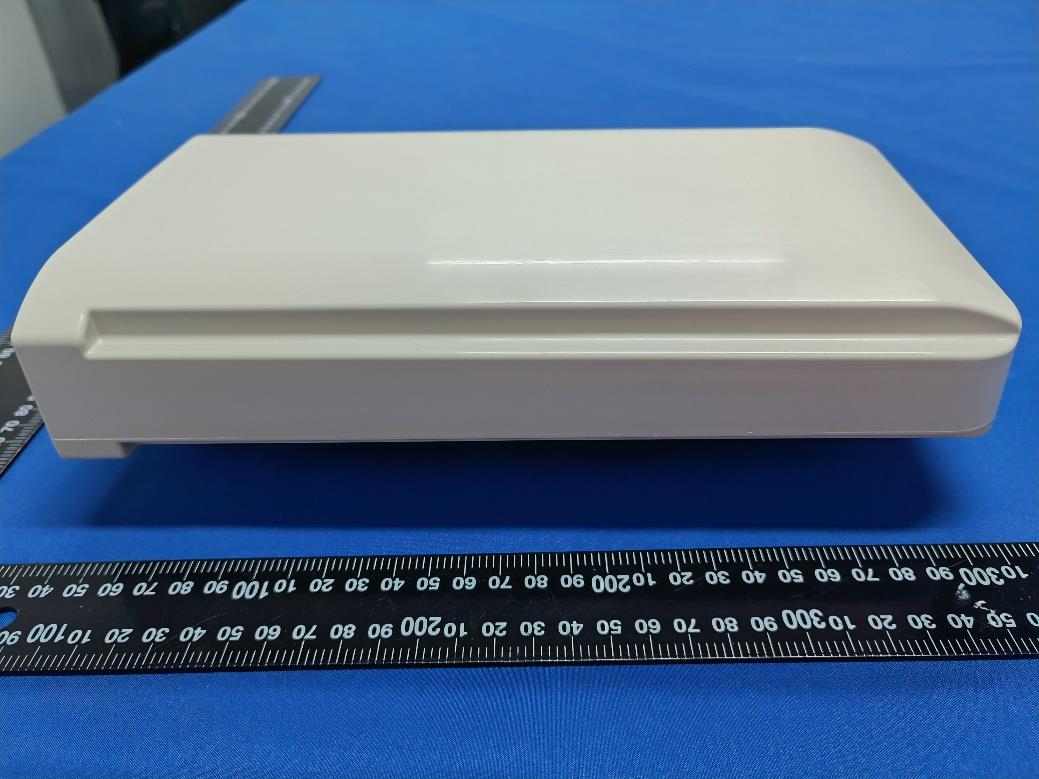

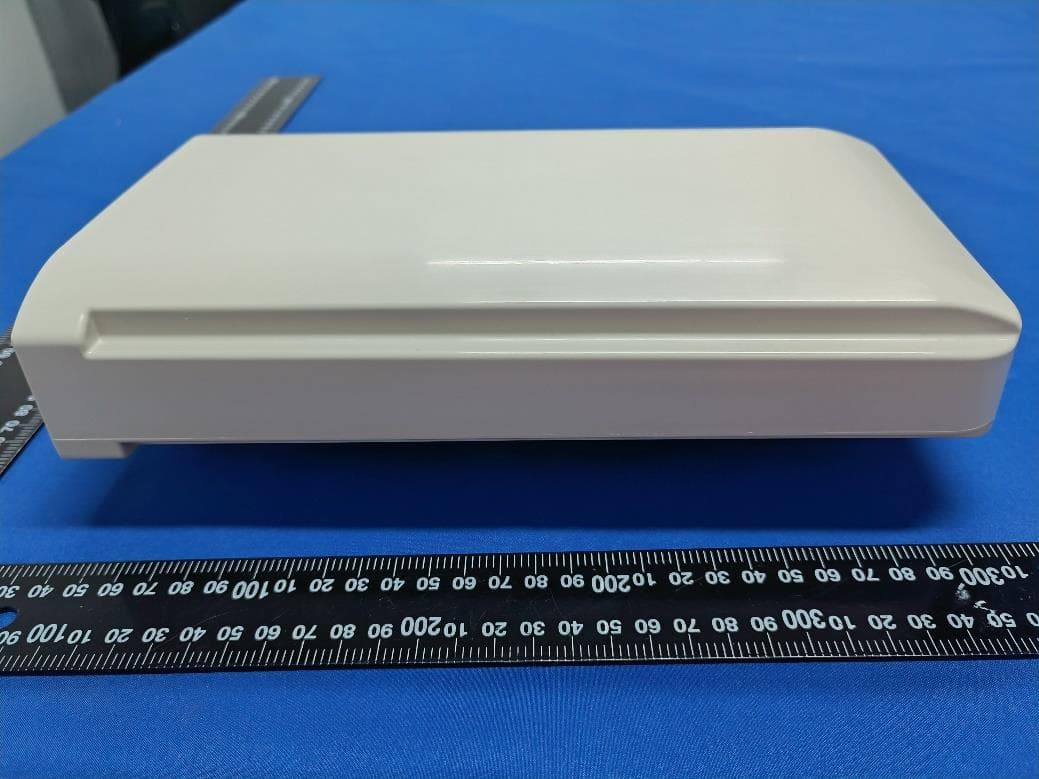

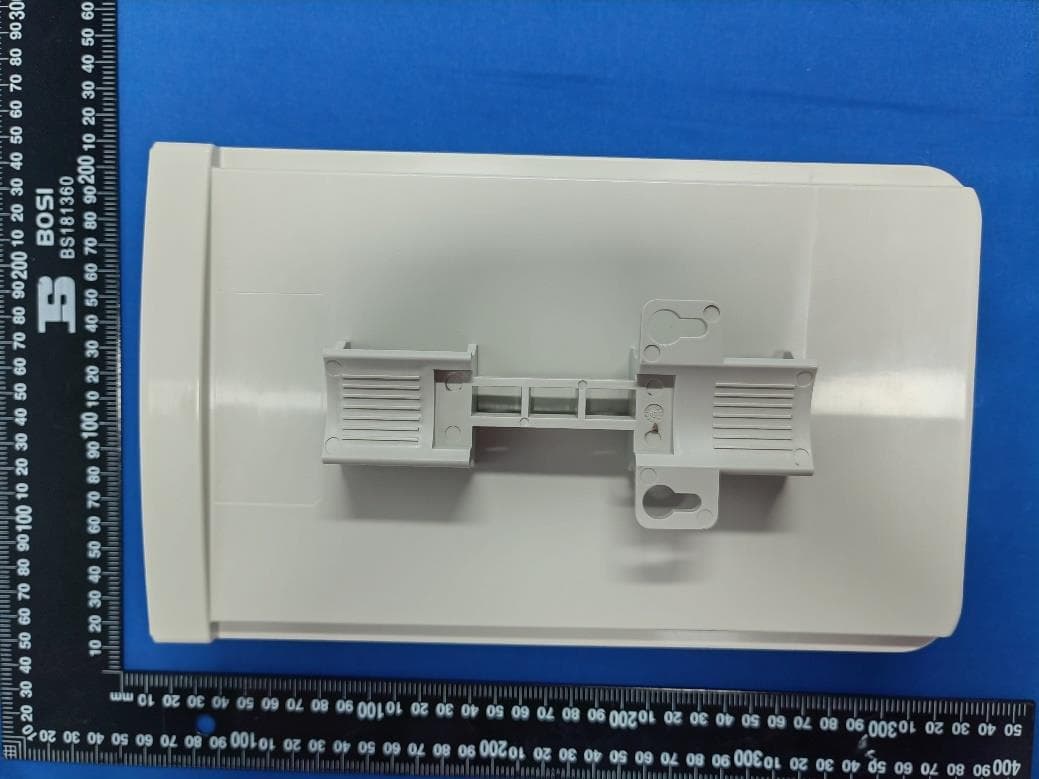

Report No.: BL-SZ2320202-AW 1 / 3 EUT EXTERNAL PHOTOS FRONT VIEW OF EUT REAR VIEW OF EUT Report No.: BL-SZ2320202-AW 2 / 3 LEFT SIDE VIEW OF EUT RIGHT SIDE OF EUT Report No.: BL-SZ2320202-AW 3 / 3 TOP VIEW OF EUT BOTTOM VIEW OF EUT --BLANK BELOW--

Report No.: BL-SZ2320202-AI 1 / 4 EUT INTERNAL PHOTOS EUT UNCOVER VIEW EUT UNCOVER VIEW PCB Antenna Report No.: BL-SZ2320202-AI 2 / 4 EUT UNCOVER VIEW EUT UNCOVER VIEW Report No.: BL-SZ2320202-AI 3 / 4 MAIN BOARD TOP VIEW (WITH SHIELDING) MAIN BOARD REAR VIEW (WITH SHIELDING) Report No.: BL-SZ2320202-AI 4 / 4 MAIN BOARD TOP VIEW (WITHOUT SHIELDING) MAIN BOARD REAR VIEW (WITHOUT SHIELDING) --BLANK BELOW-- RF Module

Report No.: BL-SZ2320202-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 12 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China TEST REPORT Applicant: Ningbo Sunvot Technology Co., Ltd Address: Building 3, NO 55 Longtan Shan Road, Beilun Daqi, Ningbo, Zhejiang Equipment Type: LC600 LTE CPE Model Name: LC600 (refer section 2.4) Brand Name: Sunvot FCC ID: 2AZGN-LC600-202302 Test Standard: 47 CFR Part 2.1091 KDB 447498 D04 v01 Sample Arrival Date: Feb. 07, 2023 Test Date Feb. 08, 2023 - Mar. 01, 2023 Date of Issue: Mar. 21, 2023 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Huang Jinsheng Checked by: Xu Rui Approved by: Tolan Tu Testing Director _______________ _______________ _______________ Report No.: BL-SZ2320202-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 12 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Revision History Version Issue Date Revisions Content Rev. 01 Mar. 13, 2023 Initial Issue Rev. 02 Mar. 21, 2023 Updated Section 5 ASSESSMENT RESULT TABLE OF CONTENTS 1 GENERAL INFORMATION ........................................................................................................ 3 1.1 Test Laboratory ............................................................................................................ 3 1.2 Test Location ................................................................................................................ 3 2 PRODUCT INFORMATION ....................................................................................................... 4 2.1 Applicant Information .................................................................................................... 4 2.2 Manufacturer Information .............................................................................................. 4 2.3 Factory Information ....................................................................................................... 4 2.4 General Description for Equipment under Test (EUT) ................................................... 4 2.5 Ancillary Equipment ...................................................................................................... 4 2.6 Technical Information ................................................................................................... 5 3 SUMMARY OF TEST RESULT ................................................................................................. 6 3.1 Test Standards ............................................................................................................. 6 4 DEVICE CATEGORY AND LEVELS LIMITS ............................................................................. 7 5 ASSESSMENT RESULT ........................................................................................................... 9 5.1 Output Power ............................................................................................................... 9 5.2 Tune-up power ........................................................................................................... 10 5.3 RF Exposure Evaluation Result .................................................................................. 10 5.4 Conclusion .................................................................................................................. 11 Report No.: BL-SZ2320202-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 3 / 12 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1 GENERAL INFORMATION 1.1 Test Laboratory Name Shenzhen BALUN Technology Co., Ltd. Address Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China Phone Number +86 755 6685 0100 1.2 Test Location Name Shenzhen BALUN Technology Co., Ltd. Location Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 1/F, Building B, Ganghongji High-tech Intelligent Industrial Park, No. 1008, Songbai Road, Yangguang Community, Xili Sub-district, Nanshan District, Shenzhen, Guangdong Province, P. R. China Accreditation Certificate The laboratory is a testing organization accredited by FCC as a accredited testing laboratory. The designation number is CN1196. Report No.: BL-SZ2320202-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 4 / 12 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Province, P. R. China 2 PRODUCT INFORMATION 2.1 Applicant Information Applicant Ningbo Sunvot Technology Co., Ltd Address Building 3, NO 55 Longtan Shan Road, Beilun Daqi, Ningbo, Zhejiang 2.2 Manufacturer Information Manufacturer N/A Address N/A 2.3 Factory Information Factory N/A Address N/A 2.4 General Description for Equipment under Test (EUT) EUT Name LC600 LTE CPE Model Name Under Test LC600 Series Model Name LC600C, LC600T, LC600L, LC600A, LC600B Description of Model name differentiation All models are same with electrical parameters and internal circuit structure, but only differ in model name. (this information provided by the customer) Hardware Version N/A Software Version N/A Dimensions (Approx.) N/A Weight (Approx.) N/A 2.5 Ancillary Equipment Note: Not Applicable. Report No.: BL-SZ2320202-701 Tel: +86-755-66850100 E-mail: [email protected] Page No. 5 / 12 Web: www.titcgroup.com Template No.: TRP-FCC-Mobile (2022-08-15) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe Xi Road, Nanshan District, Shenzhen, Guangdong Prov…

Text truncated - open the document above for the full version.

Document No:BL-SZ2320202 Page 1 of 111 Annex A.2 Peak to Average Ratio Document No:BL-SZ2320202 Page 2 of 111 1. WCDMA_Band2 1.1. WCDMA Peak to Average Ratio(NTNV)(Channel:9262) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1852.4 0.1 3.05 13 Pass Document No:BL-SZ2320202 Page 3 of 111 1.2. WCDMA Peak to Average Ratio(NTNV)(Channel:9400) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 3 13 Pass Document No:BL-SZ2320202 Page 4 of 111 1.3. WCDMA Peak to Average Ratio(NTNV)(Channel:9538) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1907.6 0.1 3.05 13 Pass Document No:BL-SZ2320202 Page 5 of 111 2. WCDMA_Band4 2.1. WCDMA Peak to Average Ratio(NTNV)(Channel:1312) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1712.4 0.1 2.95 13 Pass Document No:BL-SZ2320202 Page 6 of 111 2.2. WCDMA Peak to Average Ratio(NTNV)(Channel:1412) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1732.4 0.1 2.95 13 Pass Document No:BL-SZ2320202 Page 7 of 111 2.3. WCDMA Peak to Average Ratio(NTNV)(Channel:1513) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1752.6 0.1 3 13 Pass Document No:BL-SZ2320202 Page 8 of 111 3. WCDMA_Band5 3.1. WCDMA Peak to Average Ratio(NTNV)(Channel:4132) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 826.4 0.1 2.95 13 Pass Document No:BL-SZ2320202 Page 9 of 111 3.2. WCDMA Peak to Average Ratio(NTNV)(Channel:4182) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 836.4 0.1 3 13 Pass Document No:BL-SZ2320202 Page 10 of 111 3.3. WCDMA Peak to Average Ratio(NTNV)(Channel:4233) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 846.6 0.1 2.91 13 Pass Document No:BL-SZ2320202 Page 11 of 111 4. LTE_Band2 4.1. LTE Peak to Average Ratio(NTNV)(Subtest:1, Channel:18700, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 5.39 13 Pass Document No:BL-SZ2320202 Page 12 of 111 4.2. LTE Peak to Average Ratio(NTNV)(Subtest:2, Channel:18700, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 5.48 13 Pass Document No:BL-SZ2320202 Page 13 of 111 4.3. LTE Peak to Average Ratio(NTNV)(Subtest:3, Channel:18700, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 6.05 13 Pass Document No:BL-SZ2320202 Page 14 of 111 4.4. LTE Peak to Average Ratio(NTNV)(Subtest:4, Channel:18700, Bandwidth:20, Modulation:Q16, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1860 0.1 6.33 13 Pass Document No:BL-SZ2320202 Page 15 of 111 4.5. LTE Peak to Average Ratio(NTNV)(Subtest:5, Channel:18900, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 4.78 13 Pass Document No:BL-SZ2320202 Page 16 of 111 4.6. LTE Peak to Average Ratio(NTNV)(Subtest:6, Channel:18900, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 5.62 13 Pass Document No:BL-SZ2320202 Page 17 of 111 4.7. LTE Peak to Average Ratio(NTNV)(Subtest:7, Channel:18900, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 5.67 13 Pass Document No:BL-SZ2320202 Page 18 of 111 4.8. LTE Peak to Average Ratio(NTNV)(Subtest:8, Channel:18900, Bandwidth:20, Modulation:Q16, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1880 0.1 6.42 13 Pass Document No:BL-SZ2320202 Page 19 of 111 4.9. LTE Peak to Average Ratio(NTNV)(Subtest:9, Channel:19100, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1900 0.1 5.16 13 Pass Document No:BL-SZ2320202 Page 20 of 111 4.10. LTE Peak to Average Ratio(NTNV)(Subtest:10, Channel:19100, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1900 0.1 5.53 13 Pass Document No:BL-SZ2320202 Page 21 of 111 4.11. LTE Peak to Average Ratio(NTNV)(Subtest:11, Channel:19100, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1900 0.1 6.09 13 Pass Document No:BL-SZ2320202 Page 22 of 111 4.12. LTE Peak to Average Ratio(NTNV)(Subtest:12, Channel:19100, Bandwidth:20, Modulation:Q16, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1900 0.1 6.33 13 Pass Document No:BL-SZ2320202 Page 23 of 111 5. LTE_Band4 5.1. LTE Peak to Average Ratio(NTNV)(Subtest:1, Channel:20050, Bandwidth:20, Modulation:QPSK, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1720 0.1 4.92 13 Pass Document No:BL-SZ2320202 Page 24 of 111 5.2. LTE Peak to Average Ratio(NTNV)(Subtest:2, Channel:20050, Bandwidth:20, Modulation:QPSK, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1720 0.1 5.72 13 Pass Document No:BL-SZ2320202 Page 25 of 111 5.3. LTE Peak to Average Ratio(NTNV)(Subtest:3, Channel:20050, Bandwidth:20, Modulation:Q16, RB Number: 1, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1720 0.1 5.62 13 Pass Document No:BL-SZ2320202 Page 26 of 111 5.4. LTE Peak to Average Ratio(NTNV)(Subtest:4, Channel:20050, Bandwidth:20, Modulation:Q16, RB Number: 100, RB Position:LOW) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 1720 0.1 6.52 13 Pass Document No:BL-SZ2320…

Text truncated - open the document above for the full version.

Document No:BL-SZ2320202 Page 1 of 215 Annex A.3 Occupied Bandwidth Document No:BL-SZ2320202 Page 2 of 215 1. WCDMA_Band2 1.1. WCDMA Occupied Bandwidth(NTLV)(Channel:9262) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1852.4 99 26 0.1 Peak 4.121 4.718 5 Pass Document No:BL-SZ2320202 Page 3 of 215 1.2. WCDMA Occupied Bandwidth(NTLV)(Channel:9400) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1880 99 26 0.1 Peak 4.117 4.716 5 Pass Document No:BL-SZ2320202 Page 4 of 215 1.3. WCDMA Occupied Bandwidth(NTLV)(Channel:9538) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1907.6 99 26 0.1 Peak 4.121 4.721 5 Pass Document No:BL-SZ2320202 Page 5 of 215 2. WCDMA_Band4 2.1. WCDMA Occupied Bandwidth(NTNV)(Channel:1312) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1712.4 99 26 0.1 Peak 4.113 4.715 5 Pass Document No:BL-SZ2320202 Page 6 of 215 2.2. WCDMA Occupied Bandwidth(NTNV)(Channel:1412) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1732.4 99 26 0.1 Peak 4.116 4.729 5 Pass Document No:BL-SZ2320202 Page 7 of 215 2.3. WCDMA Occupied Bandwidth(NTNV)(Channel:1513) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1752.6 99 26 0.1 Peak 4.118 4.719 5 Pass Document No:BL-SZ2320202 Page 8 of 215 3. WCDMA_Band5 3.1. WCDMA Occupied Bandwidth(NTNV)(Channel:4132) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 826.4 99 26 0.1 Peak 4.125 4.729 5 Pass Document No:BL-SZ2320202 Page 9 of 215 3.2. WCDMA Occupied Bandwidth(NTNV)(Channel:4182) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 836.4 99 26 0.1 Peak 4.13 4.723 5 Pass Document No:BL-SZ2320202 Page 10 of 215 3.3. WCDMA Occupied Bandwidth(NTNV)(Channel:4233) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 846.6 99 26 0.1 Peak 4.119 4.716 5 Pass Document No:BL-SZ2320202 Page 11 of 215 4. LTE_Band2 4.1. LTE Occupied Bandwidth(NTNV)(Subtest:1, Channel:18607, Bandwidth:1.4, Modulation:QPSK, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 1850.7 99 26 0.027 Peak 1.084 1.226 1.4 Pass Document No:BL-SZ2320202 Page 12 of 215 4.2. LTE Occupied Bandwidth(NTNV)(Subtest:2, Channel:18607, Bandwidth:1.4, Modulation:Q16, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1850.7 99 26 0.027 Peak 1.09 1.22 1.4 Pass Document No:BL-SZ2320202 Page 13 of 215 4.3. LTE Occupied Bandwidth(NTNV)(Subtest:3, Channel:18900, Bandwidth:1.4, Modulation:QPSK, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1880 99 26 0.027 Peak 1.088 1.232 1.4 Pass Document No:BL-SZ2320202 Page 14 of 215 4.4. LTE Occupied Bandwidth(NTNV)(Subtest:4, Channel:18900, Bandwidth:1.4, Modulation:Q16, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1880 99 26 0.027 Peak 1.085 1.221 1.4 Pass Document No:BL-SZ2320202 Page 15 of 215 4.5. LTE Occupied Bandwidth(NTNV)(Subtest:5, Channel:19193, Bandwidth:1.4, Modulation:QPSK, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1909.3 99 26 0.027 Peak 1.088 1.221 1.4 Pass Document No:BL-SZ2320202 Page 16 of 215 4.6. LTE Occupied Bandwidth(NTNV)(Subtest:6, Channel:19193, Bandwidth:1.4, Modulation:Q16, RB Number: 6, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1909.3 99 26 0.027 Peak 1.085 1.227 1.4 Pass Document No:BL-SZ2320202 Page 17 of 215 4.7. LTE Occupied Bandwidth(NTNV)(Subtest:7, Channel:18615, Bandwidth:3, Modulation:QPSK, RB Number: 15, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1851.5 99 26 0.062 Peak 2.703 3.009 3 Pass Document No:BL-SZ2320202 Page 18 of 215 4.8. LTE Occupied Bandwidth(NTNV)(Subtest:8, Channel:18615, Bandwidth:3, Modulation:Q16, RB Number: 15, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1851.5 99 26 0.062 Peak 2.701 2.991 3 Pass Document No:BL-SZ2320202 Page 19 of 215 4.9. LTE Occupied Bandwidth(NTNV)(Subtest:9, Channel:18900, Bandwidth:3, Modulation:QPSK, RB Number: 15, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1880 99 26 0.062 Peak 2.702 2.99 3 Pass Document No:BL-SZ2320202 Page 20 of 215 4.10. LTE Occupied Bandwidth(NTNV)(Subtest:10, Channel:18900, Bandwidth:3, Modulation:Q16, RB Number: 15, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 1880 99 26 0.062 Peak 2.702 3.01 3 Pass Document No:BL-SZ2320202 Page 21 of 215 4.11. LTE Occupied Bandwidth(NTNV)(Subtest:11, Channel:19185, Bandwidth:3, Modulation:QPSK, RB Number: 15, RB Position:LOW) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detec…

Text truncated - open the document above for the full version.

Document No:BL-SZ2320202 Page 1 of 243 Annex A.5 Spurious Emission at Antenna Terminals Document No:BL-SZ2320202 Page 2 of 243 1. WCDMA_Band2 1.1. WCDMA Spurious Emission at Antenna Terminals(NTNV)(Channel:9262) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Limit (dBm) Verdict Sweep Point 0.009 0.15 0.001 Peak 0.011 -66.97 -13 Pass 401 0.15 30 0.01 Peak 0.48 -65.39 -13 Pass 2985 30 1000 0.1 Peak 870.328 -53.09 -13 Pass 9699 1000 3000 1 Peak 1853.427 22.73 -13 N/A 2000 3000 20000 1 Peak 17149.727 -22.46 -13 Pass 17000 Document No:BL-SZ2320202 Page 3 of 243 1.2. WCDMA Spurious Emission at Antenna Terminals(NTNV)(Channel:9400) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detecto r Frequency (MHz) Power (dBm) Limit (dBm) Verdic t Sweep Point 0.009 0.15 0.001 Peak 0.01 -66.54 -13 Pass 401 0.15 30 0.01 Peak 0.15 -64.3 -13 Pass 2985 30 1000 0.1 Peak 835.798 -53.02 -13 Pass 9699 1000 3000 1 Peak 1878.439 22.85 -13 N/A 2000 3000 20000 1 Peak 19946.914 -22.67 -13 Pass 17000 Document No:BL-SZ2320202 Page 4 of 243 1.3. WCDMA Spurious Emission at Antenna Terminals(NTNV)(Channel:9538) Start Frequency (MHz) Stop Frequency (MHz) RBW (MHz) Detecto r Frequency (MHz) Power (dBm) Lim…

Text truncated - open the document above for the full version.
