2AZGPTL10711960s CANISTER TASK TABLE LAMP WITH WIRELESS CHARGING

1960s CANISTER TASK TABLE LAMP WITH WIRELESS CHARGING - ASSEMBLY INSTRUCTIONS PARTS ENCLOSED: (A) Lamp shade (1) (B) Arm handle (1) (C) Lamp base (1) (D) ON/OFF rotating knob (E) Plug (F) Arm knob (1) (G) Shade joint (1) (H) LED bulb (1) (I) Chargingpad (1) IMPORTANT SAFETY INSTRUCTIONS: Forsafety purposes, this lamp isequipped with a polarized plug (oneblade is wider than theother). If the plug doesnot fit securely intoyour outlet,do not force it- contact a professional electrician.Use the plug with anextension cordonly if it canbe fully inserted into the cord's socket.Never altertheplug in any way. Thislamp has beenrated for up to (1) 5w max LED bulb (included);only an LED bulb can be used. To avoid the risk of fire, do notexceed the recommended wattage. WARNINGS: All wiresare connected. When unpacking, be careful not to pull wires,as a bad connectionmay result.Do not connect electricity until your lamp is fully assembled.To reduce the risk of fire, electrical shock, orpersonal injury,always turn off the lamp and allow it to cool prior to replacingthe lightbulb. Do not touch bulb whenlamp is turned on or lookdirectly at lit bulb. Keep flammable materials awayfrom lit bulb. THIS PRODUCT IS NOT A TOY AND HAS NO PLAY VALUE. WARNING:STRANGULATION HAZARD Keep cord at least 3 feet away fromcribs, bassinets, and toddlerbeds. Keep out of reachof children under3 years of age. ASSEMBLY & INSTALLATION: 1.Carefully removeall partsfrom thebox and remove plasticcoverings. 2. Carefully place the lamp base (C) on a tabletop. 3.Adjust the lamp shade (A) withshade joint (G) using arm knob (F) and arm handle (B) to get the desired angle and height.Follow the steps below to adjust the knob. A. To adjust the position of the arm, lift up the arm handle to loosen the arm knob. B. Loosen the arm knob and adjust the arm to the desired angle,then tighten the knob.Youdon't need to lock the knob with much force; just push the arm handle down a little to hold the lamp in position. 4. Insert the LED bulb (H) into the socket and turn to tighten. 5.Insert plug (E) into properelectrical outlet and test thelamp. 6.Turn the rotatingon-off switch (D) on the base to turn the light on or off. 7. Placeyour cellphone on the charging pad (I) to charge asneeded. 8.Assembly is complete. CARE INSTRUCTIONS: Do not use polishesor cleaners,as they may damage the finish. Wipe cleanwith a soft,dry cloth. 1960s CANISTER TASK TABLE LAMP WITH WIRELESS CHARGING 1960s CANISTER TASK TABLE LAMP WITH WIRELESS CHARGING - ASSEMBLY INSTRUCTIONS This device complies with Part 15 of the FCC Rules. Operation issubject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must acceptany interference received, including interference that may cause undesired operation. Caution: The user is cautioned that changes or modificationsnot expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician forhelp. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cmbetween the radiator and any part of your body. This equipment complies with ISED RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. Pour se conformer aux exigences de conformité CNR 102 RF exposition, une distance de séparation d'au moins 20 cm doit être maintenue entre l'antenne de cet appareil ettoutes lespersonnes. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference. This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareilsradio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : L’appareil ne doit pas produire de brouillage; L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

CALLTON LIGHTING CO., LTD DATE : 2021-05-21 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Request for Short-Term Confidentiality Company name: FCC ID:2AZGPTL1071 FCC Part 15 Certification Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.: (1)Test Setup Photos (2)External Photos (3)Internal Photos (4)User Manual The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Sincerely,

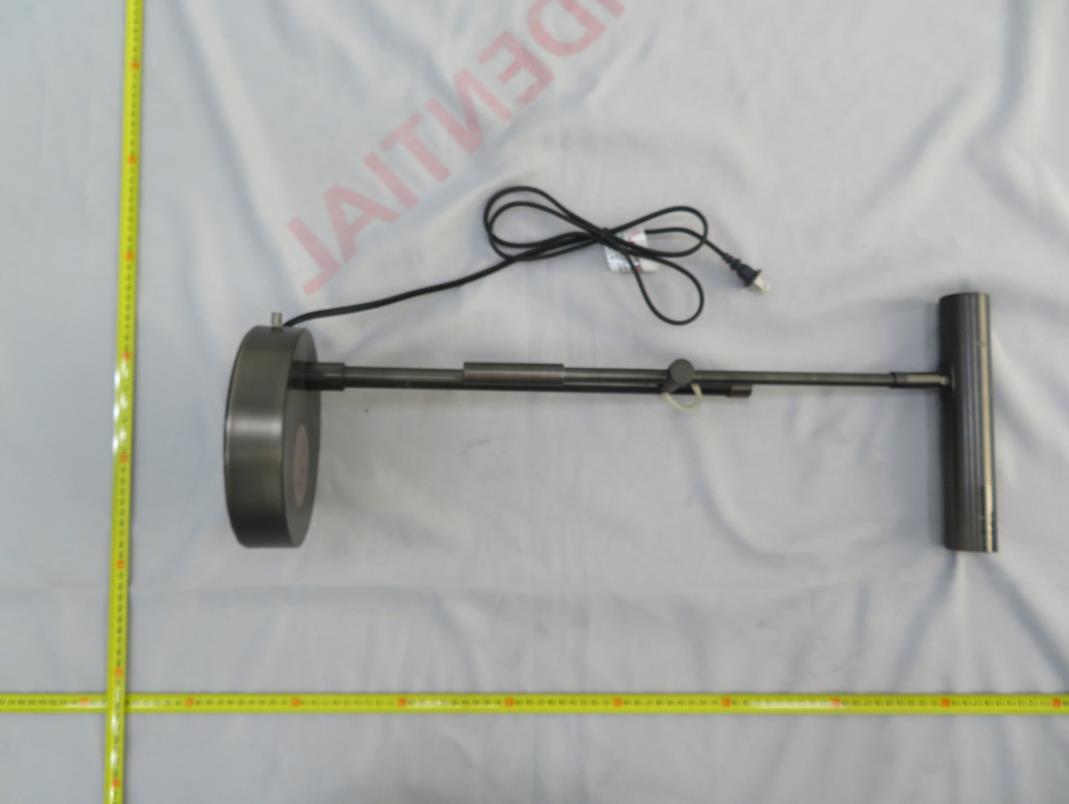

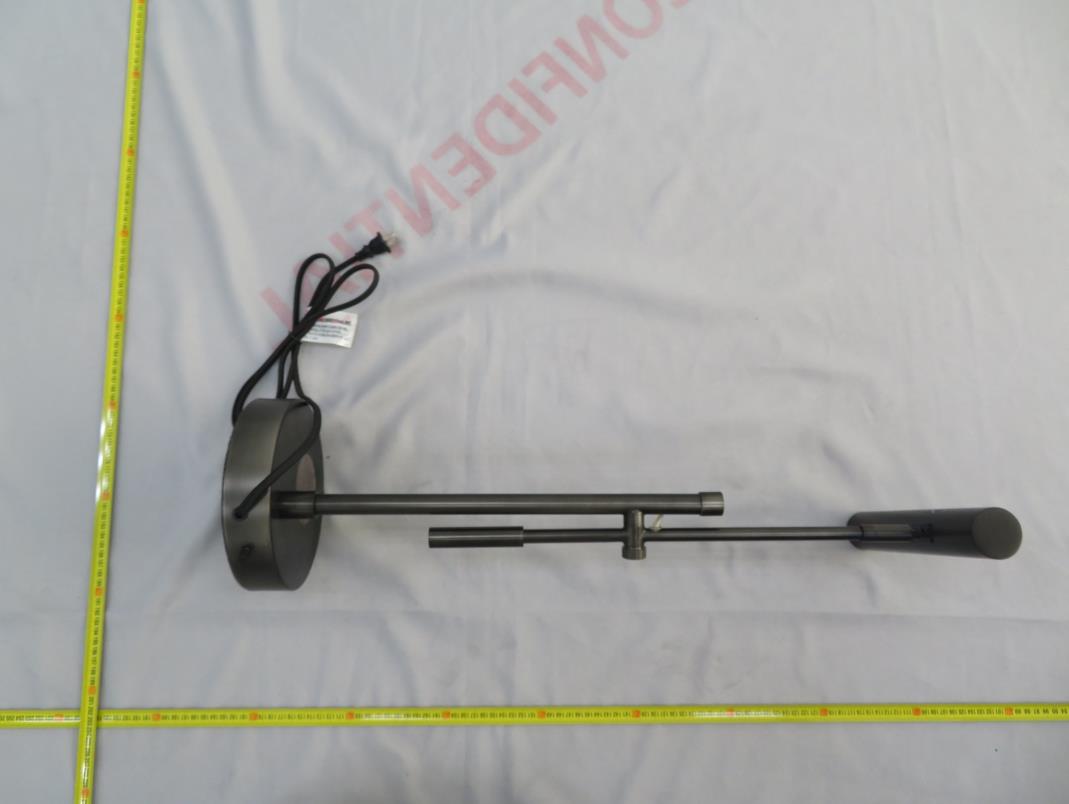

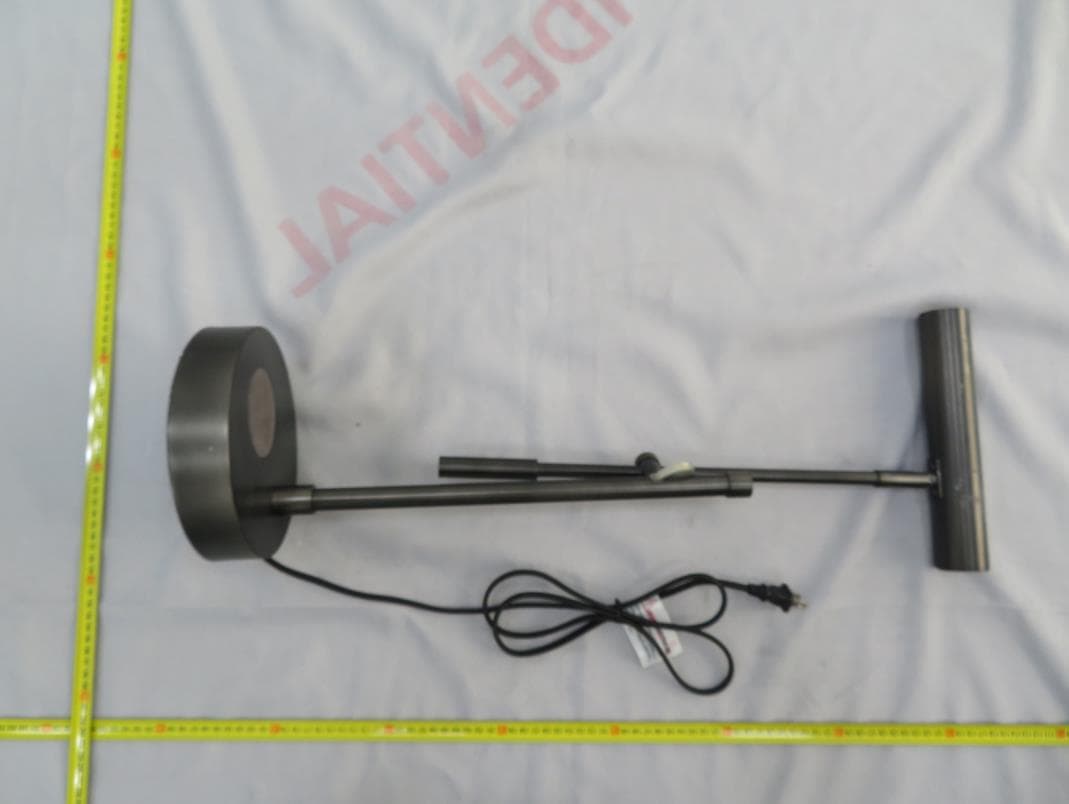

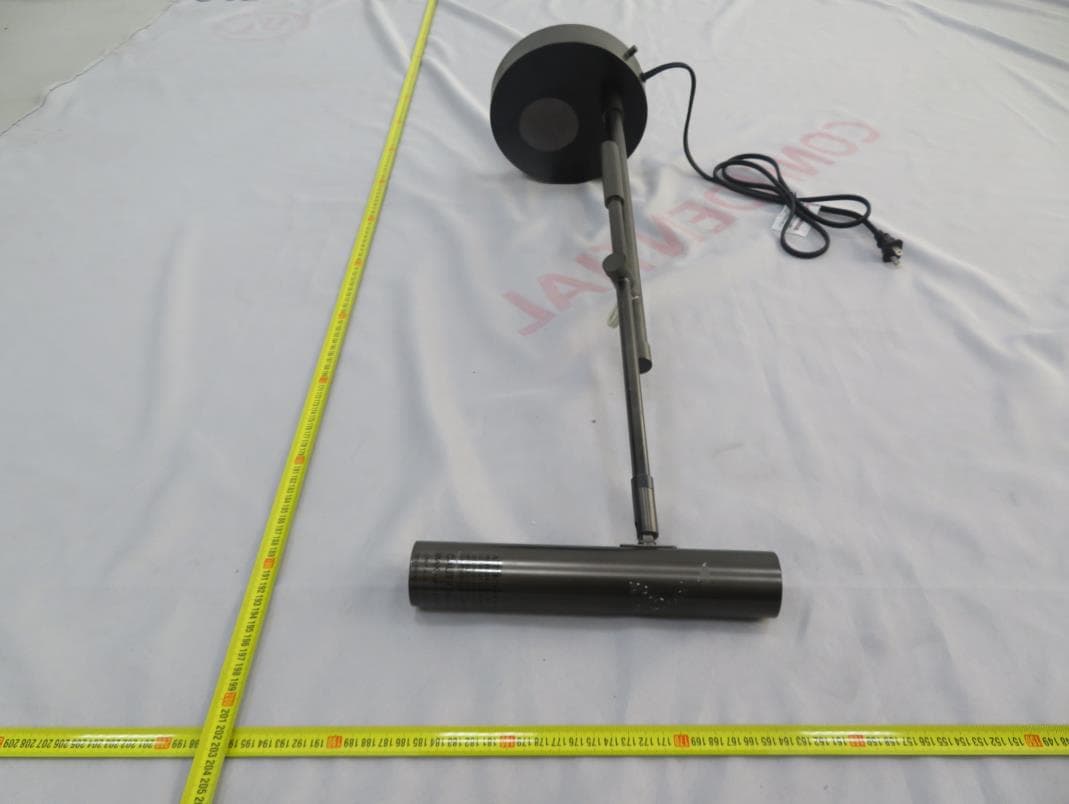

Appendix I External Photographs Page 2 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-1 View of EUT-2 Page 3 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-3 View of EUT-4 Page 4 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-5 View of EUT-6

Appendix II Internal Photographs Page 2 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-1 Internal View of EUT-2 Page 3 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-3 Internal View of EUT-4 Page 4 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-5 Internal View of EUT-6 Page 5 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-7 Internal View of EUT-8 Antenna Page 6 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-9

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE CERTIFICATION TEST REPORT For 1960s CANISTER TASK TABLE LAMP WITH WIRELESS CHARGING MODEL NUMBER: TL1071 FCC ID: 2AZGPTL1071 REPORT NUMBER: 4789814649-4-2 ISSUE DATE: May 28, 2021 Prepared for CALLTON LIGHTING CO.,LTD No.56,168Ind.Park, JIngMei Management Zone, Dongkeng Town, Dongguan City, Guangdong Province, China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4789814649-4-2 Page 2 of 9 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0019 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 05/28/2021 Initial Issue REPORT NO.: 4789814649-4-2 Page 3 of 9 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0019 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. DESCRIPTION OF EUT ..................................................................................................... 6 5. REQUIREMENT ................................................................................................................. 7 REPORT NO.: 4789814649-4-2 Page 4 of 9 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0019 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: CALLTON LIGHTING CO.,LTD Address: No.56,168Ind.Park, JIngMei Management Zone, Dongkeng Town, Dongguan City, Guangdong Province, China Manufacturer Information Company Name: CALLTON LIGHTING CO.,LTD Address: No.56,168Ind.Park, JIngMei Management Zone, Dongkeng Town, Dongguan City, Guangdong Province, China EUT Information EUT Name: 1960s CANISTER TASK TABLE LAMP WITH WIRELESS CHARGING Model: TL1071 Brand: / Sample Received Date: February 3, 2021 Sample Status: Normal Sample ID: 3645294 Date of Tested: February 8, 2021 ~ May 28, 2021 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR§1.1307 PASS FCC 47CFR§1.1310 PASS FCC 47CFR§2.1093 PASS FCC 47CFR§2.1091 PASS Prepared By: Checked By: Denny Huang Shawn Wen Project Engineer Laboratory Leader Approved By: Stephen Guo Laboratory Manager REPORT NO.: 4789814649-4-2 Page 5 of 9 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0019 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with FCC 47CFR§1.1307(b)(1), FCC 47CFR§1.1310, FCC 47CFR§2.1093, KDB 680106 D01 RF Exposure Wireless Charging App v03r01. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Has been recognized to perform compliance testing on equipment subject to the Commission's Delcaration of Conformity (DoC) and Certification rules ISED (Company No.: 21320) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been registered and fully described in a report filed with ISED. The Company Number is 21320 and the test lab Conformity Assessment Body Identifier (CABID) is CN0046. VCCI (Registration No.: G-20019, R-20004, C-20012 and T-20011) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with VCCI, the Membership No. is 3793. Facility Name: Chamber D, the VCCI registration No. is G-20019 and R-20004 Shielding Room B , the VCCI registration No. is C-20012 and T-20011 Note: All tests measurement facilities use to collect the measurement data are located at Building 10, Innovation Technology Park, Song Shan Lake Hi tech Development Zone, Dongguan, 523808, China REPORT NO.: 4789814649-4-2 Page 6 of 9 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0019 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 4. DESCRIPTION OF EUT EUT Name 1960s CANISTER TASK TABLE LAMP WITH WIRELESS CHARGING EUT Description 1960s CANISTER TASK TABLE LAMP WITH WIRELESS CHARGING Model TL1071 Product Description Operation Frequency 110 ~ 205 kHz Rated Output Power 10 W Antenna type Coil Ratings AC 120 V, 60 Hz REPORT NO.: 4789814649-4-2 Page 7 of 9 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0019 This report shall not be reproduced except in full, without the …

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For 1960s CANISTER TASK TABLE LAMP WITH WIRELESS CHARGING MODEL NUMBER: TL1071 FCC ID: 2AZGPTL1071 REPORT NUMBER: 4789814649-4-1 ISSUE DATE: March 11, 2021 Prepared for CALLTON LIGHTING CO.,LTD No.56,168Ind.Park, JIngMei Management Zone, Dongkeng Town, Dongguan City, Guangdong Province, China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4789814649-4-1 Page 2 of 24 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0053 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 03/11/2021 Initial Issue REPORT NO.: 4789814649-4-1 Page 3 of 24 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0053 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Description of Test Item Standard Results Power Line Conducted Emission Test FCC 15.207 PASS Radiated Emission Test FCC 15.209 PASS 20dB Bandwidth FCC 15.215 PASS This test report is only published to and used by the applicant, and it is not for evidence purpose in China. REPORT NO.: 4789814649-4-1 Page 4 of 24 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0053 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY ......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY ................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................ 7 5. EQUIPMENT UNDER TEST .................................................................................................. 8 5.1. DESCRIPTION OF EUT ........................................................................................... 8 5.2. TEST MODE ............................................................................................................. 8 5.3. ACCESSORY ........................................................................................................... 9 5.4. MEASURING INSTRUMENT LIST .......................................................................... 10 6. 20dB BANDWIDTH TEST ................................................................................................... 11 7. RADIATED EMISSION TEST .............................................................................................. 13 7.1. SPURIOUS EMISSIONS BELOW 30 MHz .............................................................. 17 7.2. SPURIOUS EMISSIONS 30 MHz ~ 1 GHz ............................................................. 20 8. AC POWER LINE CONDUCTED EMISSIONS .................................................................... 22 REPORT NO.: 4789814649-4-1 Page 5 of 24 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0053 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: CALLTON LIGHTING CO.,LTD Address: No.56,168Ind.Park, JIngMei Management Zone, Dongkeng Town, Dongguan City, Guangdong Province, China Manufacturer Information Company Name: CALLTON LIGHTING CO.,LTD Address: No.56,168Ind.Park, JIngMei Management Zone, Dongkeng Town, Dongguan City, Guangdong Province, China EUT Information EUT Name: 1960s CANISTER TASK TABLE LAMP WITH WIRELESS CHARGING Model: TL1071 Brand: / Sample Received Date: February 3, 2021 Sample Status: Normal Sample ID: 3645294 Date of Tested: February 8, 2021 ~ March 4, 2021 Prepared By: Checked By: Denny Huang Shawn Wen Project Engineer Laboratory Leader Approved By: Stephen Guo Laboratory Manager APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 FCC PART 15 SUBPART C PASS REPORT NO.: 4789814649-4-1 Page 6 of 24 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO.: 10-SL-F0053 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY All tests were performed in accordance with the standard FCC CFR 47 Part 2, KDB 414788 D01 Radiated Test Site v01r01, CFR 47 FCC Part 15, ANSI C63.10-2013. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., L…

Text truncated - open the document above for the full version.

Appendix III Setup Photographs RADIATED EMISSIONS MEASUREMENT SETUP (30MHz ~ 1 GHz) POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP RADIATED EMISSIONS MEASUREMENT SETUP (Below 30MHz) E-FILED AND H-FILED STRENGTH MEASUREMENT SETUP-1 E-FILED AND H-FILED STRENGTH MEASUREMENT SETUP-2 E-FILED AND H-FILED STRENGTH MEASUREMENT SETUP-3 E-FILED AND H-FILED STRENGTH MEASUREMENT SETUP-4 E-FILED AND H-FILED STRENGTH MEASUREMENT SETUP-5
