FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

DATE2021/4/19 EquipmentAutorisationDivision FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 FCCID:2AZGQ-AC1200 ProductName:wirelesscard RequestforConfidentiality PursuanttoSections0.457and0.459ofthecommissionsrules,weherebyrequestthat thefollowingdocumentsbeheldconfidential: (Listherethedocumentsforwhichyouareseekingconfidentiality–forexample...) Schematics Blockdiagram  Operationdescription Thesematerialscontaintradesecretsandproprietaryinformationandarenot customarilyreleasedtothepublic.Thepublicdisclosureofthisinformationmightbe harmfultothecompanyandprovideunjustifiedbenefitstoourcompetitors. <Signature> NameyongLi Title Manager ApplicantCompany ShenzhenZoolanTechnologyCo.,Ltd

Model No.: AC1200

15mm Productname ： wirelesscard 10 mmFCCID ： 2AZGQ-AC1200 Model:AC1200

Model No.: AC1200

RF Exposure Evaluation Statement Product Name: wireless card Model No.：AC1200, AC1200-A, AC1200-B, AC1200-C, AC1200-D, AC1200-E, AC300, AC600, AC900, AC1900, AC2400 FCC ID：2AZGQ-AC1200 1.1 RF Exposure Compliance Requirement 1.1.1 Standard Requirement According to KDB447498D01 General RF Exposure Guidance v06 Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. 1.1.2 Limits The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 17 The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion 1.1.3 EUT RF Exposure Operational Mode:2.4G WIFI 802.11n20（ worst case） Channel (MHz) Maximum Peak Conducted Output Power (dBm) Tune up tolerance (dB) Maximum tune-up Power Calculated value Exclusion threshold (dBm) (mW) 2412MHz 4.425 ±1 5.425 3.49 1.08 3.0 2437MHz 4.681 ±1 5.684 3.70 1.16 2462MHz 4.309 ±1 5.309 3.40 1.07 Operational Mode: 5G WIFI 802.11N40（worst case） 3.0 5755 MHz 3.217 ±1 4.217 2.64 1.27 5795 MHz 2.857 ±1 3.857 2.43 1.17 Conclusion: the calculated value ≤3.0, SAR is exempted.

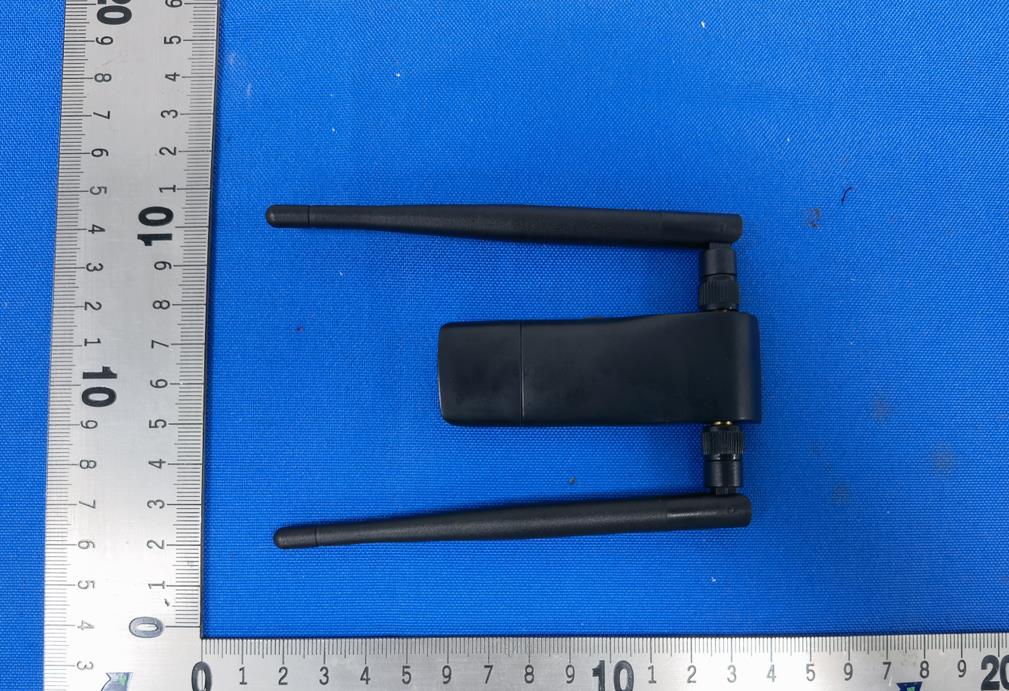

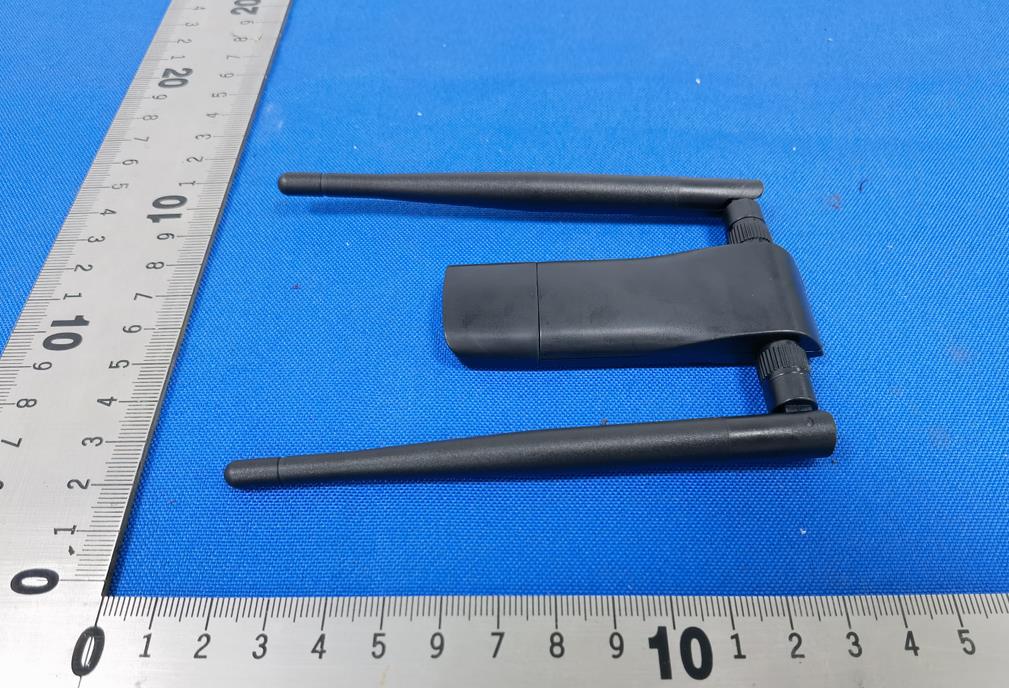

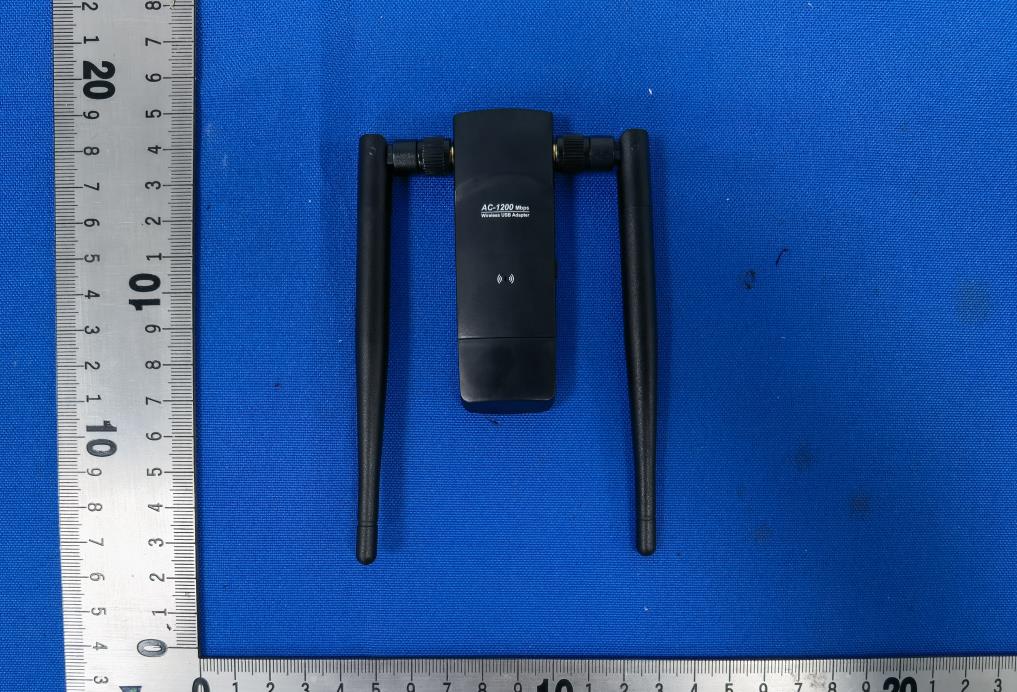

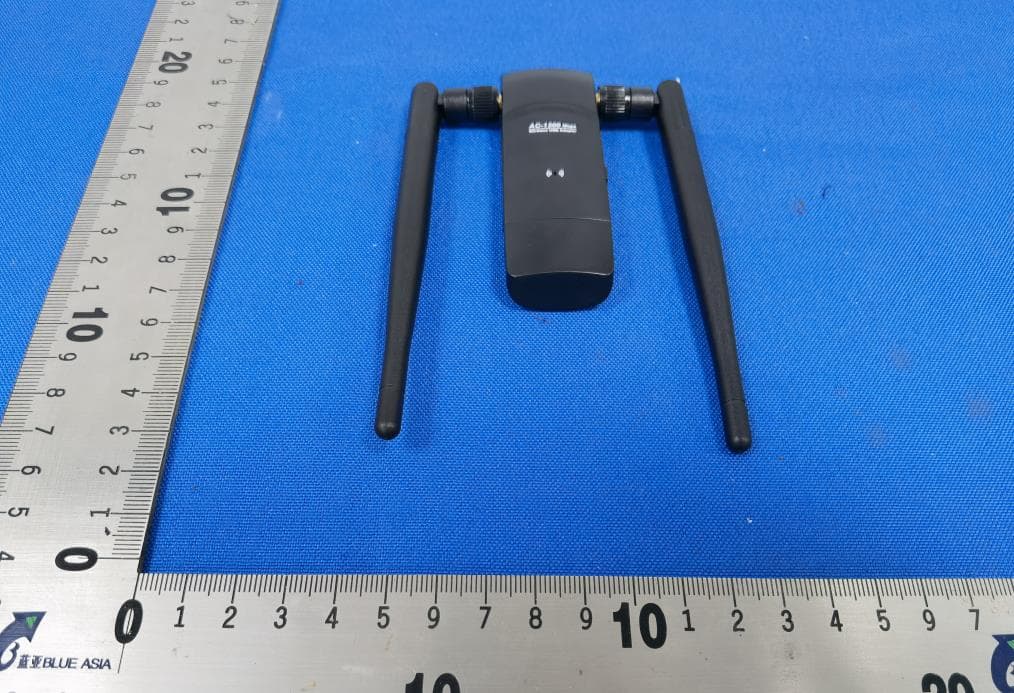

Page 1 of59 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Add: Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TEST REPORT Product Name : wireless card Brand Mark : N/A Model No. : AC1200, AC1200-A, AC1200-B, AC1200-C, AC1200-D, AC1200-E, AC300, AC600, AC900, AC1900, AC2400 FCC ID : 2AZGQ-AC1200 Report Number : BLA-EMC-202103-A8003 Date of Sample Receipt : 2021/3/23 Date of Test : 2021/3/23 to 2021/4/16 Date of Issue : 2021/4/16 Test Standard : 47 CFR Part 15, Subpart E 15.407 Test Result : Pass Prepared for: Shenzhen Zoolan Technology Co.,Ltd Floor 4, Building A5, Silicon Valley Power Digital Industrial Park, No. 22, Dafu Industrial Zone, Dafu Community, Guanlan Street, Longhua District, Shenzhen, Guangdong Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2021/4/16 Report No.: BLA-EMC-202103-A8003 Page 2 of59 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com REPORT REVISE RECORD Version No. Date Description 00 2021/4/16 Original Report No.: BLA-EMC-202103-A8003 Page 3 of59 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................5 2 GENERAL INFORMATION .........................................................................................................................6 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................6 4 TEST ENVIRONMENT ................................................................................................................................7 5 TEST MODE ................................................................................................................................................7 6 MEASUREMENT UNCERTAINTY ..............................................................................................................7 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................8 8 LABORATORY LOCATION .........................................................................................................................8 9 TEST INSTRUMENTS LIST ........................................................................................................................9 1 FREQUENCY STABILITY ........................................................................................................................ 13 1.1 LIMITS ................................................................................................................................................................... 13 1.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 13 1.3 TEST DATA .............................................................................................................................................................. 13 2 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS AND BAND EDGE ................. 14 2.1 LIMITS ................................................................................................................................................................... 14 2.2 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 15 2.3 PROCEDURE .......................................................................................................................................................... 15 2.4 TEST DATA .............................................................................................................................................................. 17 3 26DB EMISSION BANDWIDTH ............................................................................................................... 39 3.1 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 39 3.2 TEST DATA .............................................................................................................................................................. 39 4 ANTENNA REQUIREMENT ..................................................................................................................... 40 4.1 CONCLUSION ............................................................................................................................................................ 40 5 99% BANDWIDTH .................................................................................................................................... 41 5.1 BLOCK DIAGRAM OF TEST SETUP .......................................................................................................................... 41 5.2 TEST DATA .............................................................................................................................................................. 41 6 PEAK POWER SPECTRUM DENSITY ................................................................................................... 42 6.1 LIMITS ................................................................................................................................................................... 42 6.2 BLOCK DIAGRAM OF TEST SETUP ..............................................................................................................…

Text truncated - open the document above for the full version.

Report Appendix 2 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Total Power (dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 0.424 0.424 30 Pass NVNT a 5745 Ant2 0.028 0.028 30 Pass NVNT a 5785 Ant1 0.218 0.218 30 Pass NVNT a 5785 Ant2 -0.347 -0.347 30 Pass NVNT a 5825 Ant1 0.337 0.337 30 Pass NVNT a 5825 Ant2 -0.406 -0.406 30 Pass NVNT ac20 5745 Ant1 0.05 0.05 30 Pass NVNT ac20 5745 Ant2 -0.356 -0.356 30 Pass NVNT ac20 5745 Sum 2.862 2.862 30 Pass NVNT ac20 5785 Ant1 -0.345 -0.345 30 Pass NVNT ac20 5785 Ant2 -0.634 -0.634 30 Pass NVNT ac20 5785 Sum 2.523 2.523 30 Pass NVNT ac20 5825 Ant1 0.038 0.038 30 Pass NVNT ac20 5825 Ant2 -0.524 -0.524 30 Pass NVNT ac20 5825 Sum 2.776 2.776 30 Pass NVNT ac40 5755 Ant1 0.279 0.279 30 Pass NVNT ac40 5755 Ant2 -0.184 -0.184 30 Pass NVNT ac40 5755 Sum 3.064 3.064 30 Pass NVNT ac40 5795 Ant1 0.053 0.053 30 Pass NVNT ac40 5795 Ant2 -0.404 -0.404 30 Pass NVNT ac40 5795 Sum 2.841 2.841 30 Pass NVNT ac80 5775 Ant1 -0.292 -0.292 30 Pass NVNT ac80 5775 Ant2 -0.754 -0.754 30 Pass NVNT ac80 5775 Sum 2.493 2.493 30 Pass NVNT n20 5745 Ant1 -0.048 -0.048 30 Pass NVNT n20 5745 Ant2 -0.568 -0.568 30 Pass NVNT n20 5745 Sum 2.71 2.71 30 Pass NVNT n20 5785 Ant1 -0.227 -0.227 30 Pass NVNT n20 5785 Ant2 -0.789 -0.789 30 Pass NVNT n20 5785 Sum 2.511 2.511 30 Pass NVNT n20 5825 Ant1 0.232 0.232 30 Pass NVNT n20 5825 Ant2 -0.53 -0.53 30 Pass NVNT n20 5825 Sum 2.878 2.878 30 Pass NVNT n40 5755 Ant1 0.401 0.401 30 Pass NVNT n40 5755 Ant2 0.003 0.003 30 Pass NVNT n40 5755 Sum 3.217 3.217 30 Pass NVNT n40 5795 Ant1 0.022 0.022 30 Pass NVNT n40 5795 Ant2 -0.337 -0.337 30 Pass NVNT n40 5795 Sum 2.857 2.857 30 Pass Report Power NVNT a 5745MHz Ant1 Power NVNT a 5745MHz Ant2 Power NVNT a 5785MHz Ant1 Report Power NVNT a 5785MHz Ant2 Power NVNT a 5825MHz Ant1 Report Power NVNT a 5825MHz Ant2 Power NVNT ac20 5745MHz Ant1 Report Power NVNT ac20 5745MHz Ant2 Power NVNT ac20 5785MHz Ant1 Report Power NVNT ac20 5785MHz Ant2 Power NVNT ac20 5825MHz Ant1 Report Power NVNT ac20 5825MHz Ant2 Power NVNT ac40 5755MHz Ant1 Report Power NVNT ac40 5755MHz Ant2 Power NVNT ac40 5795MHz Ant1 Report Power NVNT ac40 5795MHz Ant2 Power NVNT ac80 5775MHz Ant1 Report Power NVNT ac80 5775MHz Ant2 Power NVNT n20 5745MHz Ant1 Report Power NVNT n20 5745MHz Ant2 Power NVNT n20 5785MHz Ant1 Report Power NVNT n20 5785MHz Ant2 Power NVNT n20 5825MHz Ant1 Report Power NVNT n20 5825MHz Ant2 Power NVNT n40 5755MHz Ant1 Report Power NVNT n40 5755MHz Ant2 Power NVNT n40 5795MHz Ant1 Report Power NVNT n40 5795MHz Ant2 Report -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT a 5745 Ant1 16.331 0.5 Pass NVNT a 5745 Ant2 16.343 0.5 Pass NVNT a 5785 Ant1 16.312 0.5 Pass NVNT a 5785 Ant2 16.367 0.5 Pass NVNT a 5825 Ant1 16.323 0.5 Pass NVNT a 5825 Ant2 16.324 0.5 Pass NVNT ac20 5745 Ant1 17.266 0.5 Pass NVNT ac20 5745 Ant2 16.931 0.5 Pass NVNT ac20 5785 Ant1 17.521 0.5 Pass NVNT ac20 5785 Ant2 17.173 0.5 Pass NVNT ac20 5825 Ant1 17.04 0.5 Pass NVNT ac20 5825 Ant2 16.895 0.5 Pass NVNT ac40 5755 Ant1 35.832 0.5 Pass NVNT ac40 5755 Ant2 35.541 0.5 Pass NVNT ac40 5795 Ant1 36.312 0.5 Pass NVNT ac40 5795 Ant2 36.308 0.5 Pass NVNT ac80 5775 Ant1 75.183 0.5 Pass NVNT ac80 5775 Ant2 75.131 0.5 Pass NVNT n20 5745 Ant1 17.001 0.5 Pass NVNT n20 5745 Ant2 17.178 0.5 Pass NVNT n20 5785 Ant1 17.545 0.5 Pass NVNT n20 5785 Ant2 16.821 0.5 Pass NVNT n20 5825 Ant1 16.985 0.5 Pass NVNT n20 5825 Ant2 16.839 0.5 Pass NVNT n40 5755 Ant1 36.284 0.5 Pass NVNT n40 5755 Ant2 35.788 0.5 Pass NVNT n40 5795 Ant1 36.255 0.5 Pass NVNT n40 5795 Ant2 36.283 0.5 Pass Report -6dB Bandwidth NVNT a 5745MHz Ant1 -6dB Bandwidth NVNT a 5745MHz Ant2 -6dB Bandwidth NVNT a 5785MHz Ant1 Report -6dB Bandwidth NVNT a 5785MHz Ant2 -6dB Bandwidth NVNT a 5825MHz Ant1 Report -6dB Bandwidth NVNT a 5825MHz Ant2 -6dB Bandwidth NVNT ac20 5745MHz Ant1 Report -6dB Bandwidth NVNT ac20 5745MHz Ant2 -6dB Bandwidth NVNT ac20 5785MHz Ant1 Report -6dB Bandwidth NVNT ac20 5785MHz Ant2 -6dB Bandwidth NVNT ac20 5825MHz Ant1 Report -6dB Bandwidth NVNT ac20 5825MHz Ant2 -6dB Bandwidth NVNT ac40 5755MHz Ant1 Report -6dB Bandwidth NVNT ac40 5755MHz Ant2 -6dB Bandwidth NVNT ac40 5795MHz Ant1 Report -6dB Bandwidth NVNT ac40 5795MHz Ant2 -6dB Bandwidth NVNT ac80 5775MHz Ant1 Report -6dB Bandwidth NVNT ac80 5775MHz Ant2 -6dB Bandwidth NVNT n20 5745MHz Ant1 Report -6dB Bandwidth NVNT n20 5745MHz Ant2 -6dB Bandwidth NVNT n20 5785MHz Ant1 Report -6dB Bandwidth NVNT n20 5785MHz Ant2 -6dB Bandwidth NVNT n20 5825MHz Ant1 Report -6dB Bandwidth NVNT n20 5825MHz Ant2 -6dB Bandwidth NVNT n40 5755MHz Ant1 Report -6dB Bandwidth NVNT n40 5755MHz Ant2 -6dB Bandwidth NVNT n40 5795MHz Ant1 Report -6dB Bandwidth NVNT n40 5795MHz Ant2 Report Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5745 Ant1 16.50615213 NVNT a 5745 Ant2 16.53819709 NVNT a 5785 Ant1 16.54606194 NVNT a 5785 Ant2 16.53365635 NVNT a 5825 Ant1 16.53588032 NVNT a 5825 Ant2 16.58284392 NVNT ac20 5745 Ant1 17.65454999 NVNT ac20 5745 Ant2 17.59013756 NVNT ac20 5785 Ant1 17.63011344 NVNT ac20 5785 Ant2 17.63292732 NVNT ac20 5825 Ant1 17.63509493 NVNT ac20 5825 Ant2 17.62791932 NVNT ac40 5755 Ant1 36.42543597 NVNT ac40 5755 Ant2 36.39902087 NVNT ac40 5795 Ant1 36.45958234 NVNT ac40 5795 Ant2 36.46920607 NVNT ac80 5775 Ant1 75.68704945 NVNT ac80 5775 Ant2 75.62539585 NVNT n20 5745 Ant1 17.63772918 NVNT n20 5745 Ant2 17.62005446 NVNT n20 5785 Ant1 17.62638109 NVNT n20 5785 Ant2 17.61315667 NVNT n20 5825 Ant1 17.62132064 NVNT n20 5825 Ant2 17.6237541 NVNT n40 5755 Ant1 36.42408451 NVNT n40 5755 Ant2 36.42785959 NVNT n40 5795 Ant1 36.44264595 NVNT n40 5795 Ant2 36.47023593 Report OBW NVNT a 5745MHz Ant1 OBW NVNT a 5745MHz Ant2 OBW NVNT a 5785MHz Ant1 Report OBW NVNT a 5785MHz Ant2 OBW NVNT a 5825MHz Ant1 Report OBW NVNT a 5825MHz Ant2 OBW NVNT ac20 5745MHz Ant1 Report OBW NVNT ac20 5745MHz Ant2 OBW NVNT ac20 57…

Text truncated - open the document above for the full version.

Report PSD NVNT ac40 5755MHz Ant2 PSD NVNT ac40 5795MHz Ant1 Report PSD NVNT ac40 5795MHz Ant2 PSD NVNT ac80 5775MHz Ant1 Report PSD NVNT ac80 5775MHz Ant2 PSD NVNT n20 5745MHz Ant1 Report PSD NVNT n20 5745MHz Ant2 PSD NVNT n20 5785MHz Ant1 Report PSD NVNT n20 5785MHz Ant2 PSD NVNT n20 5825MHz Ant1 Report PSD NVNT n20 5825MHz Ant2 PSD NVNT n40 5755MHz Ant1 Report PSD NVNT n40 5755MHz Ant2 PSD NVNT n40 5795MHz Ant1 Report PSD NVNT n40 5795MHz Ant2 Report Band Edge Condition Mode Frequency (MHz) Antenna Max Value (dBm) Verdict NVNT a 5745 Ant1 -44.29 Pass NVNT a 5745 Ant2 -44.73 Pass NVNT a 5825 Ant1 -44.56 Pass NVNT a 5825 Ant2 -44.82 Pass NVNT ac20 5745 Ant1 -44.39 Pass NVNT ac20 5745 Ant2 -45.07 Pass NVNT ac20 5825 Ant1 -44.09 Pass NVNT ac20 5825 Ant2 -45.18 Pass NVNT ac40 5755 Ant1 -44.81 Pass NVNT ac40 5755 Ant2 -44.18 Pass NVNT ac40 5795 Ant1 -44.21 Pass NVNT ac40 5795 Ant2 -44.94 Pass NVNT ac80 5775 Ant1 -45.02 Pass NVNT ac80 5775 Ant2 -45.17 Pass NVNT n20 5745 Ant1 -43.95 Pass NVNT n20 5745 Ant2 -43.66 Pass NVNT n20 5825 Ant1 -43.88 Pass NVNT n20 5825 Ant2 -45.16 Pass NVNT n40 5755 Ant1 -44.42 Pass NVNT n40 5755 Ant2 -44.99 Pass NVNT n40 5795 Ant1 -44.6 Pass NVNT n40 5795 Ant2 -43.78 Pass Report Band Edge NVNT a 5745MHz Low Ant1 Band Edge NVNT a 5745MHz Low Ant2 Report Band Edge NVNT a 5825MHz High Ant1 Band Edge NVNT a 5825MHz High Ant2 Band Edge NVNT ac20 5745MHz Low Ant1 Report Band Edge NVNT ac20 5745MHz Low Ant2 Report Band Edge NVNT ac20 5825MHz High Ant1 Band Edge NVNT ac20 5825MHz High Ant2 Band Edge NVNT ac40 5755MHz Low Ant1 Report Band Edge NVNT ac40 5755MHz Low Ant2 Band Edge NVNT ac40 5795MHz High Ant1 Report Band Edge NVNT ac40 5795MHz High Ant2 Band Edge NVNT ac80 5775MHz Low Ant1 Report Band Edge NVNT ac80 5775MHz Low Ant2 Band Edge NVNT n20 5745MHz Low Ant1 Report Band Edge NVNT n20 5745MHz Low Ant2 Report Band Edge NVNT n20 5825MHz High Ant1 Band Edge NVNT n20 5825MHz High Ant2 Band Edge NVNT n40 5755MHz Low Ant1 Report Band Edge NVNT n40 5755MHz Low Ant2 Band Edge NVNT n40 5795MHz High Ant1 Report Band Edge NVNT n40 5795MHz High Ant2 Report Frequency Stability Condition Mode Frequency (MHz) Antenna Measured Frequency (MHz) Frequency Error (Hz) Deviation (ppm) Limit (ppm) Verdict NVNT a 5745 Sum 5744.98 -20000 -3.48 25 Pass NVNT a 5785 Sum 5784.96 -40000 -6.91 25 Pass NVNT a 5825 Sum 5825 0 0 25 Pass NVNT ac20 5745 Sum 5745 0 0 25 Pass NVNT ac20 5785 Sum 5785 0 0 25 Pass NVNT ac20 5825 Sum 5825 0 0 25 Pass NVNT ac40 5755 Sum 5754.96 -40000 -6.95 25 Pass NVNT ac40 5795 Sum 5794.96 -40000 -6.9 25 Pass NVNT ac80 5775 Sum 5775 0 0 25 Pass NVNT n20 5745 Sum 5744.98 -20000 -3.48 25 Pass NVNT n20 5785 Sum 5785 0 0 25 Pass NVNT n20 5825 Sum 5825 0 0 25 Pass NVNT n40 5755 Sum 5755 0 0 25 Pass NVNT n40 5795 Sum 5795 0 0 25 Pass Freq. Stability NVNT a 5745MHz Sum Freq. Stability NVNT a 5785MHz Sum Report Freq. Stability NVNT a 5825MHz Sum Freq. Stability NVNT ac20 5745MHz Sum Report Freq. Stability NVNT ac20 5785MHz Sum Freq. Stability NVNT ac20 5825MHz Sum Report Freq. Stability NVNT ac40 5755MHz Sum Freq. Stability NVNT ac40 5795MHz Sum Report Freq. Stability NVNT ac80 5775MHz Sum Freq. Stability NVNT n20 5745MHz Sum Report Freq. Stability NVNT n20 5785MHz Sum Freq. Stability NVNT n20 5825MHz Sum Report Freq. Stability NVNT n40 5755MHz Sum Freq. Stability NVNT n40 5795MHz Sum Report Report Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5745 Ant1 -33.46 -27 Pass NVNT a 5745 Ant2 -34.64 -27 Pass NVNT a 5785 Ant1 -34.44 -27 Pass NVNT a 5785 Ant2 -34.63 -27 Pass NVNT a 5825 Ant1 -34.19 -27 Pass NVNT a 5825 Ant2 -34.67 -27 Pass NVNT ac20 5745 Ant1 -34.05 -27 Pass NVNT ac20 5745 Ant2 -34.55 -27 Pass NVNT ac20 5785 Ant1 -33.97 -27 Pass NVNT ac20 5785 Ant2 -34.05 -27 Pass NVNT ac20 5825 Ant1 -34.41 -27 Pass NVNT ac20 5825 Ant2 -34.27 -27 Pass NVNT ac40 5755 Ant1 -33.85 -27 Pass NVNT ac40 5755 Ant2 -34.6 -27 Pass NVNT ac40 5795 Ant1 -34.15 -27 Pass NVNT ac40 5795 Ant2 -34.08 -27 Pass NVNT ac80 5775 Ant1 -34.06 -27 Pass NVNT ac80 5775 Ant2 -34.26 -27 Pass NVNT n20 5745 Ant1 -34.35 -27 Pass NVNT n20 5745 Ant2 -33.08 -27 Pass NVNT n20 5785 Ant1 -33.03 -27 Pass NVNT n20 5785 Ant2 -34.06 -27 Pass NVNT n20 5825 Ant1 -34.06 -27 Pass NVNT n20 5825 Ant2 -34.53 -27 Pass NVNT n40 5755 Ant1 -33.87 -27 Pass NVNT n40 5755 Ant2 -34.39 -27 Pass NVNT n40 5795 Ant1 -34.13 -27 Pass NVNT n40 5795 Ant2 -34.61 -27 Pass Report Tx. Spurious NVNT a 5745MHz Ant1 Emission Tx. Spurious NVNT a 5745MHz Ant2 Emission Tx. Spurious NVNT a 5785MHz Ant1 Emission Report Tx. Spurious NVNT a 5785MHz Ant2 Emission Tx. Spurious NVNT a 5825MHz Ant1 Emission Report Tx. Spurious NVNT a 5825MHz Ant2 Emission Tx. Spurious NVNT ac20 5745MHz Ant1 Emission Report Tx. Spurious NVNT ac20 5745MHz Ant2 Emission Tx. Spurious NVNT ac20 5785MHz Ant1 Emission Report Tx. Spurious NVNT ac20 5785MHz Ant2 Emission Tx. Spurious NVNT ac20 5825MHz Ant1 Emission Report Tx. Spurious NVNT ac20 5825MHz Ant2 Emission Tx. Spurious NVNT ac40 5755MHz Ant1 Emission Report Tx. Spurious NVNT ac40 5755MHz Ant2 Emission Tx. Spurious NVNT ac40 5795MHz Ant1 Emission Report Tx. Spurious NVNT ac40 5795MHz Ant2 Emission Tx. Spurious NVNT ac80 5775MHz Ant1 Emission Report Tx. Spurious NVNT ac80 5775MHz Ant2 Emission Tx. Spurious NVNT n20 5745MHz Ant1 Emission Report Tx. Spurious NVNT n20 5745MHz Ant2 Emission Tx. Spurious NVNT n20 5785MHz Ant1 Emission Report Tx. Spurious NVNT n20 5785MHz Ant2 Emission Tx. Spurious NVNT n20 5825MHz Ant1 Emission Report Tx. Spurious NVNT n20 5825MHz Ant2 Emission Tx. Spurious NVNT n40 5755MHz Ant1 Emission Report Tx. Spurious NVNT n40 5755MHz Ant2 Emission Tx. Spurious NVNT n40 5795MHz Ant1 Emission Report Tx. Spurious NVNT n40 5795MHz Ant2 Emission
