2AZGQ-RA1200Wireless Repeater/Range Extender

Shenzhen Zoolan Technology Co.,Ltd

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: Aug 10, 2021
Application Purpose: Original Equipment
Date of Application: Aug 10, 2021
Equipment Note: Wireless Repeater/Range Extender
Frequency Range: 5745.00000000 - 5825.00000000
Company: Shenzhen Zoolan Technology Co.,Ltd
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 User Instructions Dual Band Wireless Repeater 2 1. Product Parameters Product Model RA1200 Product Size 102*64*40mm Product Type Dual band wireless repeater Antenna Direction Omnidirectional Installation way Direct plug-in Product Color White/black WIFI Frequency 2.4GHz&5.8Ghz Power Supply AC 110〜230V Working Temperature 0°C-40°C Working Humidity 10%～90% non-condensation 3 Indicator light and interface description LED Indication Light Power LED The blue light is always on, indicating that the device starts normally. The blue light flashes to indicate that the device is starting. The blue light is off, indicating that the device is not powered on. WPS indicator light A green light flashes, indicating WPS negotiation is in progress. The green light is off, it means WPS is not triggered Signal indicator light （SYS） A blue light indicates a strong signal A green light indicates moderate signal The red light means the signal is weak Light off, identification not relayed or relayed unsuccessful WPS Button Press short for 1 second to trigger WPS Reset Button Long press for more than 6 seconds to restore the equipment to factory state. 4 2. Quick Configuration Instructions 2.1 Starting device Insert the repeater into a power outlet near the router and adjust the antenna to the right direction(generally upright and perpendicular to the ground). When the power indicator flashes from the blue light to the normal blue light, the start-up is complete 2.2 Wireless extensions —Repeater Mode Turn on your phone's or computer's WIFI and search for the connection repeater SSID(“WLAN-Repeapter-2.4G/WLAN-Repeater-5G ), The default is no password. After successful connection, open the browser and enter "192.168.99.1" in the address bar to enter the management WEB for quick configuration. Step1: Set administrative password. Step2:Scan the wireless and select the router WIFI signal that needs to be extended. 5 Step3:Enter the router WIFI password/set the expanded wireless name. ① Router WIFI password ② Expanded 2.4Ghz Wireless name ③ Expanded 5.8Ghz wireless name Note: The expanded wireless password is the same as the original router password. If you want to use seamless roaming, please set the expanded SSID to be the same as the main route. 6 7 Step4: Confirm extended information. Step5: Observe the STATE of the LED, complete the configuration, and connect the SSID of the repeater again, then you can surf the Internet normally. 8 2.3 Cable extension—AP Mode Turn on your phone's or computer's WIFI and search for the connection repeater SSID(“WLAN-Repeapter-2.4G/WLAN-Repeater-5G”), The default is no password. After successful connection, open the browser and enter "192.168.99.1" in the address bar to enter the management WEB for quick configuration. Step1:Set administrative password Step2:Select AP Mode and set the wireless name and wireless password 9 Step3:After the configuration is completed, take a network line to connect therepeater's LAN port to the router's LAN port, and then connect the repeater's SSID again to get online normally. 10 3. Packing list Serial number Name Function Units Number 1 Host devices Dual band wireless repeater Table 1 2 Ethernet cable Connecting the computer Item 1 3 Certificate Conformity mark PCS 1 4 Instructions User Instruction (including warranty card) Set 1 4. Frequently Asked Questions: 4.1 Q: After configuring the relay successfully, the extended wireless network has been disconnected and SYS semaphores are not on. How to deal with this? A: There are two situations that cause this problem: First, The repeater is too far away from the router and beyond the relay range; Second, The wrong wireless password was entered while configuring the repeater; Users can try to take the repeater to the socket near the router and plug it in. If the SYS signal light is still not on, you need to restore the repeater to the factory settings (press reset for 6 seconds) and then reconfigure it (the wireless password should be input correctly when checking the configuration) 4.2 Q: A repeater that is already in normal use, what if you want to replace the main route? A: You need to Reset the repeater to factory Settings (long press Reset 6S) and then reconfigure it. 11 4.3 Q: Other unknown problem that causes the repeater to be unable to use normally, how to deal with? A: You need to Reset the repeater to factory Settings (long press Reset 6S) and then reconfigure it. 4.4 Q: How to operate WPS one-key connection? A: It is required that the router also supports WPS function. After the repeater starts normally, press the WPS button of the repeater first, and the WPS indicator starts flashing. Then, press the WPS button of the router again within 2 minutes, and the automatic connection can be completed. After successful connection, there will be a suffix: ext-2G & Ext-5G wireless name, which can be reconnected (the wireless password is the same as the router's wireless password). 12 5. Warranty Terms Warranty Terms Dear customers: Good day！ First of all, thank you for buying our products. Thanks again! In order to facilitate us to provide you with quality and satisfactory after-sales service, but also better protect your rights and interests. Please read this clause carefully. Quality commitment: The company adhering to the "user is God" purpose, to provide customers with quality and satisfactory after-sales service. All products sold by the company are guaranteed to provide free warranty service for one year. The specific regulations are as follows: 1. Within one year from the date of purchase, our company will provide free warranty service for any defects that occur during normal operation under normal operating environment according to relevant technical information. 2. After more than one year from the date of purchase, our company will provide paid maintenance services. 3. If you buy our products, you can enjoy our most professional technical service support and provide the latest upgrade sof…

Text truncated - open the document above for the full version.

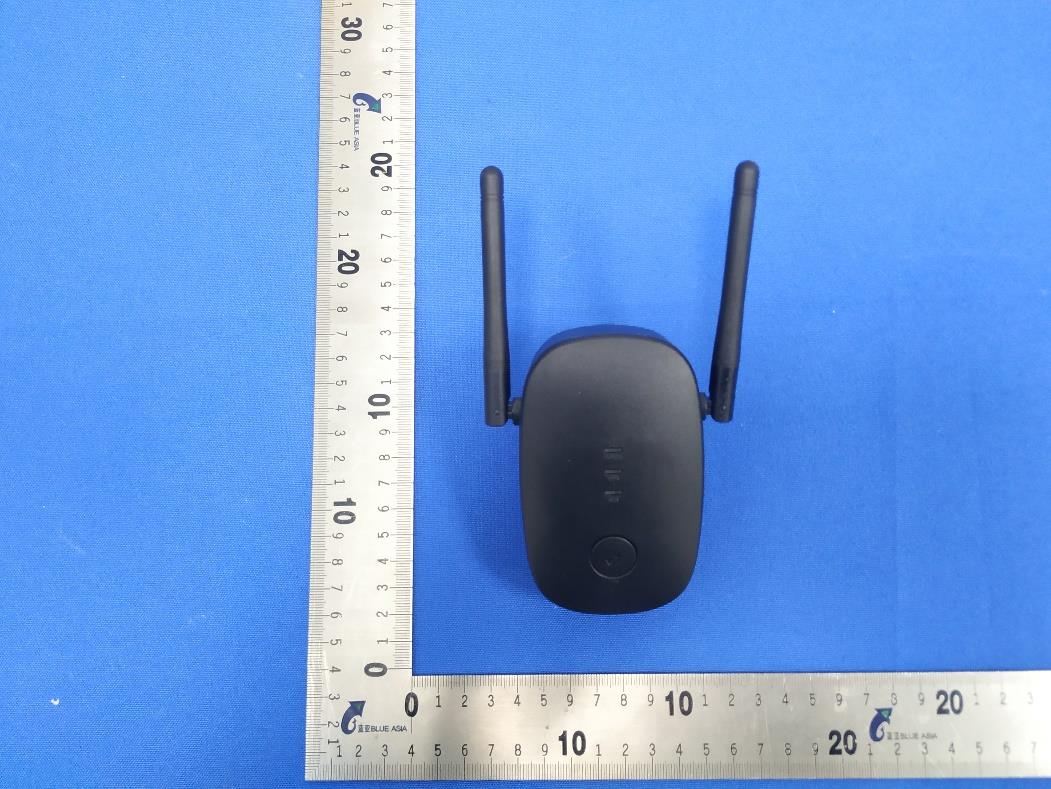

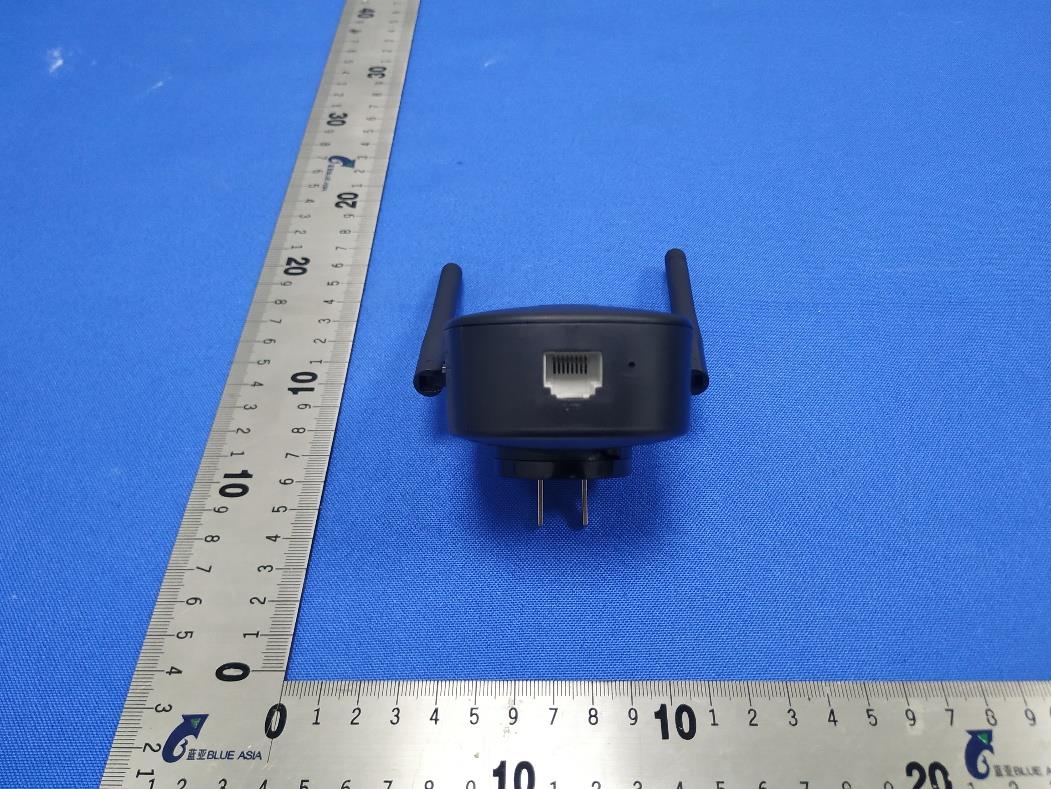

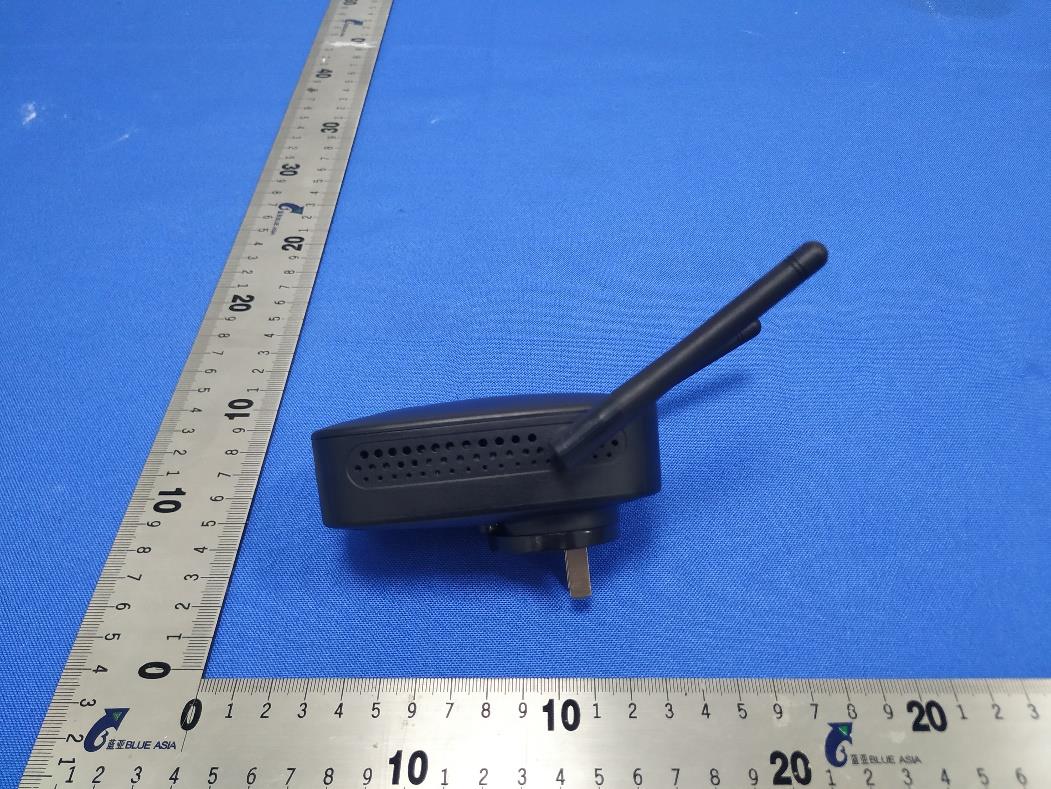

External Photos

Model No.: RA1200

ID Label/Location Info

Labellocation

Internal Photos

Model No.: RA1200

RF Exposure Info

Page 1 of 2 Product Name: Wireless Repeater/Range Extender Model No.：RA1200, RA1200-FE,RA1200-A,RA1200-B,RA1200-C, RA1200-D, RA1200-E,RA1200-F,RA300 ,RA1900,RA2400 FCC ID：2AH7YSPHUB01 RF Exposure Evaluation 1.1 RF Exposure Compliance Requirement 1.1.1 Limits According to FCC Part1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in part1.1307(b) F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2) Where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.1.2 Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Page 2 of 2 1.1.3 EUT RF Exposure Evaluation Antenna Gain: 3dBi Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.0 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: 2.4G WIFI: 802.11n20(worst case) Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result highest 2462 18.57 74.94490 0.02856 1.0 PASS 5G WIFI:band1 802.11n20(worst case) Channel Frequency (MHz) Max Conducted Peak Output Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit Result highest 5240 16.00 39.81072 0.015803 1.0 PASS Note: Refer to report No. BLA-EMC-202107-A2701/02 for EUT test Max Conducted Peak Output Power value. The distance r (4th column) calculated from the Fries transmission formula is far greater than 20 cm separation Requirement

Test Report

Page 1 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Add: Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TEST REPORT Product Name : Wireless Repeater/Range Extender Brand Mark : N/A Model No. : RA1200 Extension Model : RA1200-FE,RA1200-A,RA1200-B,RA1200-C, RA1200-D,RA1200-E,RA1200-F,RA300 ,RA1900, RA2400 FCC ID : 2AZGQ-RA1200 Report Number : BLA-EMC-202107-A2802 Date of Sample Receipt : 2021/7/8 Date of Test : 2021/7/8 to 2021/8/4 Date of Issue : 2021/8/4 Test Standard : 47 CFR Part 15, Subpart E 15.407 Test Result : Pass Prepared for: Shenzhen Zoolan Technology Co.,Ltd Floor 4, Building A5, Silicon Valley Power Digital Industrial Park, No. 22, Dafu Industrial Zone, Dafu Community, Guanlan Street, Longhua District, Shenzhen, Guangdong Prepared by: BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Building C, No. 107, Shihuan Road, Shiyan Sub-District, Baoan District, Shenzhen, Guangdong Province, China TEL: +86-755-23059481 Compiled by: Review by: Approved by: Date: 2021/8/4 Report No.: BLA-EMC-202107-A2802 Page 2 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com REPORT REVISE RECORD Version No. Date Description 00 2021/8/4 Original Report No.: BLA-EMC-202107-A2802 Page 3 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com TABLE OF CONTENTS 1 TEST SUMMARY ........................................................................................................................................5 2 GENERAL INFORMATION .........................................................................................................................6 3 GENERAL DESCRIPTION OF E.U.T. .........................................................................................................6 4 TEST ENVIRONMENT ................................................................................................................................7 5 TEST MODE ................................................................................................................................................7 6 MEASUREMENT UNCERTAINTY ..............................................................................................................7 7 DESCRIPTION OF SUPPORT UNIT...........................................................................................................8 8 LABORATORY LOCATION .........................................................................................................................8 9 TEST INSTRUMENTS LIST ........................................................................................................................9 10 FREQUENCY STABILITY ........................................................................................................................ 13 10.1 LIMITS .............................................................................................................................................................. 13 10.2 BLOCK DIAGRAM OF TEST SETUP ..................................................................................................................... 13 10.3 TEST DATA .......................................................................................................................................................... 13 11 RADIATED EMISSIONS WHICH FALL IN THE RESTRICTED BANDS................................................. 14 11.1 LIMITS .............................................................................................................................................................. 14 11.2 BLOCK DIAGRAM OF TEST SETUP ..................................................................................................................... 15 11.3 PROCEDURE ..................................................................................................................................................... 15 11.4 TEST DATA .......................................................................................................................................................... 17 12 ANTENNA REQUIREMENT ..................................................................................................................... 25 12.1 CONCLUSION ....................................................................................................................................................... 25 13 RADIATED EMISSIONS ........................................................................................................................... 26 13.1 BLOCK DIAGRAM OF TEST SETUP ..................................................................................................................... 26 13.2 PROCEDURE ..................................................................................................................................................... 26 13.3 TEST DATA .......................................................................................................................................................... 28 14 PEAK POWER SPECTRUM DENSITY ................................................................................................... 42 14.1 LIMITS .............................................................................................................................................................. 42 14.2 BLOCK DIAGRAM OF TEST SETUP ..................................................................................................................... 42 14.3 TEST DATA .......................................................................................................................................................... 43 15 MAXIMUM CONDUCTED OUTPUT POWER .............................................................................…

Text truncated - open the document above for the full version.

Test Report

Report No.: BLA-EMC-202107-A2802 Page 71 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Power NVNT n40 5795MHz Ant2 Report No.: BLA-EMC-202107-A2802 Page 72 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Limit -26 dB Bandwidth (MHz) Verdict NVNT a 5180 Ant1 18.499 0.5 Pass NVNT a 5180 Ant2 18.531 0.5 Pass NVNT a 5200 Ant1 18.443 0.5 Pass NVNT a 5200 Ant2 18.621 0.5 Pass NVNT a 5240 Ant1 18.328 0.5 Pass NVNT a 5240 Ant2 18.509 0.5 Pass NVNT ac80 5210 Ant1 79.254 0.5 Pass NVNT ac80 5210 Ant2 78.888 0.5 Pass NVNT n20 5180 Ant1 19.587 0.5 Pass NVNT n20 5180 Ant2 19.518 0.5 Pass NVNT n20 5200 Ant1 19.59 0.5 Pass NVNT n20 5200 Ant2 19.569 0.5 Pass NVNT n20 5240 Ant1 19.563 0.5 Pass NVNT n20 5240 Ant2 19.509 0.5 Pass NVNT n40 5190 Ant1 40.292 0.5 Pass NVNT n40 5190 Ant2 40.204 0.5 Pass NVNT n40 5230 Ant1 40.194 0.5 Pass NVNT n40 5230 Ant2 40.108 0.5 Pass -26dB Bandwidth NVNT a 5180MHz Ant1 Report No.: BLA-EMC-202107-A2802 Page 73 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com -26dB Bandwidth NVNT a 5180MHz Ant2 -26dB Bandwidth NVNT a 5200MHz Ant1 Report No.: BLA-EMC-202107-A2802 Page 74 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com -26dB Bandwidth NVNT a 5200MHz Ant2 -26dB Bandwidth NVNT a 5240MHz Ant1 Report No.: BLA-EMC-202107-A2802 Page 75 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com -26dB Bandwidth NVNT a 5240MHz Ant2 -26dB Bandwidth NVNT ac80 5210MHz Ant1 Report No.: BLA-EMC-202107-A2802 Page 76 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com -26dB Bandwidth NVNT ac80 5210MHz Ant2 -26dB Bandwidth NVNT n20 5180MHz Ant1 Report No.: BLA-EMC-202107-A2802 Page 77 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com -26dB Bandwidth NVNT n20 5180MHz Ant2 -26dB Bandwidth NVNT n20 5200MHz Ant1 Report No.: BLA-EMC-202107-A2802 Page 78 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com -26dB Bandwidth NVNT n20 5200MHz Ant2 -26dB Bandwidth NVNT n20 5240MHz Ant1 Report No.: BLA-EMC-202107-A2802 Page 79 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com -26dB Bandwidth NVNT n20 5240MHz Ant2 -26dB Bandwidth NVNT n40 5190MHz Ant1 Report No.: BLA-EMC-202107-A2802 Page 80 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com -26dB Bandwidth NVNT n40 5190MHz Ant2 -26dB Bandwidth NVNT n40 5230MHz Ant1 Report No.: BLA-EMC-202107-A2802 Page 81 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com -26dB Bandwidth NVNT n40 5230MHz Ant2 Report No.: BLA-EMC-202107-A2802 Page 82 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5180 Ant1 16.34071068 NVNT a 5180 Ant2 16.33585774 NVNT a 5200 Ant1 16.34711861 NVNT a 5200 Ant2 16.34020549 NVNT a 5240 Ant1 16.35460233 NVNT a 5240 Ant2 16.33055908 NVNT a 5745 Ant1 16.35743856 NVNT a 5745 Ant2 16.34526358 NVNT a 5785 Ant1 16.35492585 NVNT a 5785 Ant2 16.32709449 NVNT a 5825 Ant1 16.35467384 NVNT a 5825 Ant2 16.34347837 NVNT ac80 5210 Ant1 74.67092492 NVNT ac80 5210 Ant2 74.66212624 NVNT ac80 5775 Ant1 74.62180212 NVNT ac80 5775 Ant2 74.68235212 NVNT n20 5180 Ant1 17.53808778 NVNT n20 5180 Ant2 17.54550904 NVNT n20 5200 Ant1 17.53775042 NVNT n20 5200 Ant2 17.54101945 NVNT n20 5240 Ant1 17.5428466 NVNT n20 5240 Ant2 17.54330803 NVNT n20 5745 Ant1 17.55292513 NVNT n20 5745 Ant2 17.53868948 NVNT n20 5785 Ant1 17.54048435 NVNT n20 5785 Ant2 17.53582959 NVNT n20 5825 Ant1 17.53816692 NVNT n20 5825 Ant2 17.54261735 NVNT n40 5190 Ant1 35.99931328 NVNT n40 5190 Ant2 35.98310789 NVNT n40 5230 Ant1 36.02283555 NVNT n40 5230 Ant2 36.01316069 NVNT n40 5755 Ant1 36.0172742 NVNT n40 5755 Ant2 35.98132227 NVNT n40 5795 Ant1 36.01818046 NVNT n40 5795 Ant2 36.04394859 Report No.: BLA-EMC-202107-A2802 Page 83 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com OBW NVNT a 5180MHz Ant1 OBW NVNT a 5180MHz Ant2 Report No.: BLA-EMC-202107-A2802 Page 84 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com OBW NVNT a 5200MHz Ant1 OBW NVNT a 5200MHz Ant2 Report No.: BLA-EMC-202107-A2802 Page 85 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com OBW NVNT a 5240MHz Ant1 OBW NVNT a 5240MHz Ant2 Report No.: BLA-EMC-202107-A2802 Page 86 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com OBW NVNT a 5745MHz Ant1 OBW NVNT a 5745MHz Ant2 Report No.: BLA-EMC-202107-A2802 Page 87 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com OBW NVNT a 5785MHz Ant1 OBW NVNT a 5785MHz Ant2 Report No.: BLA-EMC-202107-A2802 Page 88 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com OBW NVNT a 5825MHz Ant1 OBW NVNT a 5825MHz Ant2 Report No.: BLA-EMC-202107-A2802 Page 89 of181 BlueAsia of T…

Text truncated - open the document above for the full version.

Test Report

Report No.: BLA-EMC-202107-A2802 Page 141 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Freq. Stability NVNT n20 5180MHz Sum Freq. Stability NVNT n20 5200MHz Sum Report No.: BLA-EMC-202107-A2802 Page 142 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Freq. Stability NVNT n20 5240MHz Sum Freq. Stability NVNT n20 5745MHz Sum Report No.: BLA-EMC-202107-A2802 Page 143 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Freq. Stability NVNT n20 5785MHz Sum Freq. Stability NVNT n20 5825MHz Sum Report No.: BLA-EMC-202107-A2802 Page 144 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Freq. Stability NVNT n40 5190MHz Sum Freq. Stability NVNT n40 5230MHz Sum Report No.: BLA-EMC-202107-A2802 Page 145 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Freq. Stability NVNT n40 5755MHz Sum Freq. Stability NVNT n40 5795MHz Sum Report No.: BLA-EMC-202107-A2802 Page 146 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Conducted RF Spurious Emission Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT a 5180 Ant1 -33.74 -27 Pass NVNT a 5180 Ant2 -34.02 -27 Pass NVNT a 5200 Ant1 -33.98 -27 Pass NVNT a 5200 Ant2 -33.72 -27 Pass NVNT a 5240 Ant1 -34.01 -27 Pass NVNT a 5240 Ant2 -34.2 -27 Pass NVNT a 5745 Ant1 -33.71 -27 Pass NVNT a 5745 Ant2 -33.79 -27 Pass NVNT a 5785 Ant1 -33.82 -27 Pass NVNT a 5785 Ant2 -33.9 -27 Pass NVNT a 5825 Ant1 -33.76 -27 Pass NVNT a 5825 Ant2 -33.74 -27 Pass NVNT ac80 5210 Ant1 -33.38 -27 Pass NVNT ac80 5210 Ant2 -33.78 -27 Pass NVNT ac80 5775 Ant1 -33.4 -27 Pass NVNT ac80 5775 Ant2 -32.71 -27 Pass NVNT n20 5180 Ant1 -33.35 -27 Pass NVNT n20 5180 Ant2 -34.04 -27 Pass NVNT n20 5200 Ant1 -33.95 -27 Pass NVNT n20 5200 Ant2 -33.01 -27 Pass NVNT n20 5240 Ant1 -33.63 -27 Pass NVNT n20 5240 Ant2 -33.92 -27 Pass NVNT n20 5745 Ant1 -33.63 -27 Pass NVNT n20 5745 Ant2 -33.75 -27 Pass NVNT n20 5785 Ant1 -33.39 -27 Pass NVNT n20 5785 Ant2 -33.81 -27 Pass NVNT n20 5825 Ant1 -33.38 -27 Pass NVNT n20 5825 Ant2 -33.45 -27 Pass NVNT n40 5190 Ant1 -34.06 -27 Pass NVNT n40 5190 Ant2 -33.55 -27 Pass NVNT n40 5230 Ant1 -33.32 -27 Pass NVNT n40 5230 Ant2 -33.91 -27 Pass NVNT n40 5755 Ant1 -32.94 -27 Pass NVNT n40 5755 Ant2 -33.53 -27 Pass NVNT n40 5795 Ant1 -33.56 -27 Pass NVNT n40 5795 Ant2 -34.33 -27 Pass Report No.: BLA-EMC-202107-A2802 Page 147 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT a 5180MHz Ant1 Emission Tx. Spurious NVNT a 5180MHz Ant2 Emission Report No.: BLA-EMC-202107-A2802 Page 148 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT a 5200MHz Ant1 Emission Tx. Spurious NVNT a 5200MHz Ant2 Emission Report No.: BLA-EMC-202107-A2802 Page 149 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT a 5240MHz Ant1 Emission Tx. Spurious NVNT a 5240MHz Ant2 Emission Report No.: BLA-EMC-202107-A2802 Page 150 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT a 5745MHz Ant1 Emission Tx. Spurious NVNT a 5745MHz Ant2 Emission Report No.: BLA-EMC-202107-A2802 Page 151 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT a 5785MHz Ant1 Emission Tx. Spurious NVNT a 5785MHz Ant2 Emission Report No.: BLA-EMC-202107-A2802 Page 152 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT a 5825MHz Ant1 Emission Tx. Spurious NVNT a 5825MHz Ant2 Emission Report No.: BLA-EMC-202107-A2802 Page 153 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT ac80 5210MHz Ant1 Emission Tx. Spurious NVNT ac80 5210MHz Ant2 Emission Report No.: BLA-EMC-202107-A2802 Page 154 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT ac80 5775MHz Ant1 Emission Tx. Spurious NVNT ac80 5775MHz Ant2 Emission Report No.: BLA-EMC-202107-A2802 Page 155 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT n20 5180MHz Ant1 Emission Tx. Spurious NVNT n20 5180MHz Ant2 Emission Report No.: BLA-EMC-202107-A2802 Page 156 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT n20 5200MHz Ant1 Emission Tx. Spurious NVNT n20 5200MHz Ant2 Emission Report No.: BLA-EMC-202107-A2802 Page 157 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT n20 5240MHz Ant1 Emission Tx. Spurious NVNT n20 5240MHz Ant2 Emission Report No.: BLA-EMC-202107-A2802 Page 158 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT n20 5745MHz Ant1 Emission Tx. Spurious NVNT n20 5745MHz Ant2 Emission Report No.: BLA-EMC-202107-A2802 Page 159 of181 BlueAsia of Technical Services(Shenzhen) Co., Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com Tx. Spurious NVNT n20…

Text truncated - open the document above for the full version.

Test Setup Photos

Model No.: RA1200

Contact Information

Applicant

yong Li

[email protected]86-15919947292Fax: 86-755-83660117

Test Firm

BlueAsia of Technical Services (Shenzhen)Blue Zheng

[email protected]+86 755-23059481-815

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15E	5.75 GHz - 5.83 GHz	39.76 mW

Confidentiality

Long Term

Grant Notes

Output power listed is conducted. This device has 20 MHz, 40 MHz and 80 MHz bandwidth mode. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be colocated or operating in conjunction with any other transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
