Shenzhen Zigxico Technology Co., Ltd. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Shenzhen Zigxico Technology Co., Ltd. Address: 3F, building B, Shuichanjingwan First Industrial Park, Gushu, Xixiang Street, Baoan District, Shenzhen, China Product Name: Smart WI-FI Camera FCC ID: 2AZHU-B23 Model(s): B23, B23DF2, B16DF2, B16DF3, B25DF2, B25DF3, B26DF2, B26DF3, B27DF2, B27DF3, B28DF2, B28DF3, B29DF2, B29DF3 2.911(d)(5)(i) Equipment Type We, [Shenzhen Zigxico Technology Co., Ltd.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: liu yangming Date: Apr. 27, 2023 Title: Manager Company name: Shenzhen Zigxico Technology Co., Ltd. Signature: NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Zigxico Technology Co., Ltd. 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Zigxico Technology Co., Ltd. Address: 3F, building B, Shuichanjingwan First Industrial Park, Gushu, Xixiang Street, Baoan District, Shenzhen, China Product Name: Smart WI-FI Camera FCC ID: 2AZHU-B23 Model(s): B23, B23DF2, B16DF2, B16DF3, B25DF2, B25DF3, B26DF2, B26DF3, B27DF2, B27DF3, B28DF2, B28DF3, B29DF2, B29DF3 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Zigxico Technology Co., Ltd.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: liu yangming Date: Apr. 27, 2023 Title: Manager Company name: Shenzhen Zigxico Technology Co., Ltd. Signature: NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Zigxico Technology Co., Ltd. Agent Authorization Company: Shenzhen Zigxico Technology Co., Ltd. Address: 3F, building B, Shuichanjingwan First Industrial Park, Gushu, Xixiang Street, Baoan District, Shenzhen, China Product Name: Smart WI-FI Camera Model Number(s): B23, B23DF2, B16DF2, B16DF3, B25DF2, B25DF3, B26DF2, B26DF3, B27DF2, B27DF3, B28DF2, B28DF3, B29DF2, B29DF3 Product Description: Smart WI-FI Camera We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Apr. 27, 2023 Name: liu yangming Title: Manager Company: Shenzhen Zigxico Technology Co., Ltd.

Shenzhen Zigxico Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Apr. 27, 2023 Subject; Request for Confidentiality FCC ID: 2AZHU-B23 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: liu yangming Title: Manager

Shenzhen Zigxico Technology Co., Ltd. Model Difference Declaration To Whom It May Concern, We, Shenzhen Zigxico Technology Co., Ltd. (Smart WI-FI Camera) ; Model Number: B23, B23DF2, B16DF2, B16DF3, B25DF2, B25DF3, B26DF2, B26DF3, B27DF2, B27DF3, B28DF2, B28DF3, B29DF2, B29DF3; All model’s the function, software and electric circuit are the same, only with a product color and model named different. Test sample model: B23. Please contact me if you have any question. Signature: Date: Apr. 27, 2023 Name: liu yangming Title: Manager

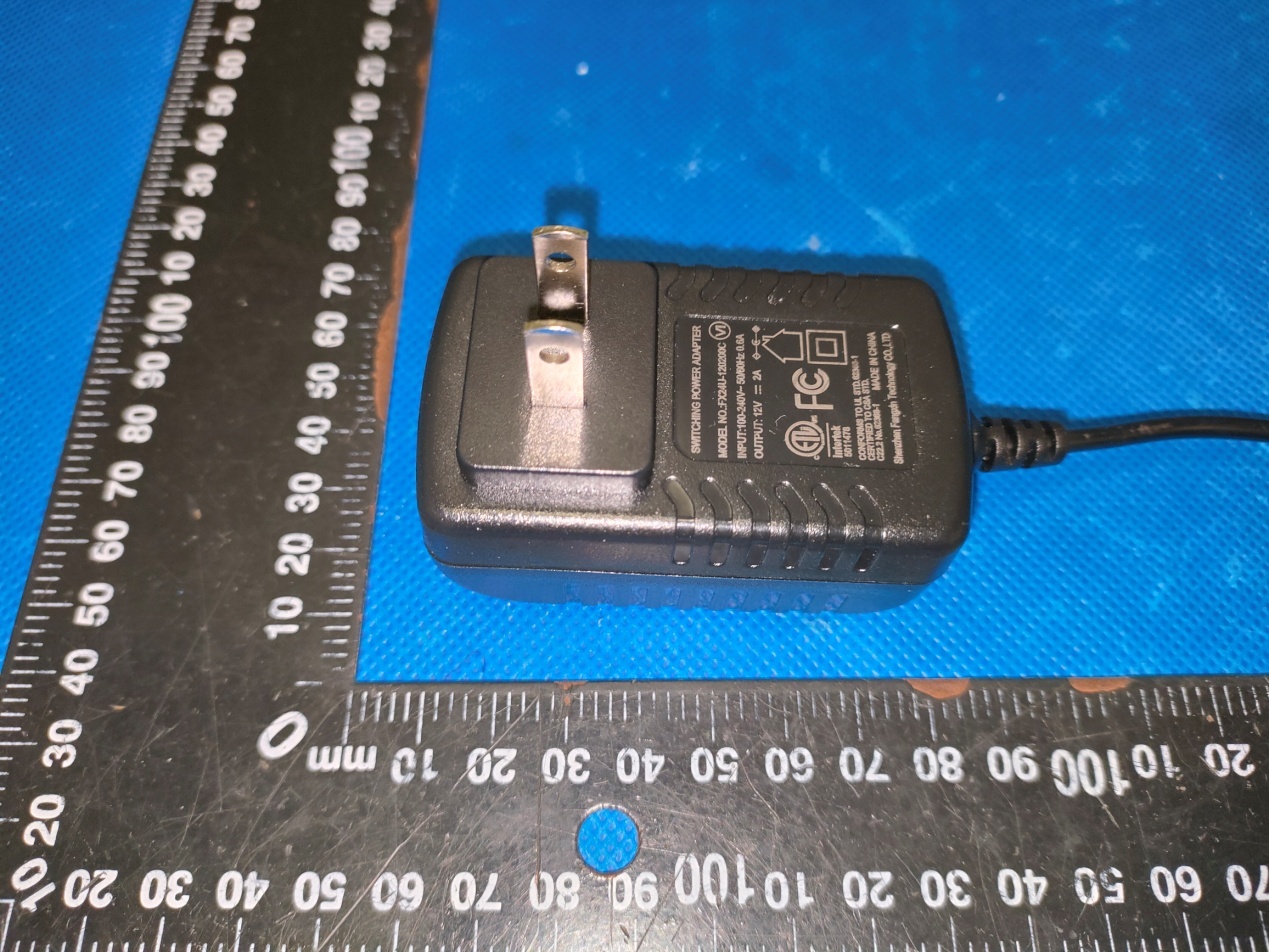

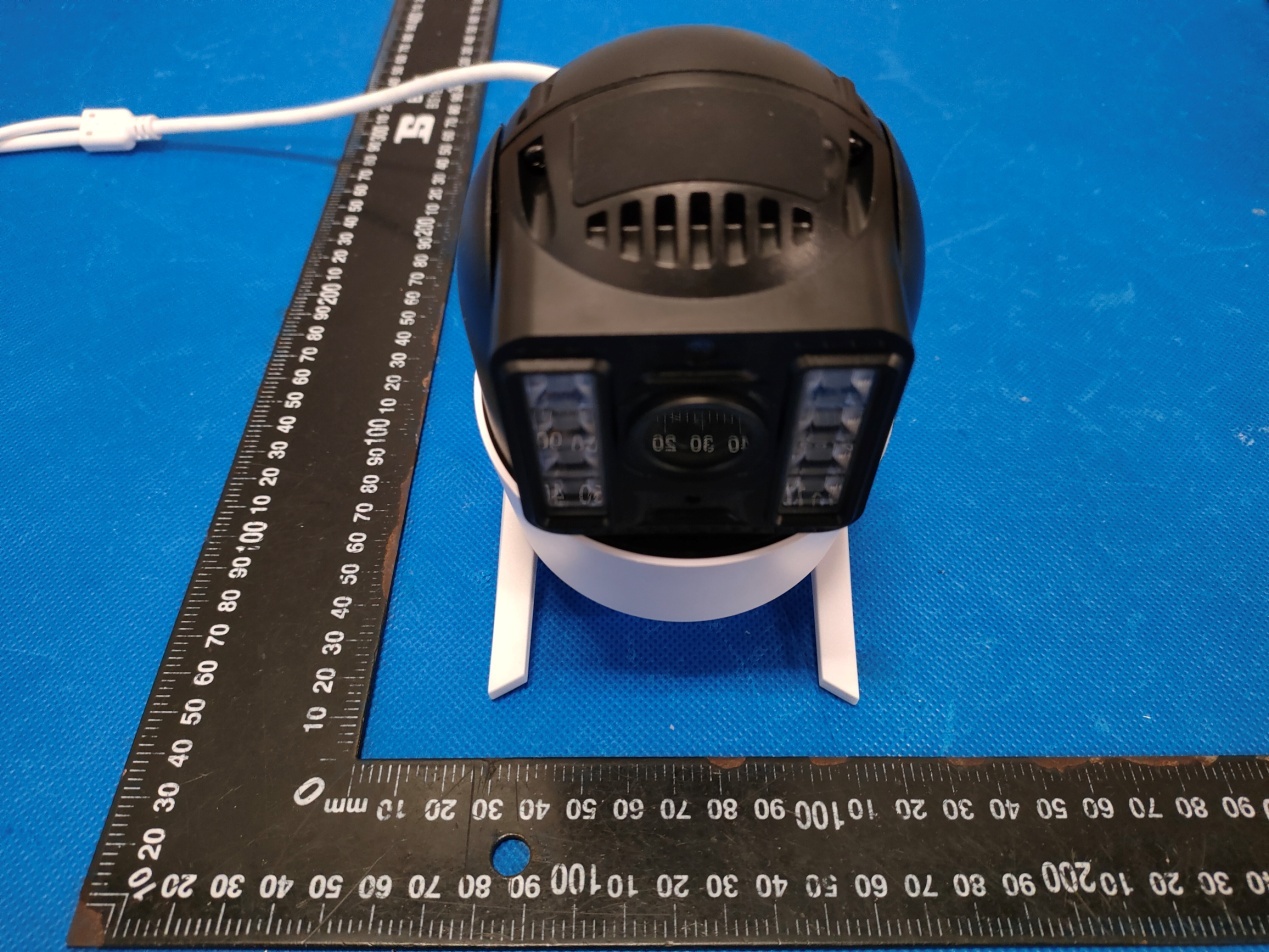

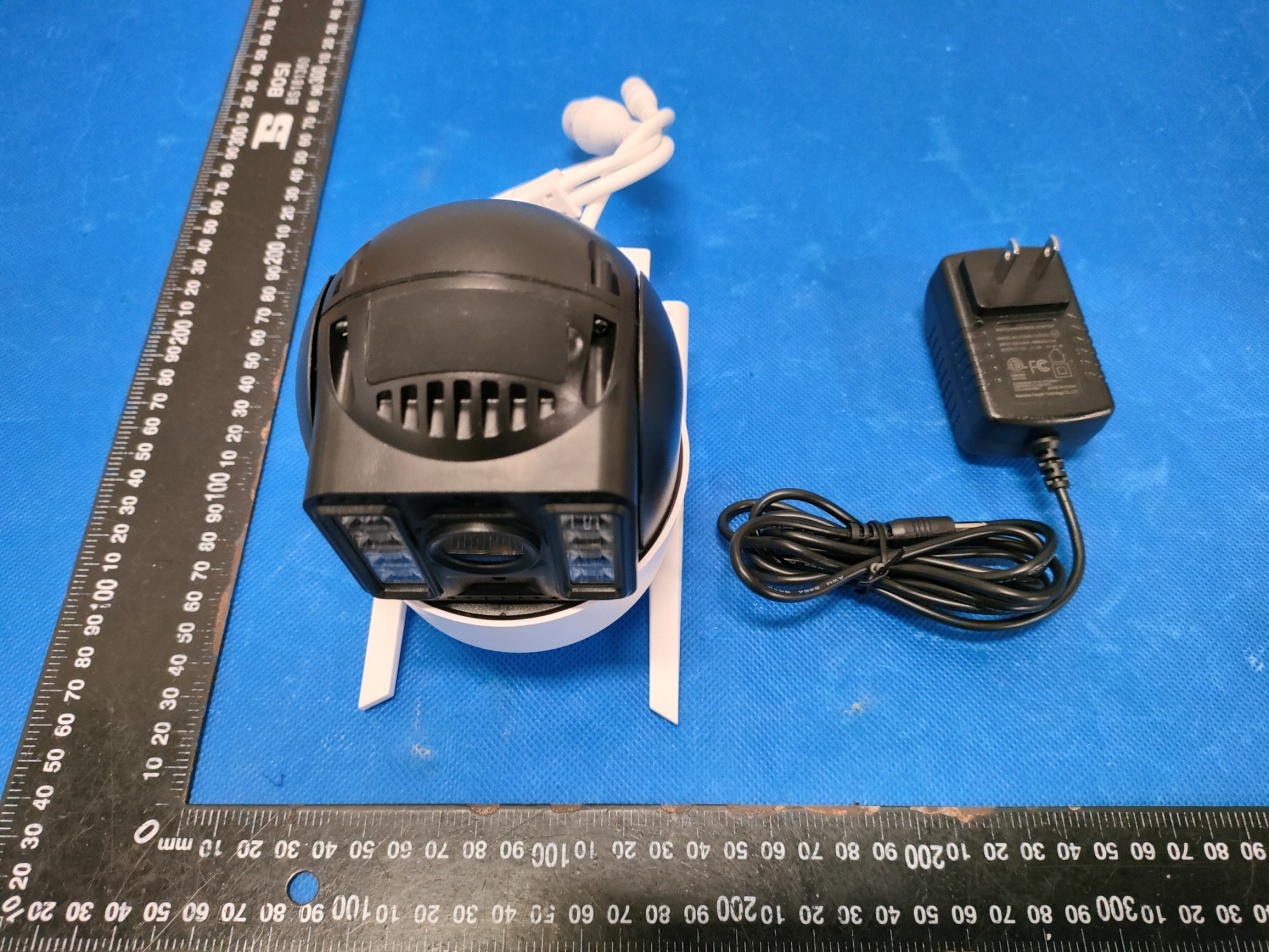

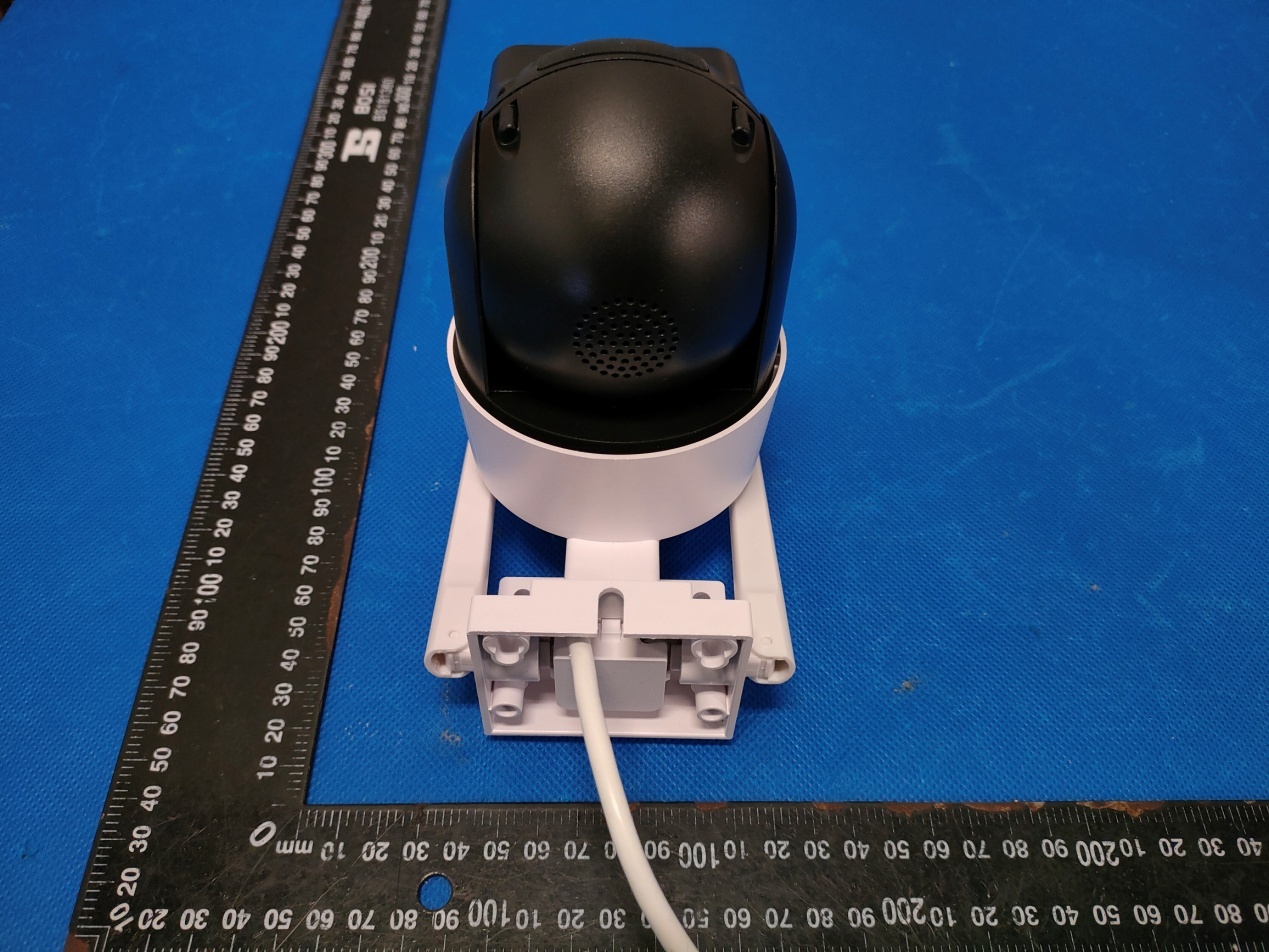

Annex A External Photos Report No.:HK2302270522-E Page 1 of 5 Report No.:HK2302270522-E Page 2 of 5 Antenna Report No.:HK2302270522-E Page 3 of 5 Report No.:HK2302270522-E Page 4 of 5 Report No.:HK2302270522-E Page 5 of 5

FCC ID LABEL: Ca. 10mm x 20mm Label Location FCC ID: 2AZHU-B23

Annex B Internal Photo Report No.:HK2302270522-E Page 1 of 3 Report No.:HK2302270522-E Page 2 of 3 Report No.:HK2302270522-E Page 3 of 3

MPE ESTIMATION FCC ID: 2AZHU-B23 1,Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 2, Estimation Result For 2.4G: Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE (mW/cm²) 2.4G WIFI 18.13 18±1(19) 79.43 3 2 0.03155 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK2302270522-E 2.4G antenna gain=3dBi when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.03155mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. -------The End-------

QR/RD-P01-06B SPECIFICATION ShenzhenGuandetongElectronicLimited 深圳市冠得通电子有限公司 ShenzhenGuandetongElectronicCo.,Ltd . 2.4G (3dBi) white blade antenna output 350MM Product Specification custom 深圳市中科讯驰 Frequency band 2400MHz——2500MHz Wire Nameedition A1 Customer part number 1.01.10.00042 Customer part number Guandetong No R F design 肖彬 RF Manager 刘亮 Structure Design 王栋 Institutional Manager 王华 Technical Director ANDY date 2022 -06- 28 Customer confirmation: 装配是否符合贵司要求：□OK□NG Shenzhen Guandetong Electronic Co., Ltd. 保 密 要 求 本公司已拥有专有技术所提供的资料，这些专有资料应严加保密，在未经深圳冠得通电子有限公司事先书面同意的时不允许 透露给任何人或公司。 公司地址：深圳市龙华区观湖街道环观南茂源工业园D栋3楼电话：0755-88298396传真：0755-89733896 http://www.szgdtrf.com Page 2 Catalogue Cover ....................................................................................................... 1 Catalogue .......................................................................................... 2 一、Product image ...................................................................................... 3 二、Product parameters ......................................................................... 3 三、SII data ................................................................................. 4 四、Product structure diagram ........................................................... 5 五、Environmental reliability experiment report ................................................ 6 Shenzhen Guandetong Electronic Co., Ltd. 保 密 要 求 本公司已拥有专有技术所提供的资料，这些专有资料应严加保密，在未经深圳冠得通电子有限公司事先书面同意的时不允许 透露给任何人或公司。 公司地址：深圳市龙华区观湖街道环观南茂源工业园D栋3楼电话：0755-88298396传真：0755-89733896 http://www.szgdtrf.com Page 3 一、Product image 二、Product parameters Product testing parameters 产品名称(Name)2.4G刀锋胶棒天线产品型号(ModelType) GDT-2.4G-SM -350 电 性 能 指 标(ElectricalSpecifications) 频率范围(Fre nquencyRange) 2400MHz-2500MHz 极化方式（Polarization）垂直 输入阻抗(Impedance) 50 Ω 辐射方向全向 驻波比（VSWR）≦3.0功率容量(Power) 50W 增益(Gain) 3dBi 带宽(Bandwidth 100MHz 机 械 指 标(MechanicalSpecifications) 尺寸(Dimensions)151±1外壳颜色(RadomeColor )白色 连接器型号(Connector)IPEX 1代引线长度(CableLength)350±2mm 外壳材料RadomeMaterial ABS 工作温度 (WorkingTemperature) -4 0°C-+85°C 存放温度 (Limit Temperature) -4 0°C-+85°C Shenzhen Guandetong Electronic Co., Ltd. 保 密 要 求 本公司已拥有专有技术所提供的资料，这些专有资料应严加保密，在未经深圳冠得通电子有限公司事先书面同意的时不允许 透露给任何人或公司。 公司地址：深圳市龙华区观湖街道环观南茂源工业园D栋3楼电话：0755-88298396传真：0755-89733896 http://www.szgdtrf.com Page 4 三、VSWR、Returnloss、Smith数据 Shenzhen Guandetong Electronic Co., Ltd. 保 密 要 求 本公司已拥有专有技术所提供的资料，这些专有资料应严加保密，在未经深圳冠得通电子有限公司事先书面同意的时不允许 透露给任何人或公司。 公司地址：深圳市龙华区观湖街道环观南茂源工业园D栋3楼电话：0755-88298396传真：0755-89733896 http://www.szgdtrf.com Page 5 四、Product structure diagram 五、Environmental performance testing: ProjectTest conditions Specifications Storage environment Test the temperature, humidity, and air pressure without specifying them as follows: 1. The temperature is -30 °C to+80 °C 2. The relative humidity is 45% -85% 3. The air pressure is 86kpa-106kpa Normal electrical and mechanical performance High and low temperature test in70°C与40°CPerform 5 cycles between them, and then check the appearance quality under normal conditions for 1-2 hours. The size should meet the regulations and meet the requirements Mechanical and electrical performance Constant damp heat resistance test Relative humidity of 95 ± 3%, test temperature: 40 °C. After continuous action for 2 hours, the electrical performance of the test sample is measured within 5 minutes after removal. The test sample is under normal conditions for 1-2 hours, and the appearance quality is checked The size should meet the regulations and meet the mechanical and electrical performance requirements vibration test Vibration frequency range 10-55HZ, displacement amplitude: 0.35MM, acceleration amplitude: 50.0M/s, frequency sweep cycles: 30 times Normal electrical and mechanical performance Drop test Free fall 3 times from a height of 1M in the direction of mutually perpendicular axes Normal electrical and mechanical performance

Page 1 of 71 Report No.: HK2302270522-E FCC Test Report Test report On Behalf of Shenzhen Zigxico Technology Co., Ltd. For Smart WI-FI Camera Model No.: B23, B23DF2, B16DF2, B16DF3, B25DF2, B25DF3, B26DF2, B26DF3, B27DF2, B27DF3, B28DF2, B28DF3, B29DF2, B29DF3 FCC ID: 2AZHU-B23 Prepared For : Shenzhen Zigxico Technology Co., Ltd. 3F, building B, Shuichanjingwan First Industrial Park, Gushu, Xixiang Street, Baoan District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Feb. 27, 2023 ~ Apr. 23, 2023 Date of Report: Apr. 23, 2023 Report Number: HK2302270522-E Applican Address . Manufac t Address . Product d Trade Ma Product n Model an d Standard This publi the Shen source o f and will reproduc e Date of Te Date (s) o Date of Is Te s t R e su t’s name ... .................. ture's Nam .................. description rk: ame ............ d/or type re ds ............... ication may zhen HUA fthe materi not assu m ed material est ............. of performan ssue ............ ult ................ Te s Te c Aut ............... : ............... : me ............. : ............... : n ................. : eference . : ............... : y be reprod K Testing T al. Shenzhe me liability due to its p .................. nce of tests .................. .................. sting Engine chnical Man thorized Sig Test Re Shenzhen 3F, buildin Xixiang St Shenzhen 3F, buildin Xixiang St Zigxico Smart WI- B23, B23 D B26DF3, B FCC Rules ANSI C63. uced in wh Technology en HUAK T for damag placement a ............. : ............. : ............. : ............. : eer : nager : gnatory : Page 2 o sult Cert Zigxico Tec g B, Shuich reet, Baoan Zigxico Tec g B, Shuich reet, Baoan FI Camera DF2, B16DF B27DF2, B2 s and Regu .10: 2013 ole or in p a y Co., Ltd. Testing Tech ges resultin and context. Feb. 27, 202 Apr. 23, 202 Pass of 71 tification chnology C hanjingwan n District, S chnology C hanjingwan n District, S F2, B16DF3 27DF3, B28 lations Part art for non-c is acknow hnology Co ng from the 23 ~ Apr. 23 23 (Gary Qi a (Eden H u (Jason Zho Repor n o., Ltd. First Indust henzhen, C o., Ltd. First Indust henzhen, C 3, B25DF2, 8DF2, B28D 15 Subpart commercia wledged as o., Ltd. take e reader's , 2023 an) u) ou) rt No.:HK230 trial Park, G China trial Park, G China B25DF3, B DF3, B29DF t C Section l purposes copyright o es no respo interpreta t 02270522-E Gushu, Gushu, B26DF2, F2, B29DF3 15.247 as long as owner and nsibility for tion of the Page 3 of 71 Report No.:HK2302270522-E Table of Contents 1. Test Result Summary ............................................................................... 5 1.1. Test Procedures and Results ........................................................................................................... 5 1.2. Information of the Test Laboratory ................................................................................................. 5 1.3. Measurement Uncertainty ................................................................................................................ 6 2. EUT Description ........................................................................................ 7 2.1. General Description of EUT ............................................................................................................. 7 2.2. Carrier Frequency of Channels ........................................................................................................ 8 2.3. Operation of EUT During Testing .................................................................................................... 8 2.4. Description of Test Setup ................................................................................................................. 9 3. Genera Information ................................................................................. 10 3.1. Test Environment and Mode .......................................................................................................... 10 3.2. Description of Support Units ......................................................................................................... 12 4. Test Results and Measurement Data .................................................... 13 4.1. Conducted Emission ....................................................................................................................... 13 4.2. Test Result ....................................................................................................................................... 15 4.3. Maximum Conducted Output Power ............................................................................................. 17 4.4. Emission Bandwidth ....................................................................................................................... 19 4.5. Power Spectral Density .................................................................................................................. 25 4.6. Conducted Band Edge and Spurious Emission Measurement .................................................. 32 4.7. Radiated Spurious Emission Measurement ................................................................................. 42 4.8. Antenna Requirement ..................................................................................................................... 68 5. Photograph of Test ................................................................................. 69 6. Photos of the EUT ................................................................................... 71 Page 4 of 71 Report No.:HK2302270522-E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Apr. 23, 2023 Jason Zhou Page 5 of 71 Report No.:HK2302270522-E 1. Test Result Summary 1.1. Test Procedures and Results Requirement CFR 47 Section Resul…
