2AZHU-S29Smart Camera

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. ISED Statement ‐ English: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. ‐ French:Cet appareil contient des émetteurs/récepteurs exempts de licence qui sont conformes aux CNR exempts de licence d’Innovation, Sciences et Développement économique Canada. Le fonctionnement est soumis aux deux conditions suivantes : (1) Cet appareil ne doit pas causer d’interférences. (2) Cet appareil doit accepter toute interférence, y compris les interférences susceptibles de provoquer un fonctionnement indésirable de l’appareil. This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Cet équipement est conforme Canada limites d'exposition aux radiations dans un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps.

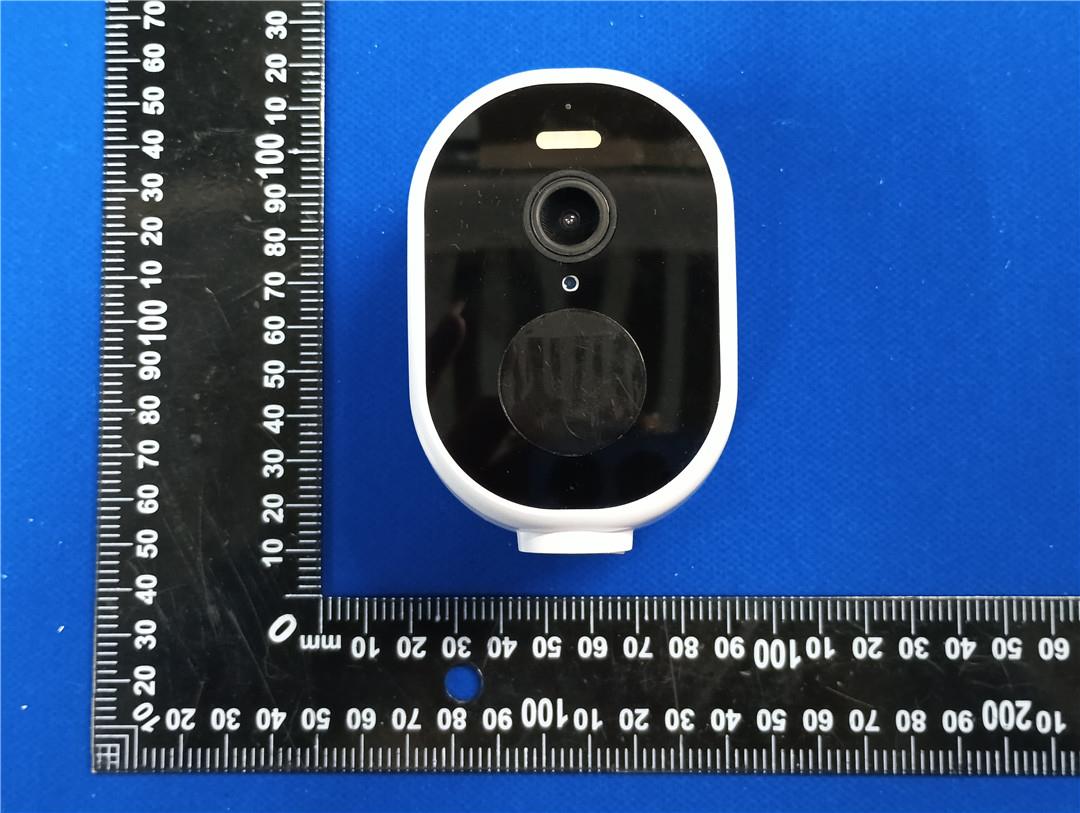

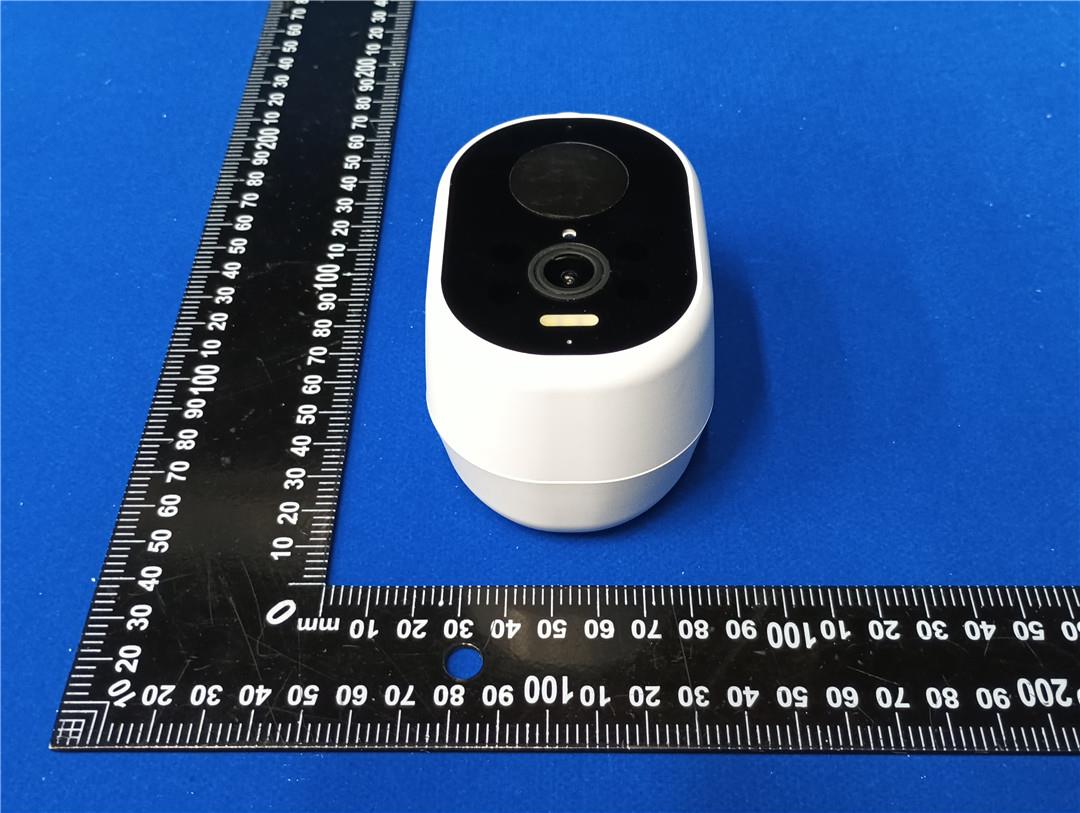

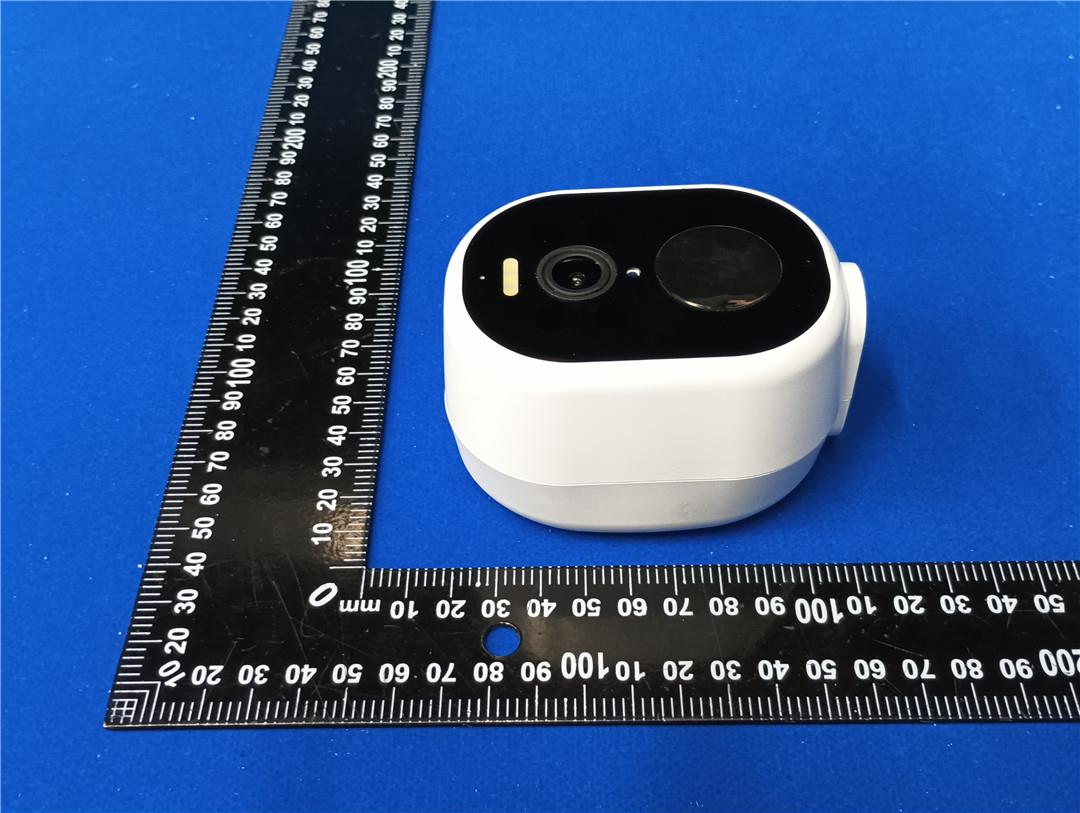

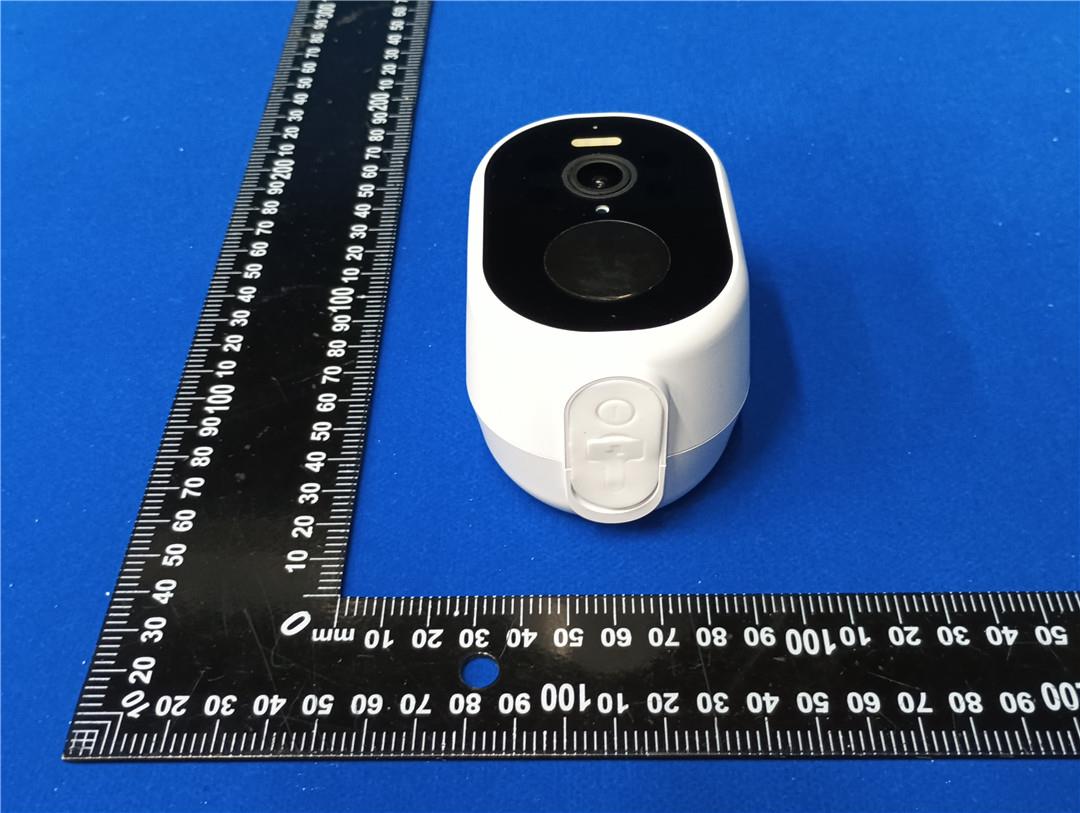

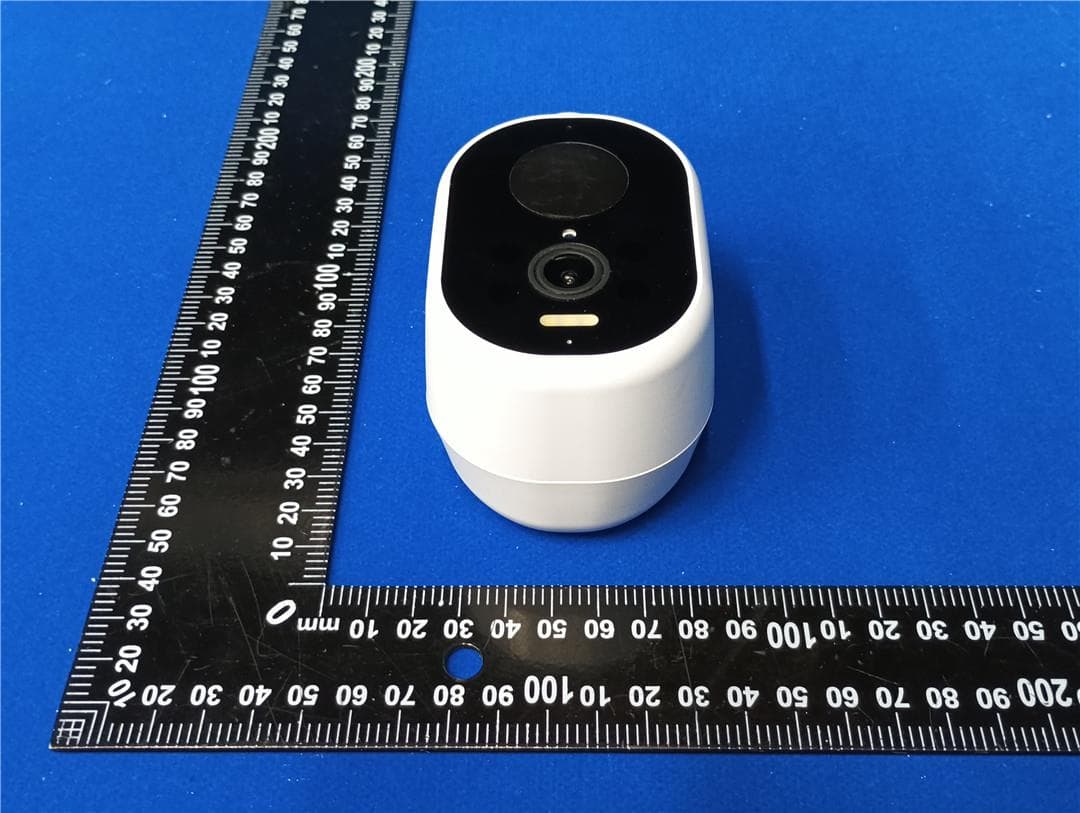

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202510484 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 4 Product Name: Smart Camera Model No.: S29 EUT Constructional Details External Photo Report No.: HTT202510484 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 4 Report No.: HTT202510484 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 4 Report No.: HTT202510484 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 4 of 4 ------End------

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202510484 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: Smart Camera Model No.: S29 Test Setup Photo Radiated Emission Report No.: HTT202510484 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 Conducted Emission RF Test ------End------

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : HTT202510484F02 2AZHU-S29 Compiled by ( position+printed name+signature) : File administrators Supervised by ( position+printed name+signature) : Project Engineer Approved by ( position+printed name+signature) : RF Manager Date of issue ...................................: Nov. 07, 2025 Testing Laboratory Name .............: Shenzhen HTT Technology Co.,Ltd. Address ...........................................: 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name...........................: Shenzhen Zigxico Technology Co., Ltd. Address ...........................................: Room 201, building B, Shuichanjingwan First Industrial Park, Gushu, Xixiang Street, Baoan District, Shenzhen,China. Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : Smart Camera Trade Mark ......................................: N/A Manufacturer ...................................: Shenzhen Zigxico Technology Co., Ltd. Model/Type reference .....................: S29 Listed Models ..................................: S24, S25 Modulation ......................................: GFSK Frequency ........................................ From 2402MHz to 2480MHz Ratings ............................................: DC 3.7V From Battery and DC 5V From External Circuit Result ..............................................: PASS Report No.: HTT202510484F02 Page 2 of 27 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China T E S T R E P O R T Equipment under Test : Smart Camera Model /Type : S29 Listed Models : S24, S25 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. Applicant : Shenzhen Zigxico Technology Co., Ltd. Address : Room 201, building B, Shuichanjingwan First Industrial Park, Gushu, Xixiang Street, Baoan District, Shenzhen,China. Manufacturer : Shenzhen Zigxico Technology Co., Ltd. Address : Room 201, building B, Shuichanjingwan First Industrial Park, Gushu, Xixiang Street, Baoan District, Shenzhen,China. Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202510484F02 Page 3 of 27 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Contents 1 TEST STANDARDS .......................................................................................................................................... 4 2 SUMMARY ........................................................................................................................................................ 5 2.1 General Remarks .................................................................................................................................... 5 2.2 Product Description*................................................................................................................................ 5 2.3 Equipment Under Test ............................................................................................................................ 5 2.4 Short description of the Equipment under Test (EUT) ............................................................................ 5 2.5 EUT configuration .................................................................................................................................... 5 2.6 EUT operation mode ............................................................................................................................... 6 2.7 Block Diagram of Test Setup .................................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) .............................................................................................................. 6 2.9 Modifications ........................................................................................................................................... 6 3 TEST ENVIRONMENT ...................................................................................................................................... 7 3.1 Address of the test laboratory ................................................................................................................. 7 3.2 Test Facility ............................................................................................................................................. 7 3.3 Environmental conditions .........................................................................…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : HTT202510484F01 2AZHU-S29 Compiled by ( position+printed name+signature) . : File administrators Supervised by ( position+printed name+signature) . : Project Engineer Approved by ( position+printed name+signature) . : RF Manager Date of issue .................................... : Nov. 07, 2025 Testing Laboratory Name ............. : Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ........................... : Shenzhen Zigxico Technology Co., Ltd. Address ............................................ : Room 201, building B, Shuichanjingwan First Industrial Park, Gushu, Xixiang Street, Baoan District, Shenzhen,China. Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen HTT Technology Co.,Ltd. Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : Smart Camera Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Zigxico Technology Co., Ltd. Model/Type reference ...................... : S29 Listed Models ................................... : S24, S25 Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : DC 3.7V From Battery and DC 5V From External Circuit Result ............................................... : PASS Report No.: HTT202510484F01 Page 2 of 27 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China T E S T R E P O R T Equipment under Test : Smart Camera Model /Type : S29 Listed Models : S24, S25 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. Applicant : Shenzhen Zigxico Technology Co., Ltd. Address : Room 201, building B, Shuichanjingwan First Industrial Park, Gushu, Xixiang Street, Baoan District, Shenzhen,China. Manufacturer : Shenzhen Zigxico Technology Co., Ltd. Address : Room 201, building B, Shuichanjingwan First Industrial Park, Gushu, Xixiang Street, Baoan District, Shenzhen,China. Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202510484F01 Page 3 of 27 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Contents 1 TEST STANDARDS .......................................................................................................................................... 4 2 SUMMARY ........................................................................................................................................................ 5 2.1 General Remarks .................................................................................................................................... 5 2.2 Product Description ................................................................................................................................. 5 2.3 Equipment Under Test ............................................................................................................................ 5 2.4 Short description of the Equipment under Test (EUT) ............................................................................ 5 2.5 EUT configuration .................................................................................................................................... 6 2.6 EUT operation mode ............................................................................................................................... 6 2.7 Block Diagram of Test Setup .................................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) .............................................................................................................. 6 2.9 Modifications ........................................................................................................................................... 6 3 TEST ENVIRONMENT ...................................................................................................................................... 7 3.1 Address of the test laboratory ................................................................................................................. 7 3.2 Test Facility ...............................................................................................................................…

Text truncated - open the document above for the full version.

QR/RD-P01-09B SPECIFICATION ShenzhenGuandetongElectronicLimited 深圳市冠得通电子有限公司 ShenzhenGuandetongElectronicCo.,Ltd. 天线:2.4G横条形FPC黄色1.13黑:线长60mm带端子 产品规格书 客户深圳市视峰频段 2400-2500MHz 项目名称版本A1 客户料号3.26.003.100000V冠得通料号 冠得通编号 RF设计肖彬射频经理刘亮 结构设计王栋结构经理王华 技术总监 ANDY 日期 2024-7-2 客户确认： 装配是否符合贵司要求：□OK□NG 深圳市冠得通电子有限公司 保密要求 本公司已拥有专有技术所提供的资料，这些专有资料应严加保密，在未经深圳冠得通电子有限公司事先书面同意的时不允许 透露给任何人或公司。 公司地址：深圳市龙华区观湖街道环观南茂源工业园D栋3楼电话：0755-88298396传真：0755-89733896 http://www.szgdtrf.com Page 2 目录 封面.......................................................................................................1 目录.........................................................................................2 一、产品图片.........................................................................................3 二、产品参数.......................................................................................3 三、S11数据........................................................................................4 四、产品结构图...................................................................................4 五、环境可靠性实验报告..................................................................5 深圳市冠得通电子有限公司 保密要求 本公司已拥有专有技术所提供的资料，这些专有资料应严加保密，在未经深圳冠得通电子有限公司事先书面同意的时不允许 透露给任何人或公司。 公司地址：深圳市龙华区观湖街道环观南茂源工业园D栋3楼电话：0755-88298396传真：0755-89733896 http://www.szgdtrf.com Page 3 一、产品组装图片 二、产品参数 产品测试参数 产品名称(Name) 2.4GFPC天线 产品型号(Model Type) GDT-DX-70 电性能指标 (ElectricalSpecifications) 频率范围(Frenquency Range) 2400-2500MHz 极化方式 （Polarization） 垂直 输入阻抗(Impedance) 50Ω 辐射方向全向 驻波比 （ VSWR ） ≦2功率容量(Power) 50W 增益(Gain) 3.06dBi 带宽 (Bandwidth 100MHz 机械指标(MechanicalSpecifications) 尺寸(Dimensions)32*10±2mm 天线颜色(Chassis Color) FPC黄色 连接器型号 (Connector) IPEX(1代) 引线长度(Cable Length) 60MM 天线材料(Chassis Material) FPC 线材顏色1.13黑 工作温度 (WorkingTemperature) -40°C-+85°C 存放温度 (LimitTemperature) -40°C-+85°C 深圳市冠得通电子有限公司 保密要求 本公司已拥有专有技术所提供的资料，这些专有资料应严加保密，在未经深圳冠得通电子有限公司事先书面同意的时不允许 透露给任何人或公司。 公司地址：深圳市龙华区观湖街道环观南茂源工业园D栋3楼电话：0755-88298396传真：0755-89733896 http://www.szgdtrf.com Page 4 三、S11（VSWR、Returnloss、Smith）数据 四、结构图纸 深圳市冠得通电子有限公司 保密要求 本公司已拥有专有技术所提供的资料，这些专有资料应严加保密，在未经深圳冠得通电子有限公司事先书面同意的时不允许 透露给任何人或公司。 公司地址：深圳市龙华区观湖街道环观南茂源工业园D栋3楼电话：0755-88298396传真：0755-89733896 http://www.szgdtrf.com Page 5 五、环境性能测试 项目测试条件规格 储存环境 在没有指定的情况下测试温度、湿度、气压如下： 1.温度为-30°C～+80°C 2.相对湿度为45%-85% 3.气压为86kpa-106kpa 电气机械性能正常 高低温试验 在70°C与40°C之间进行5次循环，然后在正常条件下 1-2H，检查外观质量。 尺寸应满足规定并应 满足满足 于机械、电气性能 耐恒定湿热 试验 相对湿度95±3%，试验温度：40°C.持续2H作用后， 试品取出后5min之内测定电气性能，试品在正常条 件下1-2H，检查外观质量 尺寸应满足规定并应 满足满足 于机械、电气性能 振动试验 振频范围10-55HZ，位移幅值：0.35MM，加速度幅值： 50.0M/S，扫频循环次数：30次 电气机械性能正常 跌落试验1M高空按照互相垂直的轴方向自由跌落3次电气机械性能正常

Shenzhen HTT Technology Co., Ltd. Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 1 of 10 RF Exposure MPE Report Reference No. ..................... : FCC ID............................................. : HTT202510484F03 2AZHU-S29 Compiled by ( position+printed name+signature) . : File administrators Supervised by ( position+printed name+signature) . : Project Engineer Approved by ( position+printed name+signature) . : RF Manager Date of issue .................................... : Nov. 07, 2025 Testing Laboratory Name .............. : Shenzhen HTT Technology Co.,Ltd. Address............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : Shenzhen Zigxico Technology Co., Ltd. Address............................................ : Room 201, building B, Shuichanjingwan First Industrial Park, Gushu, Xixiang Street, Baoan District, Shenzhen,China. Standard ........................................... : 47CFR §1.1310 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Smart Camera Manufacturer .................................... : Shenzhen Zigxico Technology Co., Ltd. Trade Mark ........................................ N/A Model/Type reference ...................... : S29 Rating ............................................... : DC 3.7V From Battery and DC 5V From External Circuit Result ............................................... : PASS Report No.: HTT202510484F03 Page 2 of 10 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 2 of 10 T E S T R E P O R T Equipment under Test : Smart Camera Model /Type : S29 Listed Models : S24, S25 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number is different for these model. Applicant : Shenzhen Zigxico Technology Co., Ltd. Address : Room 201, building B, Shuichanjingwan First Industrial Park, Gushu, Xixiang Street, Baoan District, Shenzhen,China. Manufacturer : Shenzhen Zigxico Technology Co., Ltd. Address : Room 201, building B, Shuichanjingwan First Industrial Park, Gushu, Xixiang Street, Baoan District, Shenzhen,China. Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202510484F03 Page 3 of 10 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 3 of 10 Contents 1 T E S T S T A N D A R D S ................................................... 4 2 S U M M A R Y .............................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Special Accessories 5 2.4 Modifications 6 3 T E S T E N V I R O N M E N T 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Statement of the measurement uncertainty 7 4 T E S T L I M I T 8 4.1 Requirement 8 4.2 MPE Calculation Method 8 4.3 Conducted Power Results 9 4.4 Manufacturing tolerance 10 4.5 Standalone MPE Result 10 4.6 Simultaneous Transmission for MPE Result 10 5 C O N C L U S I O N ........................................................ 10 Report No.: HTT202510484F03 Page 4 of 10 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 4 of 10 1 T E S T S T A N D A R D S The tests were performed according to following standards: ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device, RF Exposure, Equipment Authorization Procedures. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices Report No.: HTT202510484F03 Page 5 of 10 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao'an District, Shenzhen, Guangdong, China Page 5 of 10 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Oct. 15, 2025 Testing commenced on : Oct. 15, 2025 Testing concluded on : Nov. 07, 2025 2.2 Product Description Product Description: Smart Camera Model/Type reference: S29 Power supply: DC 3.7V From battery and DC 5.0V From external circuit Adapter Information (Auxiliary test provided by the lab): Mode: GS-0500200 Input: AC100-240V, 50/60Hz, 0.3A max Output: DC 5V, 2A Testing sample ID： HTT202510484-1# (Engineer sample) HTT202510484-2# (Normal sample) Hardware version: 0.3 Software version: 11.7.6 Bluetooth BLE Supported type: Bluetooth low Energy Modulation…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202510484 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: Smart Camera Model No.: S29 EUT Constructional Details Internal Photo Report No.: HTT202510484 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 ------End------ ANTENNA

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2AZHU-S29

1 Appendix RF Test Data for 2.4GWIFI Company: : Shenzhen Zigxico Technology Co., Ltd EUT : Smart Camera FCC ID: : 2AZHU-S29 Model Number : S29 Report No. : HTT202510484F01 Reviewed By : Heber He 2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 802.11b SISO 2412 8.223 18.310 44.91 3.48 0.01 2437 8.223 18.310 44.91 3.48 0.02 2462 8.223 18.313 44.90 3.48 0.01 802.11g SISO 2412 1.363 11.456 11.90 9.25 0.03 2437 1.363 11.560 11.79 9.28 0.14 2462 1.363 11.460 11.89 9.25 0.03 802.11n (HT20) SISO 2412 1.277 11.370 11.23 9.50 0.00 2437 1.277 11.374 11.23 9.50 0.03 2462 1.276 11.373 11.22 9.50 0.03 802.11n (HT40) SISO 2422 0.636 11.636 5.47 12.62 0.46 2437 0.636 10.730 5.93 12.27 0.03 2452 0.633 10.730 5.90 12.29 0.03 802.11ax (HEW20) SISO 2412 1.283 11.377 11.28 9.48 0.03 2437 1.284 11.377 11.29 9.47 0.03 2462 1.284 11.380 11.28 9.48 0.03 802.11ax (HEW40) SISO 2422 0.640 10.737 5.96 12.25 0.03 2437 0.640 10.734 5.96 12.25 0.03 2452 0.640 10.737 5.96 12.25 0.00 3 1.2 Test Graph 1.2.1 Ant1 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 4 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 5 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 6 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 7 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV 8 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV 9 802.11ax(HEW20)_LCH_2412MHz_SU_ / _Ant1 (SISO)_NTNV 802.11ax(HEW20)_MCH_2437MHz_SU_ / _Ant1 (SISO)_NTNV 10 802.11ax(HEW20)_HCH_2462MHz_SU_ / _Ant1 (SISO)_NTNV 802.11ax(HEW40)_LCH_2422MHz_SU_ / _Ant1 (SISO)_NTNV 11 802.11ax(HEW40)_MCH_2437MHz_SU_ / _Ant1 (SISO)_NTNV 802.11ax(HEW40)_HCH_2452MHz_SU_ / _Ant1 (SISO)_NTNV 12 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 15.492 / Pass 2437 1 15.496 / Pass 2462 1 15.502 / Pass 802.11g SISO 2412 1 18.150 / Pass 2437 1 18.295 / Pass 2462 1 18.081 / Pass 802.11n (HT20) SISO 2412 1 19.167 / Pass 2437 1 19.366 / Pass 2462 1 19.299 / Pass 802.11n (HT40) SISO 2422 1 37.915 / Pass 2437 1 37.919 / Pass 2452 1 37.469 / Pass 802.11ax (HEW20) SISO 2412 1 19.221 / Pass 2437 1 19.268 / Pass 2462 1 19.130 / Pass 802.11ax (HEW40) SISO 2422 1 38.147 / Pass 2437 1 37.975 / Pass 2452 1 37.503 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 10.248 >=0.5 Pass 2437 1 10.260 >=0.5 Pass 2462 1 10.252 >=0.5 Pass 802.11g SISO 2412 1 16.172 >=0.5 Pass 2437 1 16.339 >=0.5 Pass 2462 1 15.983 >=0.5 Pass 802.11n (HT20) SISO 2412 1 17.033 >=0.5 Pass 2437 1 17.347 >=0.5 Pass 2462 1 16.284 >=0.5 Pass 802.11n (HT40) SISO 2422 1 35.843 >=0.5 Pass 2437 1 36.037 >=0.5 Pass 2452 1 35.540 >=0.5 Pass 802.11ax (HEW20) SISO 2412 1 16.891 >=0.5 Pass 2437 1 17.342 >=0.5 Pass 2462 1 17.137 >=0.5 Pass 802.11ax (HEW40) SISO 2422 1 35.914 >=0.5 Pass 2437 1 35.693 >=0.5 Pass 2452 1 35.595 >=0.5 Pass 13 2.2 Test Graph 2.2.1 OBW 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 14 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 15 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 16 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 17 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV 18 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV 19 802.11ax(HEW20)_LCH_24…

Text truncated - open the document above for the full version.
