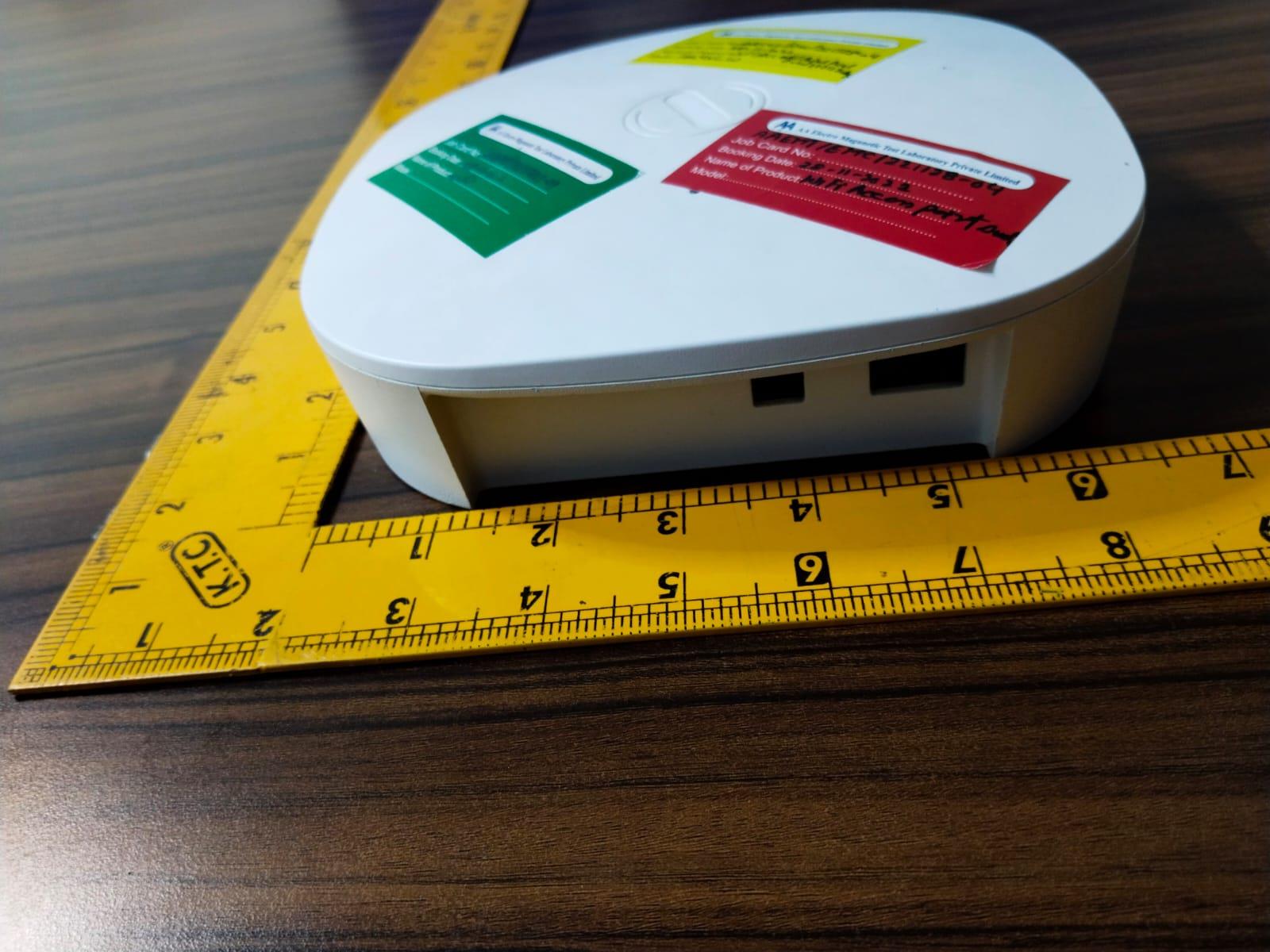

2AZOI4XIWIO Wi-Fi 6 Dual Band 2x2 2 IndoorAccess Point with Integrated Antenna (5 dBi)

Introduction Thank you for choosing ion4xi_w wireless Access Point with 2x2:2 Multi-User MIMO and 802.11ax Wave 2 compliance. Packaging Content ion4xi_w DC Adaptor Access point (Varies by Region) (Qty:1 ) ( Qty:1 set ) Mounting screws and Mounting Bracket Quick Start Guide Plastic wall Anchors ( Qty - 1) ( Qty - 1 ) ( Qty - 4/4 ) ion4xi_w Specification Peak throughput ( aggregate ) Approx 2.1Gbps ( 2401 Mbps for 5GHz and 573 Mbps for 2.4 GHz Wi-Fi Standard Support802.11a/b/g/n/ac/ax Interface10/100/1000/2500BASE-T Ethernet Radio Mode2x2 MU-MIMO with 2 spatial streams Mesh SupportSelf-creating , Self -healing Mesh maximum number of SSID (per radio) 4 SSID per radio and 8 combined Maximum User Support128 on 5GHz and 128 on 2.4 GHz Power supplyIEEE 802.3at Adaptor Power Comsumption (Max)18 W ( approx ) Max Transmit Power 25 dBm for 2.4 GHz , 24 dBm for 5GHz ( will depend on country-specific guidelines ) Antenna TypeIntegrated Omnidirectional Antennas Antenna Gain5 dBi gain for 2.4GHz and 7 dBi gain for 5GHz Management Standalone ( via GUI ) or through on premise based solution or cloud-based. Enclosure Dimentions 180 x 180 x 47mm ( 7.08 x 7.08 x 1.85 inch) WeightApprox 0.8 Kg Operating Temperature0°C to 45°C Certifications FCC Class B, CE,RoHS 3.0,Passpoint 3.0, WPA3,IP67 Product Overview Mounting of ion4xi_w Access Point 1.Place the mounting bracket which came with the package on a wall or ceiling and mark holes with a marker where you will insert the screws.Drill holes in the marked points and insert the plastic wall anchors. 2.Use supplied screws and attach mounting brackets on the wall. Note: Make sure that mounting bracket is tightly installed before mounting the access point on the wall or ceiling. 3.Align the mounting slots of Access Point with the hooks of the mounting bracket, ensure that it is properly hinged. Unmounting of ion4xi_w Access Point 1.Open the screws of the Access Point out from the mounting slots of mounting brackets. WARNING: HFCL is not held liable for any damages incurredduring the process. Getting the ion4xi_w Online Step 1: power up The Access Point can be powered up using 12V DC adaptor as shown below. ----------------- Power up using DC Power Adaptor ----------------- Note:Power Plug and Adaptor will varyby country / region Step 2: Connect to the network Section 1: Standalone AP Follow the steps mentioned below and connect the Access Point to a network : 1.Connect an ethernet cable to the computer. 2.Connect the other end of the ethernet cable to the LAN Port on the ion4xi_w Access point 3.Open the web browser and enter the Access Point static IP address in the Address bar: 192.168.1.1 4.A login screen will appear. 5.Enter the default login credential details: User - root, Password- hfcl!@ion Section 2: Controller Managed AP Follow the step mentioned to connect Access Point to a network: 1.Connect an Ethernet cable to the computer. 2.Power-up the AP through 12V DC adaptor 3.Connect the AP to DHCP network and internet. 4.Login to HFCL IO cloud controller (cNMS) iocloud.hfcl.com with credentials provided. 4a. To get cNMS login credentail, please send request email [email protected] below details 5.Add AP group under configuration 6.Add APs in the AP group 7.Create SSID in the AP Group 8.Refer our website io.hfcl.com for detailed information to configure AP through cNMs Step 3: Check the LED status LED ColorStatus Status LED Blue ( Solid ) Solid blue color notifies the user that either 2.4 GHz radio, 5GHz or both radio are active Status LED Blue ( Blinking ) Blinking blue color notifies the user that data is being transmitted on either 2.4 GHz radio, 5 GHz radio or both radios Safety Precautions Observe the following safety precautions to avoid damage to the ion4xi_w Access Point:  Do not subject the device to high temperatures.  Keep away from high voltage cables  Disconnect the device before cleaning it  Do not wipe the device with a damp cloth  Do not open the enclosure of the Access Point  Fasten the device tightly with the mount

2.9 11 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: HFCL LIMITED Address: 38, Institutional Area , Sector 32, Gurgaon -122001 Product Name: IO Wi-Fi 6 Dual Band 2x2:2 Indoor Access Point with Integrated Antenna (5 dBi) FCC ID: 2AZOI4XIW Model(s): ion4xi_w 2.911(d)(5)(i) Equipment Type We, [HFCL LIMITED] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Sandeep Kumar Chawla Date: 02-03-2023 Title and Company name: Associate Vice President HFCL LIMITED NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: HFCL LIMITED Address: 38, Institutional Area , Sector 32, Gurgaon -122001 Product Name: IO Wi-Fi 6 Dual Band 2x2:2 Indoor Access Point with Integrated Antenna (5 dBi) FCC ID: 2AZOI4XIW Model(s): ion4xi_w 2.911(d)(5)(ii) Applicant filing We, [HFCL LIMITED] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Sandeep Kumar Chawla Date: 02-03-2023 Title and Company name: Associate Vice President HFCL LIMITED NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

2.911 (d)(7)USA Agent v1.4 Section 2.911(d)(7) USA Agent for Service of Process Company name: HFCL LIMITED Address: Plot no. 38, Institutional Area , Sector 32, Gurgaon -122001 Product Name: IO Wi-Fi 6 Dual Band 2x2:2 Indoor Access Point with Integrated Antenna (5 dBi) FCC ID: 2AZOI4XIW Model(s): ion4xi_w 2.911(d)(7) USA Designated Agent for Service of Process We, [HFCL LIMITED] (“the applicant”) designate [EMT Engineering , LLC...] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: EMT Engineering LLC USA Address: 1547 Plymouth St. Mountain View CA 94043 FRN Number: 0033536889 Contact Name: Radhika Gandhi Telephone No: 6506952321 Email: [email protected] Applicant Company name: HFCL LIMITED Address: Plot no. 38, Institutional Area , Sector 32, Gurgaon -122001 FCC Grantee Code: 2AZOI Contact Name: Sandeep Kumar Chawla Telephone No: +91-9811929518 Email: [email protected] 2.911 (d)(7)USA Agent v1.4 Signature: Title: President Signature: Title: Associate Vice President Date: March 15 ,2023 Date: March 15 ,2023 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

Agent Authorization Company: HFCL LIMITED Address: Plot no. 38, Institutional Area , Sector 32, Gurgaon -122001 Product Name: IO Wi-Fi 6 Dual Band 2x2:2 Indoor Access Point with Integrated Antenna (5 dBi) Model Number(s): ion4xi_w We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 02-03-2023 Name: Sandeep Kumar Chawla Title: Associate Vice President Company: HFCL Limited

Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Confidentiality FCC ID: 2AZOI4XIW To Whom It May Concern, Date: 02-03-2023 Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☒ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☒ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☒ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☒ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Sandeep Kumar Chawla Title: Associate Vice President

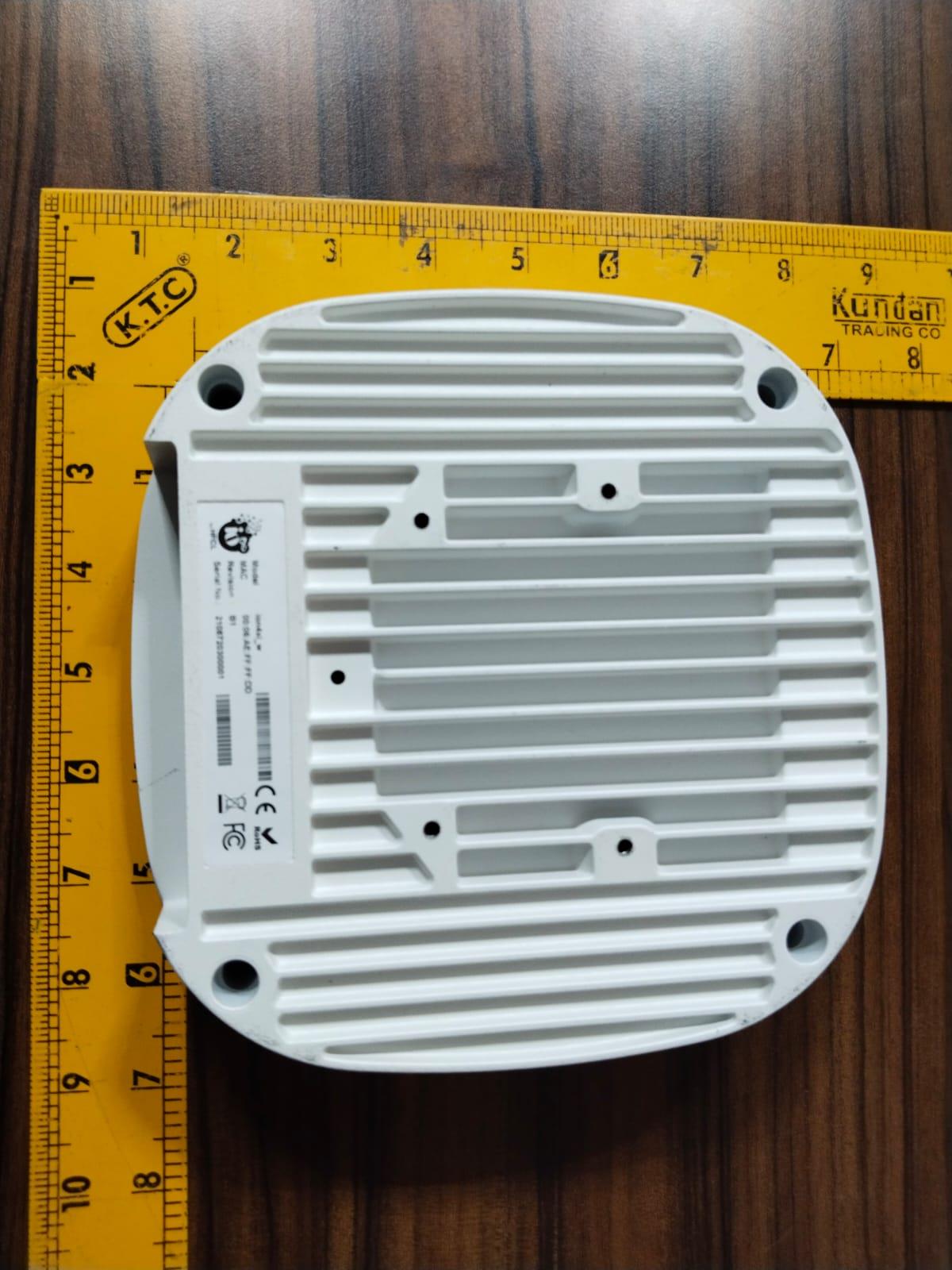

LABEL LABEL ON EUT

RF EXPOSURE EVALUATION 1. PRODUCTINFORMATION Product Description IO Wi-Fi 6 Dual Band 2x2:2 Indoor Access Point with Integrated Antenna (5 dBi) Model Name ion4xi_w FCC ID 2AZOI4XIW 2. EVALUATION METHODANDLIMIT Human exposure to RF emissions from mobile devices(47CFR§2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. The device under test (IO Wi-Fi 6 Dual Band 2x2:2 Indoor Access Point with Integrated Antenna (5 dBi)) is r a mobile device nor a RF exposure product and it is not closed to 20cm distance from persons LIMITS FOR GENERAL POPULATIONIUNCONTROLLED EXPOSURE Frequency Range (MHz) E-field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density(S) (mW/cm 2 ) Averaging Time IEl 2 IHl 2 or , S(Minutes) 0.3--1.34 614 1.63 (100)* 30 1.34--30 824/f 2.19/f (180/f 2 )* 30 30--300 27.5 0.073 0.2 30 300--1500 -- -- f/1500 30 1500--100,000 -- -- 1.0 30 *Note: 1. f= Frequency in MHz*Plane-wave Equivalent Power Density 2. The averaging time for General Population/Uncontrolled exposure to fixed transmitters is not applicable for mobile and portable transmitters. (operated in BT/ WIFI) See47CFR§§2.1091 and 2.1093 on source-based time-averaging requirement for mobile and portable transmitters. S=PG/4rrR 2 Where: S=power density P=power input toantenna G=power gain of the antenna in the direction of interest relative to anisotropic radiator R=distance to the center of radiation of the antenna 3. CALCULATION A minimum test separation distance 20cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. The distance must be at least 20cm and fully supported by the operating and installation configurations of the transmitter and its antenna(s), according to the source-based time-averaged maximum power requirements of §2.1091(d)(2). In cases where cable losses or other attenuations are applied to determine compliance, the most conservative operating configurations and exposure conditions must be evaluated. The device under test (IO Wi-Fi 6 Dual Band 2x2:2 Indoor Access Point with Integrated Antenna (5 dBi)) is neither a mobile device nor a RF exposure product and it is not closed to 20cm distance from persons Antenna Gain (2.4GHz) = 5dBi (Numeric = 3.162), rr = 3.14 Antenna Gain (5GHz) = 5dBi (Numeric = 3.162), rr = 3.14 Frequency (MHz) Output Power (dBm) Output Power (mW) Power Density (mW/cm 2) PowerDensity Limit (mW/cm 2) 2462 14.95 31.260793671 0.019 1 5190 (Band 1) 22.12 162.92960326 0.102 1 5745 (Band 4) 23.67 232.80912577 0.146 1 Note: Only the worst case recorded.

Report No.: AAEMT/EMC/221128-04-07 Page | 1 Plot No.174, UdyogVihar Phase 4, Sector -18, Gurgaon -122016, Haryana, India Contact: 0124-4235350, 4145343; e-mail: info @aaemtlabs.com; Website: www.aaemtlabs.com Decision Rule: The result of conformity based on the mentioned standards actual test limits / levels AAEMT/A2LA/TRF/FCC-15C/22_01_REV1 AA Electro Magnetic Test Laboratory Private Limited Certificate#5593.01 FCC Test Report Part 15 Subpart C FCC ID ：2AZOI4XIW Client Information: Applicant: HFCL Limited Applicant add.: Plot no. 38, Institutional Area, Sector 32,Gurgaon -122001 Product Information: EUT Name: IO Wi-Fi 6 Dual Band 2x2:2 Indoor Access Point with Integrated Antenna (5 dBi) Model No.: ion4xi_w Brand Name: Serial Model: N/A Standards: FCC PART 15 Subpart C: 2015 section 15.247 AA Electro Magnetic Test Laboratory Private Limited Add. : Plot No 174, Udyog Vihar - Phase 4, Sector 18, Gurgaon, Haryana, India Date of Receipt: Nov 11, 2022 Date of Test: Nov 11, 2022~Dec 23, 2022 Date of Issue: Feb. 27, 2023 Test Result: Pass Declaration of Conformity: This device described above has been tested by AA Electro Magnetic Test Laboratory Private Limited, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. *This test report must not be used by the client to claim product endorsement by any agency of the U.S. government. Prepared By (+ signature) Ankur Kumar: Reviewed & Approved by: (+ signature) Dr. Lenin Raja (Authorized Representative) (/ lenin83/) Declaration of conformity of the results is based as per the standard limits Report No.: AAEMT/EMC/221128-04-07 Page | 2 Plot No.174, UdyogVihar Phase 4, Sector -18, Gurgaon -122016, Haryana, India Contact: 0124-4235350, 4145343; e-mail: info @aaemtlabs.com; Website: www.aaemtlabs.com Decision Rule: The result of conformity based on the mentioned standards actual test limits / levels AAEMT/A2LA/TRF/FCC-15C/22_01_REV1 AA Electro Magnetic Test Laboratory Private Limited Certificate#5593.01 1 Contents Page COVER PAGE 1 CONTENTS 2 2 VERSION 3 3 TEST SUMMARY 4 3.1 COMPLIANCE WITH FCC PART 15 SUBPART C 4 3.2 MEASUREMENT UNCERTAINTY 5 3.3 TEST LOCATION 5 4 TEST FACILITY 6 4.1 DEVIATION FROM STANDARD 6 4.2 ABNORMALITIES FROM STANDARD CONDITIONS 6 5 GENERAL INFORMATION 7 5.1 GENERAL DESCRIPTION OF EUT 7 5.2 EUT PERIPHERAL LIST 10 5.3 TEST PERIPHERAL LIST 10 6 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 7 TEST RESULT 13 7.1 DESCRIPTION OF TEST CONDITIONS 13 7.2 ANTENNA REQUIREMENT 14 7.3 CONDUCTION EMISSIONS MEASUREMENT 15 7.4 RADIATED EMISSIONS MEASUREMENT 19 7.5 6 DB BANDWIDTH 45 7.6 MAXIMUM PEAK OUTPUT POWER 66 7.7 PEAK POWER SPECTRAL DENSITY 70 7.8 BAND EDGES REQUIREMENT 92 7.9 CONDUCTED SPURIOUS EMISSIONS 106 Report No.: AAEMT/EMC/221128-04-07 Page | 3 Plot No.174, UdyogVihar Phase 4, Sector -18, Gurgaon -122016, Haryana, India Contact: 0124-4235350, 4145343; e-mail: info @aaemtlabs.com; Website: www.aaemtlabs.com Decision Rule: The result of conformity based on the mentioned standards actual test limits / levels AAEMT/A2LA/TRF/FCC-15C/22_01_REV1 AA Electro Magnetic Test Laboratory Private Limited Certificate#5593.01 2 Version Revision Record Version Chapter Date Modifier Remark -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- Report No.: AAEMT/EMC/221128-04-07 Page | 4 Plot No.174, UdyogVihar Phase 4, Sector -18, Gurgaon -122016, Haryana, India Contact: 0124-4235350, 4145343; e-mail: info @aaemtlabs.com; Website: www.aaemtlabs.com Decision Rule: The result of conformity based on the mentioned standards actual test limits / levels AAEMT/A2LA/TRF/FCC-15C/22_01_REV1 AA Electro Magnetic Test Laboratory Private Limited Certificate#5593.01 3 Test Summary 3.1 Compliance with FCC Part 15 subpart C TEST TEST REQUIREMENT TEST METHOD RESULT Antenna Requirement FCC PART 15 C section 15.247 (c) and Section 15.203 FCC PART 15 C section 15.247 (c) and Section 15.203 PASS Conducted Emissions at Mains Terminals FCC PART 15 C section 15.207 ANSI C63.10: Clause 6.2 PASS Radiated Spurious Emission (30 MHz to 25 GHz) FCC PART 15 C section 15.209 &15.247(d) ANSI C63.10: Clause 6.4, 6.5 and 6.6 PASS 6 dB Bandwidth FCC PART 15 C section 15.247 (a)(2) ANSI C63.10: Clause 6.9.1 PASS Maximum Peak Output Power FCC PART 15 C section 15.247(b)(3) FCC/KDB-558074 D01 v03r01 Clause 9.1.2 PASS Peak Power Spectral Density FCC PART 15 C section 15.247(e) ANSI C63.10: Clause 6.11.2.3 PASS Band Edges Measurement FCC PART 15 C section 15.247 (d) &15.205 FCC/KDB-558074 D01 v03r01 Clause 13.3.1 PASS Conducted Spurious Emission (30MHz to 25GHz) FCC PART 15 C section 15.209 &15.247(d) ANSI C63.10: Clause 6.7 PASS Remark: N/A: not applicable. Refer to the relative section for the details. EUT: In this whole report EUT means Equipment Under Test. Tx: In this whole report Tx (or tx) means Transmitter. Rx: In this whole report Rx (or rx) means Receiver. RF: In this whole report RF means Radio Frequency. ANSI C63.10: the detail version is ANSI C63.10:2013 in the whole report. Report No.: AAEMT/EMC/221128-04-07 Page | 5 Plot No.174, UdyogVihar Phase 4, Sector -18, Gurgaon -122016, Haryana, India Contact: 0124-4235350, 4145343; e-mail: info @aaemtlabs.com; Website: www.aaemtlabs.com Decision Rule: The result of conformity based on the mentioned standards actual test limits / levels AAEMT/A2LA/TRF/FCC-15C/22_01_REV1 AA Electro Magnetic Test Laboratory Private Limited Certificate#5593.01 3.2 Measurement Uncertainty All measurements involve certain levels of uncertainties, the following measurements uncertainty Levels have estimated based on standards, the maximum value of the uncertainty as below: No. Item Uncertainty 1 Conducted Emission Test 2.67dB 2 Radiated Emission Test 3.06dB 3.3 Test Location All tests were performed at: AA Electro Magnetic Test Laboratory Private Limited Plot No 174, Udyog Vihar - Phase 4, Sector 18, Gurgaon, Haryana, India Tel.: +91-0124-42…

Text truncated - open the document above for the full version.

401-1-01798 Frequency (MHz) 2400 - 2500 5100 – 5900 Gain (dBi) 4 ±0.5 6 ±0.5 S-Parameter(S11)dB < -10 < -10 VSWR <1.5 <1.5 Polarization H & V H & V Pattern Type Omni Omni Max. Power Input (Watts) 1 1 Impedance (Ω) 50 ±3 50 ±3 Cable & Connector Termination 170mm cable (1.13mm dia) & U.FL connector 170mm cable ( 1.13mm dia) & U.FL Connector Dimension (mm) 46 X 21 x 0.4 Gross Weight (grams) <10±5 Radiating Material Copper (0.035mm thick) Substrate FR4_Epoxy Mounting Surface Must be mounted on 1 to 3mm thick ABS Plastic or similar material (Adhesive included) Dual Band Slotted Dipole Antenna 2.4 - 2.5 & 5.1 - 5.9 GHz Planar Dipole Antenna, 2.4GHz & 5GHz Electrical Parameters Z Mechanical Parameters Z Environmental Parameters Z ( - ) 20 to ( + ) 130 Temperature Range (°C) Reflection Coefficient 2.4GHz Z Reflection Coefficient 5GHz Z VSWR 2.4GHz Z VSWR 5 GHz Z Radiation Pattern 2.4GHz Z Radiation Pattern 5GHz Z Email: [email protected] | W ebsite: www.hfcl.com | www.ionetworks.in 8, Commercial Complex, Masjid Moth Greater Kailash-II, New Delhi-110048

Test Setup photograph
