2AZOM-BT1000WBlueiot RTLS Tag

BT1000-w Blueiot RTLS Tag USER MANUAL V1.0 1. Tag Introduction BT1000-w Wristband Bluetooth Location Tag (WBL Tag) is mainly used for personnel locating. Its simple structure, skin-friendly material, waterproof and dustproof features are suitable for wearing and using under harsh environment. 2. Tag Usage 2.1. Turn on First use of the tag, double-click the front panel button to boot. When turned on, the tag will vibrate once. When turned on, the tag will remain acti ve, tuser can not turn it off. If any need to close the tag, please contact the system administrator, realizing through the BlueIOT anchor and related software. 2.2. Wearing and Removing Please wear the wristband to approximately 1 finger width from the wrist bone and tighten up to a comfortable level. 2.3. Recharge When using the tag, note that the tag battery should have power. The LED indicator on the tag flashes every 5 seconds t o indicate the current battery level. The indicator light flashes in green, indicating that the battery level is normal; flashes in yellow, indicating the battery is medium; flashes in red, indicating that the battery needs recharging as soon as possible. If the battery is completely exhausted before charging, it will take a while to get enough power to make the indicator light work. Please use the original power adapter and charging cable, checking if they are in good condition, clean and dry. Please make sure that the charging area on the back of the wrist band are aligned and fit with the pins of the magnetic charging cable. WARNING: Using the wrong size or a poor-quality charger to charge the tag may cause the tag battery to swell, heat up or even catch fire. Use th e original charger to charge the tag! Please avoid leaving the battery of the device uncharged for a long time. 3. Basic function 3.1. Locating After the tag is turned on, it automatically enters the normal mode of locating. In the normal mode, the tag sends a locating signal to the BlueIOT anchor at a certain refresh interval. The refresh interval defaults to 200 milli seconds. This value can be set on the service configuration software. When the tag stays static for a long time, it will automatically switch to sleep mode. In sleep mode, the tag will enter a low power consumption status. The refresh interval for the tag to send locating signals to the anchor will be extended to 10 seconds; when the tag moves or vibrates, it will immediately get back to the normal mode from the sleep mode. The static time from normal mode to sleep mode is 15 seconds by default, and this value can be set on the server configuration software. 3.2. SOS Alarm Press the tag's alarm button and hold it for more than 3 seconds, the tag will upload the emergency alarm message. After the alarm takes effect, the LED indicator of the tag will flash orange, indicating that it is currently in the distress alarm status. 3.3. Tag Configuration The tag can be configured on the service configuration software, and the instructions of are issued to the tag through the BlueIOT anchor. For specific configuration functions, please refer to t he "BlueIOT Server Software Instructions Manual". 3.4. Swipe Card The tag has a built-in RFID coil, which can be used for radio frequency identification through a card reader. 3.5. Data Privacy Tag data will only be uploaded to the server designated by the user. When using tags, please consider and abide by local regulations related to data privacy. 4. Operation Conditions Exposure to liquid WBL Tag is water-resistant with IP65*. You may, for example, wear and use WBL Tag during exercise, in the rain, and while washing your hands. Please read carefully the instructions below in “Cleaning and care” section in case the above-mentioned situation happens. WBL Tag have a water resis tance rating of IP65 under China standard BG/T4208-2008. WBL Tag is water resistant, but submerging WBL Tag is not recommended. WBL Tag should not be used for scuba diving, water skiing, or other activities involvi ng high velocity water or submersion below shallow depth. Water resistance is not a permanent condition and may diminish over time. WBL Tag cannot be rechecked or resealed for water resistance. The following may affect the water resistance performance of WBL Tag and should be avoided: ·Dropping WBL Tag or subjecting it to other impacts. ·Exposing WBL Tag to soap or soapy water, for example while showering or bathing. ·Exposing WBL Tag to perfume, solvents, detergent, acids or acidic foods, insect repellent, lotions, sunscreen, oil, hair dye and moisture any other ingredients that may damage the device. ·Exposing WBL Tag to high velocity water, for example while water skiing. ·Wearing WBL Tag in the sauna or steam room. Cleaning and care Clean and dry WBL Tag, and your skin after workouts or heavy sweating. Dry WBL Tag thoroughly if they are exposed to fresh water. Clean WBL Tag if it comes into contact with anything that may cause stains or other damage, such as dirt or sand, makeup, ink, soap, detergent, acids or acidic foods, or with liquids other than fresh water, includ ing those that may lead to skin irritation such as sweat, salt water, soapy water, pool water, perfume, insect repellent, lotions, sunscreen, oil, adhesive remover, hair dye and solvents etc. The WBL Tag color may vary or fade over time. The following should be strictly avoided: Disinfection The following situations should be strictly avoided when disinfecting parts such as areas around the button and charging interfaces: Spray or wipe the WBL Tag directly with disinfectant liquid (such as diethyl ether alcohol, chlorine-containing disinfectant, peracetic acid etc.). Carry out fire, boiling, flowing steam, high heat steam, dry hea t sterilization etc. on WBL Tags and accessories. Place the WBL Tag under ultraviolet light. Any other disinfection practi ces that may cause damage or safety issues. Use button Do not press the button on the WBL Tag hard or crack it violently. Chargin…

Text truncated - open the document above for the full version.

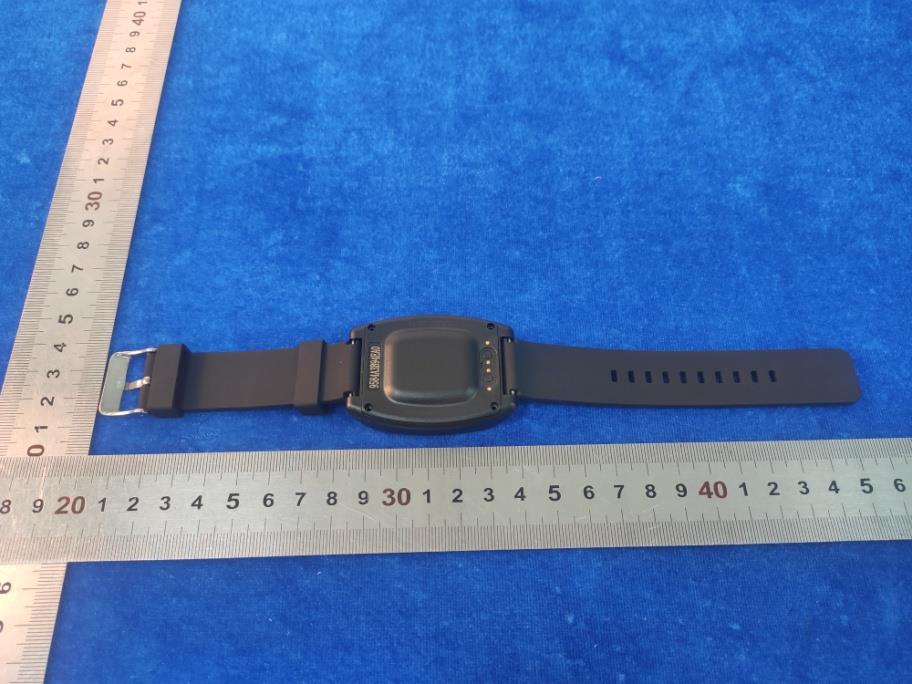

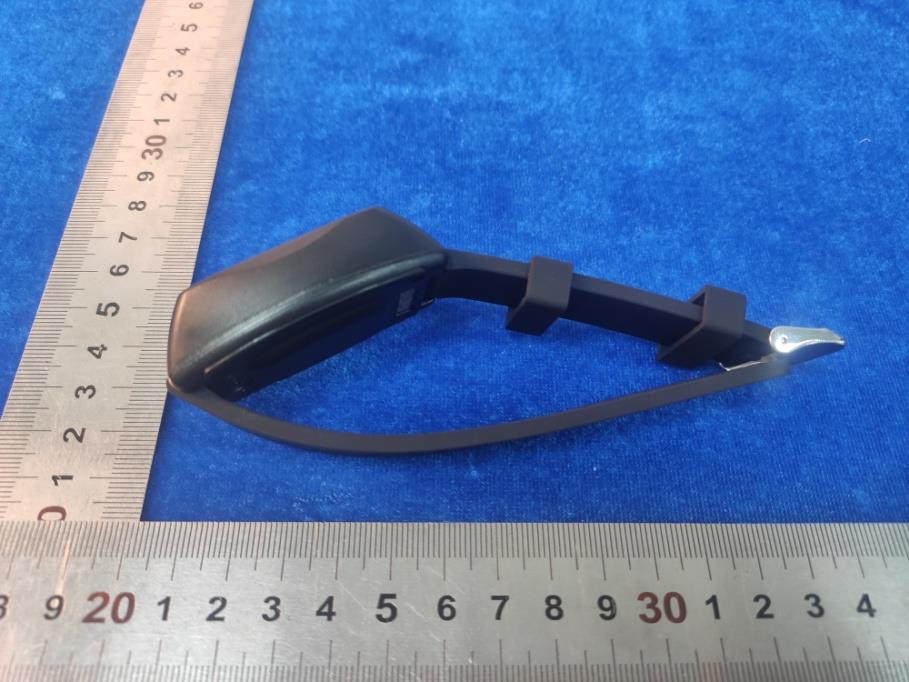

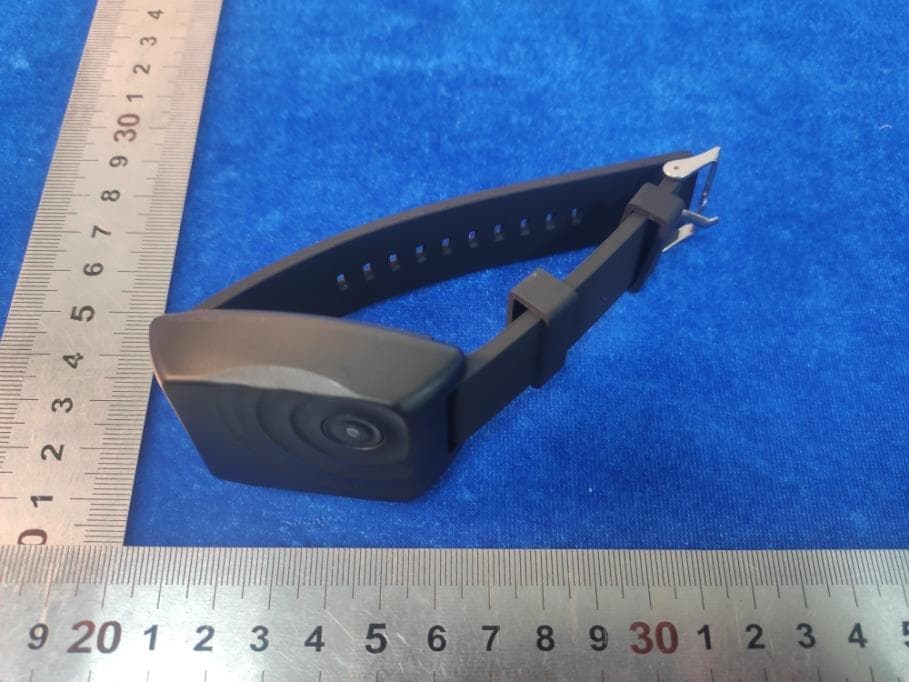

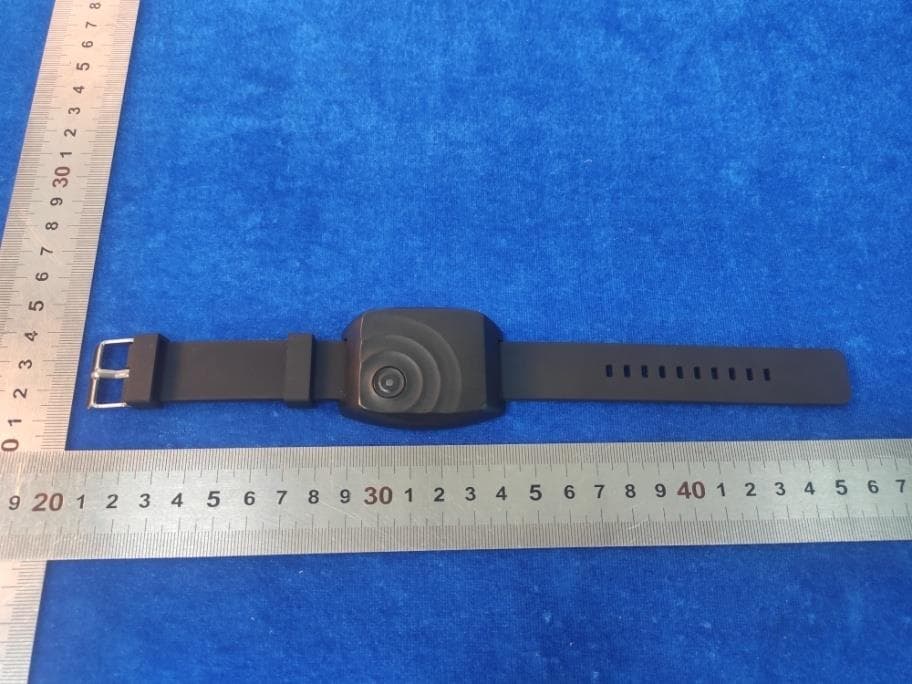

Report No.: E202208182745-5 Page 1 of 8 APPENDIX B. PHOTOGRAPH OF THE EUT External Photos of EUT EUT-1 EUT-2 Report No.: E202208182745-5 Page 2 of 8 EUT-3 EUT-4 Report No.: E202208182745-5 Page 3 of 8 EUT-5 EUT-6 Report No.: E202208182745-5 Page 4 of 8 EUT-7 EUT-8

BT1000-w FCCIDLabel Location

Report No.: E202208182745-5 Page 5 of 8 Internal Photos of EUT EUT-1 EUT-2 Report No.: E202208182745-5 Page 6 of 8 EUT-3 EUT-4 RF IC BLE antenna 1 BLE antenna 2 Report No.: E202208182745-5 Page 7 of 8 EUT-5 EUT-6 Report No.: E202208182745-5 Page 8 of 8 EUT-7 EUT-8 ----------- End of Report -----------

DATA SHEET WIRELESS COMPONENTS Ceramic Chip Antenna ANT3216LL00R2400A 2.4 - 2.5 GHZ 3216 Serie s Product Specification – March 27, 2013 V.0 www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 2 6 Product specification Ceramic Chip Antenna FEATURES z Compact size z Omni-directional radiation z Tape & reel automatic mounting z Reflow process compatible z RoHS compliant APPLICATIONS z 2.4 GHz WiFi device z Bluetooth gadget z Zigbee device z ISM band equipment ORDERING INFORMATION All part numbers are identified by the series, packing type, material, size, antenna type, working frequency and packing quantity. PART NUMBER ANT 3216 L L00 R 2400A (1) (2) (3) (4) (5) (6) ( 1 ) PRODUCT ANT = Antenna ( 2 ) SIZE 3216 = 3.2 × 1.6 mm ( 3 ) ANTENNA TYPE L,F,A = Chip Antenna ( 4 ) SERIAL NO. L00 ( 5 ) PACKING TYPE R = Tape and Reel ( 6 ) WORKING FREQUENCY 2400 = 2.4GHz PHYCOMP CTC CAN4311712002453K 12NC 431171200245 www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 3 6 Product specification Ceramic Chip Antenna SPECIFICATION DESCRIPTION VALUE Working Frequency 2.4 - 2.5 GHz Bandwidth 160 MHz Polarization Linear Azimuth Beamwidth Omni-directional Peak Gain 5.05 dBi (Typ.) Impedance 50Ω Operating Temperature -40 ~105°C Maximum Power 1W Termination Ni / Sn (Environmentally-Friendly Leadless) Resistance to Soldering Heats 260°C , 10sec. NOTE 1. The specification is defined on Yageo evaluation board Ta b l e 1 O O U U T T L L I I N N E E S S YNH0010 Side ViewTop View Bot t om View T W L C S1S2 Fig. 1 Antenna outlines DIMENSIONS DIMENSION L (mm) 3.20 ±0.15 W (mm) 1.60 ±0.15 T (mm) 1.20 ±0.15 C (mm) 0.40 ±0.20 Table 2 Machinical Dimension TERMINAL NAME FUNCTION S1 Feeding Point S2 Soldering Point Table 3 Termination configuration www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 4 6 Product specification Ceramic Chip Antenna YNH0011 Bottom Layer Top Layer 2.5 2.0 3.5 0.4 Matching Circuit 1.8 Unit : mm Unit : mm 1030 18 Fig. 2 Outlook and dimension of evaluation board REFERENCE DESIGN OF EVALUATION BOARD Fig. 3 Details of soldering Pad www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 5 6 Product specification Ceramic Chip Antenna 2.0 2.13.0 f (GHz) Return loss (dB) −50 −30 −10 10 30 50 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 YNH0012 1 2 3 Fig. 4 Return loss ELECTRICAL PERFORMANCES YNH0013 Y X Z Z axle X axleY axle Gain (dBi) 5.00 − 0.00 − − 5.00 − − 10.00 − − 15.00 − − 20.00 − − 25.00 − − 30.00 − − 35.00 − Fig. 5 Radiation pattern Max gain = 5.05 dBi, at (180, 60) MEG (mean effective gain)= 0.45dBi Directivity (dB) = 7.15 Efficiency = -1.50dB, 70.74% Evaluation board and XYZ direction Marker data 1. 2.37GHz, -10dB 2. 2.45GHz, -27.3dB 3. 2.53GHz, -10dB www.yageo.com Mar. 27, 2013 V0 WIRELESS COMPONENTS 6 6 Product specification Ceramic Chip Antenna REVISION HISTORY REVISION DATE CHANGE NOTIFICATION DESCRIPTION Version 0 Mar. 27, 2013 - - New datasheet for Ceramic Chip Antenna, 2.4-2.5 GHz application, size 3216 series Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Yageo: ANT3216LL00R2400A

Page 1 of 79 Test Report Verified code: Report No.: E202208182745-2 Customer: Blueiot (Beijing)Technology Co., Ltd. Address: 10/F,Tower A,TusPark Innovation Plaza, Haidian District, Beijing, China Sample Name: Blueiot RTLS Tag Sample Model: BT1000-w Receive Sample Date: Aug.30,2022 Test Date: Sep.06,2022 ~ Nov.03,2022 Reference Document: CFR 47, FCC Part 15 Subpart C RADIO FREQUENCY DEVICES:Subpart C—Intentional Radiators Test Result: Pass Prepared by: Reviewed by: Approved by: GUANGZHOU GRG METROLOGY & TEST CO., LTD Issued Date: GUANGZHOU GRG METROLOGY & TEST CO., LTD. Address: No.163, Pingyun Road, West of Huangpu Avenue, Guangzhou, Guangdong, China Tel：（+86）400-602-0999 FAX：（+86）020-38698685 Web：http://www.grgtest.com 721828 2022-11-17 Report No.: E202208182745-2 Page 2 of 79 Statement 1. The report is invalid without "special seal for inspection and testing"; some copies are invalid; The report is invalid if it is altered or missing; The report is invalid without the signature of the person who prepared, reviewed and approved it. 2. The sample information is provided by the client and responsible for its authenticity; The content of the report is only valid for the samples sent this time. 3. When there are reports in both Chinese and English, the Chinese version will prevail when the language problems are inconsistent. 4. If there is any objection concerning the report, please inform us within 15 days from the date of receiving the report. 5. Without the agreement of the laboratory, the client is not authorized to use the test results for unapproved propaganda. ------------ The following blanks ------------ Report No.: E202208182745-2 Page 3 of 79 TABLE OF CONTENTS 1. TEST RESULT SUMMARY .......................................................................................................................... 6 2. GENERAL DESCRIPTION OF EUT............................................................................................................. 7 2.1 APPLICANT ................................................................................................................................... 7 2.2 MANUFACTURER ........................................................................................................................ 7 2.3 FACTORY ...................................................................................................................................... 7 2.4 BASIC DESCRIPTION OF EQUIPMENT UNDER TEST ........................................................... 7 2.5 CHANNEL LIST ............................................................................................................................ 8 2.6 TEST OPERATION MODE ........................................................................................................... 8 2.7 LOCAL SUPPORTIVE .................................................................................................................. 8 2.8 CONFIGURATION OF SYSTEM UNDER TEST ........................................................................ 9 2.9 DUTY CYCLE .............................................................................................................................. 10 3. LABORATORY AND ACCREDITATIONS .............................................................................................. 12 3.1 LABORATORY ............................................................................................................................ 12 3.2 ACCREDITATIONS .................................................................................................................... 12 4. MEASUREMENT UNCERTAINTY ........................................................................................................... 13 5. LIST OF USED TEST EQUIPMENT AT GRGT ........................................................................................ 14 6. CONDUCTED EMISSION MEASUREMENT ........................................................................................... 15 6.1 LIMITS .......................................................................................................................................... 15 6.2 TEST PROCEDURES .................................................................................................................. 15 6.3 TEST SETUP ................................................................................................................................ 16 6.4 DATA SAMPLE ........................................................................................................................... 16 6.5 TEST RESULTS ........................................................................................................................... 17 7. RADIATED SPURIOUS EMISSIONS ........................................................................................................ 21 7.1 LIMITS .......................................................................................................................................... 21 7.2 TEST PROCEDURES .................................................................................................................. 21 7.3 TEST SETUP ................................................................................................................................ 24 7.4 DATA SAMPLE ........................................................................................................................... 25 7.5 TEST RESULTS ........................................................................................................................... 26 8. 6dB BANDWIDTH ....................................................................................................................................... 40 8.1 LIMITS .......................................................................................................................................... 40 8.2 TEST PROCEDURES ................................................................…

Text truncated - open the document above for the full version.

Page 1 of 10 Test Report Verified code: Report No.: E202208182745-3 Customer: Blueiot (Beijing)Technology Co., Ltd. Address: 10/F,Tower A,TusPark Innovation Plaza, Haidian District, Beijing, China Sample Name: Blueiot RTLS Tag Sample Model: BT1000-w Receive Sample Date: Aug.30,2022 Test Date: Oct.18,2022 ~ Oct.18,2022 Reference Document: CFR 47, FCC Part 2.1093 Radiofrequency radiation exposure evaluation: portable devices. Test Result: Pass Prepared by: Reviewed by: Approved by: GUANGZHOU GRG METROLOGY & TEST CO., LTD Issued Date: GUANGZHOU GRG METROLOGY & TEST CO., LTD. Address: No.163, Pingyun Road, West of Huangpu Avenue, Guangzhou, Guangdong, China Tel：（+86）400-602-0999 FAX：（+86）020-38698685 Web：http://www.grgtest.com 196257 2022-11-17 Report No.: E202208182745-3 Page 2 of 10 Statement 1. The report is invalid without "special seal for inspection and testing"; some copies are invalid; The report is invalid if it is altered or missing; The report is invalid without the signature of the person who prepared, reviewed and approved it. 2. The sample information is provided by the client and responsible for its authenticity; The content of the report is only valid for the samples sent this time. 3. When there are reports in both Chinese and English, the Chinese version will prevail when the language problems are inconsistent. 4. If there is any objection concerning the report, please inform us within 15 days from the date of receiving the report. 5. Without the agreement of the laboratory, the client is not authorized to use the test results for unapproved propaganda. ------------ The following blanks ------------ Report No.: E202208182745-3 Page 3 of 10 TABLE OF CONTENTS 1. GENERAL DESCRIPTION OF EUT............................................................................................................. 5 1.1. APPLICANT ................................................................................................................................... 5 1.2. MANUFACTURER ........................................................................................................................ 5 1.3. FACTORY ...................................................................................................................................... 5 1.4. BASIC DESCRIPTIONOF EQUIPMENTUNDER TEST ............................................................. 5 2. LABORATORY & ACCREDITATIONS ...................................................................................................... 6 2.1 ACCREDITATIONS ...................................................................................................................... 6 2.2 ACCREDITATIONS ...................................................................................................................... 6 3. LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE .............................................. 7 4. ESTIMATION RESULT ................................................................................................................................ 9 4.1 MEASUREMENT RESULTS ........................................................................................................ 9 5. CONCLUSION ............................................................................................................................................. 10 ------------ The following blanks ------------ Report No.: E202208182745-3 Page 4 of 10 REPORT ISSUED HISTORY Report Version Report No. Description Compile Date 1.0 E202208182745-3 Original Issue 2022-11-03 ------------ The following blanks ------------ Report No.: E202208182745-3 Page 5 of 10 1. GENERAL DESCRIPTION OF EUT 1.1. APPLICANT Name: Blueiot (Beijing) Technology Co., Ltd. Address: 10/F,Tower A,TusPark Innovation Plaza, Haidian District, Beijing, China 1.2. MANUFACTURER Name: Blueiot (Beijing) Technology Co., Ltd. Address: 10/F,Tower A,TusPark Innovation Plaza, Haidian District, Beijing, China 1.3. FACTORY Name: Blueiot (Beijing) Technology Co., Ltd. Address: 10/F,Tower A,TusPark Innovation Plaza, Haidian District, Beijing, China 1.4. BASIC DESCRIPTIONOF EQUIPMENTUNDER TEST Equipment: Blueiot RTLS Tag Model No.: BT1000-w Adding Model: / Trade Name: Blueiot FCC ID: 2AZOM-BT1000W Power supply: DC 3.7V power supplied by battery DC 5V from Adapter Battery Specification: Model: FUXY 802530 Nominal Voltage:3.7Vdc Rated Capacity: 600mAh 2.22Wh Adapter: Model: GAT-0501000U Input: AC 100-240V 0.4A 50/60Hz Output: 5.0V 1000mA Frequency Band: 2402MHz to 2480MHz Maximum conducted Peak output Power: BLE_1MHz: PCB printed antenna 1: 4.43dBm Ceramic Chip antenna 2: 4.09dBm Modulation type: GFSK Antenna Specification: PCB printed antenna 1 with 1.38dBi gain (Max.), Ceramic Chip Antenna 2 with 5.05 dBi gain (Max.) Temperature Range: -20°C~ 60°C Hardware Version: V3.2.2 Software Version: V1020 Sample No: E202208182745-0001, E202208182745-0003 Report No.: E202208182745-3 Page 6 of 10 2. LABORATORY & ACCREDITATIONS 2.1 ACCREDITATIONS The tests & measurements refer to this report were performed by Shenzhen EMC Laboratory of Guangzhou GRG Metrology & Test Co., Ltd. Add.: No.1301 Guanguang Road Xinlan Community, Guanlan Street, Longhua District Shenzhen, 518110, People’s Republic of China. P.C.: 518110 Tel : 0755-61180008 Fax: 0755-61180008 2.2 ACCREDITATIONS Our laboratories are accredited and approved by the following approval agencies according to ISO/IEC 17025:2017. USA A2LA(Certificate #2861.01) The measuring facility of laboratories has been authorized or registered by the following approval agencies. Canada ISED (Company Number: 24897，CAB identifier:CN0069) USA FCC (Registration Number: 759402，Designation Number:CN1198) Copies of granted accreditation certificates are available for downloading from our web site, http://www.grgtest.com ------------ The following blanks ------------ Report No.: E202208182745-3 Page 7 of 10 3. LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Exposure category: General popula…

Text truncated - open the document above for the full version.

PRODUCTSPECIFICATION 1.PRODUCTTECHNICALSPECIFICATION Manufacturers Blueiot(Beijing)TechnologyCo.,Ltd. Model Ant_BT1000w_BT_metal SIZE 21.2x5.9mm Working Frequency 2.4GHz-2.4835GHz Bandwidth85MHz Antennatype PCBprintedantenna VSWR <2 Impendence 50Ω PolarizationType line Gain 1.38dBi WorkingTemp-30°C~65°C StorageTemp-30°C~65°C 2.ProductPicture Unit:mmscale:1:1

Report No.: E202208182745-4 Page 1 of 2 APPENDIX A. PHOTOGRAPH OF THE TEST CONNECTION DIAGRAM Radiated Spurious Emission Below 1GHz 1GHz to 18GHz Report No.: E202208182745-4 Page 2 of 2 18GHz to 26.5GHz Conduction Emission ----------- End of Report -----------
