2AZP4-S9Smart Watch

Downloading the App Scan the following QR code, download and install the App. Charging and ActiveCharging the device to active before the first time using;To charge your device, plug the charging cable into the adapter or USB port on your computer. Smart Watch Features Use the Touch Screen Pairing The MAC address on the “Setting”-”About” page could helpyou identify your device on the scanning list. Scan QR Code and Download Open the App and set up your profile Choose your device on the scanning list Finish Smart Watch Features Smart Watch Features Smart Watch Features Smart Watch Features Smart Watch Features Smart Watch Features Getting to Know Your Device General Info & Specifications SportsSmart Watch automatically tracks Steps taken on the screen. NOTE: Your movement stats reset to zero at midnight. SleepIf you keep wearing Smart Watch inyour sleep , it can provide the hours slept and quality of sleep stats on both the screen and the APP.NOTE: Sleep stats reset to zero at 8:00 pm. Training Blood Pressure TestTap on the blood pressure pageto start measuring your blood pressure.On the blood pressure page, It can show the blood pressure measured data of the last times.SpO2 TestTap the SpO2 page to start measuring your SpO2.On the SpO2 page, It can show the SpO2 measured data of the lasttimes. WeatherIt could show the weather info of current and tomorrow on the weather page.Weather info is synced after con-necting with the APP, it will not be updated after a long disconneted.Messages ReminderThe device can sync incoming noti-fications from Twitter, Facebook, Whatsapp, Instagram etc.Recently 5 messages can be stored. Note: You can switch of/off the incoming notification in the APP. Remote ShutterAfter connecting the device,youcan remote contral the camera on your phone. Other FeaturesOther features include stopwatch,alarm, timer, brightness,mute on/off,theater mode,factory reset, power offand about.Stop WatchTap the start button on stopwatch page to start timing, and tap the stop button to stop timing. 䩛梠庪厩㕃 1.Using in Wet ConditionsYour device is water-resistant, which means it is rain-proof and splash-proof and can stand up to even the sweatiest workout.NOTE: Do not swim with your Smart Bracelet. We also don'trecommend showering with your wristband; though the water won't hurt the device, wearing it 24/7 does not give your skina chance to breathe. Whenever you get your bracelet wet, dryit thoroughly before putting it back on.2.Using Quick ViewWith Quick View you can check the time or the message form your phone on your Smart Bracelet without taping. Just turn your wrist towards you and the time screen will appear for afew seconds. 1.Environmental Conditions2SHUDWLQJWHPSHUDWXUHૢWRૢ ૟WR૟ 1RQRSHUDWLQJWHPSHUDWXUHૢWRૢ ૟WR૟ 2.SizeFits a wrist between 5.5 and 7.7 inches in circumference.3.Disposal and RecyclingPlease kindly be aware that it is the consumer’s responsibility to properly dispose and recycle Smart Bracelet and accompanying components. Do not dispose of Smart Bracelet with common household waste, the Smart Bracelet unit is considered electronic waste and should be disposed of at your local electronic equipment collection facility.For more information, please contact your local electronic equipment waste management authority or the retailer whereyou bought the product. Player Shutter The device will turn off the vibrationand trun down the brightness whenthe theater mode is truned on.Note: You can trun on/off the theatermode in the control center.Theater ModeSet up the alarm on the APP, the device will vibrate to remind on time.Silent Alarms Smart Watch Features Remind to MoveThe device will vibrate to remind you to make a relax after 1 hour sittiing.Note: You can switch on/off the feature in the APP. Remind to DrinkThe smart watch will remind you“Time to Drink Some Water” at theplanned drinking time.Note: You can set the feature intht APP. Heart Rate TestThe Smart Watch could record yourheart rate all day.You also could tap on the page tostart measuring heart rate. Tap the training icon on the menuto start a new training measure recording, there are 8 sport modes to be chosen.The last training recording will be shown on the training page. Swipe Up Swipe Down Swipe Up Swipe Down Swipe Right Swipe Left Swipe Right Feature pages Menue Control Center Messages After connecting the device,youcan remote contral the music playeron your phone. 갉⛙䱽ⵖ 䩛邍㹐䨪畮♴鲿䪊䲽♴倰✳絶瀦♴鲿䎇㸝鄳䩛邍㹐䨪畮կ 䩛邍⯎歏♸慨崞껷妃⢪欽䩛邍⛓⵸꨽銳⯎歏慨崞⢪欽ꂁ㢊涸煂エ⯎歏㐼エ꣡ⵌ䩛邍胜꬗涸ꆄ㾩鍘挿 ⯎歏㐼 〥♧畮䱹Ⰶ64#⯎歏㣢䧴罏歏腰64#䱹〡示〳կ 䩛邍⸆腊皍➝ 鵶䱹䩛邍㖈䩛邍霃縨蝲支ˋⰢ✵歲꬗ 㼜儑爙䩛邍."$㖑㖧 〳⟄鸑鵂 霃㢊⴩邍⚥涸."$㖑㖧勻烁㹁⡹涸霃㢊䩛邍絓㹁䧭⸆た ➚た嫦妃䩧䒓㹐䨪畮 䩛邍⠔荈⸓♸䩛劼鵶 䱹 㖈㹐䨪畮侨䰘곜꬗♴䬘〳⟄ず姿侨䰘կ 䪊瀦♴鲿䩛劼㹐䨪畮 䩧䒓䩛劼㹐䨪畮霃縨⚡➃⥌䜂 ⴗ䰃荛 չ霃㢊պ 곜꬗ 挿ⴁ չ絓㹁霃㢊պ 㖈䪊䲽ⵌ涸霃㢊⴩邍挿ⴁ⡹涸霃㢊 絓㹁㸤䧭 䩛邍⸆腊皍➝ 過角侨⧩⚹➊⛎騈過角雦剣⨊䊵 䩛邍⸆腊皍➝ 䩛邍ㄤ過角雦崵ꆀ侨⧩ⴀ梡涸⨊䊵僽歋㢴猫㔔稇Ɀ㹁涸 過角 雦崵ꆀ鿈⡙僽㖈肨⸓腡 䩛邍崵ꆀ鿈⡙僽㖈䗎⸓腡涸⚙⚡⚺銳 ⴔ佅 姻䌢䞔ⲃ♴⚺⸓腡過角崵ꆀ⧩ㄤ䗎⸓腡過角崵ꆀ⧩⠔湱 䊵♲ⵌ㔋宀 㥵卓⡹⢪欽䩛邍ㄤ過角雦ず傞鵳遤崵ꆀ 歋✵⸓ 腡ꅽ崨⸓涸僽猌䗱倰ぢ涸過巊 過角雦崵ꆀ傞絓䌄⢪⡹涸聳姻 ⚥⟄♴鿈⡙㢅✵「角朐䙖 兽傞過巊偽岁곡歧涸ぢ♴꬗涸⸓腡 ⴔ佅崨⸓ 過盗稒䓎䠭㟞⸈ 㼜⢪♳♴過角崵ꆀ⧩⨊䊵⠔刿㣐կ 䌢錛꡼곿♸鍒瘷 ⚹➊⛎䩛邍䱹佐♶ⵌ嶊䜂䲀鷐 䌢錛꡼곿♸鍒瘷㸝戶䩛劼霃縨烁雩㖈䩛劼㹐䨪畮䒓゗✫嶊䜂䲀鷐涸䒓Ⱒ
烁雩嶊䜂㖈䩛劼鸑濼吃鿪〳⟄姻䌢儑爙 䩛邍嶊䜂䲀鷐僽鸑 鵂靀》䩛劼鸑濼吃嶊䜂鵳遤䲀鷐 蕯䩛劼鸑濼吃尵剣嶊䜂 䩛 邍㼜偽岁䱹佐䲀鷐կ ꨽銳㖈䩛劼霃縨⚥䪪ⵌ鸑濼霃縨 䒓゗䗎⥌ծ 22ծ 歏霢ծ 瀊⥌ծ 䩛劼㹐䨪畮涸鸑濼䒓Ⱒ 䩧䒓䩛梠㹐䨪畮涸鳇⸔⸆腊霃縨 㖈䩛劼霃縨⚥䪪ⵌ鳇⸔⸆腊 䩧䒓䩛梠㹐䨪畮涸鳇⸔⸆腊霃縨 薜卓䩛劼霃縨烁雩㖈䩛劼㹐䨪畮䒓゗✫嶊䜂䲀鷐涸䒓Ⱒ
烁雩嶊䜂㖈䩛劼鸑濼吃鿪〳⟄姻䌢儑爙 ꨽銳㖈䩛劼霃縨⚥䪪ⵌ鸑濼霃縨 䒓゗䗎⥌ծ 22ծ 歏霢ծ 瀊⥌ծ 䩛劼㹐䨪畮涸鸑濼䒓Ⱒ ⚹➊⛎♶腊⢆䨥䩛邍峤掚宐愩 峤愩宐涸庛䏞嫱鳅넞 ⠔❡欰䖎㢴涸宐襒孞 罜⚂宐襒孞僽孞 湱涸 Ⱖⴔ㶩巾䖈㼭 㺂僒➢䩛邍涸㡲⡤瑟ꥴ幷鵳⿡ 䔲庛䏞 ꣭♴勻た⿶⠔ꅾ倝ⳕ絕䧭巊湱涸宐忹 㺂僒鸣䧭䩛邍ⰻ鿈絁騟 瀊騟 䰀⠟䩛邍歏騟匣 鵳罜䰀㗁䩛邍կ 漖溭䩛邍〳雵䔶䎇儑爙僴㢹涸漖溭䚪傞Ɤ⟄⿺帿漖溭ծ 崯漖溭涸傞Ɤկ 刿㢴霫絈⥌䜂ⴔ區⟄⿺侨䰘雵䔶〳⟄㖈㹐䨪畮⚥叅溏կ 䗱桧䩛邍〳⟄雵䔶䎇儑爙Ⰼ㣔I䗱桧⧩կ挿ⴁ䗱桧歲꬗ 〳崵ꆀ䔲⵸䗱桧⧩կ 刿㢴霫絈⥌䜂ⴔ區⟄⿺侨䰘雵䔶〳⟄㖈㹐䨪畮⚥叅溏կ ꞃ捃猫鵘⸓垷䒭〳⣘鷥䭊 ⺫䭍 饥騟ծ 駵 姿ծ 낏遤ծ 睲椕ծ 駈椕ծ 纷嬁椕ծ 騥絵ծ 康 岷կ刿㢴霫絈⥌䜂ⴔ區⟄⿺侨䰘雵䔶〳⟄㖈㹐䨪畮⚥叅溏կ 䩛邍⸆腊皍➝ 過角挿ⴁ過角歲꬗ 〳崵ꆀ䔲⵸過角⧩կ 刿㢴霫絈⥌䜂ⴔ區⟄⿺侨䰘雵䔶〳⟄㖈㹐䨪畮⚥叅溏կ過孻挿ⴁ過孻歲꬗ 〳崵ꆀ䔲⵸過孻⧩կ 刿㢴霫絈⥌䜂ⴔ區⟄⿺侨䰘雵䔶〳⟄㖈㹐䨪畮⚥叅溏կ 䩛邍⸆腊皍➝ 㣔孞⥌䜂㣔孞곜꬗⠔儑爙䔲⵸涸㣔孞ծ 瑟孞餘 ꆀ⥌䜂 ⟄⿺僈傈涸朐ⲃկ 㣔孞⥌䜂꨽銳鵶䱹㹐䨪畮た䩞〳⟄蜦》侨䰘 㥵卓Ɤ傞ꢂ倗䒓鵶䱹 㣔孞 ⥌䜂㼜偽岁刿倝կ 嶊䜂䲀鷐䩛邍〳⟄䱹佐儑爙䩛劼♳涸鸑濼䲀鷐〳㖈㹐䨪畮⚥霃縨䲀鷐고湡䒓Ⱒկ䩛邍嶊䜂곜꬗〳⟄⪰㶸剒鵛勵嶊䜂雵䔶կ 䩛邍⸆腊皍➝ 湱劼䱽ⵖ鵶䱹䩛劼た 䩛邍〳⟄⡲⚹䩛劼湱劼 黔䱽㐼կ㖈䩛劼♳䩧䒓湱劼た 㖈䩛邍湱劼䱽 ⵖ곜꬗挿ⴁ示〳鍘〄䩛劼湱劼䘯꡶կ鵶䱹䩛劼た 䩛邍〳⟄䱽ⵖ䩛劼갉⛙ 乄佞㐼կ 䩛邍⸆腊皍➝ Ⱖ➭⸆腊 䩛邍涸Ⱖ➭⸆腊⚥⺫ゎ猲邍ծ ꢇꛦծ 雦 傞㐼ծ ❭䏞靈蒜ծ 䮷⸓䒓Ⱒծ 䕧ꤎ垷䒭ծ 䛪㢕ⴀ…

Text truncated - open the document above for the full version.

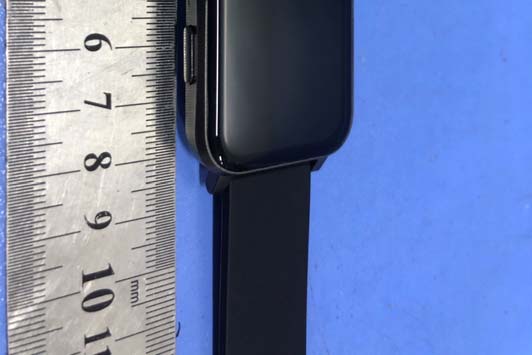

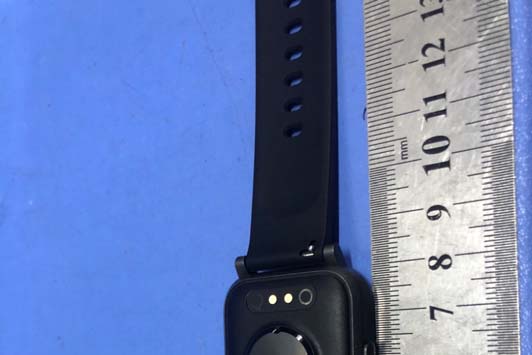

FCC ID:2AZP4-S9 TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT FCC ID:2AZP4-S9 TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT

FCC ID:2AZP4-S9 TB-RF-074-1.0 Appendix IFCC ID Label Size for the label: 10mm X 10mm FCCID:2AZP4-S9 Model:S9 FCC ID:2AZP4-S9 TB-RF-074-1.0 Appendix II ID Label Location ID LOCATION

FCC ID:2AZP4-S9 TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 5 Appearance of EUT Photo 6 Appearance of PCB FCC ID:2AZP4-S9 TB-RF-074-1.0 Photo 7 Appearance of PCB Photo 8 Appearance of PCB Antenna FCC ID:2AZP4-S9 TB-RF-074-1.0 Photo 9 Appearance of PCB

version01 Shenzhen Wellstec Communications Co., Ltd Declaration concerning Antenna Specification It is hereby declared that the product Model No.: S9 FCC ID: 2AZP4-S9 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Wire antenna type(s) described below: Model No. of antenna: N/A Type of antenna: Wire Antenna Gain of the antenna: 2 dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Shenzhen Wellstec Communications Co., Ltd Address: 608,6/F, Building A, UNIS Cyber Port, Langshan Road 13, Hi-Tech park, Nanshan District, Shenzhen, China. City: Shenzhen ZIP / Postal code: Country: China Place: Eli fan / Manager Date: 2021-05-25 Signature:

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE180290 Page: 1 of 3 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2AZP4-S9 1. Client Information Applicant : Shenzhen Wellstec Communications Co., Ltd Address : 608,6/F, Building A, UNIS Cyber Port, Langshan Road 13, Hi-Tech park, Nanshan District, Shenzhen, China. Manufacturer : Shenzhen Wellstec Communications Co., Ltd Address : 608,6/F, Building A, UNIS Cyber Port, Langshan Road 13, Hi-Tech park, Nanshan District, Shenzhen, China. 2. General Description of EUT EUT Name : Smart Watch Model(s) No. : S9 Model Different : ---- Sample ID : TBBJ-20210401-02-1# & TBBJ-20210401-02-2# Product Description : Operation Frequency: Bluetooth 5.0(BLE): 2402MHz~2480MHz Number of Channel: Bluetooth 5.0(BLE): 40 channels RF Output Power: 5.031 dBm (Max) Antenna Gain: 2 dBi Wire Antenna Modulation Type: GFSK Bit Rate of Transmitter: 1Mbps Power Rating : Input: DC 5V DC 3.7V by 200mAh Li-ion battery Software Version : N/A Hardware Version : N/A Connecting I/O Port(S) : : Please refer to the User's Manual Remark: The antenna gain provided by the applicant, the adapter and verified for the RF conduction test and adapter provided by TOBY test lab. Note: More test information about the EUT please refer the RF Test Report. Report No.: TB-MPE180290 Page: 2 of 3 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v06. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR Report No.: TB-MPE180290 Page: 3 of 3 TB-RF-074-1.0 2. Calculation: Test separation: 5mm BLE Mode (1Mbps) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 4.348 4±1 5 3.162 0.980 3.0 2.442 5.031 5±1 6 3.981 1.244 3.0 2.480 4.725 4±1 5 3.162 0.996 3.0 Conclusion: The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06. -----END OF REPORT-----

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC180289 Page: 1 of 42 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2AZP4-S9 Original Grant Report No. : TB-FCC180289 Applicant : Shenzhen Wellstec Communications Co., Ltd Equipment Under Test (EUT) EUT Name : Smart Watch Model No. : S9 Series Model No. : N/A Brand Name : APOLLOFIT Sample ID : TBBJ-20210401-02-1# & TBBJ-20210401-02-2# Receipt Date : 2021-05-10 Test Date : 2021-05-10 to 2021-05-28 Issue Date : 2021-05-28 Standards : FCC Part 15, Subpart C 15.247 Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, Test/Witness Engineer : Seven Wu Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC180289 Page: 2 of 42 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 7 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 9 2. TEST SUMMARY ..................................................................................................................... 10 3. TEST SOFTWARE ................................................................................................................... 10 4. TEST EQUIPMENT .................................................................................................................. 11 5. CONDUCTED EMISSION TEST ........................................................................................... 12 5.1 Test Standard and Limit .................................................................................................... 12 5.2 Test Setup ........................................................................................................................... 12 5.3 Test Procedure ................................................................................................................... 13 5.4 Deviation From Test Standard ......................................................................................... 13 5.5 EUT Operating Mode ........................................................................................................ 13 5.6 Test Data ............................................................................................................................. 13 6. RADIATED EMISSION TEST ................................................................................................ 14 6.1 Test Standard and Limit .................................................................................................... 14 6.2 Test Setup ........................................................................................................................... 15 6.3 Test Procedure ................................................................................................................... 16 6.4 Deviation From Test Standard ......................................................................................... 17 6.5 EUT Operating Condition ................................................................................................. 17 6.6 Test Data ............................................................................................................................. 17 7. RESTRICTED BANDS REQUIREMENT ............................................................................. 18 7.1 Test Standard and Limit .................................................................................................... 18 7.2 Test Setup ........................................................................................................................... 18 7.3 Test Procedure ................................................................................................................... 18 7.4 Deviation From Test Standard ......................................................................................... 19 7.5 EUT Operating Condition ................................................................................................. 19 7.6 Test Data ............................................................................................................................. 19 8. BANDWIDTH TEST ................................................................................................................. 20 8.1 Test Standard and Limit .................................................................................................... 20 8.2 Test Setup ......................................................................................................................…

Text truncated - open the document above for the full version.

FCC ID:2AZP4-S9 TB-RF-074-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) FCC ID:2AZP4-S9 TB-RF-074-1.0 Photo of Setup for Conducted Emission -----END OF REPORT-----
