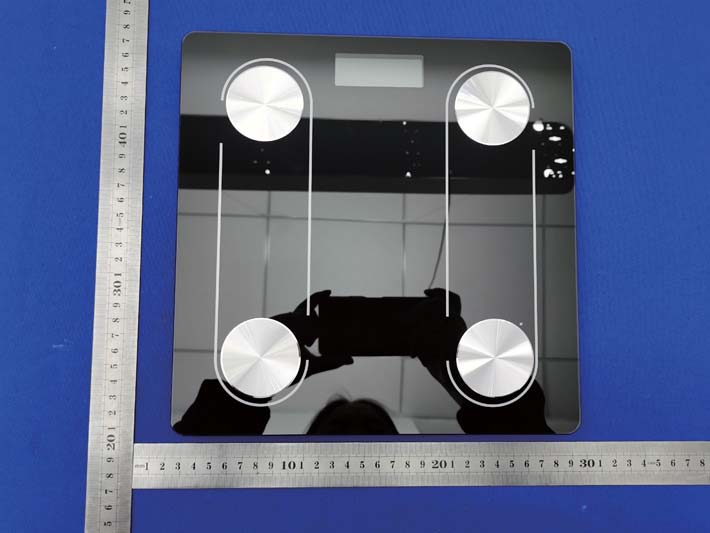

2AZSG-NV-06797WEIGHT SCALE-WITH APP AND WIRELESS CONNECTION

本资料为芯海科技专有财产，非经许可，不得复制、翻印或转变其他形式使用。 This document is exclusive property of CHIPSEA and shall not be reproduced or copied or transformed to any other format without prior permission of CHIPSEA 聚点滴之芯 ． 成浩瀚之海 1/8 文件编号： CST92P23B用户手册 REV 1.0 本资料为芯海科技专有财产，非经许可，不得复制、翻印或转变其他形式使用。 This document is exclusive property of CHIPSEA and shall not be reproduced or copied or transformed to any other format without prior permission of CHIPSEA 聚点滴之芯 ． 成浩瀚之海 2/8 文件编号： 版本历史 历史版本 修改内容 版本日期 REV1.0 初始版本 2020/05/25 本资料为芯海科技专有财产，非经许可，不得复制、翻印或转变其他形式使用。 This document is exclusive property of CHIPSEA and shall not be reproduced or copied or transformed to any other format without prior permission of CHIPSEA 聚点滴之芯 ． 成浩瀚之海 3/8 文件编号： 目 录 版本历史 ................................................................................................................................................................... 2 目 录 ........................................................................................................................................................................ 3 1 产品概述 ............................................................................................................................................................... 4 1.1 功能描述 ....................................................................................................................................................... 4 1.2 主要特性 ....................................................................................................................................................... 4 1.3 PIN配置 ........................................................................................................................................................ 5 2 电气特性 ............................................................................................................................................................... 6 2.1 极限值 ........................................................................................................................................................... 6 2.2 直流特性 ....................................................................................................................................................... 6 2.3 功耗特性 ....................................................................................................................................................... 6 2.4 RF发送特性.................................................................................................................................................. 6 3 封装图 ................................................................................................................................................................... 7 4 典型应用原理图 ................................................................................................................................................... 8 本资料为芯海科技专有财产，非经许可，不得复制、翻印或转变其他形式使用。 This document is exclusive property of CHIPSEA and shall not be reproduced or copied or transformed to any other format without prior permission of CHIPSEA 聚点滴之芯 ． 成浩瀚之海 4/8 文件编号： 1 产品概述 1.1 功能描述 CST92P23B是一款低功耗、低成本、高集成度的RF无线发射芯片，片上集成发射机、GFSK调制解 调器、RF基带等。该芯片采用SOP8封装，可实现单向广播信号发射。芯片外围电路简单，搭配低成本 MCU和少量外围被动器件，即可实现RF信号广播发送。 1.2 主要特性 2.4G收发器  单端RFIO  GFSK调制解调  支持1Mbps、250kbps数据传输速率  发射功率-30~12dBm 主机接口  3线SPI通信，最快传输速率达8Mbps 振荡器  支持16M XTAL，片内集成可调负载电容 CMOS技术  工作电压范围 — VIN 1.9V~3.6V  工作温度范围 — -40~85°C 功耗  发射状态：17mA@0dBm output power  PowerDown状态：1.5uA 封装  SOP8 应用领域  智能广播电子秤  遥控器 本资料为芯海科技专有财产，非经许可，不得复制、翻印或转变其他形式使用。 This document is exclusive property of CHIPSEA and shall not be reproduced or copied or transformed to any other format without prior permission of CHIPSEA 聚点滴之芯 ． 成浩瀚之海 5/8 文件编号： 1.3 PIN配置 图 1 CST92P23B-SOP8 pin脚示意图 表 1管脚说明 管脚名称 输入/输出 管脚序号 描述 SDA I/O 1 SPI从机数据输入、输出 VDD P 2 电源输入，1.9~3.6V XTAL_O O 3 16MHz晶振输出 XTAL_I I 4 16MHz晶振输入 RF RF Port 5 ANT port GND P 6 GND CSN I 7 SPI片选信号 SCK I 8 SPI时钟信号 本资料为芯海科技专有财产，非经许可，不得复制、翻印或转变其他形式使用。 This document is exclusive property of CHIPSEA and shall not be reproduced or copied or transformed to any other format without prior permission of CHIPSEA 聚点滴之芯 ． 成浩瀚之海 6/8 文件编号： 2 电气特性 2.1 极限值 表 2 CST92P23B极限值 参数 范围 单位 电源VDD -0.3~3.6 V 引脚输入电压 -0.3~3.6 V 工作温度 -40~+85 ºC 存贮温度 -40~+125 ºC 焊接温度，时间 220ºC，10s 2.2 直流特性 表 3 直流特性 符号 参数 最小值 典型值 最大值 单位 VDD 工作电源 1.9 3.3 3.6 V VIH 数字输入高电平 0.7VDD - 3.6 V VIL 数字输入低电平 0 - 0.3VDD V VOH 数字输出高电平 VIN-0.3 - VIN+0.3 V VOL 数字输出低电平 0 - 0.3 V 2.3 功耗特性 表 4 功耗特性 参数 最小值 典型值 最大值 单位 PowerDown状态（通过SPI命令唤醒） 1.5 uA 发射状态（0dBm output power） 17 mA 2.4 RF发送特性 表 5 RF发送特性 符号 参数 最小值 典型值 最大值 单位 P TX RF输出功率 -30 0 12 dBm Freq 频率范围 2400 2482 MHz 本资料为芯海科技专有财产，非经许可，不得复制、翻印或转变其他形式使用。 This document is exclusive property of CHIPSEA and shall not be reproduced or copied or transformed to any other format without prior permission of CHIPSEA 聚点滴之芯 ． 成浩瀚之海 7/8 文件编号： 3 封装图 图 2 SOP8封装图 本资料为芯海科技专有财产，非经许可，不得复制、翻印或转变其他形式使用。 This document is exclusive property of CHIPSEA and shall not be reproduced or copied or transformed to any other format without prior permission of CHIPSEA 聚点滴之芯 ． 成浩瀚之海 8/8 文件编号： 4 典型应用原理图 图 3 CST92P23B-SOP8典型应用原理图
