2AZTZ-RL32K1A3GAROLLING

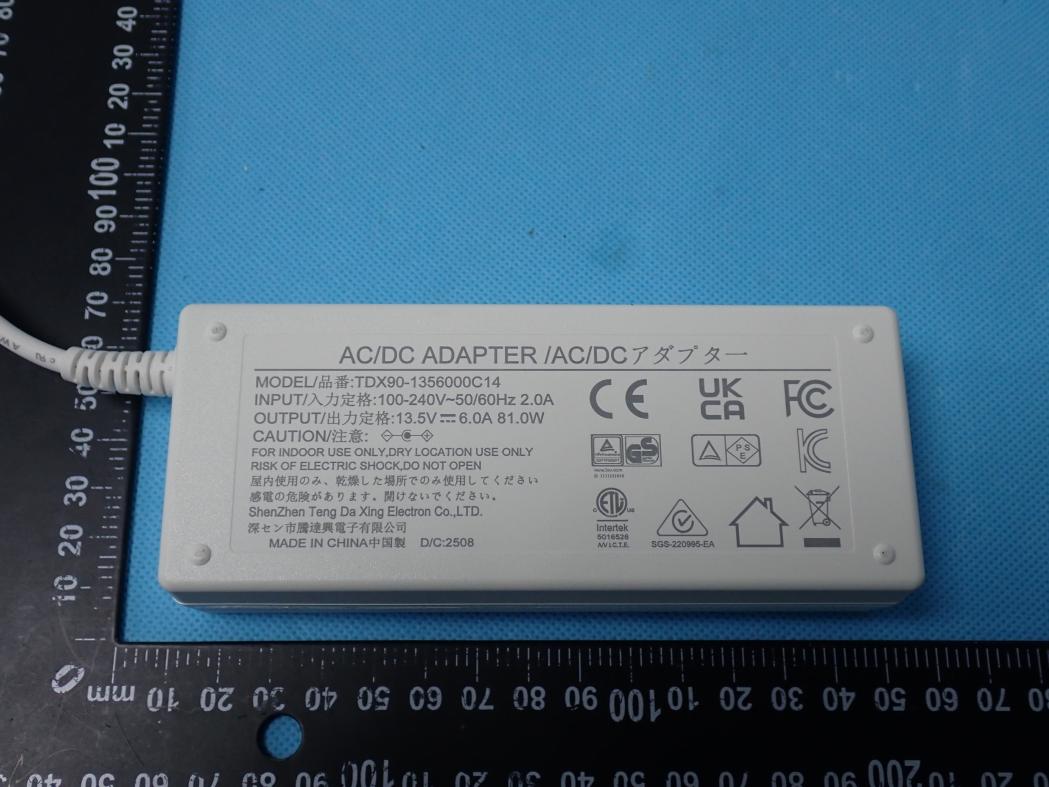

Report No.: TZ0210250804PH02 Page 1 of 4 Exterior Photographs of EUT Figure 1 Figure 2 Report No.: TZ0210250804PH02 Page 2 of 4 Figure 3 Figure 4 Report No.: TZ0210250804PH02 Page 3 of 4 Figure 5 Figure 6 Report No.: TZ0210250804PH02 Page 4 of 4 Figure 7 Figure 8

The size of the label is 30mm*25mm with White forecolor. The size of the logo is 5mm*5mm. Label Location FCC ID: 2AZTZ-RL32K1A3GA

Report No.: TZ0210250804PH03 Page 1 of 10 Interior Photographs of EUT Figure 1 Figure 2 Report No.: TZ0210250804PH03 Page 2 of 10 Figure 3 Figure 4 Report No.: TZ0210250804PH03 Page 3 of 10 Figure 5 Figure 6 Report No.: TZ0210250804PH03 Page 4 of 10 Figure 7 Figure 8 Report No.: TZ0210250804PH03 Page 5 of 10 Figure 9 Figure 10 Report No.: TZ0210250804PH03 Page 6 of 10 Figure 11 Figure 12 Report No.: TZ0210250804PH03 Page 7 of 10 Figure 13 Figure 14 Report No.: TZ0210250804PH03 Page 8 of 10 Figure 15 Figure 16 Report No.: TZ0210250804PH03 Page 9 of 10 Figure 17 Figure 18 Report No.: TZ0210250804PH03 Page 10 of 10 Figure 19 Figure 20 WiFi/Bluetooth Antenna

SPECIFICATION Spec No : HJX.11 Part No. : HJX.11.A153 Product Name : 2.4/4.9/5.8GHz 5dBi Screw mount Dipole Antenna Description : IPEX Connector Dimensions: 95*13 mm ROHS Compliant REVISION STATUS Version Date Page Revision Description Prepared Approved 1 2018-11-11 All New product YX Product Centre SHAWN Shenzhen Ouchao Technology Co., Ltd 303, Building 34, Longzhu Garden, Xixiang Street, Bao’an District, Shenzhen, China 1.0 Introduction The YX.11 2.4/5.8 GHz dipole IPEX antenna is ideal for 2.4/4.9/5 GHz wireless applications such as Bluetooth and Wireless LAN. At 95mm in length om ni-directional 4.3dBi peak gain across all bands ensures constant reception and transmission. 2.0 Electrical Properties 1.1 Frequency 2400-2483/ 4.9 GHz ~ 5.8 GHz 1.2 Gain (peak) 2.74dBi 1.3 V.S.W.R 2.0MAX 1.4 Return Loss -10dB Maximum 1.5 Radiation Omni-directional 1.6 Polarization Linear Vertical 1.7 Power Handling 5W 3.0 Mechanical Properties 2.1 Cable RG-1.13 Coaxial Cable 2.2 Antenna Cover 2.3 Antenna Base 2.4 Operating Temperature -20°C ~ +65°C 2.5 Storage Temperature -30°C ~ +75°C 2.6 Color Black 2.7 Connector IPEX 4.0 Outline Drawings and Structure 5.0 Measurements VSWR 6.0 天线的增益效率： Marker （MHz） 2400 2450 2500 5150 5350 5500 5700 5850 Gain（dBi） 1.611.652.69 2.74 2.501.95 1.511.73 Efficiency （%） 52.26 51.84 52.52 57.38 58.78 55.83 50.47 50.20 7.0 天线的辐射方向图： 2450 MHz： 5350 MHz： 5700 MHz：

Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 1 of 23 Appendix Test Data for BLE (Conducted Measurement) Product Name: ROLLING Trade Mark: SYLVOX, ZINVAX, MISTAAD, GOTHOT, VUESTATION, KONTECH Test Model: RL32K1A3GA FCC ID: 2AZTZ-RL32K1A3GA Environmental Conditions Temperature: 23.5°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Max Zhang NOTE N/A Appendix A: DTS Bandwidth Test Result Test Mode Antenna Frequency [MHz] DTS BW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict BLE_1M Ant1 2402 0.652 2401.652 2402.304 0.5 PASS BLE_1M Ant1 2440 0.664 2439.640 2440.304 0.5 PASS BLE_1M Ant1 2480 0.648 2479.656 2480.304 0.5 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 2 of 23 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 3 of 23 BLE_1M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 4 of 23 Appendix B: Occupied Channel Bandwidth Test Result Test Mode Antenna Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict BLE_1M Ant1 2402 1.0380 2401.4652 2402.5032 --- --- BLE_1M Ant1 2440 1.0353 2439.4657 2440.5010 --- --- BLE_1M Ant1 2480 1.0391 2479.4663 2480.5054 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 5 of 23 Test Graphs BLE_1M-Ant1-2402 BLE_1M-Ant1-2440 Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 6 of 23 BLE_1M-Ant1-2480 Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 7 of 23 Appendix C: Maximum peak conducted output power Test Result Peak Test Mode Antenna Frequency [MHz] Conducted Peak Power [dBm] Conducted Limit [dBm] Verdict BLE_1M Ant1 2402 6.05 ≤30 PASS BLE_1M Ant1 2440 7.44 ≤30 PASS BLE_1M Ant1 2480 8.55 ≤30 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 8 of 23 Test Graphs Peak BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 9 of 23 BLE_1M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 10 of 23 Appendix D: Maximum peak power spectral density Test Result Test Mode Antenna Frequency [MHz] Result [dBm/3kHz] Limit [dBm/3kHz] Verdict BLE_1M Ant1 2402 -8.94 ≤8.00 PASS BLE_1M Ant1 2440 -7.52 ≤8.00 PASS BLE_1M Ant1 2480 -6.35 ≤8.00 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 11 of 23 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 12 of 23 BLE_1M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 13 of 23 Appendix E: Band edge measurements Test Result Test Mode Antenna Ch. Name Frequency [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict BLE_1M Ant1 Low 2402 5.55 -47.36 ≤-14.45 PASS BLE_1M Ant1 High 2480 8.53 -47.54 ≤-11.47 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 14 of 23 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 15 of 23 Appendix F: Conducted Spurious Emission Test Result Test Mode Antenna Frequency [MHz] Freq. Range [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict BLE_1M Ant1 2402 0~Reference 5.81 5.81 --- PASS BLE_1M Ant1 2402 30~1000 5.81 -51.66 ≤-14.19 PASS BLE_1M Ant1 2402 1000~26500 5.81 -27.11 ≤-14.19 PASS BLE_1M Ant1 2440 0~Reference 7.19 7.19 --- PASS BLE_1M Ant1 2440 30~1000 7.19 -52.15 ≤-12.81 PASS BLE_1M Ant1 2440 1000~26500 7.19 -27.13 ≤-12.81 PASS BLE_1M Ant1 2480 0~Reference 7.59 7.59 --- PASS BLE_1M Ant1 2480 30~1000 7.59 -52.17 ≤-12.41 PASS BLE_1M Ant1 2480 1000~26500 7.59 -26.55 ≤-12.41 PASS Note: offset(dB) in Reference test plots = cable loss(dB) + attenuator factor(dB); For spurious emissions plots from 30MHz to 26.5GHz, the cable loss and attenuator factors have been set in the 'Input Correction' of the Spectrum Analyzer during the test. Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 16 of 23 Test Graphs BLE_1M-Ant1-2402-0~Reference-PASS BLE_1M-Ant1-2402-30~1000-PASS Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 17 of 23 BLE_1M-Ant1-2402-1000~26500-PASS BLE_1M-Ant1-2440-0~Reference-PASS Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 18 of 23 BLE_1M-Ant1-2440-30~1000-PASS BLE_1M-Ant1-2440-1000~26500-PASS Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 19 of 23 BLE_1M-Ant1-2480-0~Reference-PASS BLE_1M-Ant1-2480-30~1000-PASS Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 20 of 23 BLE_1M-Ant1-2480-1000~26500-PASS Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 21 of 23 Appendix G: Duty Cycle Test Result Test Mode Antenna Frequency [MHz] ON Time [ms] Period [ms] Duty Cycle [%] Duty Cycle Factor [dB] BLE_1M Ant1 2402 0.39 0.63 61.90 2.08 BLE_1M Ant1 2440 0.40 0.63 63.49 1.97 BLE_1M Ant1 2480 0.39 0.62 62.90 2.01 Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 22 of 23 Test Graphs NTNV-BLE_1M-Ant1-2402 NTNV-BLE_1M-Ant1-2440 Appendix Test Data of the Report No.: TZ0210250804FRF02 Page 23 of 23 NTNV-BLE_1M-Ant1-2480

Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 1 of 53 Appendix Test Data for WLAN(2. 4G) (Conducted Measurement) Product Name: ROLLING Trade Mark: SYLVOX, ZINVAX, MISTAAD, GOTHOT, VUESTATION, KONTECH Test Model: RL32K1A3GA FCC ID: 2AZTZ-RL32K1A3GA Environmental Conditions Temperature: 23.5°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Max Zhang NOTE N/A Appendix A: DTS Bandwidth Test Result Test Mode Antenna Frequency [MHz] DTS BW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict 11B Ant1 2412 8.120 2408.440 2416.560 0.5 PASS 11B Ant1 2437 8.640 2432.440 2441.080 0.5 PASS 11B Ant1 2462 8.600 2458.000 2466.600 0.5 PASS 11G Ant1 2412 15.600 2404.640 2420.240 0.5 PASS 11G Ant1 2437 16.160 2428.800 2444.960 0.5 PASS 11G Ant1 2462 15.480 2454.680 2470.160 0.5 PASS 11N20SISO Ant1 2412 14.000 2406.800 2420.800 0.5 PASS 11N20SISO Ant1 2437 17.040 2428.320 2445.360 0.5 PASS 11N20SISO Ant1 2462 16.240 2454.480 2470.720 0.5 PASS 11N40SISO Ant1 2422 32.160 2405.680 2437.840 0.5 PASS 11N40SISO Ant1 2437 36.240 2418.760 2455.000 0.5 PASS 11N40SISO Ant1 2452 36.000 2434.160 2470.160 0.5 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 2 of 53 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2437-PASS Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 3 of 53 11B-Ant1-2462-PASS 11G-Ant1-2412-PASS Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 4 of 53 11G-Ant1-2437-PASS 11G-Ant1-2462-PASS Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 5 of 53 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2437-PASS Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 6 of 53 11N20SISO-Ant1-2462-PASS 11N40SISO-Ant1-2422-PASS Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 7 of 53 11N40SISO-Ant1-2437-PASS 11N40SISO-Ant1-2452-PASS Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 8 of 53 Appendix B: Occupied Channel Bandwidth Test Result Test Mode Antenna Channel Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict 11B Ant1 2412 13.708 2405.5571 2419.2651 --- --- 11B Ant1 2437 14.432 2429.5933 2444.0253 --- --- 11B Ant1 2462 13.662 2455.4571 2469.1191 --- --- 11G Ant1 2412 16.756 2403.8503 2420.6063 --- --- 11G Ant1 2437 17.086 2428.3450 2445.4310 --- --- 11G Ant1 2462 16.687 2453.7894 2470.4764 --- --- 11N20SISO Ant1 2412 17.855 2403.2870 2421.1420 --- --- 11N20SISO Ant1 2437 18.245 2427.7801 2446.0251 --- --- 11N20SISO Ant1 2462 17.863 2453.2164 2471.0794 --- --- 11N40SISO Ant1 2422 35.835 2404.1501 2439.9851 --- --- 11N40SISO Ant1 2437 36.893 2418.4052 2455.2982 --- --- 11N40SISO Ant1 2452 36.909 2433.7583 2470.6673 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 9 of 53 Test Graphs 11B-Ant1-2412 11B-Ant1-2437 Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 10 of 53 11B-Ant1-2462 11G-Ant1-2412 Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 11 of 53 11G-Ant1-2437 11G-Ant1-2462 Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 12 of 53 11N20SISO-Ant1-2412 11N20SISO-Ant1-2437 Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 13 of 53 11N20SISO-Ant1-2462 11N40SISO-Ant1-2422 Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 14 of 53 11N40SISO-Ant1-2437 11N40SISO-Ant1-2452 Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 15 of 53 Appendix C: Maximum Average conducted output power Test Result Test Mode Antenna Frequency [MHz] Conducted Power [dBm] Conducted Limit [dBm] Verdict 11B Ant1 2412 8.92 ≤30.00 PASS 11B Ant1 2437 6.51 ≤30.00 PASS 11B Ant1 2462 8.86 ≤30.00 PASS 11G Ant1 2412 8.55 ≤30.00 PASS 11G Ant1 2437 6.09 ≤30.00 PASS 11G Ant1 2462 8.31 ≤30.00 PASS 11N20SISO Ant1 2412 8.36 ≤30.00 PASS 11N20SISO Ant1 2437 6.02 ≤30.00 PASS 11N20SISO Ant1 2462 7.55 ≤30.00 PASS 11N40SISO Ant1 2422 8.08 ≤30.00 PASS 11N40SISO Ant1 2437 6.65 ≤30.00 PASS 11N40SISO Ant1 2452 10.08 ≤30.00 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) + Duty Cycle Factor(dB) Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 16 of 53 Appendix D: Maximum Average power spectral density Test Result Test Mode Antenna Frequency [MHz] Result [dBm/3kHz] Limit [dBm/3kHz] Verdict 11B Ant1 2412 -22.00 ≤8.00 PASS 11B Ant1 2437 -24.71 ≤8.00 PASS 11B Ant1 2462 -22.20 ≤8.00 PASS 11G Ant1 2412 -24.61 ≤8.00 PASS 11G Ant1 2437 -27.66 ≤8.00 PASS 11G Ant1 2462 -24.79 ≤8.00 PASS 11N20SISO Ant1 2412 -25.29 ≤8.00 PASS 11N20SISO Ant1 2437 -27.98 ≤8.00 PASS 11N20SISO Ant1 2462 -25.95 ≤8.00 PASS 11N40SISO Ant1 2422 -27.04 ≤8.00 PASS 11N40SISO Ant1 2437 -28.72 ≤8.00 PASS 11N40SISO Ant1 2452 -20.55 ≤8.00 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) + Duty Cycle Factor(dB) Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 17 of 53 Test Graphs 11B-Ant1-2412-PASS 11B-Ant1-2437-PASS Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 18 of 53 11B-Ant1-2462-PASS 11G-Ant1-2412-PASS Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 19 of 53 11G-Ant1-2437-PASS 11G-Ant1-2462-PASS Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 20 of 53 11N20SISO-Ant1-2412-PASS 11N20SISO-Ant1-2437-PASS Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 21 of 53 11N20SISO-Ant1-2462-PASS 11N40SISO-Ant1-2422-PASS Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 22 of 53 11N40SISO-Ant1-2437-PASS 11N40SISO-Ant1-2452-PASS Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 23 of 53 Appendix E: Band edge measurements Test Result Test Mode Antenna Ch. Name Frequency.[M Hz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 Low 2412 0.15 -48.32 ≤-29.85 PASS 11B Ant1 High 2462 0.76 -47.82 ≤-29.24 PASS 11G Ant1 Low 2412 -0.52 -35.35 ≤-30.52 PASS 11G Ant1 High 2462 -1.08 -48.35 ≤-31.08 PASS 11N20SIS O Ant1 Low 2412 -1.37 -34.6 ≤-31.37 PASS 11N20SIS O Ant1 High 246…

Text truncated - open the document above for the full version.

Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 52 of 53 NTNV-11N20SISO-Ant1-2462 NTNV-11N40SISO-Ant1-2422 Appendix Test Data of the Report No.: TZ0210250804FRF03 Page 53 of 53 NTNV-11N40SISO-Ant1-2437 NTNV-11N40SISO-Ant1-2452

Report No.: TZ0210250804FRF02 Page 1 of 31 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report apply only to the specific sample(s) tested under stated test conditions. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. TEST REPORT Report Number : TZ0210250804FRF02 Product Name : ROLLING Model/Type reference : RL32K1A3GA FCC ID : 2AZTZ-RL32K1A3GA Prepared for : Kontech Electronics Co., Ltd. 2nd Floor No.2 building, Detai Technology Industrial Park, Huarong Road, Longhua district, Shenzhen 518109, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 15C, ANSI C63.10-2020+Cor. 1-2023 Date of Test : 2025-11-28 ~ 2025-12-09 Date of Issue : 2025-12-10 Prepared by : Nancy Li Reviewed by : Allen Lai Approved by : Max Zhang (Authorized Officer) Report No.: TZ0210250804FRF02 Page 2 of 31 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2025-12-10 Valid Initial release Report No.: TZ0210250804FRF02 Page 3 of 31 TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N ........................................................ 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. EUT configuration ................................................................................................................... 5 1.5. Description of Test Facility .................................................................................................... 5 1.6. Statement of the Measurement Uncertainty ......................................................................... 6 1.7. Measurement Uncertainty ...................................................................................................... 6 1.8. Description of Test Modes ..................................................................................................... 6 1.9. Frequency of Channels .......................................................................................................... 6 2. T E S T M E T H O D O L O G Y ............................................................ 7 2.1. EUT Configuration .................................................................................................................. 7 2.2. EUT Exercise ........................................................................................................................... 7 2.3. Test Sample ............................................................................................................................. 7 3. S Y S T E M T E S T C O N F I G U R A T I O N .............................................. 8 3.1. Justification ............................................................................................................................. 8 3.2. EUT Exercise Software ........................................................................................................... 8 3.3. Special Accessories ............................................................................................................... 8 3.4. Block Diagram/Schematics .................................................................................................... 8 3.5. Equipment Modifications ....................................................................................................... 8 3.6. Test Setup ................................................................................................................................ 8 4. S U M M A R Y O F T E S T R E S U L T S ................................................. 9 5. T E S T R E S U L T ..................................................................... 10 5.1. On Time and Duty Cycle ....................................................................................................... 10 5.2. Maximum Peak Conducted Output Power Measurement ................................................. 11 5.3. Power Spectral Density Measurement ................................................................................ 12 5.4. 6 dB Spectrum Bandwidth and Occupied Channel Bandwidth Measurement ............... 13 5.5. Radiated Emissions Measurement ...................................................................................... 14 5.6. Conducted Spurious Emissions and Band Edges Test .................................................... 22 5.7. AC Power line conducted emissions .................................................................................. 23 5.8. Band-edge measurements for radiated emissions ........................................................... 26 5.9. Antenna Requirements ......................................................................................................... 29 6. L I S T O F M E A S U R I N G E Q U I P M E N T .......................................... 30 7. T E S T S E T U P P H O T O G R A P H S O F E U T ...................................... 31 8. E X T E R I O R P H O T O G R A P H S O F E U T ......................................... 31 9. I N T E R I O R P H O T O G R A P H S O F E U T .......................................... 31 Report No.: TZ0210250804FRF02 Page 4 of 31 …

Text truncated - open the document above for the full version.

Report No.: TZ0210250804PH01 Page 1 of 2 Test Setup Photos of the EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz Report No.: TZ0210250804PH01 Page 2 of 2 Conducted Emission DFS test setup
