CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2023-7-13> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AZWI-4311LEQI 4311 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Jolin Zhong/N/A Company: Shenzhen Leqi Network Technology Co., LTD Address: Rooms 103, 501 and 601, Building 5, Fenghe Industrial Park, Nos. 1301-50 Guanguang Road, Longhua District, Shenzhen, Guangdong, China. Phone: 0755-28283350 Fax: 0755-28283350 E-Mail: [email protected]

Shenzhen Leqi Network Technology Co., LTD Rooms 103, 501 and 601, Building 5, Fenghe Industrial Park, Nos. 1301-50 Guanguang Road, Longhua District, Shenzhen, Guangdong, China. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023-7-13 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AZWI-4311LEQI including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Jolin Zhong/N/A Company: Shenzhen Leqi Network Technology Co., LTD Address: Rooms 103, 501 and 601, Building 5, Fenghe Industrial Park, Nos. 1301- 50 Guanguang Road, Longhua District, Shenzhen, Guangdong, China. Phone: 0755-28283350 Fax: 0755-28283350 E-Mail: [email protected]

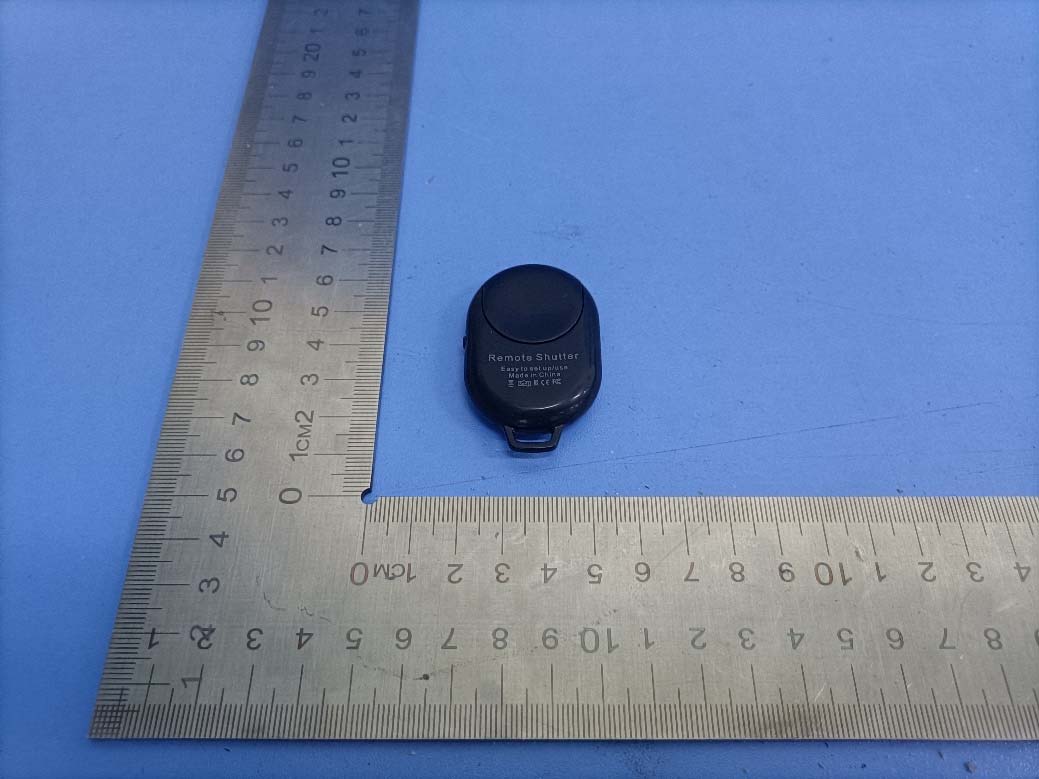

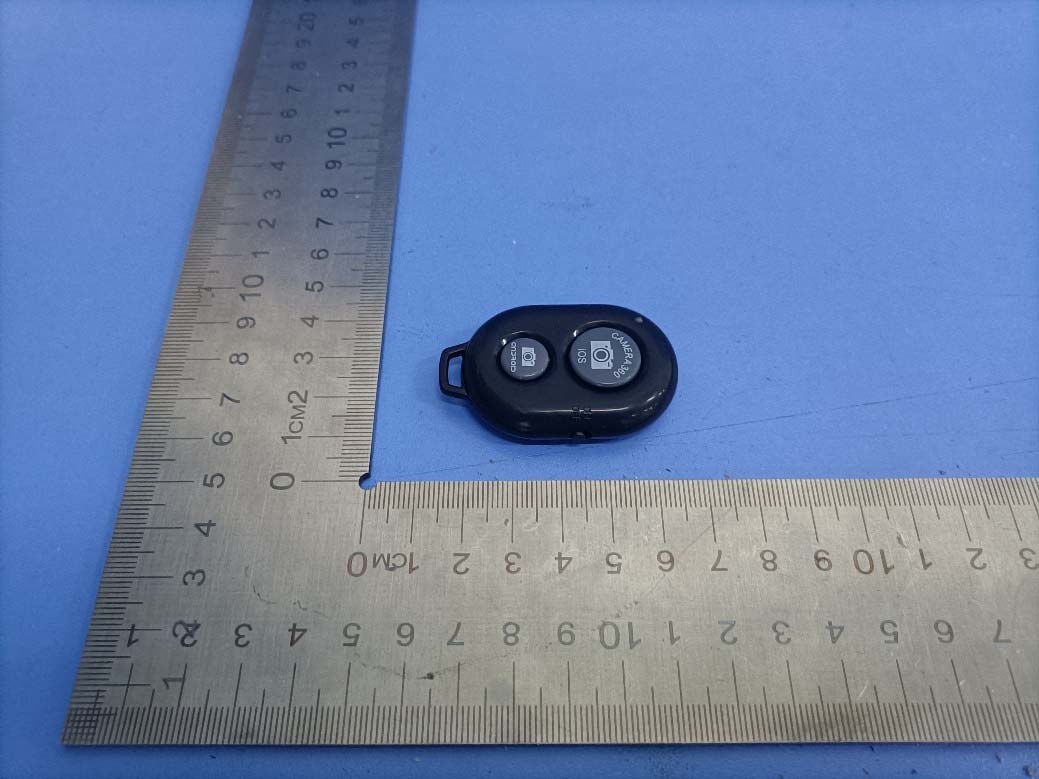

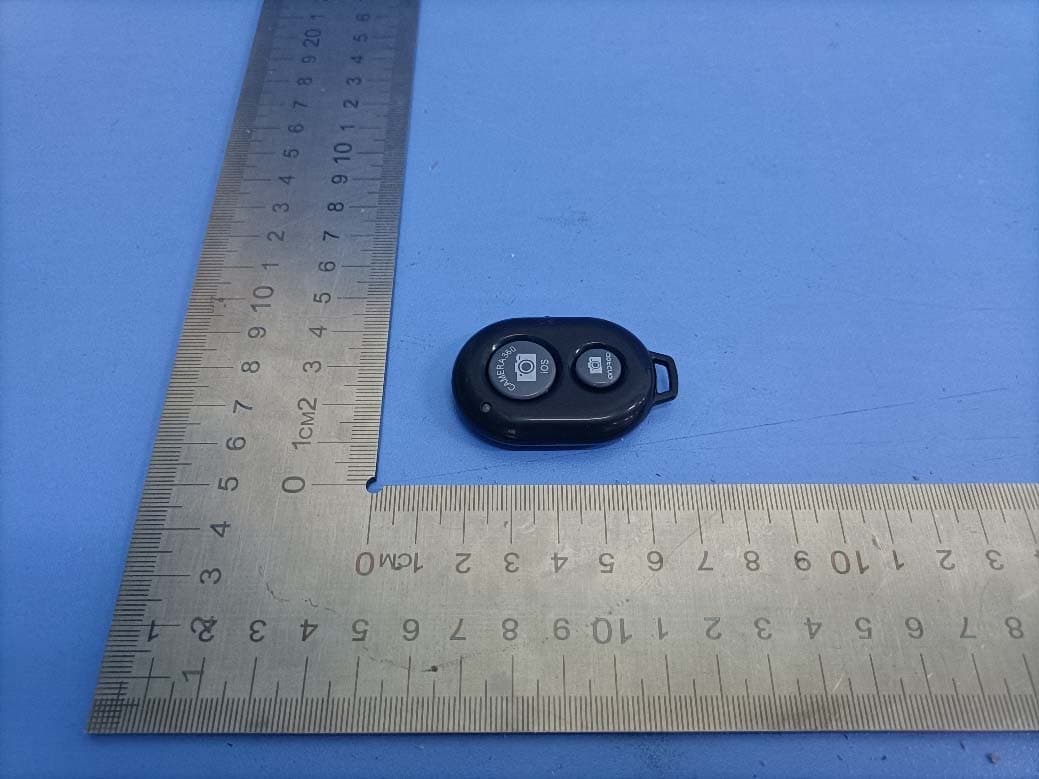

FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT

FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 AppendixI Label FCC ID: 2AZWI-4311LEQI Model: 4311 FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 Appendix II Label Location

FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 5 Internal of EUT Photo 6 Appearance of EUT Antenna FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 Photo 7 Appearance of EUT Photo 8 Appearance of EUT

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202305-0328-8 Page: 1 of 3 TB-RF-074-1.0 1 A/F., Building.6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao’an, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 RF Exposure Evaluation FCC ID: 2AZWI-4311LEQI 1. Client Information Applicant : Shenzhen Leqi Network Technology Co., LTD Address : Rooms 103, 501 and 601, Building 5, Fenghe Industrial Park, Nos. 1301-50 Guanguang Road, Longhua District, Shenzhen, Guangdong, China. Manufacturer : Shenzhen Leqi Network Technology Co., LTD Address : Rooms 103, 501 and 601, Building 5, Fenghe Industrial Park, Nos. 1301-50 Guanguang Road, Longhua District, Shenzhen, Guangdong, China. 2. General Description of EUT EUT Name : Wireless Remote Controller Model(s) No. : 4311 Model Difference : ---- Product Description : Operation Frequency: Bluetooth 5.2(BLE): 2402MHz~2480MHz Number of Channel: Bluetooth 5.2(BLE): 40 channels Antenna Gain: 4.41dBi PCB antenna Modulation Type: GFSK Power Rating : Input: DC CR2032 3V Software Version : V1.0 Hardware Version : V1.0 Remark: The antenna gain provided by the applicant, the adapter and verified for the RF conduction test and adapter provided by TOBY test lab. Note: More test information about the EUT please refer the RF Test Report. Report No.: TBR-C-202305-0328-8 Page: 2 of 3 TB-RF-074-1.0 SAR Test Exclusion Calculations 1. FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v06. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤3.0 for 1-g SAR [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√f (GHz) ] ≤7.5.0 for 10-g SAR 2. Summary simultaneous transmission for SAR Exclusion The SAR exemption limits outlined in clause 4.3.2(b) of KDB 447498 have been derived based on an approximate SAR value of 0.4 W/kg using half-wave dipole antennas Footnote 1. As such, when simultaneous transmitter SAR evaluations include transmitters that have been exempt from routine SAR evaluation, the SAR must be estimating based on the ratio between the maximum tune-up tolerance limit of the transmitter that has been exempt and the exemption limit at the specific distance and frequency for that transmitter. This ratio must be multiplied by 0.4 W/kg(2.0 W/kg for controlled use and 1.0 W/kg for limb worn devices) in order to calculate the estimated SAR level. The estimate SAR value is calculated based the following equation: (maximum power level including tune-up tolerance for transmitter A / maximum power level of exemption at the same frequency and distance) * 0.4W/kg The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. Report No.: TBR-C-202305-0328-8 Page: 3 of 3 TB-RF-074-1.0 3. Calculation: Test separation: 5mm Bluetooth LE Mode (1Mbps) Frequency (GHz) Conducted Power (dBm) Turn-up Power Tolerance (dB) Max power of tune up tolerance (dBm) Max power of tune up tolerance (mw) Calculation Value Threshold Value 2.402 -6.576 -6±1 -5 0.316 0.098 3.0 2.440 -6.859 -6±1 -5 0.316 0.099 3.0 2.480 -10.431 -10±1 -9 0.126 0.040 3.0 Conclusion: The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06. -----END OF REPORT-----

ANT6： GianandEfficiency Frequency (MHz) Efficiency(%)Gain(dBi) 230042.680.78 232046.241.56 234044.622.23 236044.442.69 238042.813.27 240046.293.85 242056.894.41 244060.274.33 246057.593.73 248055.543.66 250056.504.05 252050.263.52 254047.763.49 3Dand1DRadiationPatterns Total P o w e r ( d B m ) -14 8 -10 -6 -2 2 X Y Z Azimuth = 0.0 Elevation = 0.0 Roll = 0.0 Cut1 P o w e r ( d B m ) Angle (? Scale: 2/div Min: -12 Max: 6 0 180 30 210 60 240 90270 120 300 150 330 Cut2 P o w e r ( d B m ) Angle (? Scale: 2/div Min: -14 Max: 6 0 180 30 210 60 240 90270 120 300 150 330 Cut3 P o w e r ( d B m ) Angle (? Scale: 2/div Min: -8 Max: 6 0 180 30 210 60 240 90270 120 300 150 330

Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0328-5 Page: 1 of 25 FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 RF Test Data for Bluetooth LE (Conducted Measurements) General Description of EUT Product Name: Wireless Remote Controller Test Model: 4311 Sample ID: RW-C-202305-0328-3-2# Environmental Conditions Temperature: 24°C Relative Humidity: 50% Test Voltage: DC 3V Test Engineer: Liujiming Note: For a more detailed features description, please refer to the report TBR-C-202305-0328-5 The report only show the worst case data. Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1Mbps 2402 Ant1 61.9 2.08 2.56 NVNT BLE 1Mbps 2440 Ant1 62.5 2.04 2.5 NVNT BLE 1Mbps 2480 Ant1 61.9 2.08 2.56 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0328-5 Page: 2 of 25 FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 Test Graphs Duty Cycle NVNT BLE 1Mbps 2402MHz Ant1 Duty Cycle NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0328-5 Page: 3 of 25 FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 Duty Cycle NVNT BLE 1Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0328-5 Page: 4 of 25 FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 1Mbps 2402 Ant1 -6.576 30 Pass NVNT BLE 1Mbps 2440 Ant1 -6.859 30 Pass NVNT BLE 1Mbps 2480 Ant1 -10.431 30 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0328-5 Page: 5 of 25 FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 Test Graphs Power NVNT BLE 1Mbps 2402MHz Ant1 Power NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0328-5 Page: 6 of 25 FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 Power NVNT BLE 1Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0328-5 Page: 7 of 25 FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1Mbps 2402 Ant1 0.72 0.5 Pass NVNT BLE 1Mbps 2440 Ant1 0.71 0.5 Pass NVNT BLE 1Mbps 2480 Ant1 0.72 0.5 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0328-5 Page: 8 of 25 FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 Test Graphs -6dB Bandwidth NVNT BLE 1Mbps 2402MHz Ant1 -6dB Bandwidth NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0328-5 Page: 9 of 25 FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 -6dB Bandwidth NVNT BLE 1Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0328-5 Page: 10 of 25 FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT BLE 1Mbps 2402 Ant1 1.044 NVNT BLE 1Mbps 2440 Ant1 1.037 NVNT BLE 1Mbps 2480 Ant1 1.042 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0328-5 Page: 11 of 25 FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 Test Graphs OBW NVNT BLE 1Mbps 2402MHz Ant1 OBW NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0328-5 Page: 12 of 25 FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 OBW NVNT BLE 1Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0328-5 Page: 13 of 25 FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Max PSD (dBm) Limit (dBm) Verdict NVNT BLE 1Mbps 2402 Ant1 -23.228 8 Pass NVNT BLE 1Mbps 2440 Ant1 -23.472 8 Pass NVNT BLE 1Mbps 2480 Ant1 -26.809 8 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0328-5 Page: 14 of 25 FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 Test Graphs PSD NVNT BLE 1Mbps 2402MHz Ant1 PSD NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202305-0328-5 Page: 15 of 25 FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 PSD NVNT BLE 1Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Run…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202305-0328-5 Page: 1 of 34 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 Radio Test Report FCC ID: 2AZWI-4311LEQI Report No. : TBR-C-202305-0328-5 Applicant : Shenzhen Leqi Network Technology Co., LTD Equipment Under Test (EUT) EUT Name : Wireless Remote Controller Model No. : 4311 Series Model No. : ---- Brand Name : ---- Sample ID : RW-C-202305-0328-3-1# & RW-C-202305-0328-3-2# Receipt Date : 2023-06-13 Test Date : 2023-06-13 to 2023-07-07 Issue Date : 2023-07-13 Standards : FCC Part 15 Subpart C 15.247 Test Method : ANSI C63.10: 2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above. Witness Engineer : Seven Wu Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TBR-C-202305-0328-5 Page: 2 of 34 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 7 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 9 2. TEST SUMMARY ..................................................................................................................... 10 3. TEST SOFTWARE ................................................................................................................... 10 4. TEST EQUIPMENT .................................................................................................................. 11 5. CONDUCTED EMISSION ....................................................................................................... 14 5.1 Test Standard and Limit .................................................................................................... 14 5.2 Test Setup ........................................................................................................................... 14 5.3 Test Procedure ................................................................................................................... 14 5.4 Deviation From Test Standard ......................................................................................... 15 5.5 EUT Operating Mode ........................................................................................................ 15 5.6 Test Data ............................................................................................................................. 15 6. RADIATED AND CONDUCTED UNWANTED EMISSIONS ............................................ 16 6.1 Test Standard and Limit .................................................................................................... 16 6.2 Test Setup ........................................................................................................................... 17 6.3 Test Procedure ................................................................................................................... 18 6.4 Deviation From Test Standard ......................................................................................... 20 6.5 EUT Operating Mode ........................................................................................................ 20 6.6 Test Data ............................................................................................................................. 20 7. RESTRICTED BANDS REQUIREMENT ............................................................................. 21 7.1 Test Standard and Limit .................................................................................................... 21 7.2 Test Setup ........................................................................................................................... 21 7.3 Test Procedure ................................................................................................................... 22 7.4 Deviation From Test Standard ......................................................................................... 24 7.5 EUT Operating Mode ........................................................................................................ 24 Report No.: TBR-C-202305-0328-5 Page: 3 of 34 TB-RF-074-1.0 7.6 Test Data ............................................................................................................................. 24 8. BANDWIDTH TEST ................................................................................................................. 25 8.1 Test Standard and Limit .................................................................................................... 25 8.2 Test Setup ..................…

Text truncated - open the document above for the full version.

FCC ID: 2AZWI-4311LEQI TB-RF-074-1.0 Appendix V EUT Test Photographs Photo of Setup for Radiated Emission (30MHz~1GHz) Photo of Setup for Radiated Emission (Above 1 GHz) -----END OF REPORT-----
