2AZYC-CWBS01Intelligentdeodorizer Max

UserManualforRefrigeratorOdorEliminatorMax CW-BS01 Thankyouforpurchasingourproduct,forbetterexperience,pleaseread carefullytheabovecontentandkeepitproperly. TheproductiscompatiblewithMiHomeApp. ToconnectwithMiHome,firstlypleasedownloadandinstallMiHome, YoucansearchMiHomeinappstoretofinishthestep.Mihomeuserswill beleadtothedevice-connectingpagebyscanningtheQRcodeinproduct. ScantheQRcodeinproduct ●Adddevice 1.Longpresstheswitchfor5secondstostartthedevice-connectingstep (duringconnecting,thebluelightwillbeonandflowing.Afterconnected, thebluelightwillbeonandlastfor5secs.) 2.OpenMiHomeandloginyouraccount 3.Clickthe“+”intheupperrightcorneroftheapp,you’llgotothe add-devicespage 4.Click“”intheupperrightcornerofthepage,scantheproduct QRcodeandfinishthestepbyguidance. Notes:IncasetheQRcodeisnotabletobescanned,youcanaddthedevice bysearchingproductname. ●AsMiHomewillbeupdatedfromtimetotime,theactualoperationmight havelittledifferences,pleasefollowMiHome’sguidancetofinishall steps. 1.Productintroduction 2.UseInstruction 01.Freshmode Clicktheswitchoncetostartthefreshmode 02.AnionMode Clicktheswitchtwicetostarttheanionmode 03.Deepdeodorizemode Clicktheswitchthreetimestostartthedeodorizemode 04.Batteryindicator Clicktheswitchfourtimestocheckthebatterycapacity.Iftheindicator isblueandalwayson,meansthepowers’sufficient.Iftheindicator isredandalwayson,meansthepowers’notenough. 05.Installthehook Installthehookinthehookholeifneeded 3.ProductParameters Productname:RefrigeratorOdorEliminatorMax Model#CW-BS01 Ratedvoltage:5V Ratedcurrent:1A Ratedpower:2W Batterycapacity:3000mAh Productdimension：158mmx48mmx39mm N.W:180g Standard:GB4706.1-2005 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment

C5266091_X10_Ed.2 1/1 GuangdongEraCleanTechnologyCo.,Ltd OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:May18,2021 Subject:RequestforConfidentiality FCCID: 2AZYC-CWBS01 ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality NOTE2 IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo ☐ BlockDiagram ☒☐ Schematics ☒☐ TestReportNoNo TestSetupPhotosNo ☐ User’sManual ☐ NOTE 1 ☐ InternalPhotos ☐ NOTE 1 ☐ PartsList/TuneUp ☐☐ RFExposureInfoNoNo OperationalDescription ☒☐ CoverLetter(s)NoNo SDRSoftware/SecurityInfo ☐ No NOTE1:Long-TermConfidentialitymaybepermittedunderspecialconditions(SeeII.LONG-TERMCONFIDENTIALITY,Section3of KDB726920,uselastinforce) NOTE2:Short-TermConfidentialitycanberequestedforamaximumof180daysfromthedateofthegrant. Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Incaseofshort-termConfidentiality,theapplicantrequeststheexhibitsselected abovearewithheldfrompublicviewforaperiodof______daysfromthedateofthe GrantofEquipmentAuthorizationandpriortomarketing. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name:jiezongHE Title:TestEngineer

C5266091_X8_Ed.1 1/1 LetterofAuthorization GuangdongEraCleanTechnologyCo.,Ltd Company:GuangdongEraCleanTechnologyCo.,Ltd Address:No.23ChengyeAvenue,HuangpuTown,ZhongshanCity, Guangdongprovince ， China ProductName:IntelligentdeodorizerMax ModelNumber:CW-BS01 FCCIdentifier:2AZYC-CWBS01 WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:jiezongHEDate:May18,2021 Title:TestEngineer Signatureofapplicant:

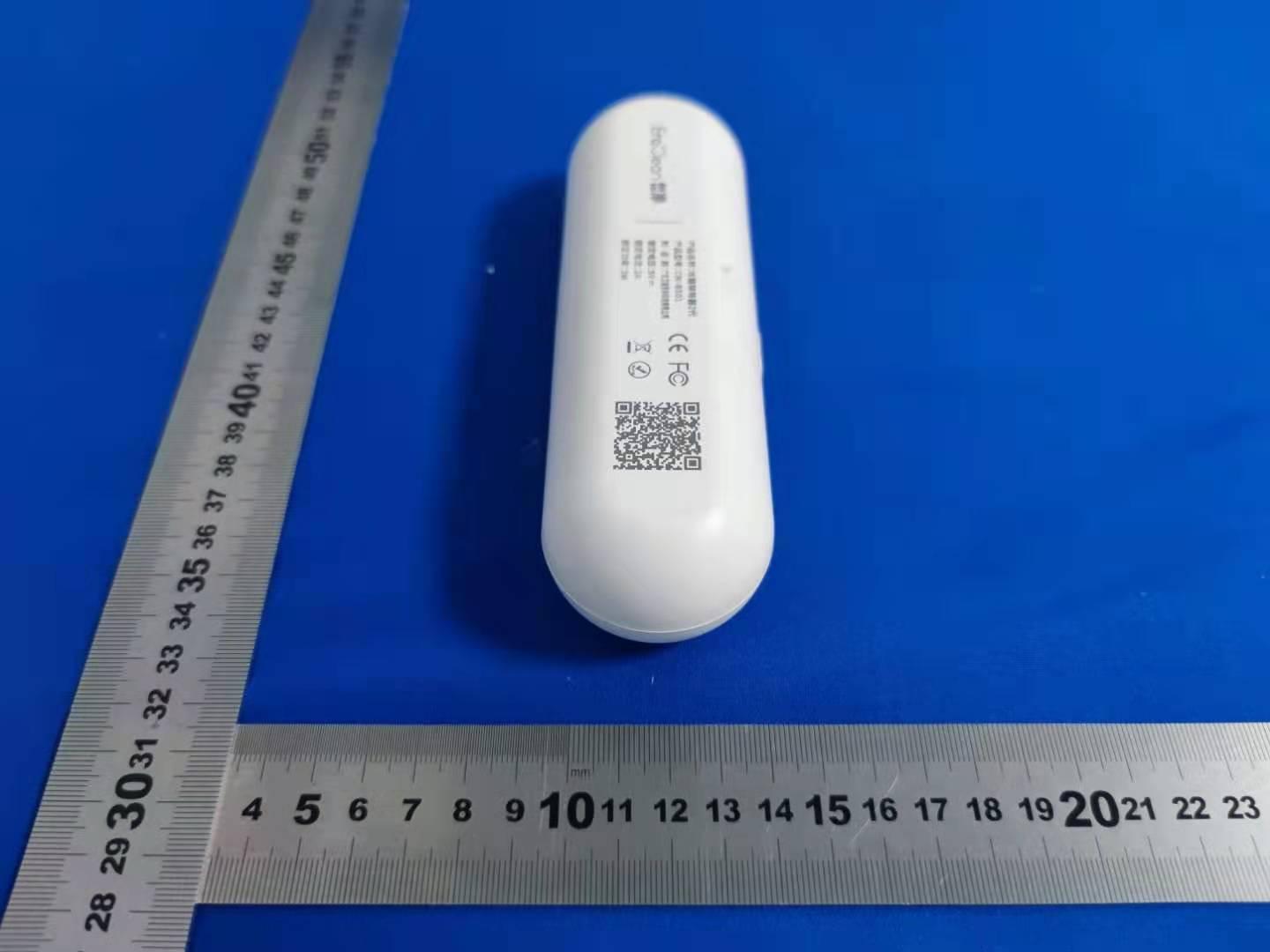

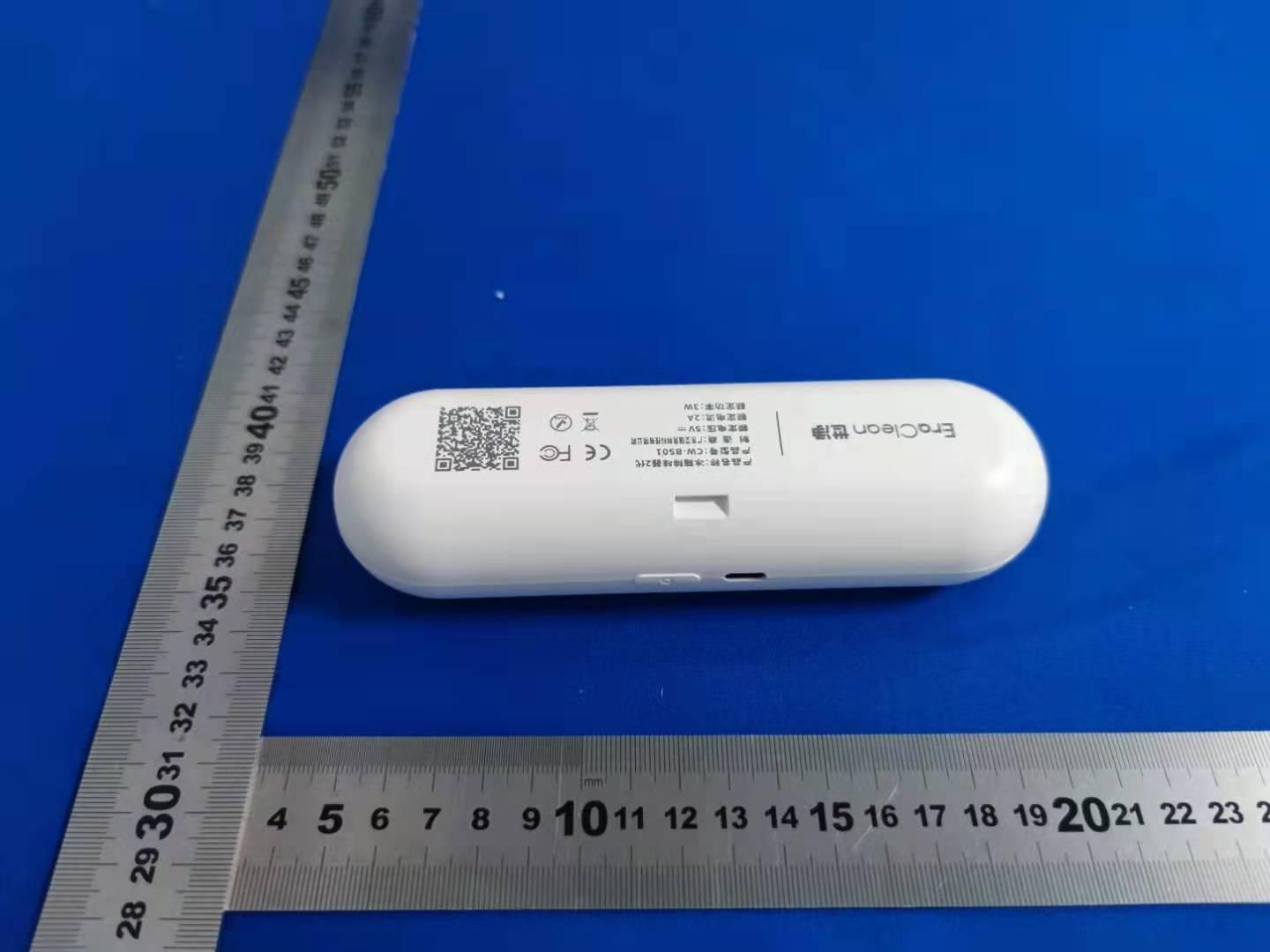

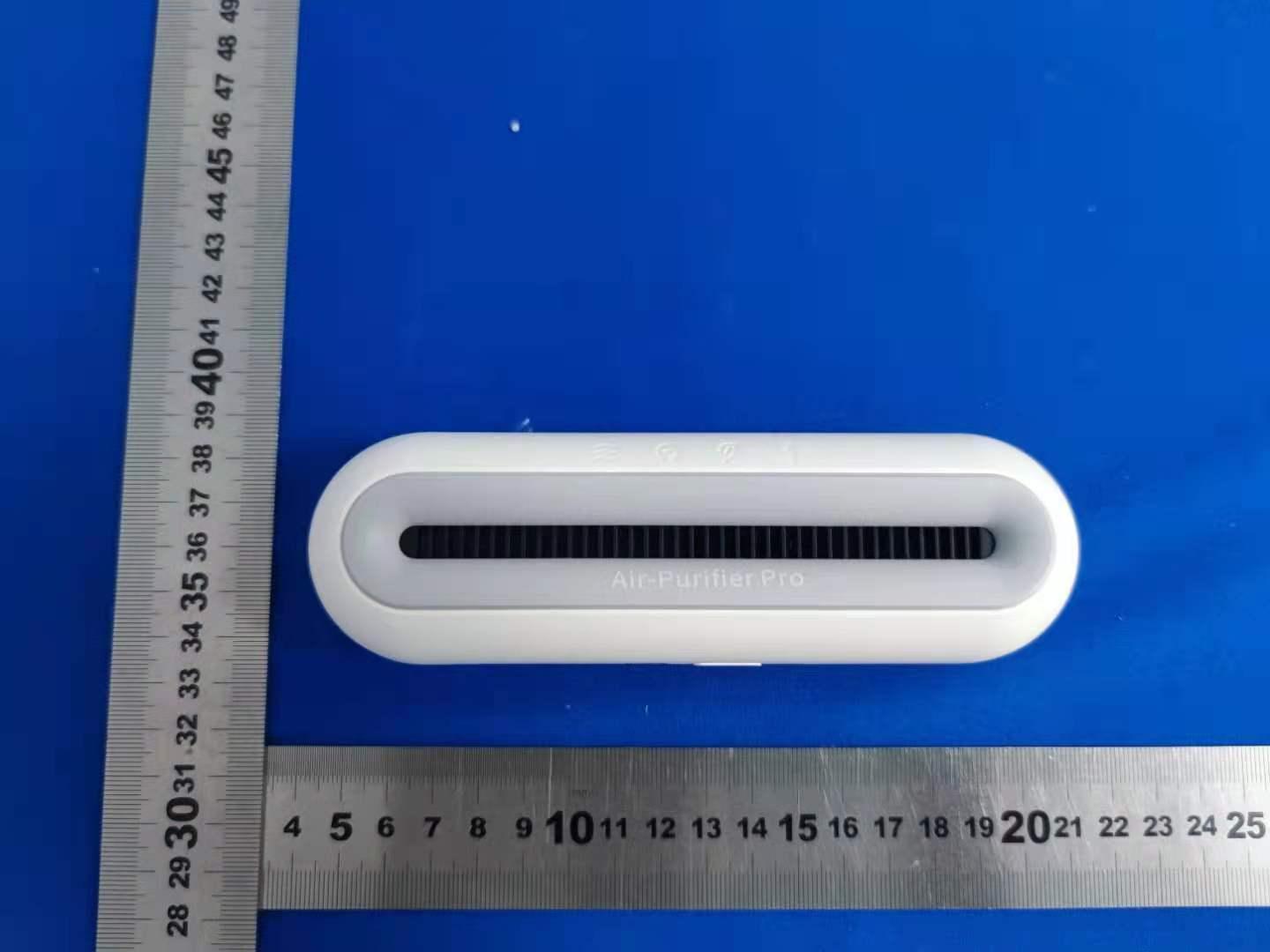

Page1of3ReportNo.:FCS202105007 Externalphotos Photo1 Photo2 Page2of3ReportNo.:FCS202105007 Photo3 Photo4 Page3of3ReportNo.:FCS202105007 Photo5 Photo6

LabelandLabelLocation FCCID:2AZYC-CWBS01 L*W:10mm*7mm whitefontonaBlacklabel

Page1of3ReportNo.:FCS202105007 Internalphotos Photo1 Photo2 Page2of3ReportNo.:FCS202105007 Photo3 Antenna Photo4 Page3of3ReportNo.:FCS202105007 Photo5

FCCTestReport ReportNo:FCS202105007W01 Issuedfor Applicant: GuangdongEraCleanTechnologyCo.,Ltd Address: No.23ChengyeAvenue,HuangpuTown,ZhongshanCity, Guangdongprovince，China ProductName: IntelligentdeodorizerMax BrandName: EraClean ModelName: CW-BS01 SeriesModel: N/A FCCID: 2AZYC-CWBS01 IssuedBy:FluxComplianceServiceLaboratory Add:Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-Tech Industrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com Page2of34ReportNo.:FCS202105007W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com TESTRESULTCERTIFICATION Applicant’sName......................:GuangdongEraCleanTechnologyCo.,Ltd Address......................................: No.23ChengyeAvenue,HuangpuTown,ZhongshanCity, Guangdongprovince ， China Manufacture'sName................:GuangdongEraCleanTechnologyCo.,Ltd Address......................................: No.23ChengyeAvenue,HuangpuTown,ZhongshanCity, Guangdongprovince，China ProductDescription ProductName...........................:IntelligentdeodorizerMax BrandName.............................:EraClean ModelName .............................. :CW-BS01 SeriesModel..............................:N/A TestStandards..........................:FCCRulesandRegulationsPart15SubpartC,Section249 TestProcedure..........................:ANSIC63.10:2013 ThisdevicedescribedabovehasbeentestedFCS,thetestresultsshowthattheequipmentundertest (EUT)isincompliancewiththeFCCrequirements.Anditisapplicableonlytothetestedsample identifiedinthereport. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofFCS,thisdocument maybealteredorrevisedbyFCS,personalonly,andshallbenotedintherevisionofthedocument.. DateofTest..................................: Date(s)ofperformanceoftests.:08May.2021~12May.2021 DateofIssue ................................. :12May.2021 TestResult ..................................... :Pass Testedby: (ScottShen) Reviewedby : (DukeQian) Approvedby: (KaitChen) Page3of34ReportNo.:FCS202105007W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com TableofContentsPage 1.SUMMARYOFTESTRESULTS5 1.1TESTFACTORY6 1.2MEASUREMENTUNCERTAINTY6 2.GENERALINFORMATION7 2.1GENERALDESCRIPTIONOFTHEEUT7 2.2DESCRIPTIONOFTHETESTMODES9 2.3DESCRIPTIONOFNECESSARYACCESSORIESANDSUPPORTUNITS10 2.4EQUIPMENTSLIST11 3CONDUCTEDEMISSIONMEASUREMENT12 3.1LIMIT12 3.2TESTPROCEDURE12 3.3TESTSETUP13 3.4TESTRESULTS14 4.RADIATEDEMISSIONMEASUREMENT16 4.1LIMIT16 4.2TESTPROCEDURE17 4.3TESTSETUP18 4.4TESTRESULTS19 5.BANDEDGETEST25 5.1LIMIT25 5.2TESTPROCEDURE25 5.3TESTSETUP26 5.4TESTRESULTS27 6.20DBBANDWIDTHTEST31 6.1LIMIT31 6.2TESTPROCEDURE31 6.3TESTSETUP31 6.4TESTRESULTS32 7.ANTENNAREQUIREMENT34 7.1STANDARDREQUIREMENT34 7.2EUTANTENNA34 Page4of34ReportNo.:FCS202105007W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com RevisionHistory Rev.IssueDateEffectPageContents 0012May.2021AllInitialIssue Page5of34ReportNo.:FCS202105007W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 1.SUMMARYOFTESTRESULTS FCCPart15.249,SubpartC Standard Section TestItemJudgmentRemark 15.207ConductedEmissionPASS-- 15.205(a),15.209(a), 15.249(a),15.249(c) RadiatedSpuriousEmissionPASS-- 15.209FieldstrengthoffundamentalPASS 15.249(d)BandEdgeEmissionPASS-- 15.215(c)20dBBandwidthPASS-- 15.203AntennaRequirementPASS-- NOTE: (1)”N/A”denotestestisnotapplicableinthisTestReport (2)AlltestsareaccordingtoANSIC63.10-2013 Page6of34ReportNo.:FCS202105007W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 1.1TESTFACTORY CompanyName:FluxComplianceServiceLaboratory Address: Room105FloorBaohaoTechnologyBuilding1NO.15Gongye WestRoadHi-TechIndustrial,SongshanlakeDongguan Telephone:+86-769-27280901 Fax:+86-769-27280901 FCCTestFirmRegistrationNumber:514908 Designationnumber:CN0127 A2LAaccreditationnumber：5545.01 1.2MEASUREMENTUNCERTAINTY Thereporteduncertaintyofmeasurementy±U,whereexpendeduncertaintyUisbasedona standarduncertaintymultipliedbyacoveragefactorofk=2,providingalevelofconfidenceof approximately95%. No.ItemUncertainty 1RFoutputpower,conducted±0.71dB 2UnwantedEmissions,conducted±2.98dB 3ConductedEmission(9KHz-150KHz) ±4.13dB 4ConductedEmission(150KHz-30MHz) ±4.74dB 5Allemissions,radiated(<1G)30MHz-1000MHz ±3.2dB 6Allemissions,radiated(1GHz-18GHz) ±3.66dB 7Allemissions,radiated(18GHz-40GHz) ±4.31dB Page7of34ReportNo.:FCS202105007W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 2.GENERALINFORMATION 2.1GENERALDESCRIPTIONOFTHEEUT ProductName IntelligentdeodorizerMax TradeName EraClean ModelName CW-BS01 SeriesModel N/A ModelDifference N/A ChannelList PleaserefertotheNote2. BT Frequency:2402-2480MHz Modulation:GFSK Datarate:1Mbps Channelnumber:BLE40CH PowerSupplyDC5V,2A Battery3.7V HardwareversionnumberV1.0 SoftwareversionnumberV1.0 ConnectingI/OPort(s)PleaserefertotheUser'sManual Note: 1. Foramoredetailedfeaturesdescription,pleaserefertothemanufacturer’sspecifications ortheUser'sManual. Page8of34ReportNo.:FCS202105007W01 FluxComplianceServiceLaboratory Room105FloorBaohaoTechnologyBuilding1NO.15GongyeWestRoadHi-TechIndustrial,SongshanlakeDongguan Tel:769-27280901Fax:769-27280901http://www.fcs-lab.com 2. 3.TableforFiledAntenna Ant.Brand Model Name AntennaTypeConnectorGain(dBi)NOTE 1NAFGHUPCBAntennaN/A-1.3Ante…

Text truncated - open the document above for the full version.

Page 1 of2ReportNo.:FCS202105007 Above1GHzforradiatedemissiontestsetup Blow1GHzforradiatedemissiontestsetup Page 2 of2ReportNo.:FCS202105007 Conductionemissiontestingdevice
