Pangao Photoelectric Building 06, Unit 501, No. 16 Wenchang Road Hunan Xiangxiang Economic Development Zone Hunan Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/07/08 U.S. Agent Designation Pangao Photoelectric acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BA4J-D2203): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Phone of U.S. agent: (626) 588-8039 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Pangao Photoelectric with the FRN [0033744962] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature Bin Song Manager Pangao Photoelectric Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

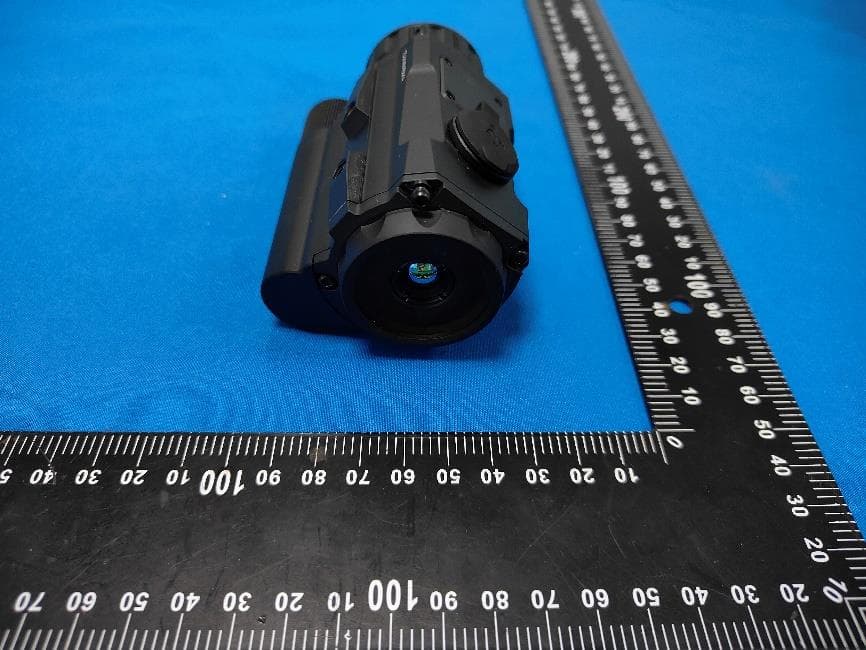

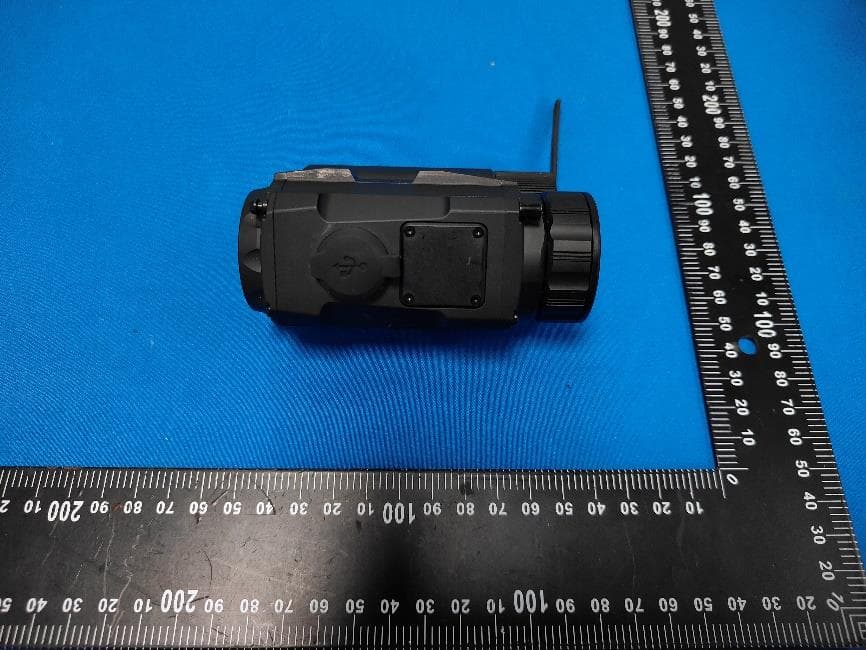

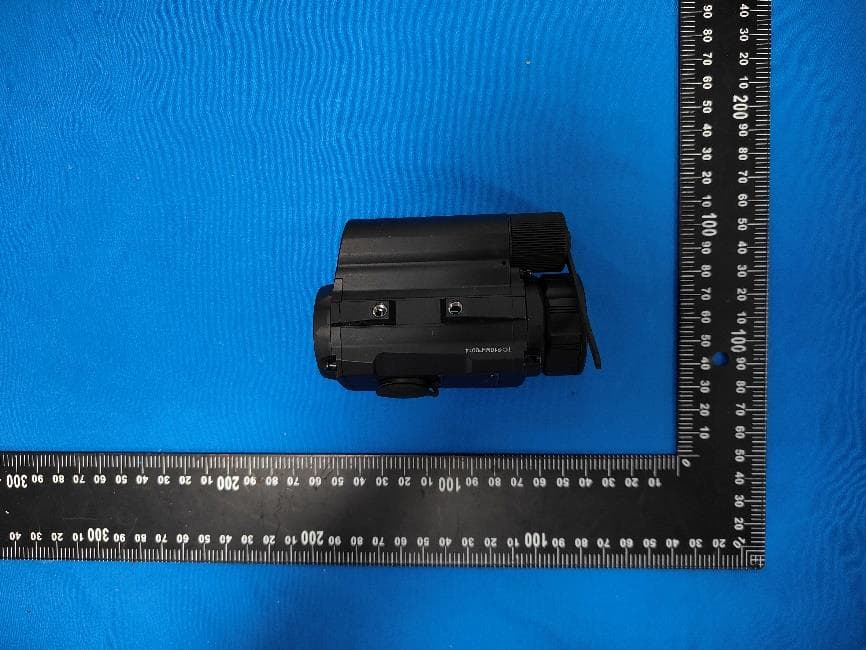

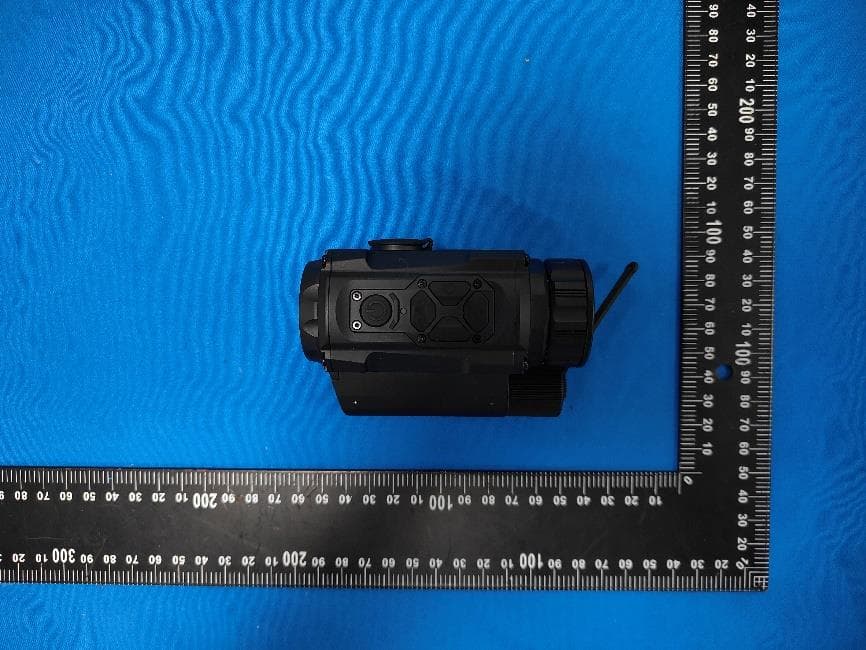

FCC ID: 2BA4J-D2203 External Photos of the EUT FCC ID: 2BA4J-D2203 FCC ID: 2BA4J-D2203

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID: 2BA4J-D2203

FCC ID: 2BA4J-D2203 Internal Photos of the EUT FCC ID: 2BA4J-D2203 FCC ID: 2BA4J-D2203 FCC ID: 2BA4J-D2203 FCC ID: 2BA4J-D2203 FCC ID: 2BA4J-D2203 FCC ID: 2BA4J-D2203 Antenna FCC ID: 2BA4J-D2203 FCC ID: 2BA4J-D2203 FCC ID: 2BA4J-D2203 FCC ID: 2BA4J-D2203

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA26051400803 2BA4J-D2203 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : May 29, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Pangao Photoelectric Address............................................ : Building 06, Unit 501, No. 16 Wenchang Road Hunan Xiangxiang Economic Development Zone Hunan Province, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : HYDRA-Mini 4-in-1 Thermal Monocular Trade Mark ....................................... : DNT OPTICS Manufacturer .................................... : Pangao Photoelectric Model/Type reference ...................... : D2203 Listed Models ................................... : HYDRA-Mini, HS-M, HS210M, HS315M, HS625M, HS210M-Mg, HS315M-Mg, HS625M-Mg, HS210MR, HS315MR, HS625MR Rating ............................................... : Input: DC 5V Battery: 3.7V Result ............................................... : PASS Report No.: CTA26051400803 Page 2 of 9 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : HYDRA-Mini 4-in-1 Thermal Monocular Model /Type : D2203 Listed Models : HYDRA-Mini, HS-M, HS210M, HS315M, HS625M, HS210M-Mg, HS315M-Mg, HS625M-Mg, HS210MR, HS315MR, HS625MR Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. So the tests were performed on model D2203 and the test results for the main test model can cover the listed models. Applicant : Pangao Photoelectric Address : Building 06, Unit 501, No. 16 Wenchang Road Hunan Xiangxiang Economic Development Zone Hunan Province, China Manufacturer : Pangao Photoelectric Address : Building 06, Unit 501, No. 16 Wenchang Road Hunan Xiangxiang Economic Development Zone Hunan Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26051400803 Page 3 of 9 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 6 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory .................................................................................. 7 3.2 Test Facility .............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................. 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ............................................................................................................ 8 4.2 Conducted Power Results ....................................................................................... 8 4.3 Manufacturing tolerance .......................................................................................... 9 4.4 Evaluation Result ..................................................................................................... 9 4.5 Simultaneous Transmission for SAR Exclusion ...................................................…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA26051400802 2BA4J-D2203 Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : May 29, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Pangao Photoelectric Address ............................................ : Building 06, Unit 501, No. 16 Wenchang Road Hunan Xiangxiang Economic Development Zone Hunan Province, China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : HYDRA-Mini 4-in-1 Thermal Monocular Trade Mark ....................................... : DNT OPTICS Manufacturer .................................... : Pangao Photoelectric Model/Type reference ...................... : D2203 Listed Models ................................... : HYDRA-Mini, HS-M, HS210M, HS315M, HS625M, HS210M-Mg, HS315M-Mg, HS625M-Mg, HS210MR, HS315MR, HS625MR Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : Input: DC 5V Battery: 3.7V Result ............................................... : PASS Report No.: CTA26051400802 Page 2 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : HYDRA-Mini 4-in-1 Thermal Monocular Model /Type : D2203 Listed Models : HYDRA-Mini, HS-M, HS210M, HS315M, HS625M, HS210M-Mg, HS315M-Mg, HS625M-Mg, HS210MR, HS315MR, HS625MR Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. So the tests were performed on model D2203 and the test results for the main test model can cover the listed models. Applicant : Pangao Photoelectric Address : Building 06, Unit 501, No. 16 Wenchang Road Hunan Xiangxiang Economic Development Zone Hunan Province, China Manufacturer : Pangao Photoelectric Address : Building 06, Unit 501, No. 16 Wenchang Road Hunan Xiangxiang Economic Development Zone Hunan Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26051400802 Page 3 of 31 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ...............................................................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BA4J-D2203 Company : Pangao Photoelectric EUT : HYDRA-Mini 4-in-1 Thermal Monocular Model Number : D2203 Report No. : CTA26051400802 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.240 2406.920 2417.160 0.5 PASS 2437 10.200 2431.920 2442.120 0.5 PASS 2462 10.200 2456.920 2467.120 0.5 PASS 11G Ant1 2412 15.680 2404.120 2419.800 0.5 PASS 2437 15.920 2429.080 2445.000 0.5 PASS 2462 15.840 2454.040 2469.880 0.5 PASS 11N20SISO Ant1 2412 16.720 2403.720 2420.440 0.5 PASS 2437 16.960 2428.640 2445.600 0.5 PASS 2462 16.880 2453.480 2470.360 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.488 2405.2918 2418.7798 --- --- 2437 13.458 2430.2924 2443.7504 --- --- 2462 13.488 2455.2708 2468.7588 --- --- 11G Ant1 2412 16.963 2403.5845 2420.5475 --- --- 2437 16.889 2428.6398 2445.5288 --- --- 2462 16.890 2453.6263 2470.5163 --- --- 11N20SISO Ant1 2412 17.881 2403.0934 2420.9744 --- --- 2437 17.939 2428.0242 2445.9632 --- --- 2462 17.907 2453.0843 2470.9913 --- --- 8 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 9 11G_Ant1_2412 11G_Ant1_2437 10 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11 11N20SISO_Ant1_2462 12 Appendix C: Maximum conducted output power Test Result Average Test Mode Antenna Frequency[M Hz] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 6.17 ≤30.00 PASS 2437 6.48 ≤30.00 PASS 2462 6.58 ≤30.00 PASS 11G Ant1 2412 5.22 ≤30.00 PASS 2437 5.30 ≤30.00 PASS 2462 5.11 ≤30.00 PASS 11N20SISO Ant1 2412 5.33 ≤30.00 PASS 2437 5.39 ≤30.00 PASS 2462 5.22 ≤30.00 PASS 13 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -20.29 ≤8.00 PASS 2437 -19.43 ≤8.00 PASS 2462 -19.00 ≤8.00 PASS 11G Ant1 2412 -26.31 ≤8.00 PASS 2437 -25.99 ≤8.00 PASS 2462 -26.97 ≤8.00 PASS 11N20SISO Ant1 2412 -25.60 ≤8.00 PASS 2437 -26.58 ≤8.00 PASS 2462 -25.07 ≤8.00 PASS 14 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 15 11G_Ant1_2412 11G_Ant1_2437 16 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 17 11N20SISO_Ant1_2462 18 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 -6.17 -56.9 ≤-26.17 PASS High 2462 -5.94 -57.73 ≤-25.94 PASS 11G Ant1 Low 2412 -11.41 -41.94 ≤-31.41 PASS High 2462 -11.40 -57.61 ≤-31.4 PASS 11N20SIS O Ant1 Low 2412 -11.13 -43.17 ≤-31.13 PASS High 2462 -11.16 -58.07 ≤-31.16 PASS 19 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 20 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 21 11N20SISO_Ant1_High_2462 22 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -6.99 -6.99 --- PASS 30~1000 -6.99 -67.72 ≤-26.99 PASS 1000~26500 -6.99 -55.09 ≤-26.99 PASS 2437 Reference -5.80 -5.80 --- PASS 30~1000 -5.80 -68.2 ≤-25.8 PASS 1000~26500 -5.80 -55.33 ≤-25.8 PASS 2462 Reference -6.82 -6.82 --- PASS 30~1000 -6.82 -67.93 ≤-26.82 PASS 1000~26500 -6.82 -55.04 ≤-26.82 PASS 11G Ant1 2412 Reference -11.68 -11.68 --- PASS 30~1000 -11.68 -68.13 ≤-31.68 PASS 1000~26500 -11.68 -56.08 ≤-31.68 PASS 2437 Reference -11.57 -11.57 --- PASS 30~1000 -11.57 -67.18 ≤-31.57 PASS 1000~26500 -11.57 -55.74 ≤-31.57 PASS 2462 Reference -12.30 -12.30 --- PASS 30~1000 -12.30 -68.14 ≤-32.3 PASS 1000~26500 -12.30 -55.17 ≤-32.3 PASS 11N20SISO Ant1 2412 Reference -11.88 -11.88 --- PASS 30~1000 -11.88 -67.71 ≤-31.88 PASS 1000~26500 -11.88 -55.09 ≤-31.88 PASS 2437 Reference -11.53 -11.53 --- PASS 30~1000 -11.53 -68.22 ≤-31.53 PASS 1000~26500 -11.53 -56.08 ≤-31.53 PASS 2462 Reference -12.75 -12.75 --- PASS 30~1000 -12.75 -67.27 ≤-32.75 PASS 1000~26500 -12.75 -55.34 ≤-32.75 PASS 23 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 24 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 25 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 26 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 27 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 28 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 29 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 30 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 31 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 32 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 33 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 34 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.36 8.40 99.52 0.02 0.12 2437 8.35 8.40 99.40 0.03 0.12 2462 8.35 8.40 99.40 0.03 0.12 11G Ant1 2412 0.14 0.19 73.68 1.33 7.14 2437 0.15 0.20 75.00 1.25 6.67 2462 0.15 0.20 75.00 1.25 6.67 11N20SISO Ant1 2412 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.23 78.26 1.06 5.56 2462 0.18 0.23 78.26 1.06 5.56 35 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 36 11G_Ant1_2412 11G_Ant1_2437

37 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 38 11N20SISO_Ant1_2462 39 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Frequen cy[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -59.42 2.00 0.02 37.80 ≤54 PASS AV 2389.180 -58.69 2.00 0.02 38.53 ≤54 PASS AV 2390.000 -59.53 2.00 0.02 37.69 ≤54 PASS Peak 2310.000 -51.83 2.00 0.00 45.37 ≤74 PASS Peak 2338.350 -48.36 2.00 0.00 48.84 ≤74 PASS Peak 2390.000 -52 2.00 0.00 45.20 ≤74 PASS High 2462 AV 2483.500 -59.1 2.00 0.03 38.13 ≤54 PASS AV 2493.900 -58.47 2.00 0.03 38.76 ≤54 PASS AV 2500.000 -59.64 2.00 0.03 37.59 ≤54 PASS Peak 2483.500 -50.59 2.00 0.00 46.61 ≤74 PASS Peak 2499.400 -48.32 2.00 0.00 48.88 ≤74 PASS Peak 2500.000 -50.86 2.00 0.00 46.34 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -60.03 2.00 1.33 38.50 ≤54 PASS AV 2351.090 -58.96 2.00 1.33 39.57 ≤54 PASS AV 2390.000 -60.17 2.00 1.33 38.36 ≤54 PASS Peak 2310.000 -51.37 2.00 0.00 45.83 ≤74 PASS Peak 2382.420 -48.53 2.00 0.00 48.67 ≤74 PASS Peak 2390.000 -51.55 2.00 0.00 45.65 ≤74 PASS High 2462 AV 2483.500 -58.73 2.00 1.25 39.72 ≤54 PASS AV 2495.330 -58.76 2.00 1.25 39.69 ≤54 PASS AV 2500.000 -59.86 2.00 1.25 38.59 ≤54 PASS Peak 2483.500 -51.18 2.00 0.00 46.02 ≤74 PASS Peak 2492.140 -48.99 2.00 0.00 48.21 ≤74 PASS Peak 2500.000 -51.76 2.00 0.00 45.44 ≤74 PASS 11N20SI SO Ant1 Low 2412 AV 2310.000 -59.48 2.00 1.06 38.78 ≤54 PASS AV 2352.650 -58.68 2.00 1.06 39.58 ≤54 PASS AV 2390.000 -59.9 2.00 1.06 38.36 ≤54 PASS Peak 2310.000 -53.48 2.00 0.00 43.72 ≤74 PASS Peak 2366.430 -49.19 2.00 0.00 48.01 ≤74 PASS Peak 2390.000 -52.45 2.00 0.00 44.75 ≤74 PASS High 2462 AV 2483.500 -59.24 2.00 1.06 39.02 ≤54 PASS AV 2485.540 -58.66 2.00 1.06 39.60 ≤54 PASS AV 2500.000 -59.3 2.00 1.06 38.96 ≤54 PASS Peak 2483.500 -50.55 2.00 0.00 46.65 ≤74 PASS Peak 2496.540 -49.14 2.00 0.00 48.06 ≤74 PASS Peak 2500.000 -50.37 2.00 0.00 46.83 ≤74 PASS 40 Note： The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 41 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 42 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 43 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 44 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 45 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak

SWARDShenzhenSWARDCommunicationTechnologyCo.,Ltd. 6thFloor,BuildingB,HexiHangchengIndustrialZone,No.135Qianjin2ndRoad,Bao'an District,Shenzhen Phone:0755-29985185Fax:0755-27487028 1 Antennaspecificationforapproval Customername Topway Model TC210M-T0scopeWIFI&BTversion Antenna frequency 2.4GHZ Antenna function WIFI&BTantenna Antenna material FPC FPCcolor black model SF2526C-1B2-A Materialnumber SF2526C-1L24B-055-A CustomerPart Number WardacceptedthesignatureClientacknowledgessignature structurePurchase Documentcontrolstructure radiofrequencyengineering ToexamineQC ResponsibleLTTToexamine date 2026.06.25 Sealarea date 2026.06.25 Sealarea SWARDShenzhenSWARDCommunicationTechnologyCo.,Ltd. 6thFloor,BuildingB,HexiHangchengIndustrialZone,No.135Qianjin2ndRoad,Bao'an District,Shenzhen Phone:0755-29985185Fax:0755-27487028 2 Serial number CertificationnumberMaterialtypeDateofissueRemarks 1A2260126383102001E Tinnedcopper wire 2026-03-05ayear 2SHAEC25032493503 halogen 2025-12-12ayear 3SHAEC25032493501 Adhesive 2025-12-12ayear 4A2260280297102001E FEPsheath 2025-04-27ayear 5SHAEC26004093123 FEPinsulation 2026-02-14ayear 6SZXEC25002243404 Tinwire 2025-06-30ayear 7SZXEC25002243408 Tin 2025-06-30ayear 8ETR26403059M01 Printingink 2025-05-20ayear 9A2260137534101001E Substrate 2026-03-04ayear 10A226033075810100201 EVAfoam 2025-05-07ayear 11A2250475186101001 Conductive cloth 2025-07-09ayear 12A2250437743102001E Goldplating 2025-07-01ayear SWARDShenzhenSWARDCommunicationTechnologyCo.,Ltd. 6thFloor,BuildingB,HexiHangchengIndustrialZone,No.135Qianjin2ndRoad,Bao'an District,Shenzhen Phone:0755-29985185Fax:0755-27487028 3 Catalogue 一:Devicesupport&testableantennatypes .......................... 1 二:Overview ..................................................................................... 2 三:Matchcircuitdiagrams,machineimages,andantenna images ............................................................................................... 3 四:AntennaEfficiency(VSWR) .................................................. 4 五:3Dpattern ................................................................................. 5 六:structuraldrawings .............................................................. 6 SWARDShenzhenSWARDCommunicationTechnologyCo.,Ltd. 6thFloor,BuildingB,HexiHangchengIndustrialZone,No.135Qianjin2ndRoad,Bao'an District,Shenzhen Phone:0755-29985185Fax:0755-27487028 4 一:Devicesupport&testableantennatypes SWARDShenzhenSWARDCommunicationTechnologyCo.,Ltd. 6thFloor,BuildingB,HexiHangchengIndustrialZone,No.135Qianjin2ndRoad,Bao'an District,Shenzhen Phone:0755-29985185Fax:0755-27487028 5 二:Overview (1)Antennaperformance 1.ThisapprovalsheetsupportsforMIDproject.FPCantennasincludeinthisproject.Thisreport isfortheperformanceofWIFI&BTantenna. 2.Antennashapesize：MeettherequirementofMID 3.Antennaband：2400MHz~2500MHz 4.Antennamaterial：AntennamaterialmeettherequirementofMID 5.Adhesiveperformance：AdhesiveperformancemeettherequirementofMID 6.Antennaperformancemeetthespecbelow： Description2.4GHZ~2.5GHzUnits VSWR ≤2.0 AverageAntennaGain ≥-4.5 dB FeedImpedance50ohms OperatingTemperature-40to+85degC Polarization/AzimuthLinear/Omni-directional (2)MechanicalInformation MechanicalDimension CableLength055mm/BLACK DescriptionWIFI&BTantenna MaterialFPC CoaxialCable50Ω/O.D.0.81mm Environmental OperationTemperature-40to+85degC StorageTemperature-40to+85degC SWARDShenzhenSWARDCommunicationTechnologyCo.,Ltd. 6thFloor,BuildingB,HexiHangchengIndustrialZone,No.135Qianjin2ndRoad,Bao'an District,Shenzhen Phone:0755-29985185Fax:0755-27487028 6 三:Matchcircuitdiagrams,machineimages,andantenna images (1)matchingcircuit (2)Machineimages&antennaimages NA RF NA NA NA NA NA SWARDShenzhenSWARDCommunicationTechnologyCo.,Ltd. 6thFloor,BuildingB,HexiHangchengIndustrialZone,No.135Qianjin2ndRoad,Bao'an District,Shenzhen Phone:0755-29985185Fax:0755-27487028 7 四:AntennaEfficiency(VSWR) SWARDShenzhenSWARDCommunicationTechnologyCo.,Ltd. 6thFloor,BuildingB,HexiHangchengIndustrialZone,No.135Qianjin2ndRoad,Bao'an District,Shenzhen Phone:0755-29985185Fax:0755-27487028 8 五:3Dpattern 六:structuraldrawings T i n A n t e n n a w e l d i n g ① T h e c o n n e c t o r i s f a c i n g i n w a r d . ② S W A R D 4 t h c o n n e c t o r

FCC ID: 2BA4J-D2203 Test Setup Photos of the EUT FCC ID: 2BA4J-D2203
