2BA4J-HYDRAHS225RHYDRA THERMAL SCOPE

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA25092300803 2BA4J-HYDRAHS225R Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Oct. 09, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Pangao Photoelectric Address............................................ : Building 06, Unit 501, No. 16 Wenchang Road, Hunan Xiangxiang Economic Development Zone, Hunan Province, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : HYDRA THERMAL SCOPE Trade Mark ........................................ DNT OPTICS Manufacturer .................................... : Pangao Photoelectric Model/Type reference ...................... : HYDRA HS225R Listed Models ................................... : Refer to page 2 Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA25092300803 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : HYDRA THERMAL SCOPE Model /Type : HYDRA HS225R Listed Models : HYDRA HS325R, HYDRA HS335R, HYDRAR HS635R, HYDRAR HS650R, HYDRAR HS219R, HYDRAR HS215R, HYDRAR HS219, HYDRAR HS335, HYDRAR HS650 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Pangao Photoelectric Address : Building 06, Unit 501, No. 16 Wenchang Road, Hunan Xiangxiang Economic Development Zone, Hunan Province, China Manufacturer : Pangao Photoelectric Address : Building 06, Unit 501, No. 16 Wenchang Road, Hunan Xiangxiang Economic Development Zone, Hunan Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25092300803 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 8 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA25092300803 Page …

Text truncated - open the document above for the full version.

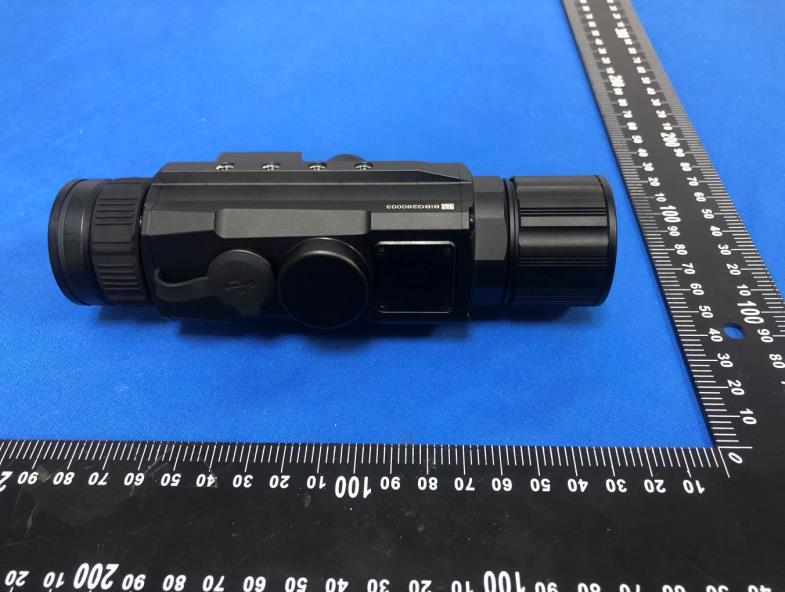

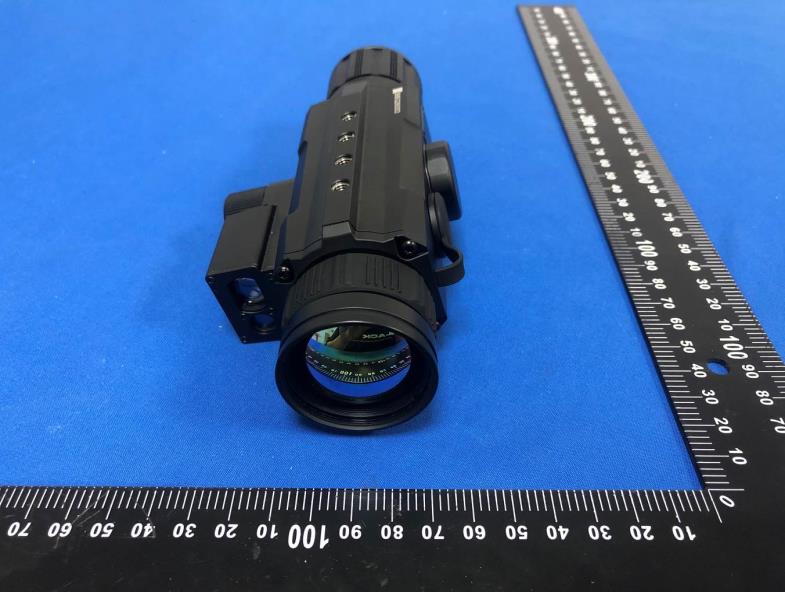

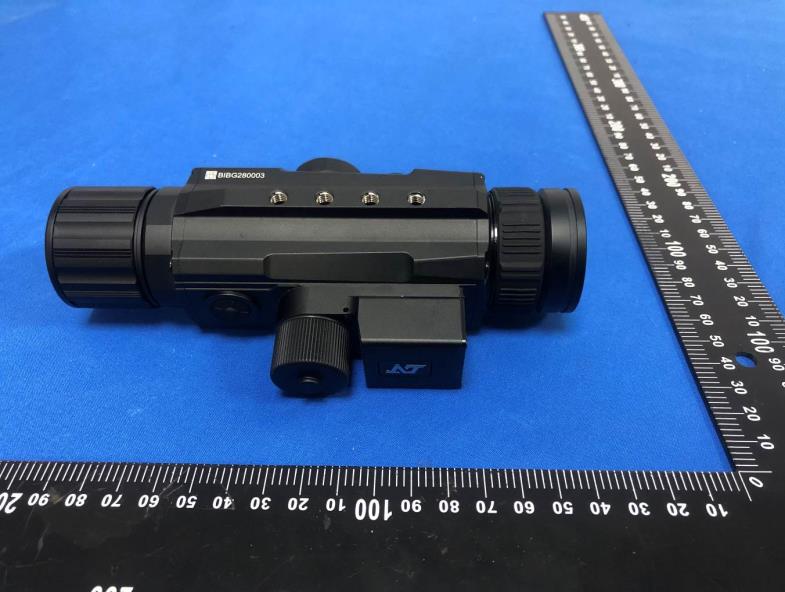

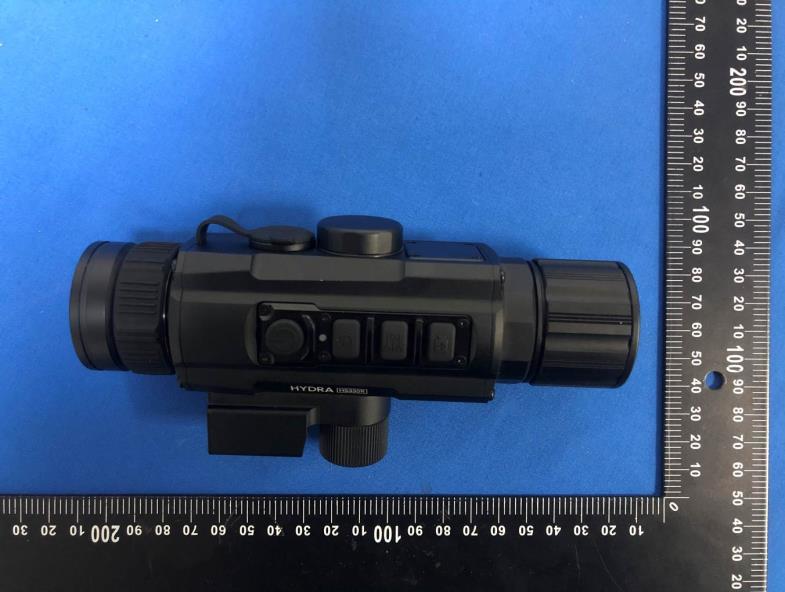

FCC ID: 2BA4J-HYDRAHS225R Test Setup Photos of the EUT FCC ID: 2BA4J-HYDRAHS225R

1 FCC Appendix RF Test Data for BLE FCC ID : 2BA4J-HYDRAHS225R Company : Pangao Photoelectric EUT : HYDRA THERMAL SCOPE Model Number : HYDRA HS225R Report No. : CTA25092300801 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.632 2401.700 2402.332 0.5 PASS 2440 0.640 2439.692 2440.332 0.5 PASS 2480 0.640 2479.692 2480.332 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0077 2401.5156 2402.5233 --- --- 2440 1.0092 2439.5159 2440.5251 --- --- 2480 1.0069 2479.5172 2480.5241 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 -3.39 ≤30 PASS 2440 -3.67 ≤30 PASS 2480 -3.69 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -19.42 ≤8.00 PASS 2440 -19.36 ≤8.00 PASS 2480 -19.44 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -3.47 -53.51 ≤-23.47 PASS High 2480 -4.36 -56.09 ≤-24.36 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -5.41 -5.41 --- PASS 30~1000 -5.41 -67.9 ≤-25.41 PASS 1000~26500 -5.41 -47.2 ≤-25.41 PASS 2440 Reference -5.34 -5.34 --- PASS 30~1000 -5.34 -67.43 ≤-25.34 PASS 1000~26500 -5.34 -47.06 ≤-25.34 PASS 2480 Reference -4.36 -4.36 --- PASS 30~1000 -4.36 -67.08 ≤-24.36 PASS 1000~26500 -4.36 -47.65 ≤-24.36 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.63 0.6508 65.08 1.87 --- --- 2440 0.41 0.63 0.6508 65.08 1.87 --- --- 2480 0.41 0.63 0.6508 65.08 1.87 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21

31 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 32 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 33 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 34 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11G Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 11N20SISO Ant1 2412 20.00 20.00 100.00 2437 20.00 20.00 100.00 2462 20.00 20.00 100.00 35 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 36 11G_Ant1_2412 11G_Ant1_2437 37 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 38 11N20SISO_Ant1_2462

1 FCC Appendix RF Test Data for 2.4GWIFI FCC ID : 2BA4J-HYDRAHS225R Company : Pangao Photoelectric EUT : HYDRA THERMAL SCOPE Model Number : HYDRA HS225R Report No. : CTA25092300802 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 9.040 2407.560 2416.600 0.5 PASS 2437 9.040 2432.520 2441.560 0.5 PASS 2462 8.720 2457.520 2466.240 0.5 PASS 11G Ant1 2412 16.320 2403.920 2420.240 0.5 PASS 2437 16.360 2428.880 2445.240 0.5 PASS 2462 16.320 2453.880 2470.200 0.5 PASS 11N20SISO Ant1 2412 17.280 2403.400 2420.680 0.5 PASS 2437 17.280 2428.400 2445.680 0.5 PASS 2462 17.400 2453.360 2470.760 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 12.972 2405.5531 2418.5251 --- --- 2437 13.075 2430.4642 2443.5392 --- --- 2462 12.981 2455.5210 2468.5020 --- --- 11G Ant1 2412 16.530 2403.7987 2420.3287 --- --- 2437 16.590 2428.7376 2445.3276 --- --- 2462 16.588 2453.7418 2470.3298 --- --- 11N20SISO Ant1 2412 17.469 2403.3230 2420.7920 --- --- 2437 17.446 2428.3256 2445.7716 --- --- 2462 17.464 2453.3056 2470.7696 --- --- 8 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 9 11G_Ant1_2412 11G_Ant1_2437 10 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11 11N20SISO_Ant1_2462 12 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 5.62 ≤30.00 PASS 2437 6.27 ≤30.00 PASS 2462 6.16 ≤30.00 PASS 11G Ant1 2412 4.34 ≤30.00 PASS 2437 4.92 ≤30.00 PASS 2462 5.05 ≤30.00 PASS 11N20SISO Ant1 2412 4.68 ≤30.00 PASS 2437 5.28 ≤30.00 PASS 2462 5.31 ≤30.00 PASS 13 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -23.20 ≤8.00 PASS 2437 -23.06 ≤8.00 PASS 2462 -22.92 ≤8.00 PASS 11G Ant1 2412 -30.07 ≤8.00 PASS 2437 -29.45 ≤8.00 PASS 2462 -29.29 ≤8.00 PASS 11N20SISO Ant1 2412 -29.54 ≤8.00 PASS 2437 -29.18 ≤8.00 PASS 2462 -29.24 ≤8.00 PASS 14 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 15 11G_Ant1_2412 11G_Ant1_2437 16 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 17 11N20SISO_Ant1_2462 18 Appendix E: Band edge measurements Test Result TestMode Antenn a ChNam e Frequency[MH z] RefLevel[dB m] Result[dB m] Limit[dBm ] Verdic t 11B Ant1 Low 2412 -8.20 -57.7 ≤-28.2 PASS High 2462 -7.47 -57.66 ≤-27.47 PASS 11G Ant1 Low 2412 -15.78 -57.13 ≤-35.78 PASS High 2462 -15.25 -57.01 ≤-35.25 PASS 11N20SIS O Ant1 Low 2412 -15.88 -56.56 ≤-35.88 PASS High 2462 -15.13 -57.43 ≤-35.13 PASS 19 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 20 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 21 11N20SISO_Ant1_High_2462 22 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference -9.65 -9.65 --- PASS 30~1000 -9.65 -68.12 ≤-29.65 PASS 1000~26500 -9.65 -54.75 ≤-29.65 PASS 2437 Reference -9.32 -9.32 --- PASS 30~1000 -9.32 -68.08 ≤-29.32 PASS 1000~26500 -9.32 -54.81 ≤-29.32 PASS 2462 Reference -9.72 -9.72 --- PASS 30~1000 -9.72 -67.89 ≤-29.72 PASS 1000~26500 -9.72 -54.92 ≤-29.72 PASS 11G Ant1 2412 Reference -9.14 -9.14 --- PASS 30~1000 -9.14 -67.99 ≤-29.14 PASS 1000~26500 -9.14 -55.27 ≤-29.14 PASS 2437 Reference -9.14 -9.14 --- PASS 30~1000 -9.14 -67.59 ≤-29.14 PASS 1000~26500 -9.14 -54.69 ≤-29.14 PASS 2462 Reference -8.61 -8.61 --- PASS 30~1000 -8.61 -67.73 ≤-28.61 PASS 1000~26500 -8.61 -54.97 ≤-28.61 PASS 11N20SISO Ant1 2412 Reference -9.38 -9.38 --- PASS 30~1000 -9.38 -68.36 ≤-29.38 PASS 1000~26500 -9.38 -54.91 ≤-29.38 PASS 2437 Reference -8.35 -8.35 --- PASS 30~1000 -8.35 -67.53 ≤-28.35 PASS 1000~26500 -8.35 -54.68 ≤-28.35 PASS 2462 Reference -9.33 -9.33 --- PASS 30~1000 -9.33 -67.95 ≤-29.33 PASS 1000~26500 -9.33 -53.31 ≤-29.33 PASS 23 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 24 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 25 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 26 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 27 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 28 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 29 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 30 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. .......................................... : CTA25092300802 2BA4J-HYDRAHS225R Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Oct. 09, 2025 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ........................... : Pangao Photoelectric Address ............................................ : Building 06, Unit 501, No. 16 Wenchang Road, Hunan Xiangxiang Economic Development Zone, Hunan Province, China Test specification.......................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .................... : HYDRA THERMAL SCOPE Trade Mark ....................................... : DNT OPTICS Manufacturer .................................... : Pangao Photoelectric Model/Type reference ...................... : HYDRA HS225R Listed Models ................................... : Refer to page 2 Modulation Type .............................. : CCK/DSSS/OFDM Operation Frequency ....................... : From 2412 - 2462MHz Rating ............................................... : DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA25092300802 Page 2 of 28 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : HYDRA THERMAL SCOPE Model /Type : HYDRA HS225R Listed Models : HYDRA HS325R, HYDRA HS335R, HYDRAR HS635R, HYDRAR HS650R, HYDRAR HS219R, HYDRAR HS215R, HYDRAR HS219, HYDRAR HS335, HYDRAR HS650 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Pangao Photoelectric Address : Building 06, Unit 501, No. 16 Wenchang Road, Hunan Xiangxiang Economic Development Zone, Hunan Province, China Manufacturer : Pangao Photoelectric Address : Building 06, Unit 501, No. 16 Wenchang Road, Hunan Xiangxiang Economic Development Zone, Hunan Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25092300802 Page 3 of 28 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................. : FCC ID. ......................................... : CTA25092300801 2BA4J-HYDRAHS225R Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Oct. 09, 2025 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name...........................: Pangao Photoelectric Address ...........................................: Building 06, Unit 501, No. 16 Wenchang Road, Hunan Xiangxiang Economic Development Zone, Hunan Province, China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : HYDRA THERMAL SCOPE Trade Mark ......................................: DNT OPTICS Manufacturer ...................................: Pangao Photoelectric Model/Type reference .....................: HYDRA HS225R Listed Models ..................................: Refer to page 2 Modulation ......................................: GFSK Frequency ........................................ From 2402MHz to 2480MHz Ratings ............................................: DC 5.0V From external circuit Result ..............................................: PASS Report No.: CTA25092300801 Page 2 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : HYDRA THERMAL SCOPE Model /Type : HYDRA HS225R Listed Models : HYDRA HS325R, HYDRA HS335R, HYDRAR HS635R, HYDRAR HS650R, HYDRAR HS219R, HYDRAR HS215R, HYDRAR HS219, HYDRAR HS335, HYDRAR HS650 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Pangao Photoelectric Address : Building 06, Unit 501, No. 16 Wenchang Road, Hunan Xiangxiang Economic Development Zone, Hunan Province, China Manufacturer : Pangao Photoelectric Address : Building 06, Unit 501, No. 16 Wenchang Road, Hunan Xiangxiang Economic Development Zone, Hunan Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25092300801 Page 3 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility.........................................................................................................…

Text truncated - open the document above for the full version.

SWARD深圳市索沃德通讯技术有限公司 ShenzhenSuoWardCommunicationTechnologyCo.,Ltd. 深圳市宝安区前进二路135号河西航城工业区B栋6楼 电话：0755-29985185传真：0755-27487028 第 1 页 天线规格书 Antennaspecificationforapproval 客户名称 Customername 途派 机型 Model TC225-108&TC335 天线频段 Antenna frequency 2.4GHz~5GHz 天线功能 Antenna function WIFI天线 天线材质 Antenna material FPC FPC颜色 FPCcolor 黑色 型号 model SF2398A-1B2-B 料号 Materialnumber SF2398A-1D11G-040-B 客户料号 CustomerPart Number 索沃德承认签章 Wardacceptedthesignature 客户承认签章 Clientacknowledgessignature 结构 structure 采购 Purchase 文控 Documentcontrol 结构 structure 射频 radiofrequency 工程 engineering 审核 Toexamine 品质 QC 承辦人 Responsible李婷婷 审核 Toexamine 日期date 2025.02.17 盖章区 Sealarea 日期date 2025.02.17 盖章区 Sealarea 6th Floor, Building B, Hexi Hangcheng Industrial Zone, No. 135, Qianjin 2nd Road, Bao 'an District, Shenzhen City SWARD深圳市索沃德通讯技术有限公司 ShenzhenSuoWardCommunicationTechnologyCo.,Ltd. 深圳市宝安区前进二路135号河西航城工业区B栋6楼 电话：0755-29985185传真：0755-27487028 第 2 页 序号认证编号材质类型发证日期备注 1SHAEC24025471005镀锡铜线2024-11-25一年 2SHAEC24027284565卤素2024-12-06一年 3SHAEC24027480902背胶2024-12-06一年 4SHAEC24029171725FEP护套2024-12-26一年 5SHAEC24027284563FEP绝缘2024-12-05一年 6SZXEC24002306404锡线2024-07-24一年 7SZXEC24002306408锡条2024-07-24一年 8ETR24600712印刷油墨2024-06-14一年 9A2240123200102001E基材2024-03-20一年 10CANEC24028865417EVA泡棉2025-01-03一年 11A2240439752101001导电布2024-07-29一年 12SZXEC24002471802金镀层2024-08-08一年 6th Floor, Building B, Hexi Hangcheng Industrial Zone, No. 135, Qianjin 2nd Road, Bao 'an District, Shenzhen City SWARD深圳市索沃德通讯技术有限公司 ShenzhenSuoWardCommunicationTechnologyCo.,Ltd. 深圳市宝安区前进二路135号河西航城工业区B栋6楼 电话：0755-29985185传真：0755-27487028 第 3 页 目录 一:设备支持&可测试天线类型 ...................................................... 1 二:概述 ............................................................................................. 2 三:匹配电路图&机器图片&天线图片 ............................................ 3 四:效率 ............................................................................................. 4 五:3Dpattern ................................................................................. 5 六:结构图纸 ..................................................................................... 6 6th Floor, Building B, Hexi Hangcheng Industrial Zone, No. 135, Qianjin 2nd Road, Bao 'an District, Shenzhen City SWARD深圳市索沃德通讯技术有限公司 ShenzhenSuoWardCommunicationTechnologyCo.,Ltd. 深圳市宝安区前进二路135号河西航城工业区B栋6楼 电话：0755-29985185传真：0755-27487028 第 4 页 一:设备支持&可测试天线类型 6th Floor, Building B, Hexi Hangcheng Industrial Zone, No. 135, Qianjin 2nd Road, Bao 'an District, Shenzhen City SWARD深圳市索沃德通讯技术有限公司 ShenzhenSuoWardCommunicationTechnologyCo.,Ltd. 深圳市宝安区前进二路135号河西航城工业区B栋6楼 电话：0755-29985185传真：0755-27487028 第 5 页 二:概述 (1)Antennaperformance 1.ThisapprovalsheetsupportsforMIDproject.FPCantennasincludeinthisproject.Thisreport isfortheperformanceofWIFIantenna. 2.Antennashapesize：MeettherequirementofMID 3.Antennaband：2.4GHz~5GHz 4.Antennamaterial：AntennamaterialmeettherequirementofMID 5.Adhesiveperformance：AdhesiveperformancemeettherequirementofMID 6.Antennaperformancemeetthespecbelow： Description2.4GHz~5GHzUnits VSWR ≤2.0 AverageAntennaGain ≥-4.5 dB FeedImpedance50ohms OperatingTemperature-40to+85degC Polarization/AzimuthLinear/Omni-directional (2)MechanicalInformation MechanicalDimension CableLength040mm/GRAY DescriptionWIFIantenna MaterialFPC CoaxialCable50Ω/O.D.1.13mm Environmental OperationTemperature-40to+85degC StorageTemperature-40to+85degC 6th Floor, Building B, Hexi Hangcheng Industrial Zone, No. 135, Qianjin 2nd Road, Bao 'an District, Shenzhen City SWARD深圳市索沃德通讯技术有限公司 ShenzhenSuoWardCommunicationTechnologyCo.,Ltd. 深圳市宝安区前进二路135号河西航城工业区B栋6楼 电话：0755-29985185传真：0755-27487028 第 6 页 三:匹配电路图&机器图片&天线图片 (1)匹配电路 (2)机器图片&天线图片 NA RF NA NA NA NA NA 6th Floor, Building B, Hexi Hangcheng Industrial Zone, No. 135, Qianjin 2nd Road, Bao 'an District, Shenzh…
