2BA5U-RRU32121MEx10 UHF RFID Module(1-Port)

Ex10UHFRFIDModule(1-Port) RRU72121M RRU52121M RRU32121M Page1Total4 Ex10UHFRFIDModule(1-Port) Model:RRU72121M RRU52121M RRU32121M Size:21mmx21mmx3.5mm Ex10 UHF RFID Module(1-Port) RRU72121M RRU52121M RRU32121M Page 2 Total 4 GENERAL DESCRIPTION Based on the E310 chip design, Gen2 Extension Ready, ultra-small size, low power consumption, low cost, SMD form factor, maximum RF output of 27dBm, real-time temperature monitoring, making it the best choice for various small desktop and mobile devices. FEATURES Self-intellectual property; Designed with IMPINJ E310 and support ISO18000-6C(EPC C1G2) protocol tag, featuring excellent multi-tag anti-collision functionality; 865~868MHz/902~928MHz frequency band(frequency customization optional); FHSS or Fix Frequency transmission; RF output power up to 27dbm(adjustable); Support external antenna; Effective distance up to 6m*(with external 8dbi antenna and tag E41); Maximum inventory speed up to 350 pcs/s; Tag buffer size up to 1000PCS@96bits EPC; Low power dissipation with single +3.6~5.5VDC power supply; Support RSSI; High stability with air cooling and no extra heat sinking; Capable of continuous operation for 24 hours×365 days; Support on-the-site firmware upgrading. Antenna type: Ceramic Antenna, Antenna gain: 3.81dBi Effective reading distance and tag interrogation speed are directly related to the antenna, tags, and the working environment. CHARACTERISTICS Absolute Maximum Ratings ITEMSYMBOLVALUEUNIT Power SupplyVCC6V Operating TempT OPR -20 ~ +65 °C Storage TempT STR -40 ~ +85°C Ex10UHFRFIDModule(1-Port) RRU72121M RRU52121M RRU32121M Page3 Total4 Electricaland MechanicalSpecification UnderT A =25°C,VCC =+5V unlessspecified INTERFACE ITEMSYMBOLMINTYPMAXUNIT PowerSupplyVCC3.655.5V CurrentDissipation I C (active) I C (standby) 67600(27dBm)mA FrequencyF REQ - 865~868(ETSI) 902~928(FCC) -MHz RF OutputPowerP RF 527dBm ReceiveSensitivitySR -74 dBm NO.SYMBOLCOMMENT 1VCC+3.6V~ +5.5VPowerSupply 2GNDGround 3ENEnable,activehigh 4GPO2GeneralOutput2 (3.0VTTL level) 5GPI1GeneralOutput1 (3.3VTTL levelcompatible) 6GPI2GeneralOutput2 (3.3VTTL levelcompatible) 7RXDSerialdata Input(3.3VTTL levelcompatible) 8TXDSerialdata Output(3.3VTTL levelcompatible) 9RSTModulereset,activelow 10GPO1GeneralOutput1 (3.0VTTL level) 11GNDGround 12ANTAntenna 13GNDGround 14GNDGround 15NCReserved 16NCReserved 17NCReserved 18NCReserved 19V OUT 3.0Voutput(max.20mA) 20GNDGround Ex10UHFRFIDModule(1-Port) RRU72121M RRU52121M RRU32121M Page4Total4 ShenzhenRoyalRayScienceandTechnologyCo.,LtdTel:+86755255315622560661925636705 Add:SuiteFC(WestWing),4F,A1Building,Xiufeng IndustrialPark,NO.2XiufengRoad,LonggangDistrict, Shenzhen,P.R.C. Fax:+8675525531562 Website:www.rr-rfid.com Email:[email protected]@163.com MECHANICALDATA(UNIT:mm) ApplicationInformation 1.Whendesigningfixedreader,pleasetakecareofheatsinkingandremembertomakesure theheatsinkerofthemoduleiscloselyandstablyattachedtothereader’sbottomplate; 2.PleaserefertoUser'sManualfordetailedprotocoldescription. Remark: 1.Specificationsaresubjecttochange,pleasepayattentiontoourlatestversion. 2.ShenzhenRoyalRayScienceandTechnologyCo.,Ltd.reservestherighttothefinalinterpretationoftheaboveterms. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: The equipment complies with FCC Radiation exposure limits set forth for uncontrolled enviroment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Shenzhen RoyalRay Science and Technology Co., Ltd. Covered Equipment Certification Attestation Letter 7/4/2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2BA5U-RRU32121M Shenzhen RoyalRay Science and Technology Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List , the applicant should include an explanation on why the equipment is not “covered” equipment. Shenzhen RoyalRay Science and Technology Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signature: Name: ZOU YI Phone: 13632745631 E-Mail: [email protected]

Shenzhen RoyalRay Science and Technology Co., Ltd. * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter July 9, 2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2BA5U-RRU32121M Per section 2.911(d)(7) of the FCC rules, Shenzhen RoyalRay Science and Technology Co., Ltd. (“the applicant”) , FRN: 0033760547 certifies that the equipment for which authorization is sought is designated to the following U.S. Designated agent* for service of process: Company Name: EMCTEK Physical U.S. Company Address: 11788 Big Canyon Ln, San Diego, CA 92131 USA Agent name: Fang Liu Agent Email Address: [email protected] FRN: 0033401829 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Signed: Printed name: ZOU YI Printed name: Fang Liu Title: / Title: / Company Name: Shenzhen RoyalRay Science and Technology Co., Ltd. Company Name: EMCTEK Date: July 1, 2024 Date: June 13, 2024 FRN Code: 0033760547 FRN Code: 0033401829

Shenzhen RoyalRay Science and Technology Co., Ltd. Date: 2024.07.02 FCC ID: 2BA5U-RRU32121M Dear Sir/Madam, We, Shenzhen RoyalRay Science and Technology Co., Ltd. Hereby declares the following statement for Federal Communications Commission, All these models the circuit, PCB, component and the specifications of wireless functions are the same. which are not affect the RF characteristics, The only difference is the model name. Product name: Ex10 UHF RFID Module(1-Port) Model no.: RRU32121M, RRU72121M, RRU52121M Sincerely, Signature: Name: ZOU YI Phone: 13632745631 E-Mail: [email protected]

Shenzhen RoyalRay Science and Technology Co., Ltd. Date: 2024.07.04 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BA5U-RRU32121M Product Name: Ex10 UHF RFID Module(1-Port) Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) ☒ Schematics ☐ BOM List ☒ Block Diagram ☐ Tune-Up Info ☒ Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. In addition we hereby request the following exhibits contained in this application to be temporarily (short-term confidentiality) withheld from the public disclosure ☐ for an initial period of days ☐ until: ☐ not applicable ☐ External Photos ☐ Test Setup Photos ☐ Internal Photos ☐ Users Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. Signature: Name: ZOU YI Phone: 13632745631 E-Mail: [email protected]

Shenzhen RoyalRay Science and Technology Co., Ltd. Date: 2024.07.04 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Modular Approval Request FCC ID: 2BA5U-RRU32121M The following attestation addresses the requirements to support modular approval: Modular approval requirement Yes (provide brief statement) No * (a) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly Yes (Refer to the external photographs) (b) The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal Yes (All input to the modules are buffered through microprocessor inputs) (c) The module must contain power supply regulation on the module Yes (Internal power regulators refer to the block diagram) (d) The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) Yes (Refer to the product photo) (e) The module must demonstrate compliance in a stand-alone configuration Yes (The EUT was tested in a standalone configuration via a debug device. Refer to the test setup photo) (f) The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements) Yes (Refer to the label location) (g) The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements Yes (Refer to the user manual) Shenzhen RoyalRay Science and Technology Co., Ltd. Modular approval requirement Yes (provide brief statement) No * (h) The module must comply with RF exposure requirements Yes (Refer to the RF exposure statement for more details) * Please provide a detailed explanation if the answer is “No.” Sincerely, Signed : Name: ZOU YI Phone: 13632745631 E-Mail: [email protected]

Shenzhen RoyalRay Science and Technology Co., Ltd. \\192.168.1.200\sz-ctc\09_工程部\RF实验室\2024年案件\6月\CTC240611-016 荣睿和芯 E310 RED & FCC ID\1.资料\1.3 申请资料 \Letter\POA_Letter_140225.docx Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2024.07.04 SUBJECT: FCC Application for FCC ID: 2BA5U-RRU32121M To Whom It May Concern: We, the undersigned, hereby authorize _ Titto Zhao _ at _CTC Laboratories, Inc. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by _ Titto Zhao _ on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Signature: Name: ZOU YI Phone: 13632745631 E-Mail: [email protected]

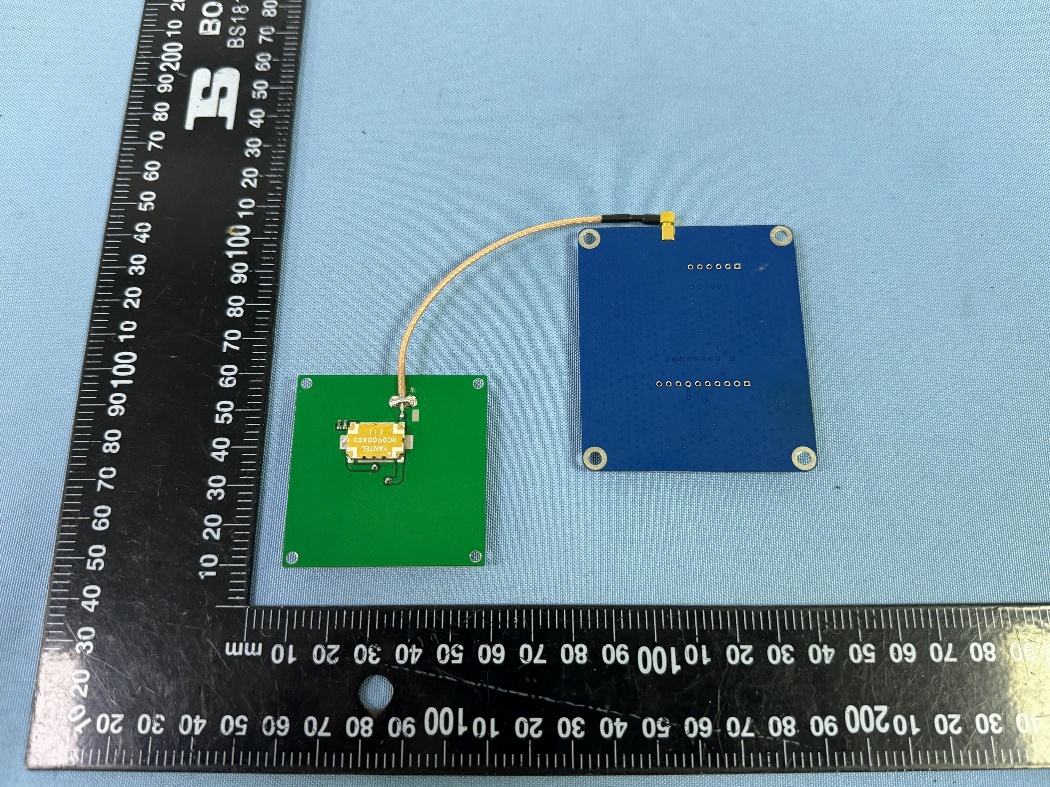

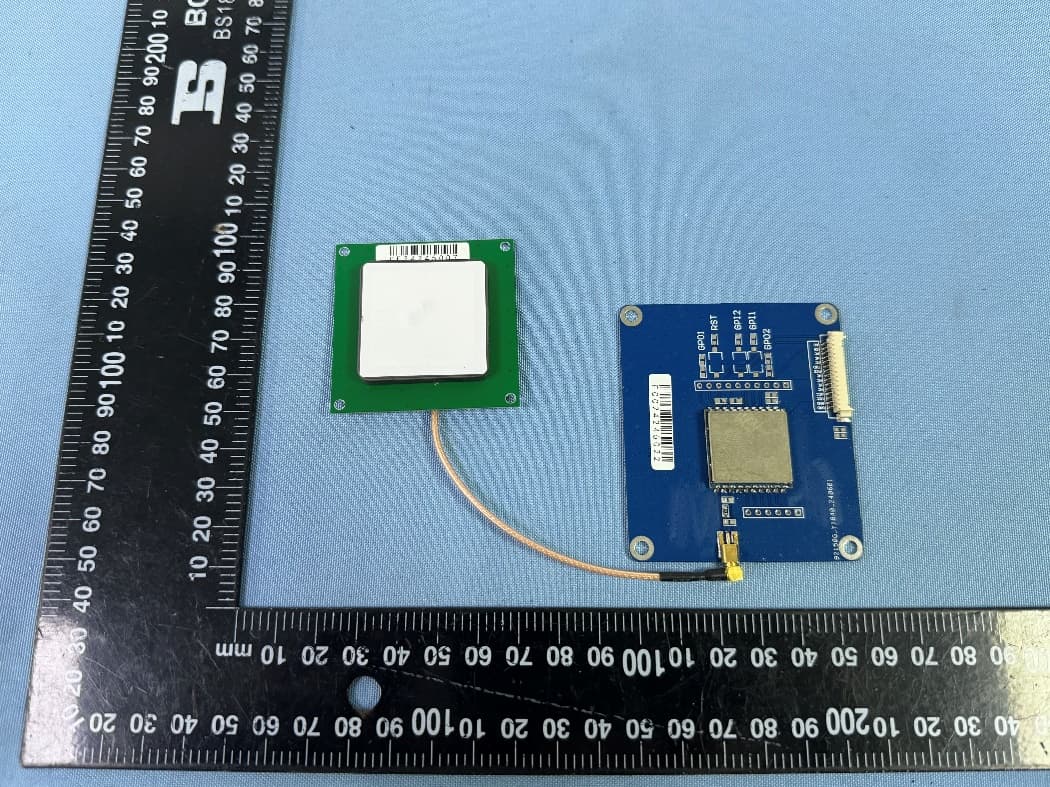

CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Page 1 of 2 External Photographs RF ID Ant. Test auxiliary PCB board EUT Page 2 of 2

CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Page 1 of 1 Label Label Location 1.

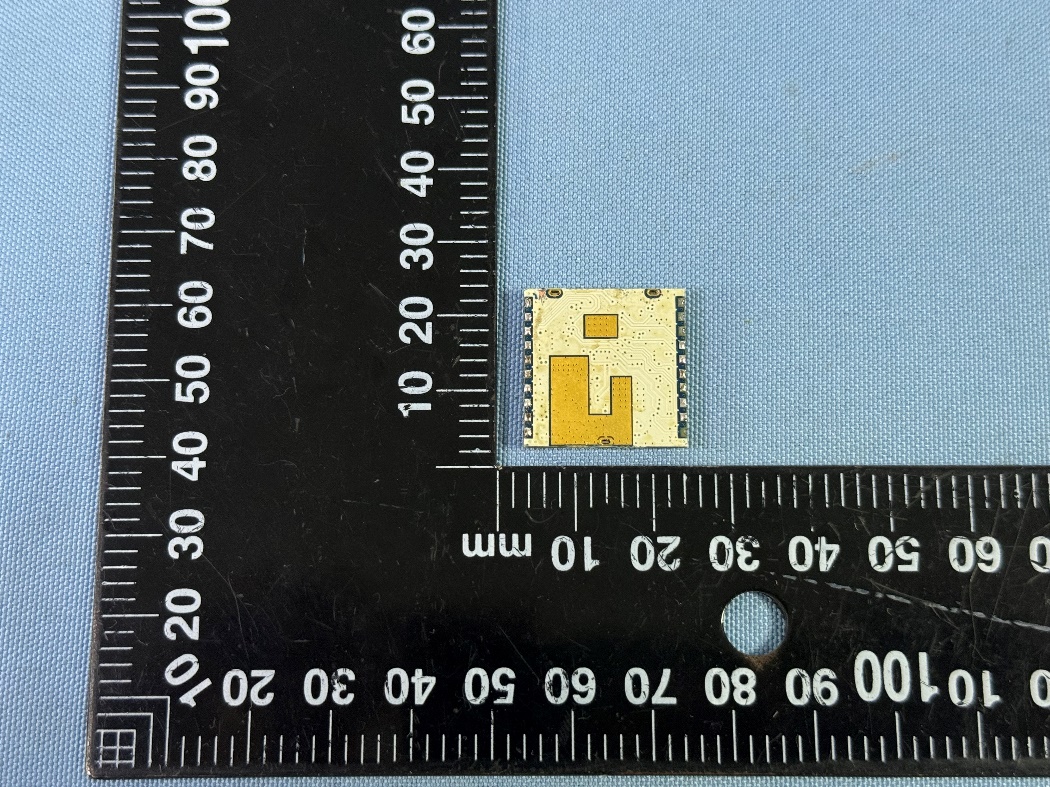

CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Page 1 of 3 Internal Photographs Page 2 of 3 Page 3 of 3

UHF RFID ANTENNA CA504005D-US Sum m ary CA504005D-US is based on ceramics, with a double feed point design and a flat structure. It has the characteristics of low reflection loss, small axial ratio, and high gain. The ultra-wide microwave receiving frequency range is 902-928MHz, with a center frequency of 922.5MHz. UHF RFID ceramic antennas are mainly used in production process identification, product anti-counterfeiting detection and other systems. The ceramic antenna can operate normally at temperatures ranging from -40 °C to 80 °C , and with the UHF RFID reader module, the optimal recognition distance can reach about 3m to 5m. The antenna design has very high stability, and there is no directional requirement for reading RFID electronic tags. Antenna electrical performance characteristics NOPROJECTINDEXAllowable error 1Frequency range 902MHz—928MHz±5.0MHz 2Center frequency 920MHz±2.0MHz 3Bandwidth10MHzMin±0.5MHz 4Standing wave ratio1.2Min±0.2 5Gain 3.81DBI±0.2 6Output Impedance50Ohm±0.5 7temperature coefficient20max---- MECHANICAL SPECIFICATIONS An t e n na Dimension50×50×8mm RF output ConnectorCustomizable Mounting Method Screw installation Shockproof GradeIK08 ENVIRONMENTAL CONDITIONS Ope r ating Temp.-40°C～+85°C Storage Temp. -40°C～+85°C Manufacturer： Shenzhen RoyalRay Science and Technology Co., Ltd Address： West Wing, 4F, A1 Building, Xiufeng Industrial Park, No.2 Xiufeng Road, Longgang District, Shenzhen, China ANTENNA DIMENSIONS （ Unit:mm ） Unmarked dimensional tolerance±0.2

CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Maximum Permissible Exposure Evaluation FCC ID: 2BA5U-RRU32121M According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) EUT Specification Product Name: Ex10 UHF RFID Module(1-Port) Trade Mark: / Model/Type reference: RRU32121M Listed Model(s): RRU72121M, RRU52121M Model Different: All these models are identical in the same PCB, layout and electrical circuit, The only difference is the model name Frequency band (Operating)： 902.75MHz ~ 927.25MHz Device category Portable (<5mm separation) Mobile (>20cm separation) Fixed (>20cm separation) Others ___ Exposure classification Occupational/Controlled exposure (S=5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Antenna gain 3.81dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 30 1500-100000 -- -- 1 30 F = frequency in MHz Friis transmission formula: Pd=(Pout*G)\(4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Page 2 of 2 Report No.: CTC2024145203 CTC Laboratories, Inc. Room 101 Building B, No. 7, Lanqing 1st Road, Luhu Community, Guanhu Subdistrict, Longhua District, Shenzhen, Guangdong, China Tel.: (86)755-27521059 Fax: (86)755-27521011 Http://www.sz-ctc.org.cn For anti-fake verification, please visit the official website of Certification and Accreditation Administration of the People’s Republic of China : yz.cnca.cn Pout= output power to antenna in mW G= gain of antenna in linear scale Pi= 3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, We will know the distance where the MPE limit is reached. Measurement Result Band Frequency (MHz) Antenna Gain (dBi) Maximum Power (dBm) Tune up tolerance (dBm) Max. Tune up Power (dBm) Power Density at 20cm (mW/cm2) Limit (mW/cm2) Verdict RF ID 902.75 3.81 26.76 27±1 28 0.30182 0.602 PASS Note: For a more detailed features description, Please refer to the RF Test Report. **********************THE END**********************
