2BA5U-RRU7182MEx10 UHF RFID Module(4-Port)

Ex10 UHF RFID Module(4-Port) RRU7182M RRU5182M RRU3182M Page 1 Total 4 Ex10 UHF RFID Module(4-Port) Model: RRU7182M RRU5182M RRU3182M Size: 77.2mmx51mmx7.7mm Weight: 55g Ex10 UHF RFID Module(4-Port) RRU7182M RRU5182M RRU3182M Page 2 Total 4 GENERAL DESCRIPTION Based on the E710 chip design, Gen2 Extension Ready, maximizing chip potential with outstanding multi-tag anti-collision capability. The 4-port high-throughput coordination design and advanced thermal balance planning ensure consistently high performance over time. All these make it ideal for meeting the high-performance RFID system requirements in fields such as warehousing, logistics, apparel, production lines, and retail. FEATURES ⚫ Self-intellectual property; ⚫ Designed with IMPINJ E710 and support ISO18000-6C(EPC C1G2) protocol tag, featuring excellent multi-tag anti-collision functionality; ⚫ 902~928MHz frequency band(frequency customization optional); ⚫ FHSS; ⚫ RP-SMA sockets for 4 external antennae ; ⚫ Effective distance up to 12m; ⚫ Maximum inventory speed * up to 1000pcs/s (using E710); ⚫ Support RSSI, Tag buffer size up to 1000PCS@96bits EPC; ⚫ Low power dissipation with +4.5~5.5VDC power supply; ⚫ Support RS232 serial communication interface (3.3V TTL level); ⚫ High stability with air cooling and no extra heat sinking; ⚫ Support on-the-site firmware upgrading. *Effective reading distance and tag interrogation speed are directly related to the antenna, tags, and the working environment. CHARACTERISTICS ⚫ Absolute Maximum Ratings ITEM SYMBOL VALUE UNIT Power Supply VCC 6 V Operating Temp T OPR -20 ~ +65 °C Storage Temp T STR -40 ~ +85 °C Ex10 UHF RFID Module(4-Port) RRU7182M RRU5182M RRU3182M Page 3 Total 4 ⚫ Electrical and Mechanical Specification Under T A =25°C,VCC=+5.0V unless specified INTERFACE ITEM SYMBOL MIN TYP MAX UNIT Power Supply VCC 4.5 5 5.5 V Current Dissipation I C 410 100（standby） 1150 1500 mA Frequency F REQ - 902~928(FCC) - MHz Receive Sensitivity SR -87(using E710) dBm No. Pad No. Symbol Comment 1 1 GND Ground 2 1 GND Ground 3 2 VCC Power Supply 4 2 VCC Power Supply 5 4 GPO1 General Output (3.3V TTL level) 6 GPO2 General Output (3.3V TTL level) 7 GPI1 General Input (3.3V TTL level) 8 BUZZER Buzzer output. outputs high when activated 9 5 RXD Serial data input 10 6 TXD Serial data output 11 NC Reserved 12 NC Reserved 13 3 GPI2 General Input (3.3V TTL level) 14 EN Enable. High level effective with internal 10kOhm resistor pulled up to VCC 15 RS485_CTRL RS485 direction control Ex10 UHF RFID Module(4-Port) RRU7182M RRU5182M RRU3182M Page 4 Total 4 Shenzhen RoyalRay Science and Technology Co., Ltd Tel: +86 755 25531562 25606619 25636705 Add: Suite FC (West Wing), 4F, A1 Building, Xiufeng Industrial Park,NO.2 Xiufeng Road, Longgang District, Shenzhen, P.R.C. Fax: +86 755 25531562 Website: www.rr-rfid.com Email: [email protected] [email protected] MECHANICAL DATA (UNIT:mm) Application Information 1. When designing fixed reader, please take care of heat sinking and remember to make sure the heat sinker of the module is closely and stably attached to the reader’s bottom plate; 2. Please refer to User's Manual for detailed protocol description. Remark: 1. Specifications are subject to change, please pay attention to our latest version. 2. Shenzhen RoyalRay Science and Technology Co., Ltd. reserves the right to the final interpretation of the above terms. Ex10 UHF RFID Module(4-Port) RRU7182M RRU5182M RRU3182M Page 5 Total 4 Shenzhen RoyalRay Science and Technology Co., Ltd Tel: +86 755 25531562 25606619 25636705 Add: Suite FC (West Wing), 4F, A1 Building, Xiufeng Industrial Park,NO.2 Xiufeng Road, Longgang District, Shenzhen, P.R.C. Fax: +86 755 25531562 Website: www.rr-rfid.com Email: [email protected] [email protected] FCC WARNING FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. 15.105 Information to the user. (b) For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy Ex10 UHF RFID Module(4-Port) RRU7182M RRU5182M RRU3182M Page 6 Total 4 Shenzhen RoyalRay Science and Technology Co., Ltd Tel: +86 755 25531562 25606619 25636705 Add: Suite FC (West Wing), 4F, A1 Building, Xiufeng Industrial Park,NO.2 Xiufeng Road, Longgang District, Shenzhen, P.R.C. Fax: +86 755 25531562 Website: www.rr-rfid.com Email: [email protected] [email protected] and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for…

Text truncated - open the document above for the full version.

Shenzhen RoyalRay Science and Technology Co., Ltd. U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: AOCE Corporation Inc. FRN: 0033401381 Contact Name: Johnson.wang Address: 6547 N Academy Bivd #2266, Colorado Springs, CO,80918 United States Telephone No: +1-346-582-5234 Email: [email protected] This letter is to confirm that we (AOCE Corporation Inc.) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2024-08-30 Signed by (Printed Name/Title): The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Shenzhen RoyalRay Science and Technology Co., Ltd. FRN: 0033760547 FCC ID: 2BA5U-RRU7182M Contact Name: ZOU YI Address: ROOM 1001B, BUILDING 3RD, TIAN AN CLOUD PARK, BANTIAN STREET, LONGGANG DISTRICT, SHENZHEN, CHINA Telephone No: 13632745631 Email: [email protected] Applicant Signature: Date: 2024-08-30 Signed by (Printed Name/Title): ZOU YI / Manager

Shenzhen RoyalRay Science and Technology Co., Ltd. 2024.08.30 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BA5U-RRU7182M [Shenzhen RoyalRay Science and Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) ZOU YI Shenzhen RoyalRay Science and Technology Co., Ltd. 2024.08.30 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BA5U-RRU7182M [Shenzhen RoyalRay Science and Technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) ZOU YI

Shenzhen RoyalRay Science and Technology Co., Ltd. 2024.08.30 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Ex10 UHF RFID Module(4-Port) Trademark: N/A MODEL : RRU7182M, RRU5182M, RRU3182M, RRU7182M-HT, RRU5182M- HT, RRU3182M-HT FCC ID : 2BA5U-RRU7182M To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : ZOU YI / Manager Contact information / address: ROOM 1001B, BUILDING 3RD, TIAN AN CLOUD PARK, BANTIAN STREET, LONGGANG DISTRICT, SHENZHEN, CHINA

Shenzhen RoyalRay Science and Technology Co., Ltd. 2024.08.30 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : ZOU YI / Manager Contact information / address: ROOM 1001B, BUILDING 3RD, TIAN AN CLOUD PARK, BANTIAN STREET, LONGGANG DISTRICT, SHENZHEN, CHINA

Shenzhen RoyalRay Science and Technology Co., Ltd. FCC Modular Approval Request Rev 3.0 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024/08/30 Subject; Modular Transmitter Application Company name: Shenzhen RoyalRay Science and Technology Co., Ltd. FCC ID: 2BA5U-RRU7182M Dear Sir/Madam, This letter includes the FCC application requirements for Modular Transmitter Approval Request for;- FCC KDB 996369 D01 ‘Module Certification Guide v02; and FCC KDB 996369 D03 OEM Manual v01 In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Equip Auth Guide v02’. FCC ID 2BA5U-RRU7182M has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly. Yes, It has a shield The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal. Yes, This module have buffered modulation/data inputs . The module must contain power supply regulation on the module. Yes, The module have power supply regulation, The supply voltage is DC 5V. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per §§ 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b). Yes, This module has a unique antenna The module must demonstrate compliance in a stand-alone configuration. Yes, This module is a stand-alone configuration. The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (see KDB Publication 784748). Yes, The host system have label in a visible area indicated the following texts: " Contains WIFI Module (Single Module) FCC ID: 2BA5U-RRU7182M The module must comply with all specific rules applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. Yes, This module meets the requirements of FCC part 15C(15.247). &Measurement Shenzhen RoyalRay Science and Technology Co., Ltd. FCC Modular Approval Request Rev 3.0 The module must comply with RF exposure requirements Yes, This module complies with FCC RF radiation exposure limits set forth for an uncontrolled environment, This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body." This module is designed to comply with the FCC statement, FCC ID is: 2BA5U-RRU7182M Integration Instructions for host product manufacturers The following items are submitted in support of application for Modular Transmitter FCC ID as noted above as required by the FCC KDB 996369 D03 OEM Manual v01. These items are provided as integration instructions for host product manufacturers (e.g., OEM instruction manual) to use when integrating a module in a host product. Any requirements that are not applicable to the Module are as indicated below. Summary of requirements and Checklist. Refer to the KDB for description of the complete requirements. Name: ZOU YI Date: 2024/08/30 Title: Manager Signature of applicant

Shenzhen RoyalRay Science and Technology Co., Ltd. Model Difference 2024-08-30 EUT NAME: Ex10 UHF RFID Module(4-Port) FCC ID: 2BA5U-RRU7182M MODEL : RRU7182M, RRU5182M, RRU3182M, RRU7182M-HT, RRU5182M-HT, RRU3182M-HT All the model are the same circuit and RF module, except model names and appearance of the color. Regards Sincerely Client’s signature: Client’s name / title : ZOU YI / Manager Contact information / address: ROOM 1001B, BUILDING 3RD, TIAN AN CLOUD PARK, BANTIAN STREET, LONGGANG DISTRICT, SHENZHEN, CHINA

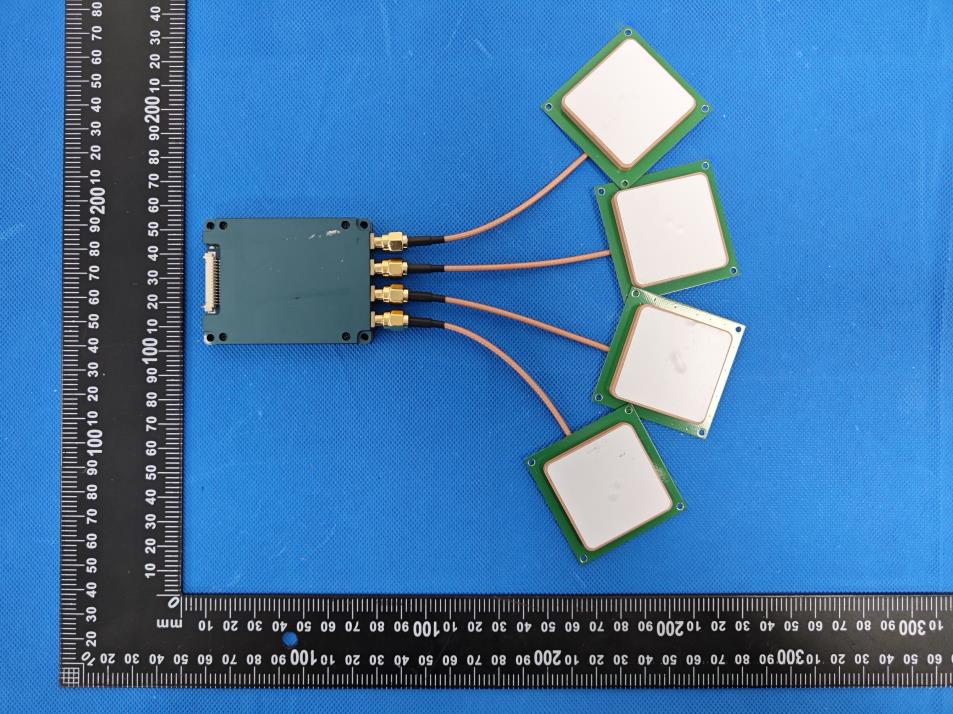

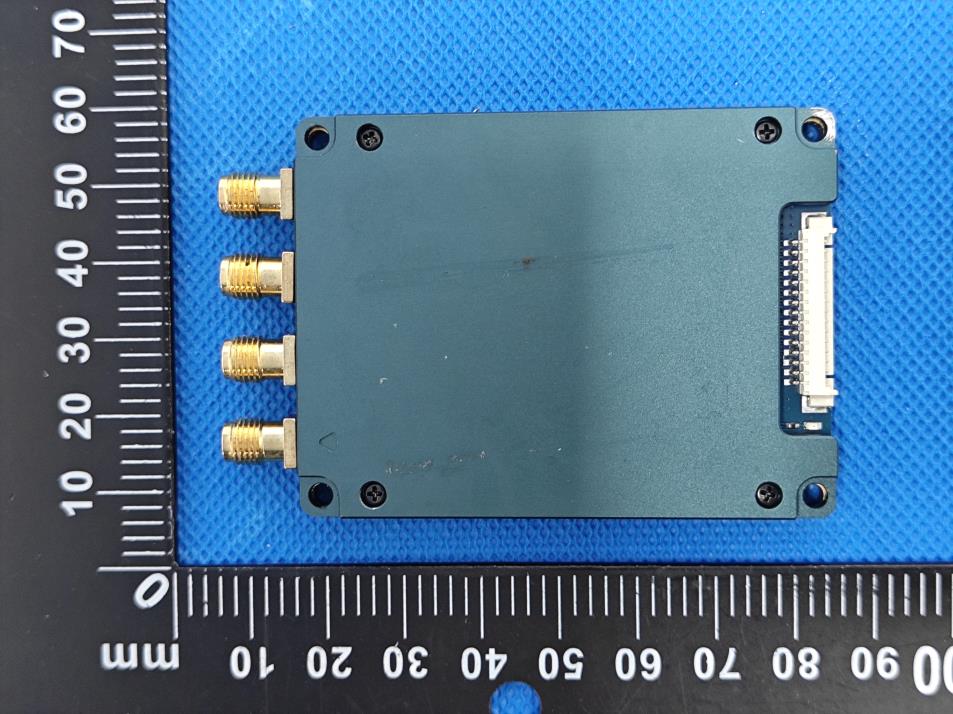

Report No.: BCTC2407121006E External Photos Antenna Report No.: BCTC2407121006E Report No.: BCTC2407121006E Report No.: BCTC2407121006E Report No.: BCTC2407121006E Report No.: BCTC2407121006E

Size:20*10mm Ex10 UHF RFID Module(4-Port) FCC ID: 2BA5U-RRU7182M Label location

Report No.: BCTC2407121006E Internal Photos Report No.: BCTC2407121006E

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2BA5U-RRU7182M Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Conclusion: For the max result: 0.41137≤ 0.6, compliance with FCC's RF Exposure Tune up Produce power Maximu m peak output power (dBm) Output power to antenn a (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result RF ID 28.5±1 29.5 891.25 2.32 (3.65dBi) 0.41137 0.6 Pass

UHF RFID ANTENNA CA504005D-US Antenna electrical performance characteristics NOPROJECTINDEX 1Frequency range902MHz—928MHz 2Center frequency --- 3Bandwidth --- 4Standing wave ratio1.2Min 5Gain 3.65dBi 6Output Impedance50Ohm 7temperature coefficient20max MECHANICAL SPECIFICATIONS RF output Connector Customizable Mounting Method Screw installation Shockproof Grade IK08 ENVIRONMENTAL CONDITIONS Operating Temp.-40°C～+85°C Storage Temp. -40°C～+85°C Manufacturer: Shenzhen RoyalRay Science and Technology Co., Ltd. Address: West Wing, 4F, A1 Building, Xiufeng Industrial Park, No.2 Xiufeng Road, Longgang District, Shenzhen, China Unmarked dimensional tolerance±0.2 ANTENNA DIMENSIONS （ Unit:mm ） Antenna Radiation Pattern

No.：BCTC/RF-EMC-005 Page: 1 of 70 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2407121006E Applicant: Shenzhen RoyalRay Science and Technology Co., Ltd. Product Name: Ex10 UHF RFID Module(4-Port) Test Model: RRU7182M Tested Date: 2024-07-30 to 2024-08-23 Issued Date: 2024-08-23 Report No.: BCTC2407121006E No.：BCTC/RF-EMC-005 Page: 2 of 70 Edition：B.2 FCC ID: 2BA5U-RRU7182M The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Ex10 UHF RFID Module(4-Port) Trademark: N/A Model/Type Reference: RRU7182M RRU5182M, RRU3182M, RRU7182M-HT, RRU5182M-HT, RRU3182M-HT Prepared For: Shenzhen RoyalRay Science and Technology Co., Ltd. Address: ROOM 1001B, BUILDING 3RD, TIAN AN CLOUD PARK, BANTIAN STREET, LONGGANG DISTRICT, SHENZHEN, CHINA Manufacturer: Shenzhen RoyalRay Science and Technology Co., Ltd. Address: West Wing, 4F, A1 Building, Xiufeng Industrial Park, No.2 Xiufeng Road, Longgang District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-07-30 Sample tested Date: 2024-07-30 to 2024-08-23 Issue Date: 2024-08-23 Report No.: BCTC2407121006E Test Standards FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 Test Results PASS Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.: BCTC2407121006E No.：BCTC/RF-EMC-005 Page: 3 of 70 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test procedure .................................................................................................... 24 8.4 EUT operating Conditions ................................................................................... 24 8.5 Test Result .......................................................................................................... 25 9. Conducted Spurious Emission Measurement...................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .................................................................................................................... 26 9.3 Test procedure ..................................................…
