2BA9S-G11Tablet PC

QUICK START GUIDE Technical Parameters Packagecontent: Type-C USB connector Model:G11 Read this manual carefully before operating the Rebeosoii Tablet Product Name:Tablet PC Model:G11 System:Android TM 13.0 Android is a trademark of Google LLC; Dimension:W207mm × H122mm × D9.0mm Weight:Approximately 528g BatteryCapacity:5000mAh Device USB Cable USB poweradaptor Temperglass(LCDProtector) Connect the Type-C USB connector to charge the battery with a Type-C USB cable Do not plug a Type-C USB cable into your device multipurpose jack.Doing so may damage the device ABOUT THE TABLET 1. front camera 2. USB Type-C (charging &data transfer) 3. micro SD 4.3.5mm audio jack 5. touch screen 6. back camera 7. flash 8.volume+ 9. volume- 10.on/off button 11.reset 12. speaker 13. microphone Made in PRC Accessing more information To view the full user manual on your device launch the Setting app and tap User Manual. Visit www.rebeosoii.com to view device information, the manual and more. Maintaining water and dust resistance The device may be damaged if water or dust enters the device. Follow these tips carefully to preventdamage to the device and to maintain thewaterand dust resistant performance of the device. Do not immerse the devicein waterdeeper the 1.5m or keep it submerged for more then 3 minutes. Do not expose the device to water moving with force. Perhaps the device exposed to clean water, dry it thoroughly with a cleansoft clothIfthe device is exposed to otherliquidssuchas salt waterionized wateroralcoholic beverage rinse it with clean water and dryit thoroughly with a clean soft cloth.if you do not follow these instructionsthe device performanceand appearance may be affected. If the device has been immersed in wateror microphone or speakeriswetsoundmaynot be heard clearly during a call. After wiping the device with a dry cloth, dry it thoroughly before using it. TURNING ON You might need to charge the tablet first. Press and hold the power button for a couple of seconds to turn on your tablet. EXPANDING STORAGE You can expand your storage space for saving files and installing programs by adding microSD card (microSD, microSDHC or microSDXC). The maximum supported capacity is 64 GB. 1 2 3 4 5 6 7 89 1011 12 13 12 FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction. The FCC Statement of Exposure to RF and the SAR limit for the United States (FCC) is 1.6 W/kg average for each gram of tissue. This device was tested for typical operations of use on the body. This device was tested for typical operations 0mm from the body.

Epudo(Hongkong)Digital Technology Limited Date: 6/30/2023 FCC ID: 2BA9S-G11 Model Number: ES1058,G11 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Epudo(Hongkong)Digital Technology Limited, declare that this EUT (FCC ID:2BA9S-G11) will conduct FCC compliance testing, the SDOC part recognized test lab(Shenzhen NTEK Testing Technology Co., Ltd.( ShenZhen Lab.). 1/F, Building E, Fenda Science Park, SanweiCommunity,Xixiang Street Bao’an District, Shenzhen 518126 P.R. China) Please contact me if you have any question. Sincerely, (Signed) Name / Title: Barrett Chen/ manager Company: Epudo(Hongkong)Digital Technology Limited Address: ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL Email: [email protected] Tel:+8613923483515

1/1 US Agent for Service of ProcessLETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: THREE STONES MEDIA LLC FRN: 0033401761 Contact Name: Sijie Zhang Address:1200 Broadway St. APT 329, Los Angeles, CA90015 Telephone No: +1 267 909 3692 Email: [email protected] Applicant: Company name: Epudo(Hongkong)Digital Technology Limited Product Description: Tablet PC Grantee code: 2BA9S FCC ID: 2BA9S-G11 Contact Name: Barrett Chen Address: ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL Telephone No: +8613923483515 Email: [email protected] [Epudo(Hongkong)Digital Technology Limited] certifies that, as of the date of this filing of the application with the TCB, [THREE STONES MEDIA LLC] is our designated US agent for service of process for the above referenced FCC ID. [Epudo(Hongkong)Digital Technology Limited] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [THREE STONES MEDIA LLC] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicantis aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. 1/1 Date: 30/06/2023 Applicant’s Name:Barrett Chen US Agent’s Name:Sijie Zhang Title:manager Title: President Signature Signature

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Epudo(Hongkong)Digital Technology Limited Grantee code: 2BA9S FCC ID: 2BA9S-G11 Contact Name: Barrett Chen Address: ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL Telephone No: +8613923483515 Fax No: N/A Email: [email protected] i. [Epudo(Hongkong)Digital Technology Limited] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Epudo(Hongkong)Digital Technology Limited] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. Theapplicantmustsignthiscertification. Epudo(Hongkong)Digital Technology Limitedcertifies that, as of the date of the filing of theapplication, the applicant is notidentified on the Covered List as an entity producing “covered”equipment. Date: 30/06/2023 Applicant’s Name:Barrett Chen Title: Manager Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Epudo(Hongkong)Digital Technology Limited Family models declaration letter. 6/30/2023 We Company: Epudo(Hongkong)Digital Technology Limited Address: ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI,KL Product: Tablet PC Model Name: ES1058 Family Model: G11 All models are the same circuit and RF module,except the model name. We (Epudo(Hongkong)Digital Technology Limited) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.), same mechanical structure and design (including product enclosure, materials, etc.), the only difference is theAll the model are the same circuit and RF module, except the model name. Thanks Sincerely, Signature [Name] Barrett Chen [Title] Gernal manager [email protected]

C5266091_X8_Ed.1 1/1 Letter of Authorization <Epudo(Hongkong)Digital Technology Limited> Company:Epudo(Hongkong)Digital Technology Limited Address: ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI, KL Product Name:Tablet PC Model Number: ES1058,G11 FCC Identifier:2BA9S-G11 We authorize LGAI Technological Center S.A., Ronda de la Font delCarme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Barrett Chen Date: 30/06/2023 Title: manager Signature of applicant:

C5266091_X10_Ed.2 1/1 <Epudo(Hongkong)Digital Technology Limited> Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046Date: 30/06/2023 Subject: Request for Confidentiality FCC ID: 2BA9S-G11 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No Block Diagram ☐ Schematics ☐ Test Report No No Test Setup Photos No User’s Manual ☐ NOTE 1 Internal Photos ☐ NOTE 1 Parts List / Tune Up / BOM List ☐ RF Exposure Info No No Operational Description ☐ Cover Letter(s) No No SOFTWARE SECURITY REQUIREMENTS FOR U- NII DEVICES No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of _180_ days from the date of the Grant of Equipment Authorization and prior to marketing. C5266091_X10_Ed.2 1/1 It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Barrett Chen Title: manager

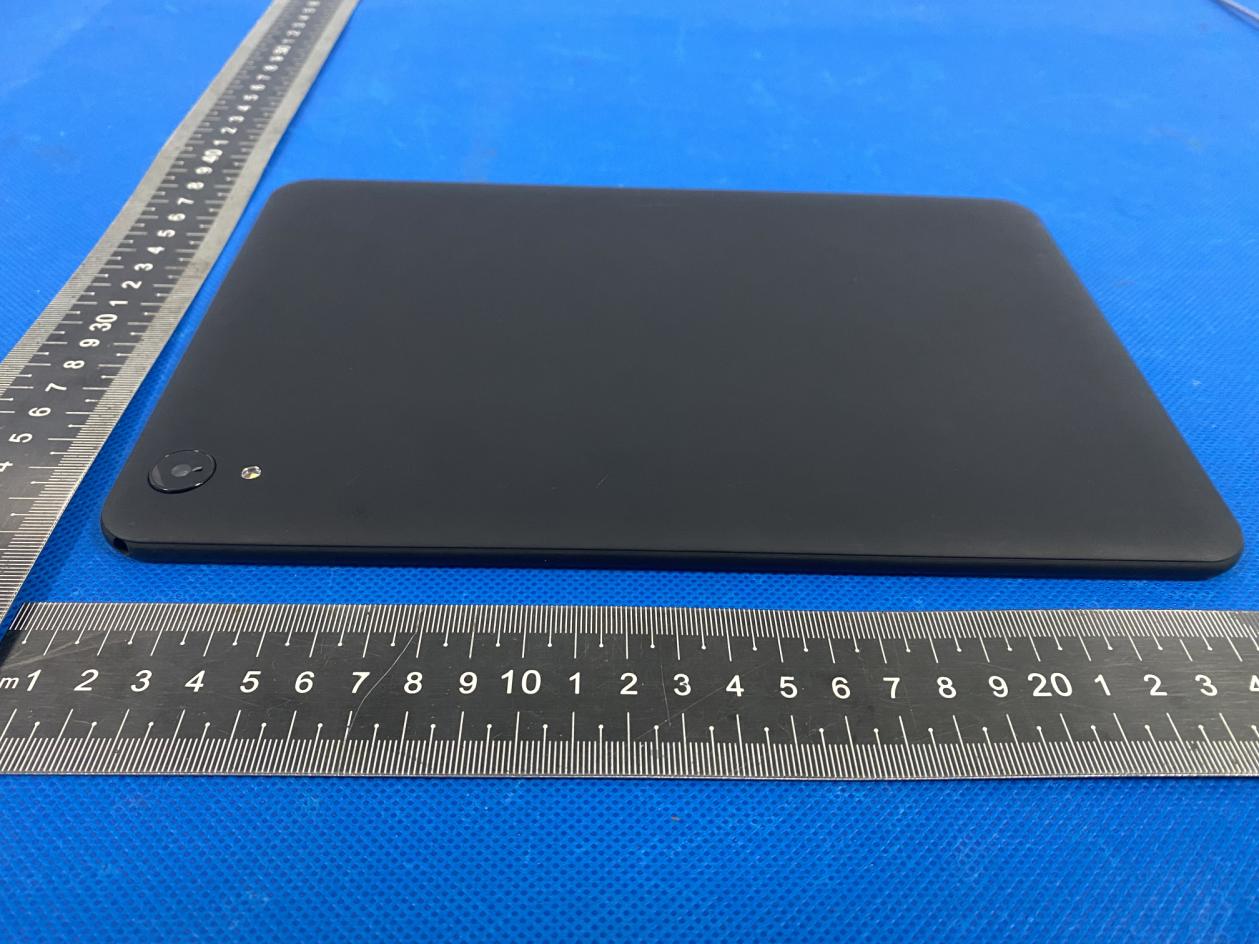

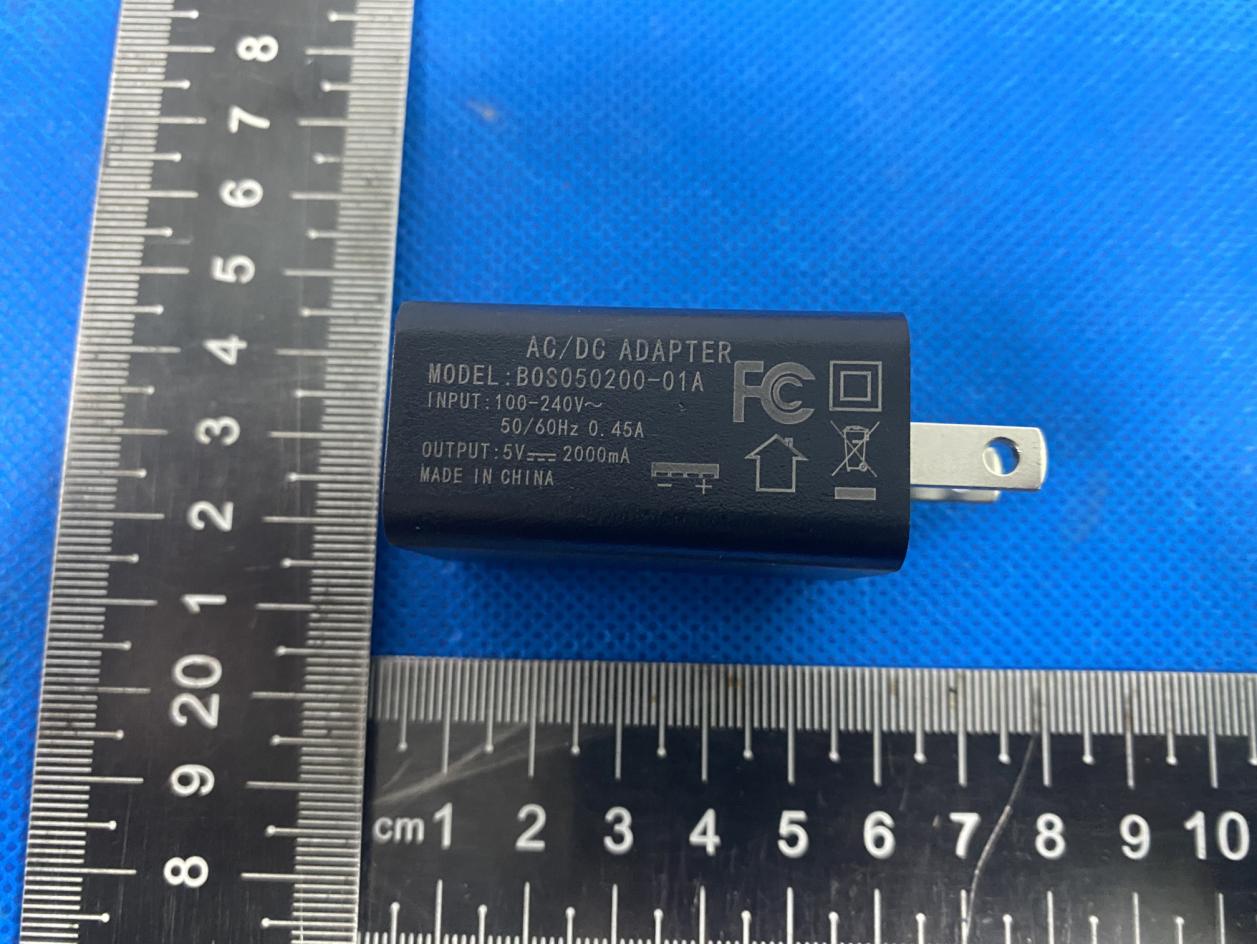

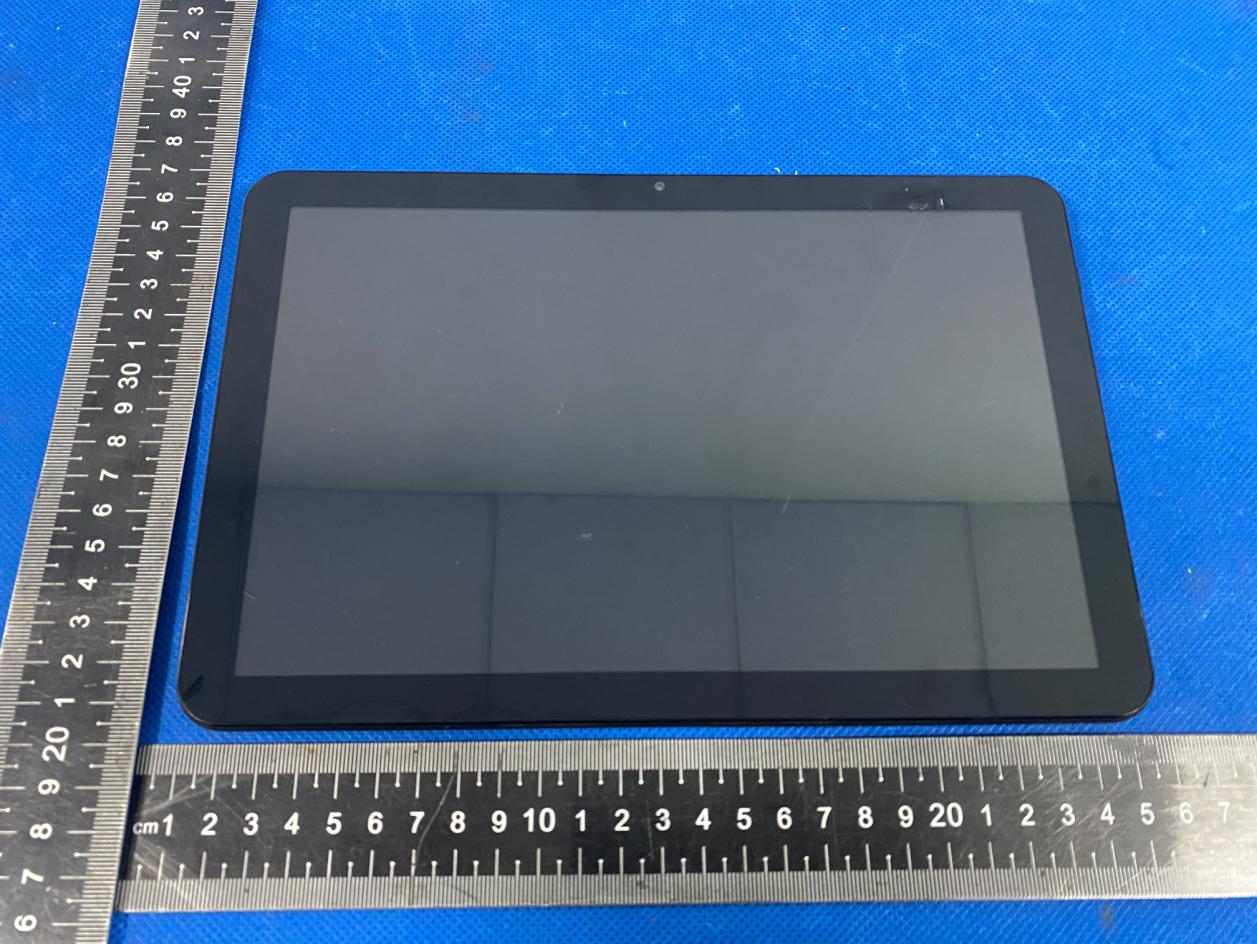

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

Product: Tablet PC Model No.: ES1058 FCC ID: 2BA9S-G11 40*20mm

Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 BT/WIFI ANT

Page 1 of 94 Report No.: S23041403503001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Tablet PC Trademark： REBEOSOII Model Name： ES1058 Family Model： G11 FCC ID： 2BA9S-G11 Report No.： S23041403503001 Prepared for Epudo(Hongkong)Digital Technology Limited ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI,KL Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao'an District, Shenzhen 518126 P.R.China. Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 94 Report No.: S23041403503001 TEST RESULT CERTIFICATION Applicant’s name .................. : Epudo(Hongkong)Digital Technology Limited Address .................................. : ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI,KL Manufacturer's Name ........... : Epudo(DongGuan)Digital Technology Co.Ltd Address .................................. : No.5 Plant,Huanan Science Park 5th Road,Tianxin Village,Tangxia Town,Dongguan,China Product description Product name ......................... : Tablet PC Trademark ............................ : REBEOSOII Model Name ......................... : ES1058 Family Model .......................... : G11 Standards .............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number .............................. S230414035003 Date of Test Date (s) of performance of tests ............. : May 04, 2023 ~ May 10, 2023 Date of Issue .......................................... : May 15, 2023 Test Result .............................................. : Pass Prepared By (Test Engineer) : (Jack Li) Approved By (Lab Manager) : (Alex Li) Page 3 of 94 Report No.: S23041403503001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release May 15, 2023 Jack Li Page 4 of 94 Report No.: S23041403503001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 18 3.1. Power Reference ................................................................................... 18 3.2. Area scan & Zoom scan .......................................................................... 18 3.3. Description of interpolation/extrapolation scheme .............................. 20 3.4. Volumetric Scan ..................................................................................... 20 3.5. Power Drift ............................................................................................ 20 4. System Verification Procedure .......................................................................... 21 4.1. Tissue Verification ................................................................................. 21 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 22 4.2. System Verification Procedure .............................................................. 23 4.2.1. System Verification Results .............................................................. 24 5. SAR Measurement variability and uncertainty .................................................. 25 5.1. SAR measurement variability ................................................................. 25 5.2. SAR measurement uncertainty .............................................................. 25 6. RF Exposure Positions .…

Text truncated - open the document above for the full version.

Building B, Hexi Hangcheng Industrial Zone, No. 135 Qianjin No. 2 Road, Baoan District, Shenzhen Customer name:Yipuda Project name: ES1058-10.1 "plastic shell - Biota -W863-W motherboard -MT8183V main control Date:2023.05.06 Building B, Hexi Hangcheng Industrial Zone, No. 135 Qianjin No. 2 Road, Baoan District, Shenzhen Customer contact: cell phone: Mail: Soward Radio frequency: Wende Yang Mobile phone: 176 7457 9060 Tel: 0755-29985185 Mail box: [email protected] Soward structure: Mobile phone: Tel: 0755-29985185 Mail box: [email protected] Building B, Hexi Hangcheng Industrial Zone, No. 135 Qianjin No. 2 Road, Baoan District, Shenzhen 1.Project Overview Project Antenna NumberMachine type 1Flat plate Machine shell material: plastic shell 2.Antenna Brief Antenna number nameWorking frequency/MHZ Material/Struct ure 1WIFI&GPS&BT&5Gwifi2400MHz/2500MHz&1575MHz&5.8GHzFPC Building B, Hexi Hangcheng Industrial Zone, No. 135 Qianjin No. 2 Road, Baoan District, Shenzhen Antenna layout Building B, Hexi Hangcheng Industrial Zone, No. 135 Qianjin No. 2 Road, Baoan District, Shenzhen WIFI&GPS&BT antenna S11 Building B, Hexi Hangcheng Industrial Zone, No. 135 Qianjin No. 2 Road, Baoan District, Shenzhen Measured distance of BT antenna Measured effect Model number 1 Test environment Soward Research and Development Center Test equipment Huawei AM08 Test distance 15m ≥ Building B, Hexi Hangcheng Industrial Zone, No. 135 Qianjin No. 2 Road, Baoan District, Shenzhen WIFI&BT Antenna efficiency Passive Test For 2.4G FreqEffiEffiGain (MHz)(%)(dB)(dBi) 240038.27-4.171.55 241036.26-4.411.29 242039.88-3.991.52 243041.92-3.781.76 244041.84-3.781.54 245041.4-3.831.56 246038.44-4.151.06 247035.65-4.480.73 248036.07-4.430.7 249039.71-4.011.1 250042.05-3.761.34 1.8 2430.000MHz Building B, Hexi Hangcheng Industrial Zone, No. 135 Qianjin No. 2 Road, Baoan District, Shenzhen 5GWIFI Antenna efficiency Passive Test For 5G-WIFI FreqEffiEffiGain (MHz)(%)(dB)(dBi) 500026.27-5.81-0.09 510026.43-5.78-1.06 520028.54-5.45-1.19 530033.19-4.79-0.23 540031.31-5.04-0.36 550033.16-4.790.18 560029.37-5.32-0.45 570030.75-5.120.4 580029.72-5.270.19 590025.81-5.88-1.36 600029.35-5.32-0.77 Building B, Hexi Hangcheng Industrial Zone, No. 135 Qianjin No. 2 Road, Baoan District, Shenzhen WIFI antenna active data 802.11b : 11MBps 1713 241224422472 13.2514.4214.34 -83.82-84.51-83.38 802.11g : 54MBps 1713 241224422472 11.6212.0311.91 -71.62-71.9-71.57 802.11n : MCS7 1713 241224422472 12.3412.7112.56 -67-67.62-67.83 802.11n : MCS7 36136165 518056805825 10.4611.2812.6 -66.32-67.93-66.82 802.11a : 54MBps 36136165 518056805825 10.6211.6312.96 -70.12-71.54-72.06 Building B, Hexi Hangcheng Industrial Zone, No. 135 Qianjin No. 2 Road, Baoan District, Shenzhen Iperf throughput test Machine type module Software version Model number channeldistanceTest Angle Test data (TX) 1min mean value Mean value of test data (RX) in 1min Remarks (times of switching) 2.4GWIFI15米 0°51.9M/S60.5M/S0 90°52.3M/S58.7M/S 62.9M/S51.1M/S180° 270°52.3M/S59.7M/S 5GWIFI15米 0°241M/S308M/S0 90°249M/S323M/S 284M/S250M/S180° 270°248M/S325M/S WIFI antenna throughput test Building B, Hexi Hangcheng Industrial Zone, No. 135 Qianjin No. 2 Road, Baoan District, Shenzhen WIFI antenna signal intensity measured picture (data) Test location: R&D office of our company Test time: 14:00-14:30 Test distance: 10-15 meters Signal strength: -38dBm to - 30dBm Building B, Hexi Hangcheng Industrial Zone, No. 135 Qianjin No. 2 Road, Baoan District, Shenzhen WIFI antenna signal intensity measured picture (data) Test location: R&D office of our company Test time: 14:00-14:30 Test distance: 10-15 meters Signal strength: -50dBm to - 45dBm Building B, Hexi Hangcheng Industrial Zone, No. 135 Qianjin No. 2 Road, Baoan District, Shenzhen Environmental handling and assembly instructions Use conductive cloth to mask the seat element of the red frame The shielding cover above the motherboard is grounded with conductive cloth The camera wiring is shielded by conductive cloth A, floor 4, building 13, rundongsheng Industrial Zone, Xixiang street, Bao'an District, Shenzhen City, Guangdong Province drawing Building B, Hexi Hangcheng Industrial Zone, No. 135 Qianjin No. 2 Road, Baoan District, Shenzhen Note: 1. This report is based on the actual debugging and testing of the debugging prototype, including environmental treatment, antenna position and assembly position of each device cannot be changed at will; 2. If there is any change in the materials used in the prototype, it is necessary to timely feedback to our company for re-verification; 3. List of sensitive components: TP (material, coating, wiring, etc.) Screen (amplifying circuit, LED, cable design, etc.) Shell material (antenna assembly method, structural interference, shell material, antenna position height and area, etc.) Mainboard (mainboard conduction, RF circuit matching, PA, duplexer, filter, LNA, power circuit, etc.) Camera, battery, motor, MIC, fingerprint recognition module, etc. 4. Due to the small number of debugging prototypes or only one, some probabilistic problems cannot be completely found. It is recommended to check the problem points in small batches before mass production (such as splash screen, noise from speakers, TP jump, black screen of death, signal diving, etc.)

Report No.: S23041403502003 Version.1.3 Page 1 of 81 FCC RADIO TEST REPORT FCC ID: 2BA9S-G11 Product: Tablet PC Trade Mark: REBEOSOII Model No.: ES1058 Family Model: G11 Report No.: S23041403502003 Issue Date: May 18, 2023 Prepared for Epudo(Hongkong)Digital Technology Limited ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI,KL Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S23041403502003 Version.1.3 Page 2 of 81 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 10 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ..................................................................... 10 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 11 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 12 7 TEST REQUIREMENTS .................................................................................................................................... 14 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 14 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 17 7.3 6DB BANDWIDTH ....................................................................................................................................... 27 7.4 DUTY CYCLE ............................................................................................................................................... 29 7.5 MAXIMUM OUTPUT POWER .................................................................................................................... 30 7.6 POWER SPECTRAL DENSITY ................................................................................................................... 32 7.7 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 34 7.8 SPURIOUS RF CONDUCTED EMISSIONS ................................................................................................ 36 7.9 ANTENNA APPLICATION .......................................................................................................................... 37 8 TEST RESULTS ................................................................................................................................................... 38 8.1 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 38 8.2 -6DB BANDWIDTH .......................................................................................................................................... 39 8.3 OCCUPIED CHANNEL BANDWIDTH .................................................................................................................. 46 8.4 MAXIMUM POWER SPECTRAL DENSITY LEVEL ............................................................................................... 53 8.5 BAND EDGE .................................................................................................................................................... 60 8.6 CONDUCTED RF SPURIOUS EMISSION ............................................................................................................. 69 Report No.: S23041403502003 Version.1.3 Page 3 of 81 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Epudo(Hongkong)Digital Technology Limited Address ....................................... : ROOM 803, CHEVALIER HOUSE 45-51 CHATHAM ROAD SOUTH, TSIM SHA TSUI,KL Manufacturer's Name .................. : Epudo(DongGuan)Digital Technology Co.Ltd Address ....................................... : No.5 Plant,Huanan Science Park 5th Road,Tianxin Village,Tangxia Town,Dongguan,China Product description Product name .............................. : Tablet PC Trade Mark ..........…
