2BADD-R4GLITEWireless Trail camera

BLACKGATEHUNTING.COM INSTRUCTIONMANUAL 4 INTRODUCTION R4G-LITE BLACKGATEHUNTING.COM 8 6 5 1 1 9 9 8 5 9 3 2 10 11 12 13 14 15 7 17 16 1Lens/Sensors 2 Antenna 3 IR LEDs (940NM) 4 LED Indicator Light 5 Battery Tray 6 PIR Motion Sensor 7 8 DC Power Port (12V) (Plug Size 5.5 x 2.1mm) 9 Tripod/Mount Attachment 1/4” x 20 10 Power Switch 11 Format SD Card Button 12 Account Indicator 13 Battery Indicator 14 SIM Card Indicator 15 Signal Indicator 16 Padlock Hole Strap Brackets 17 Pipe-Through Bracket for Python Cable QUICK START GUIDE WHAT IS IN THE BOX? WHAT YOU WILL NEED (1) R4G-LITE TRAIL CAMERA (1) INSTRUCTION MANUAL (1) MOUNTING STRAP (1) ANTENNA (1) PRE-INSTALLED SIM CARD (8) AA BATTERIES (LITHIUM RECOMMENDED) (1) SD CARD - CLASS 10, U3 REQUIRED MINIMUM 100 MB/S BLACKGATEHUNTING.COM QUICK STATTRT GUIDE WHAT ISINTHEBAAOX?XX WHATAAYOUYYWILLNEED (1)R4G-LITE TRAIL CAMERA (1) INSTRUCTIONMANUAL (1) MOUNTING STRAP (1) ANTENNA (1) PRE-INSTALLEDSIMTTCARD (8) AA BATAATERIES (LITHIUM RECOMMENDED) (1)SD CARD - CLASS 10, U3 REQUIRED MINIMUM 100 MB/S BLACK GATE MOBILE APP DOWNLOAD BLACKGATEHUNTING.COM BLACK GATE MOBILE QUICKSET UP BLACKGATEHUNTING.COM 1.Make sure the antenna is properly installed and seated down tightly. 2. Install (8) AA batteries and a class 10, U3 SD card into the camera. Use only 16GB-64GB SD card. Recommended to use Black Gate or SanDisk only 3. Do NOT remove the SIM card pre-installed into the camera. 4. Scan the QR code sticker using the Black Gate Mobile App. Proceed to activate your camera and choose a data plan. 5. Turn on the device and make sure the power light indicator beside the Format SD button is solid Green, also the battery indicator light blinks green. The camera will register and all 4 LED indicators will show green before going into live mode. • If the battery light indicator shows red, please replace batteries with NEW AA batteries. • If the SIM card indicator shows red, please remove and re-insert the SIM card and also make sure you have a active data plan for this camera you are registering. • If the Signal bars indicator shows red, this means you have no signal. Please move to a different area to capture better reception. SETTING UP THE CAMERA In your Apple or Google Play Store, download the Black Gate Mobile App and sign in using an email and password you created. If you already have a Black Gate account with ACTIVE cameras, you can simply login to your app and add your camera following the instructions below. Once you have created your account, and set up your data plan, it is time to activate your camera in the app: 1. Click “Add Device” 2. Locate the QR code on the R4G-Lite either inside the door or on the back of the device. 3. Using your phone, Scan the QR Code “If scanned correctly, it will state that the camera has been added successfully” 4. Check your email for an activation link to purchase data on the Black Gate Mobile Portal 5. Once logged into www.blackgatemobile.com portal, look under your devices and click on “View/Manage” 6. Select the data plan of your choice and continue through the checkout process. (This will be a recurring plan monthly unless device is deactivated in the portal) 7. Go back to the Black Gate Mobile App on your phone, and your camera will now be activated and ready for use. 8. Your new photos will come in under your device name in the Dashboard tab. 9. Settings can be changed under the device tab 10. To add an additional camera, follow and repeat steps 1-9. DOWNLOADING THE BLACK GATE MOBILE APP BLACK GATE MOBILE • If the "Globe" account indicator shows red please check your account on www.blackgatemobile.com and make sure the camera is activated and has a data plan. Logout SETTINGS / SPECIFICATIONS BLACKGATEHUNTING.COM Camera ModeCamera Mode Only (No Video) Day/Night ModeDaytime: Color, Nighttime: B+W IR Range70+ Feet PIR Angle52 degrees, 4:3 Format Flash940 NM No-Glow SD CardClass 10, U3, 16GB - 64GB, Minimum 100 MB/Sec Picture FormatJPEG MultishotOptional 1-9 Photoburst Trigger Speed<.3 seconds SD Card RecycleYes, Default Battery8AA Lithium Ultimate Optional external power source (12V external battery pack or solar panel) Recommended 3000mAh DC barrel size 5.5 x 2.1mm External DC 12V Transfer Picture via 4GHigh, detailed thumbnail images sent to Black Gate App (additional data charges may apply) Request HD Photo via 4G Available to be requested from Black Gate Mobile App Upload Frequency/ Send Type Immediate/Hourly/Daily 4G CommunicationLTE wireless 4G Antenna1 Antenna Module Device Serial No.Yes InterfaceLTE and SD Card MountingStrap; Tripod (1/4” x 20 threaded insert) - two locations Operating Temperature -5F to 125F Operation Humidity5% - 95% Waterproof ratingIP66 Dimensions5.5” x 3.5” x 2.5” Weight Certification 1 lb (without batteries) FCC RoHs PRODUCT CARE BLACKGATEHUNTING.COM INTERNAL CONDENSATION ON LENS The R4G-Lite is IP66 rated waterproof. The camera housing is water resistant and resistant to harsh outdoor elements. The only way condensation can get behind the lens is if the antenna is not screwed down tightly or if the DC plug on the bottom of the camera is not in place, if you are not using external power. If there is dirt or debris on the door seal, this can also effect the waterproof seal and allow water in the device. Follow instructions to alleviate this issue if need be: • Pull the SD card out and let the camera sit for 3-4 days open, in an area where there is circulating air (fan or vent). • Or place in a sealed container with rice for 24 hours to draw out the moisture. • Clean the seal well with soap and water and tighten your antenna. Place back out in the field.• IF THE CAMERA HAS ACCIDENTALLY BEEN SUBMERGED IN WATER 1. Open camera and immediately remove batteries and SD card. 2. Leave the camera open to dry out for 3-4 days. If you try to power on while the camera is still wet, it could destroy the module and computer board and ruin the camera. This will void the warranty. LIMITED WARRANTY BLACKGATEH…

Text truncated - open the document above for the full version.

Rev 1/26/2023 Black Gate Hunting Products, LLC Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023‐03‐24 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BADD‐R4GLITE [Black Gate Hunting Products, LLC] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Jeffrey R Lawwell) Rev 1/26/2023 (Black Gate Hunting Products, LLC) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023‐03‐24 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BADD‐R4GLITE [Black Gate Hunting Products, LLC] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Jeffrey R Lawwell)

Rev 1/26/2023 Black Gate Hunting Products, LLC Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 04‐14‐2023 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2BADD-R4GLITE Black Gate Hunting Products, LLC (“the applicant”) certifies that, as of the date of the filing of the application, we designate ourselves as the U.S. agent for service of process. Designated U.S. Agent Information: FRN: 0032756488 Name: Black Gate Hunting Products, LLC Address: 8200 Canthy Circle, Garner, NC 27529, United States Contact Person: Jeffrey Lawwell Tel.: (937) 402‐6158 Email: [email protected] Sincerely, Black Gate Hunting Products, LLC Jeffrey Lawwell

Black Gate Hunting Products, LLC Date: Mar. 24, 2023 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2BADD-R4GLITE Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics Block Diagram Operational Description Parts List Parts Placement PCB Layout Tune-up Procedure Schematics.pdf Block Diagram.pdf Operational Description.pdf Parts List.pdf Parts Placement.pdf PCB Layout.pdf Tune-up Procedure.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Black Gate Hunting Products, LLC Jeffrey R Lawwell / President Typed name and Title

Black Gate Hunting Products, LLC FCC ID: 2BADD-R4GLITE POWER OF ATTORNEY Date: Mar. 24, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Testing Group Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Testing Group Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on Mar. 23, 2024. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Black Gate Hunting Products, LLC are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Black Gate Hunting Products, LLC Jeffrey R Lawwell / President Typed name and Title

Black Gate Hunting Products, LLC Date: 2023-03-24 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BADD-R4GLITE To Whom It May Concern: This letter is to statement that R4G-Lite / Wireless Trail camera. has been tested according to FCC Part 15B by Waltek Testing Group Co., Ltd. (Test Report No.: WTD23D02018477E). And the SDOC file, meetting the requirements of the FCC regulations, would been provided when the device is sold by the responsible party in US. The service will not be sold until the SDOC is provided. If the sale does not have an SDOC, all responsibility is the responsibility of the applicant. Sincerely, [Jeffrey R Lawwell] [President] [Black Gate Hunting Products, LLC]

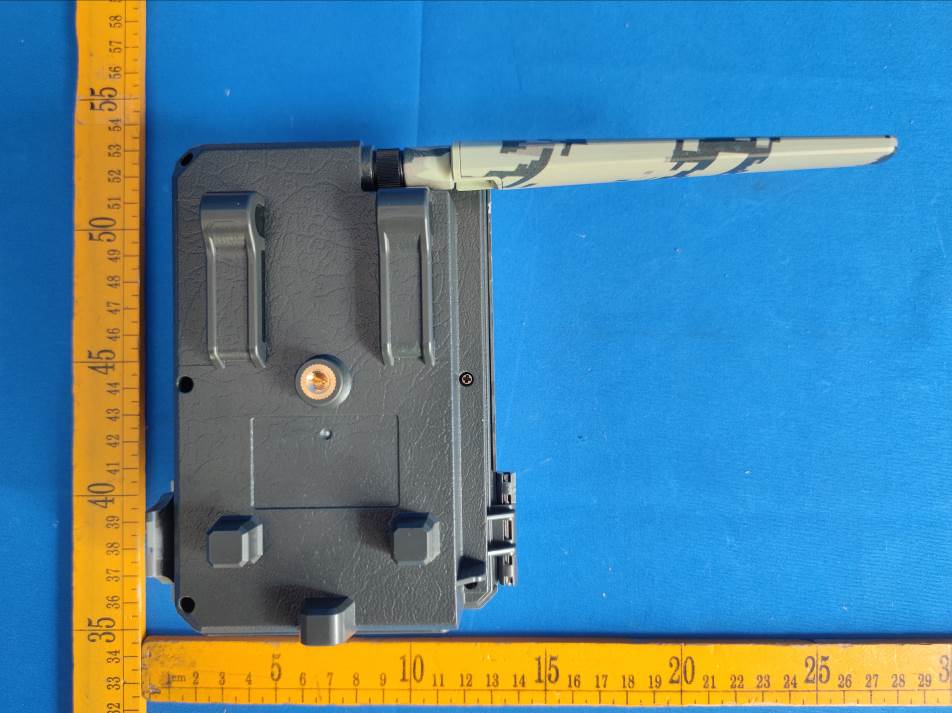

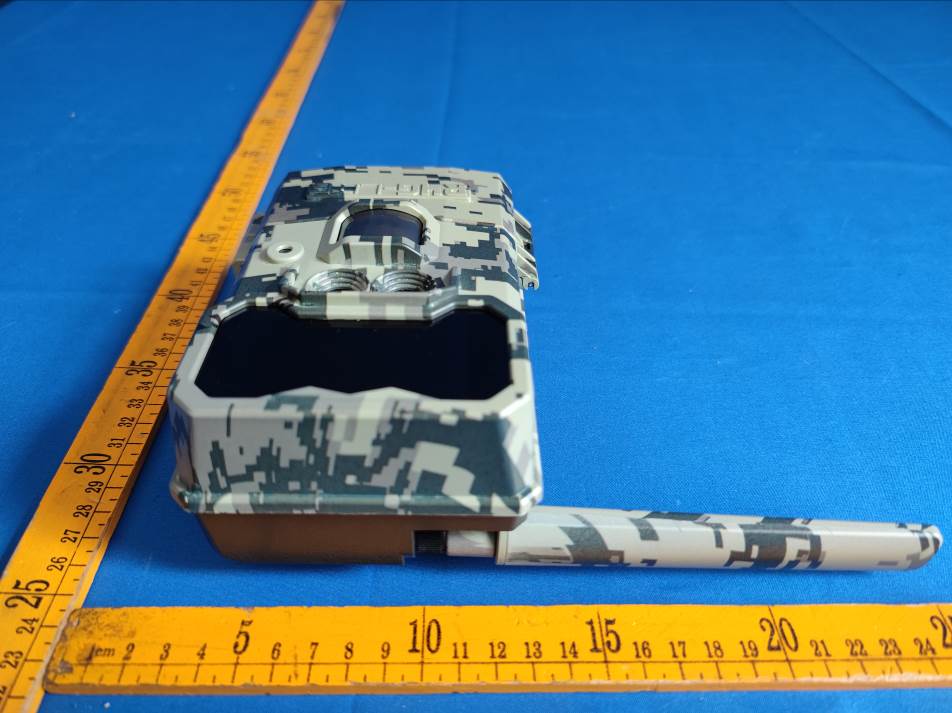

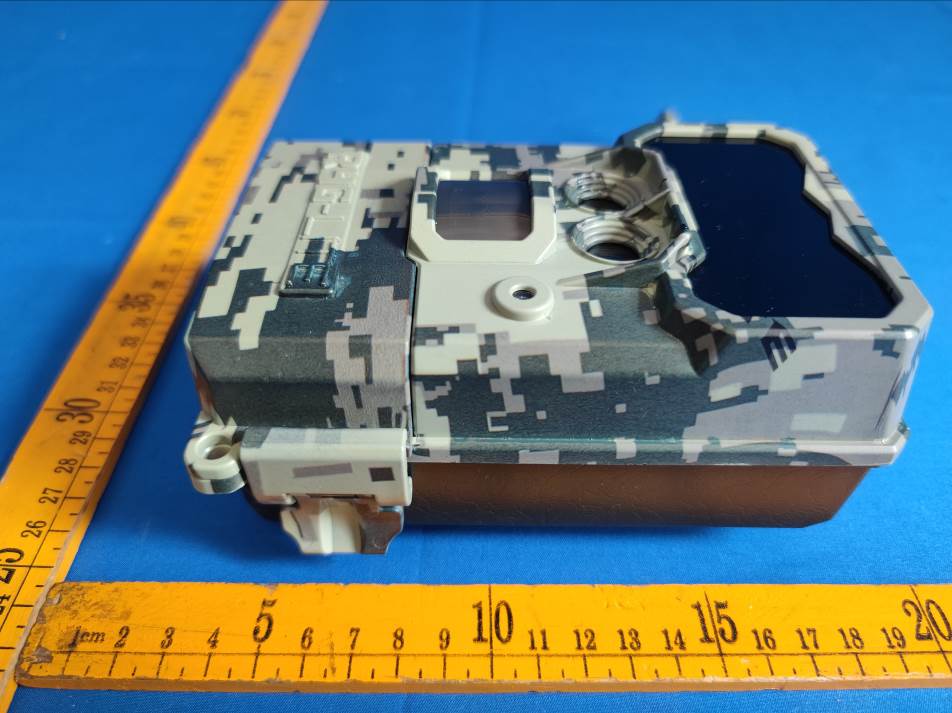

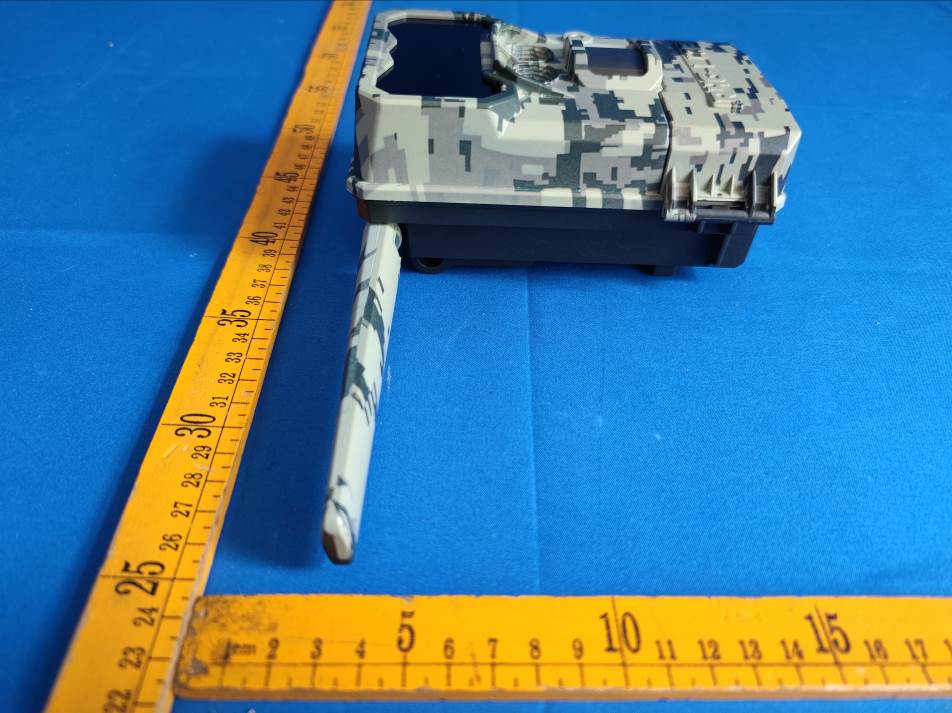

Appendix- R4G-Lite -Photos Page 2 of 17 EUT – External View Model R4G-Lite FCC ID: 2BADD-R4GLITE WCDMA/LTE ANT. Appendix- R4G-Lite -Photos Page 3 of 17 Appendix- R4G-Lite -Photos Page 4 of 17 Appendix- R4G-Lite -Photos Page 5 of 17 Appendix- R4G-Lite -Photos Page 6 of 17 Appendix- R4G-Lite -Photos Page 7 of 17

Appendix- R4G-Lite -Photos Page 8 of 17 EUT – Internal View Model R4G-Lite FCC ID: 2BADD-R4GLITE Appendix- R4G-Lite -Photos Page 9 of 17 Appendix- R4G-Lite -Photos Page 10 of 17 Appendix- R4G-Lite -Photos Page 11 of 17 Appendix- R4G-Lite -Photos Page 12 of 17 Appendix- R4G-Lite -Photos Page 13 of 17 Appendix- R4G-Lite -Photos Page 14 of 17 Appendix- R4G-Lite -Photos Page 15 of 17 Appendix- R4G-Lite -Photos Page 16 of 17 Appendix- R4G-Lite -Photos Page 17 of 17 ======End======

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 8 TEST REPORT Referen ce No. .................... : WTD23D02024586W003 FCC ID ................................ : 2BADD-R4GLITE Applicant ............................ : Black Gate Hunting Products, LLC Address .............................. : 8200 Canthy Circle, Garner, NC 27529, United States Manufacturer .................... : HuaRui Technology(ShenZhen)CO.,Ltd Address .............................. : 401, Building 3, No.32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen, China Product ............................... : Wireless Trail camera Model(s). ............................ : R4G-Lite Standards........................... : FCC 1.1307 Date of Receipt sample .... : 2023-01-21 Date of Test ....................... : 2023-01-21 to 2023-03-02 Date of Issue ...................... : 2023-06-15 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: James Cheng / Project Engineer Deval Qin / Designated Reviewer Reference No.: WTD23D02024586W003 Page 2 of 8 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 CONTENTS ............................................................................................................................................................ 2 3 REVISION HISTORY ............................................................................................................................................ 3 4 GENERAL INFORMATION .................................................................................................................................. 4 4.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................................ 4 4.2 DETAILS OF E.U.T. ......................................................................................................................................... 4 4.3 TEST FACILITY ................................................................................................................................................. 5 5 TEST SUMMARY .................................................................................................................................................. 6 6 RF EXPOSURE ...................................................................................................................................................... 7 6.1 REQUIREMENTS ............................................................................................................................................... 7 6.2 THE PROCEDURES / LIMIT ................................................................................................................................ 7 6.3 MPE CALCULATION METHOD ......................................................................................................................... 8 Reference No.: WTD23D02024586W003 Page 3 of 8 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 3 Revision History Test report No. Date of Receipt sample Date of Test Date of Issue Purpose CommentApproved WTD23D02024586W003 2023-01-21 2023-01-21 to 2023-03-02 2023-06-15 Original - Valid Reference No.: WTD23D02024586W003 Page 4 of 8 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 4 General Information 4.1 General Description of E.U.T. Product: Wireless Trail camera Model(s): R4G-Lite Model Description: N/A WCDMA Band(s): FDD Band II/IV/V LTE Band(s): FDD Band 2/4/5/12/13/25/26 Hardware Version: R4GLMV02 Software Version: R4G_Lite_015 Highest frequency (Exclude Radio): 24MHz Storage Location: Internal Storage 4.2 Details of E.U.T. Operation Frequency: WCDMA Band II: 1850~1910MHz WCDMA Band V: 824~849MHz WCDMA Band IV:1710~1755MHz LTE Band 2: 1850~1910MHz LTE Band 4: 1710~1755MHz LTE Band 5: 824~849MHz LTE Band 12: 699~716MHz LTE Band 13: 777~787MHz LTE Band 25 1850~1915MHz LTE Band 26: 814~849MHz Type of Modulation: BPSK, QPSK, 16QAM Antenna installation: External antenna Antenna Gain: WCDMA Band II: 3.0dBi WCDMA Band V: -0.2dBi WCDMA Band IV: 3.0dBi LTE Band 2: 3.0dBi LTE Band 4: 3.0dBi LTE Band 5: -0.2dBi LTE Band 12: -0.9dBi LTE Band 13: -0.9dBi LTE Band 25: 3.0dBi LTE Band 26: -0.2dBi Ratings: DC 12V Reference No.: WTD23D02024586W003 Page 5 of 8 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 4.3 Test Facility The test facility has a test site registered with the following organizations: ISED CAB identifier: CN0013. Test Firm Registration No.: 7760A. Waltek Testing Group Co., Ltd. Has been registered and fully described in a report filed with the Industry Canada. The acceptance letter from the Industry Canada is maintained in our files. Registration number 7760A, October 15, 2016. FCC Designation No.: CN1201. Test Firm Registration No.: 523476. Waltek Testing Group Co., Ltd. EMC Laboratory `has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. Registration number 523476, September 10, 2019. Reference No.: WTD23D02024586W003 Page 6 of 8 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 5 Test Summary Test Items Test Requirement Result Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Reference No.: WTD23D02024586W003 Page 7 of 8 W…
