2BADD-R4GPROWireless Trail Camera

Black Gate Hunting Products, LLC

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Aug 14, 2026
Application Purpose: Original Equipment
Equipment Note: Wireless Trail Camera
Frequency Range: 699.70000000 - 715.30000000
Company: Black Gate Hunting Products, LLC
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Test Report

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 77 TEST REPORT Referen ce No. .................... : WTD26D05142764W001 FCC ID ................................ : 2BADD-R4GPRO Applicant ............................ : Black Gate Hunting Products, LLC Address .............................. : 8200 Canthy Circle, Garner, NC 27529, United States Manufacturer .................... : HuaRui Technology(ShenZhen)CO.,Ltd Address .............................. : 401, Building 3, No.32, Dafu Road, Zhangge Community, Fucheng Street, Longhua District, Shenzhen, China Product ............................... : Wireless Trail Camera Model(s). ............................ : R4GPRO Standards........................... : FCC CFR47 Part 22 Subpart H FCC CFR47 Part 24 Subpart E FCC CFR47 Part 27 Subpart L Date of Receipt Sample .... : 2026-05-25 Date of Test ....................... : 2026-05-28 to 2026-08-12 Date of Issue ...................... : 2026-08-13 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Frank Yin / Project Engineer Deval Qin / Designated Reviewer Reference No.: WTD26D05142764W001 Page 2 of 77 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 CONTENTS ............................................................................................................................................... 2 3 REVISION HISTORY ................................................................................................................................. 4 4 GENERAL INFORMATION ....................................................................................................................... 5 4.1 GENERAL DESCRIPTION OF E.U.T. ...................................................................................................... 5 4.2 DETAILS OF E.U.T. .............................................................................................................................. 5 4.3 TEST MODE ........................................................................................................................................ 6 4.4 TEST FACILITY .................................................................................................................................... 6 5 TEST SUMMARY ...................................................................................................................................... 7 6 EQUIPMENT USED DURING TEST ......................................................................................................... 8 6.1 EQUIPMENTS LIST ............................................................................................................................... 8 6.2 MEASUREMENT UNCERTAINTY ............................................................................................................. 9 6.3 TEST EQUIPMENT CALIBRATION ........................................................................................................... 9 7 RF OUTPUT POWER.............................................................................................................................. 10 7.1 EUT OPERATION ............................................................................................................................... 10 7.2 TEST PROCEDURE ............................................................................................................................. 10 7.3 TEST RESULT .................................................................................................................................... 11 8 PEAK-TO-AVERAGE RATIO ................................................................................................................. 15 8.1 EUT OPERATION ............................................................................................................................... 15 8.2 TEST PROCEDURE ............................................................................................................................. 15 8.3 TEST RESULT .................................................................................................................................... 16 9 BANDWIDTH ........................................................................................................................................... 18 9.1 EUT OPERATION ............................................................................................................................... 18 9.2 TEST PROCEDURE ............................................................................................................................. 18 9.3 TEST RESULT .................................................................................................................................... 19 10 SPURIOUS EMISSIONS AT ANTENNA TERMINALS .......................................................................... 27 10.1 EUT OPERATION .......................................................................................................................... 27 10.2 TEST PROCEDURE ........................................................................................................................ 27 10.3 TEST RESULT ............................................................................................................................... 28 11 SPURIOUS RADIATED EMISSIO…

Text truncated - open the document above for the full version.

Test Report

Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 1 of 32 Annex C. LTE Transmitter Occupied Bandwidth(SA) Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 2 of 32 1. LTE_Band26(Part 22) 1.1. LTE Transmitter Occupied Bandwidth(SA)(Channel:26797, Bandwidth:1.4, Modulation:QPSK, RB Number:6, RB Position:0) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 824.7 9926 0.03 RMS 1.091.24 1.4 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 3 of 32 1.2. LTE Transmitter Occupied Bandwidth(SA)(Channel:26797, Bandwidth:1.4, Modulation:16QAM, RB Number:6, RB Position:0) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 824.7 9926 0.03 RMS 1.091.25 1.4 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 4 of 32 1.3. LTE Transmitter Occupied Bandwidth(SA)(Channel:26915, Bandwidth:1.4, Modulation:QPSK, RB Number:6, RB Position:0) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detecto r OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdic t 836.5 9926 0.03 RMS 1.091.24 1.4 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 5 of 32 1.4. LTE Transmitter Occupied Bandwidth(SA)(Channel:26915, Bandwidth:1.4, Modulation:16QAM, RB Number:6, RB Position:0) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 836.5 9926 0.03 RMS 1.091.25 1.4 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 6 of 32 1.5. LTE Transmitter Occupied Bandwidth(SA)(Channel:27033, Bandwidth:1.4, Modulation:QPSK, RB Number:6, RB Position:0) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 848.3 9926 0.03 RMS 1.091.24 1.4 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 7 of 32 1.6. LTE Transmitter Occupied Bandwidth(SA)(Channel:27033, Bandwidth:1.4, Modulation:16QAM, RB Number:6, RB Position:0) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 848.3 9926 0.03 RMS 1.091.25 1.4 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 8 of 32 1.7. LTE Transmitter Occupied Bandwidth(SA)(Channel:26805, Bandwidth:3, Modulation:QPSK, RB Number:15, RB Position:0) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 825.5 9926 0.03 RMS 2.682.85 3 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 9 of 32 1.8. LTE Transmitter Occupied Bandwidth(SA)(Channel:26805, Bandwidth:3, Modulation:16QAM, RB Number:15, RB Position:0) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 825.5 9926 0.03 RMS 2.682.86 3 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 10 of 32 1.9. LTE Transmitter Occupied Bandwidth(SA)(Channel:26915, Bandwidth:3, Modulation:QPSK, RB Number:15, RB Position:0) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 836.5 9926 0.03 RMS 2.682.86 3 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 11 of 32 1.10. LTE Transmitter Occupied Bandwidth(SA)(Channel:26915, Bandwidth:3, Modulation:16QAM, RB Number:15, RB Position:0) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 836.5 9926 0.03 RMS 2.682.86 3 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 12 of 32 1.11. LTE Transmitter Occupied Bandwidth(SA)(Channel:27025, Bandwidth:3, Modulation:QPSK, RB Number:15, RB Position:0) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 847.5 9926 0.03 RMS 2.682.86 3 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 13 of 32 1.12. LTE Transmitter Occupied Bandwidth(SA)(Channel:27025, Bandwidth:3, Modulation:16QAM, RB Number:15, RB Position:0) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 847.5 9926 0.03 RMS 2.682.87 3 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 14 of 32 1.13. LTE Transmitter Occupied Bandwidth(SA)(Channel:26815, Bandwidth:5, Modulation:QPSK, RB Number:25, RB Position:0) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 826.5 9926 0.1 RMS 4.494.78 5 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 15 of 32 1.14. LTE Transmitter Occupied Bandwidth(SA)(Channel:26815, Bandwidth:5, Modulation:16QAM, RB Number:25, RB Position:0) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 826.5 9926 0.1 RMS 4.484.77 5 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 16 of 32 1.15. LTE Transmitter Occupied Bandwidth(SA)(Channel:26915, Bandwidth:5, Modulation:QPSK, RB Number:25, RB Position:0) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 836.5 9926 0.1 RMS 4.494.78 5 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 17 of 32 1.16. LTE Transmitter Occupied Bandwidth(SA)(Channel:26915, Bandwidth:5, Modulation:16QAM, RB Number:25, RB Position:0) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) XdB Bandwidth (MHz) Upper Limit (MHz) Verdict 836.5 9926 0.1 RMS 4.484.78 5 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 18 of 32 1.17. LTE Transmitter Occupied Bandwidth(SA)(Channel:27015, Bandwidth:5, Modulation:QPSK, RB Number:25, RB Position:0) Center Frequency (MHz) OBW Power (%) XdB Down (dB) RBW (MHz) Detector OBW (MHz) Xd…

Text truncated - open the document above for the full version.

Test Report

Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 155 of 212 1.154. LTE Peak to Average Ratio(Channel:26915, Bandwidth:10, Modulation:16QAM, RB Number:1, RB Position:49) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 836.5 0.15.8313 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 156 of 212 1.155. LTE Peak to Average Ratio(Channel:26990, Bandwidth:10, Modulation:QPSK, RB Number:50, RB Position:0) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 844 0.15.5413 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 157 of 212 1.156. LTE Peak to Average Ratio(Channel:26990, Bandwidth:10, Modulation:QPSK, RB Number:25, RB Position:0) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 844 0.15.5313 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 158 of 212 1.157. LTE Peak to Average Ratio(Channel:26990, Bandwidth:10, Modulation:QPSK, RB Number:25, RB Position:12) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 844 0.15.3313 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 159 of 212 1.158. LTE Peak to Average Ratio(Channel:26990, Bandwidth:10, Modulation:QPSK, RB Number:25, RB Position:25) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 844 0.15.5613 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 160 of 212 1.159. LTE Peak to Average Ratio(Channel:26990, Bandwidth:10, Modulation:QPSK, RB Number:1, RB Position:0) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 844 0.15.1313 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 161 of 212 1.160. LTE Peak to Average Ratio(Channel:26990, Bandwidth:10, Modulation:QPSK, RB Number:1, RB Position:24) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 844 0.14.2313 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 162 of 212 1.161. LTE Peak to Average Ratio(Channel:26990, Bandwidth:10, Modulation:QPSK, RB Number:1, RB Position:49) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 844 0.1513 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 163 of 212 1.162. LTE Peak to Average Ratio(Channel:26990, Bandwidth:10, Modulation:16QAM, RB Number:50, RB Position:0) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 844 0.16.2913 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 164 of 212 1.163. LTE Peak to Average Ratio(Channel:26990, Bandwidth:10, Modulation:16QAM, RB Number:25, RB Position:0) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 844 0.16.3613 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 165 of 212 1.164. LTE Peak to Average Ratio(Channel:26990, Bandwidth:10, Modulation:16QAM, RB Number:25, RB Position:12) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 844 0.16.1113 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 166 of 212 1.165. LTE Peak to Average Ratio(Channel:26990, Bandwidth:10, Modulation:16QAM, RB Number:25, RB Position:25) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 844 0.16.3113 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 167 of 212 1.166. LTE Peak to Average Ratio(Channel:26990, Bandwidth:10, Modulation:16QAM, RB Number:1, RB Position:0) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 844 0.15.9413 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 168 of 212 1.167. LTE Peak to Average Ratio(Channel:26990, Bandwidth:10, Modulation:16QAM, RB Number:1, RB Position:24) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 844 0.15.1113 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 169 of 212 1.168. LTE Peak to Average Ratio(Channel:26990, Bandwidth:10, Modulation:16QAM, RB Number:1, RB Position:49) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 844 0.15.9613 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 170 of 212 1.169. LTE Peak to Average Ratio(Channel:26865, Bandwidth:15, Modulation:QPSK, RB Number:75, RB Position:0) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 831.5 0.15.5113 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 171 of 212 1.170. LTE Peak to Average Ratio(Channel:26865, Bandwidth:15, Modulation:QPSK, RB Number:36, RB Position:0) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 831.5 0.15.2213 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 172 of 212 1.171. LTE Peak to Average Ratio(Channel:26865, Bandwidth:15, Modulation:QPSK, RB Number:36, RB Position:19) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 831.5 0.15.6813 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 173 of 212 1.172. LTE Peak to Average Ratio(Channel:26865, Bandwidth:15, Modulation:QPSK, RB Number:36, RB Position:39) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 831.5 0.15.3613 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 174 of 212 1.173. LTE Peak to Average Ratio(Channel:26865, Bandwidth:15, Modulation:QPSK, RB Number:1, RB Position:0) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 831.5 0.14.3613 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 175 of 212 1.174. LTE Peak to Average Ratio(Channel:26865, Bandwidth:15, Modulation:QPSK, RB Number:1, RB Position:37) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 831.5 0.14.9613 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 176 of 212 1.175. LTE Peak to Average Ratio(Channel:26865, Bandwidth:15, Modulation:QPSK, RB Number:1, RB Position:74) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 831.5 0.15.113 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page …

Text truncated - open the document above for the full version.

Test Report

Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 1 of 212 Annex B. LTE Peak to Average Ratio Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 2 of 212 1. LTE_Band26(Part 22) 1.1. LTE Peak to Average Ratio(Channel:26797, Bandwidth:1.4, Modulation:QPSK, RB Number:6, RB Position:0) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 824.7 0.15.2113 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 3 of 212 1.2. LTE Peak to Average Ratio(Channel:26797, Bandwidth:1.4, Modulation:QPSK, RB Number:3, RB Position:0) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 824.7 0.14.7113 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 4 of 212 1.3. LTE Peak to Average Ratio(Channel:26797, Bandwidth:1.4, Modulation:QPSK, RB Number:3, RB Position:1) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 824.7 0.14.713 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 5 of 212 1.4. LTE Peak to Average Ratio(Channel:26797, Bandwidth:1.4, Modulation:QPSK, RB Number:3, RB Position:3) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 824.7 0.14.713 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 6 of 212 1.5. LTE Peak to Average Ratio(Channel:26797, Bandwidth:1.4, Modulation:QPSK, RB Number:1, RB Position:0) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 824.7 0.14.1313 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 7 of 212 1.6. LTE Peak to Average Ratio(Channel:26797, Bandwidth:1.4, Modulation:QPSK, RB Number:1, RB Position:2) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 824.7 0.14.2513 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 8 of 212 1.7. LTE Peak to Average Ratio(Channel:26797, Bandwidth:1.4, Modulation:QPSK, RB Number:1, RB Position:5) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 824.7 0.14.1313 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 9 of 212 1.8. LTE Peak to Average Ratio(Channel:26797, Bandwidth:1.4, Modulation:16QAM, RB Number:6, RB Position:0) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 824.7 0.16.0913 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 10 of 212 1.9. LTE Peak to Average Ratio(Channel:26797, Bandwidth:1.4, Modulation:16QAM, RB Number:3, RB Position:0) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 824.7 0.15.4413 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 11 of 212 1.10. LTE Peak to Average Ratio(Channel:26797, Bandwidth:1.4, Modulation:16QAM, RB Number:3, RB Position:1) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 824.7 0.15.4413 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 12 of 212 1.11. LTE Peak to Average Ratio(Channel:26797, Bandwidth:1.4, Modulation:16QAM, RB Number:3, RB Position:3) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 824.7 0.15.4513 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 13 of 212 1.12. LTE Peak to Average Ratio(Channel:26797, Bandwidth:1.4, Modulation:16QAM, RB Number:1, RB Position:0) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 824.7 0.15.1413 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 14 of 212 1.13. LTE Peak to Average Ratio(Channel:26797, Bandwidth:1.4, Modulation:16QAM, RB Number:1, RB Position:2) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 824.7 0.15.2113 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 15 of 212 1.14. LTE Peak to Average Ratio(Channel:26797, Bandwidth:1.4, Modulation:16QAM, RB Number:1, RB Position:5) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 824.7 0.15.1313 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 16 of 212 1.15. LTE Peak to Average Ratio(Channel:26915, Bandwidth:1.4, Modulation:QPSK, RB Number:6, RB Position:0) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 836.5 0.16.0413 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 17 of 212 1.16. LTE Peak to Average Ratio(Channel:26915, Bandwidth:1.4, Modulation:QPSK, RB Number:3, RB Position:0) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 836.5 0.15.4713 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 18 of 212 1.17. LTE Peak to Average Ratio(Channel:26915, Bandwidth:1.4, Modulation:QPSK, RB Number:3, RB Position:1) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 836.5 0.15.4713 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 19 of 212 1.18. LTE Peak to Average Ratio(Channel:26915, Bandwidth:1.4, Modulation:QPSK, RB Number:3, RB Position:3) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 836.5 0.15.5413 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 20 of 212 1.19. LTE Peak to Average Ratio(Channel:26915, Bandwidth:1.4, Modulation:QPSK, RB Number:1, RB Position:0) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 836.5 0.15.3613 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 21 of 212 1.20. LTE Peak to Average Ratio(Channel:26915, Bandwidth:1.4, Modulation:QPSK, RB Number:1, RB Position:2) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 836.5 0.15.4213 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 22 of 212 1.21. LTE Peak to Average Ratio(Channel:26915, Bandwidth:1.4, Modulation:QPSK, RB Number:1, RB Position:5) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (dB) Verdict 836.5 0.15.2513 Pass Reference No.: WTD26D05142764W002 LTE_Band26(Part 22) Page 23 of 212 1.22. LTE Peak to Average Ratio(Channel:26915, Bandwidth:1.4, Modulation:16QAM, RB Number:6, RB Position:0) Center Frequency(MHz) PAR Percent (%) PAR (dB) Upper Limit (…

Text truncated - open the document above for the full version.

Test Report

Page 1 of 142 Annex E. LTE Band Edge Page 2 of 142 1. LTE_Band26 1.1. LTE Band Edge(Subtest:1, Channel:26797, Bandwidth:1.4, Modulation:QPSK, RB Number:1, RB Position:0) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 814 20 0.015 RMS 813.265 -80.01 Pass 2667 Page 3 of 142 1.2. LTE Band Edge(Subtest:2, Channel:26797, Bandwidth:1.4, Modulation:QPSK, RB Number:1, RB Position:2) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 814 20 0.015 RMS 813.49 -80.25 Pass 2667 Page 4 of 142 1.3. LTE Band Edge(Subtest:3, Channel:26797, Bandwidth:1.4, Modulation:QPSK, RB Number:1, RB Position:5) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 814 20 0.015 RMS 813.61 -81.24 Pass 2667 Page 5 of 142 1.4. LTE Band Edge(Subtest:4, Channel:26797, Bandwidth:1.4, Modulation:QPSK, RB Number:3, RB Position:0) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 814 20 0.015 RMS 813.325 -78.71 Pass 2667 Page 6 of 142 1.5. LTE Band Edge(Subtest:5, Channel:26797, Bandwidth:1.4, Modulation:QPSK, RB Number:3, RB Position:1) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 814 20 0.015 RMS 813.325 -80.66 Pass 2667 Page 7 of 142 1.6. LTE Band Edge(Subtest:6, Channel:26797, Bandwidth:1.4, Modulation:QPSK, RB Number:3, RB Position:3) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 814 20 0.015 RMS 813.715 -80.06 Pass 2667 Page 8 of 142 1.7. LTE Band Edge(Subtest:7, Channel:26797, Bandwidth:1.4, Modulation:QPSK, RB Number:6, RB Position:0) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 814 20 0.015 RMS 813.902 -80.39 Pass 2667 Page 9 of 142 1.8. LTE Band Edge(Subtest:8, Channel:26797, Bandwidth:1.4, Modulation:16QAM, RB Number:1, RB Position:0) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 814 20 0.015 RMS 813.43 -81.12 Pass 2667 Page 10 of 142 1.9. LTE Band Edge(Subtest:9, Channel:26797, Bandwidth:1.4, Modulation:16QAM, RB Number:1, RB Position:2) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 814 20 0.015 RMS 812.335 -80.26 Pass 2667 Page 11 of 142 1.10. LTE Band Edge(Subtest:10, Channel:26797, Bandwidth:1.4, Modulation:16QAM, RB Number:1, RB Position:5) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 814 20 0.015 RMS 813.34 -80.21 Pass 2667 Page 12 of 142 1.11. LTE Band Edge(Subtest:11, Channel:26797, Bandwidth:1.4, Modulation:16QAM, RB Number:3, RB Position:0) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 814 20 0.015 RMS 812.567 -81.18 Pass 2667 Page 13 of 142 1.12. LTE Band Edge(Subtest:12, Channel:26797, Bandwidth:1.4, Modulation:16QAM, RB Number:3, RB Position:1) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 814 20 0.015 RMS 812.23 -81.75 Pass 2667 Page 14 of 142 1.13. LTE Band Edge(Subtest:13, Channel:26797, Bandwidth:1.4, Modulation:16QAM, RB Number:3, RB Position:3) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 814 20 0.015 RMS 811.862 -80.85 Pass 2667 Page 15 of 142 1.14. LTE Band Edge(Subtest:14, Channel:26797, Bandwidth:1.4, Modulation:16QAM, RB Number:6, RB Position:0) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 814 20 0.015 RMS 813.73 -80.46 Pass 2667 Page 16 of 142 1.15. LTE Band Edge(Subtest:15, Channel:27033, Bandwidth:1.4, Modulation:QPSK, RB Number:1, RB Position:0) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 849 20 0.015 RMS 849.765 -37.85 Pass 2667 Page 17 of 142 1.16. LTE Band Edge(Subtest:16, Channel:27033, Bandwidth:1.4, Modulation:QPSK, RB Number:1, RB Position:2) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 849 20 0.015 RMS 849.015 -54.87 Pass 2667 Page 18 of 142 1.17. LTE Band Edge(Subtest:17, Channel:27033, Bandwidth:1.4, Modulation:QPSK, RB Number:1, RB Position:5) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 849 20 0.015 RMS 849.083 -41.08 Pass 2667 Page 19 of 142 1.18. LTE Band Edge(Subtest:18, Channel:27033, Bandwidth:1.4, Modulation:QPSK, RB Number:3, RB Position:0) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 849 20 0.015 RMS 849.383 -41.19 Pass 2667 Page 20 of 142 1.19. LTE Band Edge(Subtest:19, Channel:27033, Bandwidth:1.4, Modulation:QPSK, RB Number:3, RB Position:1) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 849 20 0.015 RMS 849.008 -43.81 Pass 2667 Page 21 of 142 1.20. LTE Band Edge(Subtest:20, Channel:27033, Bandwidth:1.4, Modulation:QPSK, RB Number:3, RB Position:3) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 849 20 0.015 RMS 849.008 -41.34 Pass 2667 Page 22 of 142 1.21. LTE Band Edge(Subtest:21, Channel:27033, Bandwidth:1.4, Modulation:QPSK, RB Number:6, RB Position:0) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 849 20 0.015 RMS 849.052 -47.41 Pass 2667 Page 23 of 142 1.22. LTE Band Edge(Subtest:22, Channel:27033, Bandwidth:1.4, Modulation:16QAM, RB Number:1, RB Position:0) Center Frequency (MHz) Span (MHz) RBW (MHz) Detector Frequency (MHz) Power (dBm) Verdict Sweep Point 849 20 0.015 RMS 849.668 -37.78 Pass 2667 Page 24 of 142 1.23. LTE Band Edge(Subtest:23, Channel:27033, Bandwidth:1.4, Modulation:16QAM, RB Number:1, RB Position:2) Center Frequency (MH…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Jeffrey Ryan Lawwell

[email protected]Fax: 9379007196

Technical Contact

Black Gate Hunting Products, LLCJeffrey Lawwell

[email protected]Fax: 9379007196

8200 Canthy Circle · Garner, North Carolina, 27529 · United States

Test Firm

WALTEK TESTING GROUP CO., LTD.Joy Zhou

[email protected]

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	24E	1.85 GHz - 1.91 GHz	369.80 mW	4M15F9W	0.0085ppm
2	27	1.71 GHz - 1.75 GHz	324.30 mW	4M13F9W	0.0063ppm
3	22H	826.4 MHz - 846.6 MHz	289.10 mW	4M18F9W	0.012ppm
4	24E	1.86 GHz - 1.90 GHz	282.50 mW	17M9G7D	0.0101ppm
5	24E	1.86 GHz - 1.90 GHz	264.90 mW	17M9W7D	0.0117ppm
6	27	1.71 GHz - 1.75 GHz	289.10 mW	1M09G7D	0.0092ppm
7	27	1.71 GHz - 1.75 GHz	257.00 mW	1M09W7D	0.0115ppm
8	27	1.72 GHz - 1.75 GHz	210.90 mW	17M9G7D	0.0115ppm
9	27	1.72 GHz - 1.75 GHz	220.30 mW	17M9W7D	0.0115ppm
1	22H	824.7 MHz - 848.3 MHz	235.50 mW	1M09G7D	0.0287ppm
11	22H	824.7 MHz - 848.3 MHz	279.30 mW	1M09W7D	0.0311ppm
12	22H	829 MHz - 844 MHz	226.50 mW	8M91G7D	0.0251ppm
13	22H	829 MHz - 844 MHz	208.90 mW	8M91W7D	0.0287ppm
14	27	699.7 MHz - 715.3 MHz	182.40 mW	1M09G7D	0.0325ppm
15	27	699.7 MHz - 715.3 MHz	161.40 mW	1M09W7D	0.0353ppm
16	27	704 MHz - 711 MHz	177.40 mW	8M92G7D	0.0311ppm
17	27	704 MHz - 711 MHz	137.70 mW	8M91W7D	0.0311ppm
18	27	779.5 MHz - 784.5 MHz	186.20 mW	4M49G7D	0.0345ppm
19	27	779.5 MHz - 784.5 MHz	180.70 mW	4M49W7D	0.0307ppm
2	27	782 MHz - 782 MHz	177.80 mW	8M91G7D	0.0332ppm
21	27	782 MHz - 782 MHz	141.60 mW	8M91W7D	0.0281ppm
22	27	1.86 GHz - 1.91 GHz	271.60 mW	13M5G7D	0.0154ppm
23	27	1.86 GHz - 1.91 GHz	240.40 mW	13M5W7D	0.0138ppm
24	27	1.86 GHz - 1.91 GHz	195.90 mW	17M9G7D	0.0138ppm
25	27	1.86 GHz - 1.91 GHz	204.60 mW	17M9W7D	0.0138ppm
26	9	814.7 MHz - 823.3 MHz	248.90 mW	1M09G7D	0.0281ppm
27	9	814.7 MHz - 823.3 MHz	227.50 mW	1M08W7D	0.0305ppm
28	9	819 MHz - 819 MHz	227.00 mW	8M95G7D	0.033ppm
29	9	819 MHz - 819 MHz	184.90 mW	8M94W7D	0.0354ppm
3	22H	824.7 MHz - 848.3 MHz	249.50 mW	1M09G7D	0.0311ppm
31	22H	824.7 MHz - 848.3 MHz	244.90 mW	1M09W7D	0.0335ppm
32	22H	831.5 MHz - 841.5 MHz	198.60 mW	13M5G7D	0.0287ppm
33	22H	831.5 MHz - 841.5 MHz	218.80 mW	13M5W7D	0.0323ppm

Confidentiality

Long Term

Grant Notes

Output power listed is ERP for frequencies below 1 GHz, and EIRP for frequencies above 1 GHz. This device supports bandwidths of 1.4/3/5/10/15/20 MHz for LTE Bands 2, 4 and 25, bandwidths of 1.4/3/5/10/15 MHz for LTE Bands 26, bandwidths of 1.4/3/5/10 MHz for LTE Bands 5 and 12, bandwidths of 5/10 MHz for LTE Band 13. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures.

Other Applications from Black Gate Hunting Products, LLC

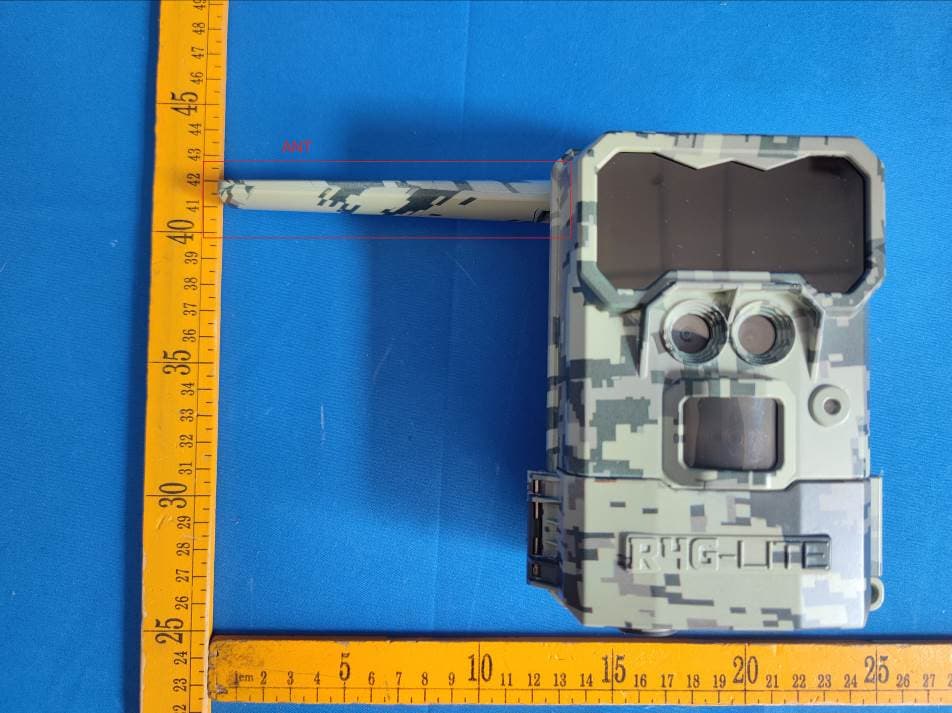

2BADD-R4GLITE
