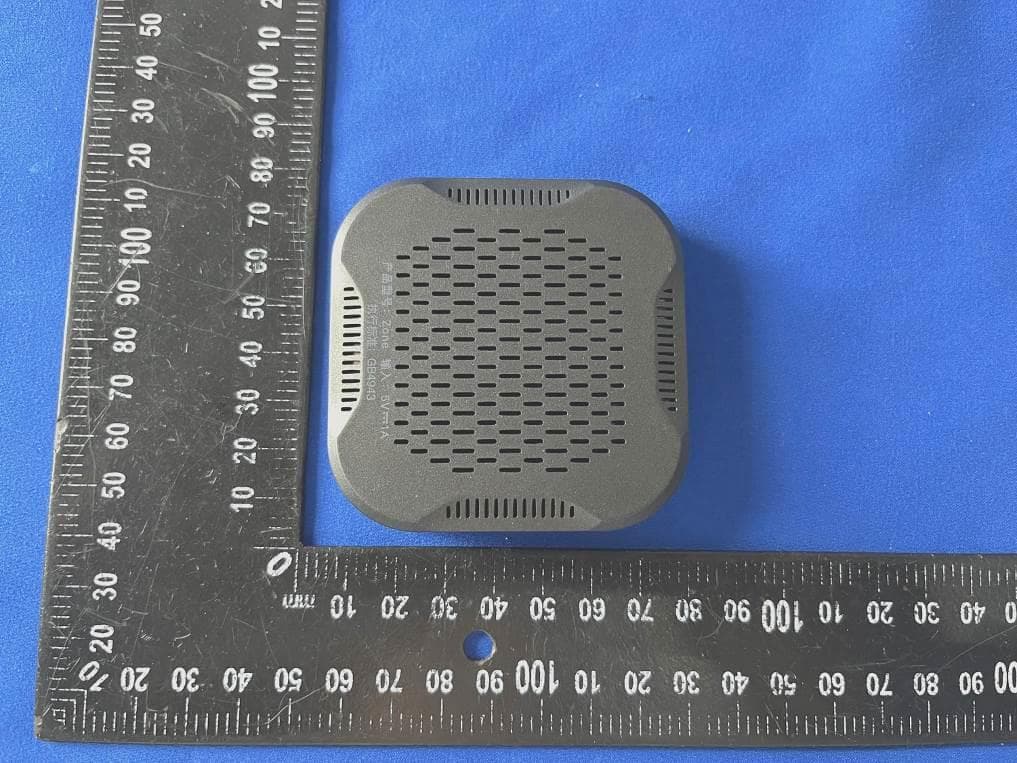

2BAF2-AJGCarplay Android Box

FCC warning statements: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Shenzhen Fusion Aurora Technology Co., Ltd U.S. Agent Letter of Attestation To:FederalCommunicationsCommission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date:Mar-22-2023 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BAF2-AJG Shenzhen Fusion Aurora Technology Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, THREE STONES MEDIA LLC(“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. THREE STONES MEDIA LLC ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: THREE STONES MEDIA LLC FRN: 0033401761 GC: 2A99E Address: 1200 Broadway St. APT 329, Los Angeles, CA90015 Signature: Contact Person: Sijie Zhang Tel:+12679093692Email:[email protected] Applicant Company Name: Shenzhen Fusion Aurora Technology Co., Ltd Address: Rex SongSignature: Contact Person:Project Manager Tel: 18682315284Email:[email protected]

Shenzhen Fusion Aurora Technology Co., Ltd Covered Equipment Certification Attestation Letter 3/22/2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2BAF2-AJG Shenzhen Fusion Aurora Technology Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Shenzhen Fusion Aurora Technology Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Rex Song Title: General manager Company Name: Shenzhen Fusion Aurora Technology Co., Ltd. Date: 3/22/2023

2023-03-22 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BAF2-AJG Product Name: Carplay Android Box Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics Long-term confidential  Block diagram Long-term confidential  Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name Rex Song Position General manager Company Name Shenzhen Fusion Aurora Technology Co., Ltd Address L25, 4th Floor, Lianhui Building, Longhua Street, Longhua District, Shenzhen Tel +86-18682315284 Fax / Email [email protected]

Differences Description We Shenzhen Fusion Aurora Technology Co., Ltd. state: Product name: Carplay Android Box Model: ZONE, R601, R602, R608, R603 All model’s the function, software, electric circuit and enclosure are the same, except the model numbers difference. Date: 2023/3/22 Signature: Name Rex Song Position General manager Company Name Shenzhen Fusion Aurora Technology Co., Ltd Address L25, 4th Floor, Lianhui Building, Longhua Street, Longhua District, Shenzhen Tel +86-18682315284 Fax / Email [email protected]

FCC ID: 2BAF2-AJG FCC ID: 2BAF2-AJG FCC ID: 2BAF2-AJG

0.8*0.2cm Label Location FCC ID: 2BAF2-AJG

FCC ID: 2BAF2-AJG 5G ANT 2.4G ANT

FCC ID: 2BAF2-AJG Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) 2. Test Procedure Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna FCC ID: 2BAF2-AJG 3. Result Mode Frequency (MHz) Prediction distance (cm) Peak RF power output MPE (mW/cm 2 ) Limit (mW/cm 2 ) SAR Test Exclusion dBm mW BT EDR 2402-2480 20 1.606 1.4474 0.0004 1 Yes BT LE 2402-2480 20 2.171 1.6485 0.0004 1 Yes 2.4G WIFI 2412-2462 20 15.721 37.3336 0.0095 1 Yes 5G WIFI B1 5180-5240 20 16.741 47.2172 0.0205 1 Yes 5G WIFI B2 5260-5320 20 17.082 51.0740 0.0221 1 Yes 5G WIFI B3 5500-5700 20 17.022 50.3733 0.0218 1 Yes 5G WIFI B4 5745-5825 20 16.631 46.0363 0.0199 1 Yes Maximum Simultaneous transmission MPE Ratios for BT+WIFI Max MPE Ratio BT /Limit Max MPE ratio WIFI /Limit ∑MPE ratios Limit Result 0.0004 0.0221 0.0225 1 PASS BT/2.4GWiFi Antenna Gain: FPC antenna, max gain 1.05dBi, 1.27 (numeric) 5G WIFI Antenna Gain: FPC antenna, max gain 3.38dBi, 2.18(numeric) Then SAR evaluation is not required.

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. E-mail: [email protected] Tel: 400-8300-895 Website: http://www.a-lab.cn FCC TEST REPORT FCC ID: 2BAF2-AJG On Behalf of Shenzhen Fusion Aurora Technology Co., Ltd Carplay Android Box Model No.: ZONE, R601, R602, R608, R603 Prepared for : Shenzhen Fusion Aurora Technology Co., Ltd Address : L25, 4th Floor, Lianhui Building, Longhua Street, Longhua District, Shenzhen Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao'an District, 518103, Shenzhen, Guangdong, China Report Number : A2302067-C01-R13 Date of Receipt : February 28, 2023 Date of Test : March 1, 2023-March 18, 2023 Date of Report : March 18, 2023 Version Number : V0 Page 2 of 138 Report No.: A2302067-C01-R13 TABLE OF CONTENTS Description Page 1 TEST SUMMARY ..................................................................................................................................... 5 1.1 MEASUREMENT UNCERTAINTY............................................................................................................. 5 2 GENERAL INFORMATION ...................................................................................................................... 6 2.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 6 2.2 TEST MODE ........................................................................................................................................ 7 2.3 TEST FACILITY .................................................................................................................................... 7 2.4 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 2.5 DEVIATION FROM STANDARDS ............................................................................................................. 7 2.6 ABNORMALITIES FROM STANDARD CONDITIONS.................................................................................... 7 2.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 7 2.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 7 3 TEST INSTRUMENTS LIST ..................................................................................................................... 8 4 TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 9 4.1 ANTENNA REQUIREMENT: .................................................................................................................... 9 4.2 CONDUCTED EMISSIONS ................................................................................................................... 10 4.3 EMISSION BANDWIDTH AND 99% OCCUPIED BANDWIDTH .................................................................... 13 4.4 PEAK TRANSMIT POWER ................................................................................................................... 74 4.5 POWER SPECTRAL DENSITY .............................................................................................................. 76 4.6 BAND EDGE .................................................................................................................................... 109 4.7 RADIATED EMISSION ....................................................................................................................... 131 4.8 FREQUENCY STABILITY .................................................................................................................... 137 Page 3 of 138 Report No.: A2302067-C01-R13 TEST REPORT DECLARATION Applicant : Shenzhen Fusion Aurora Technology Co., Ltd Address : L25, 4th Floor, Lianhui Building, Longhua Street, Longhua District, Shenzhen Manufacturer : Shenzhen Fusion Aurora Technology Co., Ltd Address : L25, 4th Floor, Lianhui Building, Longhua Street, Longhua District, Shenzhen EUT Description : Carplay Android Box (A) Model No. : ZONE, R601, R602, R608, R603 (B) Trademark : N/A Measurement Standard Used: FCC Rules and Regulations Part 15 Subpart E ANSI C63.4:2014, ANSI C63.10:2013 The device described above is tested by Shenzhen Alpha Product Testing Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart E limits both conducted and radiated emissions. The test results are contained in this test report and Shenzhen Alpha Product Testing Co., Ltd. is assumed of full responsibility for the accuracy and completeness of these tests. After the test, our opinion is that EUT compliance with the requirement of the above standards. This report applies to above tested sample only. This report shall not be reproduced in parts without written approval of Shenzhen Alpha Product Testing Co., Ltd. Tested by (name + signature).........: Lucas Pang Project Engineer Approved by (name + signature).......: Reak Yang Project Manager Date of issue.............................: March 18, 2023 Page 4 of 138 Report No.: A2302067-C01-R13 Revision History Revision Issue Date Revisions Revised By V0 March 18, 2023 Initial released Issue Lucas Pang Page 5 of 138 Report No.: A2302067-C01-R13 1 Test Summary Test Item Section in CFR 47 Result Antenna requirement Section 15.203 Section 7.1.4 RSS-Gen Issue 5 PASS AC Power Line Conducted Emission Section 15.207 Section 7.2.4 RSS-GEN(8.8), ANSI C63.10 PASS Peak Transmit Power Section 15.407(a), RSS-247 5.4(2) PASS Power Spectral Density Section 15.407(a), RSS-247 5.2(2) PASS Undesirable Emission Section 15.407(b), RSS-247 5.5 PASS Radiated …

Text truncated - open the document above for the full version.

Page 45 of 138 Report No.: A2302067-C01-R13 -26dB Bandwidth NVNT a 5580MHz Ant1 -26dB Bandwidth NVNT a 5700MHz Ant1 Page 46 of 138 Report No.: A2302067-C01-R13 -26dB Bandwidth NVNT ac20 5500MHz Ant1 -26dB Bandwidth NVNT ac20 5580MHz Ant1 Page 47 of 138 Report No.: A2302067-C01-R13 -26dB Bandwidth NVNT ac20 5700MHz Ant1 -26dB Bandwidth NVNT ac40 5510MHz Ant1 Page 48 of 138 Report No.: A2302067-C01-R13 -26dB Bandwidth NVNT ac40 5670MHz Ant1 -26dB Bandwidth NVNT ac80 5530MHz Ant1 Page 49 of 138 Report No.: A2302067-C01-R13 -26dB Bandwidth NVNT n20 5500MHz Ant1 -26dB Bandwidth NVNT n20 5580MHz Ant1 Page 50 of 138 Report No.: A2302067-C01-R13 -26dB Bandwidth NVNT n20 5700MHz Ant1 -26dB Bandwidth NVNT n40 5510MHz Ant1 Page 51 of 138 Report No.: A2302067-C01-R13 -26dB Bandwidth NVNT n40 5670MHz Ant1 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5500 Ant1 16.334 NVNT a 5580 Ant1 16.334 NVNT a 5700 Ant1 16.364 NVNT ac20 5500 Ant1 17.203 NVNT ac20 5580 Ant1 17.173 NVNT ac20 5700 Ant1 17.203 NVNT ac40 5510 Ant1 35.844 NVNT ac40 5670 Ant1 35.844 NVNT ac80 5530 Ant1 75.045 NVNT n20 5500 Ant1 17.233 NVNT n20 5580 Ant1 17.173 NVNT n20 5700 Ant1 17.233 NVNT n40 5510 Ant1 35.784 NVNT n40 5670 Ant1 35.964 Page 52 of 138 Report No.: A2302067-C01-R13 OBW NVNT a 5500MHz Ant1 OBW NVNT a 5580MHz Ant1 Page 53 of 138 Report No.: A2302067-C01-R13 OBW NVNT a 5700MHz Ant1 OBW NVNT ac20 5500MHz Ant1 Page 54 of 138 Report No.: A2302067-C01-R13 OBW NVNT ac20 5580MHz Ant1 OBW NVNT ac20 5700MHz Ant1 Page 55 of 138 Report No.: A2302067-C01-R13 OBW NVNT ac40 5510MHz Ant1 OBW NVNT ac40 5670MHz Ant1 Page 56 of 138 Report No.: A2302067-C01-R13 OBW NVNT ac80 5530MHz Ant1 OBW NVNT n20 5500MHz Ant1 Page 57 of 138 Report No.: A2302067-C01-R13 OBW NVNT n20 5580MHz Ant1 OBW NVNT n20 5700MHz Ant1 Page 58 of 138 Report No.: A2302067-C01-R13 OBW NVNT n40 5510MHz Ant1 OBW NVNT n40 5670MHz Ant1 Page 59 of 138 Report No.: A2302067-C01-R13 Band 4 (5725-5850 MHz): -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT a 5745 Ant1 16.32 0.5 Pass NVNT a 5785 Ant1 16.44 0.5 Pass NVNT a 5825 Ant1 16.44 0.5 Pass NVNT ac20 5745 Ant1 17.4 0.5 Pass NVNT ac20 5785 Ant1 16.56 0.5 Pass NVNT ac20 5825 Ant1 16.32 0.5 Pass NVNT ac40 5755 Ant1 33.48 0.5 Pass NVNT ac40 5795 Ant1 36.3 0.5 Pass NVNT ac80 5775 Ant1 73.92 0.5 Pass NVNT n20 5745 Ant1 17.07 0.5 Pass NVNT n20 5785 Ant1 17.37 0.5 Pass NVNT n20 5825 Ant1 17.04 0.5 Pass NVNT n40 5755 Ant1 34.32 0.5 Pass NVNT n40 5795 Ant1 35.58 0.5 Pass -6dB Bandwidth NVNT a 5745MHz Ant1 Page 60 of 138 Report No.: A2302067-C01-R13 -6dB Bandwidth NVNT a 5785MHz Ant1 -6dB Bandwidth NVNT a 5825MHz Ant1 Page 61 of 138 Report No.: A2302067-C01-R13 -6dB Bandwidth NVNT ac20 5745MHz Ant1 -6dB Bandwidth NVNT ac20 5785MHz Ant1 Page 62 of 138 Report No.: A2302067-C01-R13 -6dB Bandwidth NVNT ac20 5825MHz Ant1 -6dB Bandwidth NVNT ac40 5755MHz Ant1 Page 63 of 138 Report No.: A2302067-C01-R13 -6dB Bandwidth NVNT ac40 5795MHz Ant1 -6dB Bandwidth NVNT ac80 5775MHz Ant1 Page 64 of 138 Report No.: A2302067-C01-R13 -6dB Bandwidth NVNT n20 5745MHz Ant1 -6dB Bandwidth NVNT n20 5785MHz Ant1 Page 65 of 138 Report No.: A2302067-C01-R13 -6dB Bandwidth NVNT n20 5825MHz Ant1 -6dB Bandwidth NVNT n40 5755MHz Ant1 Page 66 of 138 Report No.: A2302067-C01-R13 -6dB Bandwidth NVNT n40 5795MHz Ant1 Occupied Channel Bandwidth Condition Mode Frequency (MHz) Antenna 99% OBW (MHz) NVNT a 5745 Ant1 16.334 NVNT a 5785 Ant1 16.304 NVNT a 5825 Ant1 16.334 NVNT ac20 5745 Ant1 17.233 NVNT ac20 5785 Ant1 17.233 NVNT ac20 5825 Ant1 17.233 NVNT ac40 5755 Ant1 35.784 NVNT ac40 5795 Ant1 35.844 NVNT ac80 5775 Ant1 75.165 NVNT n20 5745 Ant1 17.233 NVNT n20 5785 Ant1 17.203 NVNT n20 5825 Ant1 17.263 NVNT n40 5755 Ant1 35.784 NVNT n40 5795 Ant1 35.784 Page 67 of 138 Report No.: A2302067-C01-R13 OBW NVNT a 5745MHz Ant1 OBW NVNT a 5785MHz Ant1 Page 68 of 138 Report No.: A2302067-C01-R13 OBW NVNT a 5825MHz Ant1 OBW NVNT ac20 5745MHz Ant1 Page 69 of 138 Report No.: A2302067-C01-R13 OBW NVNT ac20 5785MHz Ant1 OBW NVNT ac20 5825MHz Ant1 Page 70 of 138 Report No.: A2302067-C01-R13 OBW NVNT ac40 5755MHz Ant1 OBW NVNT ac40 5795MHz Ant1 Page 71 of 138 Report No.: A2302067-C01-R13 OBW NVNT ac80 5775MHz Ant1 OBW NVNT n20 5745MHz Ant1 Page 72 of 138 Report No.: A2302067-C01-R13 OBW NVNT n20 5785MHz Ant1 OBW NVNT n20 5825MHz Ant1 Page 73 of 138 Report No.: A2302067-C01-R13 OBW NVNT n40 5755MHz Ant1 OBW NVNT n40 5795MHz Ant1 . Page 74 of 138 Report No.: A2302067-C01-R13 4.4 Peak Transmit Power Test Requirement: FCC Part15 E Section 15.407 Test Method: KDB 789033 D02 General UNII Test Procedures New Rules v02r01 Limit: For the band 5.15-5.25GHz, 5.25-5.35GHz, 5.47-5.725GHz, the maximum conducted output power over the frequency bands of operation shall not exceed 250mW. For the band 5.725-5.85GHz, the maximum conducted output power over the frequency bands of operation shall not exceed 1W. Test setup: Test procedure: Measurement using an RF average power meter (i) Measurements may be performed using a wideband RF power meter with a thermocouple detector or equivalent if all of the conditions listed below are satisfied a) The EUT is configured to transmit continuously or to transmit with a constant duty cycle. b) At all times when the EUT is transmitting, it must be transmitting at its maximum power control level. c) The integration period of the power meter exceeds the repetition period of the transmitted signal by at least a factor of five. (ii) If the transmitter does not transmit continuously, measure the duty cycle, x, of the transmitter output signal as described in section B). (iii) Measure the average power of the transmitter. This measurement is an average over both the on and off periods of the transmitter. (iv) Adjust the measurement in dBm by adding 10 log(1/x) where x is the duty cycle (e.g., 10log(1/0.25) if the duty cycle is 25 percent). Test Instruments: Refer to sect…

Text truncated - open the document above for the full version.

Page 80 of 138 Report No.: A2302067-C01-R13 PSD NVNT ac20 5240MHz Ant1 PSD NVNT ac40 5190MHz Ant1 Page 81 of 138 Report No.: A2302067-C01-R13 PSD NVNT ac40 5230MHz Ant1 PSD NVNT ac80 5210MHz Ant1 Page 82 of 138 Report No.: A2302067-C01-R13 PSD NVNT n20 5180MHz Ant1 PSD NVNT n20 5200MHz Ant1 Page 83 of 138 Report No.: A2302067-C01-R13 PSD NVNT n20 5240MHz Ant1 PSD NVNT n40 5190MHz Ant1 Page 84 of 138 Report No.: A2302067-C01-R13 PSD NVNT n40 5230MHz Ant1 Page 85 of 138 Report No.: A2302067-C01-R13 Band 2 (5250 -5350 MHz) Condition Mode Frequency (MHz) Antenna Max PSD (dBm) Limit (dBm) Verdict NVNT a 5260 Ant1 5.691 11 Pass NVNT a 5280 Ant1 6.773 11 Pass NVNT a 5320 Ant1 6.273 11 Pass NVNT ac20 5260 Ant1 5.999 11 Pass NVNT ac20 5280 Ant1 6.6 11 Pass NVNT ac20 5320 Ant1 7.499 11 Pass NVNT ac40 5270 Ant1 2.901 11 Pass NVNT ac40 5310 Ant1 3.07 11 Pass NVNT ac80 5290 Ant1 0.457 11 Pass NVNT n20 5260 Ant1 5.76 11 Pass NVNT n20 5280 Ant1 6.441 11 Pass NVNT n20 5320 Ant1 6.193 11 Pass NVNT n40 5270 Ant1 3.39 11 Pass NVNT n40 5310 Ant1 3.485 11 Pass PSD NVNT a 5260MHz Ant1 Page 86 of 138 Report No.: A2302067-C01-R13 PSD NVNT a 5280MHz Ant1 PSD NVNT a 5320MHz Ant1 Page 87 of 138 Report No.: A2302067-C01-R13 PSD NVNT ac20 5260MHz Ant1 PSD NVNT ac20 5280MHz Ant1 Page 88 of 138 Report No.: A2302067-C01-R13 PSD NVNT ac20 5320MHz Ant1 PSD NVNT ac40 5270MHz Ant1 Page 89 of 138 Report No.: A2302067-C01-R13 PSD NVNT ac40 5310MHz Ant1 PSD NVNT ac80 5290MHz Ant1 Page 90 of 138 Report No.: A2302067-C01-R13 PSD NVNT n20 5260MHz Ant1 PSD NVNT n20 5280MHz Ant1 Page 91 of 138 Report No.: A2302067-C01-R13 PSD NVNT n20 5320MHz Ant1 PSD NVNT n40 5270MHz Ant1 Page 92 of 138 Report No.: A2302067-C01-R13 PSD NVNT n40 5310MHz Ant1 Page 93 of 138 Report No.: A2302067-C01-R13 Band 3 (5740 -5725 MHz) Condition Mode Frequency (MHz) Antenna Max PSD (dBm) Limit (dBm) Verdict NVNT a 5500 Ant1 6.844 11 Pass NVNT a 5580 Ant1 7.151 11 Pass NVNT a 5700 Ant1 5.876 11 Pass NVNT ac20 5500 Ant1 7.295 11 Pass NVNT ac20 5580 Ant1 6.819 11 Pass NVNT ac20 5700 Ant1 6.004 11 Pass NVNT ac40 5510 Ant1 3.944 11 Pass NVNT ac40 5670 Ant1 2.946 11 Pass NVNT ac80 5530 Ant1 0.16 11 Pass NVNT n20 5500 Ant1 7.893 11 Pass NVNT n20 5580 Ant1 6.001 11 Pass NVNT n20 5700 Ant1 5.759 11 Pass NVNT n40 5510 Ant1 3.56 11 Pass NVNT n40 5670 Ant1 3.391 11 Pass PSD NVNT a 5500MHz Ant1 Page 94 of 138 Report No.: A2302067-C01-R13 PSD NVNT a 5580MHz Ant1 PSD NVNT a 5700MHz Ant1 Page 95 of 138 Report No.: A2302067-C01-R13 PSD NVNT ac20 5500MHz Ant1 PSD NVNT ac20 5580MHz Ant1 Page 96 of 138 Report No.: A2302067-C01-R13 PSD NVNT ac20 5700MHz Ant1 PSD NVNT ac40 5510MHz Ant1 Page 97 of 138 Report No.: A2302067-C01-R13 PSD NVNT ac40 5670MHz Ant1 PSD NVNT ac80 5530MHz Ant1 Page 98 of 138 Report No.: A2302067-C01-R13 PSD NVNT n20 5500MHz Ant1 PSD NVNT n20 5580MHz Ant1 Page 99 of 138 Report No.: A2302067-C01-R13 PSD NVNT n20 5700MHz Ant1 PSD NVNT n40 5510MHz Ant1 Page 100 of 138 Report No.: A2302067-C01-R13 PSD NVNT n40 5670MHz Ant1 Page 101 of 138 Report No.: A2302067-C01-R13 Band 4 (5725 – 5850 MHz) Condition Mode Frequency (MHz) Antenna Max PSD (dBm) Limit (dBm) Verdict NVNT a 5745 Ant1 2.412 30 Pass NVNT a 5785 Ant1 2.51 30 Pass NVNT a 5825 Ant1 2.455 30 Pass NVNT ac20 5745 Ant1 2.357 30 Pass NVNT ac20 5785 Ant1 1.94 30 Pass NVNT ac20 5825 Ant1 2.358 30 Pass NVNT ac40 5755 Ant1 -1.294 30 Pass NVNT ac40 5795 Ant1 -1.682 30 Pass NVNT ac80 5775 Ant1 -4.873 30 Pass NVNT n20 5745 Ant1 2.129 30 Pass NVNT n20 5785 Ant1 2.173 30 Pass NVNT n20 5825 Ant1 2.017 30 Pass NVNT n40 5755 Ant1 -1.46 30 Pass NVNT n40 5795 Ant1 -1.392 30 Pass PSD NVNT a 5745MHz Ant1 Page 102 of 138 Report No.: A2302067-C01-R13 PSD NVNT a 5785MHz Ant1 PSD NVNT a 5825MHz Ant1 Page 103 of 138 Report No.: A2302067-C01-R13 PSD NVNT ac20 5745MHz Ant1 PSD NVNT ac20 5785MHz Ant1 Page 104 of 138 Report No.: A2302067-C01-R13 PSD NVNT ac20 5825MHz Ant1 PSD NVNT ac40 5755MHz Ant1 Page 105 of 138 Report No.: A2302067-C01-R13 PSD NVNT ac40 5795MHz Ant1 PSD NVNT ac80 5775MHz Ant1 Page 106 of 138 Report No.: A2302067-C01-R13 PSD NVNT n20 5745MHz Ant1 PSD NVNT n20 5785MHz Ant1 Page 107 of 138 Report No.: A2302067-C01-R13 PSD NVNT n20 5825MHz Ant1 PSD NVNT n40 5755MHz Ant1 Page 108 of 138 Report No.: A2302067-C01-R13 PSD NVNT n40 5795MHz Ant1 Page 109 of 138 Report No.: A2302067-C01-R13 4.6 Band Edge Test Requirement: FCC Part15 E Section 15.407 and 15.205 Test Method: ANSI C63.10:2013 Test site: Measurement Distance: 3m (Semi-Anechoic Chamber) Receiver setup: Frequency Detector RBW VBW Remark 30MHz-1GHz Quasi-peak 100KHz 300KHz Quasi-peak Value Above 1GHz Peak 1MHz 3MHz Peak Value AV 1MHz 3MHz Average Value Limit: Frequency Limit (dBuV/m @3m) Remark 30MHz-88MHz 40.0 Quasi-peak Value 88MHz-216MHz 43.5 Quasi-peak Value 216MHz-960MHz 46.0 Quasi-peak Value 960MHz-1GHz 54.0 Quasi-peak Value Above 1GHz 54.0 Average Value 68.2 Peak Value Undesirable emission limits: (1) For transmitters operating in the 5.15-5.25 GHz band: all emissions outside of the 5.15-5.35 GHz band shall not exceed an EIRP of -27 dBm/MHz. (2) For transmitters operating in the 5.25-5.35 GHz band: all emissions outside of the 5.15-5.35 GHz band shall not exceed an EIRP of -27 dBm/MHz. Devices operating in the 5.25-5.35 GHz band that generate emissions in the 5.15-5.25 GHz band must meet all applicable technical requirements for operation in the 5.15-5.25 GHz band (including indoor use) or alternatively meet an out-of-band emission EIRP limit of -27 dBm/MHz in the 5.15-5.25 GHz band. (3) For transmitters operating in the 5.47-5.725 GHz band: all emissions outside of the 5.47-5.725 GHz band shall not exceed an EIRP of −27 dBm/MHz. Test Procedure: a. The EUT was placed on the top of a rotating table 1.5 m above the ground at a 3 meter camber. The table was rotated 360 degrees to determine the position of the highest radiation. b. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna towe…

Text truncated - open the document above for the full version.

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. E-mail: [email protected] Tel: 400-8300-895 Website: http://www.a-lab.cn FCC TEST REPORT FCC ID: 2BAF2-AJG On Behalf of Shenzhen Fusion Aurora Technology Co., Ltd Carplay Android Box Model No.: ZONE, R601, R602, R608, R603 Prepared for : Shenzhen Fusion Aurora Technology Co., Ltd Address : L25, 4th Floor, Lianhui Building, Longhua Street, Longhua District, Shenzhen Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao'an District, 518103, Shenzhen, Guangdong, China Report Number : A2302067-C01-R14 Date of Receipt : February 28, 2023 Date of Test : March 1, 2023-March 18, 2023 Date of Report : March 18, 2023 Version Number : V0 Page 2 of 24 Report No.: A2302067-C01-R14 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ------------------------------------------------------------------------------------------------- 5 1.1.Description of Device (EUT) ------------------------------------------------------------------------------------------- 5 1.2.Accessories of Device (EUT) ------------------------------------------------------------------------------------------ 6 1.3.Tested Supporting System Details ----------------------------------------------------------------------------------- 6 1.4.Block Diagram of connection between EUT and simulators --------------------------------------------------- 6 2. EMC EQUIPMENT LIST ----------------------------------------------------------------------------------------------------- 7 3. SUMMARY OF MEASUREMENT ----------------------------------------------------------------------------------------- 8 3.1. Summary of test result ---------------------------------------------------------------------------------------------- 8 3.2. Equipment Type ------------------------------------------------------------------------------------------------------ 8 3.3. Channel list ------------------------------------------------------------------------------------------------------------ 9 3.4. Test Conditions and channel ------------------------------------------------------------------------------------ 10 3.5. Measurement Uncertainty (95% confidence levels, k=2) ------------------------------------------------- 10 4. DFS PARAMETERS --------------------------------------------------------------------------------------------------------- 11 4.1. DFS Parameters ---------------------------------------------------------------------------------------------------- 11 4.2. Calibration Setup and DFS Test Results --------------------------------------------------------------------- 17 4.2.1. Calibration of Radar Waveform --------------------------------------------------------------------------------- 17 4.2.1.1. Radar Waveform Calibration Procedure ------------------------------------------------------------- 17 4.2.1.2. Radiated Calibration Setup ----------------------------------------------------------------------------- 17 4.2.1.3. Calibration Deviation ------------------------------------------------------------------------------------- 17 4.2.1.4. Radar Waveform Calibration Result ------------------------------------------------------------------ 18 4.3. In-Service Monitoring: Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period ---------------------------------------------------------------------------------------------------- 19 4.3.1. Limit of In-Service Monitoring ----------------------------------------------------------------------------------- 19 4.3.2. Test Procedures ---------------------------------------------------------------------------------------------------- 19 4.3.3. Test Setup --------------------------------------------------------------------------------------------------------------- 20 4.3.4. Test Deviation ----------------------------------------------------------------------------------------------------------- 20 4.3.5. Result of Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period for Client Beacon Test 21 4.3.6. Channel Move Time, Channel Closing Transmission Time and Non-Occupancy Period for Client Beacon Test Plots ------------------------------------------------------------------------------------------------------------ 22 4.3.7. Data Traffic and Noise Floor Plots ---------------------------------------------------------------------------…
