EveLab Insight Eve Key User Guide Product Introduction Eve Key is EveLab Insight’s self-developed skin analysis system. With a built-in triple-spectrum detection system and magnification camera, Eve Key can be used with all major products under EveLab Insight. Packing List Main device x1 Charging cable x1 Product Manual x1 Please use the original accessories. Official website: www.evelabinsight.com Parts List Charging port Connection indicator light Power indicator light Power button/Camera button Skin scanner Dust hood Device Status 1. Charge (connect with the charging cable) Charging: The power indicator light is red and constant. Fully charged: The power indicator light is white and constant. 2. Use (disconnect from the charging cable) Power on: The power indicator light is white and constant. Device not connected to the network: Connection indicator light flashes white rapidly. Device connected to the network: Connection indicator light flashes white slowly. Device connected to the APP: Connection indicator light stays solid white. Battery is less than 15%: The red power indicator light flashes. Power off: All indicator lights are off Manual I. Charging and booting 1. Charging: Before using, charge the device with the original charging cable. The red indicator light will be on when charging and the white indicator light will be on when it is fully charged. 2. After charging, disconnect the cable and press the power button to power on the device (The white connetion light will flash). ※Important: Do not power on the device when the charging cable is still connected. II Connection and use 1. Download: Search and download the Eve app you purchased in the App Store. 2. Connect: Log in to the app and follow the guide to connect to the device. The white connecting indicator light will be on if the connection succeeded. 3. Skin detection: Remove the hood and wipe the contact interface of skin scanner with a soft cloth or tissue, and then follow the guide to complete skin detection. After detection, wipe the interface again and put on the hood. ※During detection, remember to keep your eyes closed to prevent eyesight damage. 4. Power off: Press and hold the power button for 3 seconds. The device is successfully powered off when all lights go out. III Others 1. Energy- saving mode: After 5 minutes without activity, the analyzer will enter energy-saving mode. 2. Low battery reminder: The red power indicator light will flash when the battery is less than 15%. Remember to charge the device when this happens. 3. Reset function: If the app prompts to switch connection modes or set up a new network, press and hold the power button for 7 seconds to perform a reset. The power indicator light will go off and turn back on, and the connection indicator light will start f lashing rapidly. Follow the instructions on the app to reconnect. IV. Maintenance Instructions 1. Charging: Do not use while the device is charging. Charge the device regularly to keep it operational. Charge for around 1 hour 45 mins when battery is low. 2. Storage: Wipe the body of the device with a dry soft cloth or tissue, then close the hood and store it in a dry and cool place away from sunlight. Contact our after-sales manager if you have any problems. Safety Precautions 1. Please refrain from testing the eyes to avoid any harm to vision. When detecting the skin around the eyes, please keep your eyes closed. 2. We recommend only using the original charging cable and 5V adapter (replacements are available for purchase by contacting our sales manager), otherwise power related problems or damage to the device may occur; 3. Do not use while the device is charging. When charging your device, the charger must be securely and properly plugged in. 4. Disconnect from the power supply before storing the device. If the device is always connected to the power supply for continuous charging, the battery's capacity may be affected over time; 5. If the product will not be used for long periods of time, it is recommended to store it in a dry and cool place away from sunlight, and avoid jarring contact with hard objects so as not to damage the product. Do not store the product and product accessories in a humid environment for long periods of time. The performance of the product will be adversely affected s hould any of the above precautions not be followed. 6. The power cable may break due to extended or incorrect use of the charger. The power cable should not be used under any of the following circumstances: The power cable is damaged and cannot be restored to its original form, or there is any breakage, deformation or fracture on the power cable or power connector. 7. Please keep this device away from open flames and heat sources; 8. Keep device from moisture and do not rinse with water; 9. Please store the device out of reach of children; 10. Do not disassemble, repair or rebuild the device without authorization; 11. Do not place the device near or inside heating equipment, cooking equipment, high-pressure containers, etc. (such as microwave ovens, induction cookers, electric ovens, electric heaters, water heaters, pressure cookers, gas stoves, etc.) otherwise the battery could overheat and/or explode； 12. The lithium battery inside the device cannot be repaired after aging. When the device is no longer functional, it must be discarded at a local battery recycling station to avoid pollution; do not casually discard. Warranty/Repair I. Starting from the date of product delivery (based on the actual receipt date), non-human-induced damages are eligible for one-year warranty service with the warranty certificate (invoice or contract) as proof. For specific warranty arrangements, please communicate and confirm with the after-sales customer service. II. The following conditions are not covered in the scope of warranty: 1. Unable to provide our company's invoice or contract; 2. Warranty period exceeded; 3. Damage caused by unauthorized dismantling or…

Text truncated - open the document above for the full version.

EVELAB INSIGHT (SINGAPORE) PTE. LTD. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: EVELAB INSIGHT (SINGAPORE) PTE. LTD. Address: 80 Robinson Road #02-00 Singapore 068898 Product Name: EveLab Insight Eve Key FCC ID: 2BAG3MS2201 Model(s): MS2201 2.911(d)(5)(i) Equipment Type We, [EVELAB INSIGHT (SINGAPORE) PTE. LTD.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not: • Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. • Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Arthur Law Date: 2023.08.30 Title and Company name: General Counsel / EVELAB INSIGHT (SINGAPORE) PTE. LTD. NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

EVELAB INSIGHT (SINGAPORE) PTE. LTD. 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: EVELAB INSIGHT (SINGAPORE) PTE. LTD. Address: 80 Robinson Road #02-00 Singapore 068898 Product Name: EveLab Insight Eve Key FCC ID: 2BAG3MS2201 Model(s): MS2201 2.911(d)(5)(ii) Applicant filing We, [EVELAB INSIGHT (SINGAPORE) PTE. LTD.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Arthur Law Date: 2023.08.30 Title and Company name: General Counsel / EVELAB INSIGHT (SINGAPORE) PTE. LTD. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

EVELAB INSIGHT (SINGAPORE) PTE. LTD. * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 7/11/2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2BAG3MS2201 Per section 2.911(d)(7) of the FCC rules, EVELAB INSIGHT (SINGAPORE) PTE. LTD. (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Federal Registration Number (FRN): 0033456617 Company Name: MEITU TECHNOLOGY (US), LLC Physical U.S. Company Address: 530 Lytton Avenue, 2nd Floor, Palo Alto, CA 94301, United States Contact person: Arthur Law Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different to Applicant): Signed: Signed: Printed name: Arthur Law Printed name: Arthur Law Title: General Counsel Title: General Counsel Company Name: EVELAB INSIGHT (SINGAPORE) PTE. LTD. Company Name: MEITU TECHNOLOGY (US), LLC Date: 7/11/2023 Date: 7/11/2023 DocuSign Envelope ID: 3A1CD4AE-9C59-4255-AC31-8B50F72178CA

FCC Software Configuration Control Declaration Rev1.1 EVELAB INSIGHT (SINGAPORE) PTE. LTD. FCC Software Configuration Control Declaration Date: August 30, 2023 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product Name: EveLab Insight Eve Key Model Number: MS2201 Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Arthur Law Date: August 30, 2023 Title: General Counsel Signature of applicant

EVELAB INSIGHT (SINGAPORE) PTE. LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 30, 2023 Subject; Request for Confidentiality FCC ID: 2BAG3MS2201 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure FCC Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Arthur Law Title: General Counsel

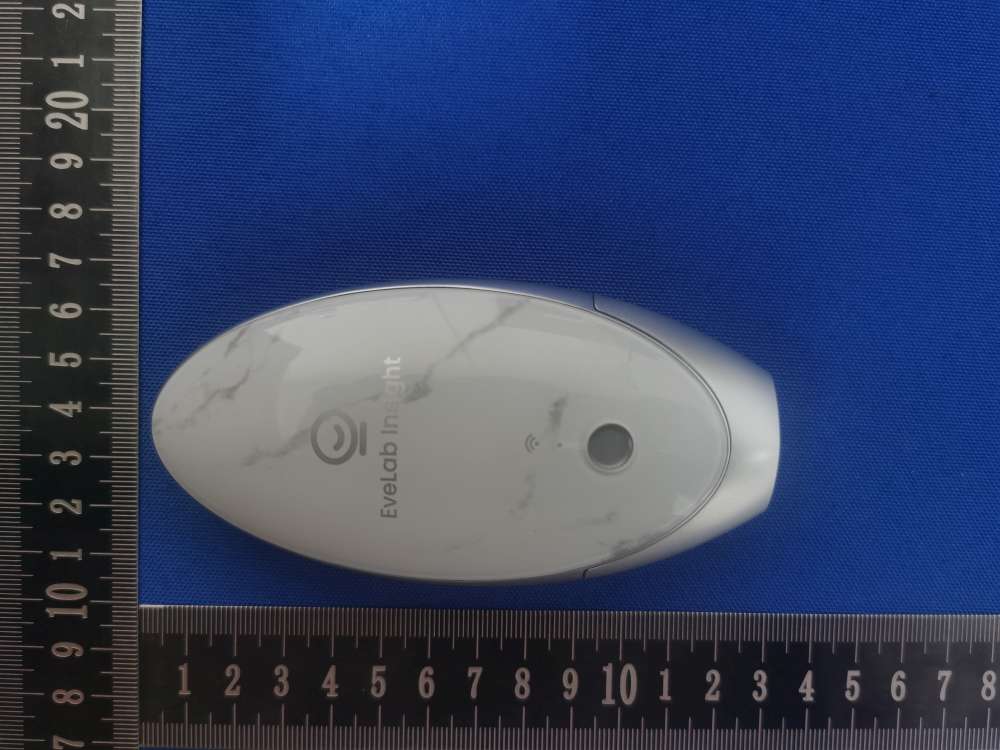

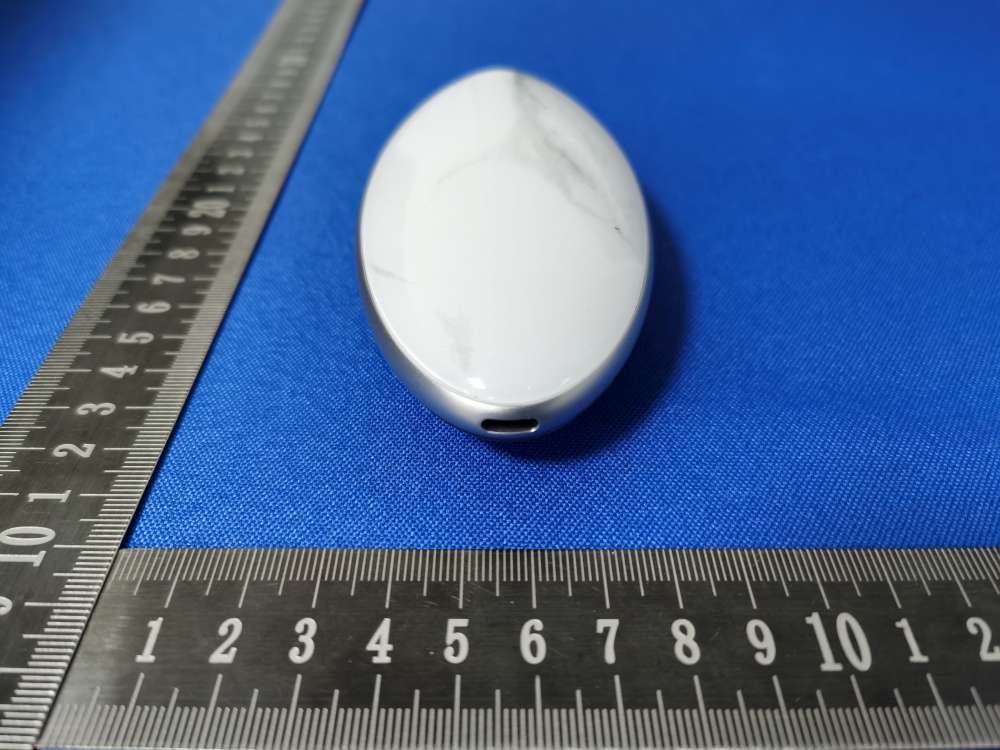

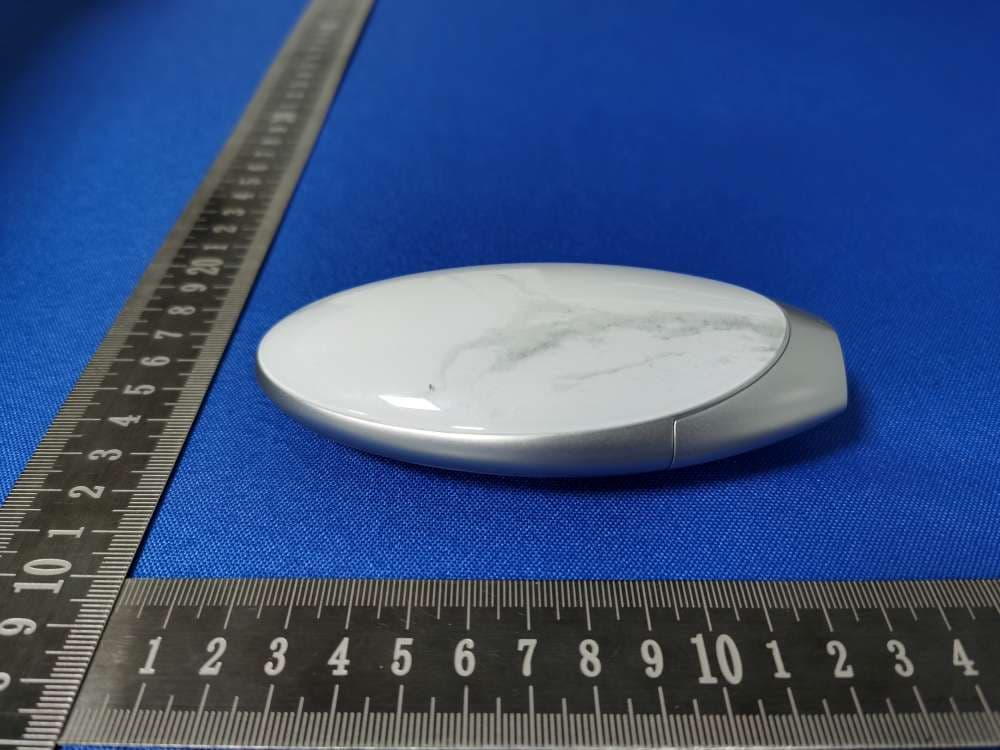

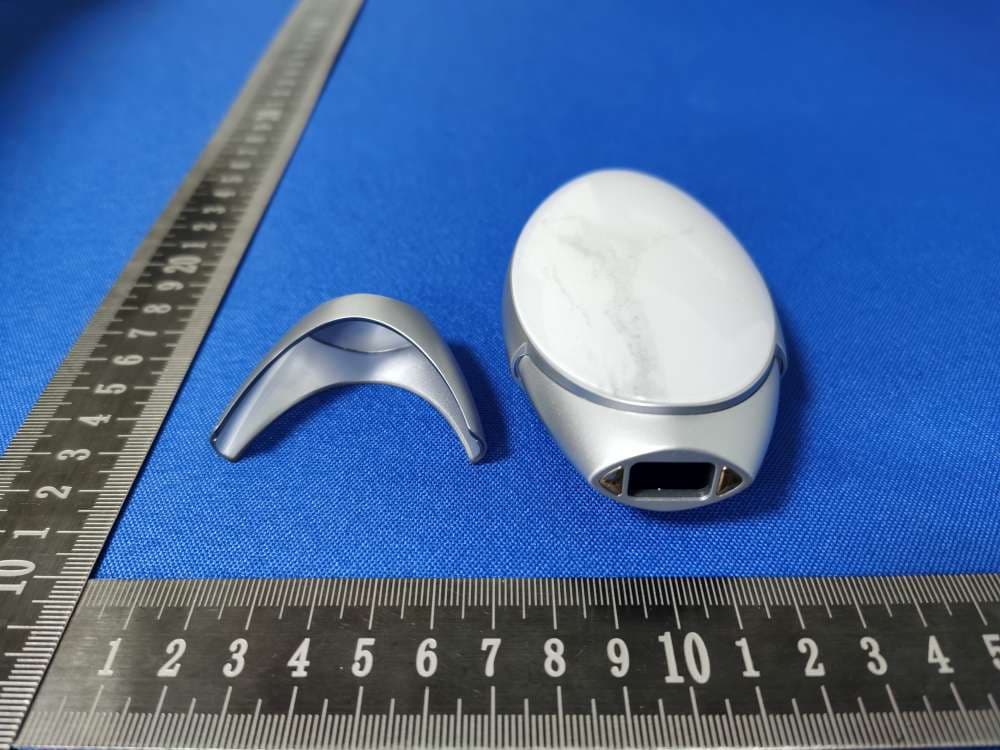

External Photos EUT View 1 EUT View 2 EUT View 3 EUT View 4 EUT View 5 EUT View 6 EUT View 7
