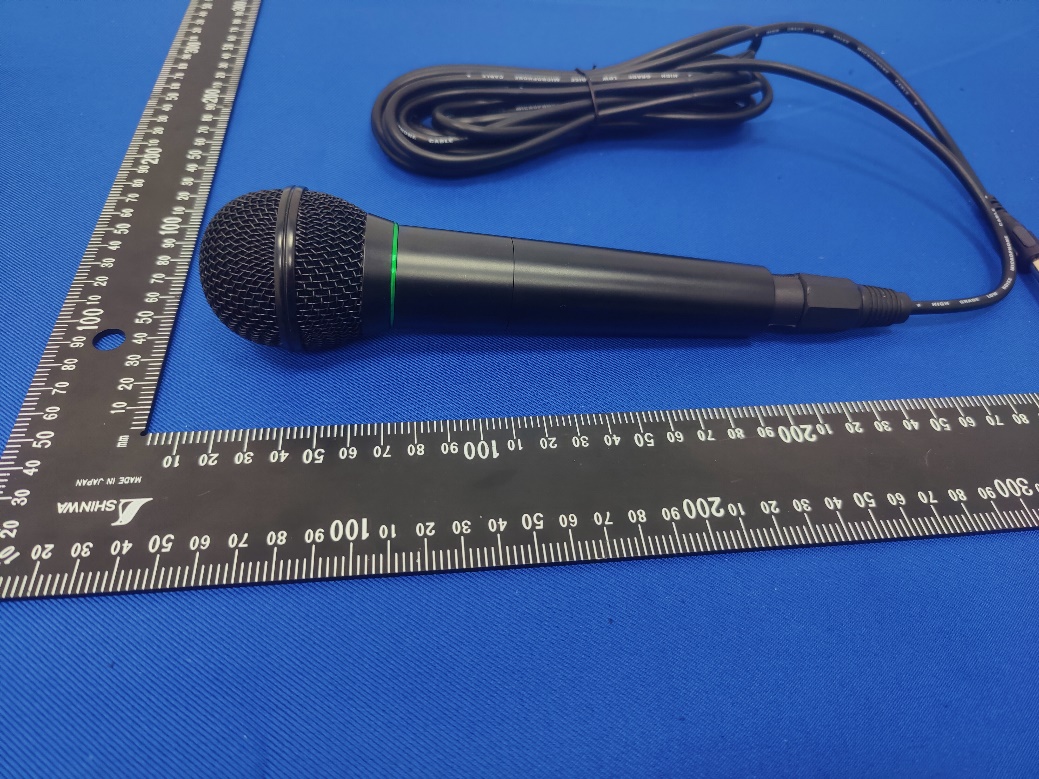

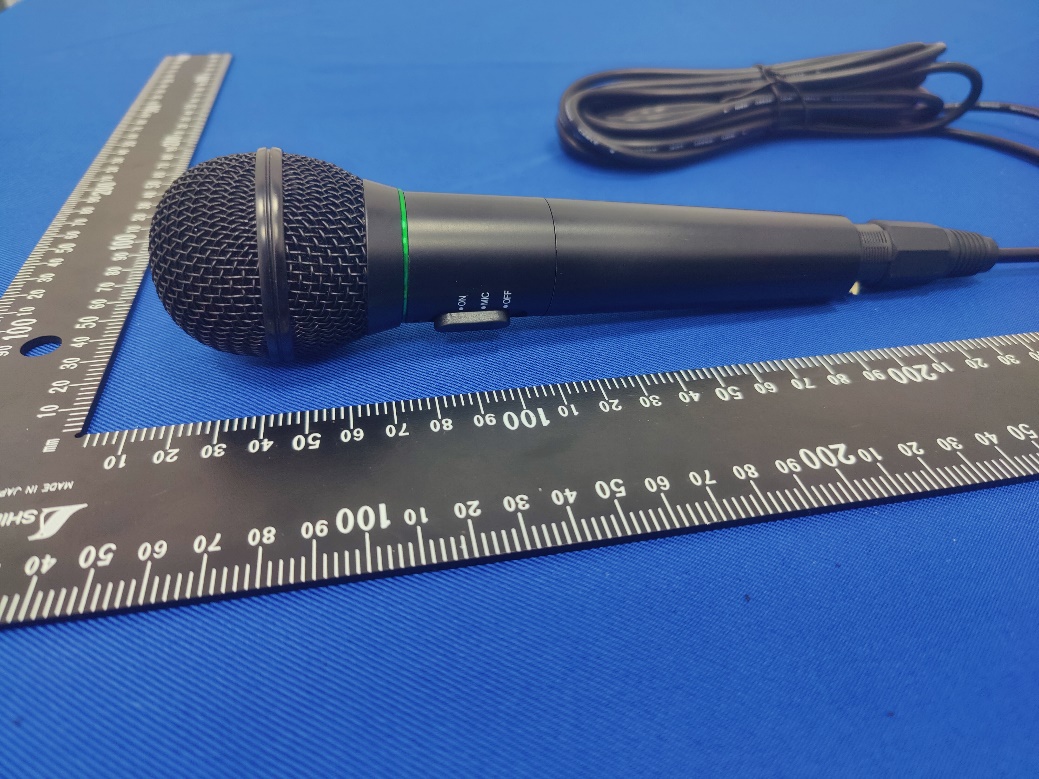

佥i Em 巳 rson™ Wireless Microphone System Instruction Manual Please read carefully before use and keep for future reference. Thank You EAM-9001 We know you have many choices when it comes to technology; thank you for choosing us here at Naxa Electronics. Established in 2001 in Los Angeles, Cali ­ fornia, we are dedicated to delivering products that entertain and delight. We trust that you will be happy with your purchase. Please read this manual carefully and save it for ref­ erence. You may also find the latest FAQ, documen­ tation, and other product material at our website. Come visit us at www.emersonaudio.com and see all that we have to offer! In the Box ． Microphone Wireless receiver Cable (1/4" to XLR) 1/4" to 1/8" adapter Page 1 How to Connect To start using your microphone, connect it to the in ­ put of a speaker system or amplifler. Your microphone can be connected to systems with: ． ． Wired Connection 1 2. 3. 1 2. 1/4" input 1/8" input (with the included adapter} Connect the XLR end of the cable to the bottom of the microphone. Connect the 1/4" end of the cable to a speak­ er system input {or use the included 1/8" plug adapter). Set the switch on the microphone to the "MIC" position. i 且 ••• ·• ••• · •••• · •••••••••••• •••• •••• Wireless Connection Load one "AA" battery into the battery compart ­ ment found on the back of the wireless receiver. t a 三 ＠ Make sure to match the polarity marked inside the battery compart­ ment. Turn the wireless receiver on and extend its an­ tenna. Emerson Electronics I www.emersonaudio.com 3. 4. 5. Connect the 1/4" plug of the wireless receiver to a speaker system input (or use the included 1/8" plug adapte r). Twist and unscrew the bottom half of the mi­ crophone clockwise to reveal the battery com­ partment. Load one "AA" battery into the micro­ phone, then screw the bottom back on. CD Disconnect the cable from the micro­ phone before opening the microphone. Failure to do so will damage the micro­ phone. Make sure to match the polarity marked inside the battery compart­ ment. Set the switch on the microphone to the ON position. 丞已l从-仁， Placing Your Microphone The optimal position for your microphone relative to the sound source depends on a few factors, but it is mostly a matter of trial and error. Experiment with different distances and positions to see which sounds best, but keep the following things in mind. Cardioid Cardioid microphones are more sensitive to sounds that are in front of it. Sounds from behind the micro­ phone will be slightly muted. Page2 Cardioid microphones speech recording. are great for vocal or When using a microphone for vocal or speech work, the closer you are to the microphone the more likely it will pick up "plosives" when record­ ing. Consider placing a pop filter between the speaker and the microphone. Specifications Frequency Output impedance Operation voltage Effective distance Cable length lu 50-18,000 Hz DC 1.SV or DC 3V Adap ter plug 30FT 5.03 m (16.5') 6.3 mm (1/4") 3.5 mm (1/8") Specifications and design may change to improve this product. Please visit our website at www.emersonaudio.com. for the latest product information. Support If you have problems with your device, please consult the instructions in this manual. Please also visit us on the web at www.emersonaudio.com to get up to the m­ inute news, alerts, and documentation for your device. For additional assistance, please contact Emerson Tee­ hnical Support. NAXA Technical Support 2320 East 49th St. Vernon, CA 90058 www.naxa.com/naxa_support Emerson Electronics I www.emersonaudio.com FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

- ENPING GREAT ELECTRONIC CO., LTD. - The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 4/22/2023 U.S. Agent Designation [ENPING GREAT ELECTRONIC CO., LTD.] acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BAl8-EAM-9001M, 2BAl8-EAM-9001R, 2BAl8-EAM-9002M, 2BAl8-EAM-9002R): Name and company of U.S. agent: Naxa Electronics, Inc Physical U.S. address of agent: 2320 East 49 th Street, Vernon, CA 90058 FRN of U.S. agent: 0025676834 Email address of U.S. agent: [email protected] [Naxa Electronics, Inc.] acknowledges their obligation to accept service of process on behalf of [ENPING GREAT ELECTRONIC CO., LTD.]. [ENPING GREAT ELECTRONIC CO., LTD.] with the FRN [0033523390] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). Sincerely, Signature Signature [Applicant Name] NELON WU [U.S. Name:] Michael Shak [Title] MANAGER [Title] PresidentJCEO [Company] ENPING GREAT [U.S. Compnay] Naxa Electronics, Inc. ELECTRONIC CO., LTD. 48_[mo del] US_Agent_2.911(d)(7) - U, V04

ENPING GREAT ELECTRONIC CO., LTD The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 4/14/23 To whom it may concern: We,ENPING GREAT ELECTRONIC CO., LTD, hereby certify that the equipment for which authorization is sought (FCC ID: 2BAI8-EAM-9001M,2BAI8-EAM-9001R,2BAI8-EAM-9002M,2BAI8- EAM-9002R) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). Sincerely, Signature NELON MANAGER ENPING GREAT ELECTRONIC CO., LTD 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii)-U, V02

FCC ID: 2BAI8-EAM-9001M

Label Location On EUT Label Product Name: Wireless Microphone System Model Number: EAM-9001 Trademark: EMERSON, Naxa FCC ID: 2BAI8-EAM-9001M This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2BAI8-EAM-9001M PCB Antenna

version01 ENPING GREAT ELECTRONIC CO., LTD. Declaration concerning Antenna Specification It i s hereby declared that the product Model No.: EAM-9001, EAM-9016, EAM-9017, EAM-9018, EAM-9019, EAM-9020, EAM-9021, EAM-9022, EAM-9023, EAM-9024, EAM-9025, EAM-9026, EAM-9027, EAM-9028, EAM-9029 FCC ID: 2BAI8-EAM-9001M fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for PCB antenna type(s) described below: Model No. of antenna: E103 Type of antenna: PCB Antenna Gain of the antenna: 1.7 dBi Frequency range: 2400-2500 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: ENPING GREAT ELECTRONIC CO., LTD. Address: NO.26F, FOREIGN AND PRIVATE CAPITAL INDUSTRIAL ZONE ENPING, City: JIANGMEN CITY, GUANGDONG ZIP / Postal code: Country: China Place: Place: Date: 2023-04-21 Signature:

1. Antenna Description: Antenna plate PCB Antenna Antenna Type ANT03 Antenna peak gain 1.7 dBi Frequency range 2.402GHz~2.480GHz Connect type Direct Connect Manufacturer SOANT COMMUNICATION 2. Picture of antenna 3. Antenna Radiation Results Frequency (MHz) Antenna Gain (dBi) Max. 2402 1.39 2441 1.70 2480 1.50 Model No. E103 4. Radiation pattern @2.402GHz Radiation pattern @2.441GHz Radiation pattern @2.480GHz

RF EXPOSURE EVALUATION FCC ID: 2BAI8-EAM-9001M According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b): Routine SAR evaluation refers to that specifically required by §2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to qualify for TCB approval. Channel (MHz) Maximum output power (dBm) Tune up tolerance (dBm) Max Tune Up Power (dBm) Distance (mm) Calculation results Limit Operating Mode 2402 -9.00 -9.00±1 -8.00 5 0.049 3 BDR&EDR 2441 -11.22 -11.22±1 -10.22 5 0.030 3 2480 -12.64 -12.64±1 -11.64 5 0.022 3 2402 -8.28 -8.28±1 -7.28 5 0.058 3 2441 -10.34 -10.34±1 -9.34 5 0.036 3 2480 -12.24 -12.24±1 -11.24 5 0.024 3 2402 -8.80 -8.80±1 -7.80 5 0.051 3 2441 -11.16 -11.16±1 -10.16 5 0.030 3 2480 -12.48 -12.48±1 -11.48 5 0.022 3 Test Results: PASS.

Project No.: ZKT-230316L1751E Page 1 of 75 FCC TEST REPORT FCC ID: 2BAI8-EAM-9001M Report Number. ................................ : ZKT-230316L1751E Date of Test ......................................... Mar. 10, 2023 to Mar. 24, 2023 Date of issue ..................................... : Apr. 20, 2023 Total number of pages ....................... 75 Test Result ...................................... : PASS Testing Laboratory. ........................ : Shenzhen ZKT Technology Co., Ltd. Address ........................................... : 1/F , No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ......................... : ENPING GREAT ELECTRONIC CO., LTD. Address ........................................... : NO.26F, FOREIGN AND PRIVATE CAPITAL INDUSTRIAL ZONE ENPING, JIANGMEN CITY, GUANGDONG, China Manufacturer's name ................... : ENPING GREAT ELECTRONIC CO., LTD. Address ........................................... : NO.26F, FOREIGN AND PRIVATE CAPITAL INDUSTRIAL ZONE ENPING, JIANGMEN CITY, GUANGDONG, China Test specification: Standard ........................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 Test procedure ................................. : / Non-standard test method .............. : N/A Test Report Form No. .................... : TRF-EL-112_V0 Test Report Form(s) Originator .... : ZKT Testing Master TRF ................................... : Dated: 2021-04-22 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................. : Wireless Microphone System Trademark ....................................... : EMERSON, Naxa Model/Type reference ....................... : EAM-9001 EAM-9016, EAM-9017, EAM-9018, EAM-9019, EAM-9020, EAM-9021, EAM-9022, EAM-9023, EAM-9024, EAM-9025, EAM-9026, EAM-9027, EAM-9028, EAM-9029 Ratings .............................................. : Input: DC 1.5V Project No.: ZKT-230316L1751E Page 2 of 75 Testing procedure and testing location: Testing Laboratory ..................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Tom Zou Te s ted by (name + signature) .................... : Jackson Fang Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-230316L1751E Page 3 of 75 Table of Contents Page 1. VERSION .................................................................................................................. 5 2. TEST SUMMARY ...................................................................................................... 6 2.1 TEST FACILITY ...................................................................................................... 7 2.2 MEASUREMENT UNCERTAINTY .......................................................................... 7 3. GENERAL INFORMATION ...................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ........................................................................ 8 3.2 Test Setup Configuration ......................................................................................... 9 3.3 Support Equipment ................................................................................................ 10 3.4 Test Mode ............................................................................................................. 11 3.5 EQUIPMENTS LIST FOR ALL TEST ITEMS ........................................................ 12 4. EMC EMISSION TEST ............................................................................................ 14 4.1 Conducted emissions ............................................................................................ 14 4.1.1 POWER LINE CONDUCTED EMISSION Limits ................................................ 14 4.1.2 TEST PROCEDURE .......................................................................................... 14 4.1.3 DEVIATION FROM TEST STANDARD .............................................................. 14 4.1.4 TEST SETUP ..................................................................................................... 14 4.1.5 EUT OPERATING CONDITIONS ....................................................................... 15 4.2 Radiated emissions ............................................................................................... 16 4.2.1 Radiated Emission Limits ................................................................................... 16 4.2.2 TEST PROCEDURE .......................................................................................... 16 4.2.3 DEVIATION FROM TEST STANDARD .............................................................. 17 4.2.4 TEST SETUP ..................................................................................................... 17 4.2.5 EUT OPERATING CONDITIONS ....................................................................... 18 4.2.6 TEST RESULTS ................................................................................................. 18 5. RADIATED BAND EMISSION MEASUREMENT ................................................... 24 5.1 Test Requirement: ................................................................................................. 24 5.2 TEST PROCEDURE .......................................…

Text truncated - open the document above for the full version.

FCC ID: 2BAI8-EAM-9001M Photo of Radiation Emission Test
