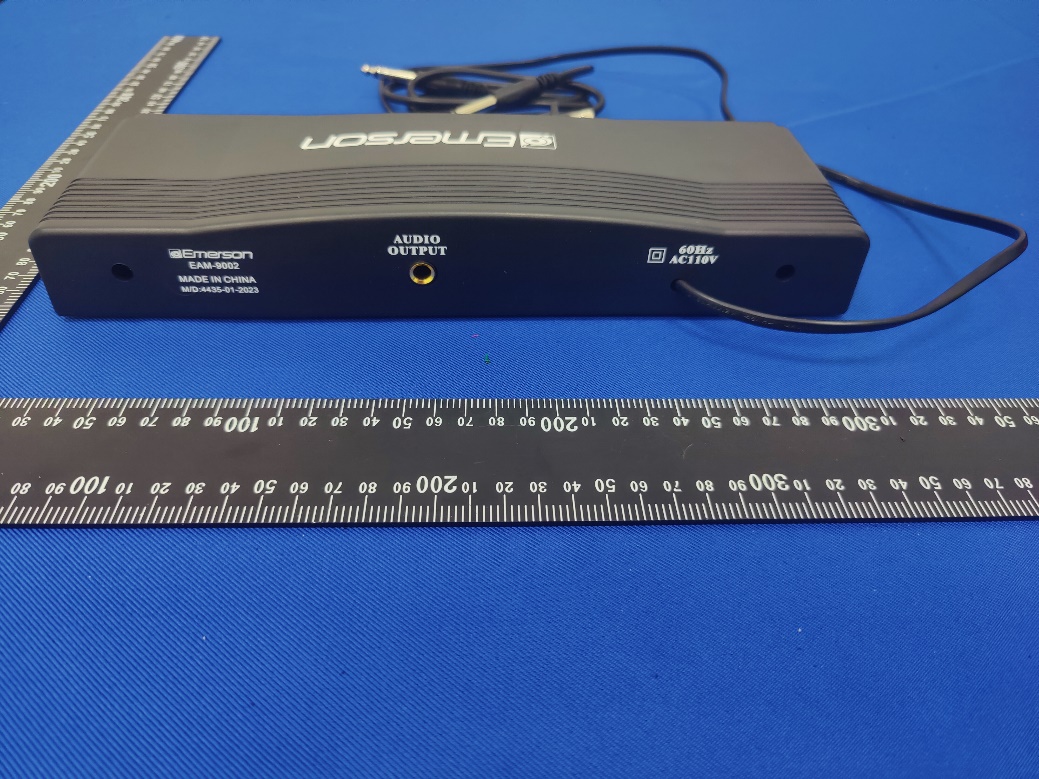

佥iEm巳rsonT蛐 EAM-9002 Professional Dual Wireless Microphone System ． ． ＿ Instruction Manual Please read carefully before use and keep fo『futurereference Thank You We know you have many choices when it comes to technol ogy ; thank you for choosing us here at Naxa Electronics. Established in 2001 in Los Angeles, Cali­ fornia, we are dedicated to delivering products that entertain and delight. We trust that you will be happy with your purchase. Please read this manual carefully and save it fo r ref­ erence. You may also find the latest FAQ, documen­ tation, and other product material at our website. Come visit us at www.emersonaudio.com and see all that we have to offer! In the Box Two wireless microphones (A/green, B/red) Wireless receiver Microphone patch cable (1/4" to 1/4") Pagel At a Glance Receiver 巳 1 Power switch (O n, Off ) 2. Mic A LED 3. Power LED 4. Mic BLED ， ＠ , @ Audio output jack (1/4") 2. Power (AC 110V,60Hz) 1 Microphones 11 e III @ 111 @ 了 ＇ ＠ 1.Microphone pickup 2. PowerLED 3. Power switch (On, Standby, Off ) 4. Battery compartment cap ｀ Emerson Electronics I www.emersonaudio.com How to Connect To start using your wireless microphones, the receiv­ er must be connected to the audio input of an ampli­ fier, karaoke, or PA system. Your receiver can be connected to systems with: 1/4 » input • 1/8" input (with an optional adapter〉 To connect the receiver and microphones: Use the patch cable to connect the 1/4 » AUDIO OUTPUT jack of the receiver to the 1/4" connector of the input system (e.g., an amplifier, karaoke, or PA system). 2.Connect the receiver to power (AC 110 V). Fully extend the antennas and position them for op­ timal reception. The wireless microphones require one "9V" battery each. To access the battery compartment, twist and unscrew the bottom cap of the microphone. Load one "9V" alkaline battery into the compartment , and then screw the bottom cap back into place. @ Make sure to match the ” + “ and ” -” polarities marked inside the battery compartment. 4.Turn the receiver on, and then turn the micro­ phones on. When the microphones are connected to the receiver, the A and B indicators will light green and red, respectively. (D Th _ e gre _ en A LED corr : esponds to the microphone marked with a green band; the red B LED corresponds to the mi­ crophone marked with a red band. Lower the input level on the input sys­ tem before turning on the microphones. Slowly readjust the input to a comfort­ able level after the microphones are turned on and connected. 1. 3 Placing Your Microphone The optimal position for your microphone relative to the sound source depends on a few factors, but it is mostly a matter of trial and error. Experiment with different distances and positions to see which sounds best, but keep the following things in mind. Cardioid Cardioid microphones are more sensitive to sounds that are in front of it. Sounds from behind the micro­ phone will be slightly muted Cardioid microphones are great for vocal or speech recording. Page2 When using a microphone for vocal or speech work, the closer you are to the microphone the more likely it will pick up "plosives" when record­ ing. Consider placing a pop filter between the speaker and the microphone. Specifications Sensitivity Frequency 9屯P正pedance Operation voltage -72 dB 50-18,000 Hz 6000 Microphone: DC 9 V Receiver: AC 1 20 V一60Hz U p to 3 hours 30FT Cardioid Battery life Effective distance T ype Specifications are subject to change without prior notice Support If you have problems with your device, please consult the instructions in this manual. Please also visit us on the web at www.emersonaudio.com to get up to them­ inute news, alerts, and documentation for your de vi ce. For additional assistance, please contact Emerson Tee­ hnical Suppo「t. NAXA Technical Support 2320 East 49th St. Vernon, CA 900S8 www.naxa.com/naxa_support Emerson Electronics I www.emersonaudio.com FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

- ENPING GREAT ELECTRONIC CO., LTD. - The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 4/22/2023 U.S. Agent Designation [ENPING GREAT ELECTRONIC CO., LTD.] acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BAl8-EAM-9001M, 2BAl8-EAM-9001R, 2BAl8-EAM-9002M, 2BAl8-EAM-9002R): Name and company of U.S. agent: Naxa Electronics, Inc Physical U.S. address of agent: 2320 East 49 th Street, Vernon, CA 90058 FRN of U.S. agent: 0025676834 Email address of U.S. agent: [email protected] [Naxa Electronics, Inc.] acknowledges their obligation to accept service of process on behalf of [ENPING GREAT ELECTRONIC CO., LTD.]. [ENPING GREAT ELECTRONIC CO., LTD.] with the FRN [0033523390] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). Sincerely, Signature Signature [Applicant Name] NELON WU [U.S. Name:] Michael Shak [Title] MANAGER [Title] PresidentJCEO [Company] ENPING GREAT [U.S. Compnay] Naxa Electronics, Inc. ELECTRONIC CO., LTD. 48_[mo del] US_Agent_2.911(d)(7) - U, V04

ENPING GREAT ELECTRONIC CO., LTD The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 4/14/23 To whom it may concern: We,ENPING GREAT ELECTRONIC CO., LTD, hereby certify that the equipment for which authorization is sought (FCC ID: 2BAI8-EAM-9001M,2BAI8-EAM-9001R,2BAI8-EAM-9002M,2BAI8- EAM-9002R) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). Sincerely, Signature NELON MANAGER ENPING GREAT ELECTRONIC CO., LTD 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii)-U, V02

FCC ID: 2BAI8-EAM-9002R

Label Location On EUT Label Product Name: Professional Dual Wireless Receiver Model Number: EAM-9002 Trademark: EMERSON, Naxa FCC ID: 2BAI8-EAM-9002R This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2BAI8-EAM-9002R PCB Antenna

version01 ENPING GREAT ELECTRONIC CO., LTD. Declaration concerning Antenna Specification It i s hereby declared that the product Model No.: EAM-9002, EAM-9030, EAM-9031, EAM-9032, EAM-9033, EAM-9034, EAM-9035, EAM-9036, EAM-9037, EAM-9038, EAM-9039, EAM-9040, EAM-9041, EAM-9042, EAM-9043, EAM-9044, EAM-9045, EAM-9046, EAM-9047, EAM-9048, EAM-9049, EAM-9050 FCC ID: 2BAI8-EAM-9002R fulfills the requirement in FCC test relating to the antenna type. Bluetooth module 1: The device specified above confirms to the FCC recommendations for PCB antenna type(s) described below: Model No. of antenna: N/A Type of antenna: PCB Antenna Gain of the antenna: 1.7 dBi Frequency range: 2400-2500 MHz Bluetooth module 2: The device specified above confirms to the FCC recommendations for PCB antenna type(s) described below: Model No. of antenna: N/A Type of antenna: PCB Antenna Gain of the antenna: 1.7 dBi Frequency range: 2400-2500 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: ENPING GREAT ELECTRONIC CO., LTD. Address: NO.26F, FOREIGN AND PRIVATE CAPITAL INDUSTRIAL ZONE ENPING, City: JIANGMEN CITY, GUANGDONG ZIP / Postal code: Country: China Place: Place: Date: 2023-04-21 Signature:

1. Antenna Description: Antenna plate PCB Antenna Antenna Type ANT03 Antenna peak gain 1.7 dBi Frequency range 2.402GHz~2.480GHz Connect type Direct Connect Manufacturer SOANT COMMUNICATION 2. Picture of antenna 3. Antenna Radiation Results Frequency (MHz) Antenna Gain (dBi) Max. 2402 1.39 2441 1.70 2480 1.50 Model No. E103 4. Radiation pattern @2.402GHz Radiation pattern @2.441GHz Radiation pattern @2.480GHz

RF EXPOSURE EVALUATION FCC ID: 2BAI8-EAM-9002R According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b): Routine SAR evaluation refers to that specifically required by §2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to qualify for TCB approval. Bluetooth module 1: Channel (MHz) Maximum output power (dBm) Tune up tolerance (dBm) Max Tune Up Power (dBm) Distance (mm) Calculation results Limit Operating Mode 2402 -9.02 -9.02±1 -8.02 5 0.049 3 BDR&EDR 2441 -11.23 -11.23±1 -10.23 5 0.030 3 2480 -12.52 -12.52±1 -11.52 5 0.022 3 2402 -8.16 -8.16±1 -7.16 5 0.060 3 2441 -10.32 -10.32±1 -9.32 5 0.037 3 2480 -12.24 -12.24±1 -11.24 5 0.024 3 2402 -8.88 -8.88±1 -7.88 5 0.051 3 2441 -11.20 -11.20±1 -10.2 5 0.030 3 2480 -12.53 -12.53±1 -11.53 5 0.022 3 Bluetooth module 2: Channel (MHz) Maximum output power (dBm) Tune up tolerance (dBm) Max Tune Up Power (dBm) Distance (mm) Calculation results Limit Operating Mode 2402 -9.02 -9.02±1 -8.02 5 0.049 3 BDR&EDR 2441 -11.30 -11.30±1 -10.30 5 0.029 3 2480 -12.64 -12.64±1 -11.64 5 0.022 3 2402 -8.01 -8.01±1 -7.01 5 0.062 3 2441 -10.19 -10.19±1 -9.19 5 0.038 3 2480 -11.93 -11.93±1 -10.93 5 0.025 3 2402 -8.54 -8.54±1 -7.54 5 0.055 3 2441 -10.94 -10.94±1 -9.94 5 0.032 3 2480 -12.62 -12.62±1 -11.62 5 0.022 3 Test Results: PASS.
