2BAM4-K110Tablet PC

118.29 mm 80.27 mm Precautions User Location information Security Settings Account management Reset Date and time USB OTG function Language and input method Kindly ReminderWi-Fi wireless connection Bluetooth connection Display setting Sound settings Battery status display Connect to the computer Can't turn on the phone, can't charge Application management Thank you for purchasing our product! This product is installed with an Android smart operating system.This user guide briefly introduces the various functionsof the product, allowing you to operate freely and fully appreciate thevalue-added enjoyment this product brings to you. Please read this user guide carefully before using it. 1. Note that the new battery can reach its best performance only after twice or three time full charge and discharge cycles. 2.In order to prevent data loss, it is recommended that users regularly back up important data, especially before firmware upgrades or product repairs. 3. This product is a high-precision electronic product, please do not disassembleit by yourself. 4. Avoid strong beating, water droplets and water splashing, and collision withthis product. 5. Avoid using this product in the following environments: high temperature, lowpressure, low temperature, humidity, dust, strong magnetic field and long-termexposure to sunlight. We recommends that you use this product in an environmentbelow 3000 meters above sea level, 5° to 45°C, and humidity of 5% to 95%. 6. Please use the batteries, chargers and accessories allowed by the manufacturer. Using any other types of accessories will violate the warranty regulations and may be dangerous. ◆The nominal battery life of this product refers to the longest battery life that can be achieved under the minimum power consumption environment. The actual battery life may vary due to usage and environment (such as turning on WIFI, Bluetooth, screen brightness, volume) and other factors, and there are also slight differences in individual products. ◆The reasons for the difference between the nominal disk capacity of this product and the actual capacity are as follows: 1. The error caused by the calculation algorithm: the hardware manufacturer calculates according to 1MB=1000KB, while the software calculates according to 1MB=1024KB. For example, for aproduct with a nominal 8GB hardware, the capacity recognized by the software is 8*1000MB*1000KB*1000B/1024MB/ 1024KB/1024B=7.45GB, so there will be a calculation error of 0.55GB. The larger the capacity of the product, the algorithm error The bigger it is. 2. The Android operating system will take up part of the disk space. ◆The nominal battery capacity of this product is calculated by calculating the amount of charge in the actual charging and discharging process, using third-party tools to detect the battery capacity, due to current fluctuations, there will be large errors, so it is not used as a criterion. 1. Click the "Settings" function to enter the setting list interface, and click to select the "Network & Internet"; 2. Slide the switch to turn on the Wi-Fi function, and the system will automatically scan the Wi-Fi hotspot signal of the accessory; 3. Select and click the Wi-Fi signal that can be connected, enter the corresponding password, and click "Connect". 1. Click the "Settings" function to enter the setting list interface, click to select the "Bluetooth" menu; 2. Click "Pair new device", and the system will automatically scan the Bluetooth signal of the accessory; 3.Select and click the Bluetooth device that can be connected, and the "Bluetooth Pairing Request" pops up in the system, Click "Pair"; 4. When the other party's device is confirmed, the connection is successful. ＊Only suitable for models that support this function Click the "Settings" function to enter the setting list interface, click to select the "Display" menu 1. Brightness level: Swipe the progress bar to adjust the screen backlight display brightness or set the Automatic brightness adjustment. 2.Eye comfort: Eye comfort tints your screen amber, allowing you to view and read more comfortably in a dim environment, and may help you fall asleep more easily. 3. Wallpaper: you can set the display content of the desktop wallpaper. 4. Screen timeout: You can set the time when the system is operating, and the system will automatically turn off the screen and sleep. 5. Automatic rotation: you can set to lock the current screen orientation, or automatically rotate the screen orientation according to the device orientation. 6. Font size: The size of the font displayed by the system can be set; 7. Display size: Make the items on the screen smaller or larger. Some apps on the screen may change position. 8. Proximity sensor: When you make a phone call, the tablet will automatically turn off the screen when it is close to your ear. 9. Automatic wake-up: Close the tablet's case, the screen automati- cally goes off. Click the "Settings" function to enter the setting list interface, click to select the “Battery" menu, can check battery usage; Power display switch: Slide the switch to turn on or off the power percentage display effect. The product of this machine can be connected to a personal computer via a USB cable to perform data copy or delete operations. 1. If the personal computer is a Windows 7 or higher operating system, the computer will automatically install the MTP driver when it is connected to the computer for the first time; 2. If the personal computer is a Windows XP operating system, before connecting for the first time, the system must install Windows Media Player 11 to support the connection. 1.There is a small hole next to the power-on button, poke it with a toothpick or a card-taking needle, and then press the power-on button for ten seconds to start the machine. 2. Charge the tablet for more than 30 minutes, and then press to turn it on. Click the "Settings" function to enter the setting list interface, and click to select the "Apps" menu t…

Text truncated - open the document above for the full version.

Shenzhen Kaida Technology Co., LTD 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Shenzhen Kaida Technology Co., LTD Address: 4 / F, building C, No. 9, Huayuan Xincun Avenue, xiangjiaotang community, Bantian street, Longgang District, Shenzhen Product Name: Tablet PC FCC ID: 2BAM4-K110 Model(s): K110, D116, D118, D115, D101, D102, D105, D106, D718, D716, D136, D138 2.911(d)(5)(i) Equipment Type We, [Shenzhen Kaida Technology Co., LTD] certify that the equipment for which authorization is sought through certification is not: Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Weimeng Luo Date:Apr. 25, 2023 Title and Company name: manager/ Shenzhen Kaida Technology Co., LTD NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1)986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Kaida Technology Co., LTD 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Kaida Technology Co., LTD Address: 4 / F, building C, No. 9, Huayuan Xincun Avenue, xiangjiaotang community, Bantian street, Longgang District, Shenzhen Product Name: Tablet PC FCC ID: 2BAM4-K110 Model(s): K110, D116, D118, D115, D101, D102, D105, D106, D718, D716, D136, D138 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Kaida Technology Co., LTD] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Weimeng Luo Date:Apr. 25, 2023 Title and Company name: manager/ Shenzhen Kaida Technology Co., LTD NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1)986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

US Agent for Service of Process LETTER OF ATTESTATION TO: Office o f Engineering Ted冒nolog y Federal Communications c。”1mission 7435 O akland Mills Road Columbia, MD 21046 US Agent for Se『vice of Proce臼： Company Name: UA INTERNATIONAL INC. FRN: 0033510736 Contact Name: Jessica Zhong Address: 2030 Boardwalk Dr, Suite 818 Colorado Springs, CO 80919, United States T elephone No: 001-719-6787182 Email: UA.customerse『[email protected] This l e忧er is to confirm that the US Agent for Service of Process accepts responsibility to act as a lo cal representative on behalf of Shenzhen Kaida Technology Co., LTD . The US Agent fo「 Se『vice of Process is aware of and agrees to comply with the requirements outlined i n the FCC Equipment Authorization Program, Repo「t and Order FCC 22-84, and clause § 2 .911. Applicant: Company nam e: Shenzhen Kaida Technology Co., LTD Product Description: Tablet PC G「ante e code: 2BAM4 FCC ID: 2BAM4-K110 Contact Na me: Weimeng Luo Address: 4 / F, building C, No. 9, Huayuan Xincun Avenue, xiangjiaotang community, Bantian st「eet, Longgang District, Shenzhen Telephone No: 13530302961 Email: 2355754924@ qq.com The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause§ 2.911. Th is Agreement is valid until (Permanently valid). Date: 2023/04/24 Applicant ’ s Name: Weimeng Luo US Agent for Service of Process ’ s Name: Jessica Zhon 沁U ‘ N叮 L(, 呻 vl － P 』 － 旦 e a － E M － u ·· － a e － n Hu － 9 ·！ i TZS 1/1

Shenzhen Kaida Technology Co., LTD Agent Authorization Company: Shenzhen Kaida Technology Co., LTD Address: 4 / F, building C, No. 9, Huayuan Xincun Avenue, xiangjiaotang community, Bantian street, Longgang District, Shenzhen Product Name: Tablet PC Model Number(s): K110, D116, D118, D115, D101, D102, D105, D106, D718, D716, D136, D138 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Date: Apr. 25, 2023 Signature: Name: Weimeng Luo Title: manager Company: Shenzhen Kaida Technology Co., LTD

Shenzhen Kaida Technology Co., LTD Date: Apr. 25, 2023 Offic e of Engineering Technology Federal Communications Commission 743 5 Oakland Mill s Road Columbia, MD 21046 USA Subject; Request for Confidentiality FCC ID: 2BAM4-K110 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705 . OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: WeiMeng Luo Title: manager Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure FCC Software Security Requirements for UNII devices

Project No.: ZKT-230403L2300-01 FCC ID: 2BAM4-K110 Difference Statement We Shenzhen Kaida Technology Co., LTD Claim that we are applying for FCCID certification for products: Tablet PC, with many models: K110, D116, D118, D115, D101, D102, D105, D106, D718, D716, D136, D138 The motherboard circuits, such as BOMs and PCBs, are consistent, but there may be differences in configuration (memory size, display screen size, etc.), resulting in different models, or the models may be different because of different customer requirements, but these differences will not affect the EMC/RF performance of the products themselves, so the test model is K110 Date: 2023-04-25 Name: Weimeng Luo Title: manager Signature of applicant

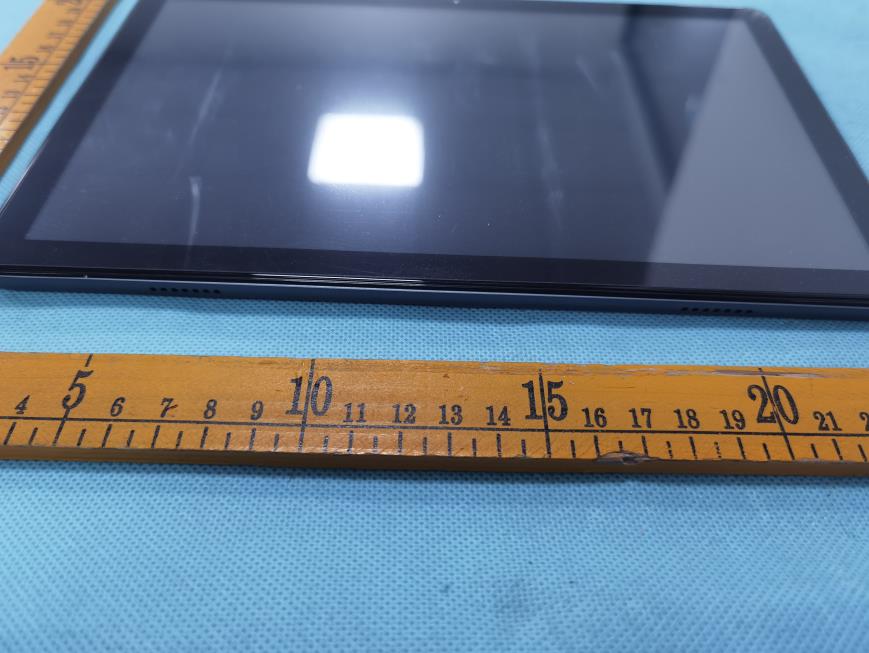

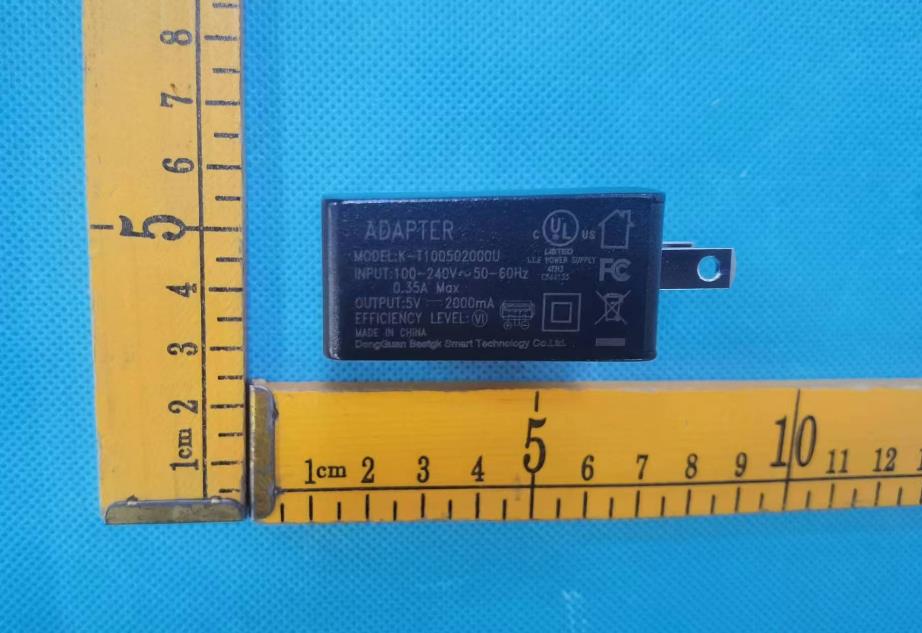

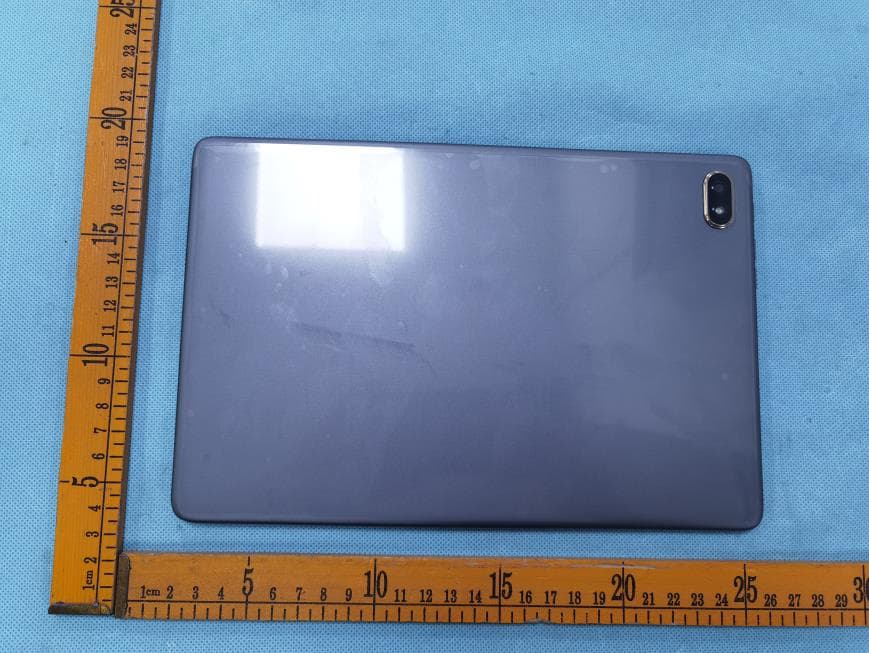

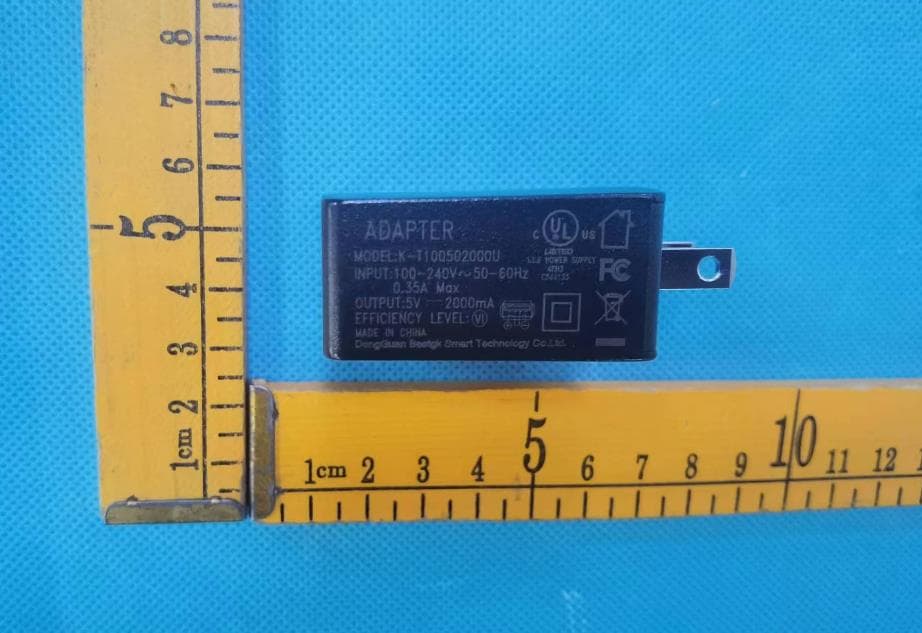

Project No.: ZKT-230403L2300-01 FCC ID: 2BAM4-K110 External photos Project No.: ZKT-230403L2300-01 FCC ID: 2BAM4-K110 Project No.: ZKT-230403L2300-01 FCC ID: 2BAM4-K110 Project No.: ZKT-230403L2300-01 FCC ID: 2BAM4-K110

Project No.: ZKT-230403L2300-01 FCC ID: 2BAM4-K110 Label place Sample: Tablet PC Model: K110 SN:XXXXXXXXXX INPUT: DC5V-2A FCC ID: 2BAM4-K110

Project No.: ZKT-230403L2300-01 FCC ID: 2BAM4-K110 Internal photos BT&WIFI ANT Project No.: ZKT-230403L2300-01 FCC ID: 2BAM4-K110 Project No.: ZKT-230403L2300-01 FCC ID: 2BAM4-K110 Project No.: ZKT-230403L2300-01 FCC ID: 2BAM4-K110

FCC ID: 2BAM4-K110 RF Exposure Evaluation According to KDB 447498 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 5.0 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, Mode Max Power (dBm) Tune up tolerance (dBm) Maximum tune-up (dBm) (mW) BT –GFSK-2441 1.891 2±1 3 2.512 BLE-GFSK-2402 0.741 1±1 2 1.585 2.4GWIFI-2412 3.99 3.5±1 4.5 2.818 5.2GWIFI -0.76-1±10 1.000 5.8GWIFI -0.22-1±10 1.000 Mode Maxtune-up Power (dBm) Max tune-up Power (mW) Calc. thresholds Min. distance (mm) limit BT -GFSK 3 1.995 0.623 < 5mm 3.0 BLE-GFSK 2 1.585 0.491 < 5mm 3.0 2.4GWIFI 4.5 2.818 0.875 < 5mm 3.0 5.2GWIFI 0 1.000 0.456 < 5mm 3.0 5.8GWIFI 0 1.000 0.479 < 5mm 3.0 ratio= 2.924/3.0 <1.0, So a SAR test is not required

Project No.: ZKT-230403L2300-02 Page 1 of 44 FCC TEST REPORT FCC ID: 2BAM4-K110 Report Number. .............................. : ZKT-230403L2300-02 Date of Test ...................................... : Apr. 01, 2023 -- Apr. 12, 2023 Date of issue .................................... : Apr. 12, 2023 Total number of pages ..................... : 44 Test Result ....................................... : PASS Testing Laboratory. ........................ : Shenzhen ZKT Technology Co., Ltd. Address .......................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ......................... : Shenzhen Kaida Technology Co., LTD Address .......................................... : 4 / F, building C, No. 9, Huayuan Xincun Avenue, xiangjiaotang community, Bantian street, Longgang District, Shenzhen Manufacturer's name ................... : Shenzhen Kaida Technology Co., LTD Address .......................................... : 4 / F, building C, No. 9, Huayuan Xincun Avenue, xiangjiaotang community, Bantian street, Longgang District, Shenzhen Test specification: Standard .......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 Test procedure ................................. : KDB558074 D0115.247 Meas Guidance v 05r02 Non-standard test method ............. : N/A Test Report Form No. .................... : TRF-EL-110_V0 Test Report Form(s) Originator .... : ZKT Testing Master TRF .................................... : Dated: 2020-01-06 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................. : Tablet PC Trademark ...................................... : N/A Model/Type reference ...................... : K110, D116, D118, D115, D101, D102, D105, D106, D718, D716, D136, D138 Ratings ............................................. : DC 5.0-2A from adapter DC 3.7V from Battery Project No.: ZKT-230403L2300-02 Page 2 of 44 Testing procedure and testing location: Testing Laboratory ................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Alen He Tested by (name + signature) .................... : Joe Liu Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-230403L2300-02 Page 3 of 44 Table of Contents Page 1. VERSION 5 2. SUMMARY OF TEST RESULTS 6 3. GENERAL INFORMATION 7 3.1 GENERAL DESCRIPTION OF EUT 7 3.2 DESCRIPTION OF TEST MODES 8 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 3.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 3.5EQUIPMENTS LIST FOR ALL TEST ITEMS 9 4. EMC EMISSION TEST 11 4.1 CONDUCTED EMISSION MEASUREMENT 11 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 11 4.1.5 EUT OPERATING CONDITIONS 11 4.1.6 TEST RESULT 12 4.2 RADIATED EMISSION MEASUREMENT 14 4.2.3 DEVIATION FROM TEST STANDARD 15 4.2.4 TEST SETUP 15 4.2.5 EUT OPERATING CONDITIONS 16 4.2.6 TEST RESULTS 16 5.RADIATED BAND EMISSIONMEASUREMENT 20 5.2 TEST PROCEDURE 20 5.3 DEVIATION FROM TEST STANDARD 20 5.4 TEST SETUP 21 5.5 EUT OPERATING CONDITIONS 21 5.6 TEST RESULT 22 6.POWER SPECTRAL DENSITY TEST 23 6.1 APPLIED PROCEDURES / LIMIT 23 6.2 TEST PROCEDURE 23 6.3 DEVIATION FROM STANDARD 23 6.4 TEST SETUP 23 6.5 EUT OPERATION CONDITIONS 23 6.6 TEST RESULT 23 7. 6DB CHANNEL BANDWIDTH 24 7.1 APPLIED PROCEDURES / LIMIT 24 7.2 TEST PROCEDURE 24 7.3 DEVIATION FROM STANDARD 24 7.4 TEST SETUP 24 Project No.: ZKT-230403L2300-02 Page 4 of 44 7.5 EUT OPERATION CONDITIONS 24 7.6 TEST RESULT 24 8.PEAK OUTPUT POWER TEST 25 8.1 APPLIED PROCEDURES/LIMIT 25 8.2 TEST PROCEDURE 25 8.3 DEVIATION FROM STANDARD 25 8.4 TEST SETUP 25 8.5 EUT OPERATION CONDITIONS 25 8.6 TEST RESULT 25 9. CONDUCTED BAND EDGE AND SPURIOUS EMISSION 26 9.1 APPLICABLE STANDARD 26 9.2 TEST PROCEDURE 26 9.3 DEVIATION FROM STANDARD 26 9.4 TEST SETUP 26 9.5 EUT OPERATION CONDITIONS 26 9.6 TEST RESULTS 26 10. ANTENNA REQUIREMENT 27 11.APPENDIX1 28 1. -6DB BANDWIDTH 28 2. BANDEDGE 31 3. PEAK OUTPUT POWER 34 4. POWER SPECTRAL DENSITY 37 5. SPURIOUS EMISSION 40 12. TEST SETUP PHOTO 44 13. EUT CONSTRUCTIONAL DETAILS 44 Project No.: ZKT-230403L2300-02 Page 5 of 44 1. VERSION Report No. Version Description Approved ZKT-230403L2300-02 Rev.01 Initial issue of report Apr. 12, 2023 Project No.: ZKT-230403L2300-02 Page 6 of 44 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Result Remark FCC part 15.203/15.247 (c) Antenna requirement PASS FCC part 15.207 AC Power Line Conducted Emission PASS FCC part 15.247 (b)(3) Conducted Peak Output Power PASS FCC part 15.247 (a)(2) 6dB Channel Bandwidth PASS FCC part 15.247 (e) Power Spectral Density PASS FCC part 15.247(d) Band Edge PASS FCC part 15.205/15.209 Spurious Emission PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report 2.1 TEST FACILITY Shenzhen ZKT Technology Co., Ltd. Add. : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China FCC Test Firm Registration Number: 692225 Designation Number: CN1299 IC Registered No.: 27033 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of con…

Text truncated - open the document above for the full version.

Project No.: ZKT-230403L2300-03 Page 1 of 57 FCC TEST REPORT FCC ID: 2BAM4-K110 Report Number. .............................. : ZKT-230403L2300-03 Date of Test ...................................... : Apr. 01, 2023 -- Apr. 12, 2023 Date of issue .................................... : Apr. 12, 2023 Total number of pages ..................... : 57 Test Result ....................................... : PASS Testing Laboratory. ........................ : Shenzhen ZKT Technology Co., Ltd. Address .......................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ......................... : Shenzhen Kaida Technology Co., LTD Address .......................................... : 4 / F, building C, No. 9, Huayuan Xincun Avenue, xiangjiaotang community, Bantian street, Longgang District, Shenzhen Manufacturer's name ................... : Shenzhen Kaida Technology Co., LTD Address .......................................... : 4 / F, building C, No. 9, Huayuan Xincun Avenue, xiangjiaotang community, Bantian street, Longgang District, Shenzhen Test specification: Standard .......................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 Test procedure ................................. : KDB558074 D0115.247 Meas Guidance v 05r02 Non-standard test method ............. : N/A Test Report Form No. .................... : TRF-EL-110_V0 Test Report Form(s) Originator .... : ZKT Testing Master TRF .................................... : Dated: 2020-01-06 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................. : Tablet PC Trademark ...................................... : N/A Model/Type reference ...................... : K110, D116, D118, D115, D101, D102, D105, D106, D718, D716, D136, D138 Ratings ............................................. : DC 5.0-2A from adapter DC 3.7V from Battery Project No.: ZKT-230403L2300-03 Page 2 of 57 Testing procedure and testing location: Testing Laboratory ................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Alen He Tested by (name + signature) .................... : Joe Liu Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-230403L2300-03 Page 3 of 57 Table of Contents Page 1. VERSION 5 2. SUMMARY OF TEST RESULTS 6 3. GENERAL INFORMATION 7 3.1 GENERAL DESCRIPTION OF EUT 7 3.2 DESCRIPTION OF TEST MODES 8 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 3.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 3.5EQUIPMENTS LIST FOR ALL TEST ITEMS 9 4. EMC EMISSION TEST 11 4.1 CONDUCTED EMISSION MEASUREMENT 11 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 11 4.1.2 TEST PROCEDURE 11 4.1.3 DEVIATION FROM TEST STANDARD 11 4.1.4 TEST SETUP 11 4.1.5 EUT OPERATING CONDITIONS 11 4.1.6 TEST RESULT 12 4.2 RADIATED EMISSION MEASUREMENT 14 4.2.1 RADIATED EMISSION LIMITS 14 4.2.2 TEST PROCEDURE 14 4.2.3 DEVIATION FROM TEST STANDARD 15 4.2.4 TEST SETUP 15 4.2.5 EUT OPERATING CONDITIONS 16 4.2.6 TEST RESULTS 16 5.RADIATED BAND EMISSIONMEASUREMENT 23 5.1 TEST REQUIREMENT: 23 5.2 TEST PROCEDURE 23 5.3 DEVIATION FROM TEST STANDARD 23 5.4 TEST SETUP 24 5.5 EUT OPERATING CONDITIONS 24 6.POWER SPECTRAL DENSITY TEST 27 6.1 APPLIED PROCEDURES / LIMIT 27 6.2 TEST PROCEDURE 27 6.3 DEVIATION FROM STANDARD 27 6.4 TEST SETUP 27 6.5 EUT OPERATION CONDITIONS 27 6.6 TEST RESULT 27 7. CHANNEL BANDWIDTH 28 Project No.: ZKT-230403L2300-03 Page 4 of 57 7.1 APPLIED PROCEDURES / LIMIT 28 7.2 TEST PROCEDURE 28 7.3 DEVIATION FROM STANDARD 28 7.4 TEST SETUP 28 7.5 EUT OPERATION CONDITIONS 28 7.6 TEST RESULT 28 8. OUTPUT POWER TEST 29 8.1 APPLIED PROCEDURES/LIMIT 29 8.2 TEST PROCEDURE 29 8.3 DEVIATION FROM STANDARD 29 8.4 TEST SETUP 29 8.5 EUT OPERATION CONDITIONS 29 8.6 TEST RESULT 29 9. CONDUCTED BAND EDGE AND SPURIOUS EMISSION 30 9.1 APPLICABLE STANDARD 30 9.2 TEST PROCEDURE 30 9.3 DEVIATION FROM STANDARD 30 9.4 TEST SETUP 30 9.5 EUT OPERATION CONDITIONS 30 9.6 TEST RESULTS 30 10. ANTENNA REQUIREMENT 31 11. APPENDIX1 32 1. -6DB BANDWIDTH 32 2. BANDEDGE 37 3. MAX. OUTPUT POWER 43 4. POWER SPECTRAL DENSITY 44 5. SPURIOUS EMISSION 49 12. TEST SETUP PHOTO 57 13. EUT CONSTRUCTIONAL DETAILS 57 Project No.: ZKT-230403L2300-03 Page 5 of 57 1. VERSION Report No. Version Description Approved ZKT-230403L2300-03 Rev.01 Initial issue of report Apr. 12, 2023 Project No.: ZKT-230403L2300-03 Page 6 of 57 2. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Result Remark FCC part 15.203/15.247 (c) Antenna requirement PASS FCC part 15.207 AC Power Line Conducted Emission PASS FCC part 15.247 (b)(3) Conducted Peak Output Power PASS FCC part 15.247 (a)(2) Channel Bandwidth& 99% OCB PASS FCC part 15.247 (e) Power Spectral Density PASS FCC part 15.247(d) Band Edge PASS FCC part 15.205/15.209 Spurious Emission PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report 2.1 TEST FACILITY Shenzhen ZKT Technology Co., Ltd. Add. : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China FCC Test Firm Registration Number: 692225 Designation Number: CN1299 IC Registered No.: 27033 2.2 MEASUREMENT UNCERTAINTY The reported uncertainty of mea…

Text truncated - open the document above for the full version.

深圳信诺山通信技术有限公司连通你我 · 有信如山 contents 凯达 规 格 承 认 书 APPROVAL SHEET 供应商： Signalsen CUSTOMER: 品 名： Antenna DISCRIPTION: 型 号： WIFI/BT MODEL NO: 供应商料号： WBP700-1B185B-A CUSTOMER P/N: 机 种： K110 CUSTOMER MODEL: 承认部门 项目 硬件 软件 测试 fae,结构 技术中心 经理 确 认 审 核 结 果： 合格 不合格 说 明： REMARK: 深圳信诺山通信技术有限公司 连通你我 · 有信如山 第2页- CONTENTS ........................................................................................................................................................ 1 1. PROJECT INFORMATION AND ELECTRICAL SPECIFICATION ................................. 3 1-1 PROJECT PICTURE .................................................................................................................................... 3 1-2 FREQUENCY BAND: .................................................................................................................................. 3 1-3 IMPEDANCE MATCHING ........................................................................................................................... 3 2. VSWR .............................................................................................................................. 3 2-1 MEASURING METHOD: .............................................................................................................................. 3 2-2 S11 PARAMETER VALUES ..................................................................................................................... 3 3. EFFICIENCY AND GAIN .............................................................................................. 4 3-1 EFFICIENCY/PEAKGAIN- /WIFI/BT ........................................................................................................... 5 4. THE PRODUCTION INDEX ............................................................................................. 7 5. STRUCTURAL DRAWINGS ........................................................................................... 8 深圳信诺山通信技术有限公司 连通你我 · 有信如山 第3页- 1. Project information and Electrical Specification Those specifications were specially defined forWIFI/BTmodel, and all characteristics were measured under …

Text truncated - open the document above for the full version.
