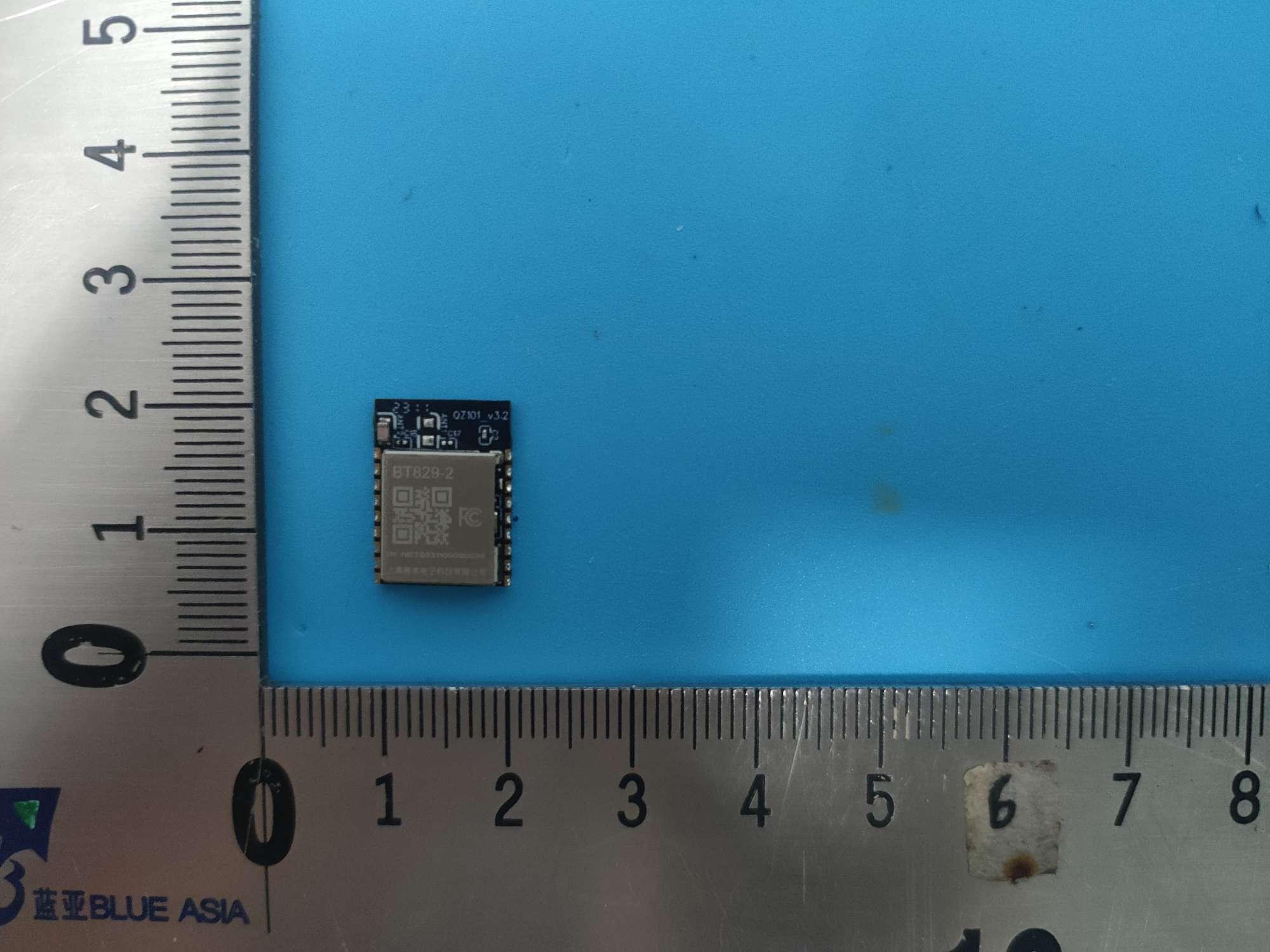

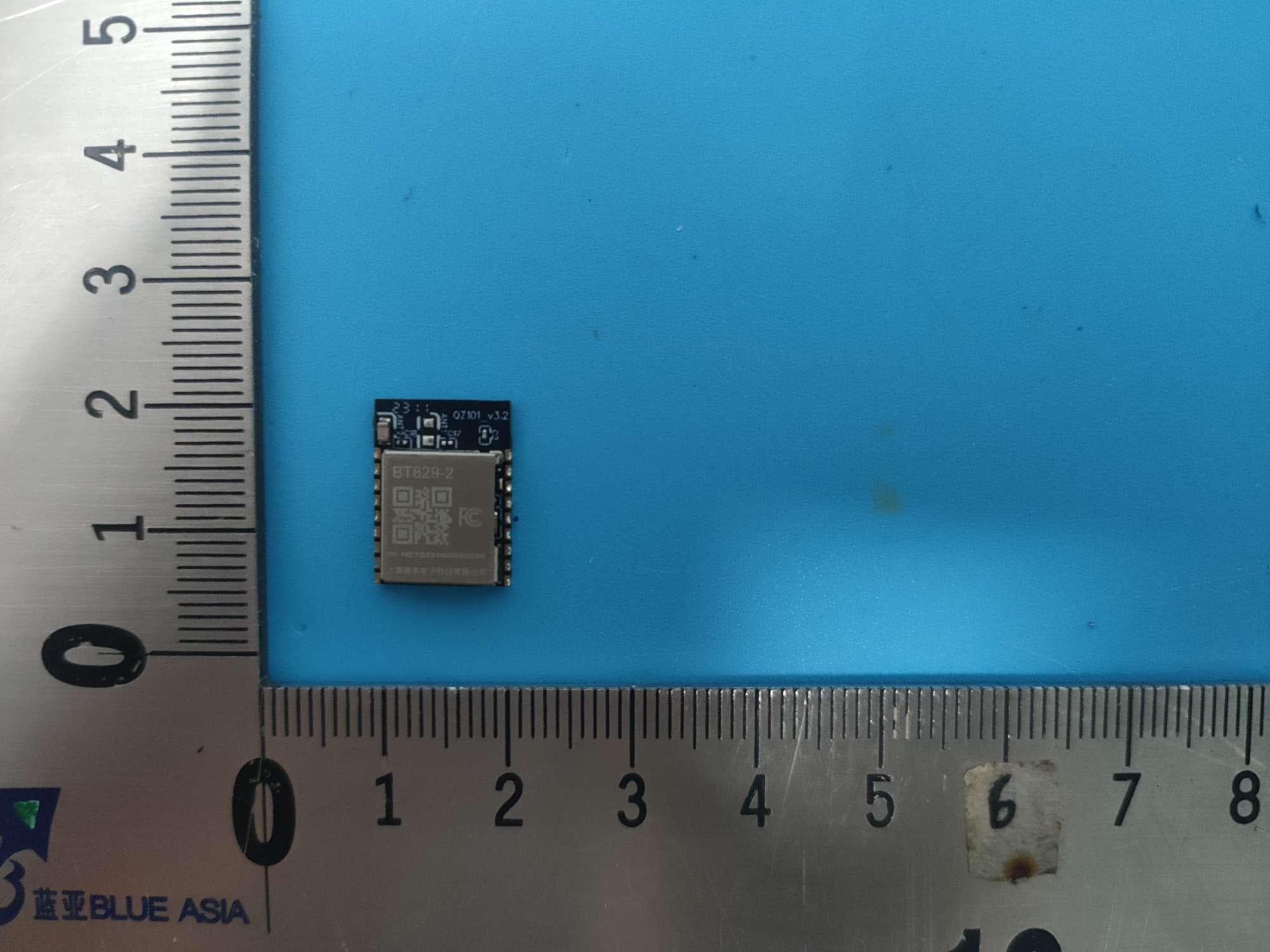

2BAMT-BT829-2BLE module

PRODUCT BT829-2 OVERVIEW The BT829-2 is Bluetooth 5.2 low energy and 2.4GHz proprietary multi-application module, It is combine the excellent performance of a leading RF transceiver with a low-power ARM Cortex-M0+, power management unit, ADC, and smart I/O distribution controller. In addition, BT829-2 supports an analog MIC interface that integrates a sigma-delta ADC, programmable gain amplifier, and microphone bias circuit for voice command application. The embedded ARM Cortex-M0+ CPU enables developers to achieve 32-bit performance at an 8-bit price point, bypassing the step to 16-bit devices. By using a single-cycle multiply option and a 2-stage pipeline, the ARM Cortex-M0+ makes program execution simple and highly efficient. The BT829-2 memory architecture includes 272kByte ROM, 104kByte RAM, and with 4M bit MCM Flash. Flash Address Space is a virtual space that is mapped to external Flash to extend the code space in XIP (execute In Place) mode. Bluetooth Low Energy 5.2 And 2.4G Wireless MCU IoT Module high performance, high security, multi-protocol 2.4G and BLE SPECIFICATION ITEM SPECIFICATION Microcontroller ARM Cortex- M0 + CPU ( Maximum 40 MHz) •Serial fl ash controller with 8 kB 4 - way cache •104kB SRAM, 272kB ROM •64B EFuse for manufacturer use •4M Flash Standards •Low Energy ( BLE) compliant to Bluetooth SIG v5 . 2 •2 . 4 G proprietary features BLE Radio Tx Power •-20dB —7.5dB Rx Sensitivity •2Mbps:-94dbm •1Mbps:-97dB Active Tx Power •RX mode: 5.3mA •Active TX mode:4.1mA@-20dB •Active TX mode:5.9mA@0dB •Active TX mode:6.8mA@4dB •Active TX mode:[email protected] •Advertising: 16.5uA (adv_interval:1s, payload: 23Byters,0dBm) Power Consumption Power Down: 1.9uA Deep LPS: 3.9uA Peripherals 11 x GPIO( mux’ ed) 1 x SPI(master or slave) 2 x I2C(master) 1 x I2S/PCM 2 x UART 8 x Timers 8 x PWM Voltage Input voltage:1.8V~3.6V, 3.3V (typical) Environmental Temperature: •Operating: 0°C ~ 85°C •Storage: -55°C ~ 150°C H umidity • Relative: < 9 0 % Non- condensing •Storage: < 9 0 % Non- condensing Physical Certification Dimension: 11.2*15.1*2.2 mm Weight: 1g Pin: 18 - pin stamp Antenna: PCB Bluetooth Low Energy 5.2 And 2.4G Wireless MCU IoT Module 1.Electrical Characteristics 1.1. Absolute Maximum Ratings Item Min Max Unit Storage Temperature -55+125°C Lead Temperature(Soldering, 10 sec) (Tsld) +260°C Supply Voltage (VDD) -0.33.65 V Input / Output Interface Voltage 0 VDD V 1.2. Recommended Operating Conditions Item Min Typ Max Unit Operating Temperature 0 +85°C Supply Voltage (VDD) 1.8 3.0 3.6 V 1.3. Electrical performance characteristics Item Min Typ Max Unit Test Conditions Transmit power consumption 5.9 mA 0dBm continuous launch Receiving power consumption 5.3 mA Continuous reception standby power 1.9 μA Input IO high level 0.7VDD VDD V Input IO low level 0 0.3VDD V Input IO high level VDD-0.3 VDD V Input IO low level 0 0.3 V Bluetooth Low Energy 5.2 And 2.4G Wireless MCU IoT Module 2.Mechanical Dimensions Bluetooth Low Energy 5.2 And 2.4G Wireless MCU IoT Module 3.Pin Function Pin Number Pin Name Pin Descriptions 1 GND Ground 2 VCC Power supply 3 P2_4 General purpose IO. 8mA driving capability. With wakeup function. With internal strong/weak pull-up and pull-down. 4 P2_5 General purpose IO. 8mA driving capability. With wakeup function. With internal strong/weak pull-up and pull-down. 5 P0_3 LOG_UART TX. Power on trap: Pull-up for normal operation Pull-down to bypass executing program code in flash (PAD internal pull-up by default). 6 P4_1 General purpose IO. 8mA driving capability. With wakeup function. With internal strong/weak pull-up and pull-down. 7 P4_0 General purpose IO. 8mA driving capability. With wakeup function. With internal strong/weak pull-up and pull-down. 8 P0_6 General purpose IO. 8mA driving capability. With wakeup function. With internal strong/weak pull-up and pull-down. 9 NRST Hardware reset pin, low active. 10 P0_1 General purpose IO. 8mA driving capability. With wakeup function. With internal strong/weak pull-up and pull-down. 11 RX_LOG General purpose IO. 8mA driving capability. With wakeup function. With internal strong/weak pull-up and pull-down. HCI_UART_RX (default). 12 TX_LOG General purpose IO. 8mA driving capability. With wakeup function. With internal strong/weak pull-up and pull-down. HCI_UART_TX (default). 13 P5_1 General purpose IO. 8mA driving capability. With wakeup function. With internal strong/weak pull-up and pull-down. 14 NC Not connect 15 P5_2 General purpose IO. 8mA driving capability. With wakeup function. With internal strong/weak pull-up and pull-down. Bluetooth Low Energy 5.2 And 2.4G Wireless MCU IoT Module 16 TX General purpose IO. 8mA driving capability. With wakeup function. With internal strong/weak pull-up and pull-down. AUXADC input 0. Capacitive sensor input 0. 17 RX General purpose IO. 8mA driving capability. With wakeup function. With internal strong/weak pull-up and pull-down. AUXADC input 1. Capacitive sensor input 1. 18 NC Not connect 4.Part No. Description BT829-2 5.PCB Design Considerations 5.1. PCB directly below the module antenna (area 1 in the red frame as below picture) shall be cleared, and the larger the clearance area, the better. 5.2. The module layout shall be as close to the board edge as possible (the antenna faces outside the board) and away from metal and high-frequency components. 5.3. Try not to route the bottom of the module (area 2 in the yellow frame as below picture). 5.4. The minimum clearance area of the antenna is within 20mm in front of the module antenna and 15mm on the left and right. 5.5. The module antenna and the surrounding clearance area shall not connect to the ground in a large area Area 1 Area 2 6.Reflow Patch Reference 7.Package Information Packing method: Real Minimum package quantity：800pcs/pack Bluetooth Low Energy 5.2 And 2.4G Wireless MCU IoT Module FCC Statement FCC standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Chip antenna with antenna gain -0.6dBi This device complies with…

Text truncated - open the document above for the full version.

C5266091_X23_Ed.1 US AGENT LETTER OF ATTESTATION US Agent: Company Name: UGK-LVM UNITED INC Contact Name: Jimmy chen Address:6547 N Academy Blvd #2266, Colorado Springs, CO 80918 T elephone No: 001-323-5104660 Fax No: Email:[email protected] FRN: 0033476375 TO: O币ce of Engineering Technolog y Federal C ommunications Commission 7435 Oakland Mills Road Columbia, MD 21046 T his letter is to confirm that we have accepted the responsibility to act as US agent representative on behalf of the (Nebula Electronic Technology Corporation) noted below for all future FC C certification/registrations obtained during the period of this agreement, which ends at the specified date below. As per US agent, we are aware of the requirements involved as outlined in FCC Equipment Authorization Program in their Report and Order FCC 22-84 and the clause§2.911 Application requirements. Applicant Company name: Nebula Electronic Technology Corporation Grantee code: 2BAMT FCC ID: 2BAMT-BT829-2 Contact Name: Richard Yao Address: Room 1002, No.570 ShengXia RD, Pudong district, Shanghai, China Telephone No: +860755-83261686 Fax No: +860755-83261686 Email: [email protected] The Applicant acknowledge the acceptance oF its obligation to maintain an agent巾r service oF process in the United States For no less than one year alter either the grantee has permanently terminated all marketing and importation oF the applicable 匈uipmentwithin the U.S., or the conclusion oF any Commission-related administrative or judidal proceeding involving the动uipment,whichever is later. Date: 2023-03-29 Applicant's Name: Richard Yao US Agent's Name: Title: Manaaer Title: Signature Signature 归J 丫心． 1/1

Single Modular approval Declaration letter We, Nebula Electronic Tec hnology Corporation applies single modular approval for Product Name: B LE module Model: BT829-2 FCC ID:2BAMT-BT829-2 According to 9963 69 DO I Module Equip Auth Guide vO I r04 and I 5. 2 I 2 requirement: 1) The radio elements must have the radio frequency circuitry shielded Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; Answer: Yes·Shielded 2) The module must have buffered modulation/data inputs to ensure that the device willcomply with Part 15 requirements with any type of input signal; Answer: Yes; All inputs to the modules are buffered through logic or microprocessor inputs. 3) The modular transmitter must have its own power supply regulation. Answer: Yes; A low drop out regulator is used for modular power supply regulation. 4) The mod ule must contain a permanently attached antenna, or contain a unique ant ennaconnector, and be marketed and operated only with specific antenna(s), per Sections15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer: Yes; Device is equipped with PCB antenna. (5) The module must demonstrate compliance in a stand-alone coefzguration; Answer: Yes, distance between modular and all AEs are bigger than 1 Ocm, refer to setup photo. (6) The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labeling requirements); Answer: Yes; The modular has a permanent fixed label, and below statement was list ed in the User Manual; The host device must be labeled to display the FCCID of the module "Con tains FCC ID:2BAMT-BT829-2 (7) The m odule must comply with all specific rules applicable to the transmitter including all the c onditions provided in the integration instructions by the grantee; Answer: Yes; The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . (8) The module must comply with RF exposure requirements Answer: Yes; Transmitter meets MPE calculation of 47 CFR 1.1307 . Refer to MPE Reports and Refer to modular installation manual. Please contact me if you have any further questions. Thanks for your attention. Best Regards, <Signature> {<,J.aJ Yt.w Title: Manager Company: Nebula Electronic Technology Corporation

DA TE 2023/3/29 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BAMT-BT829-2 Product Name: BLE module Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission's rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality - for example ... ) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> �;J,.).. tAo. Name: Richard Yao Title: Manager Company: Nebula Electronic Technology Corporation

Compliance list INTEGRATION INSTRUCTIONS for 996369 D03 OEM the and 996369 D03 OEM by Sections 2.2 through 2.10. Requirement Yes N/A Comment 2.2 List of applicable FCC rules List the FCC rules that are applicable to the modular transmitter. These are the rules that specifically establish the bands of operation, the power, spurious emissions, and operating fundamental frequencies. DO NOT list compliance to unintentional-radiator rules (Part 15 Subpart B) since that is not a condition of a module grant that is extended to a host manufacturer. See also Section 2.10 below concerning the need to notify host manufacturers that further testing is required.3 YES Refer to instruction FCC standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 2.3 Summarize the specific operational use conditions Describe use conditions that are applicable to the modular transmitter, including for example any limits on antennas, etc. For example, if point-to-point antennas are used that require reduction in power or compensation for cable loss, then this information must be in the instructions. If the use condition limitations extend to professional users, then instructions must state that this information also extends to the host manufacturer’s instruction manual. In addition, certain information may also be needed, such as peak gain per frequency band and minimum gain, specifically for master devices in 5 GHz DFS bands. YES Refer to instruction Chip antenna with antenna gain -0.6dBi 2.4 Limited module procedures If a modular transmitter is approved as a “limited module,” then the module manufacturer is responsible for approving the host environment that the limited module is used with. The manufacturer of a limited module must describe, both in the filing and in the installation instructions, the alternative means that the limited module manufacturer uses to verify that the host meets the necessary requirements to satisfy the module limiting conditions. A limited module manufacturer has the flexibility to define its alternative method to address the conditions that limit the initial approval, such as: shielding, minimum N/A Not applicable signaling amplitude, buffered modulation/data inputs, or power supply regulation. The alternative method could include that the limited module manufacturer reviews detailed test data or host designs prior to giving the host manufacturer approval. This limited module procedure is also applicable for RF exposure evaluation when it is necessary to demonstrate compliance in a specific host. The module manufacturer must state how control of the product into which the modular transmitter will be installed will be maintained such that full compliance of the product is always ensured. For additional hosts other than the specific host originally granted with a limited module, a Class II permissive change is required on the module grant to register the additional host as a specific host also approved with the module. 2.5 Trace antenna designs For a modular transmitter with trace antenna designs, see the guidance in Question 11 of KDB Publication 996369 D02 FAQ – Modules for Micro-Strip Antennas and traces. The integration information shall include for the TCB review the integration instructions for the following aspects: layout of trace design, parts list (BOM), antenna, connectors, and isolation requirements.4 a) Information that includes permitted variances (e.g., trace boundary limits, thickness, length, width, shape(s), dielectric constant, and impedance as applicable for each type of antenna); b) Each design shall be considered a different type (e.g., antenna length in multiple(s) of frequency, the wavelength, and antenna shape (traces in phase) can affect antenna gain and must be considered); c) The parameters shall be provided in a manner permitting host manufacturers to design the printed circuit (PC) board layout; d) Appropriate parts by manufacturer and specifications; e) Test procedures for design verification; and f) Production test procedures for ensuring N/A Not applicable compliance. The module grantee shall provide a notice that any deviation(s) from the defined parameters of the antenna trace, as described by the instructions, require that the host product manufacturer must notify the module grantee that they wish to change the antenna trace design. In this case, a Class II permissive change application is required to be filed by the grantee, or the host manufacturer can take responsibility through the change in FCC ID (new application) procedure followed by a Class II permissive change application. 2.6 RF exposure considerations It is essential for module grantees to clearly and explicitly state the RF exposure conditions that permit a host product manufacturer to use the module. Two types of instructions are required for RF exposure information: (1) to the host product manufacturer, to define the application conditions (mobile, portable – xx cm from a person’s body); and (2) additional text needed for the host product manufacturer to provide to end users in their end-product manuals. If RF exposure statements and use conditions are not provided, then the host product manufacturer is required to take responsibility of the module through a change in FCC ID (new application). YES Refer to instruction This modular complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.7 Antennas A list of antennas included in the application for certification must be provided in the instructions. For modular transmitters approved as limited modules, all applicable professional installer instructions must be included as part of the information to the host product manufacturer. The antenna list shall also identify the antenna types (monopole, PIFA, dipole, etc. (note that for example an “omni-directional antenna” is not considered to be a specif…

Text truncated - open the document above for the full version.

ProductName: BLEmodule

ProductName: BLEmodule

RFExposureevaluation ProductName: BLEmodule FCCID: 2BAMT-BT829-2 TestStandard: KDB447498D04GeneralRFExposureGuidance v01 Accordingto447498D04InterimGeneralRFExposureGuidancev01 Antgain=-0.6dBi MAXoutputpower：-0.605dBm@2402MHz ERP=-0.605-0.6-2.15=-3.4dBm WORSECASE: 10^-0.0605=0.870mW<2.715mW ThenSARevaluationisnotrequired

Page 1 of 62 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Add:BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict,Shenzhen,GuangdongProvince,China Tel:+86-755-23059481Email:[email protected] TESTREPORT ProductName: BLEmodule BrandMark: N.E.T ModelNo.: BT829-2 ReportNumber: BLA-EMC-202303-A8101 FCCID: 2BAMT-BT829-2 DateofSampleReceipt: 2023/3/20 DateofTest: 2023/3/20to2023/3/27 DateofIssue: 2023/3/27 TestStandard: 47CFRPart15,SubpartC15.247 TestResult:Pass Preparedfor: NebulaElectronicTechnologyCorporation Add:Room1002,No.570ShengXiaRD,Pudongdistrict,Shanghai,China Preparedby: BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict, Shenzhen,GuangdongProvince,China TEL:+86-755-23059481 Compiledby:Reviewby: Approvedby:Date:2023/3/27 ReportNo.:BLA-EMC-202303-A8101 Page 2 of 62 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] REPORTREVISERECORD VersionNo.DateDescription 002023/3/27Original ReportNo.:BLA-EMC-202303-A8101 Page 3 of 62 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] TABLEOFCONTENTS 1TESTSUMMARY........................................................................................................................................5 2GENERALINFORMATION.........................................................................................................................6 3GENERALDESCRIPTIONOFE.U.T..........................................................................................................6 4TESTENVIRONMENT................................................................................................................................7 5TESTMODE................................................................................................................................................7 6MEASUREMENTUNCERTAINTY..............................................................................................................7 7DESCRIPTIONOFSUPPORTUNIT..........................................................................................................8 8LABORATORYLOCATION.........................................................................................................................8 9TESTINSTRUMENTSLIST........................................................................................................................9 10CONDUCTEDBANDEDGESMEASUREMENT......................................................................................11 10.1LIMITS................................................................................................................................................................11 10.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................11 10.3TESTDATA...........................................................................................................................................................12 11RADIATEDSPURIOUSEMISSIONS........................................................................................................13 11.1LIMITS................................................................................................................................................................13 11.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................14 11.3PROCEDURE.......................................................................................................................................................14 11.4TESTDATA...........................................................................................................................................................16 12RADIATEDEMISSIONSWHICHFALLINTHERESTRICTEDBANDS.................................................24 12.1LIMITS................................................................................................................................................................24 12.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................25 12.3PROCEDURE.......................................................................................................................................................25 12.4TESTDATA...........................................................................................................................................................27 13CONDUCTEDSPURIOUSEMISSIONS...................................................................................................31 13.1LIMITS................................................................................................................................................................31 13.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................31 13.3TESTDATA...........................................................................................................................................................32 14POWERSPECTRUMDENSITY...............................................................................................................33 14.1LIMITS................................................................................................................................................................33 14.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................33 ReportNo.:BLA-EMC-202303-A8101 Page 4 of 62 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 14.3TESTDATA..............................................................................................…

Text truncated - open the document above for the full version.

ReportNo.:BLA-EMC-202303-A8101 Page 31 of 62 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 13CONDUCTEDSPURIOUSEMISSIONS TestStandard47CFRPart15,SubpartC15.247 TestMethodANSIC63.10(2013)Section7.8.6&Section11.11 TestMode(Pre-Scan)TX TestMode(FinalTest)TX TesterJozu Temperature25°C Humidity60% 13.1LIMITS Limit: Inany100kHzbandwidthoutsidethefrequencybandinwhichthespread spectrumordigitallymodulatedintentionalradiatorisoperating,theradio frequencypowerthatisproducedbytheintentionalradiatorshallbeatleast20dB belowthatinthe100kHzbandwidthwithinthebandthatcontainsthehighest levelofthedesiredpower,basedoneitheranRFconductedoraradiated measurement,providedthetransmitterdemonstratescompliancewiththepeak conductedpowerlimits.Ifthetransmittercomplieswiththeconductedpower limitsbasedontheuseofRMSaveragingoveratimeinterval,aspermittedunder paragraph(b)(3)ofthissection,theattenuationrequiredunderthisparagraphshall be30dBinsteadof20dB.Attenuationbelowthegenerallimitsspecifiedin §15.209(a)isnotrequired.Inaddition,radiatedemissionswhichfallinthe restrictedbands,asdefinedin§15.205(a),mustalsocomplywiththeradiated emissionlimitsspecifiedin§15.209(a)(see§15.205(c)). 13.2BLOCKDIAGRAMOFTESTSETUP ReportNo.:BLA-EMC-202303-A8101 Page 32 of 62 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 13.3TESTDATA Pass:PleaseReferToAppendix:Appendix1ForDetails ReportNo.:BLA-EMC-202303-A8101 Page 33 of 62 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 14POWERSPECTRUMDENSITY TestStandard47CFRPart15,SubpartC15.247 TestMethodANSIC63.10(2013)Section11.10.2 TestMode(Pre-Scan)TX TestMode(FinalTest)TX TesterJozu Temperature25°C Humidity60% 14.1LIMITS Limit:≤8dBminany3kHzbandduringanytimeintervalofcontinuoustransmission 14.2BLOCKDIAGRAMOFTESTSETUP 14.3TESTDATA Pass:PleaseReferToAppendix:Appendix1ForDetails ReportNo.:BLA-EMC-202303-A8101 Page 34 of 62 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 15CONDUCTEDPEAKOUTPUTPOWER TestStandard47CFRPart15,SubpartC15.247 TestMethodANSIC63.10(2013)Section7.8.5 TestMode(Pre-Scan)TX TestMode(FinalTest)TX TesterJozu Temperature25°C Humidity60% 15.1LIMITS Frequencyrange(MHz)Outputpoweroftheintentionalradiator(watt) 902-928 1for≥50hoppingchannels 0.25for25≤hoppingchannels<50 1fordigitalmodulation 2400-2483.5 1for≥75non-overlappinghoppingchannels 0.125forallotherfrequencyhoppingsystems 1fordigitalmodulation 5725-5850 1forfrequencyhoppingsystemsanddigital modulation 15.2BLOCKDIAGRAMOFTESTSETUP ReportNo.:BLA-EMC-202303-A8101 Page 35 of 62 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 15.3TESTDATA Pass:PleaseReferToAppendix:Appendix1ForDetails ReportNo.:BLA-EMC-202303-A8101 Page 36 of 62 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 16MINIMUM6DBBANDWIDTH TestStandard47CFRPart15,SubpartC15.247 TestMethodANSIC63.10(2013)Section11.8.1 TestMode(Pre-Scan)TX TestMode(FinalTest)TX TesterJozu Temperature25°C Humidity60% 16.1LIMITS Limit:≥500kHz 16.2BLOCKDIAGRAMOFTESTSETUP 16.3TESTDATA Pass:PleaseReferToAppendix:Appendix1ForDetails �BLUE ASIA 17 ANTENNA REQUIREMENT Test Standard 47 CFR Part 15, Subpart C 15.247 Test Method N/A 17.1 CONCLUSION Standard Requirement: Report No.: BLA-EMC-202303-A8101 Page 37 of 62 user, but the use of a standard antenna jack or electrical oonneetor is prohibited. EUT Antenna: case gain of the antenna is -0.6dBi. BlueAsia of Technical Services(Shenzhen) Co.,Ltd. Tel: +86-755-23059481 Email: [email protected] www.cblueasia.com ReportNo.:BLA-EMC-202303-A8101 Page 38 of 62 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 18CONDUCTEDEMISSIONSATACPOWERLINE(150KHZ-30MHZ) TestStandard47CFRPart15,SubpartC15.247 TestMethodANSIC63.10(2013)Section6.2 TestMode(Pre-Scan)Transmittingmode TestMode(FinalTest)Transmittingmode TesterJozu Temperature25°C Humidity60% 18.1LIMITS Frequencyof emission(MHz) Conductedlimit(dBμV) Quasi-peakAverage 0.15-0.566to56*56to46* 0.5-55646 5-306050 *Decreaseswiththelogarithmofthefrequency. 18.2BLOCKDIAGRAMOFTESTSETUP 18.3PROCEDURE 1)Themainsterminaldisturbancevoltagetestwasconductedinashieldedroom. 2)TheEUTwasconnectedtoACpowersourcethroughaLISN1(LineImpedanceStabilizationNetwork) whichprovidesa50ohm/50H+5ohmlinearimpedance.ThepowercablesofallotherunitsoftheEUT wereconnectedtoasecondLISN2,whichwasbondedtothegroundreferenceplaneinthesamewayas theLISN1fortheunitbeingmeasured.Amultiplesocketoutletstripwasusedtoconnectmultiplepower cablestoasingleLISNprovidedtheratingoftheLISNwasnotexceeded. ReportNo.:BLA-EMC-202303-A8101 Page 39 of 62 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 3)ThetabletopEUTwasplaceduponanon-metallictable0.8mabovethegroundreferenceplane.And forfloor-standingarrangement,theEUTwasplacedonthehorizontalgroundreferenceplane, 4)Thetestwasperformedwithaverticalgroundreferenceplane.TherearoftheEUTshallbe0.4mfrom theverticalgroundreferenceplane.Theverticalgroundreferenceplanewasbondedtothehorizontal groundreferenceplane.TheLISN1wasplaced0.8mfromtheboundaryoftheunitundertestand bondedtoagroundreferenceplaneforLISNsmountedontopofthegroundreferenceplane.This distancewasbetweentheclosestpointsoftheLISN1andtheEUT.AllotherunitsoftheEUTand associatedequipmentwasatleast0.8mfromtheLISN2. 5)Inordertofindthemaximumemission,therelativepositionsofequipmentandalloftheinterface cablesmustbechangedaccordingtoANSIC63.10onconductedmeasurement. Remark:LISN=ReadLevel+CableLoss+LISNFactor ReportNo.:BLA-EMC-202303-A8101 Page 40 of 62 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 18.4TESTDATA [TestM…
