2BAPJ-ELO01Ecoer HVAC IoT Device(U)

Attestation Statements (Mar. 29, 2023) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request (Ecoer, Inc), the undersigned, hereby authorize (Ecoer, Inc) to act as our designated U.S. agent for service of process, (Ecoer, Inc) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (Ecoer, Inc) accepts the responsibility to act as designated U.S. agent for service of process, provides an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Information： Company name: Ecoer, Inc Contact Name: Shaoming Pong Address: 43671 Trade Center Place, Suite 100 Dulles, VA 20166 Telephone No: 13538218165 Email: [email protected] U.S. Agent Information: Company Name: Ecoer, Inc Address: 43671 Trade Center Place, Suite 100 Dulles, VA 20166 Contact Name: Shaoming Pong Telephone No: 13538218165 Email: [email protected] FRN: 0033593088 Applicant Signature: Agent Signature: Applicant printed name: Senior engineer Agent printed name: Senior engineer

Ecoer, Inc (2023.03.29) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Ecoer HVAC IoT Device(U) / ELO01/ FCC ID: 2BAPJ-ELO01) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☒ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☒ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Shaoming Pong Title: Senior engineer

Ecoer, Inc (2023.03.29) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Shaoming Pong Title: Senior engineer

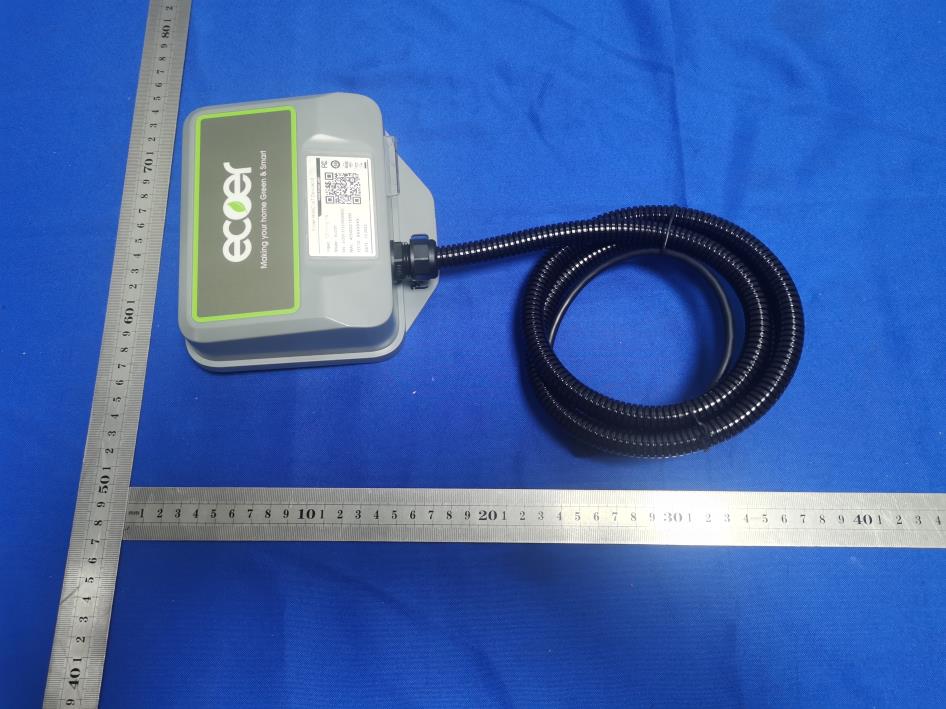

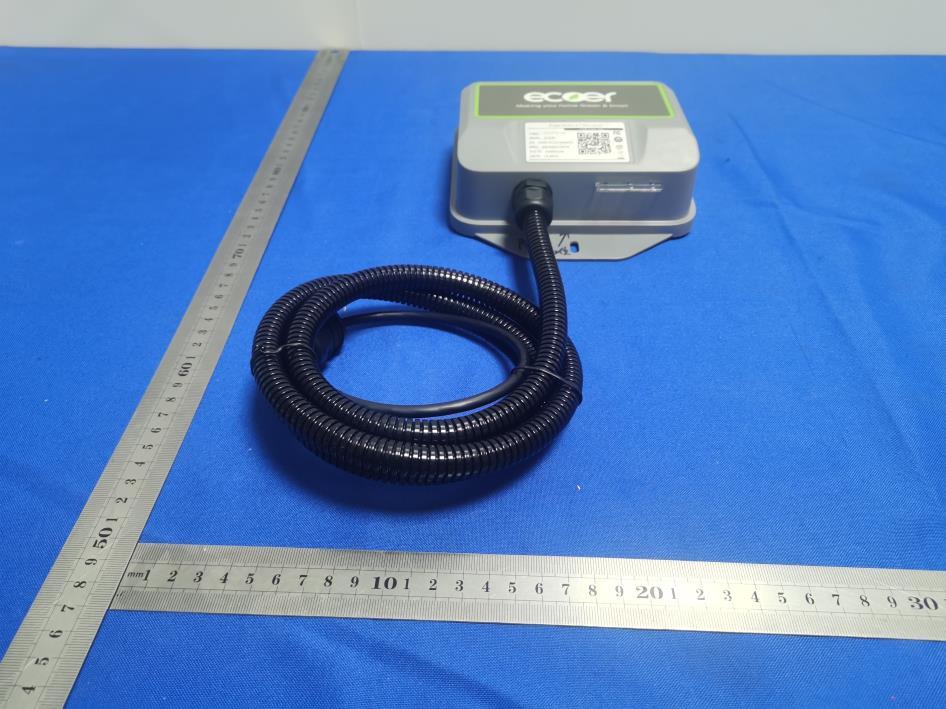

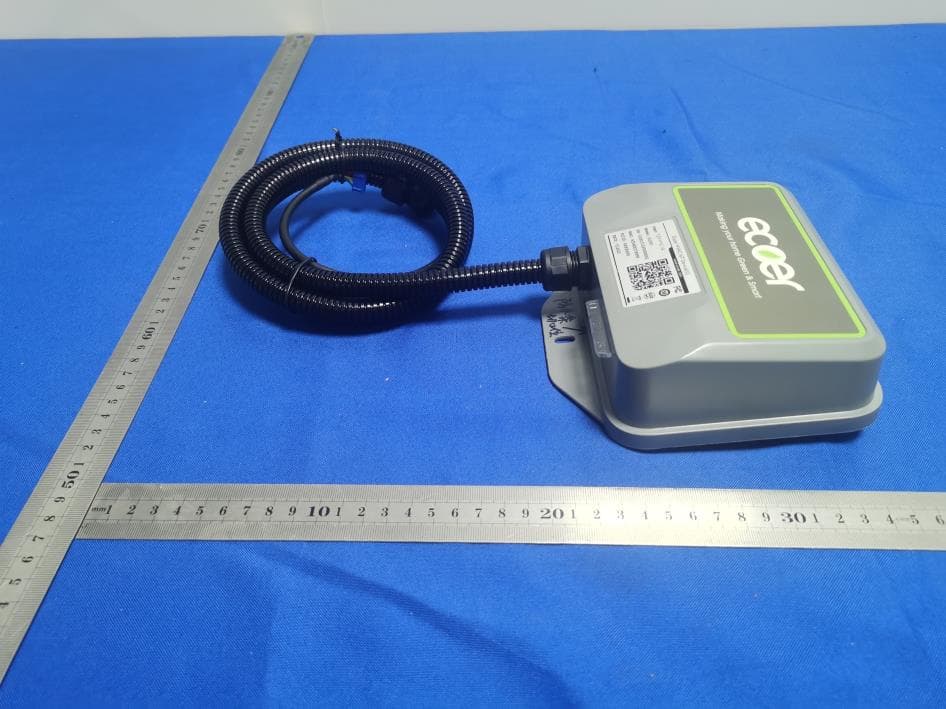

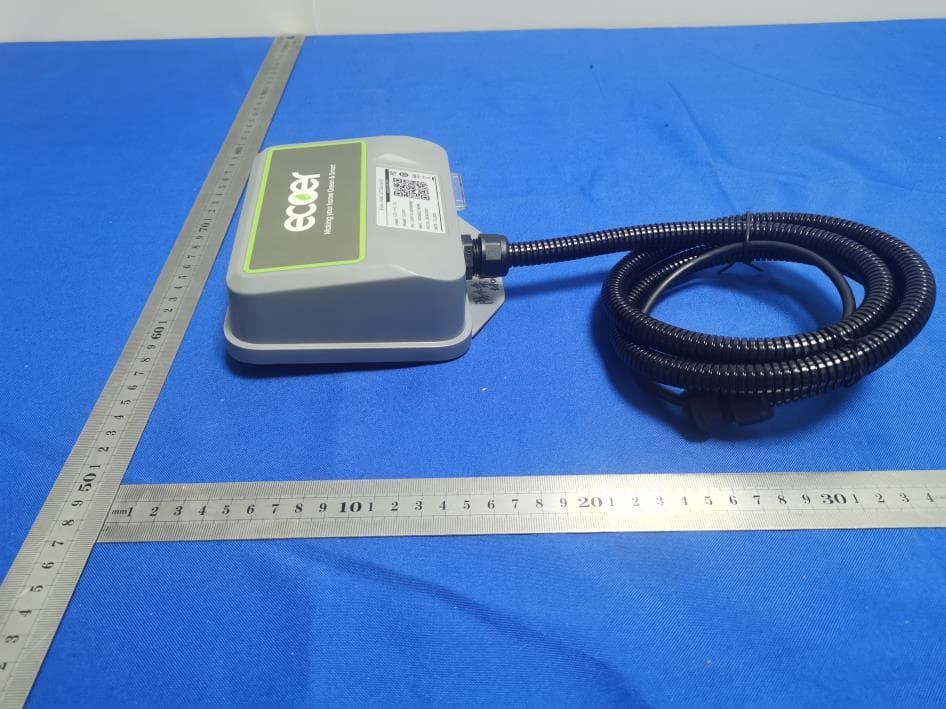

External Photos

FCC ID LABEL: Label Location: FCC ID: 2BAPJ-ELO01 Model No.: ELO01 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Internal Photos ANT

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2BAPJ-ELO01 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna,R=20cm Test Result of RF Exposure Evaluation Modes& Channel Freq. (MHz) Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result LoRa LoRa& HCH 14±1 15 31.6228 1.2823 (1.08dBi) 0.00807 1 Pass

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230316028RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 33 TEST REPORT Compiled by: Reviewed by: Approved by: Chen Zheng Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Ecoer HVAC IoT Device(U) FCC ID: 2BAPJ-ELO01 Trademark: Model Number: ELO01 Prepared For: Ecoer, Inc Address: 43671 Trade Center Place, Suite 100 Dulles, VA 20166 Manufacturer: Wuxi Mantoo Technology Co.,Ltd. Address: Room 1001, building A2, Tian'an smart city, Xinwu District, Wuxi City, Jiangsu Province Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Mar. 01, 2023 Sample tested Date: Mar. 01, 2023 to Mar. 16, 2023 Issue Date: Mar. 16, 2023 Report No.: CTB230316028RFX Test Standards FCC Part15.247 ANSI C63.10:2013 Test Results PASS Remark: This is LoRa radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230316028RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 33 TABLE OF CONTENT Test Report Declaration Page 1. VERSION .......................................................................... 3 2. TEST SUMMARY ................................................................... 4 3. MEASUREMENT UNCERTAINTY ..................................................... 5 4. PRODUCT INFORMATION AND TEST SETUP .......................................... 6 4.1 Product Information .................................................................... 6 4.2 Test Setup Configuration ............................................................... 6 4.3 Support Equipment .................................................................... 6 4.4 Channel List .......................................................................... 7 4.5 Test Mode ............................................................................ 7 4.6 Test Environment ...................................................................... 7 5. TEST FACILITY AND TEST INSTRUMENT USED ....................................... 8 5.1 Test Facility ........................................................................... 8 5.2 Test Instrument Used .................................................................. 8 6. AC POWER LINE CONDUCTED EMISSION ............................................ 11 6.1 Block Diagram Of Test Setup .......................................................... 11 6.2 Limit ................................................................................ 11 6.3 Test procedure ....................................................................... 11 6.4 Test Result .......................................................................... 13 7. RADIATED SPURIOUS EMISSION ................................................... 14 7.1 Block Diagram Of Test Setup .......................................................... 14 7.2 Limit ................................................................................ 14 7.3 Test procedure ....................................................................... 15 7.4 Test Result .......................................................................... 16 8. BAND EDGE AND RF COUNDUCTED SPURIOUS EMISSIONS .......................... 21 8.1 Block Diagram Of Test Setup .......................................................... 21 8.2 Limit ................................................................................ 21 8.3 Test procedure ....................................................................... 21 8.4 Test Result .......................................................................... 22 9. COUDUCTED PEAK OUTPUT POWER ............................................... 24 9.1 Block Diagram Of Test Setup .......................................................... 24 9.2 Limit ................................................................................ 24 9.3 Test procedure ....................................................................... 24 9.4 Test Result .......................................................................... 25 10. 6DB OCCUPIED BANDWIDTH ....................................................... 27 10.1 Block Diagram Of Test Setup ......................................................... 27 10.2 Limit ............................................................................... 27 10.3 Test procedure ...................................................................... 27 10.4 Test Result ......................................................................... 27 11. POWER SPECTRAL DENSITY ...................................................... 29 11.1 Block Diagram Of Test Setup ......................................................... 29 11.2 Limit ............................................................................... 29 11.3 Test procedure ...................................................................... 29 11.4 Test Result ......................................................................... 29 12. ANTENNA REQUIREMENT ......................................................... 29 13. EUT TEST SETUP PHOTOGRAPHS .................................................. 32 (Note: N/A means not applicable) Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB230316028R…

Text truncated - open the document above for the full version.

Antenna Test Report (Passive-BW) Manufacturer: Shenzhen Feixin Wireless Communication Co. LTD Address: 305, Building A, Changjing Robot Industrial Park, 104 Huanguan Middle Road, Longhua District, Shenzhen City, Guangdong Province Antenna type：FPC antenna Product picture 100± 3MM Go to Cover Page Passive -Freq 920.00MHZ 0306090120150180210240270300330360 0-8.17-8.06-7.48-6.99-6.94-6.23-------------- 30-7.20-6.83-8.54-8.45-4.29-0.94-3.58-4.26-5.65-6.59-7.13-8.36-- 60-0.29-1.79-1.22-1.100.23-1.33-3.07-3.100.920.030.451.08-- 90-2.82-1.18-0.42-2.91-3.88-4.94-5.78-5.13-5.10-4.48-5.36-8.48-- 120-6.74-2.74-4.95-7.11-7.02-6.29-10.98-5.64-5.88-7.56-6.55-4.93-- 150-2.24-2.15-2.75-4.63-5.81-5.39-6.23-5.28-4.25-4.14-2.56-1.96-- 180-4.87-6.16-3.79-3.22-3.16-3.45-------------- 0306090120150180210240270300330360 0-11.08-13.53-14.52-16.53-11.68-8.52-------------- 30-10.02-8.32-9.66-10.47-7.53-2.34-6.63-9.43-8.10-7.38-9.22-13.77-- 60-0.48-2.68-4.78-4.86-2.75-3.71-5.15-5.540.21-0.190.370.70-- 90-9.65-9.36-10.21-10.60-11.62-9.25-8.13-6.05-6.61-5.80-6.35-10.75-- 120-13.03-7.06-9.01-7.87-7.97-9.15-12.70-10.01-9.19-9.67-8.60-8.01-- 150-2.33-2.45-3.19-5.70-8.80-9.40-8.83-6.57-4.55-4.16-3.56-5.36-- 180-4.93-6.77-7.33-10.92-12.57-7.03-------------- 0306090120150180210240270300330360 0-11.29-9.51-8.43-7.50-8.72-10.10-------------- 30-10.42-12.19-14.98-12.75-7.08-6.54-6.55-5.83-9.31-14.33-11.29-9.84-- 60-13.99-9.14-3.74-3.48-2.81-5.08-7.27-6.78-7.31-13.03-16.57-9.77-- 90-3.83-1.89-0.90-3.72-4.68-6.95-9.56-12.36-10.41-10.29-12.26-12.38-- 120-7.90-4.75-7.11-15.07-14.04-9.46-15.85-7.61-8.61-11.70-10.81-7.86-- 150-18.88-13.83-12.94-11.25-8.84-7.59-9.70-11.18-16.00-29.25-9.46-4.61-- 180-23.60-14.97-6.34-4.02-3.69-5.96-------------- Go to Cover Page 1.08 0.37 -0.34 -1.05 -1.76 -2.47 -3.18 -3.89 -4.6 -5.31 -6.02 -6.73 -7.44 -8.15 -8.86 -9.57 -10.27 -10.98 T45-P45T45-P225 1.08 0.37 -0.34 -1.05 -1.76 -2.47 -3.18Coordination System Description: -3.89Line ColrXYZTheta-Phi -4.6Red L.Axis XTheta90-Phi0 -5.31Green L.Axis YTheta90-Phi90 -6.02Blue L.Axis ZTheta0 -6.73 -7.44 -8.15 -8.86 -9.57 -10.27 -10.98 H+V Total (30° Step) H (30° Step) V (30° Step) T0-P0 T90-P0T90-P90T90-P180T90-P270 T180-P0 Go to Cover Page Passive -Freq 930.00MHZ 0306090120150180210240270300330360 0-8.56-8.43-8.00-7.11-6.81-6.10-------------- 30-6.49-5.95-6.62-8.62-4.05-0.51-3.76-4.61-6.47-7.57-8.33-10.63-- 60-0.97-2.29-1.98-1.73-0.19-1.22-2.50-2.801.080.330.640.93-- 90-3.61-2.38-1.19-2.47-3.18-4.03-5.33-4.45-5.26-5.36-5.91-7.57-- 120-8.05-3.51-4.79-6.51-6.48-5.75-8.62-4.80-5.26-6.68-6.31-5.24-- 150-3.14-2.84-3.37-5.89-6.74-6.30-7.45-6.47-5.17-4.78-3.19-2.64-- 180-4.97-6.39-4.02-3.55-3.64-3.95-------------- 0306090120150180210240270300330360 0-10.73-13.06-14.22-17.61-12.49-8.81-------------- 30-9.93-7.75-8.24-10.40-7.31-1.94-6.78-10.07-8.99-8.16-9.90-16.24-- 60-1.08-2.96-5.09-5.15-2.97-3.45-4.35-4.970.390.090.560.63-- 90-9.71-11.93-12.41-7.34-8.16-7.05-7.00-5.09-6.42-6.60-6.79-8.63-- 120-14.49-7.44-8.56-7.43-7.41-8.29-10.01-8.12-7.62-7.91-7.53-7.38-- 150-3.17-3.11-3.84-7.07-10.28-11.67-11.48-8.42-5.65-4.79-4.06-5.66-- 180-5.20-6.93-7.08-10.22-12.86-7.88-------------- 0306090120150180210240270300330360 0-12.62-10.26-9.19-7.52-8.18-9.43-------------- 30-9.12-10.66-11.69-13.36-6.82-6.01-6.76-6.06-10.04-16.55-13.51-12.02-- 60-17.02-10.76-4.90-4.36-3.44-5.18-7.09-6.86-7.25-12.35-16.49-10.75-- 90-4.83-2.89-1.53-4.19-4.84-7.04-10.30-13.12-11.57-11.41-13.30-14.20-- 120-9.16-5.77-7.16-13.71-13.60-9.29-14.25-7.53-9.04-12.79-12.40-9.33-- 150-23.85-15.00-13.27-12.13-9.28-7.79-9.63-10.89-14.97-31.96-10.59-5.63-- 180-17.89-15.69-6.97-4.60-4.20-6.19-------------- Go to Cover Page 1.08 0.39 -0.3 -0.99 -1.68 -2.37 -3.05 -3.74 -4.43 -5.12 -5.81 -6.5 -7.18 -7.87 -8.56 -9.25 -9.94 -10.63 T45-P45T45-P225 1.08 0.39 -0.3 -0.99 -1.68 -2.37 -3.05Coordination System Description: -3.74Line ColrXYZTheta-Phi -4.43Red L.Axis XTheta90-Phi0 -5.12Green L.Axis YTheta90-Phi90 -5.81Blue L.Axis ZTheta0 -6.5 -7.18 -7.87 -8.56 -9.25 -9.94 -10.63 H+V Total (30° Step) H (30° Step) V (30° Step) T0-P0 T90-P0T90-P90T90-P180T90-P270 T180-P0

Radiated Emission Below 1G Above 1G Conducted emissions
