2BAQQNOVABOT002Charging station

NOVABOT.COM N1000/N2000 *Please read the user manual carefully before using our product. User Manual Original Instruction 1 2 2 2 2 2 3 3 4 4 5 5 6 6 7 7 7 9 11 14 10 18 19 20 20 12 21 21 21 23 24 24 24 25 25 25 26 27 28 30 Contents 1 Introduction 2 Safety First 2.1 Who can't use this product 2.2 Where this product can't use 2.3 When this product can't use 2.4 What should be done to this product 2.5 What can't be done to this product 3 My NOVABOT 3.1 Unboxing 3.2 Top view 3.3 Control&Panel 3.4 Bottom view 3.5 Charging station&Receiver holder 3.6 Rear view - Symbols 4 Install and connect NOVABOT 4.1 Download NOVABOT APP 4.2 Plan your installation place 4.3 Assembly 4.4 Connect 5 Mapping and Mowing 5.1 Mapping 5.2 Fast mowing 5.3 Schedule 6 About Security 6.1 Watchdog Mode 6.2 PIN Code protection 7 Maintenance 7.1 Transportation 7.2 Clean 7.3 Replace blades 7.4 Change battery 7.5 Store 7.6 NOVABOT device update OTA 8 Troubleshooting and fault messages 8.1 Charging & Battery 8.2 Mowing & Security 8.3 Signal & Connect 9 Specifications 10 Statement 11 Warranty Card 1 Introduction In the following section, we would like to help you better understand how NOVABOT works.NOVABOT is equipped with AI and several sensors. It can deal with various complicated scenes autonomously. 1 ENEN 56 No more need to collect grass clippings NOVABOT leaves short clippings after mowing. There is no need to collect them, they will become fertilizer for the lawn. Schedule You can set mowing schedules and security schedules in NOVABOT APP so that NOVABOT can mow the lawn automatically or enable watchdog mode on a regular basis according to the schedules. 78 Watchdog mode NOVABOT will start security patrols near the door when you need them. (such as: When you are on vacation/business trip or daily night, you can set watchdog mode. NOVABOT will turn on the flashing lights, whistle, and take real-time photos of the possible situations near the door and push them to app users.) PIN code protection The PIN code is used to prevent being stolen and operated by children or unauthorized people. When there is a machine malfunc- tion or the STOP button is pressed, NOVABOT will lock itself. You can unlock it by entering the PIN code. 34 Obstacle avoidance NOVABOT can detect obstacles using AI cameras, avoiding interference from them. You can set the obstacle area in NOVABOT APP to avoid the machine driving in and affecting normal work. Autonomous charging When the battery is low, NOVABOT will pause the task autono- mously and go back to the charging station to charge itself. When fully charged, NOVABOT will resume the unfinished mowing task of the day or stay in the charging station according to its mowing schedule. Multi-map mowing NOVABOT can create multiple maps (currently supports up to three maps). And NOVABOT can choose to mow one lawn or mow several lawns in sequence. It can intelligently plan the mowing path and complete the mowing task. 12 Intelligent mowing NOVABOT also has the ability for intelligent mowing, using panoramic vision, inertial navigation, RTK positioning, and visual perception technology to achieve intelligent mapping, charging, mowing, and obstacle avoidance functions. NOVABOT also can adjust the mowing height to meet users' personalized needs. AI 2 Safety First WARNING Who can't use this product 1. Never allow children, people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator. 2.Not to allow children to be in the vicinity or play with the machine when it is operating. Where this product can't use 1.Only use this product in the ways described in this manual. 2.Never leave anything that can be climbed over by product in the working area which may cause damage to the product or injury to people. 3.Keep any supply and extension cords away from the working area to avoid damage to the cords which can lead to contact with live parts. 4.When used in public areas, warning signs shall be placed around the working area of the machine. They shall show the substance of the following text: " Warning! Automatic lawnmower! Keep away from the machine! Supervise children!". When this product can't use 1.Avoid using the machine and its peripherals in bad weather conditions, especially when there is a risk of lightning. 2.Timely check the working area to remove any foreign objects that may damage the product or be damaged by the product. 3.Timely inspect the product to make sure it's in good condition. Never operate a machine with a defective guard, a worn blade or a damaged cord, or any lost parts. And do not connect a damaged cord to the supply or touch a damaged cord before it is disconnected from the supply. 4.Only use peripherals that come with the original product, such as battery, charger. Any unofficial peripherals may lead to unexpected results. What should be done to this product 1.Recommend connecting the peripherals only to a supply circuit protected by a residual current device (RCD) with a tripping current of not more than 30 mA. 2.Turn off the product and remove the plug from the mains before the following operations. A.Lifting up the product or carrying it. B.Any assembly or disassembly of the machine that is allowed in this manual, such as changing blades, and battery. C.Clearing a blockage on the machine. D.Checking, cleaning or working on the machine or charging station. E.If the machine starts to vibrate abnormally, check for damage before restarting. 3. Press the STOP button immediately in case of abnormal vibrations and carefully check if there is anything stuck under the product. Clear it and restart the product. Contact the service center if the vibration persists. 4.Only touch blades when it's totally stopped and wear anti-cut gloves before changing blades. 5.In the event of leakage of electrolyte flush with water and seek medical help if …

Text truncated - open the document above for the full version.

Mapping Obstacle area •When mapping the obstacle area, the distance from the obstacle boundary is not less than 1M. 1 After saving the working area, the APP will automatically enter the obstacle area mapping interface. Or open the lawn interface entered by NOVABOT APP and choose “Add obstacle”. 2Follow the instructions of the APP to remotely control the arrow keys, and the border of the interface will turn red. 3 Remotely control NOVABOT to return to the starting point of mapping, and complete the mapping. The border of the interface turns green, and saves the obstacle area. Mapping channel area •When mapping the channel area, the width shall not be less than 1M if it is a narrow passage. •To ensure mowing accuracy, when mapping multiple working maps, please keep the distance between the maps greater than 0.5M. •When mapping channel area, the straight-line distance between mowing areas shall not exceed 10M. 17 EN ATTENTION ATTENTION >1m >1m 1m ATTENTION •When you have 2 or more working areas, you can create a channel area to connect them. •1 After mapping 2 or more working areas, the App will ask whether to map the channel area. Or Open the “Lawn” interface entered by NOVABOT APP. Choose “Add channel area”. •2 Remotely control NOVABOT from the border of map A to the border of map B. When the interface border turns from red to green, the mapping is completed. Tips •When there are multiple map settings, the default is map001, 002, and so on. You can also transform it into a map name. Up to 6 digits and letters. •Please always make sure that the identification mark on the charging station is not blocked and stained. •If you need to adjust your mowed or obstructed areas, you can edit/delete/add relevant areas in the "Lawn" interface of the app and then remap the area. 5.2 Fast mowing •Before mowing, please remove personal items. (eg: outdoor items, toys, rocks, branches, etc.) •Keep the grass height below 11cm before running NOVABOT.Grass over 11cm may be recognized by NOVABOT as an obstacle, resulting in missed cutting. Please cut it manually first. 1 Click Start on the main interface to enter the fast mowing. 2 Select the mowing height. 3Start fast mowing. 18 EN 333 Cutting height2.2 inch work map All map Tips •NOVABOT requires 50% more power in front of the lawn. •When the power of NOVABOT is too low during mowing, the machine will automatically return to the charging station to charge and push the information to the APP. After the charging is completed, the lawnmower will continue to mow the grass until the mowing work on the map is completed. 5.3 Schedule 1. Open the schedule interface of NOVABOT APP. 2. Select a map. 3. Set working hours (mowing/security). 4. NOVABOT starts working (mowing/security) according to the set time. Tips •Mowing mode and watchdog mode can not be carried out at the same time. •Currently NOVABOT can only set a maximum of three time periods per day. (including mowing and security, including all maps). •When the power of NOVABOT is lower than 20% during work (mowing/security), it will automatically return to the charging station to charge, and continue working after the charging is completed. •If the charging is completed in the middle of the work, and the current time is not in the working schedule, it will no longer be carried out. 19 EN EN 6 About Security 6.1 Watchdog Mode A.Watchdog function setting Open the schedule function of the APP, and set the watchdog mode for NOVABOT at the scheduled time. B.How to set watchdog mode area When you start mapping in the app, NOVABOT will automatically set the area of 3.5 meters near the center of the charging station as the watchdog area. Please confirm whether this range is your ideal watchdog area before installing the charging station. •Patrol work and mowing work can not be carried out at the same time. Please plan the work schedule of NOVABOT reasonably. •If there is an obstacle area within the patrol range, NOVABOT will still automatically avoid obstacles during patrol work. •To keep the network stable when NOVABOT is working, the 3.5-meter radius area is a fixed setting area, and you can not expand or shrink this area. Details can be viewed on the lawn management interface. •If you don't need this function, just don't set the schedule in the NOVABOT app. This operation does not have any impact on daily mowing work. 6.2 PIN Code protection 1.When you turn on NOVABOT for the first time, you need to manually set the PIN code on the machine. 2.When you forget your PIN code, you can check it on the personal information interface of the APP. 3.When you need to change the PIN code, you can change it on the personal information interface of the APP. 4.When NOVABOT shuts down automatically for some reason. After restarting, you need to manually enter the PIN code on NOVABOT to start. 5.When the wrong PIN code is entered more than 5 times, NOVABOT will be automatically locked. At this time, you will receive a message notification. You can unlock it on the APP, and check the correct PIN code on the personal information interface. •To protect NOVABOT's security, it is not recommended to use 4 same numbers as the PIN code. •When changing the PIN code, NOVABOT needs to be turned on and the GPS and home Wi-Fi are connected normally. •When using the APP to unlock NOVABOT, it needs to be turned on and the GPS and home Wi-Fi are connected normally. ATTENTION ATTENTION 20 EN 7 Maintenance 7.1 Transportation •Turn off the product when you raise or move NOVABOT. •There are blades on the bottom of NOVABOT, which need to be kept away from the body. •Do not lift the product while NOVABOT is charging at the charging station. •To ensure your safety, please do not reach into the charging port to carry the machine. 7.2 Clean We recommend that you maintain good cleaning habits to keep your NOVABOT in goodcondition. •NOVABOT must be disconnected from power for any cleaning work. •Please do personal protection before cleaning. Wear gloves, pro…

Text truncated - open the document above for the full version.

Model Declaration Letter Model Differences 91N1-00000-TY Adapter: GM152-2800500-1FE; 28V/3A 91N2-00000-TY Adapter: GM95-280300-1DE; 28V/5A No differences in external appearance Remark: In electrical characteristics, two models are the same except adapter.

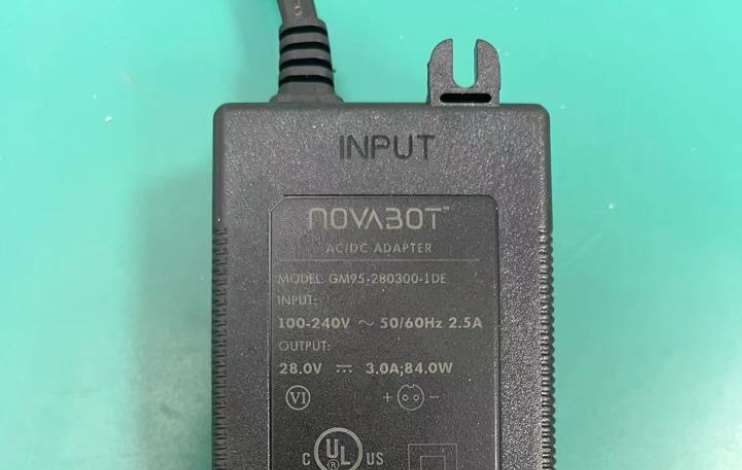

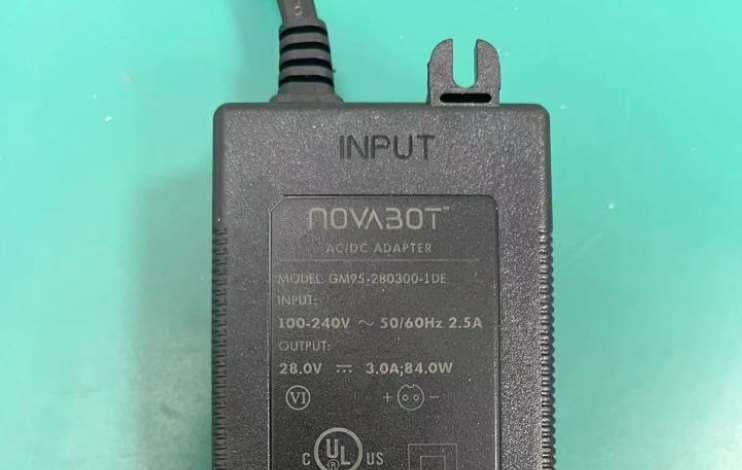

Photo Documentation Report Number: Attachment of CN23QXFR 001 Model:91N1-00000-TY, 91N2-00000-TY External: Overview External: Adapter

N1000充电桩铭牌 Shenzhen LYF Intelligence Co., Ltd. NO.501 Building 1, Shenzhen Software Park Yuehai Street, Nanshan District, Shenzhen City, Guangdong P.R. China MADE IN CHINA Charging station:91N1-00000-TY Input: 28V 3A MAX Production:2023 GM95-280300-1DE(For US) GM95-280300-2DE(For EU) IC: 30447-NOVABOT002 FCC ID: 2BAQQNOVABOT002 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IPX4 CONTAINS: WIFI Module:ESPS32-S3-WROOM-1U IC:21098-ESPS3WROOMU FCC ID:2AC7Z-ESPS3WROOM1U N2000充电桩铭牌 Shenzhen LYF Intelligence Co., Ltd. NO.501 Building 1, Shenzhen Software Park Yuehai Street, Nanshan District, Shenzhen City, Guangdong P.R. China MADE IN CHINA Charging station:91N2-00000-TY Input: 28V 5A MAX Production:2023 GM152-2800500-1FE(For US) GM152-2800500-2DE(For EU) IC: 30447-NOVABOT002 FCC ID: 2BAQQNOVABOT002 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IPX4 CONTAINS: WIFI Module:ESPS32-S3-WROOM-1U IC:21098-ESPS3WROOMU FCC ID:2AC7Z-ESPS3WROOM1U

Photo Documentation Report Number: Attachment of CN23QXFR 001 Model:91N1-00000-TY, 91N2-00000-TY Internal: Top Internal: Bottom Photo Documentation Report Number: Attachment of CN23QXFR 001 Model:91N1-00000-TY, 91N2-00000-TY Lora Module Lora Module without shield Photo Documentation Report Number: Attachment of CN23QXFR 001 Model:91N1-00000-TY, 91N2-00000-TY Antenna for Lora Antenna for module ESPS32- S3-WROOM-1U

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN23QXX1 001 Auftrags-Nr.: Order no.: 180256997 Seite 1 von 3 Page 1 of 3 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2023.02.17 Auftraggeber: Client: Shenzhen LYF Intelligence Co., Ltd. NO.501 Building 1, Shenzhen Software Park Yuehai Street, Nanshan District, Shenzhen City, Guangdong P.R. China Prüfgegenstand: Test item: Charging station Bezeichnung / Typ-Nr.: Identification / Type no.: 91N1-00000-TY, 91N2-00000-TY Auftrags-Inhalt: Order content: TÜV Rheinland – FCC & ISED Service Prüfgrundlage: Test specification: FCC 47 CFR Part 2.1091 RSS-102 Issue 5 Wareneingangsdatum: Date of sample receipt: 2023.05.22 Refer to Photo Documentation Prüfmuster-Nr.: Test sample no: A003478075 Prüfzeitraum: Testing period: 2023.06.12 - 2023.07.25 Ort der Prüfung: Place of testing: TÜV Rheinland / CCIC (Ningbo) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland / CCIC (Ningbo) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: genehmigt von: authorized by: Datum: Date: 2023.09.22 Ausstelldatum: Issue date: 2023.09.22 Stellung / Position: Keda Zhou/PE Stellung / Position: Season Yang/Authorizer Sonstiges / Other: FCC ID: 2BAQQNOVABOT002 ISED: 30447NOVABOT002 Contains FCC ID: 2AC7Z-ESPS3WROOM1U ISED: 21098-ESPS3WROOMU Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland / CCIC (Ningbo) Co., Ltd. 3F, building C13, R&D Park, No.32 Lane 299 Guanghua Road National Hi-Tech Zone, Ningbo 315048, P.R. China Mail: [email protected] · Web: www.tuv.com Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No.: CN23QXX1 001 Seite 2 von 3 Page 2 of 3 Radio Frequency Exposure Compliance 1. FCC Electromagnetic Fields Test Specification Test standard : FCC 47 CFR Part 2.1091 CFR47 FCC Part 1.1310 MPE Calculation: Mode Max Power (dBm) Max e.i.r.p. (mW) Distance (cm) Power Density (mW/ cm 2 ) Power Density Limit (mW/ cm 2 ) Verdict A 14.12 25.82 20 0.0051 0.601 Pass B 18.26 66.99 20 0.0133 1.0 Pass Remark: Data for mode B comes from FCC ID 2AC7Z-ESPS3WROOM1U. Mode Proportion A Proportion B Proportion A+B Limit Verdict A+B 0.0051/0.601 0.013/1.0 0.0215 1.0 Pass Conclusion: EUT is compliance with the FCC RF exposure. Result: Pass Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No.: CN23QXX1 001 Seite 3 von 3 Page 3 of 3 2. IC Electromagnetic Fields Test Specification Test standard : RSS-102 Issue 5 RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: At or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10 -2 ƒ 0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz; RF exposure evaluation exempted power: 1.37W MPE Calculation: Mode Max Power (dBm) Max e.i.r.p. (mW) Distance (cm) Exemption Limits maximum e.i.r.p (W) Verdict A 14.12 25.82 20 1.37 Pass B 18.26 66.99 20 2.67 Pass Remark: Data for mode B comes from ISED 21098-ESPS3WROOMU. Mode Proportion A Proportion B Proportion A+B Limit Verdict A+B 25.82/1370 66.99/2670 0.044 1.0 Pass Conclusion: EUT is compliance with the IC RF exposure. -- The END -- Result: Pass

2.4GHz FPC BUILT-IN ANTENNA TECHNICAL DATA SHEET TX2400-FPC-5015 VERSION：3.3 DATE：2021-08-03 TEL：028-61542639 WEBSITE：WWW.ZIISOR.COM CHENGDU ZIISOR TECHNOLOGY CO., LTD. EXPERT OF IOT ANTENNAS TX2400-FPC-5015 1 / 4 Copyright@Chengdu Ziisor Technology Co., Ltd 2020 Expert of IoT Antenna TX2400-FPC-5015 NO. MECHANICAL SPECIFICATIONS VALUE COMMENT 01 Part Number TX2400-FPC-5015 Omni Antenna 02 Material FPC 03 Connector Type IPEX-1 04 Antenna Colour Black 05 Overall Size 50*15mm 06 Cable Length 120mm Cable Customizable 07 Weight 1g NO. ELECTRICAL SPECIFICATIONS VALUE COMMENT 01 Frequency 2.4GHz 2.4~2.5GHz 02 Antenna Gain 0.6dBi 03 Radiation type Omnidirectional 04 Polarization Linear Vertical 05 Nominal Impedance 50Ω 06 Max Input Power 2W 077 S.W.R. ≤1.5 NO. ENVIRONMENTAL SPECIFICATIONS VALUE COMMENT 01 Operation Temperature -30°C～+75°C 02 Storage Temperature -30°C～+75°C 03 RoHS Compliant YES TX2400-FPC-5015 2 / 4 Copyright@Chengdu Ziisor Technology Co., Ltd 2020 Expert of IoT Antenna MECHANICAL DRAWING TX2400-FPC-5015 3 / 4 Copyright@Chengdu Ziisor Technology Co., Ltd 2020 Expert of IoT Antenna S.W.R. SMITH TX2400-FPC-5015 4 / 4 Copyright@Chengdu Ziisor Technology Co., Ltd 2020 Expert of IoT Antenna Company Name Chengdu Ziisor Technology Co., Ltd Telephone +86-028-61542639 Website www.ziisor.com Sales Contact [email protected] Technical Support [email protected] Company Address B5 Molding Tool Industry Park, No. 199 XiQu Avenue, Chengdu, China DISCLAIMER In order to provide our users with better ser vice, Chengdu Ziisor Technology Co., Ltd (hereinafter referred to as ziisor) will try to present as detailed and accurate product information as possible in this manual. However, due to the timeliness of the manual content, ziisor shall not absolutely guarantee the unlimited timeliness and applicability of the file. Ziisor has the right to update the manual content without further notice. To get the latest edition information, pls visit the official website of zi isor or contact our customer service staff. Thanks for your trust and support! CONTACT US TX2400-FPC-5015 1. Efficiency/ Gain Test 2.Radiation Pattern/ FreqMHz Effi% GaindBi 2400MHz 45.28 0.28 2410MHz 42.31 0.21 2420MHz 43.55 0.35 2430MHz 43.91 0.48 2440MHz 44.68 0.52 2450MHz 45.77 0.6 2460MHz 46.32 0.51 2470MHz 47.58 0.42 2480MHz 48.11 0.34 2490MHz 48.98 0.43 2500MHz 49.11 0.48

868/915MHz FPC BUILT-IN ANTENNA TECHNICAL DATA SHEET TX900-FPC-4420 VERSION：3.3 DATE：2021-08-03 TEL：028-61542639 WEBSITE：WWW.ZIISOR.COM CHENGDU ZIISOR TECHNOLOGY CO., LTD. EXPERT OF IOT ANTENNAS TX900-FPC-4420 1 / 4 Copyright@Chengdu Ziisor Technology Co., Ltd 2020 Expert of IoT Antenna TX900-FPC-4420 NO. MECHANICAL SPECIFICATIONS VALUE COMMENT 01 Part Number TX900-FPC-4420 Omni Antenna 02 Material FPC 03 Connector Type IPEX-1 04 Antenna Colour Black 05 Overall Size 44*20mm 06 Cable Length 150mm 07 Lightning protection DC Ground 09 Wind Resistance 60m/s 10 Weight 1g NO. ELECTRICAL SPECIFICATIONS VALUE COMMENT 01 Frequency 868/915MHz 860~940MHz 02 Antenna Gain 0dBi 03 Radiation type Omnidirectional 04 Polarization Linear Vertical 05 Nominal Impedance 50Ω 06 Max Input Power 2W 077 S.W.R. ≤1.5 NO. ENVIRONMENTAL SPECIFICATIONS VALUE COMMENT 01 Operation Temperature -30°C～+75°C 02 Storage Temperature -30°C～+75°C 03 RoHS Compliant YES TX900-FPC-4420 2 / 4 Copyright@Chengdu Ziisor Technology Co., Ltd 2020 Expert of IoT Antenna MECHANICAL DRAWING UNIT: mm TX900-FPC-4420 3 / 4 Copyright@Chengdu Ziisor Technology Co., Ltd 2020 Expert of IoT Antenna S.W.R. SMITH TX900-FPC-4420 4 / 4 Copyright@Chengdu Ziisor Technology Co., Ltd 2020 Expert of IoT Antenna Company Name Chengdu Ziisor Technology Co., Ltd Telephone +86-028-61542639 Website www.ziisor.com Sales Contact [email protected] Technical Support [email protected] Company Address B5 Molding Tool Industry Park, No. 199 XiQu Avenue, Chengdu, China DISCLAIMER In order to provide our users with better ser vice, Chengdu Ziisor Technology Co., Ltd (hereinafter referred to as ziisor) will try to present as detailed and accurate product information as possible in this manual. However, due to the timeliness of the manual content, ziisor shall not absolutely guarantee the unlimited timeliness and applicability of the file. Ziisor has the right to update the manual content without further notice. To get the latest edition information, pls visit the official website of zi isor or contact our customer service staff. Thanks for your trust and support! CONTACT US TX900-FPC-4420 1.Efficiency/ Gain Test 2.Radiation Pattern/ FreqMHz Effi% GaindBi 860MHz 31.79 -0.49 870MHz 33.22 - 0.43 880MHz 34.85 - 0.31 890MHz 35.47 - 0.25 900MHz 36.51 -0.06 910MHz 38.92 0 920MHz 37.87 - 0.09 930MHz 39.17 - 0.17 940MHz 40.00 -0.21

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN23QXFR 001 Auftrags-Nr.: Order no.: 180256997 Seite 1 von 44 Page 1 of 44 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2023.02.17 Auftraggeber: Client: Shenzhen LYF Intelligence Co., Ltd. NO.501 Building 1, Shenzhen Software Park Yuehai Street, Nanshan District, Shenzhen City, Guangdong P.R. China Prüfgegenstand: Test item: Charging station Bezeichnung / Typ-Nr.: Identification / Type no.: 91N1-00000-TY, 91N2-00000-TY Auftrags-Inhalt: Order content: TÜV Rheinland – FCC & ISED Service Prüfgrundlage: Test specification: FCC 47 CFR Part 15.203 FCC 47 CFR Part 15.247 FCC Part 15, Subpart B:2021 RSS-247 Issue 3 RSS-Gen Issue 5 ICES-003 Issue 7:2020 Wareneingangsdatum: Date of sample receipt: 2023.05.22 Refer to Photo Documentation Prüfmuster-Nr.: Test sample no: A003478075 Prüfzeitraum: Testing period: 2023.06.12 - 2023.07.25 Ort der Prüfung: Place of testing: Refer to section 1.1 Prüflaboratorium: Testing laboratory: TÜV Rheinland / CCIC (Ningbo) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: genehmigt von: authorized by: Datum: Date: 2023.10.08 Ausstelldatum: Issue date: 2023.10.08 Stellung / Position: Keda Zhou/PE Stellung / Position: Season Yang/Authorizer Sonstiges / Other: FCC ID: 2BAQQNOVABOT002 ISED: 30447-NOVABOT002 Contains FCC ID: 2AC7Z-ESPS3WROOM1U ISED: 21098-ESPS3WROOMU Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland / CCIC (Ningbo) Co., Ltd. 3F, building C13, R&D Park, No.32 Lane 299 Guanghua Road National Hi-Tech Zone, Ningbo 315048, P.R. China Mail: [email protected] · Web: www.tuv.com Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test Report No.: CN23QXFR 001 Seite 2 von 44 Page 2 of 44 Anmerkungen Remarks 1 Alle eingesetzten Prüfmittel waren zum angegebenen Prüfzeitraum gemäß eines festgelegten Kalibrierungsprogramms unseres Prüfhauses kalibriert. Sie entsprechen den in den Prüfprogrammen hinterlegten Anforderungen. Die Rückverfolgbarkeit der eingesetzten Prüfmittel ist durch die Einhaltung der Regelungen unseres Managementsystems gegeben. Detaillierte Informationen bezüglich Prüfkonditionen, Prüfequipment und Messunsicherheiten sind im Prüflabor vorhanden und können auf Wunsch bereitgestellt werden. The equipment used during the specified testing period was calibrated according to our test laboratory calibration program. The equipment fulfils the requirements included in the relevant standards. The traceability of the test equipment used is ensured by compliance with the regulations of our management system. Detailed information regarding test conditions, equipment and measurement uncertainty is available in the test laboratory and could be provided on request. 2 Wie vertraglich vereinbart, wurde dieses Dokument nur digital unterzeichnet. Der TÜV Rheinland hat nicht überprüft, welche rechtlichen oder sonstigen diesbezüglichen Anforderungen für dieses Dokument gelten. Diese Überprüfung liegt in der Verantwortung des Benutzers dieses Dokuments. Auf Verlangen des Kunden kann der TÜV Rheinland die Gültigkeit der digitalen Signatur durch ein gesondertes Dokument bestätigen. Diese Anfrage ist an unseren Vertrieb zu richten. Eine Umweltgebühr für einen solchen zusätzlichen Service wird erhoben. As contractually agreed, this document has been signed digitally only. TUV Rheinland has not verified and unable to verify which legal or other pertaining requirements are applicable for this document. Such verification is within the responsibility of the user of this document. Upon request by its client, TUV Rheinland can confirm the validity of the digital signature by a separate document. Such request shall be addressed to our Sales department. An environmental fee for such additional service will be charged. 3 Prüfklausel mit der Note * wurden an qualifizierte Unterauftragnehmer vergeben und sind unter der jeweiligen Prüfklausel des Berichts beschrieben. Abweichungen von Prüfspezifikation(en) oder Kundenanforderungen sind in der jeweiligen Prüfklausel im Bericht aufgeführt. Test clauses with remark of * are subcontracted to qualified subcontractors and descripted under the respective test clause in the report. Deviations of testing specification(s) or customer requirements are listed in specific test clause in the report. 4 Die Entscheidungsregel für Konformitätserklärungen basierend auf numerischen Messergebnisen in diesem Prüfbericht basiert auf der "Null-Grenzwert-Regel" und der "Einfachen Akzeptanz" gemäß ILAC G8:2019 und IEC Guide 115:2021, es sei denn, in der auf Seite 1 dieses Berichts genannten angewandten Norm ist etwas anderes festgelegt oder vom Kunden gewünscht. Dies bedeutet, dass die Messunsicherheit nicht berücksichtigt wird und daher auch nicht im Prüfbericht angegeben wird. Zu weiteren Informationen bezueglich des Risikos durch diese Entscheidungsregel siehe ILAC G8:2019. The decision rule for statements of conformity, based on numerical measurement results, in this test repor…

Text truncated - open the document above for the full version.

Photo Documentation Report Number: Attachment of CN23QXFR 001 Model:91N1-00000-TY, 91N2-00000-TY Page 5 of 6 Test Set-up: Conducted emission 150KHz-30MHz Test Set-up: Radiated spurious emission Below 1GHz Photo Documentation Report Number: Attachment of CN23QXFR 001 Model:91N1-00000-TY, 91N2-00000-TY Page 6 of 6 Test Set-up: Radiated spurious emission Above 1GHz
