2BAQY-SVANAR2RTrue Wireless Earbuds

Svanar Wireless 2 Owner’s Guide Topology Diaphragm Balanced amplifier built-in 1 Overview Power On/Off 1 2 3 4 5 6 Touch Pad Microphone Charging Case Indicator Light inside Charging Case Indicator Light outside Charging Case Hard Key The earbuds will instantly power on when removed from the charging case. The earbuds will automatically start recharging when returned to the charging case, and turn off when fully charged. ⑤ ③ ② ② ⑥ ① ① ④ 2 Pairing 1. To pair with a source device, remove the earbuds from the charging case, at which point the earbuds will enter pairing mode. 2. Open the Bluetooth function menu on your device and select HIFIMAN SVANAR WIRELESS. Once paired, you will hear "Connected.” Important: You have 3 minutes to connect the earbuds to your device, otherwise the earbuds will exit and automatically power off . Leave the right earbud in the charging case while removing the left earbud, at which point it will automatically enter single-sided mode. The left one taken out from the charging case will enter one-sided mode automatically. To return to stereo, simply remove the right earbud from the charging case. Use Left Earbud Only Use Both Earbuds Leave the left earbud in the charging case while removing the right earbud, at which point it will automatically enter single-sided mode. The right one taken out from the charging case will enter one-sided mode automatically. To return to stereo, simply remove the left earbud from the charging case. Use Right Earbud Only 3 Pairing When wearing both earbuds, press and hold both earbuds for 3 seconds at the same time to forcibly cancel the last connected device. After canceling the connection, the headset will enter pairing mode with a voice prompt: "Pairing." Return the earbuds to the charging case, press and hold the hard key of the charging case for 3 seconds while the cover is open. The red and green lights on the charging case will flash and enter the forced pairing mode. The mobile phone will find and connect with Svanar Wireless. After the pairing is completed, the green light in the charging case flashes once, for one second, and turns off. Forced Reconnection Delete Pairings and Restore Factory Settings Return the earbuds are placed in the charging case, then re-open the charging case and press and hold the hard key for 10 seconds. When the reset is completed, the green light in the charging box will flash. 4 Music Calls Answer call Double-click either earbud twice to answer the call End call While in a call, double -click either earbud twice to end the call Reject call Press and hold either earbud for ~3 seconds to reject the call Long press the right earbud (R) for ~3 seconds to turn on the voice assistant (Note: the device needs to support the Voice Assistant function.) To Play/Pause Touch the right/left earbud to pause the track, and touch it again to continue playing the file or stream. To rewind to the previous track With earbuds in operation, double-click the right earbud/left earbud. To Skip to the Next Track With earbuds in operation, triple-click the right earbud/left earbud. Calls & Music Due to the complexity of the electromagnetic environment, LDAC and LHDC high-resolution Bluetooth connection format may freeze or disconnect due to insufficient bandwidth. If this occurs, enter Settings on your device and manually set the Bluetooth format to AAC or SBC. In this mode, the problem of lag/disconnection will be improved, but the sound quality might be less impactful. * L2HC Due to the complexity of the electromagnetic environment, LDAC and LHDC high-resolution Bluetooth connection format may freeze or disconnect due to insufficient bandwidth. If this occurs, enter Settings on your device and manually set the Bluetooth format to AAC or SBC. In this mode, the problem of lag/disconnection will be improved, but the sound quality might be less impactful. 5 Mode Switch Noise Cancellation/HIFI Mode/ Transparency Mode Only when wearing both earbuds: The initial mode is High Fidelity when Svanar Wireless is turned on. Press and hold the left earbud for 3 seconds to switch to Noise Cancellation mode, which is accompanied by a voice prompt: "ANC ON." Press the left earbud for 3 seconds to switch to the Transparency mode, which is accompanied by a voice prompt: "Transparency." Press the left earbud for 3 seconds to switch to High Fidelity mode, accompanied by a voice prompt: "High Fidelity." Note: When using a single earbud, the current mode remains unchanged, and does not support mode switching between Noise Cancellation /High Fidelity /Transparency. When in Noise Cancellation mode, the microphone is no longer picking up for noise cancellation effect. When both earbuds are worn, Svanar Wireless will automatically restore the connection and mode-switching function. 6 Charging Low Battery Alert When the battery falls below 10% power, you will hear the "Low battery, please charge" prompt every 2 minutes. Return the earbuds to the charging case. The headset will automatically shut down after it is fully charged. Charge the Earbuds Indicator Light Inside the Charging Case for Earbuds Battery Status Fully charged Green Light on for 10 seconds Red Light flashes for 10 seconds Not fully charged Yellow Light on for 10 seconds When the charging case is opened, there are no earbuds in the case and the inner light is not on. The charging case battery is too low to charge the earbuds 7 Charging Indicator Light Outside the Charging Case for Charging Case Battery Status Battery ＞80%Green Light Red Light Light off Battery 20-80% Yellow Light Battery＜20% Battery=100% Plug the charging cable into the charger port to charge the charging case and earbuds. When charging, the Indicator Light on the charging box remains illuminated, indicating the battery status of the charging case. Charge the Charging Case 8 Specifications Earphone Specifications Charging Case Specifications Size Charging port USB Type-C Charging Time 2-2.5 H Charging case Charging Ear…

Text truncated - open the document above for the full version.

HIFIMAN KUNSHAN TECHNOLOGY GROUP CO., LTD. 2nd floor, Building C1, Shangkun Zhichuang Industrial Park, No.2001 Yingbin West Road, Bacheng Town Kunshan, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/08 /19 U.S. Agent Designation Name and company of U.S. agent: DAME INC HIFIMAN KUNSHAN TECHNOLOGY GROUP CO., LTD.acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID:2BAQY-SVANAR2R): Physical U.S. address of agent: 19 Preston St, Unit 1, Goffstown NH 03045 NH, NH 3045 United States FRN of U.S. agent: 0036816189 Phone of U.S. agent: (603) 867-6886 Email address of U.S. agent: [email protected] DAME INC acknowledges their obligation to accept service of process on behalf of HIFIMAN KUNSHAN TECHNOLOGY GROUP CO., LTD. with the FRN [0033602756] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature yuchun zhang Manager HIFIMAN KUNSHAN TECHNOLOGY GROUP CO., LTD. Signature Liangshu Zhang Manager DAME INC 48_[mo del] US_Agent_2.911(d)(7) -U, V0 5

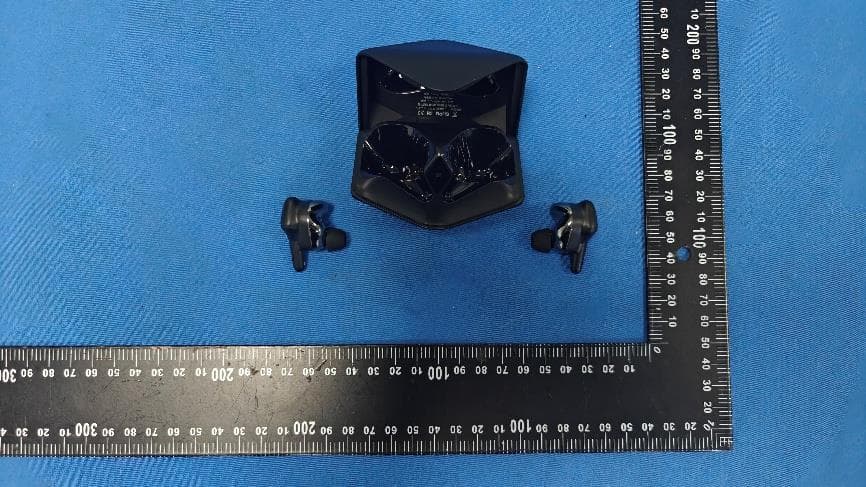

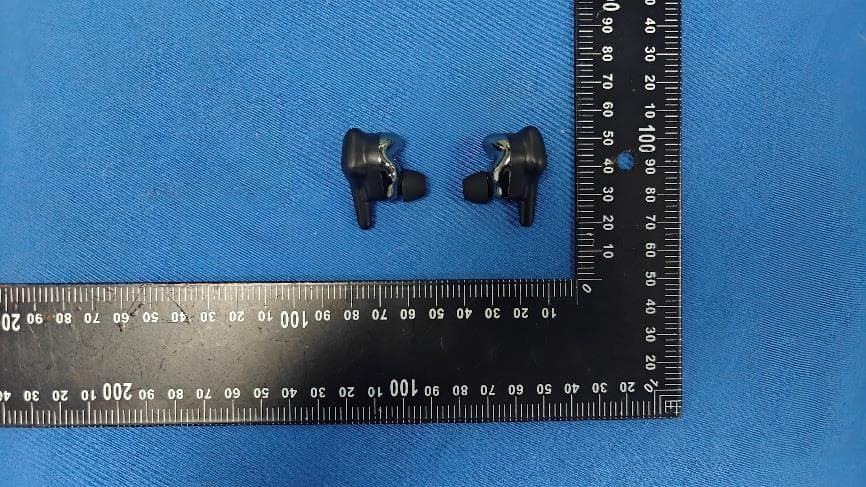

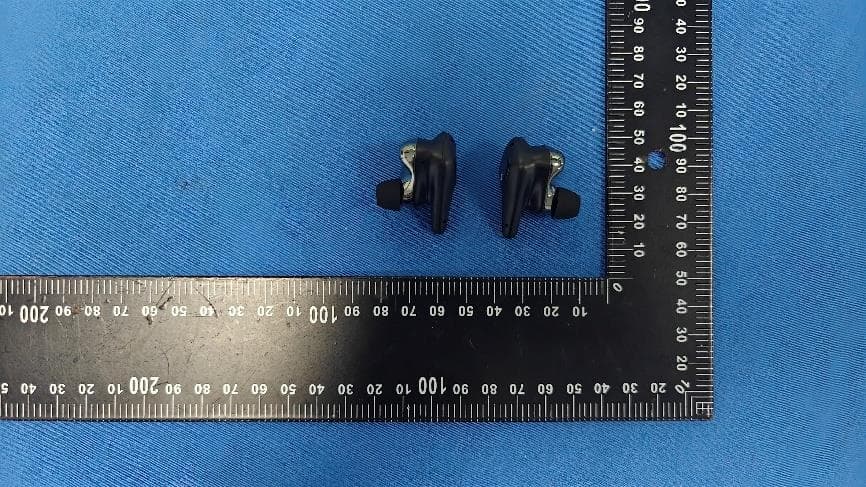

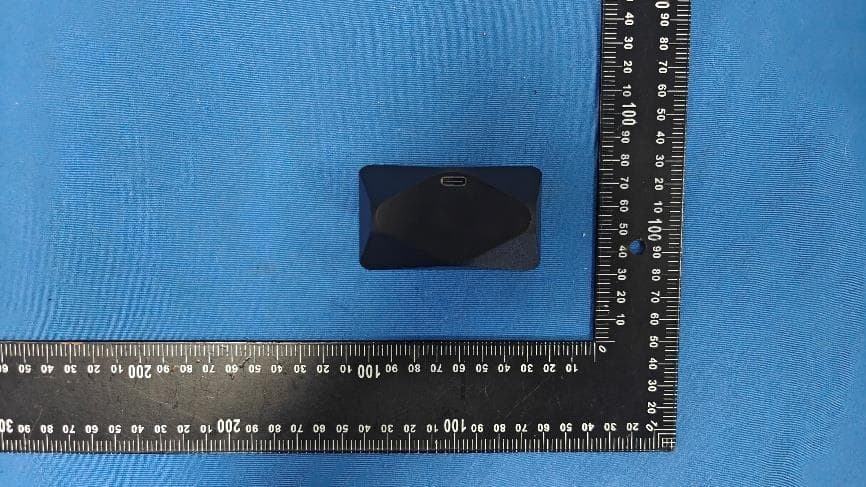

FCC ID: 2BAQY-SVANAR2R External Photos of the EUT FCC ID: 2BAQY-SVANAR2R FCC ID: 2BAQY-SVANAR2R FCC ID: 2BAQY-SVANAR2R FCC ID: 2BAQY-SVANAR2R

Label and Location Size: L: 1.0cm*W: 0.2cm Label and Location FCC ID : 2BAQY-SVANAR2R

FCC ID: 2BAQY-SVANAR2R Internal Photos of the EUT Right ANT FCC ID: 2BAQY-SVANAR2R FCC ID: 2BAQY-SVANAR2R

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA26072802103 2BAQY-SVANAR2R Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Aug. 04, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : HIFIMAN KUNSHAN TECHNOLOGY GROUP CO., LTD. Address............................................ : 2nd floor, Building C1,Shangkun Zhichuang Industrial Park,No.2001 Yingbin West Road, Bacheng Town Kunshan, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : True Wireless Earbuds Trade Mark ....................................... : N/A Manufacturer .................................... : Xingman Intelligent Technology Co., Ltd Model/Type reference ...................... : Svanar wireless 2-R Listed Models ................................... : N/A Rating ............................................... : Earphone:DC 3.7V, 0.3145mAh From battery and DC 5V From charging box Chargingbox: DC 5.0V, 500mAh From battery and 5V 0.15A Result ............................................... : PASS Report No.: CTA26072802103 Page 2 of 9 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : True Wireless Earbuds Model /Type : Svanar wireless 2-R Listed Models : N/A Applicant : HIFIMAN KUNSHAN TECHNOLOGY GROUP CO., LTD. Address : 2nd floor, Building C1,Shangkun Zhichuang Industrial Park,No.2001 Yingbin West Road, Bacheng Town Kunshan, China Manufacturer : Xingman Intelligent Technology Co., Ltd Address : 3rd Floor, Building 13, Fuqiao District 1, Fuhai Street, Bao'an District, Shenzhen City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26072802103 Page 3 of 9 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 6 2.4 Modifications ............................................................................................................ 6 3 TEST ENVIRONMENT ....................................................................................................... 7 3.1 Address of the test laboratory .................................................................................. 7 3.2 Test Facility .............................................................................................................. 7 3.3 Statement of the measurement uncertainty ............................................................. 7 4 Test limit .............................................................................................................................. 8 4.1 Requirement ............................................................................................................ 8 4.2 Conducted Power Results ....................................................................................... 8 4.3 Manufacturing tolerance .......................................................................................... 9 4.4 Evaluation Result ..................................................................................................... 9 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 9 5 Conclusion ........................................................................................................................... 9 Report No.: CTA26072802103 Page 4 of 9 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuh…

Text truncated - open the document above for the full version.

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ...................: FCC ID. ......................................... : CTA26072802101 2BAQY-SVANAR2R Compiled by ( position+printed name+signature) : File administrators Zoey Cao Supervised by ( position+printed name+signature) : Project Engineer Ace Chai Approved by ( position+printed name+signature) : RF Manager Eric Wang Date of issue ...................................: Aug. 04, 2026 Testing Laboratory Name .............: Shenzhen CTA Testing Technology Co., Ltd. Address ..........................................: Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name...........................: HIFIMAN KUNSHAN TECHNOLOGY GROUP CO., LTD. Address ...........................................: 2nd floor, Building C1,Shangkun Zhichuang Industrial Park,No.2001 Yingbin West Road, Bacheng Town Kunshan, China Test specification ......................... : Standard ..........................................: FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Equipment description ................ : True Wireless Earbuds Trade Mark ......................................: N/A Manufacturer ...................................: Xingman Intelligent Technology Co., Ltd Model/Type reference .....................: Svanar wireless 2-R Listed Models ..................................: N/A Modulation ......................................: GFSK Frequency .......................................: From 2402MHz to 2480MHz Ratings ............................................: Earphone: DC 3.7V, 0.3145mAh From battery and DC 5V From charging box Charging box: DC 3.7V, 800mAh From battery and 5V0.5A Result ..............................................: PASS Report No.: CTA26072802101 Page 2 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : True Wireless Earbuds Model /Type : Svanar wireless 2-R Listed Models : N/A Applicant : HIFIMAN KUNSHAN TECHNOLOGY GROUP CO., LTD. Address : 2nd floor, Building C1,Shangkun Zhichuang Industrial Park,No.2001 Yingbin West Road, Bacheng Town Kunshan, China Manufacturer : Xingman Intelligent Technology Co., Ltd Address : 3rd Floor, Building 13, Fuqiao District 1, Fuhai Street, Bao'an District, Shenzhen City, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26072802101 Page 3 of 38 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description* .......................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 5 2.6 EUT operation mode ......................................................................................................................... 5 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions .........................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BLE FCC ID : 2BAQY-SVANAR2R Company : HIFIMAN KUNSHAN TECHNOLOGY GROUP CO., LTD. EUT : True Wireless Earbuds Model Number : Svanar wireless 2-R Report No. : CTA26072802101 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.640 2401.692 2402.332 0.5 PASS 2440 0.652 2439.688 2440.340 0.5 PASS 2480 0.636 2479.696 2480.332 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0053 2401.5177 2402.5230 --- --- 2440 1.0072 2439.5182 2440.5254 --- --- 2480 1.0190 2479.5113 2480.5303 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 0.10 ≤30 PASS 2440 -0.01 ≤30 PASS 2480 -0.31 ≤30 PASS 9 Appendix D: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -15.58 ≤8.00 PASS 2440 -15.72 ≤8.00 PASS 2480 -15.82 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 Appendix E: Band edge measurements Test Result TestMod e Antenn a ChNam e Freq(MHz ) RefLevel[dBm ] Result[dBm ] Limit[dBm ] Verdic t BLE_1M Ant1 Low 2402 -0.57 -51.39 ≤-20.57 PASS High 2480 -0.45 -52.41 ≤-20.45 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -0.81 -0.81 --- PASS 30~1000 -0.81 -68.85 ≤-20.81 PASS 1000~26500 -0.81 -39.42 ≤-20.81 PASS 2440 Reference -0.37 -0.37 --- PASS 30~1000 -0.37 -68.55 ≤-20.37 PASS 1000~26500 -0.37 -43.88 ≤-20.37 PASS 2480 Reference -2.03 -2.03 --- PASS 30~1000 -2.03 -68.7 ≤-22.03 PASS 1000~26500 -2.03 -41.19 ≤-22.03 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 Appendix G: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.42 0.63 0.6667 66.67 1.76 --- --- 2440 0.42 0.63 0.6667 66.67 1.76 --- --- 2480 0.41 0.62 0.6613 66.13 1.80 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21 22 Appendix H: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(MH z) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -60.31 2.69 1.76 39.34 ≤54 PASS AV 2376.230 -58.8 2.69 1.76 40.85 ≤54 PASS AV 2390.000 -59.54 2.69 1.76 40.11 ≤54 PASS Peak 2310.000 -50.77 2.69 0.00 47.12 ≤74 PASS Peak 2389.775 -48.95 2.69 0.00 48.94 ≤74 PASS Peak 2390.000 -52.25 2.69 0.00 45.64 ≤74 PASS High 2480 AV 2483.500 -57.56 2.69 1.80 42.13 ≤54 PASS AV 2484.000 -57.32 2.69 1.80 42.37 ≤54 PASS AV 2500.000 -59.43 2.69 1.80 40.26 ≤54 PASS Peak 2483.500 -50.47 2.69 0.00 47.42 ≤74 PASS Peak 2484.720 -42.87 2.69 0.00 55.02 ≤74 PASS Peak 2500.000 -51.38 2.69 0.00 46.51 ≤74 PASS Note： 1. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 23 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV 24 BLE_1M_Ant1_High_2480_Peak

RAIN 电话：1353057660 Shenzhen Yongcheng International Technology Co., LTD 6 第1页 天线规格书 Antennaspecificationforapproval 客户名称 Customername 机型 Model 天线频段 Antennaband 2.4GHZ 天线类型 Antennatype 天线材质 Antenna materia T071-7034-L/R-V1.0 l FPC FPC颜色 FPCcolor 料号 Material number 厂商承认签章 Barenacceptedthesignature 客户承认签章 Clientacknowledgessignature 结构 structure 采购 Purchase 品质 QC 结构 structure 射频 radiofrequency 工程 engineering 审核 Toexamine 品质 QC 盖章区 Sealare 日期 date a 盖章区 Sealare 日期 date a T071-7034-L/R-V1.0 RAIN 电话：1353057660 Shenzhen Yongcheng International Technology Co., LTD 6 第2页 目录 一:Device support & can test antenna types.......1 二:summariz.........................................2 三:Match circuit diagram & machine picture & anten na picture.......................................3 四:Antenna Standing Wave Ratio & Antenna Efficiency (VSWR)............................................ 4 五:3D pattern .......................................5 六:Structural drawing...............................6 RAIN Shenzhen Yongcheng International Technology Co., LTD 第3 13530576606 页 一:Device support & can test antenna types RAIN Shenzhen Yongcheng International Technology Co., LTD 第4 13530576606 页 (1)Antennaperformanc 二:summarize e Descriptio 1.ThisapprovalsheetsupportsforMIDproject.FPCantennasincludeinthisproject.Thisreport isfortheperformanceofBTantenna. 2.Antennashapesize：MeettherequirementofMID 3.Antennaband：2400MHz~2500MHz 4.Antennamaterial：AntennamaterialmeettherequirementofMID 5.Adhesiveperformance：AdhesiveperformancemeettherequirementofMID 6.Antennaperformancemeetthespecbelow： n2.4GHZ~2.5GHzUnits VSWR ≤2.0 AverageAntennaGain ≥-4.5 dB AntennaEfficiency≥40 FeedImpedance50ohms OperatingTemperature-40to+85degC Polarization/AzimuthLinear/Omni-directional (2)MechanicalInformation MechanicalDimension CableLengthNA DescriptionBTantenna MaterialFPC CoaxialCableNA Environmental OperationTemperature-40to+85degC StorageTemperature-40to+85degC RAIN 第5 Shenzhen Yongcheng International Technology Co., LTD 13530576606 页 三:Match circuit diagram & machine picture & antenna picture (2) Machine picture & antenna picture 1: gold plating; 3: Surface black matte ink; 4: Meet the latest environmental requirements: RoHS&REACH; 5: The whole board shipment; RAIN Shenzhen Yongcheng International Technology Co., LTD 第6 13530576606 页 Frequency(MHz 四:Antenna Standing Wave Ratio & Antenna Efficiency (VSWR) )VSWR 24001.29 24401.02 24801.38 RAIN 电话：1353057660 Shenzhen Yongcheng International Technology Co., LTD 6 第7页 五:3Dpattern RAIN 电话：1353057660 Shenzhen Yongcheng International Technology Co., LTD 6 第8页 六:Structuraldrawing

FCC ID: 2BAQY-SVANAR2R Test Setup Photos of the EUT FCC ID: 2BAQY-SVANAR2R
