2BARQ-LUNARCNPROSmart Watch

UserManual ThankyouforchoosingtheboAtLunarConnectProasyourfitnesstransformation companion. Allowthismanualtoguideyouthroughthefunctioningofyoursmartwatch.Pleaseread itthoroughlybeforeusingitforasmoothsail.Youmayrefertotheseinstructionsfor lateruseaswell. Packagecontents boAtLunarConnectProx1 USBmagneticchargingcablex1 UserManualx1 WarrantyCardx1 CHARGINGTHEWATCH Thesmartwatchmustbechargedbeforeinitialuse.Ittakesupto30minutestobefullycharged. Connectandchargethewatchwiththeimagebelowasareference,usinga5V/2Aadapter. TURNINGTHEWATCHON/OFF Torestartorturnthewatchon/off,long-pressthesidebuttonfor3-5seconds. Youcanwakeupthescreenbyliftingyourwrist. CONNECTINGTOTHEAPP 1.DownloadtheboAtCrestapponyourphone. AvailableonbothAppStore(iOS13.0andabove)andGooglePlayStore(Android7.0and above) OR Scan[QRCODE](Alsoavailableonthewatch) 2.ConnectthedevicewiththeboAtCrestapp;ensurethatthephone’sBluetooth,aswellasthe GPSfunctionalities,areturnedon 3.SelectWaveLunarConnectProontheapp’shomescreenandclickpairtoconnect. 4.Onceconnected,youwillgetanalerttoconnectwithLCONNECTBT,clickpairifneedto receiveormakecallsfromthewatch 5.TouseallyourLunarConnectProfeaturesseamlessly,tapon‘yes’tothe‘connection’and ‘grantaccess’systemprompt. 6.Disablebatteryoptimization Note:Toensureconnectivitythroughoutyourjourney,makesuretheappisallowedtoalways runinthebackgroundofyourphone. SYNCINGYOURSMARTWATCHTOTHEAPP DataSynchronization ●Opentheapponyourphone. ●MakesureyourLunarConnectProisconnectedtotheapp. ●Synchronizationwillstartautomaticallyonceyouentertheappinterface. Note:Synchronizedataatleastonceeverydaytoavoiddatalossinthewatch. NAVIGATINGTHROUGHTHEFUNCTIONS ShortPressthebottomsidebuttonfortheMainMenu Call ClickonthisoptiontousetheBTcallingfeature.Toensurethisfeaturefunction’sproperly pleasemakesureyourwatchisconnectedwithboAtCrestappandLCONNECTBTinthe phone’sBluetoothsetting. Dialer Usethedialertodialanynumberfromthewatch. PhoneBook Addupto20contactsfromboAtCrestapp.Youcanselectanycontacttodirectlydialfromthe watch. CallHistory Youcanfindrecentlyreceived,missed,andoutgoingcalllogsintherecentcallsofthewatch. Activities Taponthisicontoselectanyactivity.Choosefrommultiplesportsmodeslikewalking,treadmill, running,badminton,football,basketball,tennis,yoga,dancing,cycling,indoorcycling,boxing, calisthenics,karate,tabletennis,pilates,skipping,hiking,hockey,kabaddi,bowling. Youcanalsoselectthe700+activemodesfromtheapp.Goto700+Activemodesfromthe homescreenandselectanyactivityofyourchoice. Taponanysportmodetostarttheactivity,clickthegobutton,andthewatchwillstartrecording thedurationoftheactivity.Pressanysidebuttonorswiperighttopauseorstoptheactivity.The activitywillnotberecordedifitislessthan3mins. ActivityRecords Checkyourdailyworkoutrecordshere. SensAI SensAIfeaturehelptoimproveyourcricketgameandanalyzethecrucialin-gamestats.You canselectbattingorbowlingonceyouenterthemenu.  Batting Clickonthisiconifyouareabatsmanandselectright-handedorleft-handedasperyour requirement. Ifyouarearight-handedbatsman,wearthewatchinyourlefthandandvice-versa. Youcansettimeandshotsgoalsalso. Oncestarted,youcanrecordyourhands’speed,no.ofshots,andhit/miss. Swipelefttostop/pausetheactivity.  Bowling. Selectright-handedorleft-handed.Onceyouareinselectthebowltype,spin,medium,fast. Youcansettimeandshotsgoalsalso. Youcanrecordyourarmsspeed,no.ofballs,andtotalstepcount. Swipelefttostop/pausetheactivity. Activity Clickonthistocheckyourdailyactivitydatalikestepcount,calories,anddistancecovered. SensAIRecords CheckyourSensAIrecordsfromhere. HeartRateMonitor Wearthewatchonyourwrist,slidetwicetowardsleftonthescreen,andthenclickontheicon tostartmeasurements.Youcanalsoviewthedataontheapp. Swipeuptocheckthemoredetailedviewoftheheartraterecord. Note:Measurementsareforreferenceonlyandnotformedicalpurposes SpO2monitoring Wearthewatchonyourwrist,pressthesidebuttonandthenclickontheicontostart measurements.Youcanalsoviewthedataontheapp. SwipeuptocheckthemoredetailedviewoftheSpO2record. Note:Measurementsareforreferenceonlyandnotformedicalpurposes. Stressmonitoring Clickthisoptiontostartthestressmonitoring.Makesureyouwearyourwatchonyourwrist properlytogetaccurateresults. Analysisofthemeasurementis Relax:1-29 Normal:30-59 Medium:60-79 High:80-100 Note:Measurementsareforreferenceonlyandnotformedicalpurposes. SleepMonitor Tapontheicontoreviewthesleepdataofthepreviousnight. Oncetheasleepcriteriaaremet,yoursmartwatchwillstartrecordingfrom8pmatnightto 10aminthemorningthenextday. Onceyouliedownandwatchdetectsnomovementfor30minutes,itwillstartrecording,and willstoprecordingifitdetectsexcessivemovement. Youcancheckthedataontheapponlyaftertheawakecriteriaismet. YoucanalsotracksleepscoresontheboAtCrestapp. Note: *Foraccuratesleepdatarecording,theasleepcriteriahavetobemetwhichincludeslimited movement,wristpositionsandangles,andmore. *Theawakecriteriawillbemetonlyafteritrecordssomenoticeablemovement Breatheexercises Clickonthebreathexercisesicontoregulateyourbreathingwiththeinstructionstorelax. CameraControlMode Tapontheremotecameraicononyoursmartwatchtoclickaphotofromyourphone. *Note:Turnthecameraonfromyourphonetousethisfeature. MusicControl Tapontheremotemusiccontrolicononyourwatchtoplaymusicfromyourphone. *Note:Someappswithdifferentprotocolsmightnotwork. Weather ConnectwiththeboAtcrestapptogetdailyweatherupdatesonthewatch Alarm Taponthistosetanalarmonyourwatch. Notifications Youcancheckallthenotificationsfromhere. Stopwatch Clickonthistostartthestopwatchonyourwatch. Timer Taponthistoturnonthetimer. Flashlight Taponthistoturnyourdialintoaflashlight. FindMyPhone Taponthisicontofindyourphone.Onceenabled,yourphonewillstartringingandvibrating. Tapagaintostopit. Note:YoursmartwatchshouldbeconnectedtoyourphoneviaBluetoothandwithinitsrangefor thisfeaturetowork. WatchFaces Selectandchangethewatchfacefromhere.Alternatively,youcanlong-pressthehomescreen toswitchbetweenthewatchfaces. ScreenSleep Taponthisandadjustthescreensleeptime. AlwaysonDisplay Setyourcurrentwatchfaceorselectfromanalogordigitalw…

Text truncated - open the document above for the full version.

Imagine Marketing Ltd. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/31/2023 U.S. Agent Designation Imagine Marketing Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BARQ- LUNARCNPRO): Name and company of U.S. agent: FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of Imagine Marketing Ltd.. Imagine Marketing Ltd. with the FRN 0033617770 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature abhinav pandey CEO Imagine Marketing Ltd. Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7)-U, V05

Covered Equipment Identification Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows: We, applicant Company Name: Imagine Marketing Ltd. Address: E Wing, 2nd Floor, Corporate Avenue AG Road Opp. Satellite Gazebo Andheri East Mumbai, India Phone: +86-769-85421455 certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2023-07-31 Name / Title: Abhinav Pandey / CEO Company: Imagine Marketing Ltd. Address: E Wing, 2nd Floor, Corporate Avenue AG Road Opp. Satellite Gazebo Andheri East Mumbai, India Phone: +86-769-85421455 Fax: N/A E-Mail: [email protected]

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BARQ-LUNARCNPRO Lunar Connect Pro, Lunar Call Pro We, applicant Company Name: Imagine Marketing Ltd. Address: E Wing, 2nd Floor, Corporate Avenue AG Road Opp. Satellite Gazebo Andheri East Mumbai, India Phone: +86-769-85421455 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2023-07-31 Name / Title: Abhinav Pandey / CEO Company: Imagine Marketing Ltd. Address: E Wing, 2nd Floor, Corporate Avenue AG Road Opp. Satellite Gazebo Andheri East Mumbai, India Phone: +86-769-85421455 Fax: N/A E-Mail: [email protected]

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2BARQ-LUNARCNPRO Lunar Connect Pro, Lunar Call Pro For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2023-07-31 Name / Title: Abhinav Pandey / CEO Company: Imagine Marketing Ltd. Address: E Wing, 2nd Floor, Corporate Avenue AG Road Opp. Satellite Gazebo Andheri East Mumbai, India Phone: +86-769-85421455 Fax: N/A E-Mail: [email protected]

Imagine Marketing Ltd. E Wing, 2nd Floor, Corporate Avenue AG Road Opp. Satellite Gazebo Andheri East Mumbai, India Date: July 31, 2023 FCC ID: 2BARQ-LUNARCNPRO Model Number: Lunar Connect Pro, Lunar Call Pro To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Imagine Marketing Ltd. hereby declare that our product (Smart Watch) Model Number: Lunar Connect Pro, Lunar Call Pro board, Schematic, Hardware version, Software version, structure and internal photos are same, named differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name/Title: Abhinav Pandey / CEO Company: Imagine Marketing Ltd. Address: E Wing, 2nd Floor, Corporate Avenue AG Road Opp. Satellite Gazebo Andheri East Mumbai, India Tel: +86-769-85421455 Fax: N/A E-Mail: [email protected]

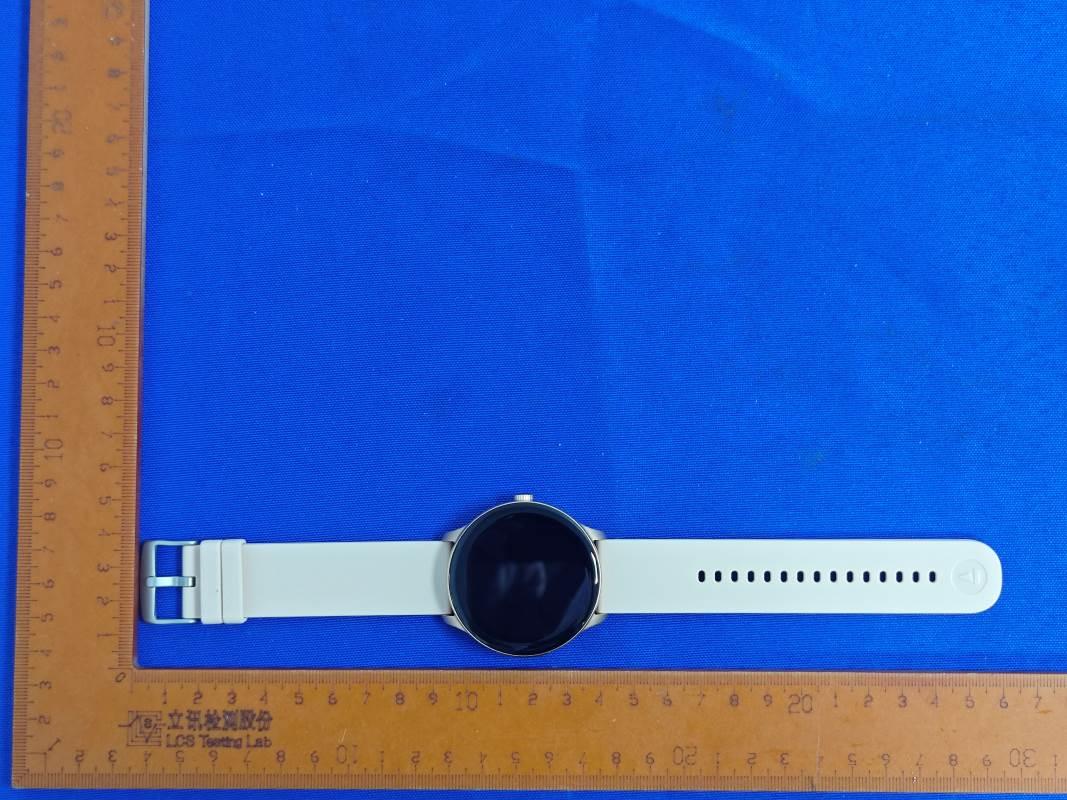

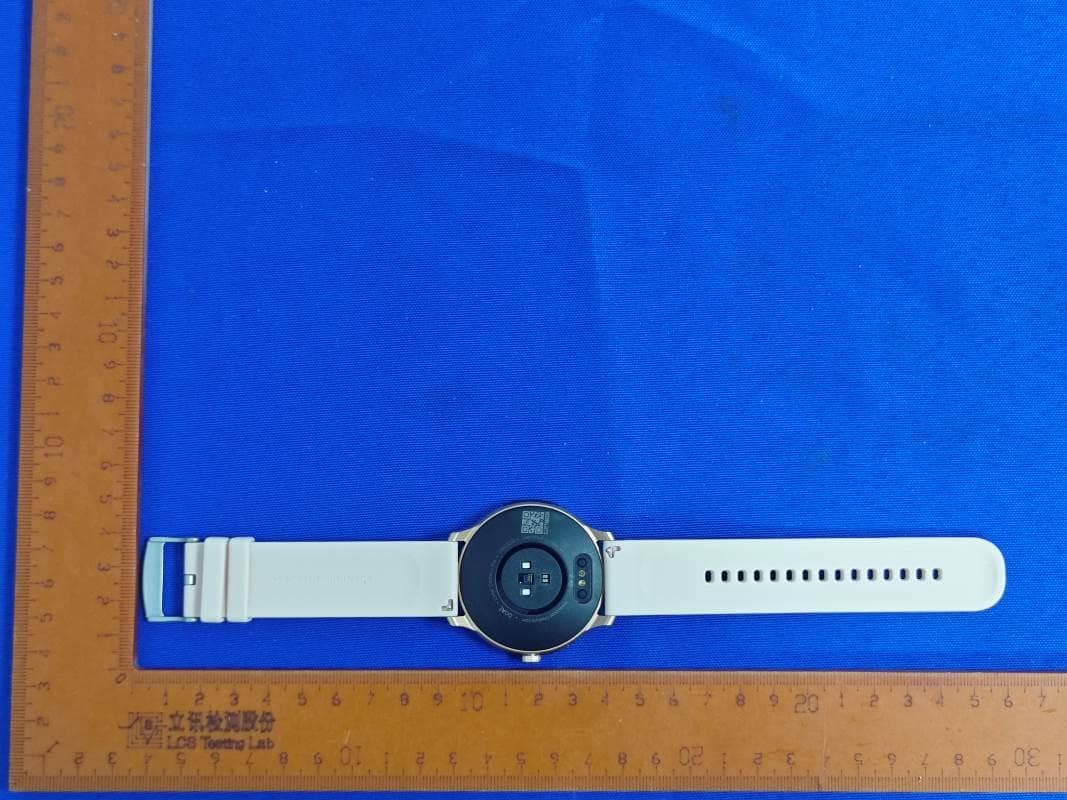

Page1of4FCCID:2BARQ-LUNARCNPRO ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of4FCCID:2BARQ-LUNARCNPRO ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of4FCCID:2BARQ-LUNARCNPRO ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of4FCCID:2BARQ-LUNARCNPRO ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8
