2BARQ-R255MAXRockerz 255 Max

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: TRANS-PAC CHINA LLC FRN: 0033505975 Contact Name: Lisa Lee Address: 3715 S 182nd Street, C120 Seatac, WA 98188-9993 US Telephone No: +1 (818) 818-0538 Email: [email protected] Applicant: Company name: Imagine Marketing Ltd. FRN: 0033617770 Product Description: Rockerz 255 Max Grantee code: 2BARQ FCC ID: 2BARQ-R255MAX Contact Name: Vedantam hyam Address: E Wing, 2nd Floor, Corporate Avenue AG Road, Opp. Satellite Gazebo Andheri East, Mumbai, 400093, India Telephone No: 9845399703 Email: [email protected] [Imagine Marketing Ltd.] certifies that, as of the date of this filing of the application with the TCB, [TRANS-PAC CHINA LLC] is our designated US agent for service of process for the above referenced FCC ID. [Imagine Marketing Ltd.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [TRANS-PAC CHINA LLC] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 10.12.2023 Applicant’s Name: Vedantam hyam US Agent’s Name: Lisa Lee Title: Title: Manager Signature Signature

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Imagine Marketing Ltd. Grantee code: 2BARQ FCC ID: 2BARQ-R255MAX Contact Name: Vedantam hyam Address: E Wing, 2nd Floor, Corporate Avenue AG Road, Opp. Satellite Gazebo Andheri East, Mumbai, 400093, India Telephone No: 9845399703 Fax No: 0769-85421454 Email: [email protected] i. [ Imagine Marketing Ltd. ] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [ Imagine Marketing Ltd. ] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. Imagine Marketing Ltd. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Date: 10.12.2023 Applicant’s Name: Vedantam hyam Title: Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist FRN:0033617770

Imagine Marketing Ltd. Product Similarity Declaration Product name: Rockerz 255 Max Model name: Rockerz 255 Max, Rockerz 258 Max, Rockerz 255 Max v2, Rockerz 258 Max v2, Rockerz 255 Pro Max, Rockerz 258 Pro Max FCC ID: 2BARQ-R255MAX We (Imagine Marketing Ltd.) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model name. Demonstrate the detail(descriptions and pictures) as to the difference list above. Signature: Name: Vedantam hyam Title: Date: 10.12.2023

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: Imagine Marketing Ltd. Address: E Wing, 2nd Floor, Corporate Avenue AG Road, Opp. Satellite Gazebo Andheri East, Mumbai, 400093, India Product Name: Rockerz 255 Max Model Number: Rockerz 255 Max, Rockerz 258 Max, Rockerz 255 Max v2, Rockerz 258 Max v2, Rockerz 255 Pro Max, Rockerz 258 Pro Max FCC Identifier: 2BARQ-R255MAX We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Vedantam hyam Date: 10/12/2023 Title: Signature of applicant:

C5266091_X10_Ed.1 1/1 Imagine Marketing Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 10/12/2023 Subject: Request for Confidentiality FCC ID: 2BARQ-R255MAX To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Vedantam hyam Date: 10/12/2023 Title:

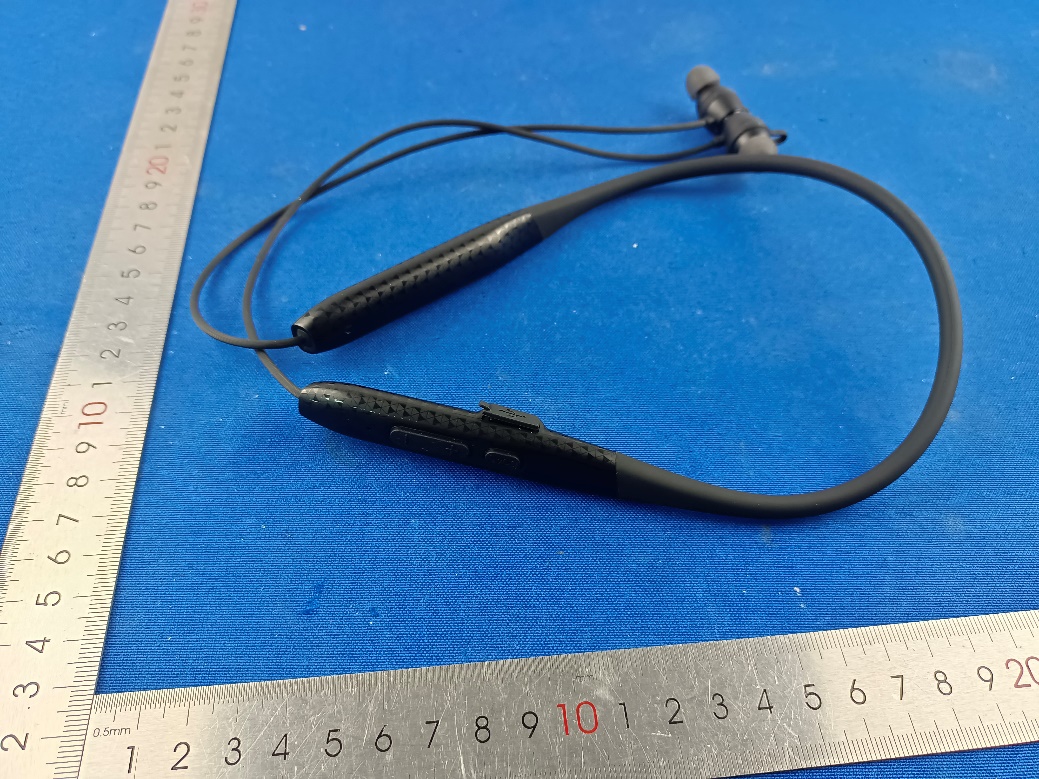

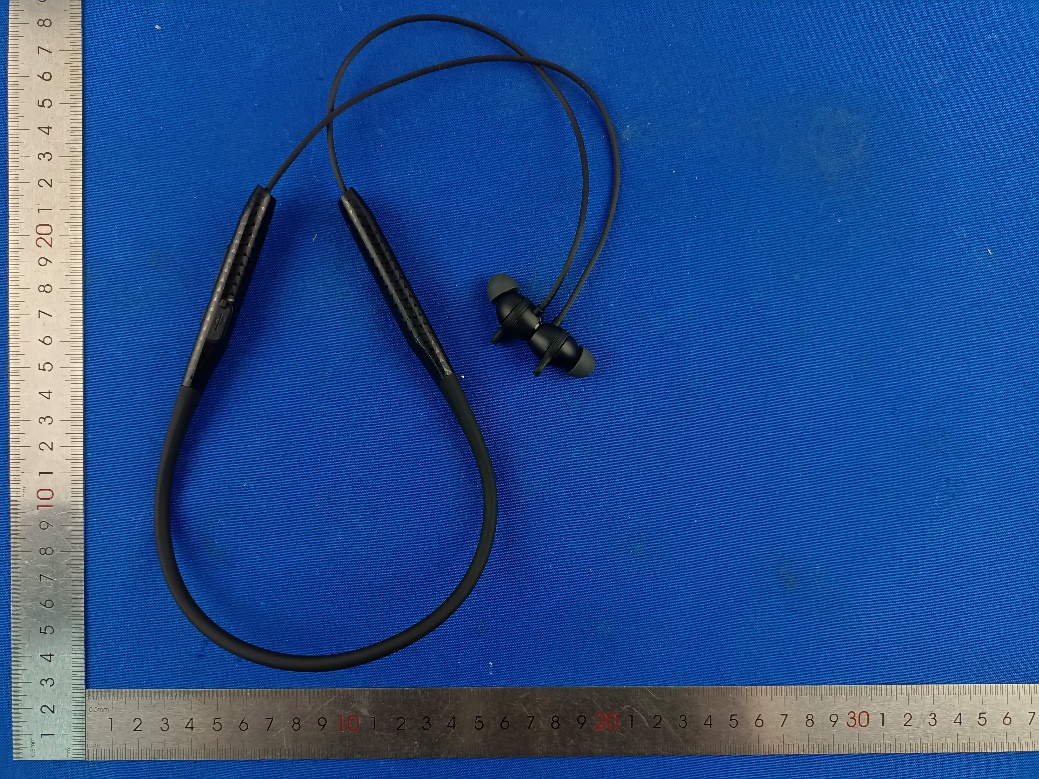

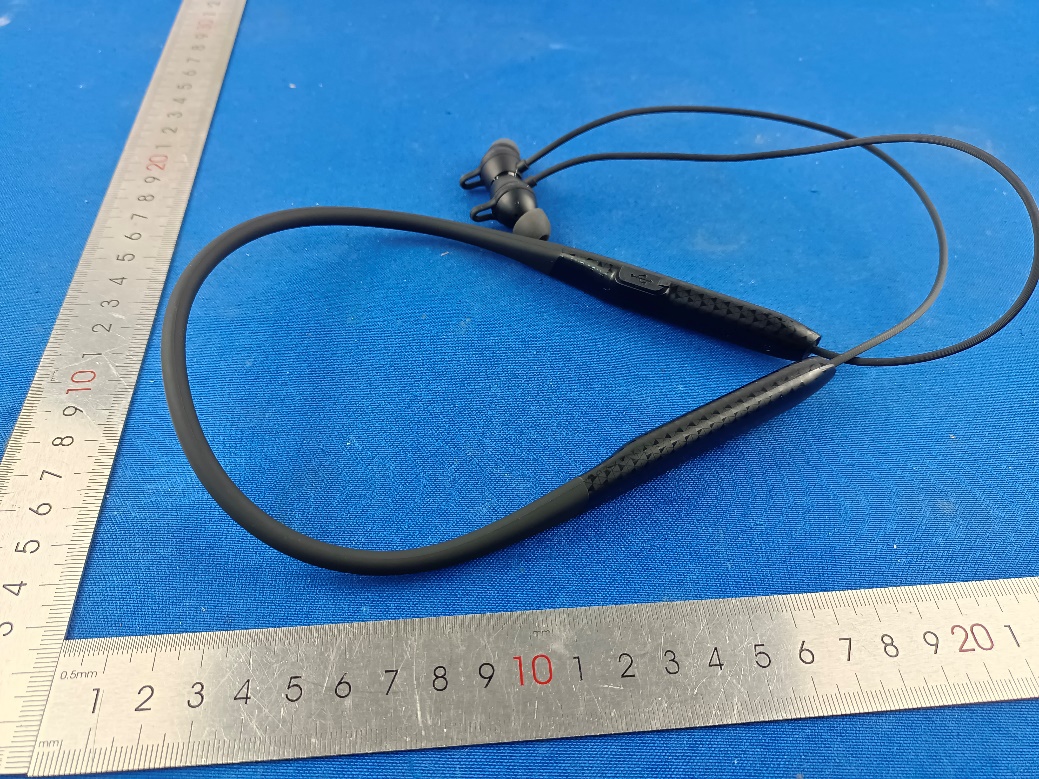

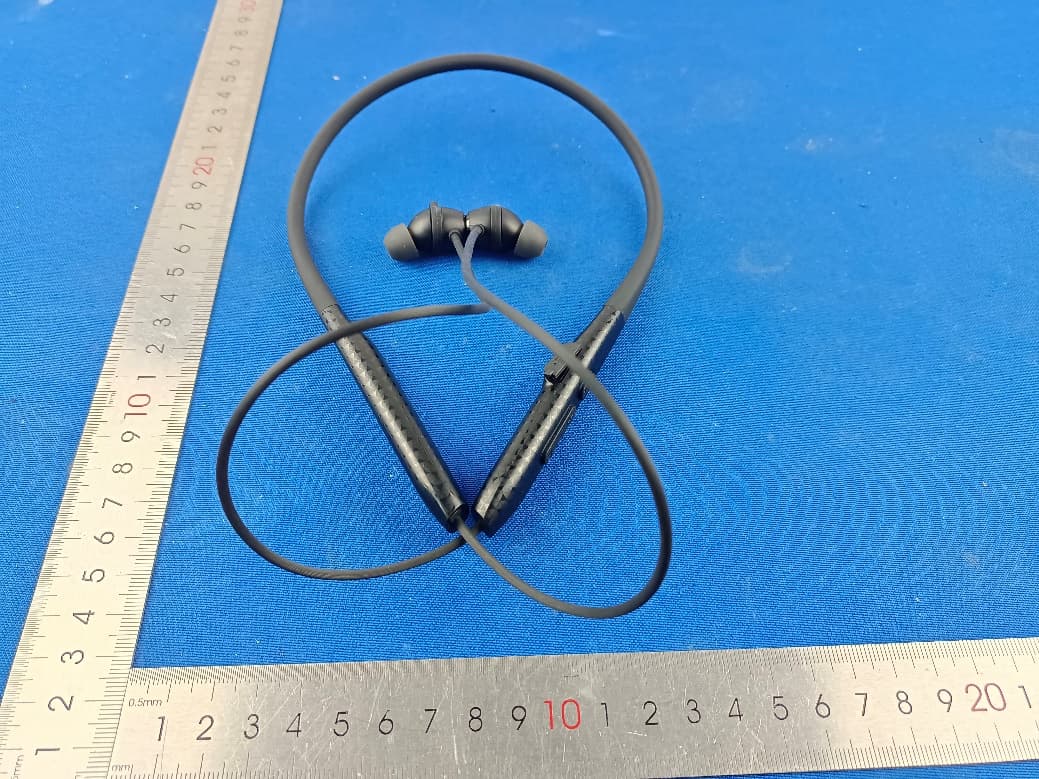

Page 1 of 3 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Photographs of the EUT Model: Rockerz 255 Max External Page 2 of 3 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Page 3 of 3 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected]

Label Location

Page 1 of 3 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Photographs of the EUT Model: Rockerz 255 Max Internal Page 2 of 3 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] ANT Page 3 of 3 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected]

Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] RF EXPOSURE Test Report Report No.: MTi230731012-05E2 Date of issue: 2023-09-20 Applicant: Imagine Marketing Ltd. Product: Rockerz 255 Max Model(s): Rockerz 255 Max, Rockerz 258 Max Rockerz 255 Max v2, Rockerz 258 Max v2 Rockerz 255 Pro Max, Rockerz 258 Pro Max FCC ID: 2BARQ-R255MAX Shenzhen Microtest Co., Ltd. http://www.mtitest.com - Page 2 of 6- Report No.: MTi230731012-05E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Instructions 1. The report shall not be partially reproduced without the written consent of the laboratory; 2. The test results of this report are only responsible for the samples submitted; 3. This report is invalid without the seal and signature of the laboratory; 4. This report is invalid if transferred, altered or tampered with in any form without authorization; 5. Any objection to this report shall be submitted to the laboratory within 15 days from the date of receipt of the report. - Page 3 of 6- Report No.: MTi230731012-05E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Applicant: Imagine Marketing Ltd. Address: E Wing, 2nd Floor, Corporate Avenue AG Road, Opp. Satellite Gazebo Andheri East, Mumbai, 400093, India Manufacturer: Kvance Technology Co., Ltd. Address: 4 Floor, Building B, 103 Baonan Road, Longgang District, Shenzhen, Guangdong, China, 518116 Factory: Kvance Technology Co., Ltd. Address: 4 Floor, Building B, 103 Baonan Road, Longgang District, Shenzhen, Guangdong, China, 518116 Product description Product name: Rockerz 255 Max Trademark: N/A Model name: Rockerz 255 Max Serial Model: Rockerz 258 Max, Rockerz 255 Max v2, Rockerz 258 Max v2 Rockerz 255 Pro Max, Rockerz 258 Pro Max Standards: N/A Test method: KDB 447498 D01 v06 Date of Test Date of test: 2023-08-22 to 2023-09-20 Test result: Pass Test Engineer : (David Lee) Reviewed By: : (Leon Chen) Approved By: : (Tom Xue) - Page 4 of 6- Report No.: MTi230731012-05E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Table of Contents 1. STANDALONE SAR TEST EXCLUSION CONSIDERATIONS ............................................................................................ 5 2. SAR TEST EXCLUCSION THRESHOLDS ........................................................................................................................ 6 - Page 5 of 6- Report No.: MTi230731012-05E2 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China. Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 1. Standalone SAR test exclusion considerations Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance defined in 4.1 f) is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified, typically in the SAR measurement or SAR analysis report, by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting are required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions. a) For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where  f (GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison  The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1 f) is applied to determine SAR test exclusion. b) For 100 MHz to 6 GHz and test separation distances > 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined …

Text truncated - open the document above for the full version.

2.4GHz 3216 Chip Antenna: RANT3216F245C03 Application: WLAN, 802.11b/g, Bluetooth, WLAN, etc ... Features SMD, high reliability, ultra Impact, Omni-directional ... Part number Information RANT 3216 F 245 C 03 (A) (B) (C) (D) (E) (F) (A)Product Type Chip Antenna (B) Size Code 3.2x1.6mm(±0.2mm) (C) Material High K material (D) Frequency 2.4 ~ 2.5GHz (E) Feeding mode PIFA & Single Feeding (F) Antenna type Type=03 Electrical Specification Working Frequency Range 2400 ~2500 MHz Bandwidth 120 MHz (Min.) Peak Gain 2.67 dBi (Typ.) Impedance 50 Ohm Return loss 10 dB ( Min) Polarization Linear Azimuth Beamwidth Omni-directional Operation Temperature(°C) -40 ~85°C Resistance to Soldering Heats 10sec. ( @ 280°C) Termination Ni / Au (Lead less) The specification is defined on EVB. Dimension and Terminal Configuration Dimension (mm) L 3.20 ± 0.20 W 1.60 ± 0.20 T 0.45 ± 0.20 咏成國際科技有限公司 RAIN International Technology Co., Ltd. 電話: TEL: No. Terminal Name 1 Feeding/GNG 2 GND/Feeding 1 2.4GHz 3216 Chip Antenna: RANT3216F245C03 Evaluation Board Reference PCB Dimension Antenna Layout Reference Unit :mm Electrical Characteristics Return Loss & Radiation Return Loss Frequency(MHz) S11 (dB) 2400 - 10.50 2450 -30.62 2500 - 11.47 2.4GHz 3216 Chip Antenna: RANT3216F245C03 Radiation （Max: 5dBi Min: -40dBi Scale: 5/div） 2450MHz 2400MHz 2450MHz 2500MHz Efficiency 82.52% 85.26% 83.01% Peak Gain 1.15 dBi 1.19 2.67dBidBi Directivity 1.89 dBi 1.97 dBi 1.91 dBi 5dBi 2.4GHz 3216 Chip Antenna: RANT3216F245C03 Taping Specifications Reel and Taping Specification Reel Specification TYPE SIZE A B C D 3216 7” 5K/Reel 9.0±0.5 60±2 13.5±0.5 178±2 Tapping Specification Packaging Type A B W E F G H T ψD P Paper Type 3216 1.90±0.2 0 3.50±0.2 0 8.0±0.2 0 1.75±0.1 0 3.5±0.05 4.0±0.10 2.0±0.05 0.75±0.1 0 1.50±0.1 0 4.0±0.1 2.4GHz 3216 Chip Antenna: RANT3216F245C03 Reliability Table Test Item Procedure Requirements Ceramic Type Remark (Reference) Electrical Characterization Fulfill the electrical specification User Spec. Thermal Shock 1. Preconditioning: 50 ± 10°C / 1 hr , then keep for 24 ± 1 hrs at room temp. 2. Initial measure: Spec: refer Initialspec. 3. Rapid change of temperature test: -30°C to +85°C; 100 cycles; 15 minutes at Lower category temperature; 15 minutes at Upper category temperature. No Visible Damage. Fulfill the electrical specification. MIL-STD-202 107 Temperature Cycling 1. Initial measure: Spec: refer Initialspec. 2. 100 Cycles (-30°C to +85°C), Soak Mode=1 (2 Cycle/hours). 3. Measurement at 24 ± 2Hours after test condition. No Visible Damage. Fulfill the electrical specification. JESD22 JA104 High Temperature Exposure 1. Initial measure: Spec: refer Initialspec. 2. Unpowered; 500hours @ T=+85°C . 3. Measurement at 24 ± 2 hours after test. No Visible Damage. Fulfill the electrical specification. MIL-STD-202 108 Low Temperature Storage 1. Initial measure: Spec: refer Initialspec. 2. Unpowered : 500hours @ T= -30°C . 3. Measurement at 24 ± 2 hours after test. No Visible Damage. Fulfill the electrical specification. MIL-STD-202 108 Solderability (SMD Bottom Side) Dipping method: a. Temperature: 235 ± 5°C b. Dipping time: 3 ± 0.5s The solder should cover over 95% of the critical area of bottom side. IEC 60384-21/22 4.10 Soldering Heat Resistance (RSH) Preheating temperature: 150 ± 10°C. Preheating time: 1~2 min. Solder temperature: 260 ± 5°C. Dipping time: 5 ± 0.5s No Visible Damage. IEC 60384-21/22 4.10 Vibration 5g's for 20 min., 12 cycles each of 3 orientations Note: Use 8"X5" PCB .031" thick 7 secure points on, one long side and 2 secure points at corners of opposite sides. Parts mounted within 2" from any secure point. Test from 10-2000 Hz. No Visible Damage. MIL-STD-202 Method 204 Mechanical Shock Three shocks in each direction shall be applied along the three mutually perpendicular axes of the test specimen (18 shocks) Peak value: 1,500g’s Duration: 0.5ms Velocity change: 15.4 ft/s Waveform: Half-sine No Visible Damage. MIL-STD-202 Method 213 Humidity Bias 1. Humidity: 85% R.H., Temperature:85 ± 2 °C. 2. Time: 500 ± 24 hours. 3. Measurement at 24 ± 2hrs after test condition. No Visible Damage. Fulfill the electrical specification. MIL-STD-202 Method 106 2.4GHz 3216 Chip Antenna: RANT3216F245C01 Board Flex (SMD) 1. Mounting method: IR-Reflow. PCB Size (L:100 × W:40 × T:1.6mm) 2. Apply the load in direction of the arrow until bending reaches 2 mm . No Visible Damage. AEC-Q200 005 Adhesion Force of 1.8Kg for 60 seconds. No Visible Damage Magnification of 20X or greater may be employed for inspection of the mechanical integrity of the device body terminals and body/terminal junction. AEC-Q200 006 Physical Dimension Any applicable method using x10 magnification, micrometers, calipers, gauges, contour projectors, or other measuring equipment, capable of determining the actual specimen dimensions. In accordance with specification. JESD22 JB100 Revision History Revision Date Content 1 2019/03/01 New Datasheet 2 2020/02/22 Add 2D radiation characteristic

The test report is only used for customer scientific research, teaching, internal quality control and other purposes, and is for internal reference only. Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Test Report Report No.: MTi230731012-05E1 Date of issue: 2023-09-20 Applicant: Imagine Marketing Ltd. Product: Rockerz 255 Max Model(s): FCC ID: Rockerz 255 Max, Rockerz 258 Max Rockerz 255 Max v2, Rockerz 258 Max v2 Rockerz 255 Pro Max, Rockerz 258 Pro Max 2BARQ-R255MAX Shenzhen Microtest Co., Ltd. http://www.mtitest.com Page 2 of 68 Report No.: MTi230731012-05E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Instructions 1. This test report shall not be partially reproduced without the written consent of the laboratory. 2. The test results in this test report are only responsible for the samples submitted 3. This test report is invalid without the seal and signature of the laboratory. 4. This test report is invalid if transferred, altered, or tampered with in any form without authorization. 5. Any objection to this test report shall be submitted to the laboratory within 15 days from the date of receipt of the report. Page 3 of 68 Report No.: MTi230731012-05E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Table of contents 1 General Description ......................................................................................................................... 5 1.1 Description of the EUT ............................................................................................................................... 5 1.2 Description of test modes .......................................................................................................................... 5 1.3 Environmental Conditions .......................................................................................................................... 8 1.4 Description of support units ....................................................................................................................... 8 1.5 Measurement uncertainty .......................................................................................................................... 8 2 Summary of Test Result .................................................................................................................. 9 3 Test Facilities and accreditations ................................................................................................. 10 3.1 Test laboratory ......................................................................................................................................... 10 4 List of test equipment .................................................................................................................... 11 5 Evaluation Results (Evaluation) .................................................................................................... 12 5.1 Antenna requirement ............................................................................................................................... 12 6 Radio Spectrum Matter Test Results (RF) .................................................................................... 12 6.1 Occupied Bandwidth ................................................................................................................................ 12 6.2 Maximum Conducted Output Power ........................................................................................................ 14 6.3 Channel Separation ................................................................................................................................. 16 6.4 Number of Hopping Frequencies ............................................................................................................. 17 6.5 Dwell Time ............................................................................................................................................... 18 6.6 RF conducted spurious emissions and band edge measurement .......................................................... 20 6.7 Band edge emissions (Radiated) ............................................................................................................ 21 6.8 Radiated emissions (below 1GHz) ......................................................................................................... 26 6.9 Radiated emissions (above 1GHz) .......................................................................................................... 30 Photographs of the test setup ............................................................................................................. 34 Photographs of the EUT....................................................................................................................... 35 Appendix A: 20dB Emission Bandwidth ............................................................................................. 37 Appendix B: Maximum conducted output power ............................................................................... 41 Appendix C: Carrier frequency separation ......................................................................................... 45 Appendix D: Time of occupancy ......................................................................................................... 47 Appendix E: Number of hopping channels......................................................................................... 54 A…

Text truncated - open the document above for the full version.

Page 51 of 68 Report No.: MTi230731012-05E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 2DH5_Ant1_Hop 3DH1_Ant1_Hop Page 52 of 68 Report No.: MTi230731012-05E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 3DH3_Ant1_Hop Page 53 of 68 Report No.: MTi230731012-05E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 3DH5_Ant1_Hop Page 54 of 68 Report No.: MTi230731012-05E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Appendix E: Number of hopping channels Test Result Test Mode Antenna Frequency [MHz] Result [Num] Limit [Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS Page 55 of 68 Report No.: MTi230731012-05E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Page 56 of 68 Report No.: MTi230731012-05E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Appendix F: Band edge measurements Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 Page 57 of 68 Report No.: MTi230731012-05E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 Page 58 of 68 Report No.: MTi230731012-05E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 Page 59 of 68 Report No.: MTi230731012-05E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 Page 60 of 68 Report No.: MTi230731012-05E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Appendix G: Conducted Spurious Emission Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 Page 61 of 68 Report No.: MTi230731012-05E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference Page 62 of 68 Report No.: MTi230731012-05E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected]…
