1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: TRANS-PAC CHINA LLC FRN: 0033505975 Contact Name: Lisa Lee Address: 3715 S 182nd Street, C120 Seatac, WA 98188-9993 US Telephone No: +1 (818) 818-0538 Email: [email protected] Applicant: Company name: Imagine Marketing Ltd. Product Description: Rockerz 260 Grantee code: 2BARQ FCC ID: 2BARQ-R260 Contact Name: abhinav pandey Address: E Wing, 2nd Floor, Corporate Avenue AG Road, Opp. Satellite Gazebo Andheri East, Mumbai, 400093, India Telephone No: 0769-85421455 Email: [email protected] [Imagine Marketing Ltd.] certifies that, as of the date of this filing of the application with the TCB, [TRANS-PAC CHINA LLC] is our designated US agent for service of process for the above referenced FCC ID. [Imagine Marketing Ltd.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [TRANS-PAC CHINA LLC] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 8.08.2023 Applicant’s Name: abhinav pandey US Agent’s Name: Lisa Lee Title: CEO Title: Manager Signature Signature

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Imagine Marketing Ltd. Grantee code: 2BARQ FCC ID: 2BARQ-R260 Contact Name: abhinav pandey Address: E Wing, 2nd Floor, Corporate Avenue AG Road, Opp. Satellite Gazebo Andheri East, Mumbai, 400093, India Telephone No: 0769-85421455 Fax No: 0769-85421454 Email: [email protected] i. [Imagine Marketing Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [ Imagine Marketing Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. Imagine Marketing Ltd. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Date: 8.08.2023 Applicant’s Name: abhinav pandey Title: CEO Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Imagine Marketing Ltd. Product Similarity Declaration Product name: Rockerz 260 Model name: Rockerz 260, Rockerz 263, Rockerz 260v2, Rockerz 268, Rockerz 260F, Rockerz 260R, Rockerz 260RTL, Rockerz 245 V2 Pro,Rockerz 195 V2 Pro, Rockerz 103 V2 Pro FCC ID: 2BARQ-R260 We (Imagine Marketing Ltd.) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model name. Demonstrate the detail(descriptions and pictures) as to the difference list above. Signature: Name: abhinav pandey Title: CEO Date: 8.08.2023

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: Imagine Marketing Ltd. Address: E Wing, 2nd Floor, Corporate Avenue AG Road, Opp. Satellite Gazebo Andheri East, Mumbai, 400093, India Product Name: Rockerz 260 Model Number: Rockerz 260, Rockerz 263, Rockerz 260v2, Rockerz 268, Rockerz 260F, Rockerz 260R, Rockerz 260RTL, Rockerz 245 V2 Pro,Rockerz 195 V2 Pro, Rockerz 103 V2 Pro FCC Identifier: 2BARQ-R260 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: abhinav pandey Date: 8/24/2023 Title: CEO Signature of applicant:

C5266091_X10_Ed.1 1/1 Imagine Marketing Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 8/8/2023 Subject: Request for Confidentiality FCC ID: 2BARQ-R260 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: abhinav pandey Date: 8/8/2023 Title: CEO

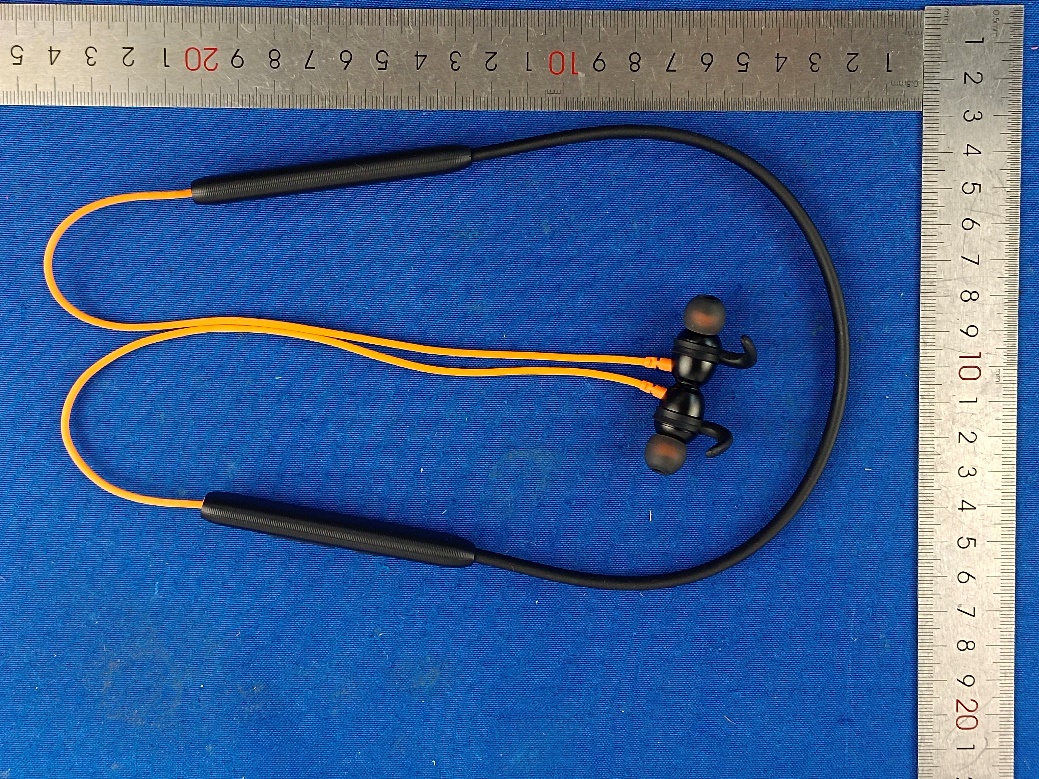

Page 1 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Photographs of the EUT Model: Rockerz 260 External Page 2 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Page 3 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Page 4 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected]

Label Location

Page 1 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Photographs of the EUT Model: Rockerz 260 Internal Page 2 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] ANT Page 3 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Page 4 of 4 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel : (8 6-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected]

The test report is only used for customer scientific research, teaching, internal quality control and other purposes, and is for internal reference only. Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Test Report Report No.: MTi230615003-09E1 Date of issue: 2023-08-03 Applicant: Imagine Marketing Ltd. Product: Rockerz 260 Model(s): Rockerz 260, Rockerz 263, Rockerz 260v2, Rockerz 268, Rockerz 260F, Rockerz 260R, Rockerz 260RTL,Rockerz 245 V2 Pro,Rockerz 195 V2 Pro, Rockerz 103 V2 Pro FCC ID: 2BARQ-R260 Shenzhen Microtest Co., Ltd. http://www.mtitest.com Page 2 of 74 Report No.: MTi230615003-09E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Instructions 1. This test report shall not be partially reproduced without the written consent of the laboratory. 2. The test results in this test report are only responsible for the samples submitted 3. This test report is invalid without the seal and signature of the laboratory. 4. This test report is invalid if transferred, altered, or tampered with in any form without authorization. 5. Any objection to this test report shall be submitted to the laboratory within 15 days from the date of receipt of the report. Page 3 of 74 Report No.: MTi230615003-09E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Table of contents 1 General Description ......................................................................................................................... 5 1.1 Description of the EUT ............................................................................................................................... 5 1.2 Description of test modes .......................................................................................................................... 5 1.3 Environmental Conditions .......................................................................................................................... 7 1.4 Description of support units ....................................................................................................................... 7 1.5 Measurement uncertainty .......................................................................................................................... 7 2 Summary of Test Result .................................................................................................................. 8 3 Test Facilities and accreditations ................................................................................................... 9 3.1 Test laboratory ........................................................................................................................................... 9 4 List of test equipment .................................................................................................................... 10 5 Evaluation Results (Evaluation) .................................................................................................... 13 5.1 Antenna requirement ............................................................................................................................... 13 6 Radio Spectrum Matter Test Results (RF) .................................................................................... 13 6.1 Occupied Bandwidth ................................................................................................................................ 13 6.2 Maximum Conducted Output Power ........................................................................................................ 16 6.3 Channel Separation ................................................................................................................................. 18 6.4 Number of Hopping Frequencies ............................................................................................................. 20 6.5 Dwell Time ............................................................................................................................................... 22 6.6 Emissions in frequency bands ................................................................................................................. 25 6.7 Band edge emissions (Radiated) ............................................................................................................ 28 6.8 Emissions in frequency bands (below 1GHz) .......................................................................................... 31 6.9 Emissions in frequency bands (above 1GHz) ......................................................................................... 35 Photographs of the test setup ............................................................................................................. 40 Photographs of the EUT....................................................................................................................... 41 Appendix A: 20dB Emission Bandwidth ............................................................................................. 43 Appendix B: Maximum conducted output power ............................................................................... 47 Appendix C: Carrier frequency separation ......................................................................................... 51 Appendix D: Time of occupancy ......................................................................................................... 53 Appendix E: Number of hopping channels...........................................…

Text truncated - open the document above for the full version.

2.4GHz 3216 Chip Antenna: RANT3216F245C03 Application: WLAN, 802.11b/g, Bluetooth, WLAN, etc ... Features SMD, high reliability, ultra Impact, Omni-directional ... Part number Information RANT 3216 F 245 C 03 (A) (B) (C) (D) (E) (F) (A)Product Type Chip Antenna (B) Size Code 3.2x1.6mm(±0.2mm) (C) Material High K material (D) Frequency 2.4 ~ 2.5GHz (E) Feeding mode PIFA & Single Feeding (F) Antenna type Type=03 Electrical Specification Working Frequency Range 2400 ~2500 MHz Bandwidth 120 MHz (Min.) Peak Gain 2.25 dBi (Typ.) Impedance 50 Ohm Return loss 10 dB ( Min) Polarization Linear Azimuth Beamwidth Omni-directional Operation Temperature(°C) -40 ~85°C Resistance to Soldering Heats 10sec. ( @ 280°C) Termination Ni / Au (Lead less) The specification is defined on EVB. Dimension and Terminal Configuration Dimension (mm) L 3.20 ± 0.20 W 1.60 ± 0.20 T 0.45 ± 0.20 咏成國際科技有限公司 RAIN International Technology Co., Ltd. 電話: TEL: No. Terminal Name 1 Feeding/GNG 2 GND/Feeding 1 2.4GHz 3216 Chip Antenna: RANT3216F245C03 Evaluation Board Reference PCB Dimension Antenna Layout Reference Unit :mm Electrical Characteristics Return Loss & Radiation Return Loss Frequency(MHz) S11 (dB) 2400 - 10.50 2450 -30.62 2500 - 11.47 2.4GHz 3216 Chip Antenna: RANT3216F245C03 Radiation （Max: 5dBi Min: -40dBi Scale: 5/div） 2450MHz 2400MHz 2450MHz 2500MHz Efficiency 82.52% 85.26% 83.01% Peak Gain 1.15 dBi 2.25dBi 1.19 dBi Directivity 1.89 dBi 1.97 dBi 1.91 dBi 5dBi 2.4GHz 3216 Chip Antenna: RANT3216F245C03 Taping Specifications Reel and Taping Specification Reel Specification TYPE SIZE A B C D 3216 7” 5K/Reel 9.0±0.5 60±2 13.5±0.5 178±2 Tapping Specification Packaging Type A B W E F G H T ψD P Paper Type 3216 1.90±0.2 0 3.50±0.2 0 8.0±0.2 0 1.75±0.1 0 3.5±0.05 4.0±0.10 2.0±0.05 0.75±0.1 0 1.50±0.1 0 4.0±0.1 2.4GHz 3216 Chip Antenna: RANT3216F245C03 Reliability Table Test Item Procedure Requirements Ceramic Type Remark (Reference) Electrical Characterization Fulfill the electrical specification User Spec. Thermal Shock 1. Preconditioning: 50 ± 10°C / 1 hr , then keep for 24 ± 1 hrs at room temp. 2. Initial measure: Spec: refer Initialspec. 3. Rapid change of temperature test: -30°C to +85°C; 100 cycles; 15 minutes at Lower category temperature; 15 minutes at Upper category temperature. No Visible Damage. Fulfill the electrical specification. MIL-STD-202 107 Temperature Cycling 1. Initial measure: Spec: refer Initialspec. 2. 100 Cycles (-30°C to +85°C), Soak Mode=1 (2 Cycle/hours). 3. Measurement at 24 ± 2Hours after test condition. No Visible Damage. Fulfill the electrical specification. JESD22 JA104 High Temperature Exposure 1. Initial measure: Spec: refer Initialspec. 2. Unpowered; 500hours @ T=+85°C . 3. Measurement at 24 ± 2 hours after test. No Visible Damage. Fulfill the electrical specification. MIL-STD-202 108 Low Temperature Storage 1. Initial measure: Spec: refer Initialspec. 2. Unpowered : 500hours @ T= -30°C . 3. Measurement at 24 ± 2 hours after test. No Visible Damage. Fulfill the electrical specification. MIL-STD-202 108 Solderability (SMD Bottom Side) Dipping method: a. Temperature: 235 ± 5°C b. Dipping time: 3 ± 0.5s The solder should cover over 95% of the critical area of bottom side. IEC 60384-21/22 4.10 Soldering Heat Resistance (RSH) Preheating temperature: 150 ± 10°C. Preheating time: 1~2 min. Solder temperature: 260 ± 5°C. Dipping time: 5 ± 0.5s No Visible Damage. IEC 60384-21/22 4.10 Vibration 5g's for 20 min., 12 cycles each of 3 orientations Note: Use 8"X5" PCB .031" thick 7 secure points on, one long side and 2 secure points at corners of opposite sides. Parts mounted within 2" from any secure point. Test from 10-2000 Hz. No Visible Damage. MIL-STD-202 Method 204 Mechanical Shock Three shocks in each direction shall be applied along the three mutually perpendicular axes of the test specimen (18 shocks) Peak value: 1,500g’s Duration: 0.5ms Velocity change: 15.4 ft/s Waveform: Half-sine No Visible Damage. MIL-STD-202 Method 213 Humidity Bias 1. Humidity: 85% R.H., Temperature:85 ± 2 °C. 2. Time: 500 ± 24 hours. 3. Measurement at 24 ± 2hrs after test condition. No Visible Damage. Fulfill the electrical specification. MIL-STD-202 Method 106 2.4GHz 3216 Chip Antenna: RANT3216F245C01 Board Flex (SMD) 1. Mounting method: IR-Reflow. PCB Size (L:100 × W:40 × T:1.6mm) 2. Apply the load in direction of the arrow until bending reaches 2 mm . No Visible Damage. AEC-Q200 005 Adhesion Force of 1.8Kg for 60 seconds. No Visible Damage Magnification of 20X or greater may be employed for inspection of the mechanical integrity of the device body terminals and body/terminal junction. AEC-Q200 006 Physical Dimension Any applicable method using x10 magnification, micrometers, calipers, gauges, contour projectors, or other measuring equipment, capable of determining the actual specimen dimensions. In accordance with specification. JESD22 JB100 Revision History Revision Date Content 1 2019/03/01 New Datasheet 2 2020/02/22 Add 2D radiation characteristic

Page 51 of 74 Report No.: MTi230615003-09E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Appendix C: Carrier frequency separation Test Result Test Mode Antenna Frequency [MHz] Result [MHz] Limit [MHz] Verdict DH5 Ant1 Hop 1.002 ≥0.960 PASS 2DH5 Ant1 Hop 1.002 ≥0.894 PASS 3DH5 Ant1 Hop 1.002 ≥0.884 PASS Page 52 of 74 Report No.: MTi230615003-09E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Page 53 of 74 Report No.: MTi230615003-09E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Appendix D: Time of occupancy Test Result Test Mode Antenna Frequency [MHz] BurstWidth [ms] Hops in 31.6s [Num] Result [s] Limit [s] Verdict DH1 Ant1 Hop 0.400 319 0.128 ≤0.4 PASS DH3 Ant1 Hop 1.658 169 0.28 ≤0.4 PASS DH5 Ant1 Hop 2.906 104 0.302 ≤0.4 PASS 2DH1 Ant1 Hop 0.410 319 0.131 ≤0.4 PASS 2DH3 Ant1 Hop 1.663 164 0.273 ≤0.4 PASS 2DH5 Ant1 Hop 2.911 114 0.332 ≤0.4 PASS 3DH1 Ant1 Hop 0.410 319 0.131 ≤0.4 PASS 3DH3 Ant1 Hop 1.661 162 0.269 ≤0.4 PASS 3DH5 Ant1 Hop 2.912 93 0.271 ≤0.4 PASS Notes: 1. Period time = 0.4s * 79 = 31.6s 2. Result (Time of occupancy) = BurstWidth[ms] * Hops in 31.6s [Num] Page 54 of 74 Report No.: MTi230615003-09E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop Page 55 of 74 Report No.: MTi230615003-09E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] DH5_Ant1_Hop 2DH1_Ant1_Hop Page 56 of 74 Report No.: MTi230615003-09E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 2DH3_Ant1_Hop Page 57 of 74 Report No.: MTi230615003-09E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 2DH5_Ant1_Hop 3DH1_Ant1_Hop Page 58 of 74 Report No.: MTi230615003-09E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 3DH3_Ant1_Hop Page 59 of 74 Report No.: MTi230615003-09E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 3DH5_Ant1_Hop Page 60 of 74 Report No.: MTi230615003-09E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Appendix E: Number of hopping channels Test Result Test Mode Antenna Frequency [MHz] Result [Num] Limit [Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS Page 61 of 74 Report No.: MTi230615003-09E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop Page 62 of 74 Report No.: MTi230615003-09E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Appendix F: Band edge measurements Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 Page 63 of 74 Report No.: MTi230615003-09E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 Page 64 of 74 Report No.: MTi230615003-09E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 Page 65 of 74 Report No.: MTi230615003-09E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 Page 66 of 74 Report No.: MTi230615003-09E1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Appendix G: Conducted Spurious Emission T…

Text truncated - open the document above for the full version.

Page 1 of 1 Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Tel: (86-755)88850135 Fax: (86-755) 88850136 Web: www.mtitest.com E-mail: [email protected] Appendix - Test Setup Photos Model: Rockerz 260 Radiated emissions –Below 1 GHz Radiated emissions –Above 1 GHz ----End of Report----
