2BAS6-PANDAPWRPanda PWR

PANDA PWR V1.0 User Manual BIGTREETECH PANDA PWR User Manual 2 Table of Contents Revision Log ..................................................................3 1. Product Profile ............................................................4 1.1. Specifications .......................................................4 1.2. Dimensions .........................................................4 2. Interface ..................................................................5 2.1. Interface Diagram ...................................................5 2.2. Interface Introduction .................................................5 3. Instructions ...............................................................6 3.1. USB Interface .......................................................6 3.2. Bind Key ...........................................................6 3.3. Web UI .............................................................6 3.4. How to Bind Panda PWR and Panda Touch .............................9 3.5. Unbind Panda PWR from Panda Touch ................................10 3.6. Enable Automatic Power-Off Function .................................11 3.7. Clearing Electricity Consumption .....................................11 3.8. USB1 Follows the Printer Light .......................................11 3.9. Indicator Light Description ...........................................12 4. Precautions ..............................................................12 5. FCC WARNING ..........................................................12 Revision Log Version Date Revisions v1.00 June 19th, 2024 Initial Version 1. Product Profile The BIGTREETECH PANDA PWR is a power management and control device for printers. It powers the printer and displays real-time power on the PANDA TOUCH, also enabling on/off control via a WiFi connection with PANDA TOUCH. Additionally, the PANDA PWR features a USB port to power the PANDA TOUCH directly. 1.1. Specifications MCU: ESP8684-MINI-1-H4 IEC-C14 Input Voltage: 100VAC~240VAC Type-C Input Voltage: 5V Maximum Output Current: 1.5A+1.5A PC Connection Interface: Type-C 1.2. Dimensions BIGTREETECH PANDA PWR User Manual 5 2. Interface 2.1. Interface Diagram 2.2. Interface Introduction IEC-C14: AC voltage input of 100VAC~240VAC IEC-C13: AC voltage output of 100VAC~240VAC, rated load current 3A TYPE-C: 5V input, can communicate with a computer USBA: Two 5V/1.5A outputs 3. Instructions 3.1. USB Interface 3.1.1. USB1 (5V Output, Controllable) Used for modules that require control switches, such as a USB light strip. 3.1.2. USB2 (Fixed 5V Output) Can provide power to some modules, such as Panda Touch. 3.2. Bind Key 3.2.1. Bind a Panda Touch Long press for several seconds to enter the binding mode. 3.2.2. Activate the 220V Power Supply Activate the 220V power supply by double-clicking the Bind key. 3.3. Web UI 3.3.1. View Power Parameters Before proceeding, you must bind a Panda Touch, obtain the IP address from the Panda PWR interface, and then enter the IP address in your computer or mobile BIGTREETECH PANDA PWR User Manual 7 browser. 3.3.2. OTA Click the "Config" button to enter the OTA page. BIGTREETECH PANDA PWR User Manual 8 Click the "Select File" button to update the firmware. After the upgrade is completed, a success prompt will be displayed. BIGTREETECH PANDA PWR User Manual 9 3.4. How to Bind Panda PWR and Panda Touch Open the Panda PWR page. Bring Panda PWR and Panda Touch Closer Together Press and hold the bind button for about 3 seconds, wait for the light to turn blue and enter a breathing state, then wait for a pop-up prompt to appear and click confirm. BIGTREETECH PANDA PWR User Manual 10 NOTE: Please bring Panda PWR and Panda Touch closer together and complete the confirmation within 15 seconds, otherwise, it will prompt a binding timeout, and the PWR light will turn red. At this point, re-binding is required. 3.5. Unbind Panda PWR from Panda Touch If you wish to bind another printer, you must first unbind the current connection. BIGTREETECH PANDA PWR User Manual 11 3.6. Enable Automatic Power-Off Function When you need the printer to shut down after printing, activate the automatic power-off switch, configure the countdown time and temperature limit values, and start the countdown when the conditions are met. After the countdown is completed, Panda PWR will automatically cut off the power supply to the printer. 3.7. Clearing Electricity Consumption Panda PWR records the power consumption of the load. Press "RST Usage" to clear the power consumption data. 3.8. USB1 Follows the Printer Light When set to ON, USB1 will follow the changes in the printer's LED. If the LED is on, USB1 will output 5V voltage; otherwise, the output will be turned off. Additionally, USB1 supports manual setting for on and off. When set to OFF, USB1 only supports manual control. BIGTREETECH PANDA PWR User Manual 12 3.9. Indicator Light Description Blue: Unbound status Blue Breath: Binding in progress Red: Binding timeout Green: Normal communication Green Flashing: Communication error 4. Precautions 1. The communication between Panda PWR and Panda Touch uses a short- range method, which may be affected by obstructions. Please ensure there are no obstructions around the Panda PWR. 2. When connecting to a 220VAC input, first connect the input wires on the Panda PWR before connecting the wires to the socket. 3. The TYPE-C port can only be used for input. 4. The USB-A port can only be used for output. 5. FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply wit…

Text truncated - open the document above for the full version.

Attestation Statements (2024/07/17) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: 2BAS6-PANDAPWR) (Shenzhen BIQU Innovation Technology Co., Ltd.), the undersigned, hereby authorize Baihetian Innovative Solutions to act as our designated U.S. agent for service of process, (Shenzhen BIQU Innovation Technology Co., Ltd.) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Baihetian Innovative Solutions accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company Name: Shenzhen BIQU Innovation Technology Co., Ltd. Address: 2004-2005, Building 4, Phase II, Tianan Yungu Industrial Park, Gangtou Community, Bantian Street, Longgang District, Shenzhen, China Contact Name: Eric Zhang FRN: 0033640442 Telephone No: 86-137989800510 Email: [email protected] Signature [Eric Zhang] U.S. Agent Information: Company Name: Baihetian Innovative Solutions Address: 6837 Chase Rd, Dearborn, MI 48126, United States FRN: 0033401605 Contact Name: Kenneth Young Telephone No: 313-395-3113 Email: [email protected] Signature [Kenneth Young] Jul 2024

Shenzhen BIQU Innovation Technology Co., Ltd. 2024.07.17 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCCID:2BAS6-PANDAPWR [Shenzhen BIQU Innovation Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name): Eric Zhang Shenzhen BIQU Innovation Technology Co., Ltd. 2024.07.17 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCCID:2BAS6-PANDAPWR [Shenzhen BIQU Innovation Technology Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name): Eric Zhang

Shenzhen BIQU Innovation Technology Co., Ltd. 2024.07.17 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Panda PWR Trademark: BIGTREETECH MODEL: Panda PWR Panda PWR Lite, Panda PWR Pro FCC ID: 2BAS6-PANDAPWR To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Eric Zhang / General Manager Contact information / address: 2004, 2005, Building 4, Phase II, Tianan Yungu Industrial Park, Gangtou Community, Bantian Street, Longgang District, Shenzhen, China

Shenzhen BIQU Innovation Technology Co., Ltd. 2024.07.17 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Eric Zhang / General Manager Contact information / address: 2004, 2005, Building 4, Phase II, Tianan Yungu Industrial Park, Gangtou Community, Bantian Street, Longgang District, Shenzhen, China

Shenzhen BIQU Innovation Technology Co., Ltd. Model Difference 2024.07.17 EUT NAME: Panda PWR Trademark: BIGTREETECH MODEL: Panda PWR Panda PWR Lite, Panda PWR Pro FCC ID: 2BAS6-PANDAPWR All the model are the same circuit and RF module, except appearance color and model name. Regards Sincerely Client’s signature: Client’s name / title : Eric Zhang / General Manager Contact information / address: 2004, 2005, Building 4, Phase II, Tianan Yungu Industrial Park, Gangtou Community, Bantian Street, Longgang District, Shenzhen, China

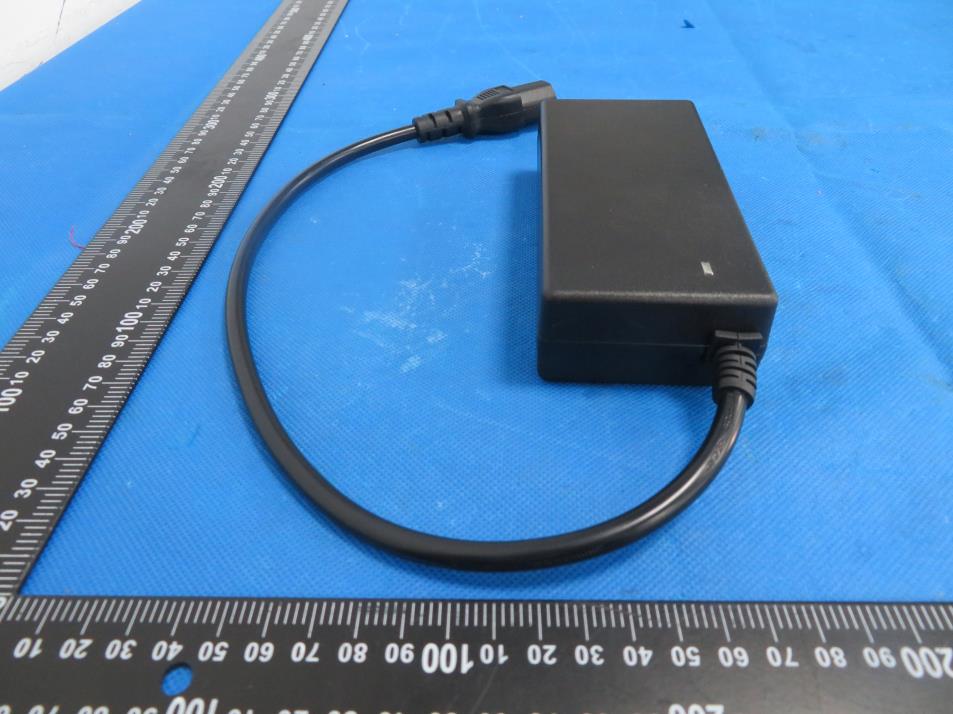

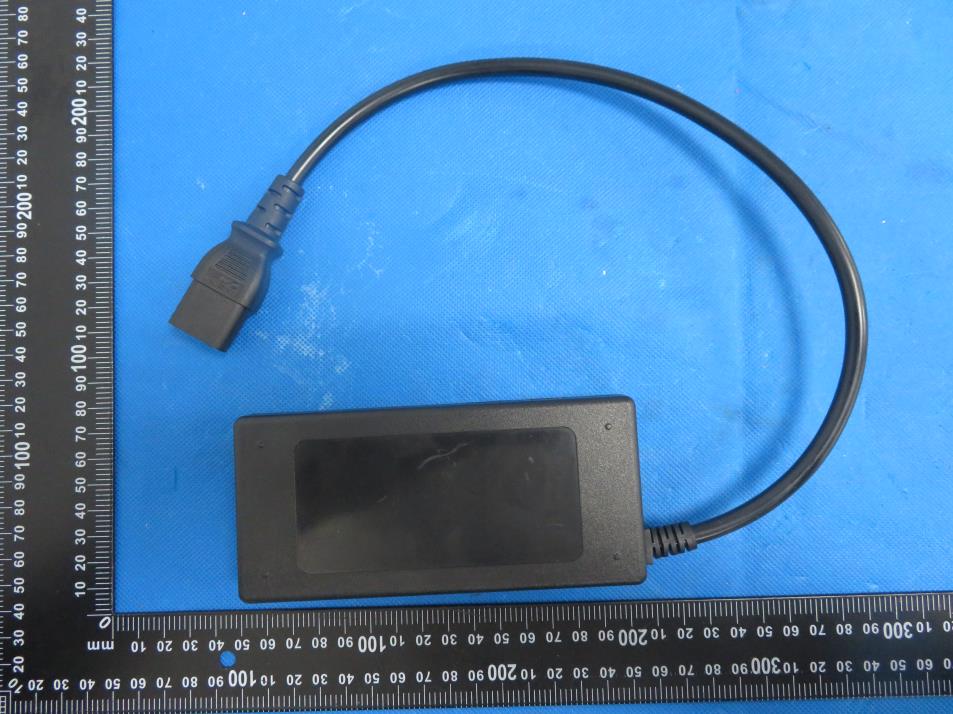

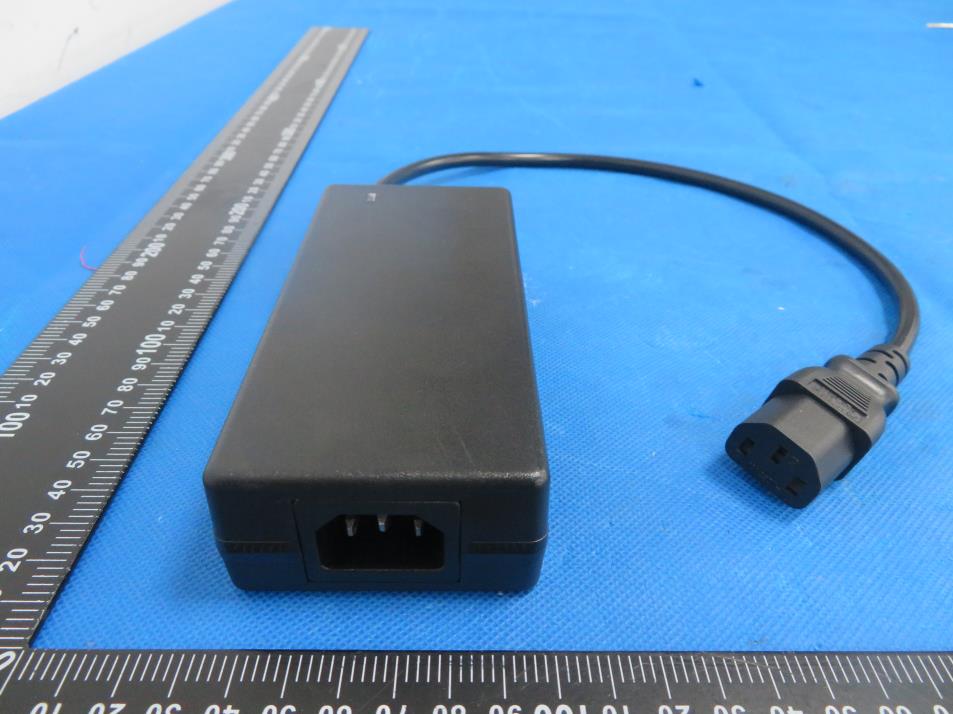

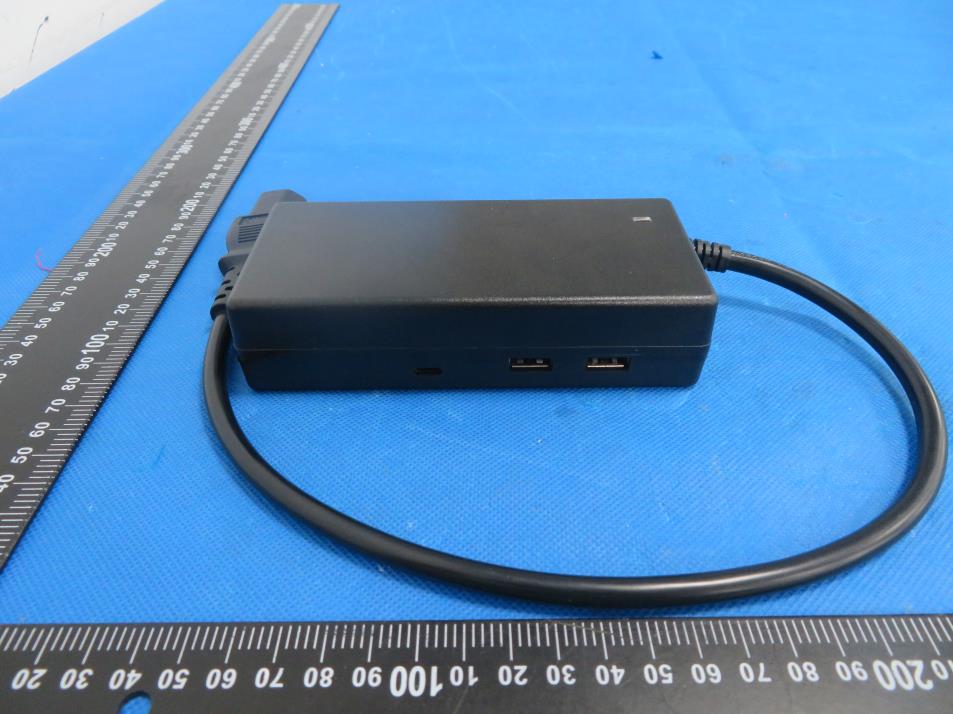

External Photos

Label & label location 20mm*10mm FCC ID:2BAS6-PANDAPWR Label location

Internal Photos Antenna

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID:2BAS6-PANDAPWR Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Tune up Produce power Maximum peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW/ cm2) Result WIFI 12±1 13 19.95 1.259 (1dBi) 0.04997 1 Pass

V . S .W . R < 1.5 Polarization Type V ertical & Horizontal Frequenc Range2400 ~ 2500MHz Input Impendence(ohm)50 Efficiency (dB) 6 0.2 % 6 1.2 %-3.6 0.71.0 Maximum Power (dBm)1.5 (XY-plane) Gain (dBi) Peak EIRP(dBm)1.2 Tot. Rad. Pwr. (dBm)-1.2 (Input pwr – loss pwr) Product specification Quick Reference D ate Antenna module on the syste m board Ant. Port Input Pwr. (dBm)0 (Typ. BT class 2 output power) Directivity (dBi)1 (all direction antenna) Minimum Power (dBm)-4( XY-plane) Avg. Power (dBm)-0.5(XY-plane) All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table Unit in dBi @2.44GHzXY-planeXZ- planeYZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board -0.51.0-3.0 Gain (dBi) TYPE:A1 Manufacturer?Shenzhen Hysiry Technology Co.,LtdManufacturer:Shenzhen Hysiry Technology Co.,Ltd 1 ( Peak Gain XY-plane) Return Loss 3D radiation pattern diagram

No.：BCTC/RF-EMC-005 Page: 1 of 69 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2406762225E Applicant: Shenzhen BIQU Innovation Technology Co., Ltd. Product Name: Panda PWR Test Model: Panda PWR Tested Date: 2024-06-17 to 2024-07-16 Issued Date: 2024-07-16 Report No.: BCTC2406762225E No.：BCTC/RF-EMC-005 Page: 2 of 69 Edition：B.2 FCC ID:2BAS6-PANDAPWR The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Panda PWR Trademark: BIGTREETECH Model/Type reference: Panda PWR Panda PWR Lite, Panda PWR Pro Prepared For: Shenzhen BIQU Innovation Technology Co., Ltd. Address: 2004, 2005, Building 4, Phase II, Tianan Yungu Industrial Park, Gangtou Community, Bantian Street, Longgang District, Shenzhen, China Manufacturer: Shenzhen BIQU Innovation Technology Co., Ltd. Address: 2004, 2005, Building 4, Phase II, Tianan Yungu Industrial Park, Gangtou Community, Bantian Street, Longgang District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-06-17 Sample tested Date: 2024-06-17 to 2024-07-16 Issue Date: 2024-07-16 Report No.: BCTC2406762225E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is WIFI-2.4GHz band radio test report. Tested by: Approved by: Tang Changyu/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2406762225E No.：BCTC/RF-EMC-005 Page: 3 of 69 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test Procedure ................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 14 6.5 Test Result .......................................................................................................... 15 7. Radiated Emissions ............................................................................................. 17 7.1 Block Diagram Of Test Setup .............................................................................. 17 7.2 Limit .................................................................................................................... 18 7.3 Test Procedure ................................................................................................... 19 7.4 EUT Operating Conditions .................................................................................. 20 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 26 8.1 Block Diagram Of Test Setup .............................................................................. 26 8.2 Limit .................................................................................................................... 26 8.3 Test Procedure ................................................................................................... 27 8.4 EUT operating Conditions ................................................................................... 27 8.5 Test Result .......................................................................................................... 28 9. Power Spectral Density Test ............................................................................... 30 9.1 Block Diagram Of Test Setup .............................................................................. 30 9.2 Limit .................................................................................................................... 30 9.3 Test Procedure ........................................................................…

Text truncated - open the document above for the full version.

Report No.: BCTC2406762225E No.：BCTC/RF-EMC-005 Page: 53 of 69 Edition： B.2 Test Graphs Tx. Spurious NVNT b 2412MHz Tx. Spurious NVNT b 2412MHz Emission Report No.: BCTC2406762225E No.：BCTC/RF-EMC-005 Page: 54 of 69 Edition： B.2 Tx. Spurious NVNT b 2437MHz Tx. Spurious NVNT b 2437MHz Emission Report No.: BCTC2406762225E No.：BCTC/RF-EMC-005 Page: 55 of 69 Edition： B.2 Tx. Spurious NVNT b 2462MHz Tx. Spurious NVNT b 2462MHz Emission Report No.: BCTC2406762225E No.：BCTC/RF-EMC-005 Page: 56 of 69 Edition： B.2 Tx. Spurious NVNT g 2412MHz Tx. Spurious NVNT g 2412MHz Emission Report No.: BCTC2406762225E No.：BCTC/RF-EMC-005 Page: 57 of 69 Edition： B.2 Tx. Spurious NVNT g 2437MHz Tx. Spurious NVNT g 2437MHz Emission Report No.: BCTC2406762225E No.：BCTC/RF-EMC-005 Page: 58 of 69 Edition： B.2 Tx. Spurious NVNT g 2462MHz Tx. Spurious NVNT g 2462MHz Emission Report No.: BCTC2406762225E No.：BCTC/RF-EMC-005 Page: 59 of 69 Edition： B.2 Tx. Spurious NVNT n20 2412MHz Tx. Spurious NVNT n20 2412MHz Emission Report No.: BCTC2406762225E No.：BCTC/RF-EMC-005 Page: 60 of 69 Edition： B.2 Tx. Spurious NVNT n20 2437MHz Tx. Spurious NVNT n20 2437MHz Emission Report No.: BCTC2406762225E No.：BCTC/RF-EMC-005 Page: 61 of 69 Edition： B.2 Tx. Spurious NVNT n20 2462MHz Tx. Spurious NVNT n20 2462MHz Emission Report No.: BCTC2406762225E No.：BCTC/RF-EMC-005 Page: 62 of 69 Edition： B.2 13. Duty Cycle Of Test Signal 13.1 Standard Requirement Pre-analysis Check: While conducting average power measurement, duty cycle of each mode shall be checked to ensure its duty cycle in order to compensate for the loss due to insufficient ratio of duty cycle. All duty cycle is pre-scanned, and result as obtained below shows only the most representative ones where duty cycle is conducted as the given transmission with given virtual operation that expresses the percentage. 13.2 Formula Duty Cycle = Ton / (Ton+Toff) 13.3 Test Procedure 1.Set span = Zero 2. RBW = 8MHz 3. VBW = 8MHz, 4. Detector = Peak 13.4 Test Result Condition Mode Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT b 100 0 0 NVNT g 100 0 0 NVNT n20 100 0 0 Report No.: BCTC2406762225E No.：BCTC/RF-EMC-005 Page: 63 of 69 Edition： B.2 B Mode G Mode Report No.: BCTC2406762225E No.：BCTC/RF-EMC-005 Page: 64 of 69 Edition： B.2 N20 Mode Report No.: BCTC2406762225E No.：BCTC/RF-EMC-005 Page: 65 of 69 Edition： B.2 14. Antenna Requirement 14.1 Limit 15.203 requirement: For intentional device, according to 15.203: an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. 14.2 Test Result The EUT antenna is Internal antenna, fulfill the requirement of this section. Report No.: BCTC2406762225E No.：BCTC/RF-EMC-005 Page: 66 of 69 Edition： B.2 15. EUT Photographs EUT Photo 1 EUT Photo 2 NOTE: Appendix-Photographs Of EUT Constructional Details. Report No.: BCTC2406762225E No.：BCTC/RF-EMC-005 Page: 67 of 69 Edition： B.2 16. EUT Test Setup Photographs Conducted Emissions Photo Radiated Measurement Photos Report No.: BCTC2406762225E No.：BCTC/RF-EMC-005 Page: 68 of 69 Edition： B.2 Report No.: BCTC2406762225E No.：BCTC/RF-EMC-005 Page: 69 of 69 Edition： B.2 STATEMENT 1. The equipment lists are traceable to the national reference standards. 2. The test report can not be partially copied unless prior written approval is issued from our lab. 3. The test report is invalid without the "special seal for inspection and testing". 4. The test report is invalid without the signature of the approver. 5. The test process and test result is only related to the Unit Under Test. 6. Sample information is provided by the client and the laboratory is not responsible for its authenticity. 7. The quality system of our laboratory is in accordance with ISO/IEC17025. 8. If there is any objection to this test report, the client should inform issuing laboratory within 15 days from the date of receiving test report. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China TEL: 400-788-9558 P. C.: 518103 FAX: 0755-33229357 Website: http://www.chnbctc.com Consultation E-mail: [email protected] Complaint/Advice E-mail: [email protected] ※※※※※ END ※※※※※

16. EUT Test Setup Photographs Conducted emissions Radiated Measurement Photos
