2BAS6-BAMBOOFEEDERPanda Bamboo Feeder

Panda Series ModulePanda Bamboo FeederPanda Bamboo Feeder Hardware Panda Bamboo Feeder Hardware Dimensions MODELS reference models for external dimensions Hardware Interface 2026/6/8 14:27Panda Bamboo Feeder Hardware | Bigtreetech WiKi NEO https://neo.bttwiki.com/en/docs/panda-series/module/panda-bamboo-feeder/panda-bamboo-feeder-hardware1/10 Retract Button : Used to retract/unload filament. Load Button : Used to feed filament into the printer extruder. Type-C Port: Can be used for factory resets via USB. Important Notes 1. Linkage Limit: A maximum of three Panda Bamboo Feeders can be linked and used together. 2. Power Requirements: When using multiple units, the topmost Feeder requires an external DC power supply (a 24V/2.8A power adapter must be purchased separately). Due to the limited power output of the Bambu Lab AMS interface, attempting to power multiple units through the printer simultaneously may cause system instability or malfunctions. 3. AMS Compatibility: The Panda Bamboo Feeder can be installed alongside the AMS or AMS 2 Pro; however, they cannot be used simultaneously. When printing via the AMS, please use the switch on the power adapter to turn off the Panda Bamboo Feeder. 4. Functionality Clarification: The Panda Bamboo Feeder is designed specifically for filament relay (auto-refill) and material buffering. It does not support multi-color printing. Installation Guide 2026/6/8 14:27Panda Bamboo Feeder Hardware | Bigtreetech WiKi NEO https://neo.bttwiki.com/en/docs/panda-series/module/panda-bamboo-feeder/panda-bamboo-feeder-hardware2/10 P1/X1 Series Models 1. Pre-print Required Components Ensure all required components are printed before starting the installation. The print files are available for download here. 2. Install the Mounting Tab Use the screws in the package to secure the 3D printed Mounting Tab to the back of the Panda Bamboo Feeder. 3. Install the Quick-Release Mounting Grid 2026/6/8 14:27Panda Bamboo Feeder Hardware | Bigtreetech WiKi NEO https://neo.bttwiki.com/en/docs/panda-series/module/panda-bamboo-feeder/panda-bamboo-feeder-hardware3/10 As shown in the diagram, thread the cable through the printed Quick-Release Mounting Grid and place it into the cable channel (ensure the DC head and MX3.0 are inserted correctly) Snap the printed Cable Management Insert into the quick-release mounting grid. 4. Attach Base Once the cables are arranged, slide the entire quick-release mounting frame into the printed Fixed Base. 2026/6/8 14:27Panda Bamboo Feeder Hardware | Bigtreetech WiKi NEO https://neo.bttwiki.com/en/docs/panda-series/module/panda-bamboo-feeder/panda-bamboo-feeder-hardware4/10 5. Mount the Feeder Snap the Panda Bamboo Feeder onto the quick-release mounting grid via the mounting tab and connect the cables. Apply the included double-sided tape to the back of the fixed base, remove the release liner, and stick the base to a suitable location, such as the side of the printer. 2026/6/8 14:27Panda Bamboo Feeder Hardware | Bigtreetech WiKi NEO https://neo.bttwiki.com/en/docs/panda-series/module/panda-bamboo-feeder/panda-bamboo-feeder-hardware5/10 Panda Perch Installation For BIQU Panda Perch users: Following Step 2 in P1/X1 Series Models, snap the Feeder into the hexagonal hole on the side of the Perch using the mounting tab. Secure the hook firmly from the inside with the printed clip shown below. Click here to download the required print files. A1 Series Models 1. Pre-print Required Components Pre-print the Tangle Detection Delete Module and Mounting Bracket before installation. Download files here. 2026/6/8 14:27Panda Bamboo Feeder Hardware | Bigtreetech WiKi NEO https://neo.bttwiki.com/en/docs/panda-series/module/panda-bamboo-feeder/panda-bamboo-feeder-hardware6/10 2. Begin Installation Open the buckle at the indicated position, being careful not to apply too much force to avoid damage. Remove the spring and rotate the securing ring, circled in the image, by 90 degrees to detach it. 2026/6/8 14:27Panda Bamboo Feeder Hardware | Bigtreetech WiKi NEO https://neo.bttwiki.com/en/docs/panda-series/module/panda-bamboo-feeder/panda-bamboo-feeder-hardware7/10 Insert the Tangle Detection Delete Module into the print head. Reinstall the securing ring that was previously removed. Pay attention to the direction: the protrusion on the securing ring should face the cutter side. 2026/6/8 14:27Panda Bamboo Feeder Hardware | Bigtreetech WiKi NEO https://neo.bttwiki.com/en/docs/panda-series/module/panda-bamboo-feeder/panda-bamboo-feeder-hardware8/10

Use the screws in the package to secure the printed Mounting Bracket to the back of the Panda Bamboo Feeder (pay attention to the orientation). As shown in the diagram, snap it into the top end of the filament spool holder. INFO 2026/6/8 14:27Panda Bamboo Feeder Hardware | Bigtreetech WiKi NEO https://neo.bttwiki.com/en/docs/panda-series/module/panda-bamboo-feeder/panda-bamboo-feeder-hardware9/10 If you are only using the Panda Bamboo Feeder as a buffer, or if you plan to use filament directly from this filament spool holder, you will need to replace the PTFE tube at the Panda Bamboo Feeder filament inlet with a slightly longer one to prevent filament tangling. The PTFE tube should not be too long or too short. It should form a natural, smooth curve. Custom DIY Mounting Refer to here to download the reference models for external dimensions and design your own custom mounting brackets for other printer models. 2026/6/8 14:27Panda Bamboo Feeder Hardware | Bigtreetech WiKi NEO https://neo.bttwiki.com/en/docs/panda-series/module/panda-bamboo-feeder/panda-bamboo-feeder-hardware10/10 FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

(Shenzhen BIQU Innovation Technology Co., Ltd.) (2026.7.24) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for(FCC ID: 2BAS6- BAMBOOFEEDER) [Shenzhen BIQU Innovation Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) Eric Zhang (Shenzhen BIQU Innovation Technology Co., Ltd.) (2026.7.24) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for(FCC ID: 2BAS6- BAMBOOFEEDER) [Shenzhen BIQU Innovation Technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Eric Zhang

Shenzhen BIQU Innovation Technology Co., Ltd. 2026.7.24 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Panda Bamboo Feeder MODEL : Panda Bamboo Feeder, BIQU PBF Starter Pack, BIQU PBF Expansion pack, PBF V1.0, Eco turbo Ki, VIVID Multi-colour V1.1, Panda Breeze, Panda Turbo Kit, BIQU TD1s V1.0, Bigtreetech SFS-V2.0, Eddy Coil, Microprobe V2, Panda Belter FCC ID: 2BAS6-BAMBOOFEEDER To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Eric Zhang / General Manager Contact information / address: 1508, Building T1, Lijincheng Center Yousong Community, Longhua Subdistrict, Longhua District, Shenzhen Guangdong Province, China.

Shenzhen BIQU Innovation Technology Co., Ltd. 2026.7.24 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION EUT NAME: Panda Bamboo Feeder MODEL : Panda Bamboo Feeder, BIQU PBF Starter Pack, BIQU PBF Expansion pack, PBF V1.0, Eco turbo Ki, VIVID Multi-colour V1.1, Panda Breeze, Panda Turbo Kit, BIQU TD1s V1.0, Bigtreetech SFS-V2.0, Eddy Coil, Microprobe V2, Panda Belter FCC ID: 2BAS6-BAMBOOFEEDER To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Technology Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Eric Zhang / General Manager Contact information / address: 1508, Building T1, Lijincheng Center Yousong Community, Longhua Subdistrict, Longhua District, Shenzhen Guangdong Province, China.

Shenzhen BIQU Innovation Technology Co., Ltd. Model Difference 2026/07/24 EUT NAME: Panda Bamboo Feeder MODEL : Panda Bamboo Feeder, BIQU PBF Starter Pack, BIQU PBF Expansion pack, PBF V1.0, Eco turbo Ki, VIVID Multi-colour V1.1, Panda Breeze, Panda Turbo Kit, BIQU TD1s V1.0, Bigtreetech SFS-V2.0, Eddy Coil, Microprobe V2, Panda Belter FCC ID: 2BAS6-BAMBOOFEEDER . All the model are the same circuit and RF module, except model names. Sincerely Client’s signature: Client’s name / title : Eric Zhang / General Manager Contact information / address: 1508, Building T1, Lijincheng Center Yousong Community, Longhua Subdistrict, Longhua District, Shenzhen Guangdong Province, China.

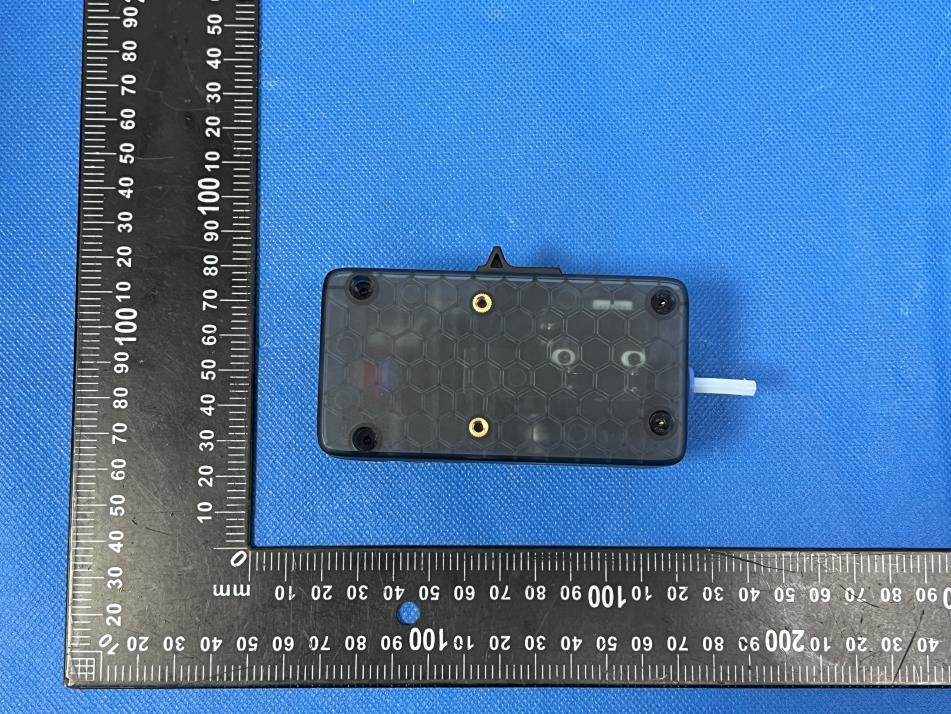

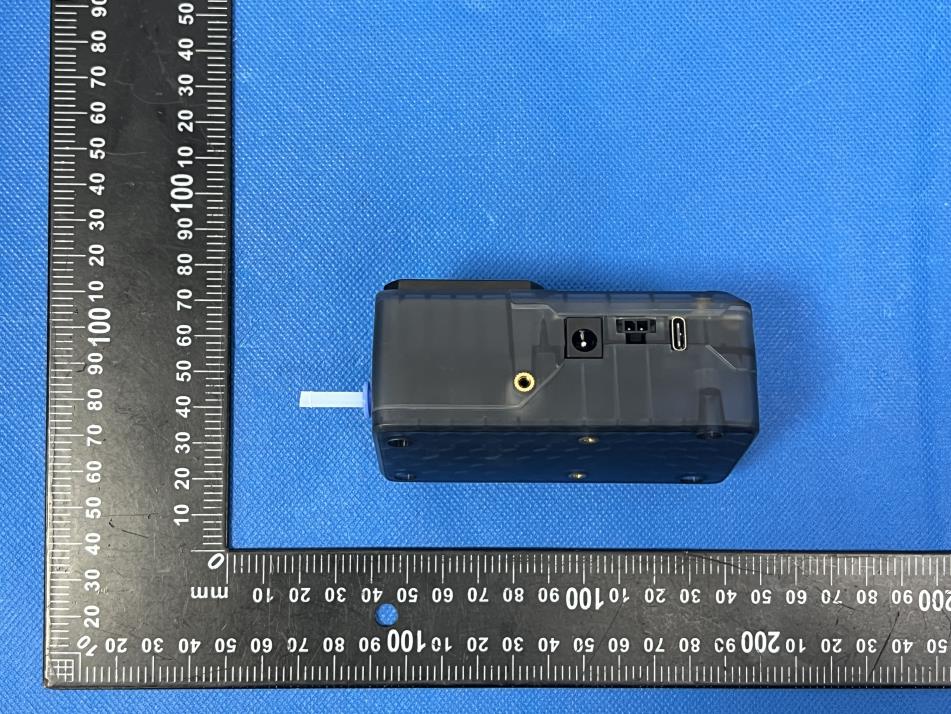

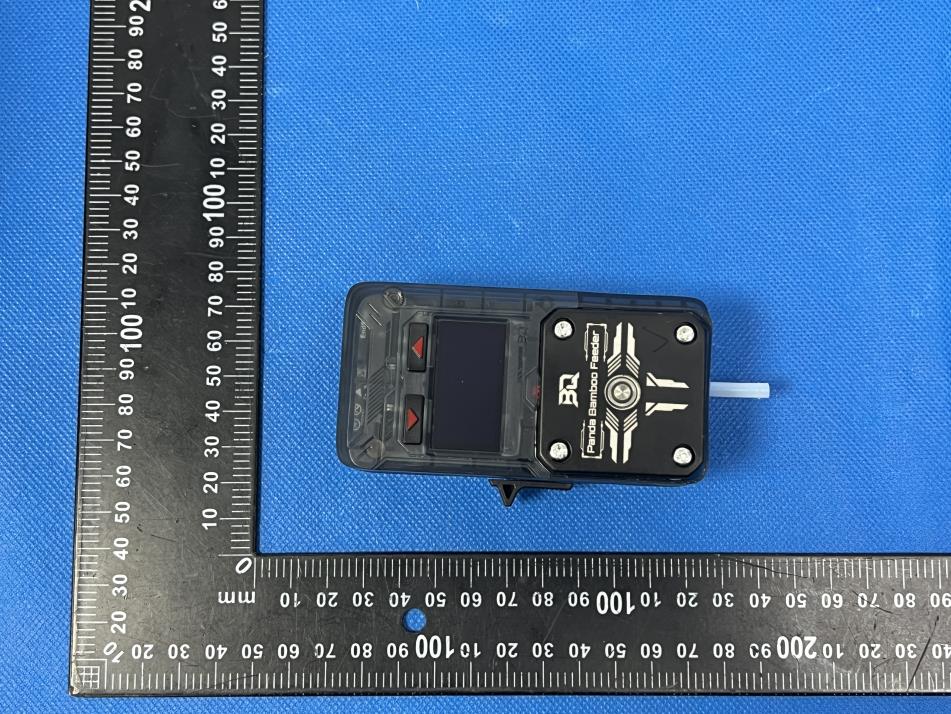

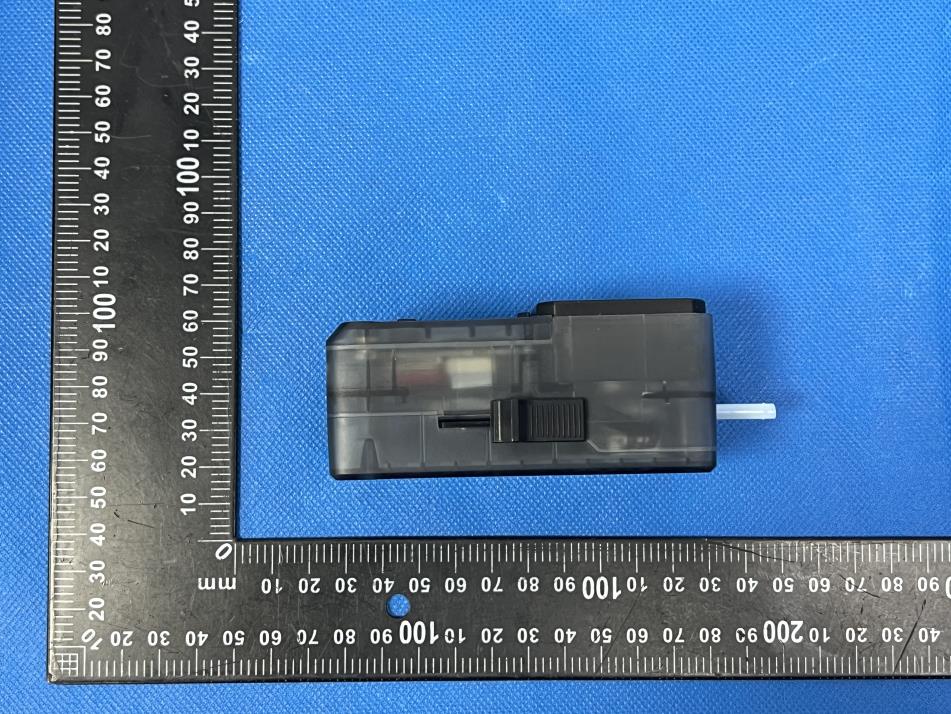

Report No.:BCTC2606322502E External Photos Report No.:BCTC2606322502E Report No.:BCTC2606322502E Report No.:BCTC2606322502E

The customer labels are applied using stickers. Size:25*10mm Model: Panda Bamboo Feeder FCC ID: 2BAS6-BAMBOOFEEDER Label location Size:25*10mm Model: A1104 HVIN: A1104 IC : 20208-A1103 FCC ID: 2AD99-A1103 Label location

Report No.:BCTC2606322502E Internal Photos Antenna Report No.:BCTC2606322502E Report No.:BCTC2606322502E Report No.:BCTC2606322502E Report No.:BCTC2606322502E

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2BAS6-BAMBOOFEEDER Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Tune up Produce power Maximum peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result WIFI 12±1 13 19.95 2.17(3.37dBi) 0.00862 1 Pass

OTA TEST REPORT TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in ANSI/IEEE Std 149-2008. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Prepared by: Peng Tao Approved by: Kai Xu TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86‐021‐50791141/2/3 FAX: +86‐021‐50791141/2/3‐8000 Applicant Espressif System (Shanghai) Co.,Ltd Product ESP32-C3-WROOM-02 Model ESP-ANT B Report No. Y2102A0260-T3 Issue Date March 9, 2021 OTA Test Report Report No: Y2102A0260-T3 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 2 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENTS 1. Test Laboratory .............................................................................................................................. 3 1.1. Notes of the Test Report ................................................................................................... 3 1.2. Test facility ........................................................................................................................ 3 1.3. Testing Location ................................................................................................................ 3 1.4. Laboratory Environment .................................................................................................... 4 2. General Description of Equipment under Test ............................................................................... 5 2.1. Applicant and Manufacturer Information ............................................................................ 5 2.2. General information ........................................................................................................... 5 2.3. Test Date ........................................................................................................................... 5 2.4. Receiving Date .................................................................................................................. 5 2.5. Applied Standards ............................................................................................................. 6 3. Test Conditions .............................................................................................................................. 7 3.1. Test Configuration ............................................................................................................. 7 3.2. Test Measurement ............................................................................................................. 7 4. Test Results ................................................................................................................................... 8 4.1. Gain and Efficiency ............................................................................................................ 8 5. Equipment List ............................................................................................................................... 9 ANNEX A 3-D Pattern Plots ................................................................................................................... 10 ANNEX B：The EUT Appearance and Test Configuration ...................................................................... 12 B.1 EUT Appearance ................................................................................................................... 12 B.2 Test Configuration ................................................................................................................. 13 OTA Test Report Report No: Y2102A0260-T3 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 3 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1. Test Laboratory 1.1. Notes of the Test Report This report shall not be reproduced in full or partial, without the written approval of TA technology (shanghai) co., Ltd. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein .Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. 1.2. Test facility A2LA (Certificate Number: 3857.01) TA Technology (Shanghai) Co., Ltd. has been listed by American Association for Laboratory Accreditation to perform measurement. 1.3. Testing Location Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China City: Shanghai Post code: 201201 Country: P. R. China Contact: Xu Kai Telephone: +86-021-50791141/2/3 Fax: +86-021-50791141/2/3-8000 Website: http://www.ta-shanghai.com E-mail: [email protected] OTA Test Report Report No: Y2102A0260-T3 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 4 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1.4. Laboratory Environment Temperature Min. =19°C，Max. = 25°C Relative humidity Min. =40%，Max. =72% Shield effect 0.7-6GHz > 100dB Ground resistance <0.5 OTA Test Report Report No: Y2102A0260-T3 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 5 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 2. General Description of Equipment under Test 2.1. Applicant and Manufacturer Information Applicant Name Espressif System (Shanghai) Co.,Ltd Applicant address Suite 204 Block 2, 690 Bibo Road, Zhang Jiang Hi-Tech Park, Shanghai, China Manufacturer Name Espressif System (Shanghai) Co.,Ltd Manufacturer address Suite 204 Block 2, 690 Bibo Road, Zhang Jiang Hi-Tech Park, Shanghai, China 2.2. …

Text truncated - open the document above for the full version.

No.：BCTC/KJ-RF-ICT-001 Page 1 of 80 Edition：B.1 TEST REPORT Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC2606322502E Applicant: Shenzhen BIQU Innovation Technology Co., Ltd. Product Name: Panda Bamboo Feeder Test Model: Panda Bamboo Feeder Tested Date: 2026-06-13 to 2026-06-29 Issued Date: 2026-06-30 Report No.: BCTC2606322502E No.：BCTC/KJ-RF-ICT-001 Page 2 of 80 Edition：B.1 FCC ID: 2BAS6-BAMBOOFEEDER The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Technology Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Panda Bamboo Feeder Trademark: Model/Type Reference: Panda Bamboo Feeder BIQU PBF Starter Pack, BIQU PBF Expansion pack, PBF V1.0, Eco turbo Kit, VIVID Multi-colour V1.1, Panda Breeze, Panda Turbo Kit, BIQU TD1s V1.0, Bigtreetech SFS-V2.0, Eddy Coil, Microprobe V2, Panda Belter Prepared For: Shenzhen BIQU Innovation Technology Co., Ltd. Address: 1508, Building T1, Lijincheng Center Yousong Community, Longhua Subdistrict, Longhua District, Shenzhen Guangdong Province, China. Manufacturer: Shenzhen BIQU Innovation Technology Co., Ltd. Address: 1508, Building T1, Lijincheng Center Yousong Community, Longhua Subdistrict, Longhua District, Shenzhen Guangdong Province, China. Prepared By: Shenzhen BCTC Technology Co., Ltd. Address: Room 101M, Unit 1, Building1, Pengyuan, No.18, Lilang Road, Shanglilang, Nanwan Subdistrict, Longgang District, Shenzhen, Guangdong, China. Sample Received Date: 2026-06-13 Sample Tested Date: 2026-06-13 to 2026-06-29 Report No.: BCTC2606322502E Test Standards: FCC Part15.247 ANSI C63.10-2020 Test Results: PASS Remark: This is WIFI-2.4GHz band radio test report. Prepared by : Reviewer by : Approved by: Louis Zeng /Editor Mike Zheng / Supervisor Sewen Guo/Manager Report No.: BCTC2606322502E No.：BCTC/KJ-RF-ICT-001 Page 3 of 80 Edition：B.1 Table of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information and Test Setup ...................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 11 5. Test Facility And Test Instrument Used ............................................................... 12 5.1 Test Facility ......................................................................................................... 12 5.2 Test Instrument Used .......................................................................................... 12 6. Conducted Emissions .......................................................................................... 14 6.1 Block Diagram Of Test Setup .............................................................................. 14 6.2 Limit .................................................................................................................... 14 6.3 Test procedure .................................................................................................... 14 6.4 EUT operating Conditions ................................................................................... 14 6.5 Test Result .......................................................................................................... 15 7. Radiated Emissions ............................................................................................. 17 7.1 Block Diagram Of Test Setup .............................................................................. 17 7.2 Limit .................................................................................................................... 18 7.3 Test procedure .................................................................................................... 19 7.4 EUT Operating Conditions .................................................................................. 20 7.5 Test Result .......................................................................................................... 20 8. Radiated Band Emission Measurement and Restricted Bands Of Operation ...... 27 8.1 Block Diagram Of Test Setup .............................................................................. 27 8.2 Limit .................................................................................................................... 27 8.3 Test procedure .................................................................................................... 28 8.4 EUT Operating Conditions .................................................................................. 28 8.5 Test Result .......................................................................................................... 29 9. Power Spectral Density Test ............................................................................... 31 9.1 Block Diagram Of Test Setup .............................................................................. 31…

Text truncated - open the document above for the full version.

Report No.: BCTC2606322502E No.：BCTC/KJ-RF-ICT-001 Page 78 of 80 Edition：B.1 15. EUT Test Setup Photographs Conducted Emission Measurement Photos Report No.: BCTC2606322502E No.：BCTC/KJ-RF-ICT-001 Page 79 of 80 Edition：B.1 Radiated Measurement Photos
