2BAWSRDL-NADride4K

We thought about every little detial so you could only focus on your driving. Drive Safe. The dride team What's in the box USB cable Camera bracket & tape Single or Dual lens Trim tool Cable clips Fusebox adapter Installation 1 SIM Insert memory card up to 1 TB. Insert nano SIM card. *In selected models only Apply the tape on the camera bracket. Attach the camera to the camera bracket and gently push it away to lock it in place. 2 3 Place the Dride 4k behind the car mirror. 4 Connect the power cable to the power socket on your Dride 4k. 5 Plug the fusebox adapter and connect it to the fuse box in your car. It might be a good idea to consult with a professional. Battery Ignition Ground Use the trim tool to carefully remove any trim and tidy any remaining wiring with the cable clips. 5 Use the trim tool to carefully remove any trim and tidy any remaining wiring with the cable clips. 6 White LED Recording Yellow LED Powering on/off Red LED An error occurred, open the app for more info 7 To get started, Download the app and follow the instructions Search for “ ” on App store or Google play Scan QR code or Support Visit the Dride Help Center as your resource for tips, troubleshooting and guides on how to get the most out of Dride. .io/help Specification View angle: 140 degree Video Mode: Loop record / Motion Detection Video Format: MP4 Video Encoding: H.264 Or H.265 Video Resolution: Up to 4K 3840X2160@30fps + 1080p@30fps Chipset: Dual – Core ARM cortex [email protected] Camera: Front: IMX415 Internal: SC2322 Front cam Night vision: Sony Starvis In cabin Night vision: Active IR cut GPS: Included Wi-Fi: 2.4Ghz & 5Ghz 802.11a/b/g/n/ac Bluetooth: BLE 4.1 Impact detection (G-Sensor): Included Parking mode: Triggered by Doppler Radar Microphone: Included Speaker: Included Storage: SD Card eMMC Cloud storage: Free unlimited cloud storage for road videos SD Card: Up to 1TB eMMC: 128GB (Optional) Charging interface: USB C Power loss prevention: Supercapacitors Power consumption: Parking mode 50 MAH Wi-Fi version 400 MAH - 500 MAH LTE version 900 MAH - 1000 MAH Power supply: 5 V/ 2 A Storage temperature: -30 o c 100 o c Operating temperature: -20 o c 80 o c FCC Warning Statement 19 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provid ereasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient orrelocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outletonacircuit different fromthat to which the receiveris connected. Consult the dealeroran experienced radio/TV technician for help. FCC Radiation Exposure Statement The antennas used forthis transmitter must be installedto provide a separation distance of at least 20 cm from all persons and must not be colocated for operating in conjunction with anyother antenna or transmitter. Changes ormodifications notexpressly approved bythe partyresponsible for compliance could void the user’s authority to operate the equipment. This equipmenthasbeentested and foundtocomplywith thelimitsfora Class B digitaldevice, pursuant to Part 15 ofthe FCC Rules. These limits are designed to provid ereasonable protection against harmfulinterference in a residential installation. This equipment generates uses and can radiate radio frequency energyand, ifnot installed and used in accordance with the instructions,may cause harmfulinterference to radio communications. However, there is no guarantee thatinterference willnotoccur in a particularinstallation. Ifthis equipment does cause harmfulinterference to radio ortelevision reception, which can be determined byturning the equipment off and on,the userisencouraged to try to correct the interference byone or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to pro vide a separation dis tance of at leas t 20 cm fr om all persons and must not be colocated for o perating in co njunction with any o ther antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

Dride Technology LTD Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Dride Technology LTD Address: Eliyahu Eitan 1, Rishon Letzion, Israel Product Name: Dride4K FCC ID : 2BAWSRDL-NA Model(s): DR4K1-RDL-NA 2.911(d)(5)(i) Equipment Type We, [Dride Technology LTD] (“the applicant”) certify that the equipment for which authorization is sought through certification is not: • Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. • Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Yossi Neiman Date: Jun. 08, 2023 Title and Company name: CEO; Dride Technology LTD NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the 2.911 (d)(5)(i) Eq uipment Typ e Attestation v1.2

Dride Technology LTD Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Dride Technology LTD Address: Eliyahu Eitan 1, Rishon Letzion, Israel Product Name: Dride4K FCC ID: 2BAWSRDL-NA Model(s): DR4K1-RDL-NA 2.911(d)(5)(ii) Applicant filing We, [Dride Technology LTD] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Yossi Neiman Date: Jun. 08, 2023 Title and Company name: CEO; Dride Technology LTD NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the 2.911 (d)(5)(ii) Applicant Attestation v1.2

Dride Technology LTD Section 2.911(d)(7) USA Agent for Service of Process Company name: Dride Technology LTD Address: Eliyahu Eitan 1, Rishon Letzion, Israel Product Name: Dride4K FCC ID : 2BAWSRDL-NA Model(s): DR4K1-RDL-NA 2.911(d)(7) USA Designated Agent for Service of Process We, [Dride Technology LTD] (“the applicant”) designate [Dride Inc .] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We Acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We Acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. 2.911 (d)(7)USA Agent v1.3 Dride Technology LTD USA Agent Company name: Dride, Inc. Address: 2035 Sunset Lake Road, Suite B-2, Newark, Delaware, 19702 FRN: 0033884883 Contact Name: Yossi Neiman Telephone No: +1 (917) 675-5195 Email: [email protected] Applicant Company name: Dride Technology LTD Address: Eliyahu Eitan 1, Rishon Letzion, Israel FCC Grantee Code: 2BAW S Contact Name: Yossi Neiman Telephone No: +972524624657 Email: [email protected] Signature: Title: CEO Signature: Title: CEO Date: 2023/6/8 Date: 2023/6/8 NO TE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/ 02/06/2022-28263/ prot ecting-agai nst-nation al-security-threats-to-the-communications-supply-chai n-through-the 2.911 (d)(7)USA Agent v1.3

< Dride Technolo gy LTD > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD21046 Date: Jun. 08, 2023 Subject; Request for Long Term Confidentiality FCC ID: 2BAWSRDL-NA To Whom It May Concern, P ursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up P rocedure SDR Software / Security Info It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Yossi Neiman Title : CEO

Dride Technology LTD Letter of Authorization Company: Dride Technology LTD Address: Eliyahu Eitan 1, Rishon Letzion, Israel Product name: Dride4K Trade name: N/A Model name: DR4K1-RDL-NA FCC Identifier: 2BAWSRDL-NA We authorize MiCOM LabsInc, 575 Boulder Court, Pleasanton, California94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM LabsInc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Yossi Neiman Date: Jun. 08, 2023 Title: CEO Signature of applicant:

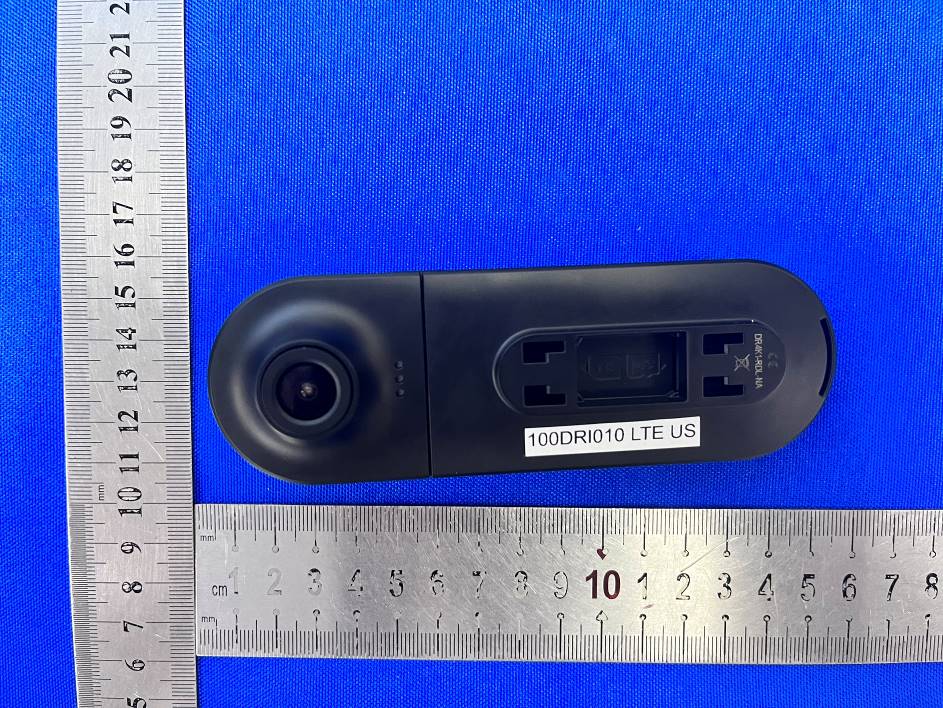

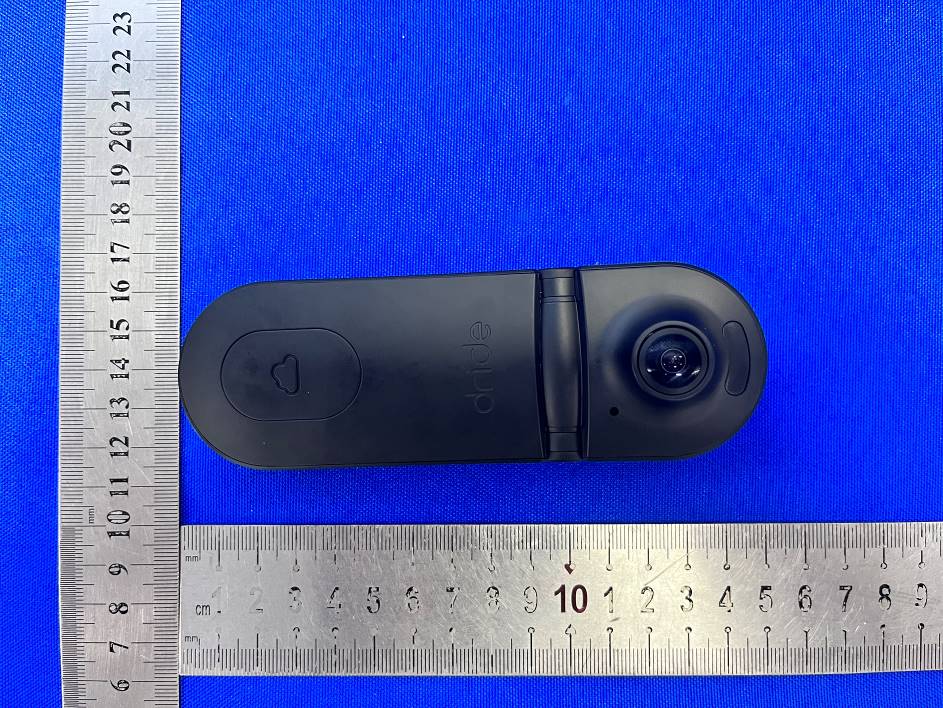

Model: DR4K1-RDL-NA Model: DR4K1-RDL-NA Model: DR4K1-RDL-NA Model: DR4K1-RDL-NA

FCC ID LABEL: Label Location: FCC ID: 2BAWSRDL-NA Product Name: Dride4K Model Name: DR4K1-RDL-NA

Model: DR4K1-RDL-NA Model: DR4K1-RDL-NA Model: DR4K1-RDL-NA Model: DR4K1-RDL-NA Model: DR4K1-RDL-NA Model: DR4K1-RDL-NA Model: DR4K1-RDL-NA Model: DR4K1-RDL-NA Model: DR4K1-RDL-NA Model: DR4K1-RDL-NA Model: DR4K1-RDL-NA 3G/4G Antenna Radar Antenna Model: DR4K1-RDL-NA 5G WiFi Antenna B T/BLE/2.4G WiFi Antenna

MPE ESTIMATION FCC ID: 2BAWSRDL-NA 1. Limit for General Population/Uncontrolled Exposures Frequency Power Density(mW/cm2) Averaging Time(minutes) 300MHz-1.5GHz F/1500 30 1.5GHz-100GHz 1.0 30 Note: F= Frequency in MHz 2. Estimation Result 2.4G WiFi: Worst case Mode Max PK Output Power(dBm) Tune Up Power(dBm ) Max Tune Up Power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE (mW/cm²) Power Density(m W/cm2) Limit Result 11b 2412MHz 17.14 18±1(19) 79.433 0.5 1.122 0.017731 1.0 PASS Note: Note: The estimation distance is 20cm. Note: PK Output power=conducted power. Conducted power see the test report 23032013ER-63. 5G WiFi: Worst case Mode Max PK Output Power(dBm) Tune Up Power(dBm ) Max Tune Up Power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE (mW/cm²) Power Density(m W/cm2) Limit Result Band 1 13.20 13±1(14) 25.119 -10.49 0.0893 0.000446 1.0 PASS Band 2 12.28 12±1(13) 19.953 -11.51 0.0706 0.000280 1.0 PASS Band 3 13.02 13±1(14) 25.119 -4.35 0.3673 0.001835 1.0 PASS Band 4 13.18 13±1(14) 25.119 -1.01 0.7925 0.003960 1.0 PASS Note: Note: The estimation distance is 20cm. Note: PK Output power=conducted power. Conducted power see the test report 23032013ER-64. BT: Worst case Mode Reading result (dBμV) Conducted power(dBm) Tune Up Power(dBm) Max Tune Up Power (mW) MPE (mW/cm²) Power Density (mW/cm2) Limit Result GFSK 2402 MHz 92.27 -2.93 -2±1(-1) 0.794 0.000158 1.0 PASS Note: Note: The estimation distance is 20cm. Note: Reading result see the test report 23032013ER-61. EIRP= Reading result - 95.2 BLE: Worst case Mode Reading result (dBμV) EIRP(dBm) Tune Up Power(dBm) Max Tune Up Power (mW) MPE (mW/cm²) Power Density (mW/cm2) Limit Result GFSK 2402MHz 96 0.8 1±1(2) 1.585 0.000315 1.0 PASS Note: Note: The estimation distance is 20cm. Note: Reading result see the test report 23032013ER-62. EIRP= Reading result - 95.2 24G: Worst case Mode Reading result (dBμV) EIRP(dBm) Tune Up Power(dBm) Max Tune Up Power (mW) MPE (mW/cm²) Power Density (mW/cm2) Limit Result Radar 109.11 13.91 14±1(15) 31.623 0.006291 1.0 PASS Note: Note: The estimation distance is 20cm. Note: Reading result see the test report 23032013ER-67. EIRP= Reading result - 95.2 WCDMA/LTE: Worst case Mode Frequency (MHz) Output Power (Turn-up Procedure) Antenna Gain (Numeric) Power Density At 20 cm (mW/cm 2 ) Power Density Limit (mW/cm 2 ) Test Results dBm mW WCDMA Band II 1852.4 11.36 13.677 0.0643 0.00017 1.000 PASS WCDMA: Band IV 1712.4 16.68 46.559 0.1986 0.00184 1.000 PASS WCDMA: Band V 826.4 11.77 15.031 0.0605 0.00018 0.551 PASS LTE Band 2 1880.0 26.95 495.45 0.0643 0.00634 1.000 PASS LTE Band 4 1732.5 26.05 402.717 0.2009 0.01610 1.000 PASS LTE Band 5 836.5 25.23 333.426 0.0605 0.00401 0.558 PASS LTE Band 12 707.5 25.68 369.828 0.0021 0.00015 0.472 PASS LTE Band 13 779.5 25.68 369.828 0.0083 0.00061 0.520 PASS LTE Band 14 790.5 26.66 463.447 0.0113 0.00104 0.527 PASS LTE Band 66 1745.0 26.09 406.443 0.2009 0.01624 1.000 PASS LTE Band 71 680.5 24.59 287.74 0.0031 0.00018 0.454 PASS Note: The estimation distance is 20cm. Antenna Gain: WCDMA: Band II: -11.92dBi Band IV: -7.02dBi Band V: -12.18dBi LTE: Band 2:-11.92dBi; Band 4:-6.97dBi; Band 5: -12.18dBi; Band 12: -26.81dBi; Band 13: -20.81dBi; Band 14: -19.46dBi; Band 66: -6.97dBi; Band 71: -25.04dBi, π=3.14 Note: Output power=conducted power. Conducted power see the test report 23032013ER-65, 23032013ER-66. The BT, BLE and 2.4GHz WIFI cannot transmit simultaneously. So the worst simultaneous transmitting consideration: The ratio=MPE LTE /Limit+ MPE 2.4G WIFI /Limit +MPE 5G WIFI /Limit+ MPE 24G Radar/ Limit =0.01610/1.00+0.017731/1.00+0.003960/1.00+0.006291/1.00=0.044082＜1.00 ------The End------

Page 1 of 53 Report No.: 23032013ER-65 FCC RADIO TEST REPORT FCC ID: 2BAWSRDL-NA Sample： Dride4K Trade Name： N/A Main Model： DR4K1-RDL-NA Additional Model： N/A Report No.： 23032013ER-65 Prepared for Dride Technology LTD Eliyahu Eitan 1, Rishon Letzion, Israel Prepared by Global United Technology Services Co. Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Page 2 of 53 Report No.: 23032013ER-65 TEST RESULT CERTIFICATION Applicant................................ : Dride Technology LTD Address ................................... : Eliyahu Eitan 1, Rishon Letzion, Israel Manufacturer ......................... : Dride Technology LTD Address ................................... : Eliyahu Eitan 1, Rishon Letzion, Israel Product description Product.................................... : Dride4K Trade Name ............................ : N/A Model Name............................ : DR4K1-RDL-NA Test Methods ......................... : FCC Part 22H & 24E& 27L Rules This device described above has been tested by Global United Technology Services Co. Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval, this document may be altered or revised by Global United Technology Services Co. Ltd., personnel only, and shall be noted in the revision of the document. Date of Test .......................................... : Date (s) of performance of tests ............ : Mar. 20, 2023 ~ May. 15, 2023 Date of Issue .......................................... : Jul. 13, 2023 Test Result ............................................. : Pass Prepared By: Date: 2023-7-13 Project Engineer Check By: Date: 2023-7-13 Reviewer Page 3 of 53 Report No.: 23032013ER-65 Table of Contents Page 1 TEST SUMMARY 5 1.1 TEST PROCEDURES AND RESULTS 5 1.2 TEST FACILITY 6 1.3 MEASUREMENT UNCERTAINTY 7 1.4 ENVIRONMENTAL CONDITIONS 7 2 GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES AND TEST FREQUENCY 9 2.3 DESCRIPTION OF THE TEST MODES 11 2.4 TEST SETUP 11 2.5 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL 11 2.6 MEASUREMENT INSTRUMENTS LIST 12 3 ERP AND EIRP 13 3.1 PROVISIONS APPLICABLE 13 3.2 TEST CONFIGURATIO N 13 3.3 TEST PROCEDURE 15 3.4 TEST RESULT 17 4 PEAK-TO-AVERAGE POWER RATIO 18 4.1 PROVISIONS APPLICABLE 18 4.2 MEASUREMENT METHOD 18 4.3 MEASUREMENT SETUP 19 4.4 TEST RESULT 19 5 OCCUPY BANDWIDTH 21 5.1 PROVISIONS APPLICABLE 21 5.2 MEASUREMENT METHOD 21 5.3 MEASUREMENT SETUP 21 5.4 TEST RESULT 22 6 MODULATION CHARACTERISTIC 25 7 BAND EDGE EMISSION AT ANTENNA TERMINALS 26 7.1 PROVISIONS APPLICABLE 26 7.2 MEASUREMENT METHOD 26 7.3 MEASUREMENT SETUP 27 7.4 TEST RESULT 27 8 FIELD STRENGTH OF SPURIOUS RAD IATION MEASUREMENT 29 Page 4 of 53 Report No.: 23032013ER-65 Table of Contents Page 8.1 PROVISIONS APPLICABLE 29 8.2 MEASUREMENT PROCEDURE 29 8.3 MEASUREMENT SETUP 31 8.4 TEST RESULT 32 9 FREQUENC Y STABILITY V.S. TEMPERATURE MEASUREMENT 38 9.1 PROVISIONS APPLICABLE 38 9.2 MEASUREMENT METHOD 38 9.3 MEASUREMENT SETUP 39 9.4 TEST RESULT 40 10 FREQUENCY STABILITY V.S. VOLTAGE MEASUREMENT 45 10.1 MEASUREMENT SETUP 45 10.2 TEST PROCEDURE 45 10.3 TEST RESULT 45 12 PHOTO OF TEST 52 Page 5 of 53 Report No.: 23032013ER-65 1 TEST SUMMARY 1.1 TEST PROCEDURES AND RESULTS The tests were performed according to following standards: FCC Part 22 Public Mobile Services. FCC Part 24 Personal Communications Services. FCC Part 27 Miscellaneous Wireless Communications Services. FCC Part 90 Private Land Mobile Radio Services FCC Part 2 Frequency allocations and radio treaty matters, general rules and regulations. TIA/EIA 603 E: March 2016 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. ANSI-C63.26:2015 American National Standard for Compliance Testing of Transmitters Used in Licensed Radio Services KDB971168 D01 v03r01 Measurement Guidance For Certification Of Licensed Digital Transmitters DESCRIPTION OF TEST STANDARD RESULT Occupied Bandwidth §2.1049 Pass Band Edge / Spurious and Harmonic Emissions at Antenna Terminal §2.1051, §22.917(a), §24.238(a) §27.53(h) Pass Conducted Output Power §2.1046 Pass Frequency stability / variation of ambient temperature §2.1055, § 22.355, §24.235, §27.54 Pass Peak- to- Average Ratio §24.232(d), §27.50(d)(5) Pass Effective Radiated Power §22.913(a)(5) Pass Equivalent Isotropic Radiated Power §24.232(c), §27.50(d)(4) Pass Radiated Spurious and Harmonic Emissions §2.1053, §22.917(a), §24.238(a), §27.53(h) Pass Page 6 of 53 Report No.: 23032013ER-65 1.2 TEST FACILITY Test Firm : Global United Technology Services Co. Ltd. Address : No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 The test facility is recognized, certified, or accredited by the following organizations: ● FCC—Registration No.: 381383 Designation Number: CN5029 Global United Technology Services Co. Ltd., Shenzhen EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in files. ● IC —Registration No.: 9079A CAB identifier: CN0091 The 3m Semi-anechoic chamber of Global United Technology Services Co. Ltd. has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing. ● NVLAP (LAB CODE: 600179-0) Global United Technology Services Co. Ltd., is accredited by the National Voluntary Laboratory Accreditation Program (NVLAP). Page 7 of 53 Report No.: 23032013ER-65 1.3 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, pro…

Text truncated - open the document above for the full version.

Page 1 of 62 Report No.: 23032013ER-66 FCC RADIO TEST REPORT FCC ID: 2BAWSRDL-NA Sample： Dride4K Trade Name： N/A Main Model： DR4K1-RDL-NA Additional Model： N/A Report No.： 23032013ER-66 Prepared for Dride Technology LTD Eliyahu Eitan 1, Rishon Letzion, Israel Prepared by Global United Technology Services Co. Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Page 2 of 62 Report No.: 23032013ER-66 TEST RESULT CERTIFICATION Applicant................................ : Dride Technology LTD Address ................................... : Eliyahu Eitan 1, Rishon Letzion, Israel Manufacturer ......................... : Dride Technology LTD Address ................................... : Eliyahu Eitan 1, Rishon Letzion, Israel Product description Product.................................... : Dride4K Trade Name ............................ : N/A Model Name............................ : DR4K1-RDL-NA Test Methods ......................... : FCC Part 2 Rules FCC Part 22 Rules FCC Part 24 Rules FCC Part 27 Rules FCC Part 90 Rules This device described above has been tested by Global United Technology Services Co. Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval, this document may be altered or revised by Global United Technology Services Co. Ltd., personnel only, and shall be noted in the revision of the document. Date of Test .......................................... : Date (s) of performance of tests ............ : Mar. 20, 2023 ~ May. 16, 2023 Date of Issue .......................................... : Jul. 13, 2023 Test Result ............................................. : Pass Prepared By: Date: 2023-7-13 Project Engineer Check By: Date: 2023-7-13 Reviewer Page 3 of 62 Report No.: 23032013ER-66 Table of Contents Page 1 TEST SUMMARY 5 1.1 TEST PROCEDURES AND RESULTS 5 1.2 TEST FACILITY 6 1.3 MEASUREMENT UNCERTAINTY 7 1.4 ENVIRONMENTAL CONDITIONS 7 2 GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES AND TEST FREQUENCY 10 2.3 DESCRIPTION OF THE TEST MODES 14 2.4 TEST SETUP 14 2.5 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL 14 2.6 MEASUREMENT INSTRUMENTS LIST 15 3 ERP AND EIRP 16 3.1 LIMIT 16 3.2 TEST CONFIGURATIO N 16 3.3 TEST PROCEDURE 18 3.4 TEST RESULT 19 4 PEAK-TO-AVERAGE POWER RATIO 20 4.1 PROVISIONS APPLICABLE 20 4.2 MEASUREMENT METHOD 20 4.3 MEASUREMENT SETUP 21 4.4 TEST RESULT 21 5 OCCUPY BANDWIDTH 22 5.1 PROVISIONS APPLICABLE 22 5.2 MEASUREMENT METHOD 22 5.3 MEASUREMENT SETUP 22 5.4 TEST RESULT 23 6 MODULATION CHARACTERISTIC 24 7 OUT OF BAND EMISSION AT ANTENNA TERMINALS 25 7.1 PROVISIONS APPLICABLE 25 7.2 MEASUREMENT METHOD 25 7.3 MEASUREMENT SETUP 26 7.4 TEST RESULT 26 8 FIELD STRENGTH OF SPURIOUS RAD IATION MEASUREMENT 27 Page 4 of 62 Report No.: 23032013ER-66 Table of Contents Page 8.1 PROVISIONS APPLICABLE 27 8.2 MEASUREMENT PROCEDURE 27 8.3 MEASUREMENT SETUP 29 8.4 TEST RESULT 29 9 FREQUENC Y STABILITY V.S. TEMPERATURE MEASUREMENT 40 9.1 PROVISIONS APPLICABLE 40 9.2 MEASUREMENT METHOD 40 9.3 MEASUREMENT SETUP 41 9.4 TEST RESULT 42 10 FREQUENCY STABILITY V.S. VOLTAGE MEASUREMENT 58 10.1 MEASUREMENT SETUP 58 10.2 TEST PROCEDURE 58 10.3 TEST RESULT 58 11 BAND EDGE 59 11.1 MEASUREMENT OVERVIEW 59 11.2 MEASUREMENT METHOD 59 11.3 MEASUREMENT METHOD 60 11.4 TEST RESULT 60 12 PHOTO OF TEST 61 Page 5 of 62 Report No.: 23032013ER-66 1 TEST SUMMARY 1.1 TEST PROCEDURES AND RESULTS The tests were performed according to following standards: FCC Part 22 Public Mobile Services. FCC Part 24 Personal Communications Services. FCC Part 27 Miscellaneous Wireless Communications Services. FCC Part 90 Private Land Mobile Radio Services FCC Part 2 Frequency allocations and radio treaty matters, general rules and regulations. TIA/EIA 603 E: March 2016 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. ANSI-C63.26:2015 American National Standard for Compliance Testing of Transmitters Used in Licensed Radio Services KDB971168 D01 v03r01 Measurement Guidance For Certification Of Licensed Digital Transmitters DESCRIPTION OF TEST STANDARD RESULT Occupied Bandwidth §2.1049 Pass Band Edge / Spurious and Harmonic Emissions at Antenna Terminal §2.1051, §22.917(a), §90.543(e), §22.917(a)§27.53(g), §27.53(c) §27.53(h) §24.238(a) Pass On all frequencies between 763-775 MHz and 793-805 MHz §27.53(c)(4) Pass* On all frequencies between 769-775 MHz and 799-805 MHz §90.543(e) Pass* Conducted Output Power §2.1046 Pass Frequency stability / variation of ambient temperature §2.1055, §90.539(e), §22.355, §27.54§24.235 Pass Peak- to- Average Ratio 27.50(d)(5) §24.232(d) Pass Effective Radiated Power Equivalent Isotropic Radiated Power §90.542(a)(7), §22.913(a)(5), §27.50(c)(10) §27.50(b), 27.50(d)(4), §24.232(c) Pass Radiated Spurious and Harmonic Emissions §2.1053, §90.543(e), §22.917(a), §27.53(g) §27.53(c), §27.53(h), §24.238(a) Pass Undesirable Emissions in the 1559-1610 MHz band §2.1053, §90.543(f), 27.53(f) Pass Note:*Since it was not possible to set the resolution bandwidth to 6.25 kHz with the available equipment, a bandwidth of 10kHz was used instead to show compliance. Page 6 of 62 Report No.: 23032013ER-66 1.2 TEST FACILITY Test Firm : Global United Technology Services Co. Ltd. Address : No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 The test facility is recognized, certified, or accredited by the following organizations: ● FCC—Registration No.: 381383 Designation Number: CN5029 Global United Technology Services Co. Ltd., Shenzhen EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications Commiss…

Text truncated - open the document above for the full version.

Appendix A: Effective (Isotropic) Radiated Power Output Data Test Result Band Bandwidth Modulation Channel RB Configuration Conducted Output Power (dBm ) Antenna Gain (dBi) EIRP (dBm ) EIRP (W) EI RP Limit (W) Band2 1.4MHz QPSK 18607 1RB#0 25.93 -11.92 14.01 0.0252 2.000 Band2 1.4MHz QPSK 18607 1RB#2 26.03 -11.92 14.11 0.0258 2.000 Band2 1.4MHz QPSK 18607 1RB#5 25.94 -11.92 14.02 0.0252 2.000 Band2 1.4MHz QPSK 18607 3RB#0 25.98 -11.92 14.06 0.0255 2.000 Band2 1.4MHz QPSK 18607 3RB#1 25.98 -11.92 14.06 0.0255 2.000 Band2 1.4MHz QPSK 18607 3RB#3 25.97 -11.92 14.05 0.0254 2.000 Band2 1.4MHz QPSK 18607 6RB#0 25.23 -11.92 13.31 0.0214 2.000 Band2 1.4MHz QPSK 18900 1RB#0 26.13 -11.92 14.21 0.0264 2.000 Band2 1.4MHz QPSK 18900 1RB#2 26.15 -11.92 14.23 0.0265 2.000 Band2 1.4MHz QPSK 18900 1RB#5 26.09 -11.92 14.17 0.0261 2.000 Band2 1.4MHz QPSK 18900 3RB#0 26.15 -11.92 14.23 0.0265 2.000 Band2 1.4MHz QPSK 18900 3RB#1 26.17 -11.92 14.25 0.0266 2.000 Band2 1.4MHz QPSK 18900 3RB#3 26.18 -11.92 14.26 0.0267 2.000 Band2 1.4MHz QPSK 18900 6RB#0 25.39 -11.92 13.47 0.0222 2.000 Band2 1.4MHz QPSK 19193 1RB#0 25.78 -11.92 13.86 0.0243 2.000 Band2 1.4MHz QPSK 19193 1RB#2 25.98 -11.92 14.06 0.0255 2.000 Band2 1.4MHz QPSK 19193 1RB#5 25.80 -11.92 13.88 0.0244 2.000 Band2 1.4MHz QPSK 19193 3RB#0 25.85 -11.92 13.93 0.0247 2.000 Band2 1.4MHz QPSK 19193 3RB#1 25.85 -11.92 13.93 0.0247 2.000 Band2 1.4MHz QPSK 19193 3RB#3 25.90 -11.92 13.98 0.0250 2.000 Band2 1.4MHz QPSK 191…

Text truncated - open the document above for the full version.
