2BAYC-NUC24CEN1Mini PC

Simply NUC, Inc.

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: May 07, 2024
Application Purpose: Original Equipment
Date of Application: May 07, 2024
Equipment Note: Mini PC
Frequency Range: 2402.00000000 - 2480.00000000
Company: Simply NUC, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Processor:Intel® CPU Operating System: Microsoft Windows 11 or Ubuntu 20.04 WiFi: 802.11b/g/n/ac Interface: USBx4 HDMI×1 typeA DP×1 Standard φ 3.5mm standard headphone jack & microphone jack FCC Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interferenceby one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The FCC certification of this device refers to RF exposure testing performed in typical operating conditions, where a person is no closer than 20 centimeters from the device surface at all times, except for non-repetitive patterns with transient time intervals in the order of a second. Only in the stated conditions, the device is shown to fully comply with the FCC RF Exposure requirements of KDB 447498.

Attestation Statements

SimplyNUC,Inc. FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 4/28/24 U.S.AgentDesignation SimplyNUC,Inc.acknowledgestheirconsentforthefollowingcontactlocatedintheUnitedStatestoactastheir agentforserviceofprocessfortheequipmentforwhichauthorizationissought(FCCID:2BAYC-NUC24CEN1): NameandcompanyofU.S.agent:SimplyNUC,Inc. PhysicalU.S.addressofagent:3500SDupontHwy,InthecityofDover,CountyofKentDelaware 19901UnitedStates FRNofU.S.agent:0033687104 EmailaddressofU.S.agent:[email protected] SimplyNUC,Inc.acknowledgestheirobligationtoacceptserviceofprocessonbehalfofSimplyNUC,Inc. SimplyNUC,Inc.withtheFRN0033687104acceptsitsobligationtomaintainanagentforserviceofprocessin theUnitedStatesfornolessthanoneyearaftereitherthegranteehaspermanentlyterminatedallmarketingand importationoftheapplicableequipmentwithintheU.S.,ortheconclusionofanyCommission-related administrativeorjudicialproceedinginvolvingtheequipment,whicheverislater. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirementslistedunder§ 2.911(d)(7). TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB 986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotify theFCCwithin30daysviathegrantingTCB. Sincerely, Signature Wellking Manager SimplyNUC,Inc. Signature Wellking Manager SimplyNUC,Inc. 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 5

External Photos

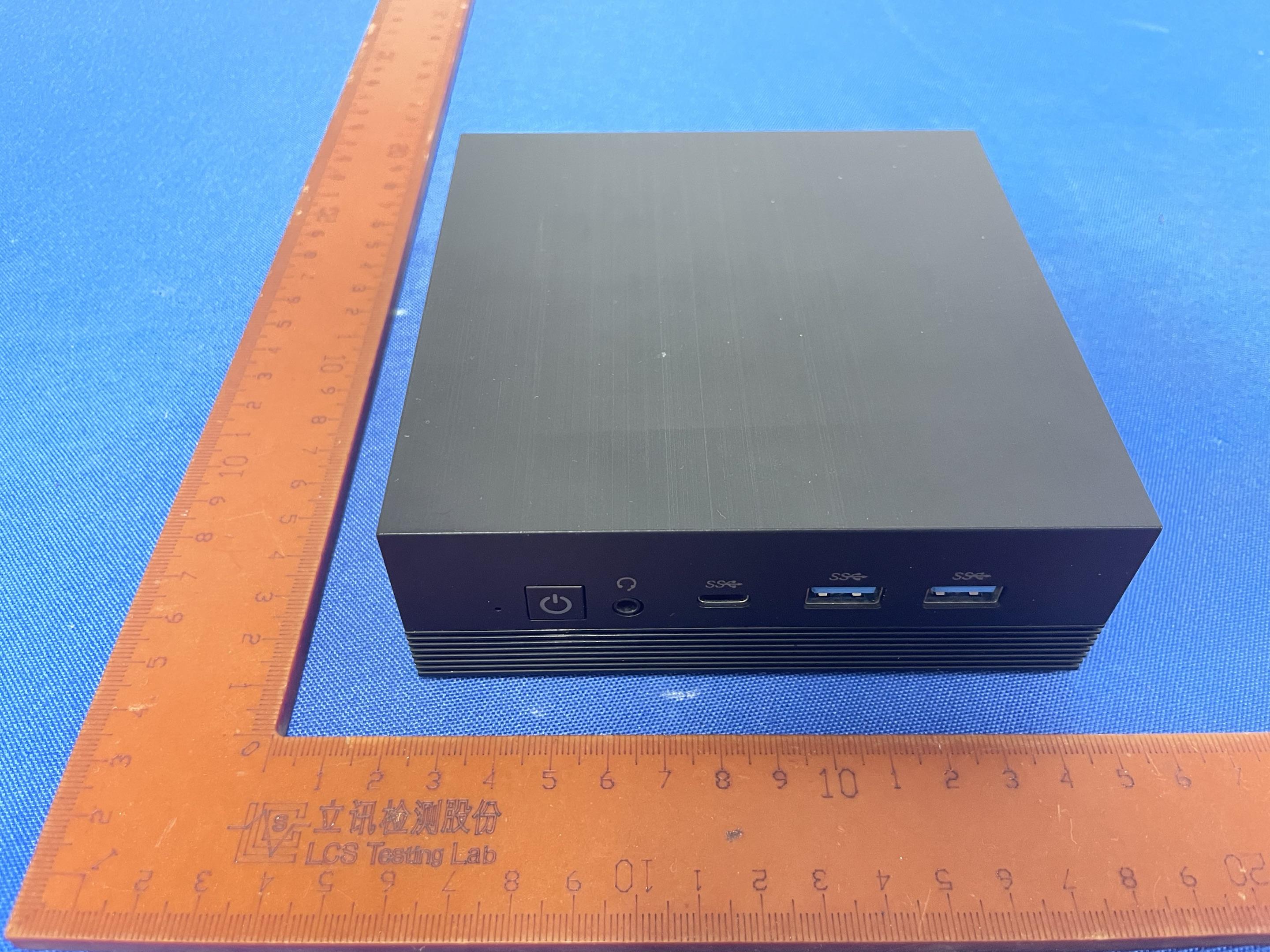

Page1of6FCCID:2BAYC-NUC24CEN1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of6FCCID:2BAYC-NUC24CEN1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of6FCCID:2BAYC-NUC24CEN1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of6FCCID:2BAYC-NUC24CEN1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8 Page5of6FCCID:2BAYC-NUC24CEN1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.9 Fig.10 Page6of6FCCID:2BAYC-NUC24CEN1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.11 Fig.12

ID Label/Location Info

Page1of1FCCID:2BAYC-NUC24CEN1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION (Size:L3.0cmxW1.0cm) LabelLocation MiniPC Model:CatseyeNUC24CEN1 FCCID:2BAYC-NUC24CEN1

Internal Photos

Page1of10FCCID:2BAYC-NUC24CEN1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity InternalPhotosoftheEUT Fig.1 Fig.2 Page2of10FCCID:2BAYC-NUC24CEN1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Antenna0: Bluetooth Antenna Antenna1: WIFIAntenna Page3of10FCCID:2BAYC-NUC24CEN1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of10FCCID:2BAYC-NUC24CEN1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8 Page5of10FCCID:2BAYC-NUC24CEN1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.9 Fig.10 Page6of10FCCID:2BAYC-NUC24CEN1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.11 Fig.12 Page7of10FCCID:2BAYC-NUC24CEN1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.13 Fig.14 Page8of10FCCID:2BAYC-NUC24CEN1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.15 Fig.16 Page9of10FCCID:2BAYC-NUC24CEN1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.17 Fig.18 Page10of10FCCID:2BAYC-NUC24CEN1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.19 Fig.20

RF Exposure Info

Page1of9FCCID:2BAYC-NUC24CEN1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity MaximumPermissibleExposureReport 1.ProductInformation EUT:MiniPC TestModel:CatseyeNUC24CEN1 PowerSupply:ForACAdapter:Input:100-240V~,50/60Hz,1.0A Output:12.0V3.0A HardwareVersion: SU_DNB19_MB_V10_20221103A SoftwareVersion: Windows11Home23H2 Bluetooth FrequencyRange:2402MHz~2480MHz ChannelNumber:79channelsforBluetoothV5.1(DSS) 40channelsforBluetoothV5.1(DTS) ChannelSpacing:1MHzforBluetoothV5.1(DSS) 2MHzforBluetoothV5.1(DTS) ModulationType:GFSK,π/4-DQPSK,8-DPSKforBluetoothV5.1(DSS) GFSKforBluetoothV5.1(DTS) BluetoothVersion:V5.1 AntennaDescription:Antenna0:FPCAntenna,3.44dBi(Max.) WIFI(2.4GBand) FrequencyRange:2412MHz~2462MHz ChannelNumber:11Channelsfor20MHzbandwidth(2412~2462MHz) 7Channelsfor40MHzbandwidth(2422~2452MHz) ChannelSpacing:5MHz ModulationType:IEEE802.11b:DSSS(CCK,DQPSK,DBPSK) IEEE802.11g:OFDM(64QAM,16QAM,QPSK,BPSK) IEEE802.11n:OFDM(64QAM,16QAM,QPSK,BPSK) AntennaDescription:Antenna1:FPCAntenna,3.44dBi(Max.) WIFI(5.2GBand) FrequencyRange:5180MHz~5240MHz ChannelNumber:4channelsfor20MHzbandwidth(5180MHz~5240MHz) 2channelsfor40MHzbandwidth(5190MHz~5230MHz) 1channelsfor80MHzbandwidth(5210MHz) ModulationType:IEEE802.11a:OFDM(64QAM,16QAM,QPSK,BPSK) IEEE802.11n:OFDM(64QAM,16QAM,QPSK,BPSK) IEEE802.11ac:OFDM(256QAM,64QAM,16QAM,QPSK,BPSK) AntennaDescription:Antenna1:FPCAntenna,4.83dBi(Max.) WIFI(5.8GBand) FrequencyRange:5745MHz~5825MHz ChannelNumber:5channelsfor20MHzbandwidth(5745MHz~5825MHz) 2channelsfor40MHzbandwidth(5755MHz~5795MHz) 1channelsfor80MHzbandwidth(5775MHz) Page2of9FCCID:2BAYC-NUC24CEN1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ModulationType:IEEE802.11a:OFDM(64QAM,16QAM,QPSK,BPSK) IEEE802.11n:OFDM(64QAM,16QAM,QPSK,BPSK) IEEE802.11ac:OFDM(256QAM,64QAM,16QAM,QPSK,BPSK) AntennaDescription:Antenna1:FPCAntenna,4.83dBi(Max.) Exposurecategory:Generalpopulation/uncontrolledenvironment EUTType:ProductionUnit DeviceType:MobileDevices 2.EvaluationMethod SystemsoperatingundertheprovisionsofFCC47CFRsectionshallbeoperatedinamannerthatensures thatthepublicisnotexposedtoradiofrequencyenergylevelinexcessoftheCommission’sguidelines. Inaccordancewith47CFRFCCPart2SubpartJ,section2.1091thisdevicehasbeendefinedasmobile devicewherebyadistanceof0.2mnormallycanbemaintainedbetweentheuserandthedevice,andbelow RFPermissibleExposurelimitshallcomplywith. InaccordancewithKDB447498D01forSimultaneoustransmissionMPEtestexclusionapplieswhenthe sumoftheMPEratiosforallsimultaneoustransmittingantennasincorporatedinahostdevice,basedonthe calculated/estimated,numericallymodelledormeasuredfieldstrengthsorpowerdensity,is≤1.0.TheMPE ratioofeachantennaisdeterminedattheminimumtestseparationdistancerequiredbytheoperating configurationsandexposureconditionsofthehostdevice,accordingtotheratiooffieldstrengthsorpower densitytoMPElimit,atthetestfrequency.Eitherthemaximumpeakorspatiallyaveragedresultsfrom measurementsornumericalsimulationsmaybeusedtodeterminetheMPEratios.Spatialaveragingdoes notapplywhenMPEisestimatedusingsimplecalculationsbasedonfar-fieldplane-waveequivalent conditions.Theantennainstallationandoperatingrequirementsforthehostdevicemustmeettheminimum testseparationdistancesrequiredbyallantennas,inbothstandaloneandsimultaneoustransmission operations,tosatisfycompliance. 3.Limit 3.1ReferEvaluationMethod ANSIC95.1–2019:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoElectric,Magnetic, andElectromagneticFields,0Hzto300GHz FCCKDBpublication447498D01General1RFExposureGuidancev06:MobileandPortableDevicesRF ExposureProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices. Page3of9FCCID:2BAYC-NUC24CEN1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/UncontrolledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 4.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 5.AntennaInformation EUTcanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; Internal/External Identification Antennatypeand antennanumber Operatefrequency band Maximumantenna gain Notes Antenna0FPCAntenna2400-2500MHz3.44dBiBTAntenna Antenna1FPCAntenna 2400-2500MHz3.44dBi WIFIAntenna5180~5240MHz4.83dBi 5745~5825MHz4.83dBi Page4of9FCCID:2BAYC-NUC24CEN1 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86…

Text truncated - open the document above for the full version.

Test Report

深圳市亿圣邦科技有限公司公司名称（客户填写）：深圳市艾普达科技有限公司 Antenna specification 物料代码（客户填写）：规格型号（客户填写）：MPC12P0YS 承认日期（客户填写）：供应供应商名称（SLK 填写）：深圳市亿圣邦科技有限公司商名称（SLK 填写）：承认签章供应商承认深圳市艾普达科技有限公司工程师审核批准工程师审核批准曾立文黄震林美财盖章签署盖章签署日期2023-06-20日期批示：□接受□有条件接受备注（客户填写）：供应商名称:深圳市亿圣邦科技有限公司供应商地址:东莞市塘厦镇蛟乙塘银园街13号2楼电话：0769-82553115传真：0769-82553116 Antenna 0: Bluetooth Antenna Product Code: (1) Customer: APD: 艾普达 (2) Project: 2216: SLK-APD-2216(Bluetooth Aantenna 2400-2500MHz) (3) Welding Position R:Right (4) Cable Length: 120IV:120*0.81MM (5)Cable Color G: Grey 2. Features *Stable and reliable in performances *Compact size *RoHS compliance 1. Explanation of Product number : 3.Applications * B R / E D R * Hand-held devices when B R / E D R functions are needed 4. 5- Holy bond’ s External antenna series are specially designed for Bluetooth (BR/EDR) applications. Based on Holy bond’s proprietary design and processes, this External antenna has excellent stability and sensitivity to 4. Description consistently provide high signal reception efficiency. 5. Electrical Specifications 1 CharacteristicsSpecificationsUnit OutlineDimensions 16.71*21.9*0.12 mm Bandwidth(under-10dBreturnloss) 130minMHz VSWR 3max Impedance 50 Ω Polarization LinearPolarization 5-2 VSWRS11 5-3. Bluetooth Antenna Gain/Efficiency/Radiation Pattern of 3D Antenna 1 WIFI Antenna Product Code: (1) Customer: APD: 艾普达 (2) Project: 2216: SLK-APD-2216 (Antenna 1: WIFI antenna 2400-2500MHz; 5150-5850MHz) (3) Welding Position R:Right (4) Cable Length: 150IV:150*0.81MM (5)Cable Color B: Black 6.2. Features * IEEE802.11 (a/b/g/n) *Stable and reliable in performances *Compact size *RoHS compliance 6.3. Applications * Hand-held devices when WIFI (802.11a/b/g/n) functions are needed 6. Explanation of Product number : Holybond’sExternalantennaseriesarespeciallydesignedforWIFI(802.11 a/b/g/n)applications.BasedonHolybond’sproprietarydesignandprocesses, thisExternalantennahasexcellentstabilityandsensitivitytoconsistently providehighsignalreceptionefficiency 7 . Description . 8. Electrical Specifications Characteristic 8-1 sSpecificationsUnit OutlineDimensions 16.71*21.9*0.12 mm Bandwidth(under-10dBreturnloss) 130minMHz VSWR 3max Impedance 50Ω Polarization LinearPolarization VSW 8-2 RS11 8-3. Antenna 1 : WIFI Antenna Gain/Efficiency/Radiation Pattern of 3D 9 . Antenna 1+Antenna 0 Size Picture

Test Report

Page 1 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity AppendixA RF Test Data for BT (ConductedMeasurement) ProductName:Mini PC Test Model:CatseyeNUC24CEN1 EnvironmentalConditions Temperature: 23.8C RelativeHumidity:52.1% ATM Pressure: 10 0.0 kPa Test Engineer:Paddi Chen Supervisedby: SummerWu Page 2 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity A.1 -20dBBandwidth ConditionModeFrequency(MHz)Antenna-20 dB Bandwidth(MHz)Limit -20 dB Bandwidth(MHz)Verdict NVNT1-DH52402Ant01.037N/APass NVNT1-DH52441Ant01.048N/APass NVNT1-DH52480Ant01.016N/APass NVNT2-DH52402Ant01.315N/APass NVNT2-DH52441Ant01.322N/APass NVNT2-DH52480Ant01.309N/APass NVNT3-DH52402Ant01.312N/APass NVNT3-DH52441Ant01.295N/APass NVNT3-DH52480Ant01.312N/APass Page 3 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity Test Graphs -20dBBandwidthNVNT1-DH52402MHzAnt0 -20dBBandwidthNVNT1-DH52441MHzAnt0 Page 4 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity -20dBBandwidthNVNT1-DH52480MHzAnt0 -20dBBandwidthNVNT2-DH52402MHzAnt0 Page 5 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity -20dBBandwidthNVNT2-DH52441MHzAnt0 -20dBBandwidthNVNT2-DH52480MHzAnt0 Page 6 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity -20dBBandwidthNVNT3-DH52402MHzAnt0 -20dBBandwidthNVNT3-DH52441MHzAnt0 Page 7 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity -20dBBandwidthNVNT3-DH52480MHzAnt0 Page 8 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity A.2 MaximumConductedOutputPower ConditionModeFrequency(MHz)AntennaTotal Power(dBm)Limit (dBm)Verdict NVNT1-DH52402Ant0-0.0921Pass NVNT1-DH52441Ant0-0.821Pass NVNT1-DH52480Ant00.8321Pass NVNT2-DH52402Ant0-0.3121Pass NVNT2-DH52441Ant01.1721Pass NVNT2-DH52480Ant00.5621Pass NVNT3-DH52402Ant0-0.5421Pass NVNT3-DH52441Ant01.0221Pass NVNT3-DH52480Ant00.4921Pass Page 9 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity Test Graphs PowerNVNT1-DH52402MHzAnt0 PowerNVNT1-DH52441MHzAnt0 Page 10 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity PowerNVNT1-DH52480MHzAnt0 PowerNVNT2-DH52402MHzAnt0 Page 11 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity PowerNVNT2-DH52441MHzAnt0 PowerNVNT2-DH52480MHzAnt0 Page 12 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity PowerNVNT3-DH52402MHzAnt0 PowerNVNT3-DH52441MHzAnt0 Page 13 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity PowerNVNT3-DH52480MHzAnt0 Page 14 of 60 FCC ID: 2BAYC…

Text truncated - open the document above for the full version.

Test Report

Page 36 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity Band Edge(Hopping)NVNT3-DH52402MHzAnt0 HoppingRef Band Edge(Hopping)NVNT3-DH52402MHzAnt0 HoppingEmission Page 37 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity Band Edge(Hopping)NVNT3-DH52480MHzAnt0 HoppingRef Band Edge(Hopping)NVNT3-DH52480MHzAnt0 HoppingEmission Page 38 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity A.7 ConductedRF SpuriousEmission ConditionModeFrequency(MHz)AntennaMax Value (dBc)Limit (dBc)Verdict NVNT1-DH52402Ant0-54.88-20Pass NVNT1-DH52441Ant0-53.89-20Pass NVNT1-DH52480Ant0-54.99-20Pass NVNT2-DH52402Ant0-53.96-20Pass NVNT2-DH52441Ant0-55.32-20Pass NVNT2-DH52480Ant0-54.39-20Pass NVNT3-DH52402Ant0-53.84-20Pass NVNT3-DH52441Ant0-54.39-20Pass NVNT3-DH52480Ant0-54.08-20Pass Page 39 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity Test Graphs Tx. SpuriousNVNT1-DH52402MHzAnt0 Ref Tx. SpuriousNVNT1-DH52402MHzAnt0 Emission Page 40 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity Tx. SpuriousNVNT1-DH52441MHzAnt0 Ref Tx. SpuriousNVNT1-DH52441MHzAnt0 Emission Page 41 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity Tx. SpuriousNVNT1-DH52480MHzAnt0 Ref Tx. SpuriousNVNT1-DH52480MHzAnt0 Emission Page 42 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity Tx. SpuriousNVNT2-DH52402MHzAnt0 Ref Tx. SpuriousNVNT2-DH52402MHzAnt0 Emission Page 43 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity Tx. SpuriousNVNT2-DH52441MHzAnt0 Ref Tx. SpuriousNVNT2-DH52441MHzAnt0 Emission Page 44 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity Tx. SpuriousNVNT2-DH52480MHzAnt0 Ref Tx. SpuriousNVNT2-DH52480MHzAnt0 Emission Page 45 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity Tx. SpuriousNVNT3-DH52402MHzAnt0 Ref Tx. SpuriousNVNT3-DH52402MHzAnt0 Emission Page 46 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity Tx. SpuriousNVNT3-DH52441MHzAnt0 Ref Tx. SpuriousNVNT3-DH52441MHzAnt0 Emission Page 47 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity Tx. SpuriousNVNT3-DH52480MHzAnt0 Ref Tx. SpuriousNVNT3-DH52480MHzAnt0 Emission Page 48 of 60 FCC ID: 2BAYC-NUC24CEN1ReportNo. : LCSA02274166EA ShenzhenLCS ComplianceTestingLaboratoryLtd. Add : 101, 201 Bldg A & 301 Bldg C, Juji IndustrialPark Yabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel: +(86) 0755-82591330| E-mail:[email protected]| Web: www.lcs-cert.com Scan code to check authenticity A.8 Duty Cycle ConditionModeFrequency(MHz)AntennaDuty Cycle(%)CorrectionFactor(dB)1/T (kHz) NVNT1-DH52402Ant076.881.140.35 NVNT1-DH52441Ant076.881.140.35 NVNT1-DH52480Ant076.881.140.35 NVNT2-DH52402Ant076.991.140.35 NVNT2-DH52441Ant076.991.140.35 NVNT2-D…

Text truncated - open the document above for the full version.

Test Report

Page 1 of 37 FCCID:2BAYC-NUC24CEN1ReportNo.:LCSA02274166EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT FOR SimplyNUC,Inc. MiniPC TestModel:CatseyeNUC24CEN1 Preparedfor:SimplyNUC,Inc. Address: 3500SDupontHwy,InthecityofDover,CountyofKent, Delaware,19901UnitedStates Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address: 101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Well king(Manager)

[email protected]1738750035Fax: 0755-23408306

Test Firm

Shenzhen LCS Compliance Testing Laboratory Ltd.Gavin Liang

[email protected]0755-82591330Fax: 0755-82591132

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	1.30 mW

Confidentiality

Long Term

Grant Notes

Output Power listed is peak conducted. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. End Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
