2BAYCNUC12ZRNZircon

(Simply NUC, Inc.) (July 9, 2024) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BAYCNUC12ZRN) [Simply NUC, Inc.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Well king (Simply NUC, Inc.) (July 9, 2024) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BAYCNUC12ZRN) [Simply NUC, Inc.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Well king

Attestation Statements (July 9, 2024) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: 2BAYCNUC12ZRN ) (Simply NUC, Inc.), the undersigned, hereby authorize (Simply NUC, Inc.) to act as our designated U.S. agent for service of process, (Simply NUC, Inc.) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. (Simply NUC, Inc.) accepts the responsibility to act as designated U.S. agent for service of process, provides an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Information： Company name: Simply NUC, Inc. Contact Name: Well king Address: 3500 S Dupont Hwy, In the city of Dover, County of Kent, Delaware 19901 United States Telephone No: 13538214502 Email: [email protected] FRN: 0033687104 U.S. Agent Information: Company Name: Simply NUC, Inc. Address: 3500 S Dupont Hwy, In the city of Dover, County of Kent, Delaware 19901 United States Contact Name: Well king Telephone No: 13538214502 Email: [email protected] FRN: 0033687104 Applicant Signature: Agent Signature: Applicant printed name: Well king Agent printed name: Well king

Simply NUC, Inc. (July 9, 2024) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Zircon / NUC12ZRN / FCC ID: 2BAYCNUC12ZRN) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☒ No required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Signature: Name: Well king Title: Manager

Simply NUC, Inc. (July 9, 2024) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Shenzhen CTB Testing Technology Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Well king Title: Manager

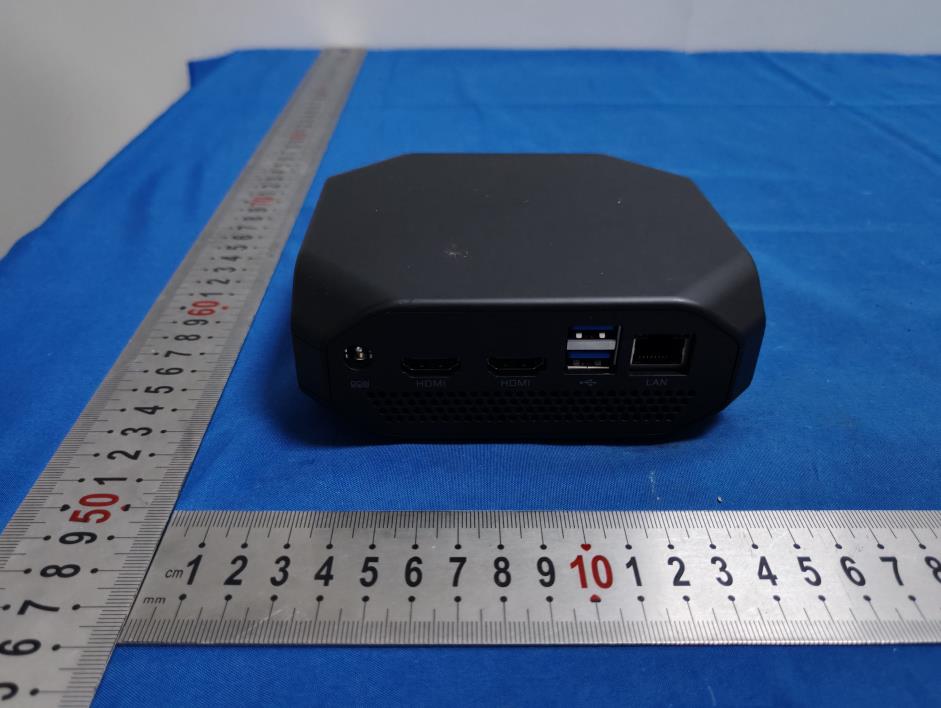

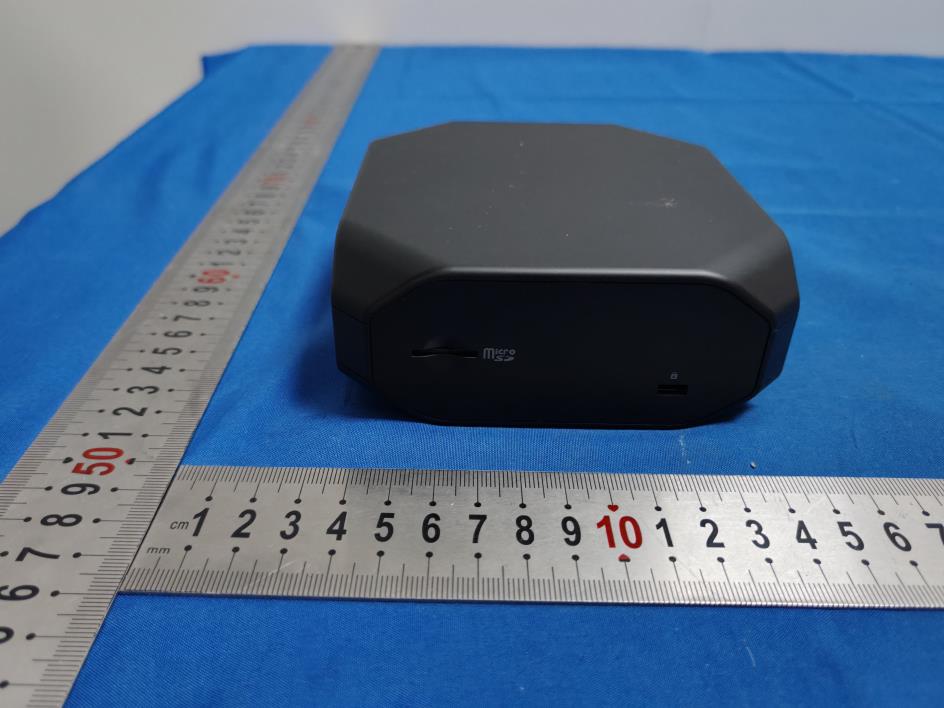

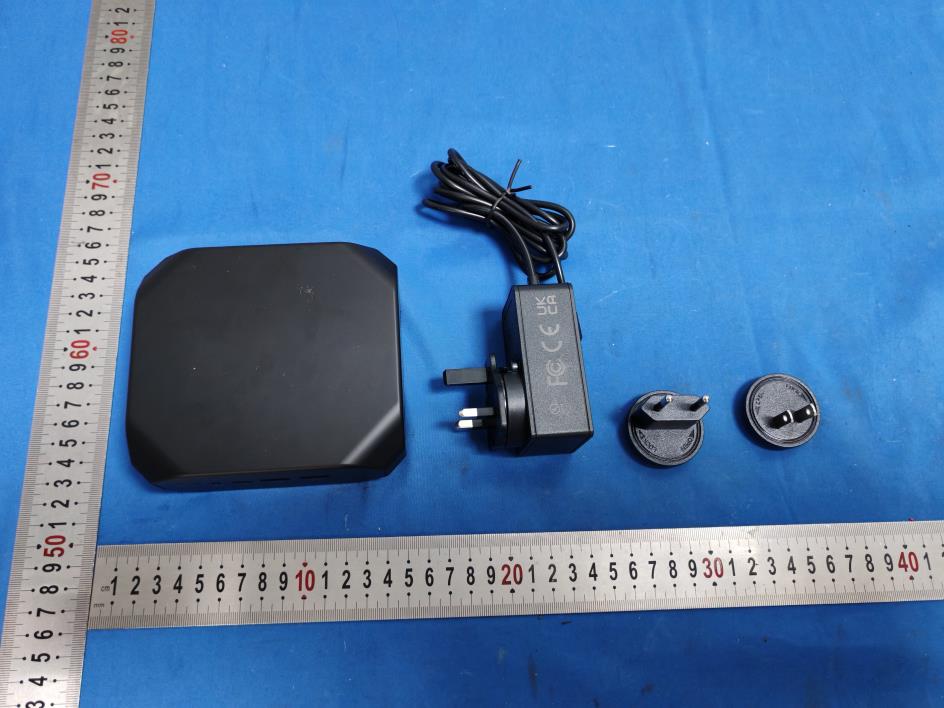

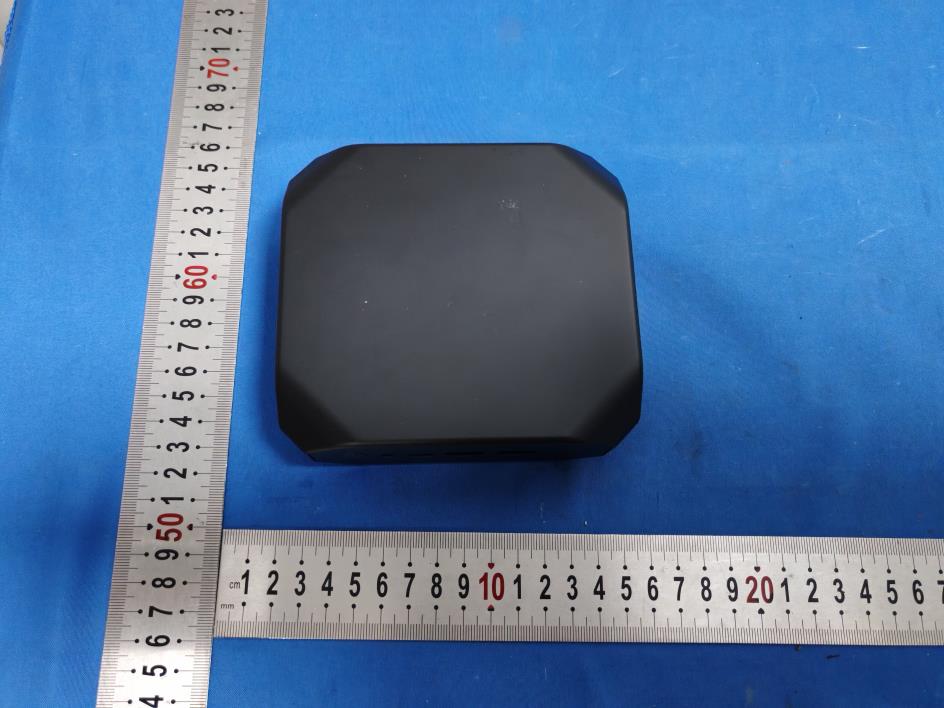

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 4 Model: NUC12ZRN External Photos Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 3 of 4 Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 4 of 4

FCC ID LABEL: Label Location: FCC ID: 2BAYCNUC12ZRN Model No.: NUC12ZRN This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2BAYCNUC12ZRN Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna,R=20cm Test Result of RF Exposure Evaluation Tune up Produce power Maximu m peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result BLE GFSK& LCH 4±1 5 3.1623 1.2618 (1.01dBi) 0.0008 1 Pass EDR GFSK & MCH 8±1 9 7.9433 1.2618 (1.01dBi) 0.002 1 Pass 2.4G WIFI ANT1 802.11g & 2462 15±1 16 39.8107 1.2618 (1.01dBi) 0.01 1 Pass 2.4G WIFI ANT2 802.11g &2437 14±1 15 31.6228 1.2618 (1.01dBi) 0.008 1 Pass 5.2GWIFI ANT1 802.11a c80& 5210 14±1 15 31.6228 1.2474 (0.96dBi) 0.008 1 Pass 5.2GWIFI ANT2 802.11a c40& 5230 14±1 15 31.6228 1.2474 (0.96dBi) 0.008 1 Pass 5.8GWIFI ANT1 802.11a & 5825 13±1 14 25.1189 1.2735 (1.05dBi) 0.0064 1 Pass 5.8GWIFI ANT2 802.11n( HT20)& 5825 14±1 15 31.6228 1.2735 (1.05dBi) 0.008 1 Pass Tech nolo gy Tune up Produce power(dBm) Maximum Tune-up (dBm) Antenna Gain(ANT 1/ANT 2) (numeric) Power Density (S) (mW/ cm2) MPE Limit (mW/ cm2) ∑ MPE Ratio ∑ MPE Ratio Limit Result ANT 1 ANT 2 ANT 1 ANT 2 ANT 1 ANT 2 2.4G WIFI MIM O 15 ±1 14 ±1 16 15 1.2618 (1.01dBi) 0.01 0.008 1 0.018 1 Pass Tech nolo gy Tune up Produce power(dBm) Maximum Tune-up (dBm) Antenna Gain(ANT 1/ANT 2) (numeric) Power Density (S) (mW/ cm2) MPE Limit (mW/ cm2) ∑ MPE Ratio ∑ MPE Ratio Limit Result ANT 1 ANT 2 ANT 1 ANT 2 ANT 1 ANT 2 5G WIFI MIM O 14 ±1 14 ±1 15 15 1.2474 (0.96dBi) 0.008 0.008 1 0.016 1 Pass

YinZhong-WIFI2.4G/5.8G/BTantenna acknowledgmentProductSpecificationsfor Approval ThePartnumber ：WF2194B-0814R-80MIAN WF029-0814R-80AUX ShenzhenShunDaChengTechnologyCo.,Ltd. MD chenwei RF yangyonghui Audit : uxuerong Approval : chenhuaming CustomerConfirmation Customeraudit Customer approval: Companyaddress:Floor4,buildingB5,xinfuindustrialpark,chongqingroad,fuyong town,baoandistrict,shenzhen Thephone:0755-27211658Fax:0755-29485750 f ShenzhenShunDaChengTechnologyCo.,Ltd. ShenzhenShunDaChengTechnologyCo.,Ltd. ShenzhenShunDaChengTechnologyCo.,Ltd. 1-1Antennapicture 1-2Electricalparameter： FrequencyBand MHz WIFI2.4G/5.8G/BT 2400-5800 ( MHz ) 1.ProjectinformationandElectricalSpecification ThosespecificationswerespeciallydefinedforYinZhong- WIFI2.4G/5.8G/BT,andallcharacteristicsweremeasuredunderthemodel’s handsettestingjig. 1-3Impedancematching ShenzhenShunDaChengTechnologyCo.,Ltd. 2.VSWR MeasuringMethod: 1.A50Ωcoaxialcableisconnectedtotheantenna.Thenthiscable isconnectedtoanetworkanalyzertomeasuretheVSWR, 2.Keepingthisjigawayfrommetalatleast20cm. VSWRparametervalues MHZ 1.331.091.281.321.28 MHZ 1.551.411.371.921.492.14 ShenzhenShunDaChengTechnologyCo.,Ltd. 3.EfficiencyandGain*measuringandtestinstruments: MicrowaveDarkroom,AgilentNetworkAnalyzer,AgilentSpectrumAnalyzer,8960IntegratedTester,Standard Antenna *Testmethod: Theequipmentisfixedatthecenteroftheturntableinthecenteroftheturntable,withthecenterofthehorn antennaonthesamehorizontalline. 。 Efficiency/Gain-WIFI2.4G/5.8G/BT 51505700 41.08 40.72 41.59 38.6138.7438.95 ain 1.131.011.25 0.960.98 1.05 ShenzhenShunDaChengTechnologyCo.,Ltd. 4.Theproductionindex Antennaproduction,thestandingwaveratioasaproductionteststandards. Accordingtothedifferencebetweentheprojectitself,giventhefollowingcriteria: requency Productionstandards WIFI2.4G/5.8G/BT VSWR(Productionproducts) <VSWR(Designsamples)+/-0.5 f

TEST REPORT Compiled by: Reviewed by: Approved by: Zhou Kui Arron Liu Bin Mei / Director Note: If there is any objection to the inspection results in this report, please submit a written report to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen CTB Testing Technology Co., Ltd. this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. “*” indicates the testing items were fulfilled by subcontracted lab. “#” indicates the items are not in CNAS accreditation scope. Product Name: Zircon FCC ID: 2BAYCNUC12ZRN Trademark: N/A Model Number: NUC12ZRN Prepared For: Simply NUC, Inc. Address: 3500 S Dupont Hwy, In the city of Dover, County of Kent, Delaware 19901 United States Manufacturer: Simply NUC, Inc. Address: 3500 S Dupont Hwy, In the city of Dover, County of Kent, Delaware 19901 United States Prepared By: Shenzhen CTB Testing Technology Co., Ltd. Address: 1&2/F., Building A, No.26, Xinhe Road, Xinqiao, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: Jun. 25, 2024 Sample tested Date: Jun. 25, 2024 to Jul. 05, 2024 Issue Date: Jul. 05, 2024 Report No.: CTB240705004RFX Test Standards FCC CFR Title 47 Part 15 Subpart E Section 15.407 Test Results PASS Remark: This is WIFI-5GHz band radio test report. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB240705004RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 88 TABLE OF CONTENT Test Report Declaration Page 1. VERSION .......................................................................... 4 2. TEST SUMMARY ................................................................... 5 3. MEASUREMENT UNCERTAINTY ..................................................... 6 4. PRODUCT INFORMATION AND TEST SETUP ......................................... 7 4.1 Product Information ................................................................... 7 4.2 Test Setup Configuration ............................................................... 7 4.3 Support Equipment.................................................................... 7 4.5 Test Mode ........................................................................... 8 4.6 Test Environment ..................................................................... 9 5. TEST FACILITY AND TEST INSTRUMENT USED ...................................... 10 5.1 Test Facility ......................................................................... 10 5.2 Test Instrument Used ................................................................. 10 6. AC POWER LINE CONDUCTED EMISSION ........................................... 12 6.1 Block Diagram Of Test Setup .......................................................... 12 6.2 Limit ............................................................................... 12 6.3 Test procedure ...................................................................... 12 6.4 Test Result ......................................................................... 14 7. RADIATED SPURIOUS EMISSIONS ................................................. 16 7.1 Block Diagram Of Test Setup .......................................................... 16 7.2 Limit ............................................................................... 16 7.3 Test procedure ...................................................................... 17 7.4 Test Result ......................................................................... 18 8. BAND EDGE ...................................................................... 23 8.1 Block Diagram Of Test Setup .......................................................... 23 8.2 Limit ............................................................................... 23 8.3 Test procedure ...................................................................... 23 8.4 Test Result ......................................................................... 24 9. CONDUCTED OUTPUT POWER ..................................................... 32 9.1 Block Diagram Of Test Setup .......................................................... 32 9.2 Limit ............................................................................... 32 9.3 Test procedure ...................................................................... 33 9.4 Test Result ......................................................................... 34 10. EMISSION BANDWIDTH& OCCUPIED BANDWIDTH ................................... 45 10.1 Block Diagram Of Test Setup ......................................................... 45 10.2 Limits ............................................................................. 45 10.3 Test Procedure ..................................................................... 45 10.4 Test Results ....................................................................... 47 11. POWER SPECTRAL DENSITY ...................................................... 59 11.1 Block Diagram Of Test Setup ......................................................... 59 11.2 Limit .............................................................................. 59 11.3 Test procedure ..................................................................... 59 11.4 Test Result ........................................................................ 61 12. FREQUENCY STABILITY ........................................................... 72 12.1 Block Diagram Of Test Setup ......................................................... 72 12.2 Limit .............................................................................. 72 12.3 Test procedure ..................................................................... 72 12.4 Test Result ........................................................................ 72 13. OPERATION IN THE AB…

Text truncated - open the document above for the full version.

Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB240705004RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 59 of 88 11. POWER SPECTRAL DENSITY 11.1 Block Diagram Of Test Setup 11.2 Limit (1) For the band 5.15-5.25 GHz. (iv) For mobile and portable client devices in the 5.15-5.25 GHz band, the maximum conducted output power over the frequency band of operation shall not exceed 250 mW provided the maximum antenna gain does not exceed 6 dBi. In addition, the maximum power spectral density shall not exceed 11 dBm in any 1 megahertz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. (2) For the 5.25-5.35 GHz and 5.47-5.725 GHz bands, the maximum conducted output power over the frequency bands of operation shall not exceed the lesser of 250 mW or 11 dBm + 10 log B, where B is the 26 dB emission bandwidth in megahertz. In addition, the maximum power spectral density shall not exceed 11 dBm in any 1 megahertz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. (3) For the band 5.725-5.85 GHz, the maximum conducted output power over the frequency band of operation shall not exceed 1 W. In addition, the maximum power spectral density shall not exceed 30 dBm in any 500-kHz band. If transmitting antennas of directional gain greater than 6 dBi are used, both the maximum conducted output power and the maximum power spectral density shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6 dBi. However, fixed point-to-point U-NII devices operating in this band may employ transmitting antennas with directional gain greater than 6 dBi without any corresponding reduction in transmitter conducted power. Fixed, point-to-point operations exclude the use of point-to-multipoint systems, omnidirectional applications, and multiple collocated transmitters transmitting the same information. The operator of the U-NII device, or if the equipment is professionally installed, the installer, is responsible for ensuring that systems employing high gain directional antennas are used exclusively for fixed, point-to-point operations. 11.3 Test procedure According to KDB789033 D02v02r01 sectionE, the following is the measurement procedure. For devices operating in the bands 5.15−5.25 GHz, 5.25−5.35 GHz, and 5.47−5.725 GHz, the preceding procedures make use of 1 MHz RBW to satisfy directly the 1 MHz reference bandwidth specified in Section 15.407(a)(5). For devices operating in the band 5.725−5.85 GHz, the rules specify a measurement bandwidth of 500 kHz. Many spectrum analyzers do not have 500 kHz RBW, thus a narrower RBW may need to be used. The rules permit the use of RBWs less than 1 MHz, or 500 kHz, “provided that the measured power is integrated over the full reference bandwidth” to show the total power over the specified measurement bandwidth (i.e., 1 MHz, or 500 kHz). If measurements are performed using a reduced resolution bandwidth (< 1 MHz, or < 500 kHz) and integrated over 1 MHz, or 500 kHz bandwidth, the following adjustments to the procedures apply: a) Set RBW ≥ 1/T, where T is defined in II.B.l.a). b) Set VBW ≥ 3 RBW. c) If measurement bandwidth of Maximum PSD is specified in 500 kHz, add 10 log (500 kHz/RBW) to the measured result, whereas RBW (<500 kHz) is the reduced resolution bandwidth of the spectrum analyzer set during measurement. Temperature Chamber EUT Radio Test System Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB240705004RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 60 of 88 d) If measurement bandwidth of Maximum PSD is specified in 1 MHz, add 10 log (1MHz/RBW) to the measured result, whereas RBW (< 1 MHz) is the reduced resolution bandwidth of spectrum analyzer set during measurement. e) Care must be taken to ensure that the measurements are performed during a period of continuous transmission or are corrected upward for duty cycle. Note: As a practical matter, it is recommended to use reduced RBW of 100 kHz for the II.F.5.c) and II.F.5.d), since RBW=100 kHz is available on nearly all spectrum analyzers. Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB240705004RFX Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 61 of 88 11.4 Test Result ANT 1+ANT2 Test mode Test Channel (MHz) PSD [dBm/MHz] ANT 1 PSD [dBm/MHz] ANT 2 PSD [dBm/MHz] Total Limit (dBm/MHz) Result 802.11a 5180 -1.961 -2.34 / 11 Pass 5200 -1.587 -2.065 / 11 Pass 5240 -2.501 -1.624 / 11 Pass 802.11ac(VH20) 5180 -3.31 -3.335 -0.312 11 Pass 5200 -2.861 -2.573 0.296 11 Pass 5240 -3.361 -2.423 0.144 11 Pass 802.11ac(VH40) 5190 -6.071 -5.48 -2.755 11 Pass 5230 -6.042 -5.05 -2.507 11 Pass 802.11ac(VH80) 5210 -8.889 -8.867 -5.868 11 Pass 802.11n(VH20) 5180 -2.187 -2.404 0.716 11 Pass 5200 -2.013 -2.18 0.915 11 Pass 5240 -2.106 -1.696 1.114 11 Pass 802.11n(VH40) 5190 -5.22 -5.519 -2.357 11 Pass 5230 -5.577 -5.229 -2.389 11 Pass Test mode Test Channel (MHz) PSD [dBm/MHz] ANT 1 PSD [dBm/MHz] ANT 2 PSD [dBm/MHz] Total Limit (dBm) Result 802.11a 5745 -6.114 -5.435 / 30 Pass 5785 -6.493 -5.378 / 30 Pass 5825 -5.322 -5.199 / 30 Pass 802.11ac(VH20) 5745 -6.268 -5.764 -2.998 30 Pass 5785 -6.714 -5.981 -3.322 30 Pass 5825 -5.62 -5.561 -2.580 30 Pass 802.11ac(VH40) 5755 -9.692 -8.86 -6.246 30 Pass 5795 -10.156 -9.027 -6.545 30 Pass 802.11n(VH20) 5775 -12.649 -11.71 -9.144 30 Pass 5745 -6.121 -5.816 -2.956 30 Pass 5785 -6.36 -5.883 -3.105 30 Pass 802.11n(VH40) 5825 -5.595 -5.471 -2.522 30 Pass 5755 -10.033 -8.983 -6.466 30 Pass 802.11ac(VH80) 5795 -9.675 -8.992 -6.310 30 Pass Shenzhen CTB Testing Technology Co., Ltd. Report No.: CTB240705004RFX Report Tel: 4008-707-283…

Text truncated - open the document above for the full version.

Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 1 of 2 Model: NUC12ZRN Radiated Emission Below 1G Above 1G Shenzhen CTB Testing Technology Co., Ltd. Report Tel: 4008-707-283 Web: http://www.ctb-lab.net Page 2 of 2 Conducted emissions
