2BAZT10023001Wi-Fi POE Keypad with WiFi and Bluetooth

INSTALL GUIDE - POE KEYPAD Page 1www. hellosavi.com© 2023 SAVI Controls Rev.09/06/23 The PoE 6 Button Keypad requires data and power over a single Ethernet connection. A PoE-complient Ethernet switch delivers both data and power over a standard CAT5e data cable. Installations with non-PoE switches require a PoE- complient power source, such as the PoE Injector. 1.Remove wallplate 2.Remove the switch mounting screws 3.Carefully remove the switch from the switch box. 4.There is a single RJ45 port on the back of the keypad. WARNING: SHOCK HAZARD This device is intended for installation in accordance with the National Electric Code and local regulations in the United States and the Canadian Electrical Code and local regulations in Canada. If you are unsure or uncomfortable about performing the installation, consult a qualified electrician. PoE keypad wiring IMPORTANT: Ensure Power over Ethernet is rated for 30W at 48V DC LEDs When powered correctly via Power over Ethernet, all LEDs will illuminate to indicate the device is ready to be provisioned. LEGAL Supplier’s Declaration of Conformity 47 CFR 2.1077 Compliance Information Model: QK6POE-01 Responsible Party – US Contact Information 2520 Marsh Lane, Carrollton, TX 75006-2401 (214) 785-6510 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment. Such modifications or changes could void the user’s authority to operate the equipment. Please visit savicontrols.com to find the full FCC/IC statements. This device complies with Part 15 of the FCC Rules and with RSS of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.This device must accept any interference received, including interference that may cause undesired operation. FCC IC Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : 1. L'appareil ne doit pas pr oduire de brouillage, et 2. L'utilisateur de l'appareil doit accepter t out brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Input: 37-57VDC (nominal 48VDC) Operating Ambiant Temperature: 0-400C FOR INDOOR USE ONLY FCC This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. IC This equipment complies with ISED RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. Pour se conformer aux exigences de conformité CNR 102 RF exposition, une distance de séparation d'au moins 20 cm doit être maintenue entre l'antenne de cet appareil ettoutes les personnes. FCC ID:2BAZT10023001 IC:30526-10023001

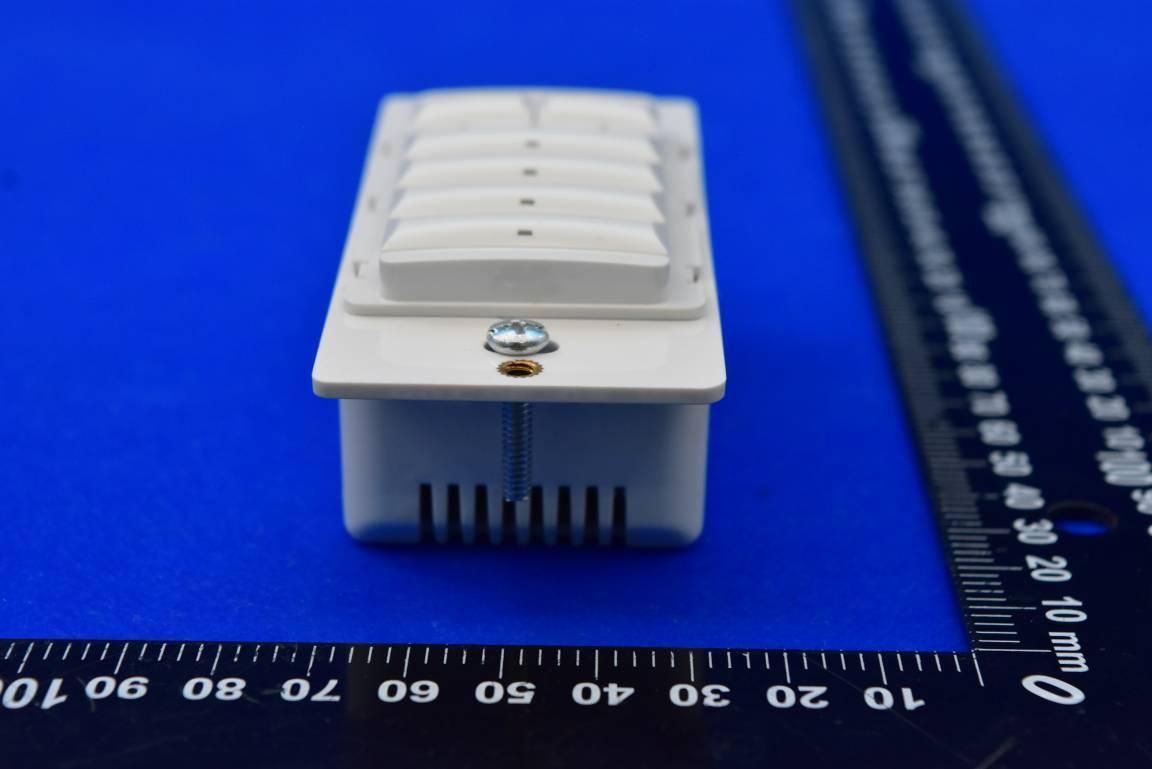

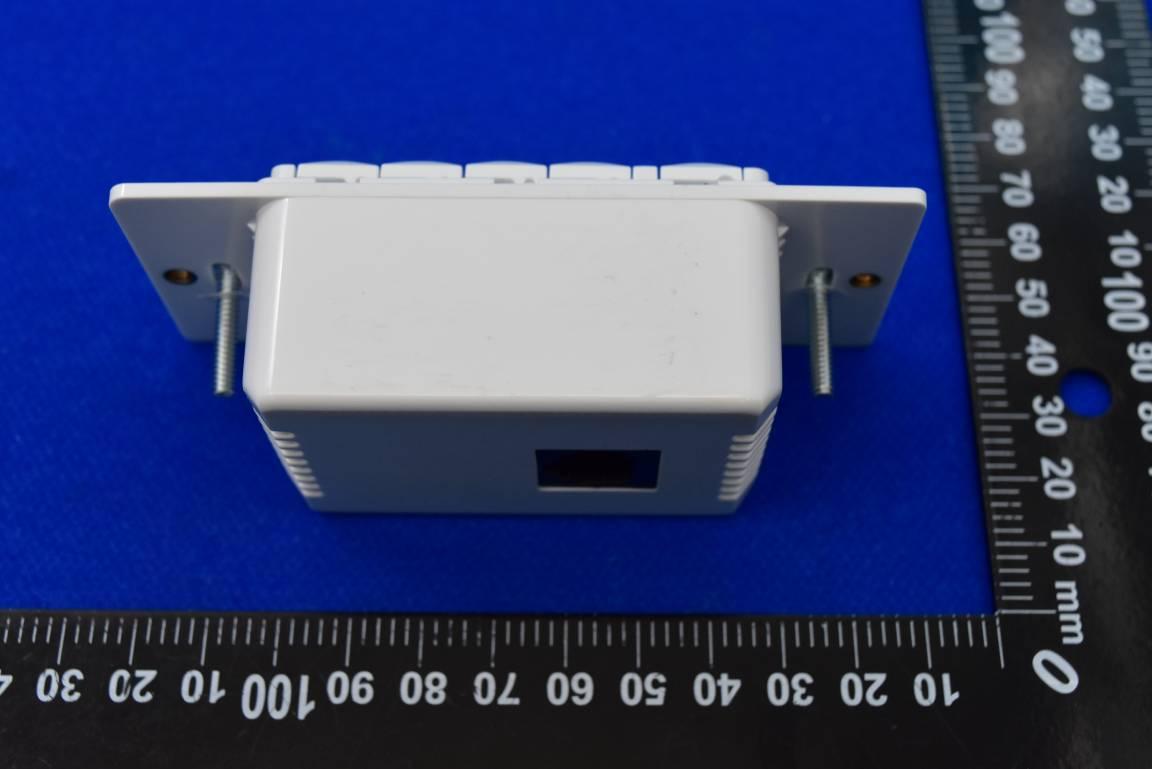

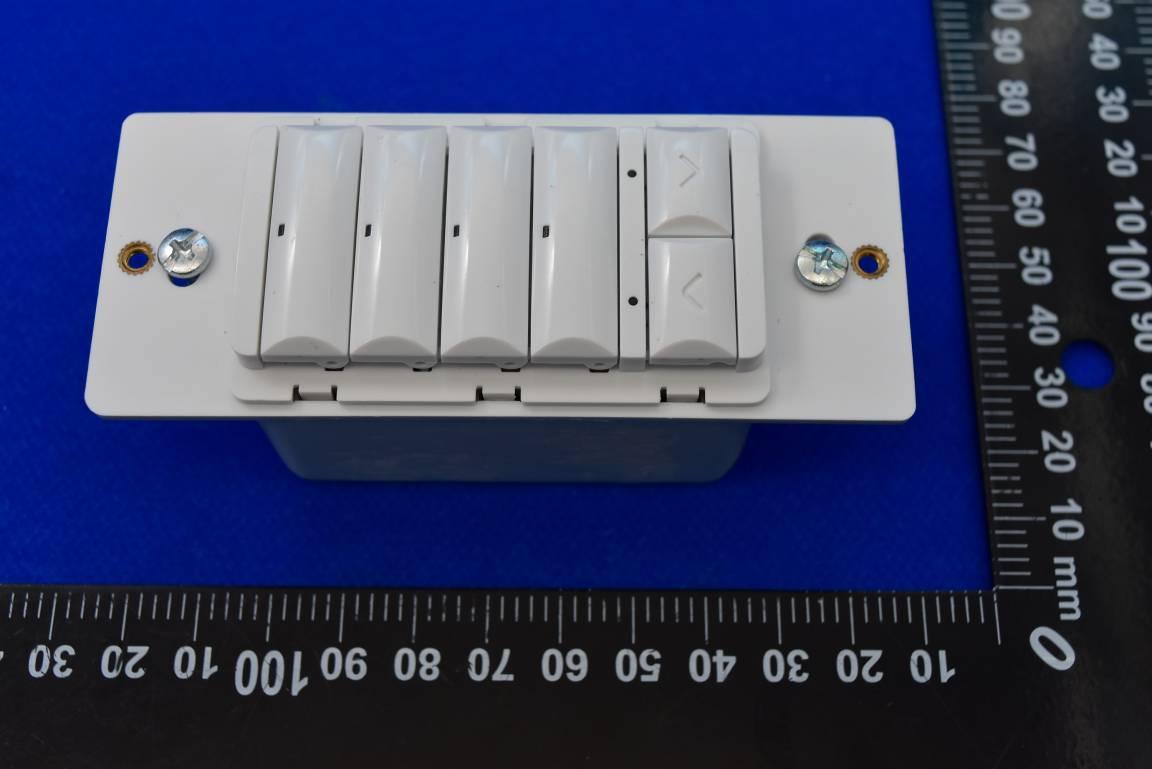

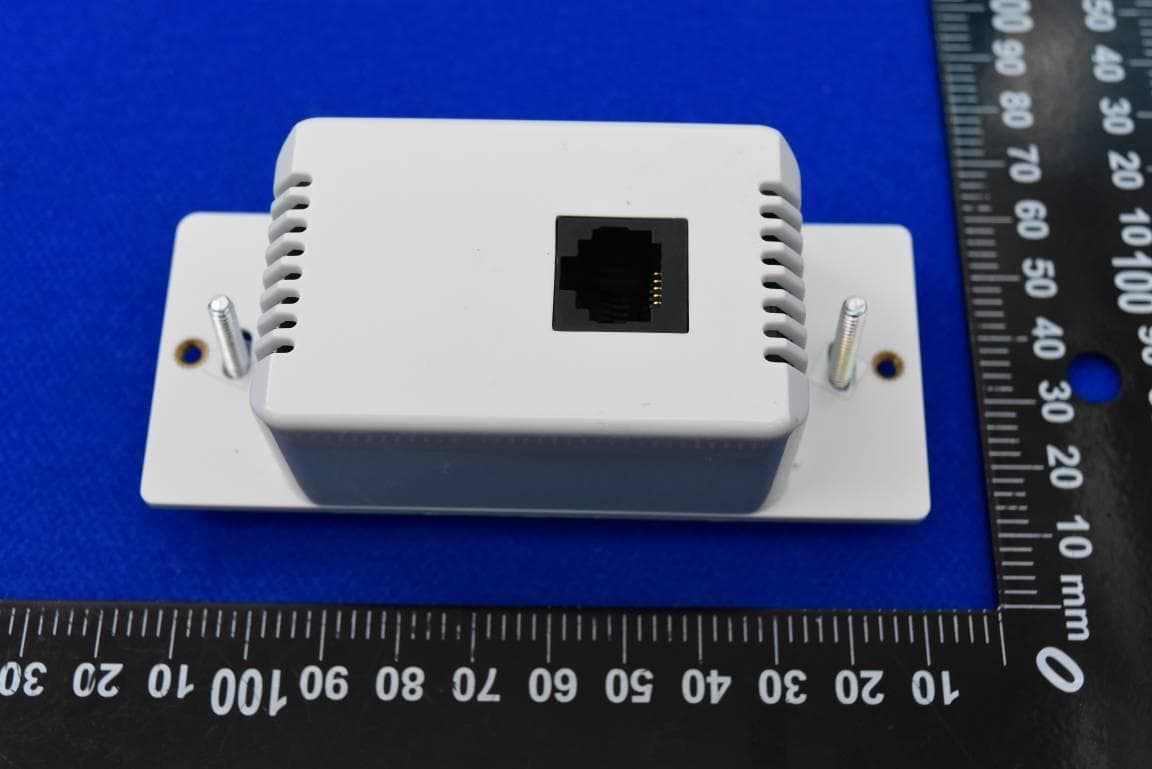

FCC ID: 2BAZT10023001 IC: 30526-10023001 External Photos 1.EUT front view 2.EUT rear view 3.EUT left side view 4.EUT right side view 5.EUT top view 6.EUT bottom view

1 .Label 2 .Label location FCC ID: 2BAZT10023001 IC ID: 30526-10023001 HVIN: QK6POE-01 Paste on the side of the device Label Size: 15*6mm

FCC ID: 2BAZT10023001 IC: 30526-10023001 Internal Photos 1.EUT uncover view 2.Antenna view Bluetooth/2.4G WIFI Antenna

ReportNo.:18220WC30230802FCCID:2BAZT10023001Page1of7 Page 1 of 7 RFEXPOSURE EVALUATIONREPORT APPLICANT: SaviControls,LLC PRODUCTNAME: Wi-FiPOEKeypad MODELNAME: QK6POE-01 BRANDNAME:N/A FCCID:2BAZT10023001 STANDARD(S): 47CFRPart2(2.1091) RECEIPTDATE: 2023-06-14 TESTDATE:2023-06-16to2023-11-03 ISSUEDATE:2023-11-03 ReportNo.:18220WC30230802FCCID:2BAZT10023001Page2of7 Page2of7 DIRECTORY 1.TechnicalInformation·········································································································3 1.1ApplicantandManufacturerInformation······································································3 1.2EquipmentunderTest(EUT)Description·····································································3 1.3AppliedReferenceDocuments·······················································································4 2.DeviceCategoryandRFExposureLimit·········································································5 3.RFOutputPower·················································································································6 4.RFExposureAssessment··································································································7 AnnexATestingLaboratoryInformation ···············································错误！未定义书签。 ChangeHistory VersionDateReasonforchange 1.02023-11-03Firstedition ReportNo.:18220WC30230802FCCID:2BAZT10023001Page3of7 Page3of7 1.TechnicalInformation Note:Providebyapplicant. 1.1ApplicantandManufacturerInformation Applicant:SaviControls,LLC ApplicantAddress:2520MarshLane,Carrollton,TX75006,UnitedStates Manufacturer:SaviControls,LLC ManufacturerAddress:2520MarshLane,Carrollton,TX75006,UnitedStates 1.2EquipmentunderTest(EUT)Description ProductName:Wi-FiPOEKeypad SampleNo.:4# HardwareVersion: N/A SoftwareVersion: N/A ModulationTechnology: BluetoothGFSK WLAN2.4GHz DSSS,OFDM OperatingFrequency Range: Bluetooth2402MHz-2480MHz WLAN2.4GHz2412MHz-2472MHz AntennaType:PCBAntenna AntennaGain:0.91dBi ReportNo.:18220WC30230802FCCID:2BAZT10023001Page4of7 Page4of7 1.3AppliedReferenceDocuments Leadingreferencedocumentsfortesting: IdentityDocumentTitle Method determination /Remark 47CFRPart2(2.1091) RadioFrequencyRadiationExposure Assessment:mobiledevices Nodeviation KDB447498D01v06GeneralRFExposureGuidanceNodeviation Note1:Additionsto,deviation,orexclusionsfromthemethodshallbejudgedinthe"method determination"columnofadd,deviateorexcludefromthespecificmethodshallbeexplainedin the"Remark"oftheabovetable. Note2:Whenthetestresultisacriticalvalue,wewillusethemeasurementuncertaintygive thejudgmentresultbasedonthe95%confidenceintervals. ReportNo.:18220WC30230802FCCID:2BAZT10023001Page5of7 Page5of7 2.DeviceCategoryandRFExposureLimit Perusermanual,basedon47CFR2.1091,thisdevicebelongstomobiledevicecategorywith GeneralPopulation/Uncontrolledexposure. MobileDevices: 47CFR2.1091(b) Forpurposesofthissection,amobiledeviceisdefinedasatransmittingdevicedesignedtobe usedinotherthanfixedlocationsandtogenerallybeusedinsuchawaythataseparationdistance ofatleast20centimetersisnormallymaintainedbetweenthetransmitter'sradiatingstructure(s) andthebodyoftheuserornearbypersons.Inthiscontext,theterm“fixedlocation”meansthatthe deviceisphysicallysecuredatonelocationandisnotabletobeeasilymovedtoanotherlocation. Transmittingdevicesdesignedtobeusedbyconsumersorworkersthatcanbeeasilyre-located, suchaswirelessdevicesassociatedwithapersonalcomputer,areconsideredtobemobile devicesiftheymeetthe20centimeterseparationrequirement. GeneralPopulation/UncontrolledExposure: Thegeneralpopulation/uncontrolledexposurelimitsareapplicabletosituationsinwhichthe generalpublicmaybeexposedorinwhichpersonswhoareexposedasaconsequenceoftheir employmentmaynotbemadefullyawareofthepotentialforexposureorcannotexercisecontrol overtheirexposure.Membersofthegeneralpublicwouldcomeunderthiscategorywhen exposureisnotemployment-related;forexample,inthecaseofawirelesstransmitterthat exposespersonsinitsvicinity.Warninglabelsplacedonlow-powerconsumerdevicessuchas cellulartelephonesarenotconsideredsufficienttoallowthedevicetobeconsideredunderthe occupational/controlledcategory,andthegeneralpopulation/uncontrolledexposurelimitsapplyto thesedevices. Table1—LimitsforMaximumPermissibleExposure(MPE) Frequencyrange (MHz) Electricfield strength (V/m) Magneticfield strength (A/m) Powerdensity (mW/cm 2 ) Averagingtime (minutes) (B)LimitsforGeneralPopulation/UncontrolledExposure 0.3-1.346141.63*(100)30 1.34-30824/f2.19/f*(180/f 2 )30 30-30027.50.0730.230 300-1500--f/150030 1500-100,000--1.030 f=frequencyinMHz*=Plane-waveequivalentpowerdensity ReportNo.:18220WC30230802FCCID:2BAZT10023001Page6of7 Page6of7 3.RFOutputPower ModeChannel Frequency (MHz) AveragePower(dBm) GFSK BLE1M CH0024020.37 CH1924400.77 CH392480-0.12 Tune-upLimit1.00 2.4GHzWLAN ModeChannel Frequency (MHz) Averagepower(dBm) Tune-up Power Duty Cycle% 802.11b CH1241219.4120.00100 CH7244219.0520.00 100 CH13247218.3519.00 100 802.11g CH1241217.5518.00100 CH7244217.3418.00 100 CH13247216.517.00 100 802.11n (HT20) CH1241217.3817.50100 CH7244217.1917.50 100 CH13247216.3917.00 100 Note1:AccordingtoKDB447498,MPEassessmentisbasedonsource-basedtime-averaged maximumconductedoutputpoweroftheRFchannelrequiringassessment,adjustedfortune-up tolerance,andtheminimumtestseparationdistancerequiredfortheexposureconditions. Note2:Theoutputpowerreferstoreport(ReportNo.:SZ23060139W01/W02). ReportNo.:18220WC30230802FCCID:2BAZT10023001Page7of7 Page7of7 4.RFExposureAssessment  StandaloneTransmissionAssessment: Bands Frequency (MHz) Tune-up Power(dBm) Antenna Gain(dBi) E.I.R.P. (mW) Power Density (mW/cm²) Limitfor MPE (mW/cm²) Bluetooth24401.000.911.550.00031.0 WLAN2.4GHz241220.000.91123.310.02451.0 Note: 1.AccordingtoKDB447498,MPEassessmentisbasedonsource-basedtime-averaged maximumconductedoutputpoweroftheRFchannelrequiringassessment,adjustedfor tune-uptolerance,andtheminimumtestseparationdistancerequiredfortheexposure conditions. 2.MPEcalculatemethod S=PG/4πR² Where:S=…

Text truncated - open the document above for the full version.

ReportNo.:18220WC30230801Page 1 of 22 AppendixTestData DutyCycleofTestSignal ConditionModeFrequency (MHz) AntennaDutyCycle (%) CorrectionFactor (dB) 1/T (kHz) NVNTBLE1M2402Ant183.520.780.48 NVNTBLE1M2440Ant183.750.770.48 NVNTBLE1M2480Ant183.750.770.48 ReportNo.:18220WC30230801Page 2 of 22 TestGraphs DutyCycleNVNTBLE1M2402MHzAnt1 DutyCycleNVNTBLE1M2440MHzAnt1 ReportNo.:18220WC30230801Page 3 of 22 DutyCycleNVNTBLE1M2480MHzAnt1 ReportNo.:18220WC30230801Page 4 of 22 MaximumPeakConductedOutputPower ConditionMode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Conducted Power (dBm) Total Conducted Power (mW) Limit Conducted (dBm) Verdict NVNT BLE 1M 2402Ant11.301.31.3530Pass NVNT BLE 1M 2440Ant11.4901.491.4130Pass NVNT BLE 1M 2480Ant10.9300.931.2430Pass ReportNo.:18220WC30230801Page 5 of 22 TestGraphs PeakPowerNVNTBLE1M2402MHzAnt1 PeakPowerNVNTBLE1M2440MHzAnt1 ReportNo.:18220WC30230801Page 6 of 22 PeakPowerNVNTBLE1M2480MHzAnt1 ReportNo.:18220WC30230801Page 7 of 22 MaximumAverageConductedOutputPower ConditionMode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Conducted Power (dBm) Total Conducted Power (mW) Limit Conducted (dBm) Verdict NVNT BLE 1M 2402Ant1-0.410.780.371.0930Pass NVNT BLE 1M 2440Ant100.770.771.1930Pass NVNT BLE 1M 2480Ant1-0.890.77-0.120.9730Pass ReportNo.:18220WC30230801Page 8 of 22 TestGraphs AveragePowerNVNTBLE1M2402MHzAnt1 AveragePowerNVNTBLE1M2440MHzAnt1 ReportNo.:18220WC30230801Page 9 of 22 AveragePowerNVNTBLE1M2480MHzAnt1 ReportNo.:18220WC30230801Page 10 of 22 6dBBandwidth ConditionMode Frequency (MHz) Antenna -6dB Bandwidth (MHz) Limit-6dB Bandwidth (MHz) Verdict NVNTBLE1M2402Ant10.6450.5Pass NVNTBLE1M2440Ant10.6370.5Pass NVNTBLE1M2480Ant10.6380.5Pass ReportNo.:18220WC30230801Page 11 of 22 TestGraphs -6dBBandwidthNVNTBLE1M2402MHzAnt1 -6dBBandwidthNVNTBLE1M2440MHzAnt1 ReportNo.:18220WC30230801Page 12 of 22 -6dBBandwidthNVNTBLE1M2480MHzAnt1 ReportNo.:18220WC30230801Page 13 of 22 ConductedSpuriousEmissions ConditionModeFrequency (MHz) AntennaMaxValue (dBc) Limit (dBc) Verdict NVNTBLE1M2402Ant1-39.63-20Pass NVNTBLE1M2440Ant1-39.02-20Pass NVNTBLE1M2480Ant1-38-20Pass ReportNo.:18220WC30230801Page 14 of 22 TestGraphs Tx.SpuriousNVNTBLE1M2402MHzAnt1Ref Tx.SpuriousNVNTBLE1M2402MHzAnt1Emission ReportNo.:18220WC30230801Page 15 of 22 Tx.SpuriousNVNTBLE1M2440MHzAnt1Ref Tx.SpuriousNVNTBLE1M2440MHzAnt1Emission ReportNo.:18220WC30230801Page 16 of 22 Tx.SpuriousNVNTBLE1M2480MHzAnt1Ref Tx.SpuriousNVNTBLE1M2480MHzAnt1Emission ReportNo.:18220WC30230801Page 17 of 22 BandEdge ConditionModeFrequency (MHz) AntennaMaxValue (dBc) Limit (dBc) Verdict NVNTBLE1M2402Ant1-52.16-20Pass NVNTBLE1M2480Ant1-54.29-20Pass ReportNo.:18220WC30230801Page 18 of 22 TestGraphs BandEdgeNVNTBLE1M2402MHzAnt1Ref BandEdgeNVNTBLE1M2402MHzAnt1Emission ReportNo.:18220WC30230801Page 19 of 22 BandEdgeNVNTBLE1M2480MHzAnt1Ref BandEdgeNVNTBLE1M2480MHzAnt1Emission ReportNo.:18220WC30230801Page 20 of 22 PowerSpectralDensity ConditionMode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Duty Factor (dB) TotalPSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNT BLE 1M 2402Ant1-14.340-14.348Pass NVNT BLE 1M 2440Ant1-140-148Pass NVNT BLE 1M 2480Ant1-14.740-14.748Pass ReportNo.:18220WC30230801Page 21 of 22 TestGraphs PSDNVNTBLE1M2402MHzAnt1 PSDNVNTBLE1M2440MHzAnt1 ReportNo.:18220WC30230801Page 22 of 22 PSDNVNTBLE1M2480MHzAnt1 ---END---

ReportNo.:18220WC30230801FCCID:2BAZT10023001Page1of32 Code:AB-RF-05-b FCCTestReport Applicant:SaviControls,LLC Address: 2520MarshLane,Carrollton,TX75006, UnitedStates ProductName:Wi-FiPOEKeypad ReportDate:Nov.03,2023 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC30230801FCCID:2BAZT10023001Page2of32 Code:AB-RF-05-b Contents 1.GeneralInformation............................................................................................................................................6 1.1.ClientInformation....................................................................................................................................6 1.2.DescriptionofDevice(EUT)..................................................................................................................6 1.3.AuxiliaryEquipmentUsedDuringTest.................................................................................................7 1.4.DescriptionofTestConfiguration..........................................................................................................7 1.5.DescriptionOfTestSetup......................................................................................................................8 1.6.TestEquipmentList...............................................................................................................................10 1.7.MeasurementUncertainty....................................................................................................................11 1.8.DescriptionofTestFacility...................................................................................................................11 1.9.Disclaimer...............................................................................................................................................12 2.SummaryofTestResults.................................................................................................................................13 3.ConductedEmissionTest................................................................................................................................14 3.1.TestStandardandLimit........................................................................................................................14 3.2.TestSetup...............................................................................................................................................14 3.3.TestProcedure.......................................................................................................................................14 3.4.TestData.................................................................................................................................................14 4.RadiationSpuriousEmissionandBandEdge.............................................................................................17 4.1.TestStandardandLimit........................................................................................................................17 4.2.TestSetup...............................................................................................................................................17 4.3.TestProcedure.......................................................................................................................................18 4.4.TestData.................................................................................................................................................19 5.MaximumPeakOutputPowerTest...............................................................................................................27 5.1.TestStandardandLimit........................................................................................................................27 5.2.TestSetup...............................................................................................................................................27 5.3.TestProcedure.......................................................................................................................................27 5.4.TestData.................................................................................................................................................27 6.6dBEmissionBandwidthTest........................................................................................................................28 6.1.TestStandardandLimit........................................................................................................................28 6.2.TestSetup...............................................................................................................................................28 6.3.TestProcedure.......................................................................................................................................28 6.4.TestData.................................................................................................................................................28 7.PowerSpectralDensityTest...........................................................................................................................29 7.1.TestStandardandLimit........................................................................................................................29 7.2.TestSetup...............................................................................................................................................29 7.3.TestProcedure.......................................................................................................................................29 7.4.TestData.................................................................................................................................................29 8.100kHzBandwidthofFrequencyBandEdgeRequirement......................................................................30 ReportNo.:18220WC30230801FCCID:2BAZT10023001Page3of32 Code:AB-RF…

Text truncated - open the document above for the full version.

ReportNo.:18220WC30230802Page 1 of 47 AppendixTestData DutyCycleofTestSignal ConditionModeFrequency (MHz) AntennaDutyCycle (%) Correction Factor(dB) 1/T (kHz) NVNTb2412Ant110000 NVNTb2442Ant110000 NVNTb2472Ant110000 NVNTg2412Ant110000 NVNTg2442Ant110000 NVNTg2472Ant110000 NVNTn202412Ant110000 NVNTn202442Ant110000 NVNTn202472Ant110000 ReportNo.:18220WC30230802Page 2 of 47 TestGraphs DutyCycleNVNTb2412MHzAnt1 DutyCycleNVNTb2442MHzAnt1 ReportNo.:18220WC30230802Page 3 of 47 DutyCycleNVNTb2472MHzAnt1 DutyCycleNVNTg2412MHzAnt1 ReportNo.:18220WC30230802Page 4 of 47 DutyCycleNVNTg2442MHzAnt1 DutyCycleNVNTg2472MHzAnt1 ReportNo.:18220WC30230802Page 5 of 47 DutyCycleNVNTn202412MHzAnt1 DutyCycleNVNTn202442MHzAnt1 ReportNo.:18220WC30230802Page 6 of 47 DutyCycleNVNTn202472MHzAnt1 ReportNo.:18220WC30230802Page 7 of 47 MaximumPeakConductedOutputPower ConditionMode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Conducted Power (dBm) Total Conducted Power (mW) Limit Conducted (dBm) Verdict NVNTb2412Ant125.35025.35342.7730Pass NVNTb2442Ant124.99024.99315.530Pass NVNTb2472Ant124.38024.38274.1630Pass NVNTg2412Ant124.57024.57286.4230Pass NVNTg2442Ant124.51024.51282.4930Pass NVNTg2472Ant123.6023.6229.0930Pass NVNTn202412Ant124.55024.55285.130Pass NVNTn202442Ant124.35024.35272.2730Pass NVNTn202472Ant123.55023.55226.4630Pass ReportNo.:18220WC30230802Page 8 of 47 TestGraphs PeakPowerNVNTb2412MHzAnt1 PeakPowerNVNTb2442MHzAnt1 ReportNo.:18220WC30230802Page 9 of 47 PeakPowerNVNTb2472MHzAnt1 PeakPowerNVNTg2412MHzAnt1 ReportNo.:18220WC30230802Page 10 of 47 PeakPowerNVNTg2442MHzAnt1 PeakPowerNVNTg2472MHzAnt1 ReportNo.:18220WC30230802Page 11 of 47 PeakPowerNVNTn202412MHzAnt1 PeakPowerNVNTn202442MHzAnt1 ReportNo.:18220WC30230802Page 12 of 47 PeakPowerNVNTn202472MHzAnt1 ReportNo.:18220WC30230802Page 13 of 47 MaximumAverageConductedOutputPower ConditionMode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Conducted Power (dBm) Total Conducted Power (mW) Limit Conducted (dBm) Verdict NVNTb2412Ant119.41019.4187.330Pass NVNTb2442Ant119.05019.0580.3530Pass NVNTb2472Ant118.35018.3568.3930Pass NVNTg2412Ant117.55017.5556.8930Pass NVNTg2442Ant117.34017.3454.230Pass NVNTg2472Ant116.5016.544.6730Pass NVNTn202412Ant117.38017.3854.730Pass NVNTn202442Ant117.19017.1952.3630Pass NVNTn202472Ant116.39016.3943.5530Pass ReportNo.:18220WC30230802Page 14 of 47 TestGraphs AveragePowerNVNTb2412MHzAnt1 AveragePowerNVNTb2442MHzAnt1 ReportNo.:18220WC30230802Page 15 of 47 AveragePowerNVNTb2472MHzAnt1 AveragePowerNVNTg2412MHzAnt1 ReportNo.:18220WC30230802Page 16 of 47 AveragePowerNVNTg2442MHzAnt1 AveragePowerNVNTg2472MHzAnt1 ReportNo.:18220WC30230802Page 17 of 47 AveragePowerNVNTn202412MHzAnt1 AveragePowerNVNTn202442MHzAnt1 ReportNo.:18220WC30230802Page 18 of 47 AveragePowerNVNTn202472MHzAnt1 ReportNo.:18220WC30230802Page 19 of 47 6dBBandwidth ConditionMode Frequency (MHz) Antenna -6dB Bandwidth (MHz) Limit-6dB Bandwidth (MHz) Verdict NVNTb2412Ant19.5370.5Pass NVNTb2442Ant19.1890.5Pass NVNTb2472Ant19.5760.5Pass NVNTg2412Ant116.3340.5Pass NVNTg2442Ant116.3580.5Pass NVNTg2472Ant116.3580.5Pass NVNTn202412Ant116.9670.5Pass NVNTn202442Ant116.9960.5Pass NVNTn202472Ant116.9940.5Pass ReportNo.:18220WC30230802Page 20 of 47 TestGraphs -6dBBandwidthNVNTb2412MHzAnt1 -6dBBandwidthNVNTb2442MHzAnt1 ReportNo.:18220WC30230802Page 21 of 47 -6dBBandwidthNVNTb2472MHzAnt1 -6dBBandwidthNVNTg2412MHzAnt1 ReportNo.:18220WC30230802Page 22 of 47 -6dBBandwidthNVNTg2442MHzAnt1 -6dBBandwidthNVNTg2472MHzAnt1 ReportNo.:18220WC30230802Page 23 of 47 -6dBBandwidthNVNTn202412MHzAnt1 -6dBBandwidthNVNTn202442MHzAnt1 ReportNo.:18220WC30230802Page 24 of 47 -6dBBandwidthNVNTn202472MHzAnt1 ReportNo.:18220WC30230802Page 25 of 47 ConductedSpuriousEmissions ConditionModeFrequency (MHz) AntennaMaxValue (dBc) Limit (dBc) Verdict NVNTb2412Ant1-38.23-20Pass NVNTb2442Ant1-38.01-20Pass NVNTb2472Ant1-38.14-20Pass NVNTg2412Ant1-33.09-20Pass NVNTg2442Ant1-31.55-20Pass NVNTg2472Ant1-32.4-20Pass NVNTn202412Ant1-32.09-20Pass NVNTn202442Ant1-31.95-20Pass NVNTn202472Ant1-31.7-20Pass ReportNo.:18220WC30230802Page 26 of 47 TestGraphs Tx.SpuriousNVNTb2412MHzAnt1Ref Tx.SpuriousNVNTb2412MHzAnt1Emission ReportNo.:18220WC30230802Page 27 of 47 Tx.SpuriousNVNTb2442MHzAnt1Ref Tx.SpuriousNVNTb2442MHzAnt1Emission ReportNo.:18220WC30230802Page 28 of 47 Tx.SpuriousNVNTb2472MHzAnt1Ref Tx.SpuriousNVNTb2472MHzAnt1Emission ReportNo.:18220WC30230802Page 29 of 47 Tx.SpuriousNVNTg2412MHzAnt1Ref Tx.SpuriousNVNTg2412MHzAnt1Emission ReportNo.:18220WC30230802Page 30 of 47 Tx.SpuriousNVNTg2442MHzAnt1Ref Tx.SpuriousNVNTg2442MHzAnt1Emission ReportNo.:18220WC30230802Page 31 of 47 Tx.SpuriousNVNTg2472MHzAnt1Ref Tx.SpuriousNVNTg2472MHzAnt1Emission ReportNo.:18220WC30230802Page 32 of 47 Tx.SpuriousNVNTn202412MHzAnt1Ref Tx.SpuriousNVNTn202412MHzAnt1Emission ReportNo.:18220WC30230802Page 33 of 47 Tx.SpuriousNVNTn202442MHzAnt1Ref Tx.SpuriousNVNTn202442MHzAnt1Emission ReportNo.:18220WC30230802Page 34 of 47 Tx.SpuriousNVNTn202472MHzAnt1Ref Tx.SpuriousNVNTn202472MHzAnt1Emission ReportNo.:18220WC30230802Page 35 of 47 BandEdge ConditionModeFrequency (MHz) AntennaMaxValue (dBc) Limit (dBc) Verdict NVNTb2412Ant1-45.24-20Pass NVNTb2472Ant1-42.38-20Pass NVNTg2412Ant1-31.92-20Pass NVNTg2472Ant1-31.18-20Pass NVNTn202412Ant1-34.99-20Pass NVNTn202472Ant1-32.63-20Pass ReportNo.:18220WC30230802Page 36 of 47 TestGraphs BandEdgeNVNTb2412MHzAnt1Ref BandEdgeNVNTb2412MHzAnt1Emission ReportNo.:18220WC30230802Page 37 of 47 BandEdgeNVNTb2472MHzAnt1Ref BandEdgeNVNTb2472MHzAnt1Emission ReportNo.:18220WC30230802Page 38 of 47 BandEdgeNVNTg2412MHzAnt1Ref BandEdgeNVNTg2412MHzAnt1Emission ReportNo.:18220WC30230802Page 39 of 47 BandEdgeNVNTg2472MHzAnt1Ref BandEdgeNVNTg2472MHzAnt1Emission ReportNo.:18220WC30230802Page 40 of 47 BandEdgeNVNTn202412MHzAnt1Ref BandEdgeNVNTn202412MHzAnt1Emission ReportNo.:18220WC30230802Page 41 of 47 BandEdgeNVNTn202472MHzAnt1Ref BandEdgeNVNTn202472MHzAnt1Emission ReportNo.:18220WC30230802Page 42 of 47 P…

Text truncated - open the document above for the full version.

ReportNo.:18220WC30230802FCCID:2BAZT10023001Page1of36 Code:AB-RF-05-b FCCTestReport Applicant:SaviControls,LLC Address: 2520MarshLane,Carrollton,TX75006, UnitedStates ProductName:Wi-FiPOEKeypad ReportDate:Nov.03,2023 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC30230802FCCID:2BAZT10023001Page2of36 Code:AB-RF-05-b Contents 1.GeneralInformation............................................................................................................................................6 1.1.ClientInformation.....................................................................................................................................6 1.2.DescriptionofDevice(EUT)..................................................................................................................6 1.3.AuxiliaryEquipmentUsedDuringTest.................................................................................................7 1.4.DescriptionofTestConfiguration..........................................................................................................7 1.5.DescriptionOfTestSetup.......................................................................................................................8 1.6.TestEquipmentList...............................................................................................................................10 1.7.MeasurementUncertainty....................................................................................................................11 1.8.DescriptionofTestFacility....................................................................................................................11 1.9.Disclaimer................................................................................................................................................12 2.SummaryofTestResults.................................................................................................................................13 3.ConductedEmissionTest................................................................................................................................14 3.1.TestStandardandLimit........................................................................................................................14 3.2.TestSetup...............................................................................................................................................14 3.3.TestProcedure.......................................................................................................................................14 3.4.TestData.................................................................................................................................................14 4.RadiationSpuriousEmissionandBandEdge.............................................................................................17 4.1.TestStandardandLimit........................................................................................................................17 4.2.TestSetup...............................................................................................................................................17 4.3.TestProcedure.......................................................................................................................................18 4.4.TestData.................................................................................................................................................19 5.MaximumPeakOutputPowerTest................................................................................................................31 5.1.TestStandardandLimit........................................................................................................................31 5.2.TestSetup...............................................................................................................................................31 5.3.TestProcedure.......................................................................................................................................31 5.4.TestData.................................................................................................................................................31 6.6dBOccupyBandwidthTest...........................................................................................................................32 6.1.TestStandardandLimit........................................................................................................................32 6.2.TestSetup............................................................................................................................................…
